Axxion AXX-209 User manual

AXX-209
5.1 HOME CINEMA CENTER WITH
MPEG4 DVD PLAYER, FM RADIO
and USB SLOT
User Manual

2
Table of content
What’s in the box? ...................................................................................................... 3
Safety Precautions ..................................................................................................... 4
Exploring the device ................................................................................................... 7
Front view ............................................................................................................... 7
Back view................................................................................................................ 7
Exploring the remote control....................................................................................... 8
Installing the device .................................................................................................. 10

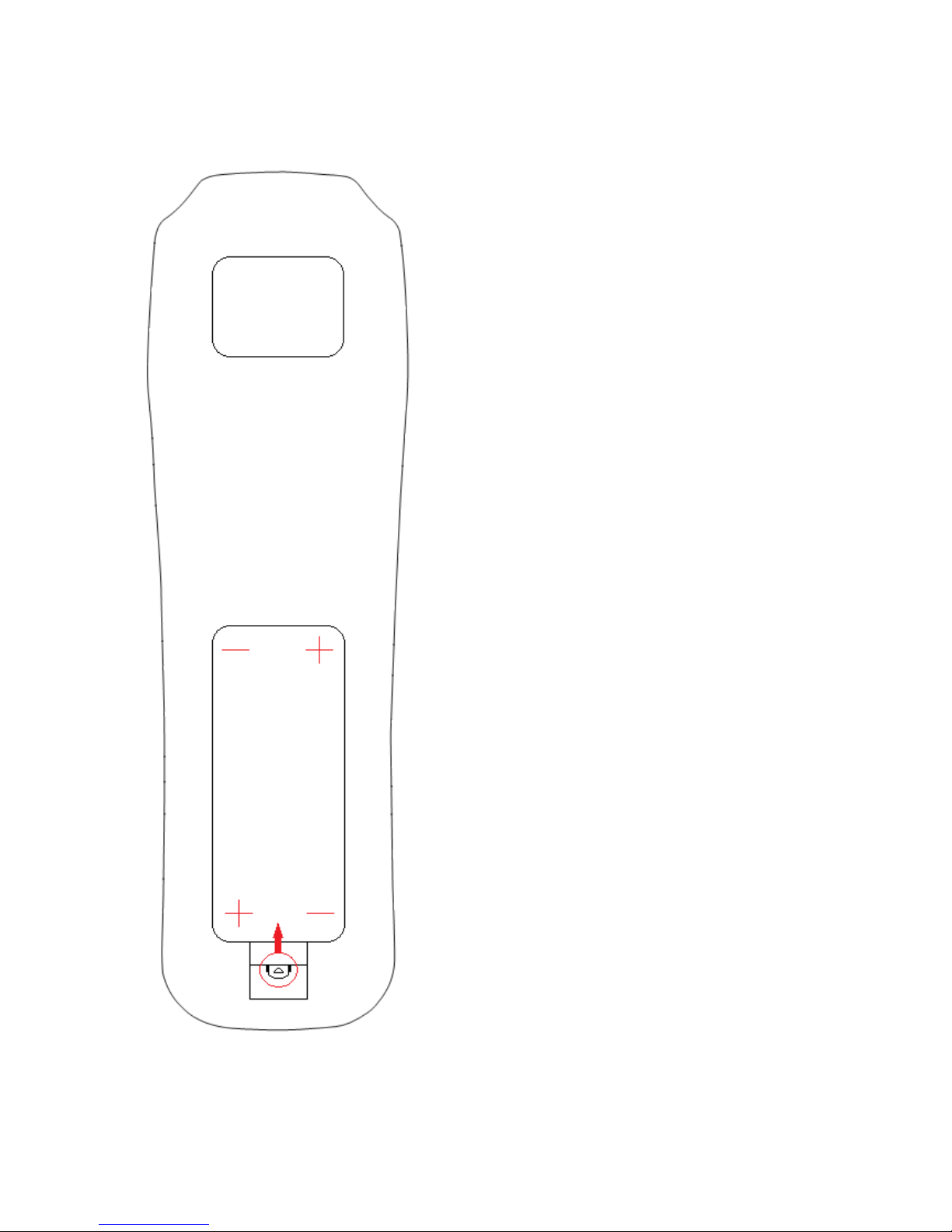

Installing the remote control...................................................................................... 12
Basic operation......................................................................................................... 13
Turning the unit on and off .................................................................................... 13
Selecting the source (Disc, USB, AUX in, FM)...................................................... 13
Adjusting the master volume................................................................................. 13
Navigating through menu’s ................................................................................... 13
Entering digits ....................................................................................................... 13
Playing a disc ........................................................................................................... 14
DVD playback ....................................................................................................... 14
CD Playback ......................................................................................................... 17
Playing a USB device ............................................................................................... 18
JPEG Disc or JPEG USB device playback............................................................... 20
AUX In mode ............................................................................................................ 21
FM Mode .................................................................................................................. 21
Other functions on the remote control ...................................................................... 22
Advanced speaker settings....................................................................................... 22
Advanced settings .................................................................................................... 23
Advanced connections.............................................................................................. 27
Primary system connections: ................................................................................ 27
Video connections in detail: .................................................................................. 28
Advanced audio connections: ............................................................................... 29
Troubleshooting........................................................................................................ 30
Service and support.................................................................................................. 30
Specifications: .......................................................................................................... 31
Personal notes:......................................................................................................... 32
End of life.................................................................................................................. 33

3
Dear customer,
Thank you for purchasing this Axxion product. Quality and usability is our top priority. In
order to let you fully enjoy this product we manufactured this product using high uality
standards, materials, components and care.
What’s in the box?
Our factory assembles the content of the box with the utmost care. If unfortunately an
accessory is missing in the box, please contact your dealer as soon as possible.
Checking the accessories supplied:
1x Main unit (DVD player)
5x Surround speaker
1x Subwoofer
1x Remote control
6x Connection cables for the speakers and subwoofer
2x AAA Batteries for the remote control
1x Audio video cable (lotus wire)
Note:
This user manual is printed prior to the product development. When a part of the product
specification must be changed to improve operability or other functions, priority is given to
the product specification itself. In such instances, the instruction manual may not entirely
match all the functions of the actual product. Therefore, the actual product and packaging,
as well as the name and illustration, may differ from the manual. The screen shown as an
example in this manual may be different from the actual screen display.
Axxion is not liable for any conse uential damage.

4
Safety Precautions
IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY BEFORE USE.
CAUTION: TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE ANY COVER
SCREWS. THERE ARE NO USER SERVICEABLE PARTS INSIDE. REQUEST A QUALIFIED
SERVICE PERSON TO PERFORM SERVICING.
This symbol indicates that there are important operating maintenance
instructions in the user manual accompanying this unit.
This symbol indicates that dangerous voltage is present within this unit
constituting a risk of electric shock or personal injury.
Keep these instructions in mind:
Do not use this unit near water.
Clean only with a slightly damp cloth.
Do not cover or block any ventilation openings. When placing on a shelf leave 5 cm (2”) free space around
the whole unit.
Install in accordance with the user manual.
Protect the power cord from being walked on or pinched, particularly at plugs, and the point where it exits
the unit. Do not place heavy items on the power cord, which may damage it. Take note that the power
cord cannot be reached and pulled by young children, avoiding injury.
Unplug this unit during lightning storms or when unused for a long period of time.
Keep the unit away from heat sources such as radiators, heaters, stoves, candles and other heat-
generating products.
WARNING! NEVER INSERT AN OBJECT INTO THE PRODUCT THROUGH VENTS OR OPENINGS. HIGH
VOLTAGE FLOWS IN THE PRODUCT AND INSERTING AN OBJECT CAN CAUSE ELECTRIC SHOCK AND/OR
SHORT INTERNAL PARTS. FOR THE SAME REASON, DO NOT SPILL WATER OR LIQUID ON THE PRODUCT.
Do NOT use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
Do not use this unit when moisture condensation may occur.
NOTE: No naked flames such as candles should be placed on the unit.

5
SAFETY PRECAUT ONS (continued)
This unit has been produced according to all current safety regulations. The following safety tips should
safeguard users against careless use and the dangers connected with such use.
Although this unit has been carefully manufactured and rigorously checked before leaving the factory, as
with all electrical appliances, it is possible for problems to develop. If you notice smoke, an excessive build
up of heat or any other unexpected phenomena, you should disconnect the plug from the mains power
socket immediately.
 This unit is a class II device. It does not re uire a grounded connection.
Ensure that the unit is sufficiently ventilated!
This unit must operate on a power source specified on the specification label. If you are not sure of the
type of power supply used in your home, consult your dealer or local power company.
The socketoutlet must be installed near the e uipment and must be easily accessible.
Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.
Keep away from rodents. Rodents enjoy biting into power cords.
Always hold the plug when pulling out the plug from the mains supply socket. Do not pull the power cord.
This can cause a short circuit.
The screen is made of plastic and can break if damage is done to it. When broken, be careful with sharp
edged plastic splinters to avoid injury.
Avoid placing the unit on any surfaces that may be subject to vibrations or shocks.
To protect the unit during a thunderstorm unplug the AC power cable and disconnect the aerial. Caution:
Do not touch the aerial (RF) connector.
When the unit is not used for long periods of time, unplug the AC power cable for safety reasons.
Take good care of the remote control, do not drop.
To clean the unit use a soft dry cloth. Do NOT use solvents or petrol based fluids. For stubborn stains, you
may use a damp cloth with dilute detergent.
The laser beam used in the CD player section may be harmful to the eyes. Do not attempt to disassemble
the cabinet. Refer servicing to ualified personnel only.
DVD / CD
Before playing, clean the DVD / CD with a cleaning cloth..
Do not expose the DVD / CD to direct sunlight or heat sources such as hot air ducts. Do not leave it in a car
parked in direct sunlight as there can be a considerable rise in temperature inside of the car.
Do not stick paper or stickers on the DVD / CD, nor scratch the DVD / CD.
After playing, store the DVD / CD in its case. Scratches, dirt or fingerprints on the DVD / CD may cause
tracking errors or skipping.
If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture
may condense on the lens inside of the DVD / CD player section. Should this occur the player will not
operate properly In this case, remove the DVD / CD and wait about an hour for the moisture to evaporate.
This DVD / CD player is designed to be played on a stable no vibration position. If you bump the set during
DVD / CD play, the music will stop or skip for a few seconds. This is normal for this type of player.

6
SAFETY PRECAUT ONS (continued)
Scratched discs
If your disc is badly scratched, it will not play. You may be able to repair the disc if you use a disc polisher.
Cleaning the Lens
If the lens becomes dirty, it may cause a skipping of sound during DVD / CD operation. Clean the lens with a
commercially available lens cleaner and blower or carefully wipe it with a soft dry cloth.
Declaration of Conformity
Products with the CE marking comply with the EMC Directive (2004/108/EC) and the Low Voltage
Directive (2006/95/EC) issued by the Commission of the European Community.
Axxion recommends using A-brand batteries for longer life and better results.
When the batteries will not be used for a few weeks or more, remove them to avoid
damage that can be caused by battery leakage or corrosion.
Battery shall not be exposed to excessive heat such as sunshine or fire.
MPORTANT NOTE:
The USB memory stick should be plugged into the unit directly. Don’t use an USB
extension cable because it can cause interference resulting in failing of data.
Where to install
Locate the unit away from direct sunlight, soft indirect lighting is recommended for
comfortable viewing. Place the unit on a sturdy platform of which the surface should be flat.
This will prevent it from falling over. Make sure the unit is located in a position where it
cannot be pushed or hit by objects, as pressure will break or damage the unit, and so that
small objects cannot be inserted into the ventilation slots or openings in the cabinet.

7
Exploring the device
Front view
Back view
1. Standby Button
2. USB Port
3. Remote Control Sensor
4. Information Display
5. Eject Button
6. Stop Button
7. Volume Knob
8. Play/Enter
9. Previous/Next
10. Disc Tray
11. Component out
12. Video out
13. FM Antenna socket
14. L/R Audio input
15. 5.1 speaker output
16. Power ON/OFF switch
17. Power cable
18. HDMI Output
19. Coaxial Output
20. S-Video Output
21. Optical Output
22. L/R Audio Output

8

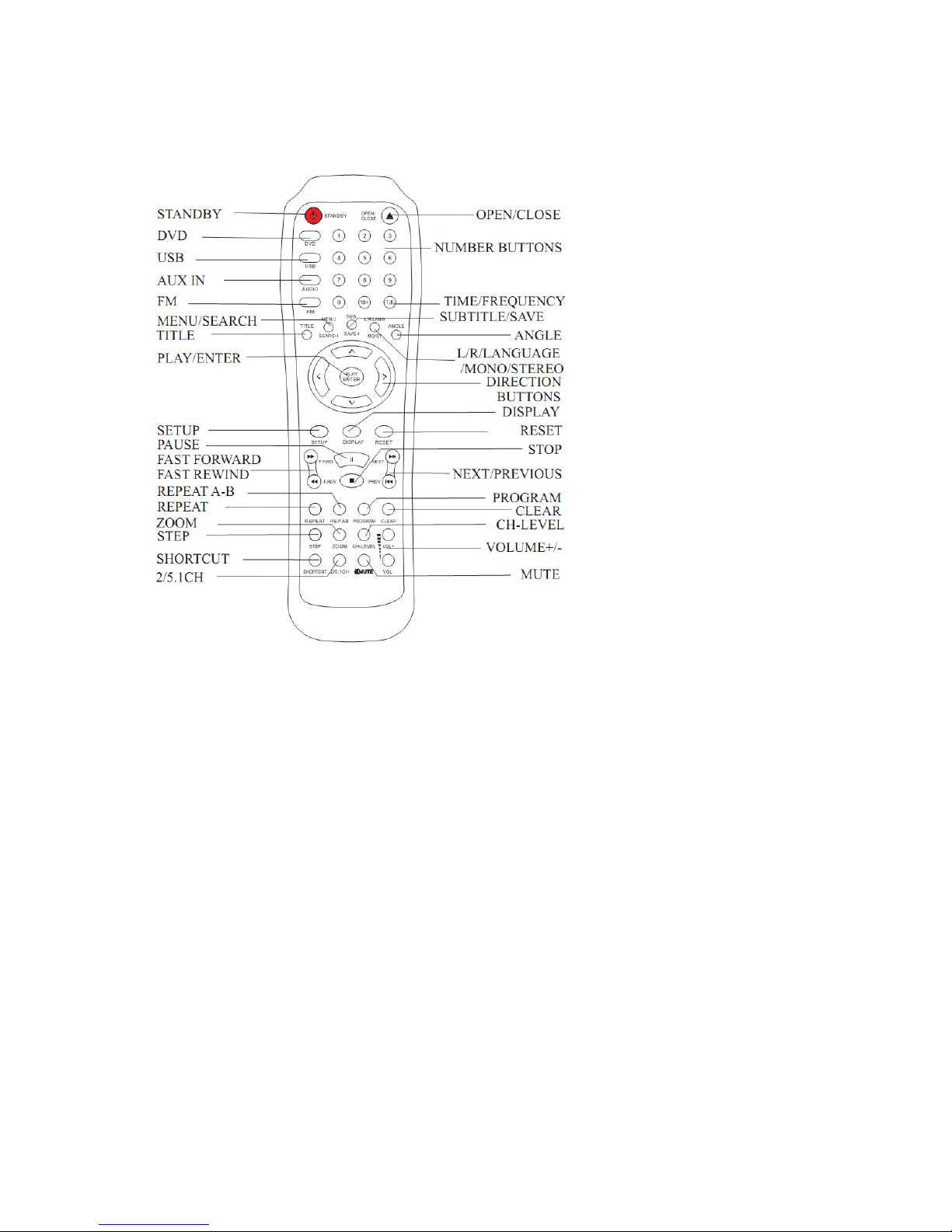

Exploring the remote control
Standby button:
Press this button to turn on the unit.
When the unit is already on, press this
button to place it in standby mode.
DVD button:
Press this button to enter DVD mode.
USB button:
Press this button to enter USB mode.
AUX N:
Press this button (audio) to enter AUX
IN mode.
FM button:
Press this button to enter FM mode.
Menu / Search button:
In DVD mode: Press this button to go
to the DVD menu. (not every disk
supports this function).
In FM mode: Press this button to
automatically search and save
channels.
Title button:
In DVD mode: Press this button to
show a title list.
Note: not every disc supports this
function.
Setup button:
Press this button to open the setup menu
Pause button:
Press this button to pause Disc / USB playback.
Fast forward button:
Press this button to fast forward disc / USB playback.
Fast rewind button:
Press this button to fast rewind disc / USB playback.
Repeat A-B button:
Press this button to set a specific part that needs to be repeated.
Repeat button:
Press this button to activate the repeat mode.
Zoom button:
Press this button to zoom (on the display).
Step button:
Press this button to play frame by frame.
Shortcut button:
Press this button to skip the warning and advertising at the beginning of a disc (not every disc supports this
function).
2 / 5.1CH button:
Press this button to select downmix 2.1CH or downmix 5.1CH.
Open / close button:
Press this button to open / close the DVD door.
Number buttons:
Press these buttons to enter numeric digits.

9
Time / Frequency button:
Press this button to display disc
information.
In FM mode press this button to enter
the fre uency.
Subtitle / Save button:
In video mode press this button to
select the subtitle (if supported).
In FM mode press this button to save
a FM fre uency.
Angle button:
Press this button to change the
viewing angle (if supported by the
media).
L/R/Language button:
During CD / VCD playback press this
button to select mono / stereo mode.
During DVD playback press this
button to select the audio language.
Direction buttons:
Press these buttons to navigate
through menus.
Display button:
Press this button to view some disc
information.
Reset button:
In DVD mode without any media inserted, press this button to reset the unit back to factory default.
Stop button:
Press this button to stop playback.
Next / Previous button:
Press this button to go the next / previous file during disc / USB playback.
Program button:
Press this button to program a playlist.
Clear button:
Press this button to erase the data that has been entered.
CH-Level button:
Press this button to set the channel level of the speakers.
Volume +/- buttons:
Press these buttons to adjust the master volume.
Mute button:
Press this button to mute the master volume.

10
Installing the device
1. Place the DVD player on a stable surface.
2. Place the speaker on a stable surface (ear height). The subwoofer should be placed on
the floor.

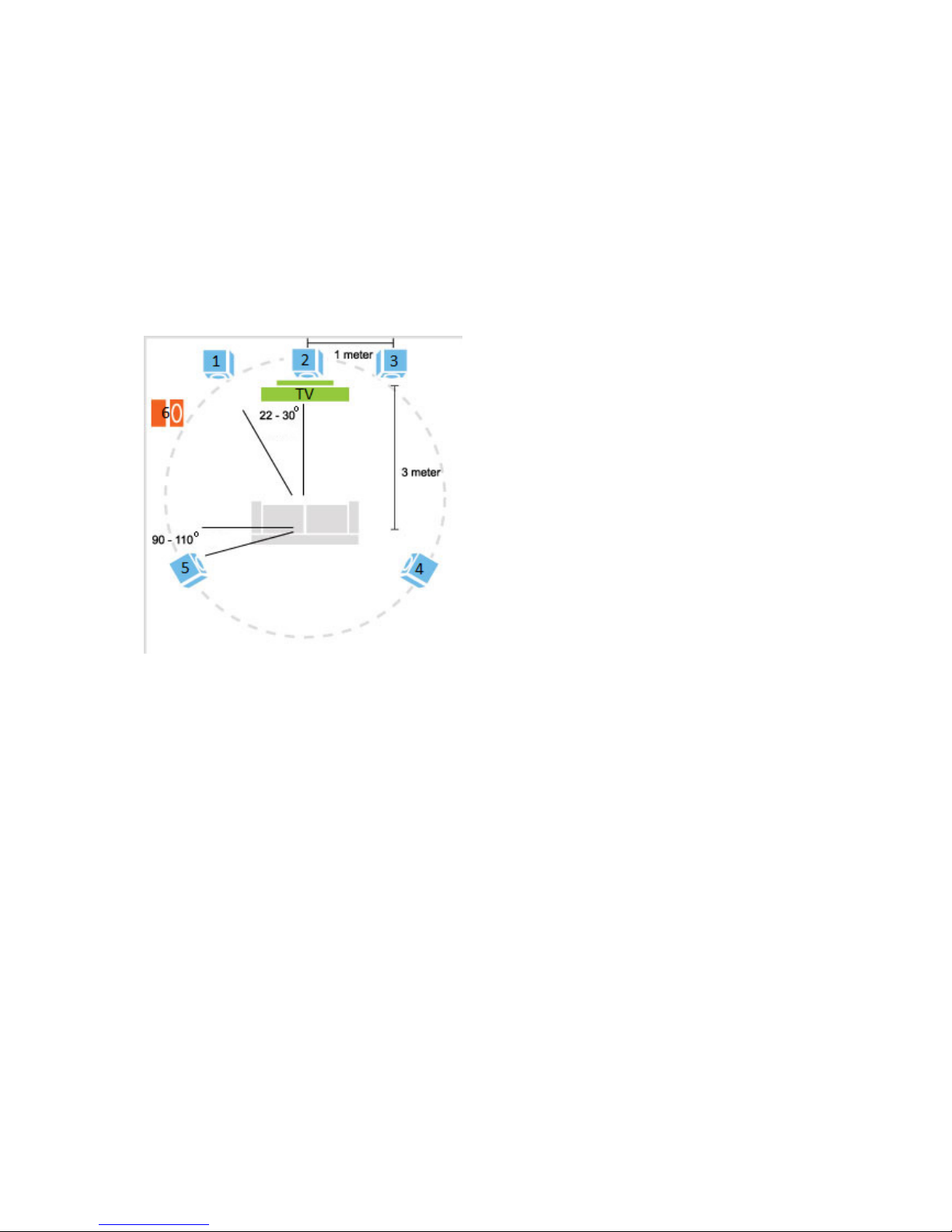

For optimal sound, the speakers should be placed under the following assembly.
Marginal note:
1: Front left speaker (FL)
2: Center speaker (Cen)
3: Front right speaker (FR)
4: Rear right speaker (SR)
5: Rear left speaker (SL)
6: Subwoofer (Sub)
3. Connect the speakers and the subwoofer to the unit’s speaker connection sockets (15),
see the picture below.
4. Connect the unit to a TV or monitor (see picture below) via the:
HDMI connection (18) note: HDMI cable is not included .
Component connection (11)
Video output (12) note: tulip cable is not included.
S-Video connection (12) note: S-Video cable is not included.
Note: In the chapter “advanced connections” you can find a detailed description about how
to connect the unit to a TV / monitor.

11
5. Connect the power cable (17) to the AC wall outlet.

12
Installing the remote control
1. Open the battery cover
2. Insert the batteries
Note: Keep the polarization of the batteries in mind.
3. Close the battery cover
Note:
The maximum operating range is approximately 7
meters

13
Basic operation
Turning the unit on and off
To turn on the main power of the unit place the power switch (16) on the back side of the
unit in on position. The unit is now in standby mode.
The unit can be turned on in two ways:
Press the standby button on the remote control.
Press the standby button (1) on the unit.
While operating you can turn the unit into standby mode in two ways:
Press the standby button on the remote control.
Press the standby button (1) on the unit.
When the unit will not be used we recommend turning off the unit by pressing the power
switch (16) on the back side of the unit in off position.
Selecting the source (Disc, USB, AUX in, FM)
To select the desired source press:
DVD on the remote control to select disc mode
USB on the remote control to select USB mode
AUDIO on the remote control to select AUX in mode.
FM on the remote control to select FM mode.
Adjusting the master volume
The master volume can be adjusted in several ways:
Press the volume + button on the remote control to increase the volume.
Turn the volume knob (7) on the unit to the right to increase the volume.
Press the volume – button on the remote control to decrease the volume.
Turn the volume knob (7) on the unit to the left to decrease the volume.
The master volume can be switched off and on by pressing the mute button on the remote
control.
Note: See chapter “advanced speaker settings” about how to individually adjust the volume
per speaker.
Navigating through menu’s
Use the direction buttons on the remote control to navigate through the menus and
settings. Press the play/enter button on the remote control to enter / confirm the settings or
to select the items.
Entering digits
Use the numeric buttons on the remote control to enter digits if needed. Press the clear
button on the remote control to clear the input field.
Use the 10+ key on the remote control to enter digits that are higher than 9.
For example: To enter 25; press 0+ twice and 5 once .

14
Playing a disc
Turn the unit on
1. Enter DVD mode by pressing the DVD button on the remote control.
2. Press the eject button on the remote control or the eject button on the main unit (5)
to open the disc tray.
3. Place the disc in the disc tray.
4. Press the eject button on the remote control or the eject button on the main unit (5)
to close the disc tray.
The unit will now start to read the disc content and start playing the disc content
automatically.
5. If there are legal notices or if there is advertising at the beginning of a disc it is
possible to skip them by pressing the shortcut button on the remote control.
Note: Not every disc supports this function.
DVD playback
Stop playback
During playback press the stop button on the remote control or the stop button on the main
unit (6) to temporary stop the playback. Press the play/enter button on the remote control
or the play button on the main unit (8) to resume the playback.
To completely stop the playback, press the stop button on the remote control or the stop
button on the main unit (6) twice.
Pause playback
During playback press the pause button on the remote control to pause the playback. Press
the pause button on the remote control again to resume normal playback.
Fast forward
During playback press the fast forward button on the remote control to fast forward the
playback. Press the play/enter button on the remote control to resume normal playback.
Rewind
During playback press the rewind button on the remote control to rewind the playback.
Press the play/enter button on the remote control to resume normal playback.
Next chapter
During playback press the next button on the remote control or the next button on the main
unit (9) to go to the next chapter.
Previous chapter
During playback press the previous button on the remote control or the previous button on
the main unit (9) to go back to the previous chapter.
Change the audio language
During playback press the L/R/LANG button on the remote control to change the audio
language.
Note: Not every disc has multiple languages available.

15
Adjusting Subtitles
During playback mode press the sub. button on the remote control to change the subtitle
language.
Note: Not every disc supports this function.
Repeat function
During playback press the repeat button on the remote control to activate the repeat
function.
The display will show the active repeat mode:
Chapter: repeat the current chapter
Title: repeat the current title
All: repeat the complete disc content
Repeat a specific section
It is possible to repeat a specific part of a disc. During playback press the REP.AB button on
the remote control once to set the begin point of the part that needs to be repeated. When
this point is set A will be shown. Press the REP.AB button on the remote control again to
set the end point of the part that needs to be repeated. When this point is set A-B will
be shown. To cancel the repeat A-B mode, press the REP.AB button on the remote control
again. The unit will now resume normal playback.
Zoom function
During playback press the zoom button on the remote control to zoom. The available zoom
formats are: 2 times, 3 times, 4 times, ½ time and ¼ time.
Playback frame by frame
During playback press the step button on the remote control to freeze the current frame.
Press the step button on the remote control to go to the next frame. Press the play/enter
button on the remote control to resume normal playback.
Multi-angle
DVD videos, if recorded using more than one video track, may allow viewers to view the
recording or film from a different camera angle. The term “multi-angle” describes the filming
production method of recording different angles of the same scene by different cameras.
If a multi-angle is available the multi-angle logo will be shown. Press the angle button on the
remote control to change the viewing angle, the multi-angle logo will not be shown if this
option is set to off in the advanced settings menu.

16
Program function
It is possible to create a playlist of certain fragments of a disc and play it in a desired order.

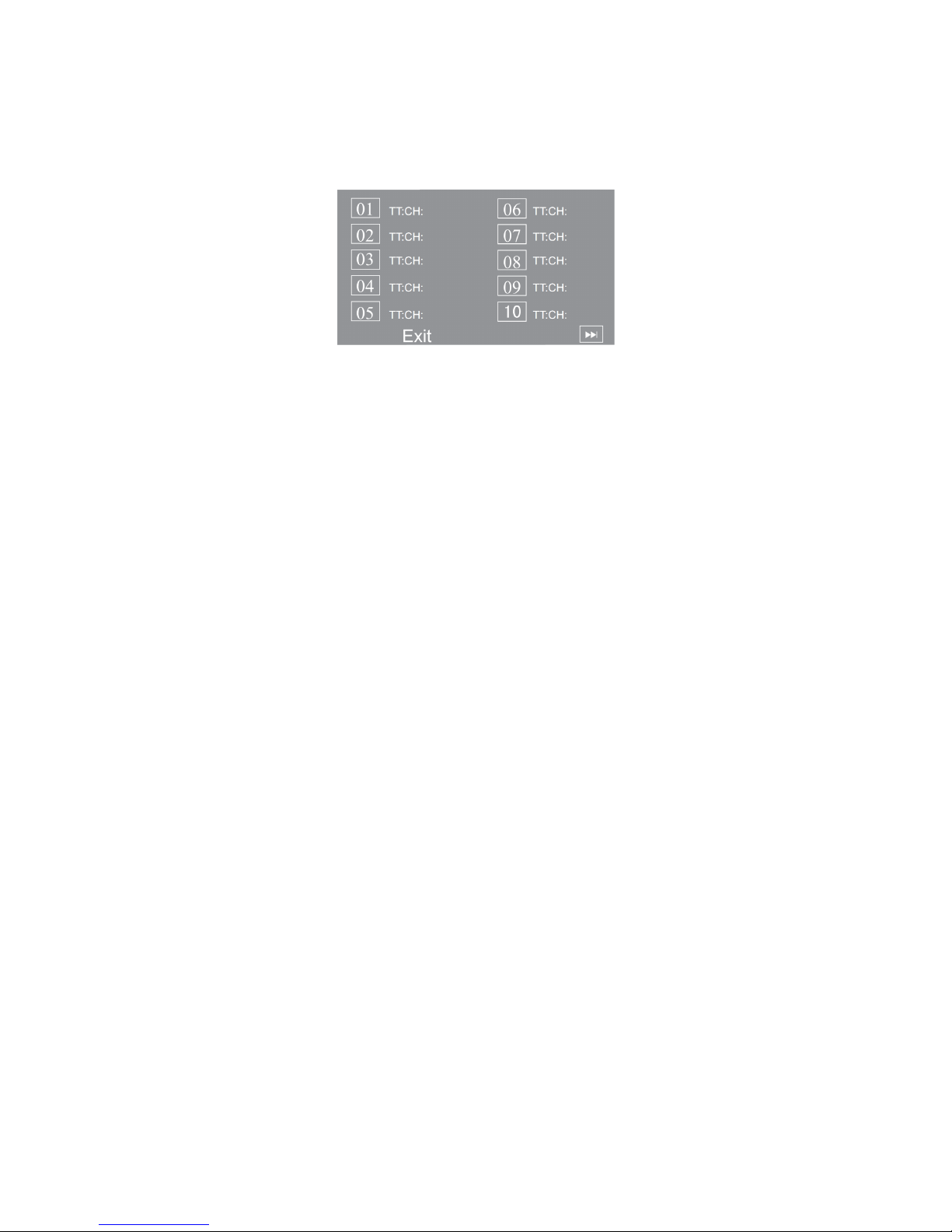

During playback press the program button on the remote control to open the program
menu.
Enter the title number in the TT box.
Enter the chapter number in the CH box.
Once the programming is complete, press start to activate the playlist.
To cancel the playlist press the program button on the remote control, the program menu
will open. In this menu press stop to cancel the playlist. Press exit to close the menu.
Open the root menu
During playback press the menu button on the remote control to open the root menu.
Notes:
Not every disc supports this function.
During playback of the legal notices or advertising it is possible that this function is
blocked.
Title list
DVD discs that contain more than one movie, background data, and /or songs have more
than 1 title. Sections under the title are called Chapters. Chapter can contain musical or
video clips. During playback press the title button on the remote control to open the title list.
Navigate to the desired title and press the play/enter button on the remote control to select
the desired title.
Note: Not every disc supports this function.
Disc status indicator
During playback press the display button on the remote control to display the most
important disc information like: title elapsed, title remain, chapter elapsed and chapter
remain.
Detailed playing information
During playback press the T/F button on the remote control open the detailed disc
information. While navigating through the menu press the play/enter button on the remote
control to adjust the settings. Press the T/F button on the remote control to close the menu.

17
CD Playback
Stop playback
During playback press the stop button on the remote control or the stop button on the main
unit (6) to temporary stop the playback. Press the play/enter button on the remote control
or the play button on the main unit (8) to resume the playback.
To completely stop the playback, press the stop button on the remote control or the stop
button on the main unit (6) twice.
Pause playback
During playback press the pause button on the remote control to pause the playback. Press
the pause button on the remote control again to resume normal playback.
Fast forward
During playback press the fast forward button on the remote control to fast forward the
playback. Press the play/enter button on the remote control to resume normal playback.
Rewind
During playback press the rewind button on the remote control to rewind the playback.
Press the play/enter button on the remote control to resume normal playback.
Next track
During playback press the next button on the remote control or the next button on the main
unit (9) to go to the next track.
Previous track
During playback press the previous button on the remote control or the previous button on
the main unit (9) to go back to the previous track.
Changing the audio output
While playing a CD disc, press the L/R/LANG button on the remote control to select one of
the following audio playing modes: Mono L, Mono R, Mix-mono and Stereo.
Repeat function
During playback press the repeat button on the remote control to activate the repeat
function.
The display will show the active repeat mode:
Track: repeat current track
All: repeat the complete disc content
Program: Repeat the program, this function is only available when a program is active

18
Repeat a specific section
It is possible to repeat a specific part of a disc. During playback press the REP.AB button on
the remote control once to set the begin point of the part that needs to be repeated. When
this point is set A will be shown. Press the REP.AB button on the remote control again to
set the end point of the part that needs to be repeated. When this point is set A-B will
be shown. To cancel the repeat A-B mode, press the REP.AB button on the remote control
again. The unit will now resume normal playback.
Program function
It is possible to create a playlist of certain fragments of a disc and play it in a desired order.
During playback press the program button on the remote control to open the program
menu.
Enter the desired track number in the box.
Once the programming is complete, press start to activate the playlist.
To cancel the playlist press the program button on the remote control, the program menu
will open. In this menu press stop to cancel the playlist. Press exit to close the menu.
Jump to function (MP3 files only)
Press the T/F button on the remote control. Now you can enter the desired track number
where you want to jump to. Press play/enter to confirm.
Press the T/F button on the remote control twice, now you can enter the desired time within
the current track where you want to jump to.
Disc status indicator (Audio files only)
During playback press the display button on the remote control to display the most
important disc information like: track remain time and directory remain.
When a MP3/WMA disc is inserted the track titles will be displayed. Use the direction
buttons to select a track.
Playing a USB device
Turn the unit on.
1. Insert the USB device into the USB port on the main unit (2).
2. Enter USB mode by pressing the button USB on the remote control.
The unit will now start to read the USB content and starts playing the USB content
automatically.
Stop playback
Press the stop button on the remote control or the stop button on the main unit (6) to stop
the playback.

19
Pause playback
During playback press the pause button on the remote control to pause the playback. Press
the pause button on the remote control again to resume normal playback.
Fast forward
During playback press the fast forward button on the remote control to fast forward the
playback. Press the play/enter button on the remote control to resume normal playback.
Rewind
During playback press the rewind button on the remote control to rewind the playback.
Press the play/enter button on the remote control to resume normal playback.
Next track
During playback press the next button on the remote control or the next button on the main
unit (9) to go to the next track.
Previous track
During playback press the previous button on the remote control or the previous button on
the main unit (9) to go back to the previous track.
Changing the audio output
While playing a USB device, press the L/R/LANG button on the remote control to select one
of the following audio playing modes: Mono L, Mono R, Mix-mono and Stereo.
Repeat function
During playback press the repeat button on the remote control to activate the repeat
function.
The display will show the active repeat mode:
Single: play current song, once the song is at his end the playback stops.
Repeat one: repeat current track continually
Repeat folder: repeat all track in the current folder.
Repeat a specific section
It is possible to repeat a specific part of a disc. During playback press the REP.AB button on
the remote control once to set the begin point of the part that needs to be repeated. When
this point is set A will be shown. Press the REP.AB button on the remote control again to
set the end point of the part that needs to be repeated. When this point is set A-B will
be shown. To cancel the repeat A-B mode, press the REP.AB button on the remote control
again. The unit will now resume normal playback.
Jump to function (MP3 files only)
Press the T/F button on the remote control, now you can enter the desired track number
where you want to jump to.
Press the T/F button on the remote control twice, now you can enter the desired time within
the current track where you want to jump to.

20
JPEG Disc or JPEG USB device playback
To play a disc with JPEG content:
Turn the unit on
1. Enter DVD mode by pressing the DVD button on the remote control.
2. Press the eject button on the remote control or the eject button on the main unit (5)
to open the disc tray.
3. Place the disc in the disc tray.
4. Press the eject button on the remote control or the eject button on the main unit (5)
to close the disc tray.
The unit will now start to read the disc content and start playing the disc content
automatically.
To play a USB device with JPEG content:
Turn the unit on.
1. Insert the USB device into the USB port on the main unit (2).
2. Enter USB mode by pressing the button USB on the remote control.
The unit will now start to read the USB content and start playing the USB content
automatically.
Stop playback
Press the stop button on the remote control or the stop button on the main unit (6) to stop
the playback and go back to the root menu.
Pause playback
During playback press the pause button on the remote control to pause the playback. Press
the pause button on the remote control again to resume normal playback.
Next picture
During playback press the next button on the remote control or the next button on the main
unit (9) to go to the next picture.
Previous picture
During playback press the previous button on the remote control or the previous button on
the main unit (9) to go back to the previous picture.
Zoom function
During picture playback press the zoom button on the remote control to activate zoom
mode.
To zoom in press the fast forward button on the remote control.
To zoom out press the fast backward button on the remote control.
To cancel the zoom mode press the zoom button on the remote control.
Rotate pictures
Use the navigation buttons on the remote control to rotate the pictures.
