AYA ACV5063IX User manual

ACV5063IX
ELECTRIC COOKER
INSTRUCTIONS FOR USE
EN

CONTENT
IMPORTANT SAFTY WARNING
INSTALLATION
SAFTY INFORMATION
PRODUCT DESCRIPTION
OPERATION INSTRUCTIONS
CLEAN AND MAINTENANCE
TROUBLE SHOOTING
TECHNICAL CHARACTERISTICS
-2-
-10-
-1
-1
-2
-28-
-
-24-
9-
20-
7-
7-

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY!
PLEASE READ CAREFULLY THIS MANUEL BEFORE
YOUR FIRST USE AND SAVE IT FOR FUTURE
REFERENCE.
Important Safety Warning
THESE WARNINGS ARE PROVIDED IN THE
INTEREST OF SAFETY. PLEASE READ THEM
CAREFULLY BEFORE INSTALLING OR
USING THE APPLIANCE.To maintain the
of this appliance, we recommend:
store where you buy the cooker
Parts
Always use original Spare
To maintain the EFFICIENCY and SAFETY
Call only the Service Centers authorized by
!
1.This appliance is intended for non-professional
use within the home.
2.Before using the appliance, read the instructions
in this owner’s manual carefully since you should
find all the instruction you require to ensure safe
installation, use and maintenance. Always keep this
owner’s manual close to hand since you may need
to refer to it in the future.
3.After remove the packing, check that the
appliance is not damaged. If you have any doubts,
do not use the appliance, contact your nearest
Service Centre of the store where you buy the



EN-2

appliance. Never leave the packing components
(within the reach of children since they are a source
of potential danger.
4.The appliance must be installed only by a
qualified person in compliance with the instructions
provided. The manufacturer declines all
responsibility for improper installation which may
harm persons and animals and damage property.
5.This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not
be made by children without supervision.
6.The electrical safety of this appliance can only be
guaranteed if the cooker is correctly and efficiently
earthed, in compliance with current regulations on
electrical safety. Always ensure that the earthing is
efficient; if you have any doubts call in a qualified
electrician to check the system. The manufacturer
declines all responsibility for damage resulting from
a system which has not been earthed.
7.Check that the electrical capacity of the system
and sockets will support the maximum power of the
EN-3

hob, as indicated on the rating label. If you have
any doubts, call in a qualified technician.
8.When the cooker is first used an odour may be
emitted, this will cease after a period of use. When
first using the cooker, ensures that the room is well
ventilated (e.g. open a window or use an extractor
fan) and that persons who may be sensitive to the
odour avoid any fumes. It is suggested that any
pets be removed from the room until the smell has
ceased. This odour is due to temporary finish on
oven liners and elements and also any moisture
absorbed by the insulation.
9.Ensure that the appliance is switched off before
maintenance, by switching off the main switches
and turning all knobs to “OFF” position.
10.The openings and slots used for ventilation and
dispersion of heat on the rear and below the control
panel must never be covered.
which it was expressly designed. Any other use is
considered to be improper and consequently
dangerous. The manufacturer declines all
responsibility for damage resulting from improper
and irresponsible use.
EN-4
11.This appliance must be used for the purpose for

when using electrical appliances.
The followings are of particular importance:
Do not touch the appliance when your hands or
feet are wet.
Do not use the appliance barefooted.
Never allow the Mains Cable to be stretched,
pulled or damaged if the cooker is moved for
cleaning etc.
Do not use the cooker if the Mains Cable is
damaged, consults a qualified electrician.
Do not allow the cooker to be used unsupervised
by children or persons unfamiliar with it.
Do not grill to open the door.
cooker and allow it to cool down before carrying out
any cleaning operations etc.
surfaces.
cookware with uneven or deformed bottoms on the
burners or on the electrical plates.
pans etc. in order to avoid splashing or spillage of
hot oil. They should not be used unattended since
overheated oil may boil over and could also ignite.






EN-5
12.A number of fundamental rules must be followed
13.Always switch off the electrical supply to the
14.Danger of fire: do not store items on the cooker
15.To avoid accidental spillage do not use
16.Special care should be taken when using chip

heat for considerable periods after switching off.
Care should, therefore, be taken when touching
these areas before they have completely cooled
down.
gasoline, etc. near the appliance when it is in use.
hob, keep the supply cord away from the hot parts.
when the appliance is not in use. Also make all
potentially dangerous parts of the appliance, safe,
above all for children who could play with the
appliance.
elements and some parts of the oven door become
extremely hot. Make sure you don't touch them and
keep children well away.
EN-6
17.Parts of this appliance, cooking surfaces, retain
18.Never use flammable liquids such as alcohol or
19.When using small electric appliances near the
20.Make sure the knobs are in its “OFF” position
21.When the appliance is in use, the heating
22 . If you use the power code for single phase,
the minimum cross-sectional area is 4mm²
(3G 4.0mm²). For three phases, the
cross-sectional area is 2.5 mm² (5G 2.5mm²) or
4mm²(4G 4.0mm²) . The power code type should
be H05RR-F,H05RN-F, H07RN-F.

scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of
the glass.
before opening and the hob surface should be
allowed to cool before closing the lid.
to avoid the possibility of electric shock. (If the hob
surface is of glass-ceramic or similar material and
protects live parts.)
means of an external timer or separate
remote-control system.
fat or oil can be dangerous and may result in fire.
NEVER try to extinguish a fire with water, switch off
the appliance and then cover flame e.g. with a lid or
a fire blanket.
the manufacturer of the cooking appliance or
indicated by the manufacturer of the appliance in
the instructions for use as suitable or hob guards
incorporated in the appliance. The use of
inappropriate guards can cause accidents.
EN-7
23.Do not use harsh abrasive cleaner or sharp metal
24.Any spillage should be removed from the lid
25.If the surface is cracked, switch off the appliance
26.A steam cleaner is not to be used.
27.The appliance is not intended to be operated by
28.WARNING: Unattended cooking on a hob with
29.WARNING: Use only hob guards designed by

parts become hot during use.
elements.
away unless continuously supervised.
should be taken to avoid touching heating elements
inside the oven.
sides, make sure they are in a horizontal and stable
position.
incorporated in the fixed wiring in accordance with
the wiring rules.
spaces with dimensions, the method of fixing and
how the appliance is to be fixed to its support,
thanks to refer to the section “INSTALLATION”.
thanks to refer to the section “ELECTRICAL
CONNECTION”.
replacement and the type reference of the
luminaire, thanks to refer to the section “Blub
Replacement”.
EN-8
30.WARNING: The appliance and its accessible
31.Care should be taken to avoid touching heating
32.Children less than 8 years of age shall be kept
33.During use the appliance becomes hot. Care
34.Place the tray and grill at the same level on both
35.The means for disconnection must be
36.Regarding the instructions for the all necessary
37.Regarding the method of the cables’ connection,
38.Regarding the instructions for the blub

before opening. The hob surface should be allowed
to cool before closing the lid.
switched off before replacing the lamp to avoid the
possibility of electric shock.
metal scrapers to clean the oven door glass since
shattering of the glass.
EN-9
39.Any spillage should be removed from the lid
40.WARNING: Ensure that the appliance is
41.Do not use harsh abrasive cleaners or sharp
42.These surfaces can get hot.
44.You must grill with closed door.
they can scratch the surface, which may result in
43.Young children should be kept away.
ATTENTION! HOT SURFACE. The
accessible surfaces may be hot during use.
CAUTION: The cooking process has to be
supervised. A short term cooking process has to
47.The appliance must not be installed behind a
decorative door in order to avoid overheating.
45.
46.
be supervised continuously.

Installation
The following instructions should be read by a qualified
technician to ensure that the appliance is installed,
regulated and technically serviced correctly in compliance
with current regulations.
Important: remember to disconnect the appliance
from electricity by turn off the mains before
regulating the appliance or carrying out any
maintenance work.
Positioning
Important: The hob should never be installed in p
roximity of a door access. People o pening and closing
the door could come into contact with pots or pans
cooking on the hob.
This unit may be installed and used only in permanently
ventilated rooms:
Unpacking
a) Be careful when unpacking and installing the appliance.
Sharp edges might cause accidents.
b) The oven is heavy and care must be taken when
moving it. Ensure that all packing, both inside and
outside the cooker, has been removed before the oven
is used.
c) Unpack the oven from the carton, check and make sure
it has not been damaged in any way. If you have any
doubts, do not use it, contact the service center or where
you buy the oven.
EN-10

Installation
The cooker is desig ned to fit between kitchen cabinets.
The space either side need only be sufficient to allow
withdrawal of the cooker for servicing. It can be used with
cabinet one side or both as well as in a corner setting. It
can also be used free-standing.
The appliances can be inst alled next to furniture units
which are no taller than the top of the cooker ho bs. If
the cooke r is p laced touching walls or sides of
neighboring ca binets, these must be
of withstanding
a temperature rise of 50° C above
temperature. For a correct installation of the cooker
b) Kitchen cabinets installed next to the cooker that are
least 20cm from the edge of the hobs.
in the installation manual for the hoods themselves and in
any case at a minimum distance of 65cm.
d) Place the wall cabinets adjacent to the hood at a
minimum height of 42cm from the hobs as indicated in

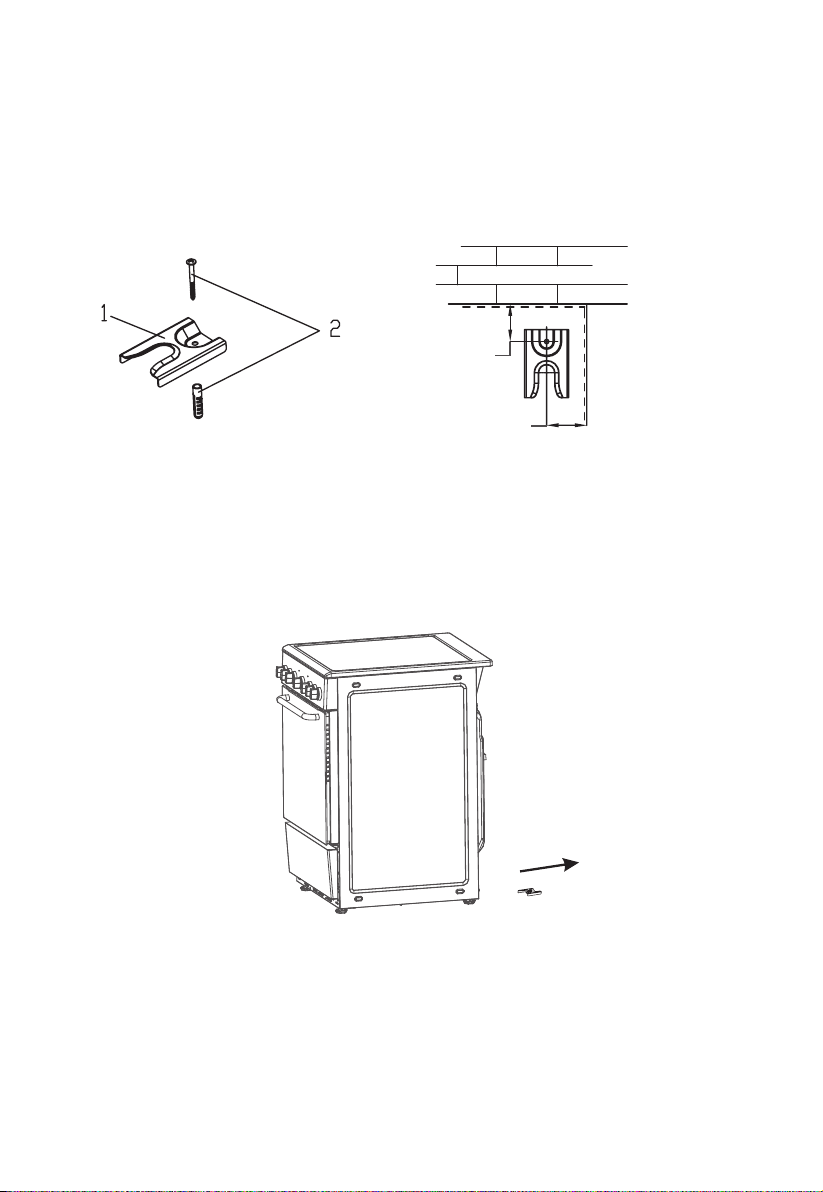

figure 1.
e) The hoods must be installed according to the
requirements in the hood handbook.
f) Should the cooker be installed beneath a wall ca binet,
the latter should be situated at least 70cm away from the
hobs as indicated in figure 1.
g) The cut-out for the cooker cabinet should have the
dimensions indicated in the figure 1.
h) The wall in coontact with the back of the cooker must be
of flameproof material.
capable e room
the following precautions must be followed:
EN-11
taller than the top of the cooker hobs must be situated at
a) The cooker may be located in a kitchen, but not in a
c) Hoods mu st be installe d according to the requirements
bathroom or shower room.

Figure
1
1
Cooker Hood
Min.65cm.(With Hood)
Min.70cm.(Withot Hood)
Min.42cm.
Min.42cm.
Leveling Your Appliance
Take out of the 4 cooker feet from oven cavity, which be
packed together with backing rack, and then screw them
into the 4 plinth in lower part of cooker. These feet level of
f the oven when necessaryy. The height of the cooker can
be adjusted by means of adjustable feet in the plinth.
Adjust the feet by tilting the cooker from the side. Then
install the product into position. It is essential that the
cooker be standing level before installation.
Safety reminding
Caution,possibility of tilting
Anti-tip restraints
WARNING:In order to prevent tipping of the
appliance,this stabilising means must
be
installed.Refer to instructions for installation.
EN-12

Figure 2 Figure 3
Cabinet side
50mm
50mm
Back Wall
B
A
After fix anti-tilt bracket, push the electric cooker inside
cabinet as show in Figure 4. For correct installation, the
rear and right foot of cooker would be clipped by the anti-
tilt bracket.
Figure 44
Push
Warning: In order to prevent tipping of the cooker, the anti-
tilt bracket must be installed with cooker. To install Anti-tilt
bracket, use screwdriver to mount the anti-tilt bracket (1)
with screws (2) to the ground, as shows in Figure 3.
Install Anti-tilt Bracket
EN-13

1. Open the terminal board by inserting a screwdriver
into the side tabs of the power code cover. Use the
screwdriver as a lever by pushing it down to open the
cover as below:
2. Connect the electricity follows the diagram as printed in
the surface of power code cover.
3. Fasten the supply cable in place with the clamp and
close the cover of the terminal board.
Note: The red electricity indicator on conntrol panel will
illuminate once connect to electricity.
Electrical connection
WARNING –THIS APPLIANCE MUST BE EARTHED.
Power supply voltage and frequency:
The electric cooker without a power supply cable. The
cooker is designed to operate on an electricity supply
which conforms to the electrical data shown on the
Rating label. The cooker can be connected to the mains
only after removing the back panel of the cooker itself
with a screwdriver.
Note: the following installation procedure must be carried
out by a qualified electrician. For the installation of the
feeding cable carry out the following operations:
220-240V~/380-415V
3N~,50-60Hz
EN-14

Remark:
The appliance is supplied by a set of terminals for
permanently fixed wiring or fitted with supply cord.The 3
alternative connection ways as below:
1
，220-240V~: power cord requirements: wire
diameter 3G 4.0mm²at least; cord type:
H05RR-F, H05RN-F, H07RN-F. The conductive
sheet connection method as below:
2, 380V-415V 2N~: power cord requirements: wire
diameter 4G 4.0mm²at least; cord type:
H05RR-F, H05RN-F, H07RN-F. The conductive
sheet connection method as below:
EN-15

voltage wiring cable type
L,L1,L2,L3 =Phase , N=Neutr al, PE,E =Earth
Important: The power cable must be positioned so that no
point reaches a temperature above 50 ° C .
3, 380-415V 3N~: power cord requirements: wire
diameter 5G 2.5mm²at least; cord type:
H05RR-F, H05RN-F, H07RN-F. The conductive
sheet connection method as below:
EN-16

Saafety Informmation
When use propperly your appliance is completely safe
but as with any electrical product there are certain
precautions that must be observed.
PLEASE READ THE PRECAUTIONS BELOW BEFORE
USING YOUR APPLIANCE.
Always
_ Turn controls OFF when you have finished cooking and
when not in use.
_ Stand back when opening an oven door to allow any
build up of steam or heat to disperse.
_ Use dry good quality oven gloves when removing items
from the oven/grill.
_ Place pans centrally over the hotplate making sure
handles are kept away from the edge of the hob and
cannot become heated by other hot plate/pans.
_ Take care to avoid heat/steam burns when operating the
controls.
_ Turn off the el tricity supply before cleaning and allow
the appliance to cool.
_ Make sure the shelves are in the correct position before
switching on the oven.
_ Take care when removing items from the grill when the
lower oven is on as the contents will be hot.
_ Keep the appliance clean, as a build up of grease or fat
from cooking can cause a fire.
_ Follow the basic principles of food handling and hygiene
to prevent the possibility of bacterial growth.
_ Keep ventilation slots clear of obstructions.
_ Refer servicing to a qualified appliance service engineer.
_ Take care to avoid touching heating elements inside
the oven, as during use the oven becomes hot.
Never
_ Never line the interior of the oven with foil as this may
cause the appliance to overheat.
ec
EN-17

_ Never leave children unsupervised where a cooking
appliance is installed as all surfaces will be hot during
and after its use.
_ Do not allow children or persons who are not familiar
with the appliance to use it, without supervision.
_ Never allow anyone to sit or stand on any part of the
appliance.
_ Never store items above the appliance that children may
attempt to reach.
_ Never leave anything on the hob surface when
unattended and not in use.
_ Never remove the oven shelves whilst the oven is hot.
_ Never heat up unopened food containers as pressure
can build up causing the container to burst.
_ Never store chemicals/food stuffs, pressurized
container in or on the appliance, or in cabinets
immediately above or next to the appliance.
_ Never place flammable or plastic items on or near the
hob.
_ Never fill a deep fat frying pan more than 1/3 full of oil, or
use a lid.
DO NOT LEAVE UNATTENDED WHILE COOKING.
_ Never use the appliance as a room heater.
_ Never use the grill to warm plates.
_ Never dry any items on either the hob or oven doors.
_ Never install the appliance next to curtains or other soft
furnishings.
_ Never use steam cleaners.
EN-18

P
r
A. C
B. Vi
C. C
D. B
E. B
F.
r
oduc
t
ooktop
tro Ceram
ontrol Panel
aking Pan
aking Rack
Adjustable F
t
Des
c
eet
c
ription
SAFETY ADVICE IN CASE OF A CHIP-PAN FIRE
In the event of a chip pan fire or any other pan fire.
1. TURN OFF THE COOKER APPLIANCE AT THE WALL
SWITCH.
2. COVER THE PAN WITH A FIRE BLANKET OR DAMP
CLOTH, this will smother the flames and extinguish the
fire.
3. LEAVE THE PAN TO COOL FOR AT LEAST 60 MINUTES
BEFORE MOVING IT. Injuries are often caused
by picking up a hot pan and rushing outside with it.
NEVER USE A FIRE EXTINGUISHER TO PUT OUT A PAN
FIRE as the force of the
extinguisher is likely to tip the pan over! Never use
water to extinguish oil or fat fires!
EN-19
