Tricity Bendix SE 211 Product guide

GB
ELECTRIC COOKER
SE211
OPERATING & INSTALLATION
INSTRUCTIONS

3
WARNINGS
It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred, always ensure that the book is left with
the appliance in order that the new owner can get to know the functions of the appliance and
the relevant warnings.
These warnings are provided in the interest of safety. You MUST read them carefully before
installing or using the appliance.
Installation
• This cooker must be installed by qualified
personnel, according to the manufacturer’s
instructions and to the relevant British
Standards.
• This cooker is heavy. Take care when moving
it.
• Remove all packaging before using the cooker.
• Ensure that the electrical supply complies
with the type stated on the rating plate.
• Do not attempt to modify the cooker in any
way.
Child Safety
• This cooker is designed to be operated by
adults. Do not alow children to play near or
with the cooker.
• The cooker gets hot when it is in use and
retains their heat for a long period after use.
Children should be kept away until it has
cooled.
• Children can also injure themselves by pulling
pans or pots off the cooker.
During use
• This cooker is intended for domestic cooking
only. It is not designed for commercial or
industrial purposes.
• Do not use this cooker if it is in contact with
water. Do not operate the cooker with we
t
hands.
• The grill pan will become hot during use,
always use oven gloves when removing o
r
replacing a hot grill pan.
• During use the appliance becomes hot. Care
should be taken to avoid touching heating
elements inside the oven.
• Ensure the control knobs are in the ‘OFF’
position when not in use.
• When using other electrical appliances, ensure
the cable does not come into contact with the
hot surfaces of the cooker.
• Unstable or misshapen pans should not be
used on the hob hotplates as unstable pans
can cause an accident by tipping or spillage.
• Never leave the cooker unattended when
cooking with oil and fats.
• This cooker should be kept clean at all times.
A build-up of fats or foodstuffs could result in a
fire.
• Only clean this oven in accordance with the
instructions.
• Never use plastic dishes in the oven or on the
hob hotplates. Never line any part of the oven
with aluminium foil.
• Always ensure that the oven vent, which is
located at the centre back of the hob, is left
unobstructed to ensure ventilation of the oven
cavity.
• Perishable food, plastic items and aerosols
may be affected by heat and should not be
stored above the cooker.
Service
• This cooker should only be repaired or
serviced by an authorised Service Engineer
and only genuine approved spare parts should
be used.
Environmental Information
• After installation, please dispose of the
packaging with due regard to safety and the
environment.
• When disposing of an old appliance, make it
unusable, by cutting off the cable.
The symbol on the product or on its
packaging indicates that this product may not
be treated as household waste. Instead it shall
be handed over to the applicable collection
point for the recycling of electrical and
electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent
potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. For more detailed
information about recycling of this product,
please contact your local city office, your
household waste disposal service or the shop
where you purchased the product.
Y
our safety is of paramount importance.
Therefore, if you are unsure about any of the
meanings of these WARNINGS, contact the:
Customer Care Departement
Telephone: [phone]

4
CONTENTS
Instructions for the Installer
Tehnical features
Installation
Location
Electrical connections
Instructions for the User
Use and care
Before the first use of the oven
Electric oven
Oven function control knob
Cooking in the oven
Grilling
Hints and tips
Electric hotplates
Hints and tips
Maintenance and cleaning
Something Not Working
Service and spare parts
Guarantee Conditions
5
6
6
7
8
9
10
10
10
11
11
12
13
14
16
17
18
How to read the instruction book
The symbols below will guide you when reading the
instruction book
Safety instructions
Step by Step Operation
Advice and recommendations
Environmental Information

5
INSTRUCTIONS FOR THE INSTALLER
TECHNICAL FEATURES
Dimensions Height
Width
Depth
Oven Capacity
900 mm
500 mm
600 mm
49 l
Hob Front left
Back left
Front right
Back right
Hob element Ø 180 mm
Hob element Ø 145 mm
Hob element Ø 145 mm
Hob element Ø 180 mm
2000 - 2090 W
1000 - 1050 W
1000 - 1050 W
1500 - 1570 W
Total hob rating 5500 - 5760 W
Oven
Oven element
Grill element
Cleaning
1650 - 1700 W
1825 - 1900 W
manual
Total oven rating 1825 - 1900 W
Supply Rated voltage
Rated frequency
230 - 240 V
50 Hz
Accessories Oven grid
Roasting tray / grill pan
Trivet
Total cooker rating 7325 - 7660 W
This appliance complies with:
European Council Directive 73/23/EEC
EMC Directive 89/336/EEC
CE Marking Directive 93/68/EEC

6
INSTALLATION
This cooker must be installed in
accordance with the IEE Wiring Regulations
(Current Edition). Detailed recommendations
are contained in the following British Standards
Codes Of Practice:
B.S. 6172/ B.S. 5440, Par.2 and B.S. 6891 Current
Editions.
The appliance must be installed in accordance with
" Y " specification (EN60.335-2.6). The cooker
must not be installed higher than the worktop.
Please ensure that when the appliance is
installed it is easily accessible for the engineer
in the event of a breakdown.
Before your appliance is connected to the mains
electricity supply, check to ensure that the voltage
and the frequency shown on the rating plate
correspond with your supply voltage.
This appliance must be earthed.

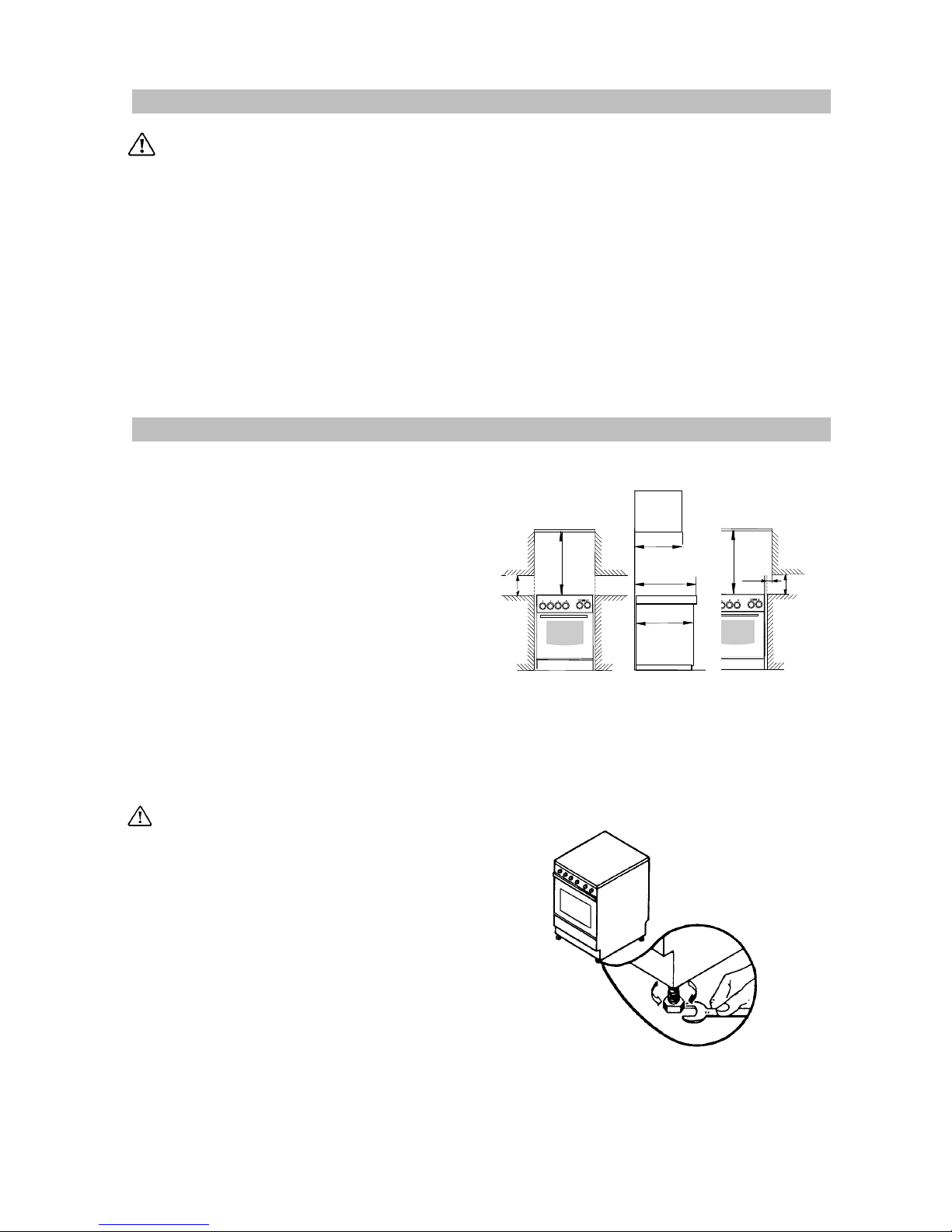

LOCATION
The appliance must not be installed in a bed-sitting
room of volume less than 20m3 or in a bathroom or
shower room. It is essential that the appliance is
positioned as in the enclosed figure i.e. shelves, wall
cabinets and cooker hoods must be fitted a minimum
of 690mm directly above the top of hotplate and
400mm above the hotplate when fitted in line with the
outside of the appliance. If the units are intended to
be fitted adjacent to the appliance but less than
400mm above the hotplate, then a minimum space of
100mm must be maintained between the sides of
the unit and the appliance (see fig).
If fitted next to or between two base units a
minimum space of 1mm must be left between each
unit and the sides of the appliance. The levelling
feet fitted to the appliance will achieve a nominal
height to hotplate of 900mm+10mm.
The appliance must be installed in accordance with
EN 1116-1995, regarding the depth of the superior
furniture.
The appliance must be set on a heatproof
floor. The adjustable feet must not be removed.
Levelling
The appliance is provided with adjustable small
feet placed in the back and front corners of the
base.
By adjusting the small feet it is possible to change
the height of the appliance so as to ensure a better
levelling with other surfaces and an even
distribution of the liquids contained in pots and
pans.
690
400
min 600
max 400
min 570
690
less than
400
100

7
ELECTRICAL CONNECTIONS
Any electrical work required to install
this hob and the supply cable should be
carried out by a qualified electrician or
competent person, in accordance with the
current regulations.
THIS COOKER MUST BE EARTHED.
The manufacturer declines any liability
should these safety measures not be
observed.
Before any maintenance or cleaning can
be carried out, you must DISCONNECT the
cooker from the electricity supply.
This cooker is designed to be connected to a
230-240V AC, 50Hz electrical supply.
To connect to the electricity supply, use cable
type H05 RR-F.
Before connection, make sure the electricity
supply voltage is the same as that indicated on
the rating plate.
The cooker is supplied without supply cable. A
flexible supply cable must be fitted, in
accordance with the specification gived in the
relevant table no. 1.
The electrical connection should be made using
a double pole-isolating switch (cooker control
switch) with at least 3mm contact separation in
all poles. The cable must have conductors of
sufficiently high cross-sectional area to prevent
overheating or deterioration.
The switch should be sited within 2m of the
cooker and be easily accessible at all times.
The switch must not interrupt the yellow-green
grounding cable.
NOTE: The earth wire should be about 2 cm
longer than the live and neutral wires.
After installation and connecting, the cable must
be placed so that it cannot at any point reach a
temperature of more than 50°C above the
ambient temperature.
The manufacturer disclaims any responsibility
should these safety instructions not be carried
out.
If the supply cable is damaged, it must
be replaced by the manufacturer or its
service agent or a similarly qualified person
in order to avoid a hazard.
Before connecting check that:
• The fuse and household electrical
installation can carry the absorbed current of
the appliance (see rating plate);
• The cooker connection outlet or the cooker
control switch is easily accessible when the
appliance is installed.
How to proceed?
• Unscrew and remove the protective cover at
the back of the appliance;
• Connect the power cable to the terminal
block of the cooker according to the table
no.1;
• Secure by means of cable clamp;
• Make sure that the connection to the
terminal block is matching the supply
system, see table no.1;
• Refit and screw the protective cover on the
back of the appliance.
Table no. 1
Rated voltage 230V 1N
Connection type Single phase (UK)
Cable connection
to the terminal block
1 2 3 4 5
L1 NPE
Mains Voltage
230V
Voltage of heating elements
230V
Fuse capacity
32 A
Cable section
3 x 6 mm2

8
INSTRUCTIONS FOR THE USER
USE AND CARE
A. Hob with electric plates
B. Control panel
C. Shelf supports
D. Shelf
E. Door handle
F. Oven door
G. Adjustable feet
A
B
C
D
E
F
G
CONTROL PANEL
SE211X
3
2 47
1 5 6
1. Back left hotplate control knob
2. Front left hotplate control knob
3. Front right hotplate control knob
4. Back right hotplate control knob
5. Main pilot light
6. Oven thermostat pilot light
7. Oven function control knob (selector)

9
USE OF APPLIANCE
Before the First Use of the Oven
Before the first use ensure that the
room is well ventilated: V.M.C.
(Mechanic ventilation) or opened
window.
Remove all packaging, both inside and
outside the oven, before using the oven.
Before first use, the oven should be heated
without food. During this time, an unpleasant
odour may be emitted. This is quite normal.
1. Remove the oven accessories.
2. Remove any adhesive labels or protective
films, if there are any.
3. Heat the oven the corresponding knob on
position “250” for about 45 min.
This procedure should be repeated with the grill
function for approximately 5-10 minutes.
Clean the accessories with a soft detergent.
Rinse and dry carefully.
Rating Plate
The model number of your cooker can be found
on the rating plate on the lower front frame of
the cooker upon opening the door.
The cooker must be protected by a suitably
rated fuse or circuit breaker. The rating of the
cooker is given on the rating plate.
Condensation and steam
Condensation may form on the cooker. This is
quite normal and nothing to worry about.
The condensation water forms when heat and
moisture are present, for example during cooking.
However, always stand back from the oven
when opening the door to allow any build up of
steam or heat to release.
In order to reduce to minimum the quantity of
condensation water you should take the
following actions:
- Whenever possible try to make sure that food
which contains lots of moisture, for example
casseroles, are covered;
- Preheat the oven for about 15-20 minutes
before introducing the food to be roasted or
baked.
Cookware
Use any ovenproof cookware, which will
withstand temperatures of 250°C.
Oven dishes, etc. should not be placed
directly on the oven base.
During cooking in the oven the oven
door is hot. Take care that children do
not play near it.

10
ELECTRIC OVEN
Oven Function Control Knob
The control knob is used to select the desired
temperature and to select either the grill or oven
function.
0 Oven switched off
50-250 Temperature selection (bottom and top
heat)
Grill - The grill cannot be used at the
same time as the oven. The oven door must be
closed when grilling.
The grill temperature is not adjustable and always
operates at maximum.
For oven cooking use the control knob to select
the desired temperature between 50º – 250ºC.
Caution
Do not place pans, dripping pans, baking trays or
aluminium foil directly on the base of the oven.
This could cause a heat build-up, which could
affect the performance of the oven and damage
the oven enamel.
Cooking in the oven
Traditional cooking
Traditional cooking is made by natural convection
of the heated air.
It is necessary to pre-heat the oven.
How to proceed?
For small cakes, pastry, beaten mixture cakes in
moulds.
1. Preheat the oven at the selected baking
temperature until the thermostat will
disconnect. Then the flash lamp will turn off.
2. Insert the meal.
Oven thermostat pilot light
Once the oven temperature has been selected,
the oven thermostat pilot light will come on and
remain on until the oven has reached the correct
setting; after that, it will go on and off with the
thermostat, showing that the temperature is being
maintained.
Cooker operation pilot light (Main)
This light will illuminate when the oven function
control knob or any of the hotplate knobs are
turned on and remains lit while these are in use.
