Azio MGK L80 MAX RGB User manual

快速入門指南
MGK L80 MAX
RGB BACKLIT MECHANICAL GAMING KEYBOARD

MGK L80 MAX RGB

00
MGK L80
MAX RGB

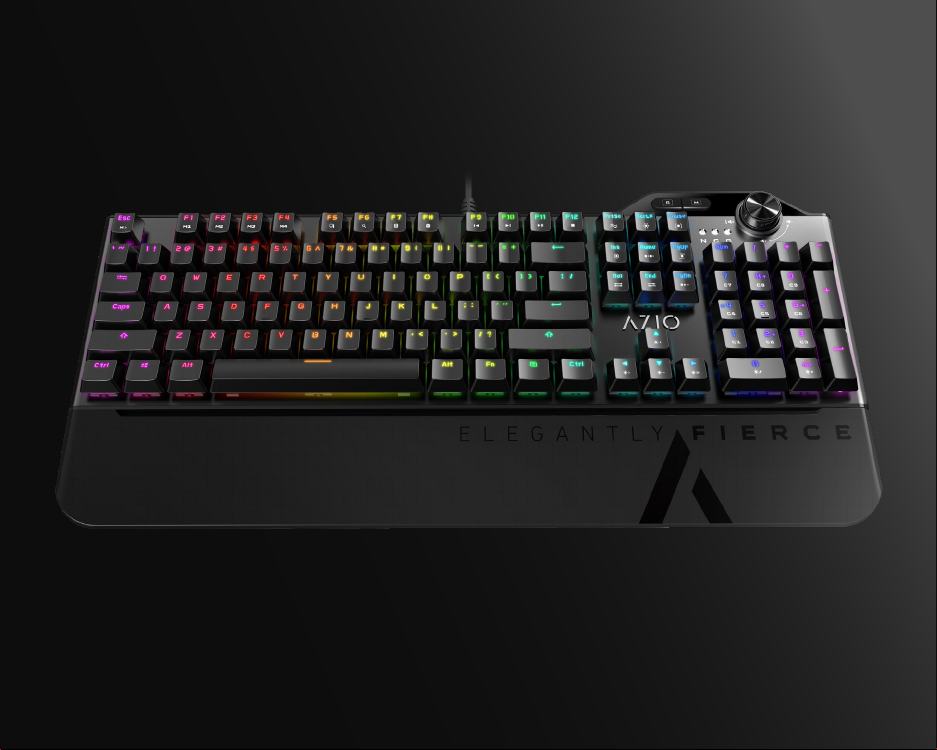

RGB Backlit Mechanical Gaming Keyboard
The MGK L80 MAX RGB introduces a straightforward RGB backlight experience on a mechan-
ical keyboard without the hassle of installing software. Featuring 9 backlight modes and four
programmable Macro keys, utilizing a programmable RGB mechanical gaming keyboard have
never been easier. Armed with rigid yet elegant aluminum faceplate, full NKRO, and industry
best Cherry MX mechanical switchs in option of silver, blue, red and brown, the MGK L80 MAX
RGB takes gaming to a whole new level.
01
THANK YOU FOR PURCHASING THE MGK L80 MAX RGB MECHANICAL
KEYBOARD AND WELCOME TO THE AZIO FAMILY!

01
PRODUCT
BASICS
Package Contents
Specifications
System Requirements
L80 MAX RGB Keyboard
Magnetic Palm Rest
User Guide
Keycap Puller Tool
Model: MGK-L80-CSL-RGB, MGK-L80-CBL-RGB, MGK-L80-CBN-RGB, MGK-L80-CRD-RGB
Interface: USB
Mechanical Switch: Cherry MX Silver / Blue / Brown / Red
N-Key Rollover: Full NKRO via USB
Backlight: RGB Backlit
Cord Length: 6 ft. Braided
Weight: 2.3 lbs / 1060 g
Hotkeys: Email, Web Browser, Calculator, Search,
Back Track, Play/Pause, Next Track, Stop, Media Player
OS Support: Windows 8, 7, 10, Vista, XP
Dimensions (LxWxH)
Keyboard: 5.8 x 17.5 x 1.4 inches
Palm Rest: 2.5 x 17.5 x 0.5 inches
Available USB port
IBM-compatible PC
Windows XP, Vista, 7, 8, 10
02 MGK L80 MAX RGB

02
SETUP &
SUPPORT
Setting Up
Support/Service
Global Support Taiwan Support
Plug & Play: Simply connect the keyboard to an available USB port of your PC and the key-
board will automatically install all necessary drivers.
Using hotkeys: To utilize the secondary hotkeys functions of some keys, hold down the FN key
and press the hotkey of your choice.
We want you to love your MGK L80 MAX RGB as much as we do. If you have any questions or
issues with your keyboard, please do not hesitate to contact us.
Alternatively, please visit us at www.aziocorp.com where you can find frequently asked ques-
tions, troubleshooting tips, and a look at our other products.
By phone: [phone]
By email: [email protected]om
On FB: www.facebook.com/aziocorp
By phone: [phone]
By email: [email protected]om.tw
On FB: www.facebook.com/AzioTaiwan
03

03
PRODUCT
FEATURES
04
Full RGB Backlight
4 Customizable Macro Keys
Fast Access Volume Wheel
Aluminum Faceplate
Full-Key Rollover via USB
Easy Access Hot-Keys
Magnetic Detachable Palm Rest
Convenient hardware-based RGB backlight customization with 6 lighting modes
4 Macro keys recordable on-the-fly without the need for software
Adjust volume quickly and intuitively
Professional-grade aluminum delivers a premium look and feel
Press as many keys as you like and never miss a stroke
Directly access shortcuts to productivity, internet, and multimedia functions
Magnetic detachable palm rest for improved ergonomics and comfort
MGK L80 MAX RGB
Cherry MX Mechanical Switches
Industry best Cherry MX switches in options of silver, Blue, Brown, Red

04
DEVICE
L AYOUT

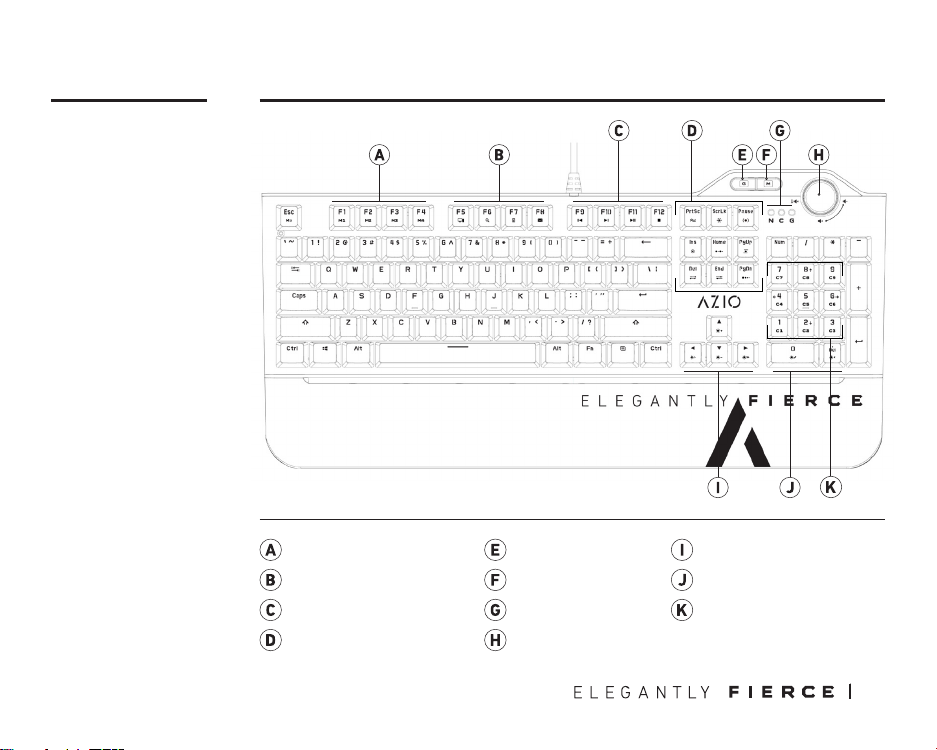

Macro Keys
Record Macro
Media Controls
Volume/Mute
Productivity Hotkeys
Indicator LEDs
Gaming Mode Backlight Controls
Backlight Color Controls
Gaming Light Mode
Presets
Backlight Modes
05

05
LIGHT
MODES RGB WAVE MODE / PRESS FN+PrtSC
SPLASH MODE / PRESS FN+PauBk
CIRCULAR MODE / PRESS FN+SCRLK
RGB backlight move across keyboard in a subtle gradient format.
Trigger a horizontal splash wave effect moves outward from the
pressed key.
Pressed key and surrounding keys will all lit up momentarily and
fade away.
06
Press FN+PrtSc again to pause effect and press again to activate
wave effect.
FN+Up Arrow to increase brightness.
FN+Down Arrow to decrease brightness.
Press FN+Num0 to change backlight color.
FN+Up Arrow to increase brightness.
FN+Down Arrow to decrease brightness.
Press FN+Num0 to change backlight color.
MGK L80 MAX RGB

05
07
STATIC MODE / PRESS FN + INS
LINEAR MODE / PRESS FN + PGUP
BREATHING MODE / PRESS FN + HOME
Effect will change from set minimum brightness to maximum bright-
ness in cycle.
Single row linear eect will run through keyboard in horizontal and vertically.
Lighting effect will changed from minimum brightness to maximum
brightness in cycle.
FN+Up Arrow to increase brightness.
FN+Down Arrow to decrease brightness.
Press FN+Num0 to change backlight color.
FN+Up Arrow to increase brightness.
FN+Down Arrow to decrease brightness.
FN+L Arrow Decrease Effect Speed.
FN+R Arrow Increase Effect Speed.
Press FN+Num0 to change backlight color.
Press FN+Home again to change effect to click trigger mode and
repeat to change back to normal breathing mode.
FN+Up Arrow to increase brightness.
FN+Down Arrow to decrease brightness.
FN+L Arrow Decrease Effect Speed.
FN+R Arrow Increase Effect Speed.
Press FN+Num0 to change backlight color.

05
08 MGK L80 MAX RGB

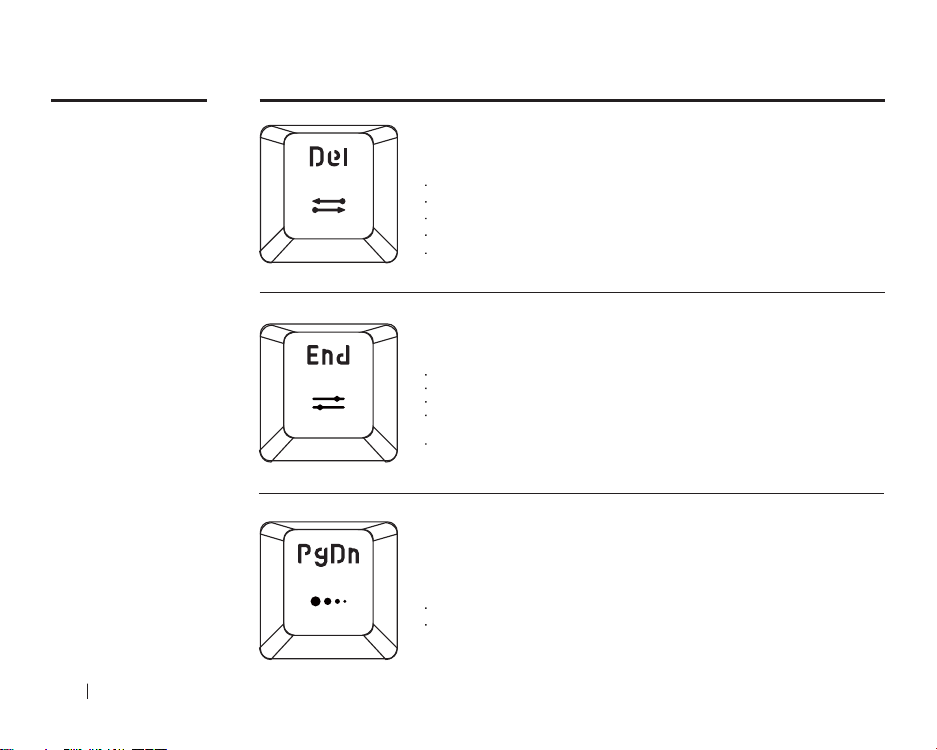

RGB MARQUEE MODE / PRESS FN + DEL
REACTIVE MODE / PRESS FN + PGDN
CUSTOM MODE / PRESS FN + END
Sectional backlighting shifts in dierent color from left to right or vice versa.
Lights up upon actuation and stays lit momentarily for a trailing
effect.
Effortlessly set desire backlight color to each individual keys.
FN+Up Arrow to increase brightness.
FN+Down Arrow to decrease brightness.
FN+L Arrow Decrease Effect Speed.
FN+R Arrow Increase Effect Speed.
Press FN+Del again to change effect direction.
FN+Up Arrow to increase brightness.
FN+Down Arrow to decrease brightness.
Press FN+Num0 to change backlight color.
FN+Up Arrow to increase brightness.
FN+Down Arrow to decrease brightness.
To customize this mode, press FN+END twice.
Push any key repeatedly and you will cycle through the 7preset
color options available.
After you have finished customizing the key’s colors, push FN+END
again to exit Edit Mode.

05
INCREASE BACKLIGHT / PRESS FN + UP ARROW
DECREASE EFFECT SPEED / PRESS FN + LEFT ARROW
INCREASE EFFECT SPEED / PRESS FN + LEFT ARROW
DECREASE BACKLIGHT / PRESS FN + DOWN ARROW
Brighten up all the RGB backlight.
Brighten up all the RGB backlight.
Support by: CIRCULAR MODE, SPLASH MODE, STATIC MODE,
BREATHING MODE, LINEAR MODE, RGB MARQUEE MODE, CUSTOM
MODE, REACTIVE MODE
Support by: CIRCULAR MODE, SPLASH MODE, STATIC MODE,
BREATHING MODE, LINEAR MODE, RGB MARQUEE MODE, CUSTOM
MODE, REACTIVE MODE
Slower the RGB backlight reaction.
Faster the RGB backlight reaction.
09
LIGHT
CONTROLS
Support by: BREATHING MODE, LINEAR MODE, RGB MARQUEE MODE
Support by: BREATHING MODE, LINEAR MODE, RGB MARQUEE MODE

05
COLOR CHANGE / PRESS FN + NUM0
GAMING LIGHT MODE PRESETS / FN + (NUM1~NUM9)
DARK MODE / PRESS FN + DEL.
In compatible lighting modes, press FN+Num0 to change color..
Press FN+Num1 (C1) ~Num9 (C9) to trigger 9 pre-setted custom
lighting modes specially tailor to the most popular gaming control
formats.
Shutting down all backlight effect.
10 MGK L80 MAX RGB
Support by: CIRCULAR MODE, SPLASH MODE, STATIC MODE,
BREATHING MODE, LINEAR MODE, REACTIVE MODE
Support by: RGB WAVE MODE, CIRCULAR MODE, SPLASH MODE,
STATIC MODE, BREATHING MODE, LINEAR MODE, RGB MARQUEE
MODE, CUSTOM MODE, REACTIVE MODE

06
MACRO
RECORDING
Gaming Mode
Macro Recording
Activating Gaming Mode disables the Windows Start key to avoid accidental usage and allows
for recording and using the Macro keys (F1 to F4). Press the G button to activate Gaming Mode.
Gaming Mode status is indicated by the LED labeled “G”. The Macro keys can only be used in
Gaming Mode.
Make sure the keyboard is in Gaming Mode by pressing the “G” button. The “G” LED should
be lit.
Press the “M” button to enter Record mode. The 3 LED status indicators will start to flash,
indicating the keyboard is in Record Mode.
Press the key you would like to record (F1 to F4).
Enter the Macro sequence you wish to program.
Press “M” button again once you are finished. The 3 LED status indicators will stop flash-
ing indicating recording is complete.
11

07
HOTKEY
INDEX Play / Pause
Back-Track
Next-Track
Stop Playing
Launch Search
Customized Light Mode
Launch Calculator
My Computer
Launch Email App
Macro Keys
12 MGK L80 MAX RGB

08
WARRANTY Azio Corporation warrants only to the original purchaser of this product, when purchased
from an Azio authorized reseller or distributor, that this product will be free from defects
in material and workmanship under normal use and service for the length of the warranty
period after purchase.
Azio reserves the right, before having any obligation under this warranty, to inspect the
damaged Azio product. Initial shipping costs of sending the Azio product to the Azio service
center in Los Angeles, California, for inspection shall be borne solely by the purchaser. In
order to keep this warranty in effect, the product must not have been mishandled or misused
in any way.
This warranty does not cover any damage due to accidents, misuse, abuse or negligence.
Please retain the dated sales receipt as evidence of the original purchaser & date of purchase.
You will need it for any warranty services. In order to claim under this warranty, purchaser
must contact Azio and obtain an RMA # which is to be used within 15 days of issuance and
must present acceptable proof of original ownership (such as original receipt) for the product.
Azio, at its option, shall repair or replace the defective unit covered by this warranty. This
warranty is non-transferable and does not apply to any purchaser who bought the product
from a reseller or distributor not authorized by Azio, including but not limited to purchases
from internet auction sites. This warranty does not affect any other legal rights you may have
by operation of the law. Contact Azio through email, chat, or through one of the technical sup-
port numbers listed for warranty service procedures.
13

09
14 MGK L80 MAX RGB
繁體中文 /
Traditional
Chinese
即插即用：只需將鍵盤連接到可用的USB 端口，鍵盤會自動安裝所有必要的驅動程序
使用熱鍵：請按下FN 鍵並按選擇的熱鍵來啟動按鍵的輔助熱鍵功能。
安裝設置
產品內容清單
MGK L80 MAX RGB 鍵盤 快速入門指南
鍵盤L80 磁性可拆卸式手托 Keycap Puller 工具
自定義巨集按鍵錄製方式
按下 G 按鍵啟動遊戲模式來鎖定 WINDOWS 快速啟動鍵以避免意外的使用情況，同時也允許 F1~F4 巨集按鍵可進入錄製狀態。在遊戲
模式的狀態下，鍵盤右上角G字上的LED 指示燈會亮起。自定義巨集按鍵只有在遊戲模式會正常運行。
• 按下遊戲模式鍵(G)進入遊戲模式。(鍵盤右上角的G字LED指示燈會亮起，WINDOWS及選單鍵鎖定)。
• 按下自定義巨集按鍵(M)，進入編輯模式。(只有在遊戲模式下可啟動，啟動後右上角燈號閃爍)。
• 按下欲設定之巨集錄製鍵M1~M4(F1~F4)後，即可開始錄製巨集。
• 完成錄製指令後，再次按下自定義巨集按鍵(M)結束錄製。
• 舉例:如欲錄製巨集至F1:(G)>(M)>F1>輸入指令>(M)
• 備註:遊戲模式(G)中，只需直接按下M1~M4(F1~F4)，即可直接啟動指令。
產品規格
型號：MGK-L80-RGB-CXX
接口：USB
機械開關：Cherry MX 銀軸 / 青軸 / 茶軸 / 紅軸
N鍵翻轉：通過USB完全NKRO
背光：RGB
電線長度：6英尺編織
重量：2.3磅 / 1060克
熱鍵:電子郵件，網絡瀏覽器，計算機，搜索，
回放曲目，播放/暫停，下一曲目，停止，媒體播放器
操作系統支持：XP, Vista, Windows 7, 8, 10
尺寸（長x寬x高）
鍵盤：5.8 x 17.5 x 1.4英寸
掌托：2.5 x 17.5 x 0.5英寸
背光模式
FN + PauBk / 飛濺模式 / 觸發水平飛濺波效果從按下的按鍵向外移動。
• FN +向上箭頭可增加亮度。
• FN +向下箭頭可降低亮度。
• 按FN + Num0可更改背光顏色。
FN + SCRLK / 環形模式 / 按下的按鍵和周圍的按鍵都會瞬間點亮並消失。
• FN +向上箭頭可增加亮度。
• FN +向下箭頭可降低亮度。
• 按FN + Num0可更改背光顏色。
FN + PrtSC / RGB波浪模式 / 按一次可激活波形效果, 再次按FN + PrtSc暫停效果。

15
背光模式
FN +HOME / 呼吸模式 / 效果將從設置的最小亮度變為循環中的最大亮度。
• FN +向上箭頭可增加亮度。
• FN +向下箭頭可降低亮度。
• FN + L箭頭降低效果速度。
• FN + R箭頭增加效果速度。
• 按FN + Num0可更改背光顏色。
• 再次按FN + Home將效果改為點擊觸發模式，然後重複回到
正常呼吸模式。
FN + PageUp / 線性模式 / 單行線性效果將通過鍵盤水平和垂直運行。
• FN +向上箭頭可增加亮度。
• FN +向下箭頭可降低亮度。
• FN + L箭頭降低效果速度。
• FN + R箭頭增加效果速度。
• 按FN + Num0可更改背光顏色。
FN + Del / RGB跑馬燈模式 / 分段背光從左到右以不同的顏色偏移，反之亦然。
• FN +向上箭頭可增加亮度。
• FN +向下箭頭可降低亮度。
• FN + L箭頭降低效果速度。
• FN + R箭頭增加效果速度。
• 再次按FN + Del可更改效果方向。
FN + Ins / 殘影模式 / 持續發出您選擇的背光顏色。
• FN +向上箭頭可增加亮度。
• FN +向下箭頭可降低亮度。
• 按FN + Num0可更改背光顏色。
聯繫方式 / 電子郵件：[email protected] / 臉書：www.facebook.com/AzioTaiwan
我們希望您和我們一樣喜愛您的MGK L80 MAX RGB。如果您對於鍵盤有任何疑問或問題，請隨時和我們聯繫。您也可訪問我們的網站
www.aziocorp.com.tw，查找常見問題解答、故障排除提示和了解我們的其它產品。
技術支援與售後服務
FN + Page Down / 響應式模式 / 動作時燈亮起並暫時保持燈亮，以獲得蔓延效果。
• FN +向上箭頭可增加亮度。 • FN +向下箭頭可降低亮度。
FN +Num 0 / 背光顏色變化 / 在兼容的照明模式下，按FN +數字0改變顏色。
FN +Num / 黑暗模式 / 關閉所有背光效果。
FN + END / 客製模式 / 輕鬆設置各個按鍵的顏色，對適合遊戲的按鍵進行顏色編碼。
• FN +向上箭頭可增加亮度。 • FN +向下箭頭可降低亮度。
FN + Num1（C1󵾥 Num9（C9󵾥/ 預設遊戲燈光模式
• 按FN + Num1（C1） Num9（C9）可觸發9種預設的自定義燈光模式，專門針對最流行的遊戲控制格式。
09

16 MGK L80 MAX RGB
简体中文 /
CHINESE
SIMPLIFIED
即插即用：只需将键盘连接到可用的USB 端口，键盘会自动安装所有必要的驱动程序
使用热键：请按下FN 键并按选择的热键来启动按键的辅助热键功能。
安裝設置
产品内容清单
MGK L80 MAX RGB 键盘 快速入门指南
键盘L80 磁性可拆卸式手托 Keycap Puller 工具
自定义巨集按键录制方式
按下 G 按键启动游戏模式来锁定 WINDOWS 快速启动键以避免意外的使用情况，同时也允许 F1~F4 巨集按键可进入录制状态。在游戏
模式的状态下，键盘右上角G字上的LED 指示灯会亮起。自定义巨集按键只有在游戏模式会正常运行。
• 按下游戏模式键(G)进入游戏模式。 (键盘右上角的G字LED指示灯会亮起，WINDOWS及选单键锁定)。
• 按下自定义巨集按键(M)，进入编辑模式。 (只有在游戏模式下可启动，启动后右上角灯号闪烁)。
• 按下欲设定之巨集录制键M1~M4(F1~F4)后，即可开始录制巨集。
• 完成录制指令后，再次按下自定义巨集按键(M)结束录制。
• 举例:如欲录制巨集至F1:(G)>(M)>F1>输入指令>(M)
• 备注:游戏模式(G)中，只需直接按下M1~M4(F1~F4)，即可直接启动指令。
產品規格
型号：MGK-L80-RGB-CXX
接口：USB
机械开关：Cherry MX 银轴 / 青轴 / 茶轴 / 红轴
N键翻转：通过USB完全NKRO
背光：RGB
电线长度：6英尺编织
重量：2.3磅 / 1060克
热键:电子邮件，网络浏览器，计算机，搜索，
回放曲目，播放/暂停，下一曲目，停止，媒体播放器
操作系统支持：XP, Vista, Windows 7, 8, 10
尺寸（长x宽x高）
键盘：5.8 x 17.5 x 1.4英寸
掌托：2.5 x 17.5 x 0.5英寸
背光模式
FN + PauBk / 飞溅模式 / 觸發水平飛濺波效果從按下的按鍵向外移動。
• FN +向上箭头可增加亮度。
• FN +向下箭头可降低亮度。
• 按FN + Num0可更改背光颜色。
FN + SCRLK / 环形模式 / 按下的按键和周围的按键都会瞬间点亮并消失。
• FN +向上箭头可增加亮度。
• FN +向下箭头可降低亮度。
• 按FN + Num0可更改背光颜色。
FN + PrtSC / RGB波浪模式 / 按一次可激活波形效果, 再次按FN + PrtSc暂停效果。
09

17
背光模式
FN +HOME / 呼吸模式 / 效果将从设置的最小亮度变为循环中的最大亮度。
• FN +向上箭头可增加亮度。
• FN +向下箭头可降低亮度。
• FN + L箭头降低效果速度。
• FN + R箭头增加效果速度。
• 按FN + Num0可更改背光颜色。
• 再次按FN + Home将效果改为点击触发模式，然后重复回到
正常呼吸模式。
FN + PageUp / 线性模式 / 单行线性效果将通过键盘水平和垂直运行。
• FN +向上箭头可增加亮度。
• FN +向下箭头可降低亮度。
• FN + L箭头降低效果速度。
• FN + R箭头增加效果速度。
• 按FN + Num0可更改背光颜色。
FN + Del / RGB跑馬燈模式 / 分段背光从左到右以不同的颜色偏移，反之亦然。
• FN +向上箭头可增加亮度。
• FN +向下箭头可降低亮度。
• FN + L箭头降低效果速度。
• FN + R箭头增加效果速度。
• 再次按FN + Del可更改效果方向。
FN + Ins / 残影模式 / 持续发出您选择的背光颜色。
• FN +向上箭头可增加亮度。
• FN +向下箭头可降低亮度。
• 按FN + Num0可更改背光颜色。
联系方式 / 电子邮件：[email protected]
我们希望您和我们一样喜爱您的MGK L80 MAX RGB。如果您对于键盘有任何疑问或问题，请随时和我们联系。您也可访问我们的网站
www.aziocorp.com，查找常见问题解答、故障排除提示和了解我们的其它产品。
技术支援与售后服务
FN + Page Down / 响应式模式 / 动作时灯亮起并暂时保持灯亮，以获得蔓延效果。
• FN +向上箭头可增加亮度。 • FN +向下箭头可降低亮度。
FN +Num 0 / 背光颜色变化 / 在兼容的照明模式下，按FN +数字0改变颜色。
FN +Num / 黑暗模式 / 关闭所有背光效果。
FN + END / 客制模式 / 轻松设置各个按键的颜色，对适合游戏的按键进行颜色编码。
• FN +向上箭头可增加亮度。 • FN +向下箭头可降低亮度。
FN + Num1（C1󵾥 Num9（C9󵾥/ 预设游戏灯光模式
• 按FN + Num1（C1） Num9（C9）可触发9种预设的自定义灯光模式，专门针对最流行的游戏控制格式。
09

18 MGK L80 MAX RGB
10
台灣 RoHS
符合性聲明
