Aztech WIPC409HD User manual

WIPC409HD
WIRELESS N PAN/TILT
HIGH DEFINITION IP CAMERA
V1.0

2
WIPC409HD IP CAMERA USER MANUAL
© Copyright 2014 All rights reserved. Ver1.0
No part of this document may be reproduced, republished, or retransmitted in any
form or by any means whatsoever, whether electronically or mechanically, including,
but not limited to, by way of photocopying, recording, information recording, or
through retrieval systems without the express written permission. We reserve the right
to revise this document at any time without the obligation to notify any person
and/or entity. All other company or product names mentioned are used for
identification purposes only and may be trademarks of their respective owners.
LIMITATION OF LIABILITY AND DAMAGES
THE PRODUCT AND THE SOFTWARES WITHIN ARE PROVIDED "AS IS," BASIS. THE
MANUFACTURER AND MANUFACTURER’S RESELLERS (COLLECTIVELY REFERRED TO AS
“THE SELLERS”) DISCLAIM ALL WARRANTIES, EXPRESS, IMPLIED OR STATUTORY,
INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF NON-INFRINGEMENT,
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ANY WARRANTIES
ARISING FROM COURSE OF DEALING, COURSE OF PERFORMANCE, OR USAGE OF
TRADE. IN NO EVENT WILL THE SELLERS BE LIABLE FOR DAMAGES OR LOSS, INCLUDING
BUT NOT LIMITED TO DIRECT, INDIRECT, SPECIAL WILLFUL, PUNITIVE, INCIDENTAL,
EXEMPLARY, OR CONSEQUENTIAL, DAMAGES, DAMAGES FOR LOSS OF BUSINESS
PROFITS, OR DAMAGES FOR LOSS OF BUSINESS OF ANY CUSTOMER OR ANY THIRD
PARTY ARISING OUT OF THE USE OR THE INABILITY TO USE THE PRODUCT OR THE
SOFTWARES, INCLUDING BUT NOT LIMITED TO THOSE RESULTING FROM DEFECTS IN THE
PRODUCT OR SOFTWARE OR DOCUMENTATION, OR LOSS OR INACCURACY OF DATA
OF ANY KIND, WHETHER BASED ON CONTRACT, TORT OR ANY OTHER LEGAL THEORY,
EVEN IF THE PARTIES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE
ENTIRE RISK AS TO THE RESULTS AND PERFORMANCE OF THE PRODUCT OR ITS
SOFTWARE IS ASSUMED BY CUSTOMER. BECAUSE SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF LIABLITY FOR DAMAGES, THE ABOV E LIMITATION MAY
NOT APPLY TO THE PARTIES. IN NO EVENT WILL THE SELLERS’ TOTAL CUMULATIVE
LIABILITY OF EACH AND EVERY KIND IN RELATION TO THE PRODUCT OR ITS SOFTWARE
EXCEED THE AMOUNT PAID BY CUSTOMER FOR THE PRODUCT.

3
WIPC409HD IP CAMERA USER MANUAL
Table of Contents
1INTRODUCTION ................................................................................................. 5
2FUNCTION AND FEATURES ................................................................................ 6
3APPEARANCE AND INTERFACE......................................................................... 8
3.1 APPEARANCE .....................................................................................................8
3.2 INTERFACES OF THE WIPC409HD ........................................................................8
3.3 LAN PORT LED BEHAVIORS .................................................................................9
4NETWORK CONNECTION .................................................................................. 9
4.1 CONNECTION INSTRUCTION ...............................................................................10
4.2 VISITING THE IP CAMERA ...................................................................................10
5VISIT IP CAMERA FROM LAN........................................................................... 11
5.1 SET IP ADDRESS.................................................................................................11
5.2 VISIT IP CAMERA...............................................................................................12
5.2.1 Menu Column...........................................................................................13
5.2.2 Video Displaying Area.............................................................................13
5.2.3 Browse SD Card ........................................................................................14
5.2.4 Capture .....................................................................................................14
5.2.5 Record .......................................................................................................14
5.2.6 Playback....................................................................................................14
5.2.7 The Pan/Tilt Control ..................................................................................15
5.3 NOTICE (FOR INITIAL USE) ..................................................................................15
6VISIT IP CAMERA FROM WAN......................................................................... 15
6.1 PORT FORWARDING ..........................................................................................15
6.2 DDNS..............................................................................................................17
6.2.1 Manufacturer’s Domain Name..............................................................17
6.2.2 Third Party Domain Name.......................................................................18
7OTHER SETTINGS .............................................................................................. 18
7.1 VIDEO SETTING PAGE ........................................................................................18
7.1.1 Video Setting ............................................................................................18
7.1.2 Audio Setting ............................................................................................19
7.1.3 Image Setting ...........................................................................................19
7.2 NETWORK SETTING PAGE ...................................................................................20
7.2.1 Basic Network Setting ..............................................................................20
7.2.2 WIFI Setting ................................................................................................20
7.2.3 Remote Access Setting ...........................................................................21
7.3 ALARM SETTING PAGE .......................................................................................21
7.3.1 External Alarm Input.................................................................................21
7.3.2 Motion Detection Setting........................................................................22

4
WIPC409HD IP CAMERA USER MANUAL
7.3.3 Alarm Mode Setting.................................................................................22
Alarm Time Setting / Schedule .........................................................................23
7.4 ADVANCE SETTING............................................................................................24
7.4.1 User Management ...................................................................................24
7.4.2 Auto Capture Setting ..............................................................................24
FTP Setting............................................................................................................25
7.4.3 E-mail Setting ............................................................................................26
7.5 SYSTEM SETTING PAGE .......................................................................................26
7.5.1 Device Information Checking................................................................26
7.5.2 Date and Time Setting.............................................................................27
7.5.3 Default Setting ..........................................................................................27
7.5.4 System Log Checking ..............................................................................28
8ADVANCED APPLICATION.............................................................................. 29
8.1 ANDROID AND IPHONE MOBILE APPLICATION SET UP..........................................29
8.2 MOBILE PHONE BROWSING ...............................................................................29
8.3 USING OTHER WEB BROWSERS TO VISIT THE DEVICE ..............................................30
8.4 MULTIPLE DEVICE MONITOR SYSTEM (MDMS) ....................................................31
9TECHNICAL PARAMETERS................................................................................ 32
10 SUPPLEMENTARY SECTION........................................................................... 34
10.1 PORT FORWARDING REFERENCES .......................................................................34
10.1.1Aztech DSL1015EW(S) / DSL1016EN(S2) .................................................34
10.1.2Aztech DSL7000GRV(S)............................................................................35
10.1.3Aztech DSL7000GR(SME) .........................................................................36
Linksys E1500 Router............................................................................................37
DLink DVG-N5402SP............................................................................................38
10.1.42wire 2700 HGV-2 .....................................................................................39

5
WIPC409HD IP CAMERA USER MANUAL
1 Introduction
The IP Camera combines a high quality digital video camera with network
connectivity and a powerful web server to bring clear videos to your mobile
phone/desktop from anywhere on your local network or over the Internet.
Your IP Camera package should contain the following items, If any of the
listed items are missing, please contact your reseller from where you
purchased the camera for assistance.
The Package includes:
WIPC409HD
Resource CD Utility with User Manual
5V Power Adapter
Easy Start Guide
LAN Cable
Wireless Antenna
Mounting Bracket
Warranty Policy

6
WIPC409HD IP CAMERA USER MANUAL
2 Function and Features
Experience Real-Time HD monitoring anytime you need it and anywhere you are with
your smartphone’s 3G/4G/Wi-Fi connection through the WIPC409HD’s Aztech IP Cam
app: a smartphone app that you can easily download on Google Play or Apple App
Store which enables you to quickly setup the WIPC409HD, control the Pan/Tilt/Zoom
feature of the camera, and view Real-time High-definition videos and images
captured by this excellent companion.
Enjoy High-Definition Monitoring. To help you with your monitoring needs,
Aztech WIPC409HD includes effective High-Definition video and audio
recording which allows you to view, capture scenes, and record video
feeds with all the quality you need.
Perfectly Built for Reliability. Capable of providing round the clock
surveillance, WIPC409HD enables you to continuously monitor your most
treasured possessions or even your loved ones for as long as you want. It is
equipped with an alarm notification which collaborates with its motion
detector to identify movements within its monitored area while sending
email notifications upon detecting movements with an attached
scene-screenshot.
View it Anytime, Anywhere you are. Anywhere you are, anytime you want,
as long as you have an active 3G/4G/Wi-Fi wireless connection in your
wireless device (e.g. smartphones, tablets, laptops), controlling the
WIPC409HD’s view and area-viewing is now made possible.
Easy 3-Step Setup. Aztech WIPC409HD involves a simplified 3-step setup in
setting up the surveillance with your smartphones, a feature made
possible through the Aztech IP Cam app downloadable through Apple
App Store and Google Play.
Enhanced Accessibility. With the Aztech IP Cam app, let the monitored
area hear what you have to say with its built-in speakers designed to
broadcast sounds sent by the Aztech IP Cam app. You may now also

7
WIPC409HD IP CAMERA USER MANUAL
easily connect your WIPC409HD to your WPS enabled router through a
simple press of the WPS button on both devices.
Pan-Tilt-Zoom Feature. Compared to conventional Fixed IP Cameras
which only focuses on a single area, the WIPC409HD allows you to follow
movements and capture various scenes taken from multiple angles with its
355° horizontal and 120° vertical pan and tilt function, which can be
flexibly combined with its zoom capabilities for the ultimate monitoring
experience.

8
WIPC409HD IP CAMERA USER MANUAL

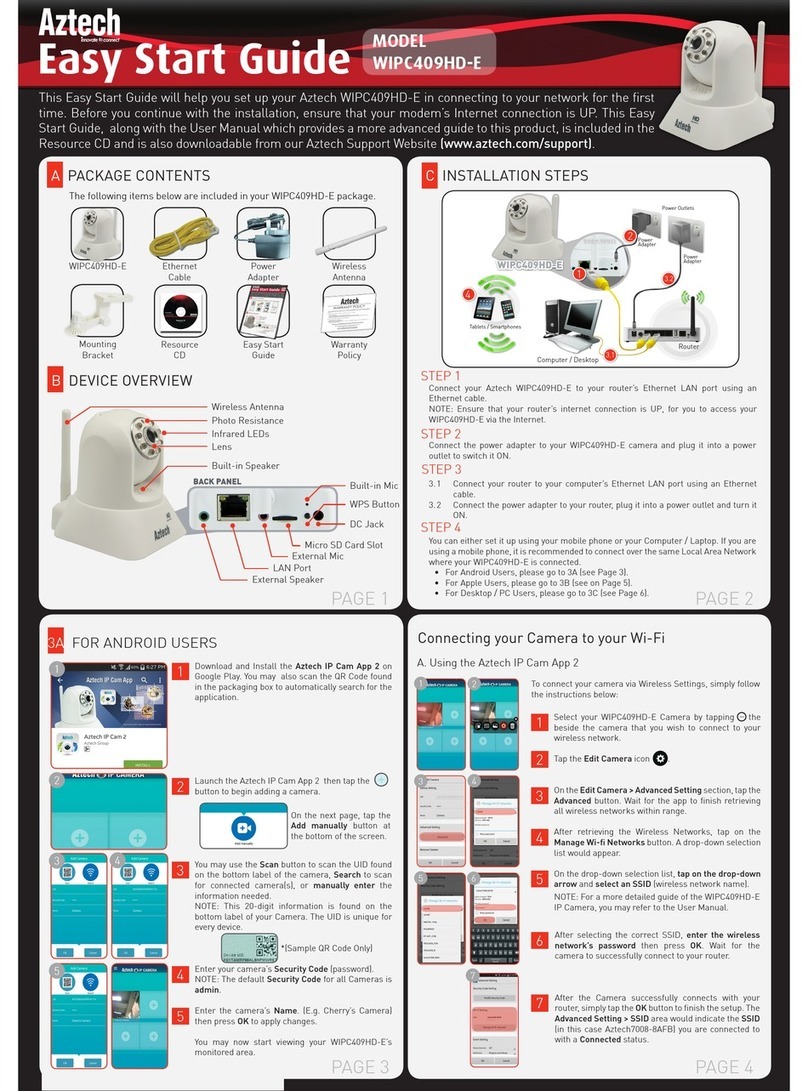

3 Appearance and Interface
3.1 Appearance
3.2 Interfaces of the WIPC409HD
1）5V DC Power Input. Allows you to connect the Power Adapter. Its output should
be 5V in as seen on its specifications.
2）WPS Button. Press this button for 2 seconds to enable the WPS connectivity of the
WIPC409HD to a wireless router that has a WPS feature. You may have to browse
your router’s instruction manual to know how many seconds it has to be pressed
for a successful WPS pairing.
3）Ethernet Port: The WIPC409HD uses a Self-adaptive Ethernet port. The camera is
capable of connecting to all kinds of network devices such as hub, router, switch,
etc.
4）SD Card Slot. Capable of supporting a 32G SD/TF card for storing the alarm video,
pictures, timing snapshot and recording;
5）External Mic: Audio input socket is designed for connecting external microphone
or line-in audio signal. Please refer to 7.1.2 and select right settings.
6）External Speaker: Audio output socket is for line-out audio player, such as
headphones, speakers, etc.

9
WIPC409HD IP CAMERA USER MANUAL
3.3 LAN Port LED Behaviors
4 Network Connection
The IP Camera can be connected to another PC by connecting it to a router, a
switch, or a hub, to establish network connectivity as seen above.
LABEL
STATE
DESCRIPTION
LED 1
Blinking
OFF
Actively transmitting/receiving data.
Device is not connected to the network.
LED 2
Steady
OFF
A LAN Cable is connected to the LAN port.
There is no LAN cable connected to the LAN Port.

10
WIPC409HD IP CAMERA USER MANUAL
4.1 Connection Instruction
Before visiting the IP Camera, you must first connect it to the Network. Plug it to a
power outlet, and check if the light of the LAN port is normal to make sure all of the
communication links are fluency. The connection method likes as seen above.
1) IP Camera-1 and IP Camera-2 are connected separately to 2 different LANs.
2) And these 2 LANs are already connected to the Internet. In order to get the LANs
connected to the Internet, ensure that the router used in the network has an
active internet connection.
3) PC-3 is connected to the Internet.
4.2 Visiting the IP Camera
To visit the IP Camera, you must first configure some of your IP Camera’s IP settings.
1) The PC and IP Camera are in the same LAN. If you want to use this PC to visit the IP
Camera, you need to make sure their IP address is at the same segment.
Otherwise you need to reset the IP Camera’s IP address.
For example, if the IP Camera-1’s IP address in the image above is 192.168.1.139
(at the segment of 192.168.1.x), while the PC-1’s IP address is 192.168.0.175 (at the
segment of 192.168.0.x), you will be not able to visit the IP Camera through PC-1.
You must first change the IP Camera-1’s IP address to 192.168.0.139.
2) The PC and IP Camera are in different LANs, but they are all connected to Internet.
For the IP Camera-1 and PC-2, if you want to visit IP Camera-1 through PC-2, you
must first ensure the following:
a) Ensure that you can visit IP Camera-1 through PC-1 and then do port
forwarding of the IP Camera on Router-1.
b) The PC-2’s visit application could be sent through router-1 to IP Camera-1.
Normally, PC-2 could only send the information to router-1, if you don’t
configure the port forwarding settings of the IP Camera-1 on router-1, then
PC-2 would not be able to visit IP Camera-1.

11
WIPC409HD IP CAMERA USER MANUAL
5 Visit IP Camera from LAN
5.1 Set IP Address
The IP addresses of each IP Camera and PC should be at the same segment. As
explained earlier, you would not be able to access IP Camera-1. To change the IP
address of IP Camera-1: run the WIPC409HD Utility in the CD, click Find button, and
then select the IP Camera to set the IP Camera’s IP address, as shown below.
If you have firewall software enabled in your PC, a popup window will ask
for your confirmation in blocking or allowing the software to run. Allow the
utility to run on your computer.
IP Cameras by default use a dynamic IP Address and an HTTP port 8081. If
you don’t have this software, you could also press down the reset button of
the IP Camera (found at the bottom of the camera) to set it back to its
factory setting. Then you could use this defaulted IP address to visit the IP
Camera.
Setting Instructions:
Click the Find button and select the WIPC409HD camera from the Equipment
list on the left side. The required fields on the General tab would
automatically be filled up by the selected camera’s details.
Click the Open button beside the Internal Access field, and you will
automatically be redirected to the Web User Interface of your WIPC409HD.

12
WIPC409HD IP CAMERA USER MANUAL
5.2 Visit IP Camera
If you are using Internet Explorer or a compatible browser to visit it for the first time you
will be required to install ActiveX before viewing the video. For first time visits, please
click the Download ActiveX link.
A dialog box as seen below will popup. Click “Run” and it will automatically
download and install the ActiveX plugin.
After the ActiveX installation, you will be redirected to the Home page of your IP

13
WIPC409HD IP CAMERA USER MANUAL
Camera. Simply click the “Video View” to start viewing.
5.2.1 Menu Column
There are 2 kinds of menu (1) is Main Menu, and (2) is the Sub Menu. The Main Menu
lies at the top of the interface, including View, Media, Network, Alarm, Advanced
and System. The Sub Menu lies on the right side of the Web User Interface, displaying
different options for each main menu.
5.2.2 Video Displaying Area
The video displaying area corresponds to the resolution of the IP Camera. The higher
the resolution is, the larger the displayed area will be. If the motion detection feature
is enabled, the displaying area will show a pane calling the user’s attention if
movements were detected on the surveillance area.
1）Displaying Connection Status
2）Record Status. If you clicked the “Record” button on the submenu, the record
status will show “Rec”to show that the current video is being recorded. Clicking
the Record button again will stop the recording.
3）Zoom Out Button
4）Zoom In Button
5）File Saving Path Setting: Allows you to browse a file saving path where the IP
Camera will save the recorded videos and snapshots.
6）Talk-back Button: Allows you to do an audio broadcast through the IP Camera’s
built-in speaker or an external speaker connected to the camera.
7）Audio Play Button: Allows you to play audio from the monitored area.

14
WIPC409HD IP CAMERA USER MANUAL
5.2.3 Browse SD Card
When an SD Card is inserted, click the submenu, the pop-up page will display the
content of the SD Card similar to the directory below.
In above figure, text in [ ] is catalog info, click sub catalog to browse the recorded
images and videos. The images will be displayed when you click them and the
videos will be downloaded and played by the video player in your computer
automatically.
Note:
Insert SD Card first before turning ON the IP Camera.
Proper SD Card Placement –metal contacts facing on top.
5.2.4 Capture
Allows you to take photos of the current video and store the image at the present
path.
5.2.5 Record
Allows you to record videos with audio and store it using the present path. When
recording, there will be an indicated symbol in the status of video display area to
show you it is recording. Click the “Record” button again to stop recording.
5.2.6 Playback
Allows you to play videos that you have recorded. Upon clicking the “Playback”
button, a popup player which could play the video stored on your PC disk will
appear.
,
These buttons are (1) play, (2) stop, (3) Previous recorded video, (4) Next

15
WIPC409HD IP CAMERA USER MANUAL
recorded video, and (5) open a Recorded video. Please click the button of
“open the recorder file” first, and select the file you want to play.
5.2.7 The Pan/Tilt Control
The Pan/Tilt control area allows you to control the cruise of the Pan/Tilt of your IP
Camera through the directional arrow buttons
(Up/Down/Left/Right/Centre/Stop/Left-right cruise/Up-down cruise).
When the IP Camera turns to some position, you can click the “Set” Button, when you
continue to control the Pan/tilt to turn to other position, you could click the “Call”
button, the Pan/Tilt will go back the pre-position.
5.3 Notice (for Initial Use)
Please change the following settings during initial use:
1) Please refer to the content of part 7.4.1 to change the initial passwords of admin,
user, and guest. Their initial passwords are respectively “admin”, “user”, “guest”.
2) Refer to the content of part 7.5.2 to set the System Time.
6 Visit IP Camera from WAN
6.1 Port Forwarding
Follow the “Visit IP Camera from LAN” steps; make sure PC-1 can visit IP Camera-1.
Before the computers in WAN (PC-2, PC-3) can visit the IP Camera-1, must put the IP
Camera -1 into WAN. You can set Port Forwarding on Router-1 to put IP Camera-1
into WAN.
Open the Router Setting interface on PC-1. The interfaces for different routers are
different, and the Port Forwarding settings are different, please refer to the Router’s
Manual on how to set these configurations.
For most routers, “Port Forwarding” option can be found under Setting / Firewall
Interface. Fill in the IP address and Port of IP Camera-1 into the corresponding blank.

16
WIPC409HD IP CAMERA USER MANUAL
Select “status” option and remember the WAN IP address, enter the IP address in
browser of PC-1, if IP Camra-1 can be visited via PC-1, the port forwarding is
successful. And PC-2 and PC-3 can also visit the IP Camera-1.
WAN IP address is allocated by ISP; please make sure that it is an available
WAN IP address. As WAN IP address is lack, many WAN IP address are
available in limited area. If PC-2 and PC-3 are not in this area, the IP
Camera-1 won’t be visited by them.
If User wants to put several IP Cameras into WAN, every device should set
the Port Forwarding. In order to distinguish these devices, every device
should set a different port. If the port of the device is not 8081, should add
the port to IP address with colon to visit the IP Camera. Example:
http://202.96.82.177:81.

17
WIPC409HD IP CAMERA USER MANUAL
6.2 DDNS
As explained earlier, Router-1 will get the WAN IP address via ADSL. Since the WAN IP
address constantly changes, the IP address cannot be confirmed the device is
visited in a WAN.
In instances such as this, the Dynamic Domain Name Server (DDNS) would be of
great use. IP Camera-1 will update its IP configuration to the DDNS at regular intervals.
The DDNS would then recognize the WAN IP address of the Router-1 which is
connected with IP Camera-1.
The WAN IP address can be searched on DDNS by its domain name. The domain
name will serve as the substitute of the dynamic IP address. If the device can’t be
visited by IP address, the domain name would also be unavailable.
6.2.1 Manufacturer’s Domain Name
Device manufacturer has established a DDNS, and allotted a dynamic domain
name to every device. The domain name has been integrated into devices during
production. For example, if you enter the domain name seen below, your web
browser will connect the device and display the IP address.
The domain name is made possible through port forwarding. The domain
name will change into the IP address and port number of the device when
visited through its domain name.

18
WIPC409HD IP CAMERA USER MANUAL
If the device can be visited by IP address but can’t be visited by
manufacturer’s domain name, please check the DNS info if it is available or
not and make sure that the DNS setting is the same with the DNS setting of
PC in LAN.
6.2.2 Third Party Domain Name
You may also use third party DDNS, such as www.3322.org. You may apply for a free
domain name from this website. All you have to do is to correctly enter the
information required, and the domain name can now be used.
The domain name will be displayed in the web browser all the time
whenever you are visiting the IP Camera. However, if the port is not 80, the
port number should be added to the domain name with colon. Example:
http://ipcam.3322.org:81
7 Other Settings
7.1 Video Setting Page
7.1.1 Video Setting
Resolution
Use 1280 X 720 Resolution, Bit Rate is 2048 kbps and Frame Rate is up to 30 fps. The
higher the resolution or quality of the picture, the higher bit rate requirement and
bandwidth consumption will be. A high bit rate allows the generation of higher
image qualities.
Please take note that in setting the frame rate, bandwidth must be taken into
consideration. With a low bandwidth, a high frame rate would result into uneven

19
WIPC409HD IP CAMERA USER MANUAL
results. With limited bandwidths, it is suggested to set the frame rate to 15fps. High
bandwidth limits can set the frame rates to its highest setting.
Overlay Options
Through this setting, you can add the Time and Camera Name to the images
captured by your IP Camera.
7.1.2 Audio Setting
Audio Options
Allows you to define values for input and output volume (with 100 being the
highest value).
First Stream
Allows you to enable or disable the audio capture function, and select the
audio type which best suits your bandwidth limit.
7.1.3 Image Setting
1) Color Adjustment. Allows you to adjust brightness, saturation, and contrast, by
either sliding the glide bars of the corresponding setting, or by entering the value
that you wish on the corresponding setting.
2) Image Display Adjustment. Allows you to set the monitored area’s vide view into
Mirror or Flip.
3) IR LED Control and Night vision mode. Allows you to enable or disable IP

20
WIPC409HD IP CAMERA USER MANUAL
Camera features which are useful in either night time or insufficiently lighted
areas. These are suggested to be set to AUTO and turned ON at all times.
7.2 Network Setting Page
7.2.1 Basic Network Setting
1）LAN Setting. The default LAN settings are set to Dynamic, with its DNS
Configuration type set to DHCP.
2）HTTP Port. Allows you to specify a port the IP Camera will use in transferring the
data going to the web server.
7.2.2 WIFI Setting
The wireless setting page as show above, user can click the “Search” button, and it
will show you a list of WIFI networks detected. By selecting one SSID, all data fields will
be filled up automatically (e.g. SSID, encryption algorithm etc.). All you have to do is
to enter the wireless password in the Key and the Re-Type Key field correctly. Click
