B-52 ELP 36.4 User manual

MOBILE ENTERTAINMENT SYSTEM
INSTRUCTIONS MANUAL
ELP 36.4
4 CHANNEL HIGH PERFORMANCE
POWER AMPLIFIER
Thank you for purchasing the amplifier 36.4 and your interest in products B52.
Read this manual carefully before installing your new amplifier.
www.b52audio.com
ENGLISH

Before Installation ........................................................................................................3
Features and Descriptions ............................................................................................4
Installation ...................................................................................................................5
Electrical diagram .........................................................................................................6
Troubleshooting ...........................................................................................................8
Specifications ...............................................................................................................9
INDEX
2

WARNING
Before installing your new amplifier, make sure the fuse is properly installed.
Never change the value of the fuses. Use the fuses with the current and rated voltage in this
manual. Otherwise, it may cause a short circuit, smoke or even an explosion.
Do not install this unit in a location that would interfere with operation of the vehicle or may
cause injury to a passenger as a result of breaking.
To ensure proper operation of this unit while maintaining good thermal dissipation, be sure to
leave enough space above the amplifier for proper ventilation. Do not cover the amplifier with a
carpet or blanket.
Connect the cable (+) battery to the positive terminal of the amplifier (B +) and ground wire
(GND) of the amplifier to the vehicle chassis.
This unit is for installation of 12V and negative grounding. Before performing an installation in a
van, truck or bus, check the battery voltage.
The black wire is the ground wire.
When installing this unit, always connect the ground wire first. Check the ground wire is properly
connected to the vehicle chassis.
If by some factor, the cable connected to the vehicle, is loosen or falls could result in fire, smoke
or failure.
The amplifier must be installed on a flat surface. Installing it on a surface that is flat or bumpy,
may cause defective operation.
Do not let this unit, contact with liquids that could lead to electric shock, smoke or overheating.
If by any problem with the instalation of this amplifier, the fuse blows. Disconnect the cables and
check all connections (power and speakers). Once you determine and solve the problem, replace
the fuse / s for a new nominal current and voltage identical.
If none of these works, contact your nearest dealer.
BEFORE INSTALLATION
3

4

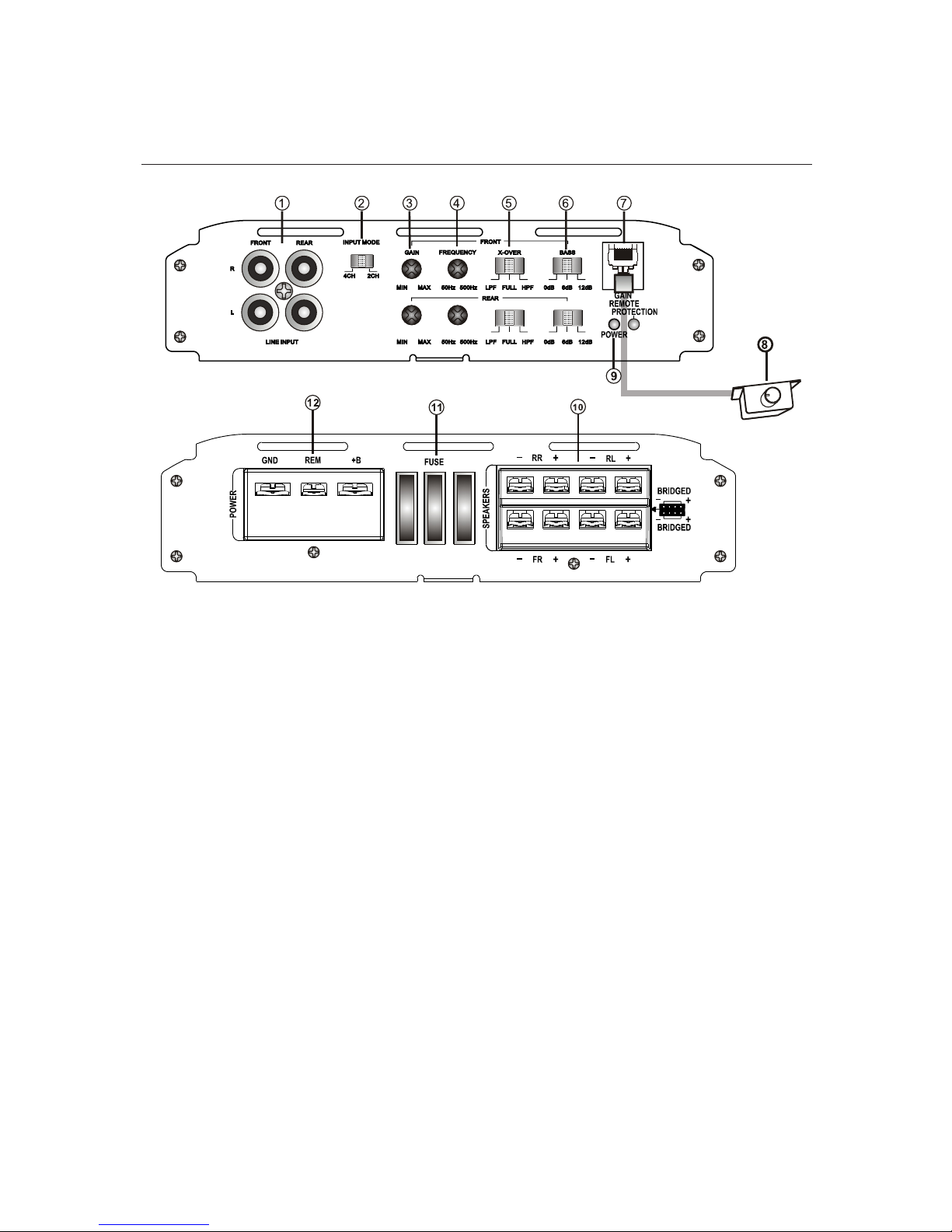

1. Low Level INPUT
RCA connector low level input connected to the speakers of the main unit.
2. High Level INPUT
Input connector plug connected to high-level speakers from the main unit.
NOTE: Do not connect cables high level input if you use the low level RCA input
3. Gain Adjustment (GAIN)
Adjust to obtain the desired volume without distortion.
4. X-OVER: Cutoff Frequency Selector
Selector HPF (High Pass Filter) / LPF (Low Pass Filter) / FULL.
5. Cutoff frequency control X-OVER (50Hz-500Hz)
Frequency selector for high pass and low pass.
6. Bass Boost (Bass Boost)
Selectable 0dB / +6 dB / +12 dB
7. LED indicator
GREEN LED: Indicates normal amplifier operation
RED LED: Indicates the protection mode
8. Output for Remote Controller
Turn the gain (GAIN) to the maximum before using the remote control.
DESCRIPTION OF FUNCTIONS
9. Remote Control
Gain adjustment from 0.2 V to +6 V
FEATURES AND DESCRIPTIONS

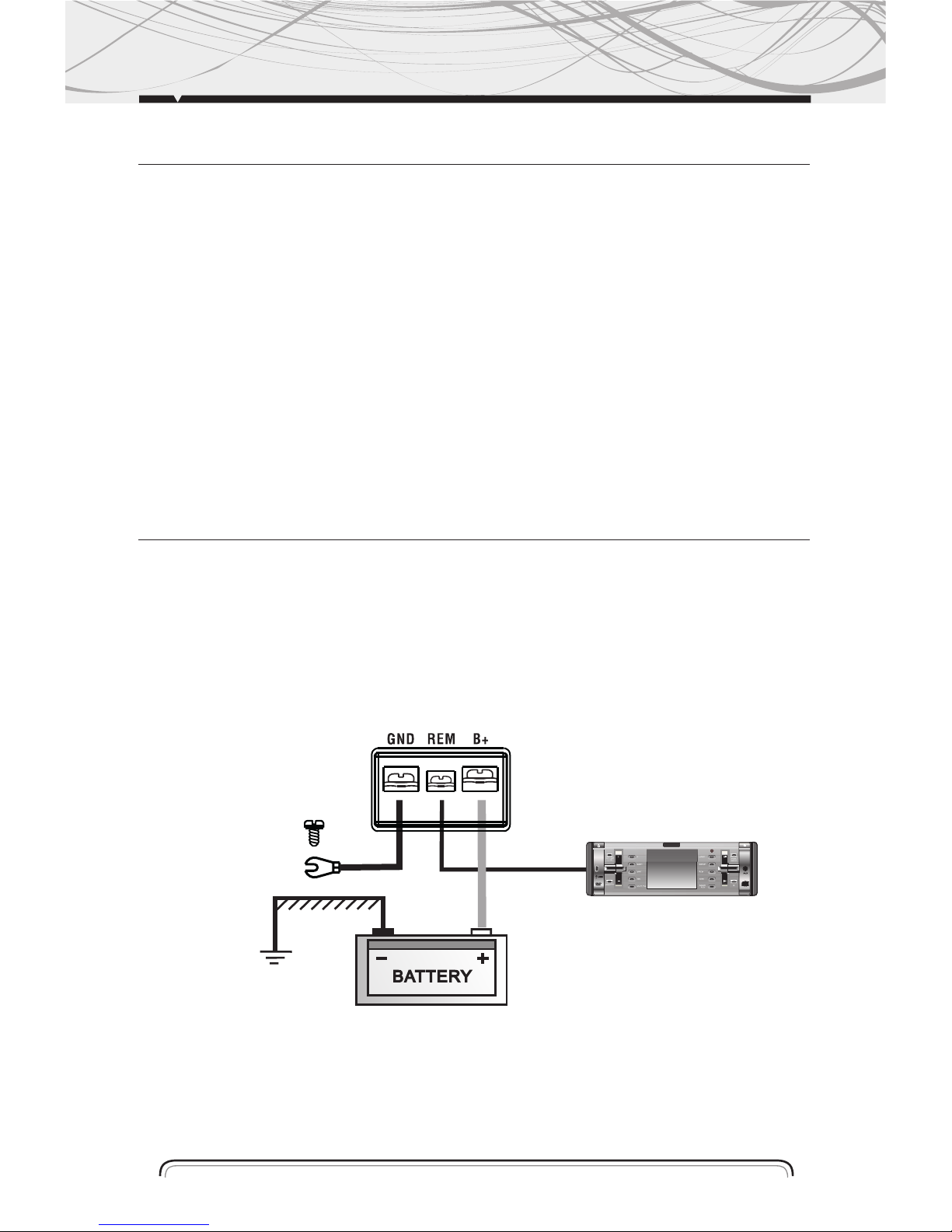

INSTALLATION
Connect the cable (+) battery to the positive terminal of the amplifier (B +) and ground wire
(GND) of the amplifier to the vehicle chassis. The cable terminal (REM) the terminal cable must
be connected to the stereo remote control
The black wire is the ground wire. When installing this unit, always connect the ground wire first.
Check the ground wire is properly connected to the chassis of the vehicle
Note
To prevent the ground wire (GND) to loosen or fall off the vehicle chassis, you can install a screw
and nut self-braking.
5
10. Fuse Holder
Only replace fuses with same rating fuses
11. Speaker connection terminals
12. (GND) Ground Wire Terminal
A Node connection to the vehicle chassis.
(REM) Remote Control Terminal at Stereo
The terminal (REM) is connected by remote cable to the main unit.
The voltage must be between 10 and 15 VDC
(B +) Terminal of Cable Positive
Power connection terminal. Connect to the anode of the car battery.
FEATURES AND DESCRIPTIONS

ELECTRICAL DIAGRAM

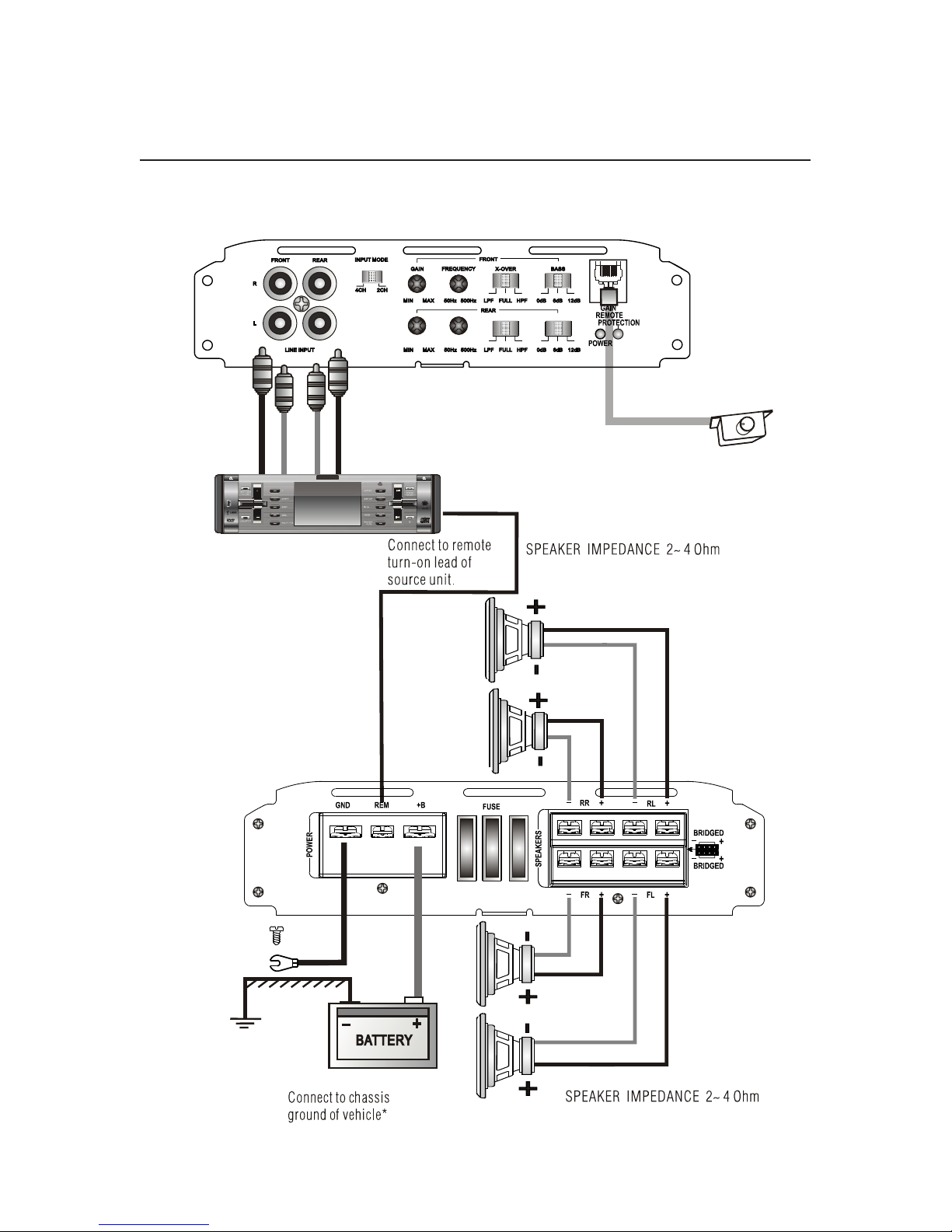

a. Configuration Diagram for 4-Channel Stereo
6

ELECTRICAL DIAGRAM
a. Mode Setup diagram Bridge (Bridge)
7

Troubleshooting
Before installing your amplifier, read the notes you see below and follow the procedures. Always
test the speakers and their cables before installing them in the vehicle.
No power
Check if the ground wire (GND) is properly installed.
Check dif the arrival of energy in the terminal (B +).
Check the fuses.
Check if the LED is turning it protection. it it is, turn the amplifier off for a few minutes and then on
again.
Shrill whistle or engine noise in speakers
Disconnect each of the RCA inputs on the amplifier until the hissing disappears. If the hiss disap-
pears, then replace the cables. If by changing cables, whistling doesn´t disappear, check that the
main drive cables are not touching other wires of the vehicle.
The best way to establish the level of the amplifier is putting his gain to the maximum. Try to raise
the signal level on the main unit as much as possible and see if the hiss decreases.
Protection LED is activated when the amplifier is operating
Check for a short-circuit in the line of speakers.
Turn off the amplifier, disconnect all the speakers and turn on the amplifier. If the protection LED
turns on again, then is the amplifier is not working properly.
If the heat sink temperature exceeds 85° C, the power supply is disconnected automatically This
protecting the amplifier against a damage.
The amplifier overheats
Verify that the minimum speaker impedance is correct for the amplifier.
Check if the speaker wires have a short circuit.
Make sure if there is enough ventilation over the amplifier.
The sound is distorted
Verify that the gain control of the main unit is correct.
Check that all crossover frequencies are configured correctly.
Verify that the speaker wires are not touching each other.
Squealing noise in the speakers
The squeak maybe caused by a damaged cable or poor contact on the ground.
TROUBLESHOOTING
8

Specifications
Model ELP 36.4
Power @ 14.4VDC .
Maximum Power in Bridged Mode @ 4 Oh 3600W x 2
Maximum Power @ 2 Ohms 1800W x 4
RMS Power @ 4 Ohms 330W x 4
RMS Power @ 2 Ohms 500W x 4
Signal to Noise Ratio 95dB
(THD) 0.01%
Channel Separation (@1Khz) 50dB
Frequency Response 15Hz – 30KHz
Input Sensitivity 200mV – 6V
Input Impedance 15KOhm
Minimum Speaker Impedance 2 Ohms
Crossover Low Pass Filter 50Hz – 500Hz
Bass Boost 0dB - +12dB
High Pass Filter 50Hz – 500Hz
Remote Gain Control 200mV + 6V
Fuse Rating 25A x 2
Dimensions (W x H x D) 200 x 49 x 524 mm
ESPECIFICATIONS
9

www.b52audio.com
NOTES

MOBILE ENTERTAINMENT SYSTEM
MANUAL DE INSTRUCCIONES
ELP 36.4
AMPLIFICADOR DE POTENCIA DE 4 CANALES
Gracias por adquirir el Amplificador ELP-36.4 y por su especial interés en los productos B52.
Lea atentamente este manual de usuario antes de instalar su nuevo amplificador y consérvelo
en un espacio libre de humedad donde pueda consultarlo cuando le sea necesario.
www.b52audio.com
ESPAÑOL

Antes de la Instalación ................................................................................................13
Descripción de Funciones............................................................................................14
Instalación..................................................................................................................15
Diagrama Eléctrico......................................................................................................16
Solución de Problemas................................................................................................18
Especificaciones .........................................................................................................19
INDICE
12

ADVERTENCIA
Antes de realizar la instalación de su nuevo amplificador, asegúrese de que el fusible se
encuentre correctamente colocado.
No varíe nunca el valor de los fusibles. Utilice los fusibles con la corriente y tensión nominal
indicada en este manual. De lo contrario, podría producirse un corto circuito, humo o hasta una
explosión.
No instale esta unidad en un lugar donde pueda interferir con el manejo del vehículo ni pueda
lesionar a un pasajero como consecuencia de una frenada brusca.
Para garantizar el correcto funcionamiento de esta unidad manteniendo una buena disipación
térmica, asegúrese de dejar suficiente espacio sobre el amplificador para que la ventilación sea
la adecuada. No cubra el amplificador con una alfombra o manta.
Conecte el cable (+) de la batería al terminal positivo del amplificador (B+) y el cable a tierra
(GND) del amplificador al chasis del vehículo.
Esta unidad es para instalaciones de 12V y conexión a tierra negativa. Antes de realizar una
instalación en una camioneta, camión u ómnibus, compruebe el voltaje de la batería.
El cable negro, es el cable a tierra.
Cuando instale esta unidad, siempre conecte primero el cable a tierra. Compruebe que el cable
a tierra esté conectado adecuadamente al chasis del vehículo.
Si por algún factor, el cable conectado al chasis del vehículo, se afloja o se cae, podría provocar
incendios, humo o averias.
El amplificador debe instalarse en una superficie plana. Instalarlo en una superficie que no sea
plana o con protuberancias, puede provocar que su funcionamiento sea defectuoso.
No permita que esta unidad, entre en contacto con líquidos, ya que podría generar una descarga
eléctrica, humo o recalentamiento.
Ante cualquier problema en la instalación de este amplificador, el fusible se fundirá. Si esto
ocurre, desconecte los cables y revise todas las conexiones de la fuente de alimentación y los
altavoces hasta encontrar la falla. Una vez que determine y solucione el problema, reemplace el/
los fusible/s por uno nuevo de idéntica corriente y tensión nominal.
Si no encuentra la falla, contactase con su distribuidor más cercano.
ANTES DE LA INSTALACION
13

DESCRIPCION DE FUNCIONES
14
1.Entrada de Bajo Nivel RCA
Enchufe del conector de entrada de bajo nivel conectado a los altavoces de la unidad principal.
2. Entrada de Alto Nivel
Enchufe del conector de entrada de alto nivel conectado a los altavoces de la unidad principal.
NOTA: No conecte los cables de alto nivel de entrada si se utiliza el bajo nivel de entrada RCA
3. Ajuste de Ganancia (GAIN)
Ajuste este control para obtener el volumen deseado sin distorsión.
4. X-OVER: Selector de Frecuencia de Corte
Selector HPF (Filtro pasa Altos) / LPF (Filtro pasa Bajos)/ FULL.
5. Control de Frecuencia de corte X-OVER (50Hz-500Hz)
Selector de frecuencia para pasa altos y pasa bajos.
6. Refuerzo de Graves (Bass Boost)
Seleccionable entre 0dB / +6dB / +12dB
7. Indicador de LED
LED VERDE: Indica el normal funcionamiento del amplificador
LED ROJO: Indica el modo protección
8. Salida para Controlador Remoto
Gire la perilla de ganancia (GAIN) al máximo antes de usar el mando a distancia del Controlador
Remoto.
9. Control Remoto
Ajuste de Ganancia de entre 0,2V y +6V

DESCRIPCION DE FUNCIONES
INSTALACION
Conecte el cable (+) de la batería al terminal positivo del amplificador (B+) y el cable a tierra
(GND) del amplificador al chasis del vehículo. El cable del terminal (REM) derivara al mando
remoto del estéreo.
El cable negro, es el cable a tierra. Cuando instale esta unidad, siempre conecte primero el
cable a tierra. Compruebe que el cable a tierra esté conectado adecuadamente en el chasis del
vehículo.
Nota
Para evitar que el cable a tierra (GND) se afloje o se caiga del chasis del vehículo, Ud. puede
instalar un tornillo con tuerca auto-frenante.
15
10. Porta Fusible
Reemplace el fusible, solo por uno con la corriente y tensión nominal indicada en las
especificaciones.
11. Terminales para conexión de parlantes
12. (GND) Terminal de Cable a Tierra
Nodo de conexión al chasis de vehículo.
(REM) Terminal de Mando Remoto al Estéreo
El terminal (REM) se conecta mediante un cable a distancia que proviene de la unidad principal.
Su voltaje debe ser entre 10 y 15 VDC
(B+) Terminal de Cable Positivo
Terminal de conexión de energía. Conectar con el ánodo de la batería del automóvil.
Conectar al terminal +12V de la
batería con el fusible apropiado.
Conectar a la unidad
principal para
encendido remoto
Conectar a la unidad
principal para
encendido remoto
Conectado a tierra
(Chasis del vehículo)

DIAGRAMA ELECTRICO
a. Diagrama de Configuración para 4 Canales Estéreo
16

DIAGRAMA ELECTRICO
b. Diagrama de Configuración en Modo Puente (Bridge)
17

Solución de problemas
Antes de instalar su amplificador, lea las observaciones que sigue a continuación y siga los
procedimientos indicados. Siempre pruebe los altavoces y sus cables antes de instalarlos en el vehículo.
El Amplificador no enciende
Verifique si el cable a tierra (GND) esta correctamente instalado.
Verifique que la carga de la batería tenga al menos 10A.
Verifique la llegada de energía en el terminal (B+).
Verifique el fusible.
Verifique si el LED de protección esta encendido. Si asi fuese, apague el amplificador durante
algunos minutos y vuelva a encenderlo.
Silbido agudo o ruido del motor en los parlantes
Desconecte cada una de las entradas RCA del amplificador hasta que el silbido desaparezca. Si el
silbido desaparece, entonces reemplace los cables. Si cambiando los cables, aun no desaparece el
silbido, revise que los cables de la unidad principal no estén tocando otros cables del vehiculo.
La mejor manera de establecer el nivel de entrada del amplificador es colocar su ganancia
al máximo. Intente subir el nivel de señal en la unidad principal tanto como le sea posible y
compruebe si el silbido disminuye.
La protección de led, se activa cuando el amplificador está funcionando
Verifique si existe un corto-circuito en la línea de los parlantes.
Apague el amplificador, desconecte todos los parlantes y vuelva a encender el amplificador. Si el
LED de protección vuelve a encenderse, entonces, el amplificador esta defectuoso.
Si la temperatura del amplificador superara los 85º, la fuente de alimentación se desconectara
en forma automática. Este sistema protege al amplificador ante una posibilidad de daño mayor.
El amplificador recalienta
Verificar que la impedancia minima de los parlantes sea la correcta para el amplificador.
Comprobar si los cables de los parlantes tienen un corto-circuito.
Compruebe que exista buena circulación de aire sobre el amplificador.
El sonido distorsiona
Verificar que el control de ganancia de la unidad principal sea la correcta.
Verificar que todas las frecuencias de cruce, estén configuradas correctamente.
Verificar que los cables de los parlantes no se toquen entre ellos.
Ruido de chillido en los parlantes
Este chillido se produce a causa de un cable dañado o un mal contacto en la conexión a tierra.
SOLUCION DE PROBLEMAS
18

Modelo ELP-36.4
Potencia @ 14.4VDC .
Potencia Maxima en Modo Puente @ 4 Ohms 3600W x 2
Potencia Maxima @ 2 Ohms 1800W x 4
Potencia RMS @ 4 Ohms 330W x 4
Potencia RMS @ 2 Ohms 500W x 4
Relación Señal / Ruido 95dB
Distorsión (THD) 0.01%
Separación de Canales 50dB
Respuesta en Frecuencia 15Hz – 30KHz
Sensibilidad de Entrada 200mV – 6V
Impedancia de Entrada 15K Ohm
Impedancia Mínima para Parlantes 2 Ohms
Divisor de Frecuencias Filtro paso bajo 50Hz – 500Hz
Refuerzo de Graves 0dB - +12dB
Filtro paso alto 50Hz – 500Hz
Ganancia de Controlador Remoto 200mV + 6V
Fusible 25A x 2
Medidas en (Ancho x Alto x Profundidad) 200 x 49 x 524 mm
ESPECIFICACIONES
19

www.b52audio.com
NOTAS
This manual suits for next models
3
Table of contents
Languages:
Other B-52 Amplifier manuals
Popular Amplifier manuals by other brands

CyberData
CyberData 11115 Installation quick reference

LY International Electronics
LY International Electronics PB-9306 Operation instructions

Heritage Audio
Heritage Audio ELITE Series user manual

Exaudi
Exaudi A 510 HE user manual

Panasonic
Panasonic CY-M9054EN operating instructions

Extron electronics
Extron electronics MPA 152 user manual

Atlas
Atlas AA120 brochure

SubDude Audio
SubDude Audio JJP PINWOOFER installation instructions

McGREGOR
McGREGOR 14971 operating instructions

Rockford Fosgate
Rockford Fosgate 250 sERIES Installation & operation

icon Audio
icon Audio Stereo 20 SE instruction manual

Ground Zero
Ground Zero NUCLEAR Series owner's manual
