B-52 MP 5712B User manual

MOBILE ENTERTAINMENT SYSTEM
INSTRUCTIONS MANUAL
MP 5712B
CAR CD/ MP3 PLAYER / RECEIVER
USB /SD /MMC /SLOT/ BLUETOOTH
www.b52audio.com
INSTRUCTIONS MANUAL 02 - 20
MANUAL DE INSTRUCCIONES 21 - 40
MANUAL DE INSTRUÇÕES 41 - 61
ENGLISH
MUTE
LOUD
MP 5712B

Installation
Additional information
General operations
Radio operations
CD/SD/MMC/USB Operations
MP3 WMA overview
Remote control layout
Specification
Before playing discs
Trouble shooting
Bluetooth
INDEX
2
03
05
06
09
11
14
15
17
18
19
20

PRECAUTIONS
Choose the moun ting location where the unit will not interfere with the normal driving function
of the driver.
Bef ore final ly installing the unit, connect the wiring tempor arily and make sure it is all
connected up properly and the unit and the system work properly.
Use only the parts included with the unit to ensure proper installation. The use of unauthorized
parts can cause mal functions.
Con sult with your nearest dealer if installation requires the drilling of holes or other
modifications of the vehicle.
Install the unit where it does not get in the driver’s way and cannot injure the passenger if there
is a sudden stop. Like an emergency stop.
If installation angle exceeds 30 from horizontal, the unit might not give its optimum
performance.
Avoid installing the unit where it would be subject to high temperature, suchas from direct
sunlight, or from hot air, form the heater, or where it would be subject to dust, dirt or excessive
vibration. Do not expose this equipment to rain or moisture.

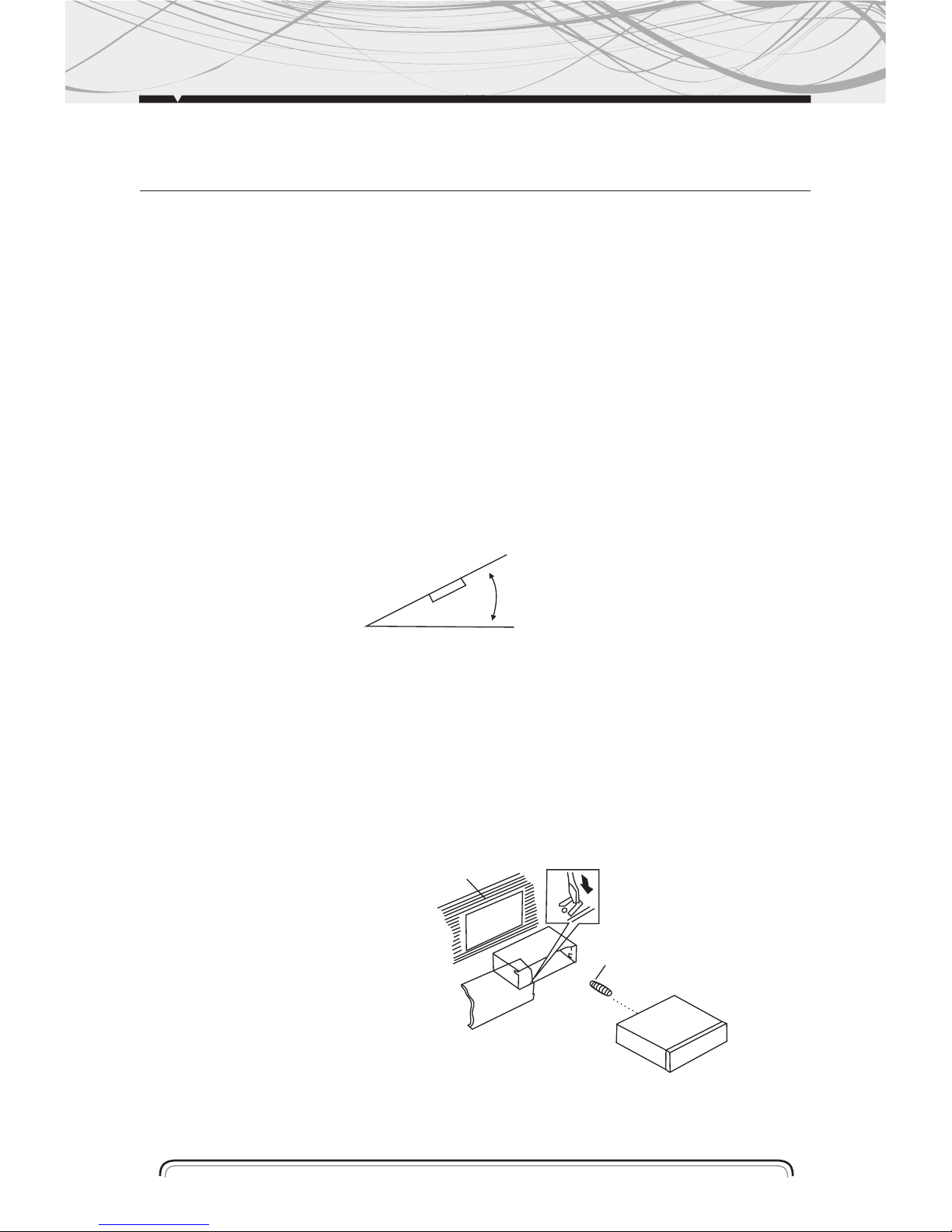

DIN FRON T-MOU NT (Method A)
Installing the unit
1. Dashboard
2. Holder
After inserting the holder into
the dashboard, select the
appropriate tab according to
the thickness of the dashboard
material and bend them
inwards to secure the holder in
(Fig. 1) place.
3. Screw
INSTALLATION
30
0
(Fig. 1)
12
3
3

1. Dashboard
2. Nut (5mm)
3. Spring Washer
4. Screw (5 x 25mm)
5. Screw
6. Strap
Be sure to use the strap to
secure the back of the unit in
place. The strap can be bent by
hand to the desired angle.
7. Plain Washer
INPUT THE SD CARD
The SD oblique angle keeps
rightward exposure, put into
the SD slot and press it again
to eject.
1. Frame
2. Insert fingers into the groove in the front
of frame and pul l out to remove the frame.
(When reatt achi ng the frame, point the
side with a Groove dow nwards and attach
it. )
3. Lever
Insert the levers supp lied with the
unit into the grooves at both sides of
the unit and shown in figure until they click.
Pulling the levers makes posible to remove
the unit from the dashboard.
DIN REAR-MOUNT (Method B)
Installation using the screw holes on
the sides of the unit.
INSTALLATION
1
2
3
4
5
6
7
(Fig.2)
2
1
3
(Fig.3)
Removing
the uni t
2
3
2
4

ADDITIONAL INFORMATION

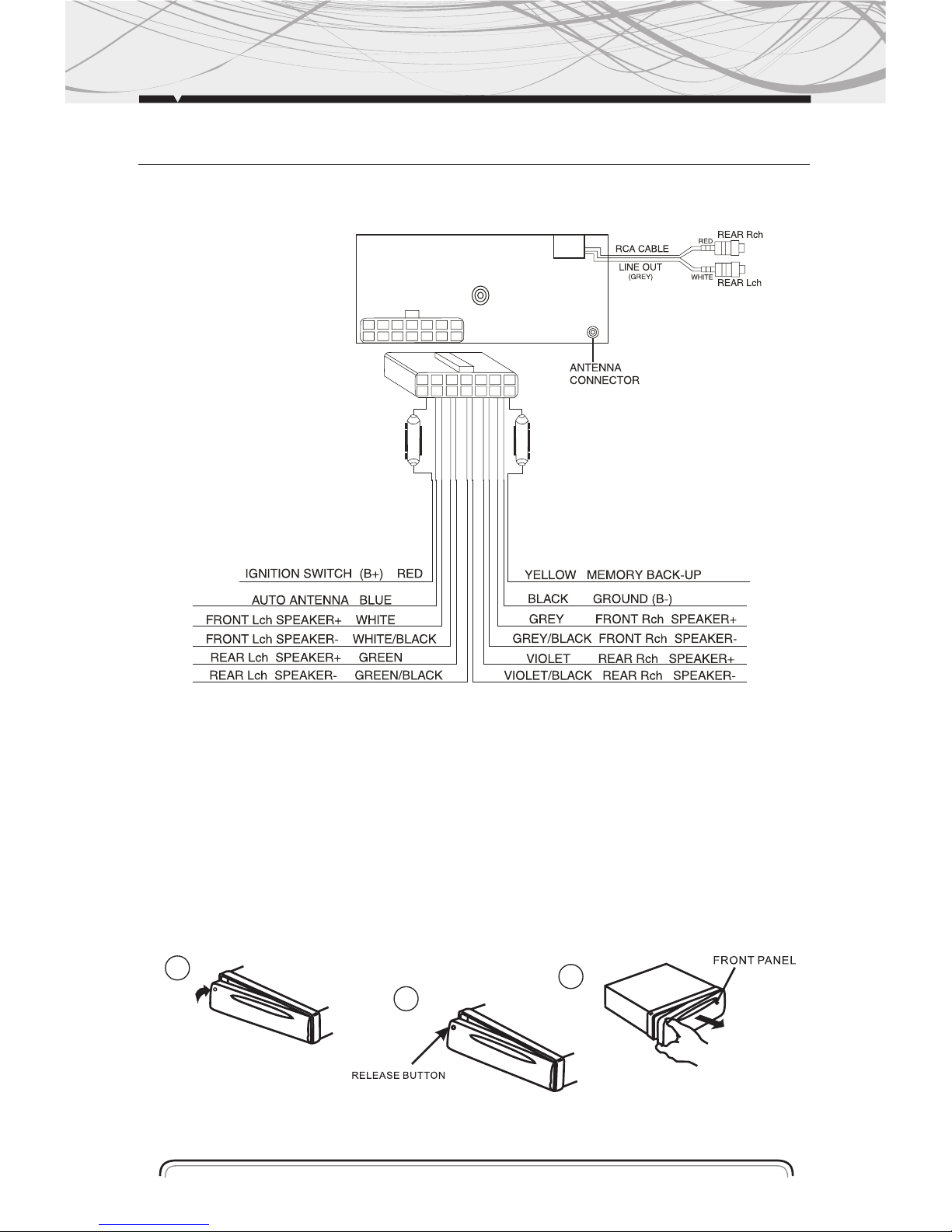

SPEAKER CONNECTION
HOW TO INSTALL AND REMOVE THE FRONT PANEL
INSTALLING THE FRONT PANEL
To install the front panel, insert the panel into the housing and make sure the panel is properly
installed, otherwise, abnormalities occurs on the display or some keys will not function properly
1
2
3
5

GENERAL OPERATIONS

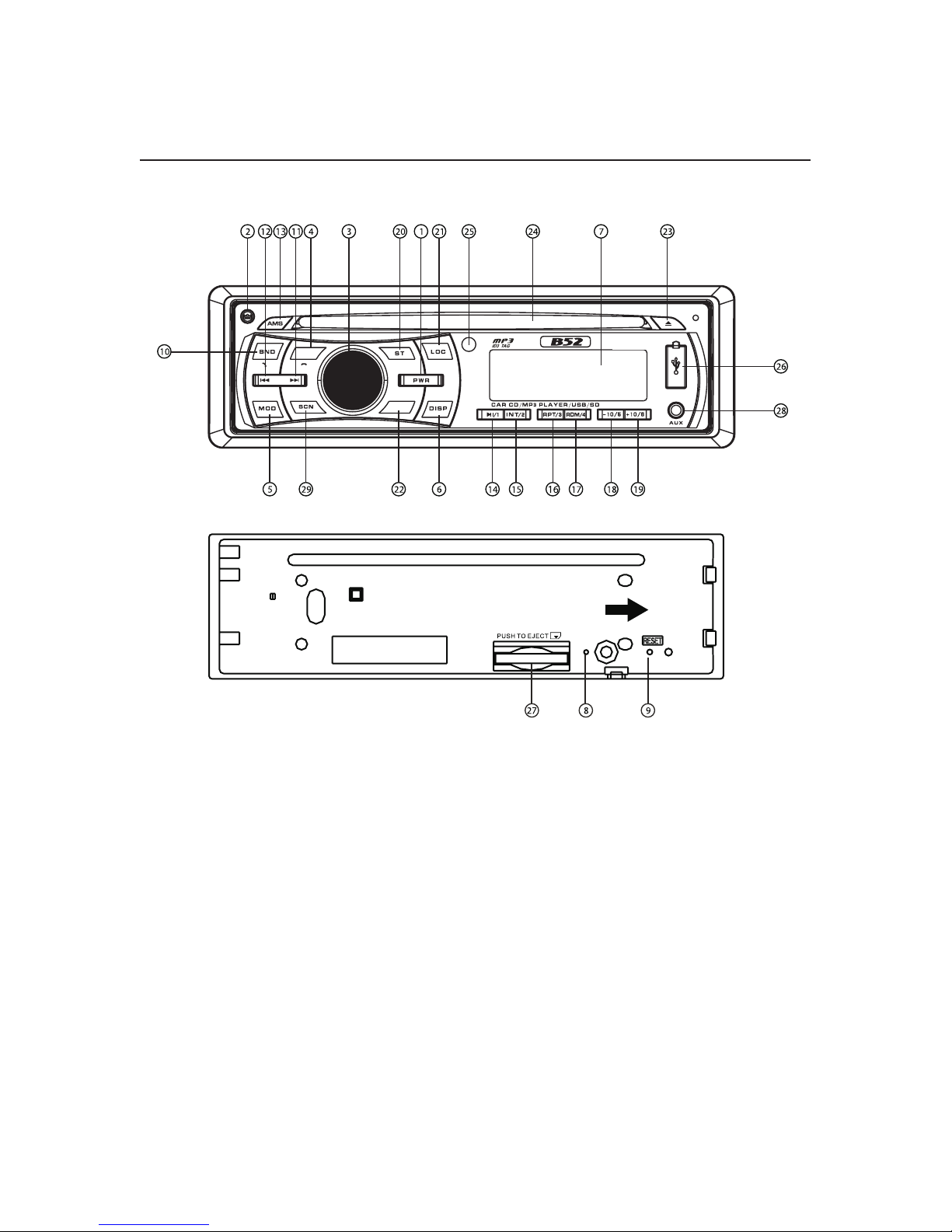

FRONT PANEL LAYOUT
1. POWER BUTTON
2. RELEASE BUTTON
3. VOLUME/ SEL BUTTON
4. MUTE BOTTON
5. MODE SWITCH
6. DISPLAY BUTTON
7. LCD DISPLAY
8. FLASHING LED
9. RESET BUTTON
10. BAND SWITCH
11. TUNE SEEK Y TRACK FORWARD BUTTON
12.TUNE SEEK Y TRACK REVERSE BUTTON
13. AUTOMATICALLY MEMORY STORING
14. PLAY/PAUSE Y PRESET BUTTON 1
15. INTRO Y PRESET BUTTON 2
16. REPEAT Y PRESET BUTTON 3
17. RANDOM Y PRESET BUTTON 4
18. PRESET BUTTON 5
19. PRESET BUTTON 6
20. ST/MO BUTTON
21. LOC/DX BUTTON
22. LOUDNESS BUTTON
23. EJECT KNOB
24. CD SLOT
25. REMOTE CONTROL SENSOR
26. USB CONNECTER
27. SD/MMC SLOT
28. AUX IN JACK
29. SCN BUTTON
6
MUTE
LOUD
MP 5712B

POWER ON/OFF
Press any button to turn the unit on. Press and hold POWER button to turn off the unit.
Note: After the unit is off, the volume level and radio current settings will be memorized, and
when you turn the unit on it will resume the stored status, which you set.
FRONT PANEL RELEASE
Press REL button (2) to detach the removable front panel
SOUND ADJUSTMENT
Turn on (3) can adjust the desired volume quality.
A).Press SEL button (3)will change in the following order.
Option:
VOLUME CONTROL /SELECT
Rotating this knob, you can adjust VOL/BASS/TREB/BAL/FAD . To select the functions, press the
VOL knob shortly until the desired functions are shown on the display.
Increase or decrease the volume by turn the VOL knob right or left. These buttons can be used
to adjust the BASS, TREBLE, BALANCE and FADER.
BASS
Press VOL/ SEL button(3) one time. Adjust bass level by using VOL/ SEL(3)Knob.
TREBLE
Press VOL/ SEL button(3) two times. Adjust treble level by using VOL/ SEL(3) Knob
BALANCE
Press VOL/ SEL button(3) three times. Adjust sound balance between left and right speakers by
using VOL/ SEL(3)Knob.
FADER
Press SEL button (3) four times. Adjust sound balance between front and rear speakers by using
VOL/ SEL(3)Knob.
MUTE
Press MUTE button (4) to mute down the sound. Press it again to release this mode and recover
previous volumen level.
OTHERS ADJUSTMENT
Press VOL/SEL button (3) for several seconds, it is activated as cyclical mode of following
functions for user´s selection.
VOL BAS TRE BAL FAD
7
(Volume) (Bass)(Treble) (Balance) (Fader)

Press and hold this button will go to different modes:
Press and hold will go to DSP mode automatically:
By turning this function button to chose Flat, CLASSIC, Pop and Rock.
By press the function button to select your favoryte DSP mode.
When in the DSP mode, press the function button once will to ESP mode:
By turning the function button to choose 12 seconds ESP.
Vy press the function button to select your desire ESP seconds.
When in the DSP mode, press the function button twice will go to BEEP mode
(the key pad tone) by turning the function button to choose on or off by press
The function button to selecto n or off.
VOL LAST/ADJUST
This function allows to set the volumen level of the unit after it was turned off and the turne don
again. Choose VOL LAST if you want the volumen level to be the same as it was before turning off.
VOL ADJUST allows to choose volumen level.
SEEK MODE
SEEK 1: When SEEK 1 mode is activated, AUTO SEEK SCAN is stopped when station is detected
even user still push SEEK button.
SEEK 2: Auto SEEK SCAN is not stopped even if station is detected if user pushes SEEK button.
When releases SEEK button, the stop when station is detected.
SELECT MODE
By pressing this button(5) to go to different function mode:
- Tuner (radio)
- CD (MP3 CD) to go to this mode must be have a CD in.
- Memory Card to go to this mode must be have a Memory Card in.
- USB to go to this mode USB device must be connected.
- AUX in put
DISPLAY
Press DISP button (6) to operate as the conversion of each display mode as follow:
- Time is displayed for 5 sec when DISP key is pressed, and it returns to its previous display
(Folder, File name...) unless DISP key is pressed again.
3) From the clock mode, when DISP Key is pressed for longer than 1sec, clock mode switches to
clock Adjusting mode and the clock display begins flashing. At this time clock can be changed by
pressing ( + / - ) , or the ENCODER VOLUME.
LIQUID CRYSTAL DISPLAY
Exhibit current frequency and activated functions on the display (7).
FLASHING LED
If the front panel does not install in the main unit, the LED (8) will be flashing.
8

BAND SELECTION
At tuner mode, press BAND button (10) to select the desired band. The
reception band will change in the following order:
STATION SELECTION
Press TUNE/SEEK/TRACK FORWARD button (11) or TUNE/SEEK/TRACK REVERSE button (12)
shortly for manual tuning function.
Press for several seconds the automatic tuning mode ( SEEK
mode) is selected.
AUTOMATICALLY MEMORY STORING & PROGRAM SCANNING
- Automatically Memory Storing
Press AMS(MP3) button (13) for several seconds, the radio searches from the current frequency
and checks the signal strength until one cycle search is finished.
And then 6 strongest stations are stored into the corresponding preset number Button
- Program Scanning
Press AMS(MP3) button (13) shortly to scan preset station. When the field strength level is more
than the threshold level of stop level, the radio is holding at that preset number for several seconds
with releasing mute, then searches again.
STATION STORING
Press preset button (14~19)
1) RADIO MODE. M1 ~ M6
- PRESET MEMORY is loaded when key is pressed for less than 1 second.
- PRESET MEMORY is saved when key is pressed for longer than 1 sec.
2) CD/ MP3 / FLASH MP3 PLAY / PAUSE Press preset button (14) is activated. During a PAUSE,
DISC INDICATOR flashes.
TOP - First song will play whe n Top key is pressed for longer than 0.5sec during play.
INT
Press preset button (15): During INTRO ON, INT indicator comes on and
begins playing the first 10sec of each song, until the last song is played. It begins
playing the entire track from where INT started
MO/ST SELECTOR
Press ST (20) button to select MONO or STEREO mode.
When “ST” appears in the LCD display. During the player mode, press the button to switch left
speaker / right speaker/stereo.
RADIO OPERATIONS
9

LOC/DX SELECTOR
Press LOC (21) button to select strong or weak station reception. It is set to LOC mode when LOC
(21) button is first pressed. “LOC” appears and only local station is available. It is switched to DX
mode when LOC (21) button is pressed again. Both distance and local stations can be received.
LOUDNESS ON/OFF
Press LOU (22) button to increase the low frequency. This can improve the sensitivity of your
ears. And “LOUD” appears in the LCD when the loudness mode is activated.
SCAN
Press scan button (29) to search radio station.When a station signal strength
level more than the level to stop.The radio will playing the station for 5
seconds and the frequency blinking on the LCD at the same time.
Press and hold scan button (29) more than 3 seconds to select the station which
you desired.The radio will start play the station.
AREA USA/EUR SETUP
In Radio mode. Press SEL button for several seconds. LCD with show from DSP OFF/ON AREA USA/
EUR. At AREA USA/EUR. You can use VOL +/- to select the AREA frequency.
10

CD/SD/MMC/USB OPERATIONS
Discs for playback:
This unit can play disc types: CD/CD-R/-RW.
Compatible with formats: CDDA/MP3/WMA.
Loading and ejecting a disc
1. Turn the power on.
2. Insert the disc with the printed side facing upward into the slot.
3. Press EJECT button to eject the disc.
Multi-media card MMC/SD card slot
Support MP3/WMA ID3 format music only. Detach the front panel. Carefully insert the SD/MMC
card into the card slot on the inner panel. Attach the panel.
Unit starts playback automatically.
USB jack
Carefully connect the USB driver to the USB adapter cable and then insert it into the USB jack on
the front panel. Unit starts playback automatically.
USB/SD/MMC notes:
USB functions (flash memory type) MP3 music play.
1. SD/ MMC card support.
2. FAT 12/ FAT 16/ FAT 32 is possible
- FAT 12/16 (dir: 200 support, file:500 support),
- FAT 32 (dir: 200 support, file:500 support).
3. Filename: 32 byte/ Dir name: 32byte.
4. Tag (id3tag ver2.0)
- Title/ Artist/ Album: 32 byte support.
5. Multi card reader not support.
6. USB 2.0 support.
Note: USB format supports 2.0. Capacity: up to 4 GB.
SD cards brands: Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP,
Compaq, Sharp, Samsung, etc. Capacity: up to 4 GB.
MMC cards brands: Ericsson, Nokia, Motorola, HP, Palm, Sanyo, Microsystems, etc.
Capacity: up to 4 GB.
Note: Because of the great variety of products with SD and MMC card slots and
their sometimes quite manufacturer-specific functions the producer can neither
guarantee that all devices will be recognized nor that all operating options that
are possible in theory will actually work.
11

ID3 TAG INFORMATION
This unit supports ID3 tag ver2.0. If an MP3/WMA file has ID3 Tag information, it will be
displayed on the LCD. If there is no ID3 Tag information, nothing will be shown on LCD. The ID3
Tag information may include File, Folder, Music, Album or Artist data.
NEXT/PREVIOUS
Press NEXT/PREVIOUS buttons to choose next or previous track. Press longer than 1 sec., to
choose forward playback or backward playback.
PLAY/PAUSE
Press PAUSE button to pause the playback, press one more time to resume the normal playback.
INTRO (Preview all Tracks)
When this button is pressed, “INT ON” indication is displayed and the first several seconds of
each track of the disc is played. Press again to stop intro and listen to track.
REPEAT
When RPT button is pressed, “PT ON” indication is displayed and playback of the selected track
will be continually repeated until the track repeat mode is cancelled by pressing RPT button
again.
RANDOM
When RDM button is pressed,”RDM ON” indication is displayed and each track of the disc is
played in random instead of normal order. To cancel RANDOM mode, press RDM button again.
TRACK DOWN/UP SELECT (In case of MP3/WMA files)
-10/5 button: 10 Track down
+10/6 button: 10 Track up
SELECTION OF MP3/WMA FILES
1.Searching Track:
•Press AMS, then searching track is activated.
•Press VOL knob, then the first digit is blinking.
•Turn VOL knob to right or left, select first digit you want.
•Press VOL knob, then the first digit is fixed and second digit is blinking.
•Turn VOL knob to right or left, select 2nd 3rd respectively.
•Then automatically the song you selected will start.
2. Searching File Name:
•Press AMS twice, then file search is activated.
•Press VOL knob, then the first directory is displayed.
12

•Turn VOL knob to right or left, you can select the directory you want.
•Press VOL knob again, then the directory is fixed and the first file name is displayed.
•Turn VOL knob to right or left, you can select the file you want.
•Press VOL knob, then the song you selected will start.
3.Searching Character:
•Press AMS 3 times, then character search mode is activated.
•Press VOL knob, then a character is displayed.
•Turn VOL knob to right or left, you can select the letter you want.
•Press VOL knob longer than 2 sec.
•The song which has same character you selected is displayed.
•Turn VOL knob to right or left, you can select the song you want.
•Press VOL knob, then the song you selected will start.
13

14
• MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard.
• This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs.
• The unit can read MP3 files written in the format compliant with ISO 9660.
However it does not support the MP3 data written by the method of packet write.
• The unit can not read an MP3 file that has a file extension other than “mp3”.
• If you play a non- MP3 file that has the “mp3” extension, you may hear some noise.
• In this manual, we refer to what are called “MP3 file” and “ folder” in PC terminologyas “ track
and album”, respectively.
• Maximum number of directory level is 8, including the root directory. Maximum number of files
and folders per disc is 256.
• The unit may not play tracks in the order of Track numbers.
• The unit plays only the audio tracks if a disc contains both audio tracks and MP3 files.
• When playing a disc of 8 kbps or “VBR”, the elapsed playing time in the display window will
not be correct and also the intro play may not function properly.
“VBR”: Variable Bit Rate.
• The unit supports the playback of WMA files. The playback of ID3 tags for WMA format is not
guaranteed, it depends on versions and availability of Cyrillic alphabet.
• WMA (Windows Media Audio) music data compression format, created by Microsoft
Corporation. This format uses coding algorithm for compression of initial audio-record, greatly
decreasing the file size, but, saving the good sound quality even when the bit rate is low (for
example, 64 Kbit/s).
• Remember that the unit may not play the tracks in order they are written on disc.
Notes on creating your own CD-R or CD-RW containing MP3 files:
• To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency
of 44.1kHz and a fixed bit rate of 128 kbps.
• DO NOT store more than 256 MP3 files per disc.
• For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8,
including the root directory (folder).
• When CD-R disc is used, playback is possible only for discs, which have been finalized.
• Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and
NOT as an audio disc.
• You should not write non-MP3 files or unneeded folders along with MP3 files on the disc
otherwise it takes a long time until the unit starts to play MP3 files.
• With some CD-R or CD-RW media, data may not be properly written depending on its
manufacturing quality. In this case, data may not be reproduced correctly.
High quality CD-R or CD-RW disc is recommended.
• Up to 16 characters are displayed for the name of an Album or a Track. ID3TAG version 1x is
required.
• Note that the unit may not play Tracks in the order that you wrote them to the disc.
MP3/WMA OVERVIEW

REMOTE CONTROL LAYOUT
1. Power Button
2. Pause/ Play/ Preset Button1
3. Intro/ Preset Button2
4. Repeat Playing/ Preset Button3
5. Random/ Preset Button4
6. Preset Button5
7. Preset Button6
8. Mute/ Button
9. Volume Control
10. Mode Switch
11. ST/MO Button
12. Loudness Button
13. Scan Button
14. Display Button
15. APS/ AMS Button
16. LOC/DX Button
17. Band/ Switch
18. Tuning/ Selecting Tracks/ F.F / F.R
19. Select Button
15

16

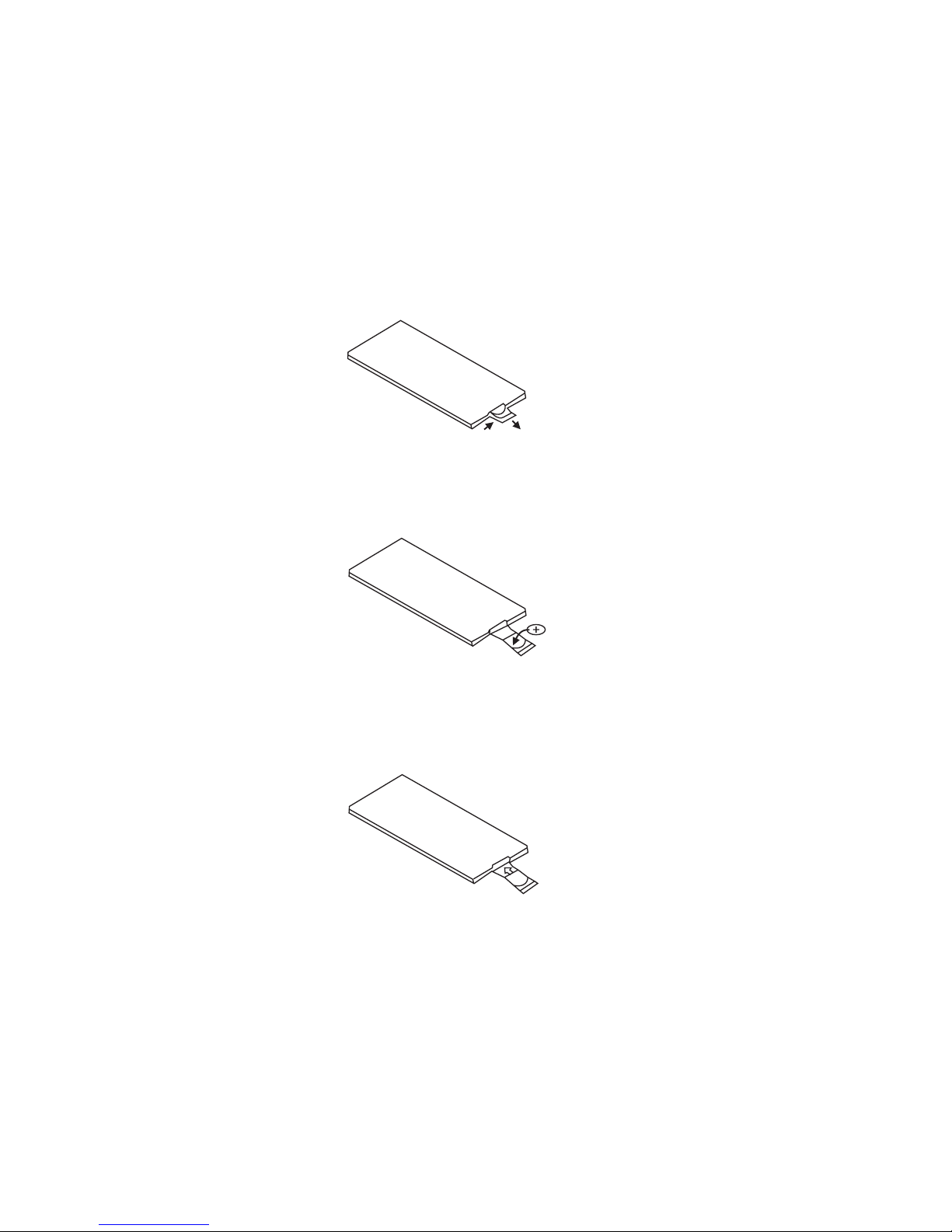

REPLACING THE BATTERY
When the operational range of the remote control becomes short or non functions while operat-
ing. Replace a new CR2025 battery. Make sure the battery polarity before replacement.
1. Pull out Battery Holder while pressing the stopper
2. Put the button type battery( + )mark upward into the Battery Holder.
3. Insert the Battery Holder into the Remote control.

GENERAL
Power Supply Requirements: “DC 14.4V ” Negative Ground
Maximum Output Power: 50W x 4 CH
Chassis Dimensions: 178 x 163x 50mm (W x D x H)
TONE CONTROLS
Bass (at 100Hz): + 10dB / -10dB
Treble (at 10K): +10dB / -10dB
Current Drain: 10A
CD PLAYER
Signal to Noise Ratio: More than 60dB
Channel Separation: More than 60dB
Frequency Response: 20H z - 20KHz
FM RADIO
Frequency Coverage (MHz): 87.5 - 107.9 MHz (U.S.A.)
IF: 10.7 MHz
Sensitivity (S/N-30dB): 12 dBu
Stereo Separation: > 30dB
AM RADIO
Frequency Coverage 530 - 1710KHz (U.S.A.)
IF: 450KHz
Sensitivity (S/N-20dB): 42 dBu
Load Impedance: 4 ohms
Remarks:
Specifications subject to change without notice
SPECIFICATION
17

18
Cleaning the CD
Before playing a CD, wipe it off with a clean, dust-free cleaning cloth.
Wipe the disc in the direction of the arrow.
Always insert the CD with the label side facing upwards.
If the CD is inserted with the printed side facing downwards, the device
may be damaged.
Note: If there is already a CD in the CD slot , do not try to insert a second CD. This may damage
the device.
Always hold CDs by the edge. In order to keep the CD clean do not touch the surface. Pull out
the CD as follows.
Do not attach any sticker or adhesive tape on the CD.
Do not expose the CD to direct sunlight or sources of heating.
Do not leave CDs in a car if it parked in direct sunlight as that will lead to a considerable rise in
the temperature inside the car.
Note: Do not use any solvents such as petrol or thinning agents. Commercially available cleaning
substances of antistatic spray will damage the device.
BEFORE PLAYING DISCS

TROUBLESHOOTING
Before going through the check list, check wiring connection. If any of the problems persist after
checklist has been made, consult your nearest service dealer.
Symptom Causes Solution
No Power The car ignition key
not been switched on If the power supply is properly connected to the car accessory
terminal, switch the ignition
key to ACC
The fuse is blown Replace a new fuse
CD Cannot Be
Loaded or Ejected A CD is already inside the player slot Remove the CD from the player and insert the new one
Inserting the CD in reverse
direction Insert the CD with the label facing up
The CD is extremely dirty or
defected Clean the CD or try to play a new one
Temperature inside the car is
too high Cool off until the ambient temperature return to normal
Condensation Leave the player off for an
hour or so and try again
No Sound Volume is at minimum Adjust volume to desired level
Wiring is not properly
connected Check wiring connection
Sound Skipping The installation angle is more
than 30º Adjust the installation angle to less than 30º
CD is extremely dirty or
Defected Clean the CD or try to play a new one a new one
The Operation Keys
Do Not Work The built-in microcomputer is not operating properly due to
Interference
Press the RESET button
or reinstall the front panel
properly
The Radio or Automatic
Selection Does Not Work The antenna cable is not connected correctly Connect the antenna cable correctly
The signals are too weak Select the station manually
19

20
1. Pairing connect.
Turn on car unit, put your mobile near the unit, activate your mobile bluetooth function.Soon
the phone will find the new bluetooth device "CAR AUDIO". Input the pairing password “8888”
and clik OK. The phone will prompt the matching successful.When the pairing connect is
successful,on the LCD, it shows BT ON, and the bluetooth logo “ ” will stop blinking .Then
you may perform the bluetooth operation. REMARK: depend on bluetooth mobile, the bluetooth
system support “HSP” “HFP” “A2DP” and AVRCP bluetooth profile.
2. Handsfree phone service
If your mobile phone have matched with the unit. You can dial calls out through your mobile
phone. It will turn to unit automatically when calling come in and the calling phone number will
indicat on the LCD screen.
-Press the “BAND” button shortly to accept the call .Then you can talk with the
other party through the mic on the panel.
-Press “MUTE” button shortly to reject the call when calling come in.
-Press “MUTE” button shortly to hang up after you finish the talk.
3. Advance Audio distributing profile(A2DP) playing.
Through mobile and unit A2DP connected, the music playing in mobile can turn to the unit audio
system play. Press button “ ”and “ ” in the panel can select the music track.
-Press “ ” button shortly to pause the music playing.
-Press “BAND”(mode) longly to temporarily discommect the bluetooth.
-Press “BAND”(mode) button longly again to reconnect the bluetooth.
4.Phone number book.
This bluetooth system can automatically store incoming call numbers, up to 10 phone numbers.
-Press “MUTE”(mode) button longly to enter the phone number book and press VOL button to
look up the phone number.
-Press “BAND” button once can call out you desired phone number.
5. Interrupt bluetooth connection/reconnection.
Pressing the “BAND” button shortly to interrupt the bluetooth connection when you are talking a
call and the voice can turn to mobile speaker.
Press “BAND” button again to reconnection.
NOTE:Different mobile phone have different responses.We do not guarantee all the operation of
connectable devices.
6. How to delete stored phone number? You just t can store ten number of missed ,rejected and
ANS under separately, and the first number will auto deleted when the 11th number calling.
7. How to use “Missed”,”Rejected””Auto ANS” Functions.
Press MUTE button for 3 seconds to enter into REVIEVED /MISSED/REJECTED/ ANTO .ANS.
Turn VOL button for choosing the telephone number.
BLUETOOTH
