B-PWR PAFB-1C User manual

Installation Manual
PAFB-1C Mountain Front Bumper with Skid Plate (Axys)
Installation Manual
Mountain Front Bumper
with Skid Plate (Axys)
Product Number: PAFB-1C
99912004

Installation Manual
PAFB-1C Mountain Front Bumper with Skid Plate (Axys)
Table of Contents
SAFETY INSTRUCTIONS...............................................................................................................................................1
PARTS AND TOOLS......................................................................................................................................................1
1. Parts List .........................................................................................................................................................1
2. Required Tools................................................................................................................................................1
INSTRUCTIONS............................................................................................................................................................2
3. Preparation.....................................................................................................................................................2
4. Removing the side panels and hood ..............................................................................................................3
5. Removing the OEM front bumper..................................................................................................................4
6. Removing the rivets........................................................................................................................................7
7. Installing the B-PWR front bumper ................................................................................................................8
8. Reinstalling the hood and side panels......................................................................................................... 11

Installation Manual
PAFB-1C Mountain Front Bumper with Skid Plate (Axys)
SAFETY INSTRUCTIONS
Thank you for choosing a B-PWR product, designed
by passionate riders who focus on what users really
need.
To avoid any unfortunate situations, we
recommend that you get to know how your
modified vehicle handles before using it in extreme
conditions.
1. Read all the instructions carefully before
installing this product.
2. If you do not have the tools or technical
knowledge needed to ensure proper installation,
have the product installed by an authorized dealer.
WARNING
It is essential that you follow the installation
procedures, possess general mechanical knowledge
and use appropriate tools to ensure a safe and
reliable installation.
Improper use or installation of the product, or any
modifications made to adapt the product for use in
a context other than that for which it was intended,
voids the warranty and may result in SERIOUS
INJURIES.
B-PWR and all its affiliated companies, as well as its
suppliers and distributors, are not responsible for
any consequences whatsoever resulting from a poor
installation or an improper use of the product.
INSTALLATION INSTRUCTIONS
This manual provides detailed instructions for
installing the product.
COMPATIBILITY
Polaris snowmobile (2016 to 2020 editions) with an
Axys chassis.
WARNING
For safety reasons, this kit needs to be installed by a
person with general mechanical knowledge using
the proper tools.
The illustrations in this document indicate the
typical structure of the various assemblies. It is
therefore possible that they do not represent the
exact form of the parts or the manufacturing
details. These illustrations are intended to identify
parts that perform an identical or similar function.

Installation Manual
PAFB-1C Mountain Front Bumper with Skid Plate (Axys)
Page | 1
PARTS AND TOOLS
1. Parts List
Part
Part number
Description
Qty
#1
FB3A-BL
Front bumper
1
#2
FB3B-BL
Protective plate
1
#3
999100009
Rivet 3/16
2
#4
233261494
Nylon nut M6 zinc
5
#5
999100024
Black Hex Head Bolt, High Strength, M6 x 1mm
Thread, 25mm Length
2
#6
999100020
M6 washer
2
#7
250000770
Hexagon socket head screw M6x20mm
2
2. Required Tools
•Allen key # 4
•Riveter
•10mm wrench
•10mm socket
•Drill
•1/4 "bit
•Ratchet
•Nylon mallet
•Torx wrench

Installation Manual
PAFB-1C Mountain Front Bumper with Skid Plate (Axys)
Page | 2
INSTRUCTIONS
3. Preparation
3.2.Make sure you have enough space to work around the vehicle.
3.3.Make sure you have the required tools.
3.4.Read all the instructions carefully before installing the product.
CAUTION
If you are using a lift system, pay special attention
to the area where you will be lifting the vehicle.
There is a risk of being crushed under
inappropriately positioned lifting equipment. Never
place any part of your body under a vehicle that
has not been properly installed and secured.

Installation Manual
PAFB-1C Mountain Front Bumper with Skid Plate (Axys)
Page | 3
4. Removing the side panels and hood
4.2. Remove the two front panels (Figures 1 and 2).
4.3. Unplug the connector (Figure 3).
4.4. Remove the hood (Figure 4).
(Figure 1)
(Figure 2)
(Figure 3)
(Figure 4)

Installation Manual
PAFB-1C Mountain Front Bumper with Skid Plate (Axys)
Page | 4
5. Removing the OEM front bumper
5.2.Remove the spring (Figure 5).
5.3.Unscrew the three bolts holding the bumper in place (Figures 5, 6 and 7) and set aside.
5.4.Unscrew the two Torx bolts on each side (Figures 9 and 10) and set aside.
5.5.Remove the spare belt bracket (Figure 11).
5.6.Remove the bumper.
(Figure 5)
(Figure 6)

Installation Manual
PAFB-1C Mountain Front Bumper with Skid Plate (Axys)
Page | 5
(Figure 7)
(Figure 8)
(Figure 9)
(Figure 10)

Installation Manual
PAFB-1C Mountain Front Bumper with Skid Plate (Axys)
Page | 6
(Figure 11)

Installation Manual
PAFB-1C Mountain Front Bumper with Skid Plate (Axys)
Page | 7
6. Removing the rivets
6.2. Remove the two rivets on each side (Figures 12 and 13).
6.3. Remove the two rivets under the snowmobile (Figure 14).
(Figure 12)
(Figure 13)
(Figure 14)

Installation Manual
PAFB-1C Mountain Front Bumper with Skid Plate (Axys)
Page | 8

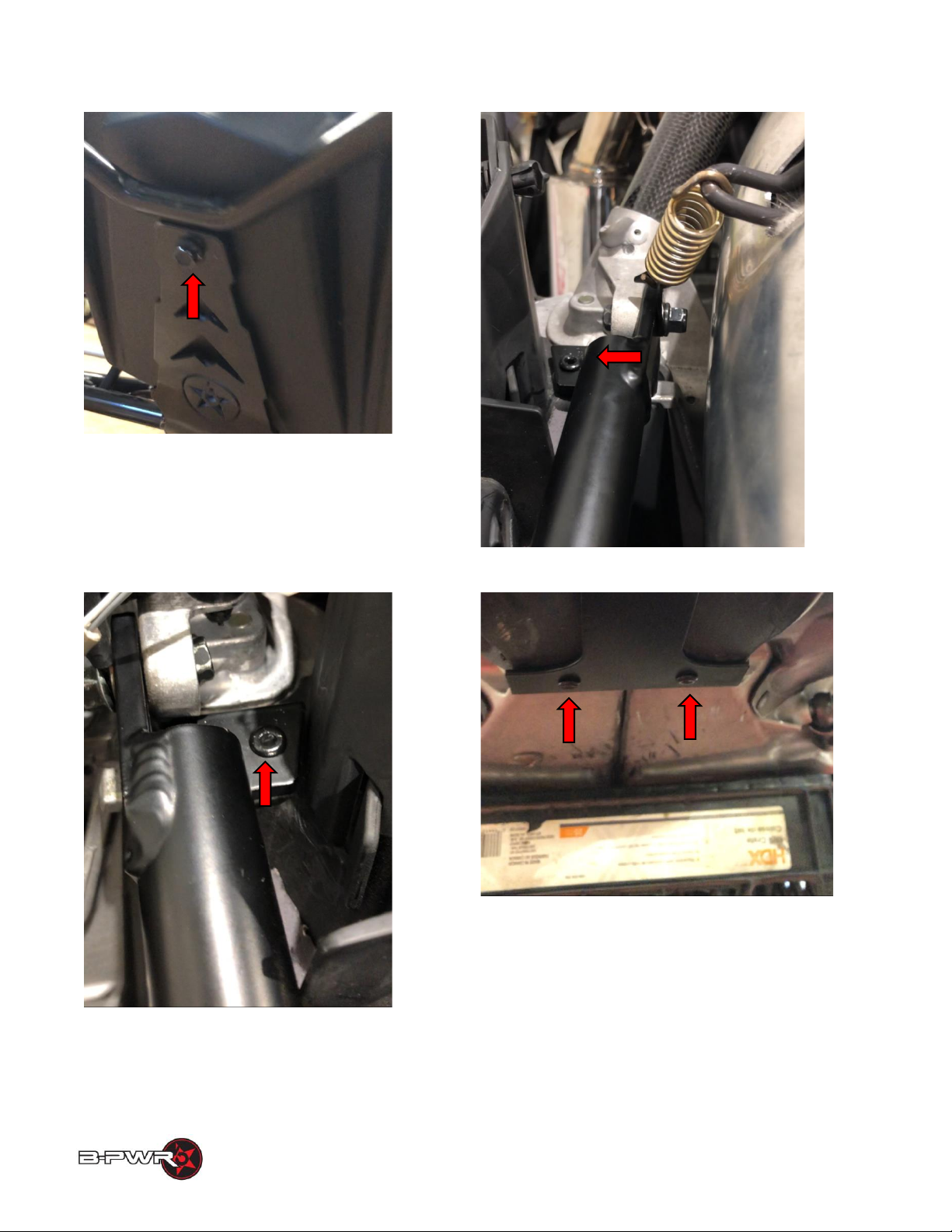

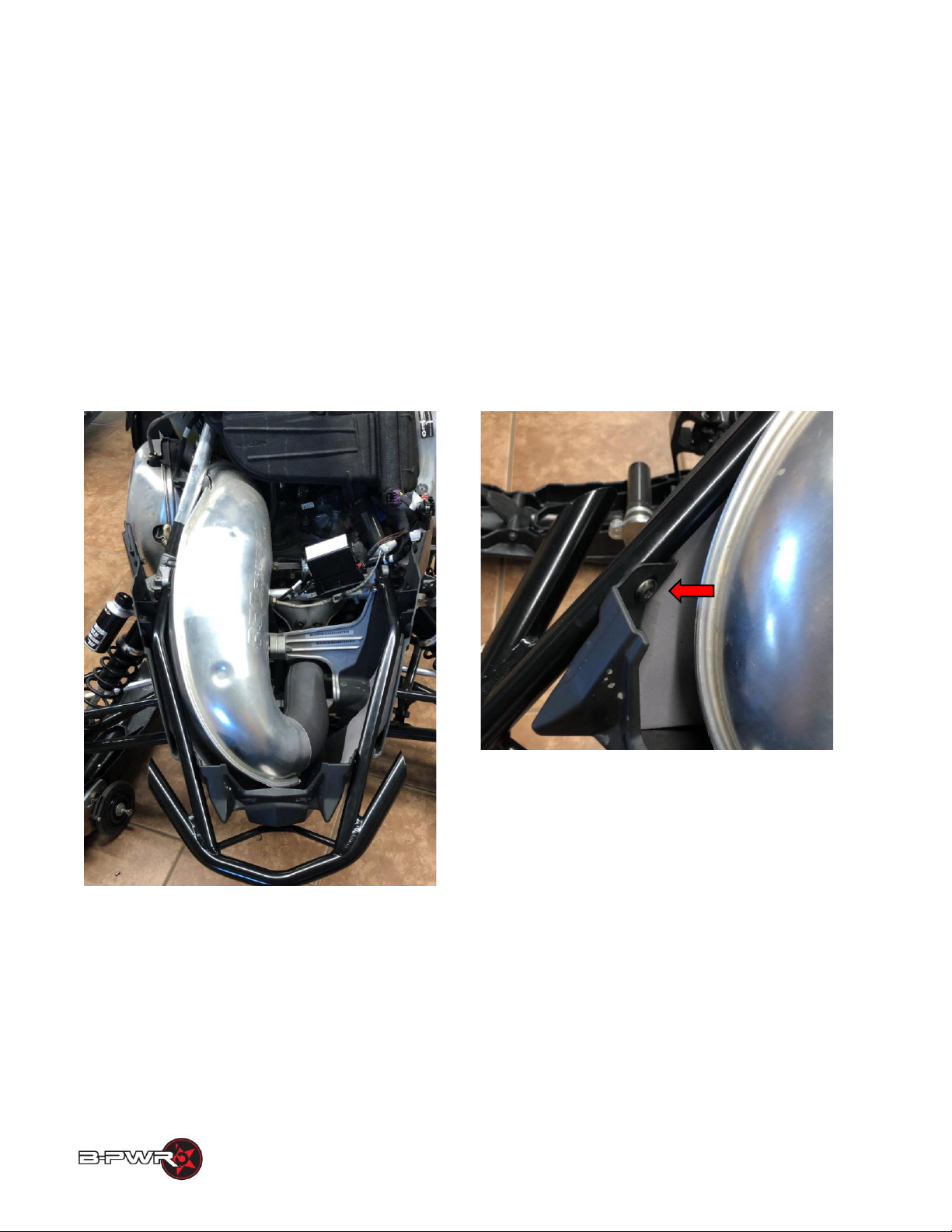

7. Installing the B-PWR front bumper
7.2. Install the B-PWR bumper where the OEM bumper used to be (Figure 15).
7.3. Secure the bumper using the two Torx bolts set aside in step 3.3 (Figures 16 and 17).
7.4. Screw in place using the bolts set aside in step 3.2 (Figures 18 and 19).
7.5. Reinstall the spring set aside in step 3.1 (Figure 20).
7.6. Screw the skid plate onto the bumper and the chassis (Figure 21).
7.7. Rivet the bumper skid plate using the rivets provided (Figures 22, 23 and 24).
(Figure 15)
(Figure 16)

Installation Manual
PAFB-1C Mountain Front Bumper with Skid Plate (Axys)
Page | 9
(Figure 17)
(Figure 18)
(Figure 19)
(Figure 20)

Installation Manual
PAFB-1C Mountain Front Bumper with Skid Plate (Axys)
Page | 10
(Figure 21)
(Figure 22)
(Figure 23)
(Figure 24)

Installation Manual
PAFB-1C Mountain Front Bumper with Skid Plate (Axys)
Page | 11

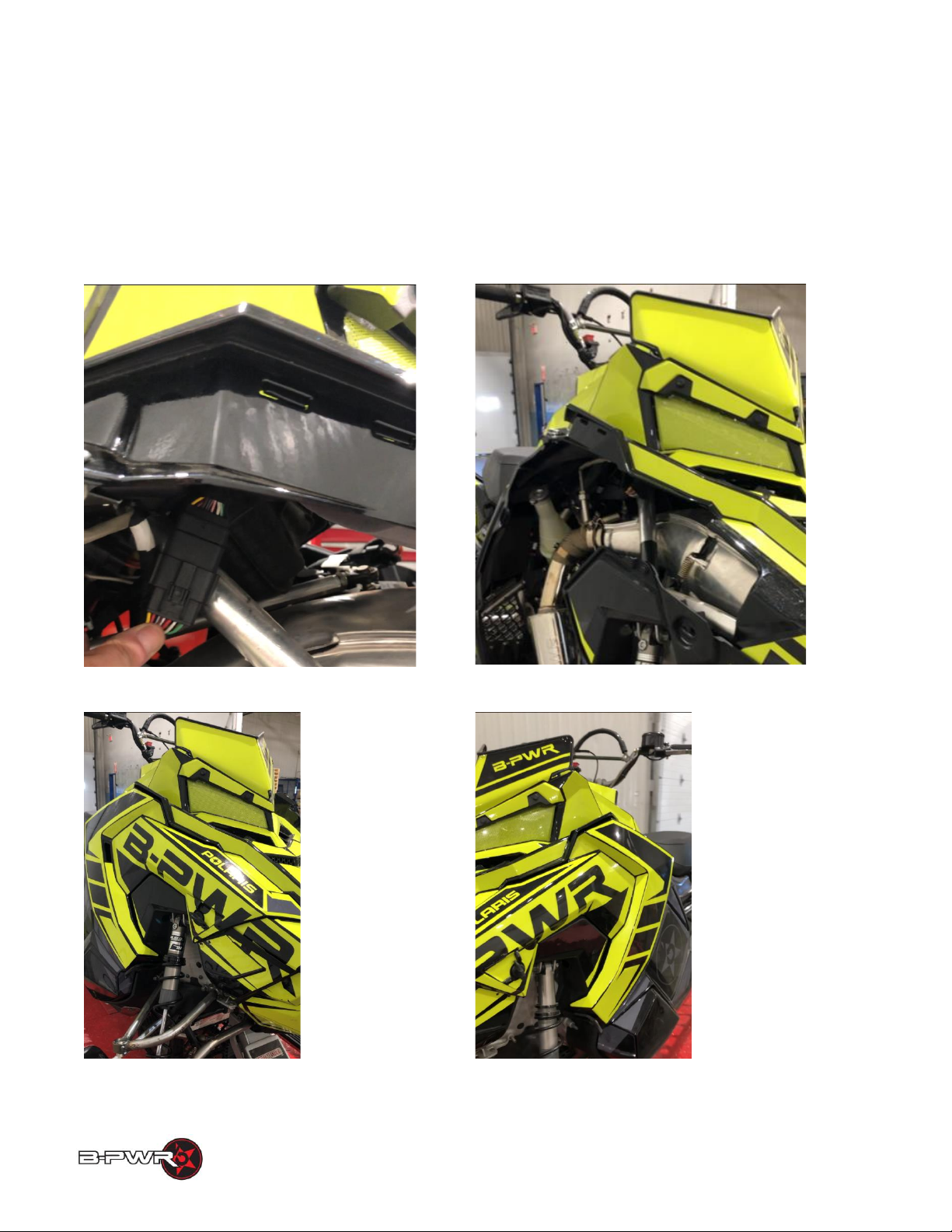

8. Reinstalling the hood and side panels
8.2. Plug the connector back in (Figure 25).
8.3. Reinstall the hood (Figure 26).
8.4. Reinstall the side panels (Figures 27 and 28).
(Figure 25)
(Figure 26)
(Figure 27)
(Figure 28)
