3

xvi
4

LCD SCREEN
22
Using the Machine Setting Mode Key
Press to change the default machine settings (needle stop position, embroidery speed, opening
display, etc.). To display the different settings screens, press for “Sewing settings”, for
“General settings” or for “Embroidery settings”.
Sewing settings
aSelect whether to use the sewing speed controller to determine the zigzag width (see page 104).
bMake adjustments to character or decorative stitch patterns (see page 153).
cAdjust the presser foot height. (Select the height of the presser foot when the presser foot is raised.)
dAdjust the presser foot pressure. (The higher the number, the greater the pressure will be. Set the pressure at “3” for
normal sewing.)
eSelect whether “1-01 Straight stitch (Left)” or “1-03 Straight stitch (Middle)” is the utility stitch that is automatically
selected when the machine is turned on.
fChange the height of the presser foot when sewing is stopped when the pivot setting is selected (see page 72).
Adjust the presser foot to one of the three heights (3.2 mm, 5.0 mm and 7.5 mm).
gChange the height of the presser foot when the machine is set to free motion sewing mode (see page 105).
hWhen set to “ON”, the thickness of the fabric is automatically detected by an internal sensor while sewing. This
enables the fabric to be fed smoothly (see pages 64 and 73).
Memo
• Press or to display a different settings screen.
a
b
c
d
e
f
g
h
5

LCD SCREEN
Getting Ready
23
1
General settings
aSelect the needle stop position (the needle position when the machine is not operating) to be up or down. Select the
down position when using the pivot key.
bSelect the operation of the “Needle Position - Stitch Placement” button from the following two sequences (see page
74).
Each press of the “Needle Position - Stitch Placement” button:
“ON” – raises the needle, stops it at a nearly lowered position, then lowers it
“OFF” – raises the needle, then lowers it
cChange the brightness of the Needle Area and Work Area Lights.
dChange the speaker volume.
eChange the shape of the pointer when a USB mouse is used (see page 25).
fTurn both the upper and bobbin thread sensor “ON” or “OFF”. If it is turned “OFF”, the machine can be used without
thread.
gSelect the length of time until the screen saver appears. A setting between “OFF” (0) and “60” minutes can be set in
1-minute increments.
hChange the image of the screen saver (see page 25).
iSelect the initial screen that is displayed when the machine is turned on (see page 28).
jUse when running an application.
kChange the display language (see page 29).
lDisplay the total number of stitches sewn on this machine, which is a reminder to take your machine in for regular
servicing. (Contact your authorized retailer for details.)
mThe “No.” is the number for the embroidery and sewing machine.
nDisplay the program version. “Version 1” shows the program version of the LCD panel, “Version 2” shows the
program version of the machine.
a
d
e
f
b
c
g
i
j
k
h
CAUTION
• If “Upper and Bobbin Thread Sensor” is set to
“OFF”, remove the upper thread. If the
machine is used with the upper thread
threaded, the machine will not be able to
detect if the thread has become tangled.
Continuing to use the machine with tangled
thread may cause damage.
l
m
n
Memo
• The latest version of software is installed in your machine. Check with your local authorized Baby Lock
retailer or at “www.babylock.com” for available updates (see page 331).
6

LCD SCREEN
24
Embroidery settings
aSelect from among 14 embroidery frame displays (see page 230).
bChange the thread color display on the embroidery screen; thread number, color name (see page 229).
cWhen the thread number “#123” is selected, select from six thread brands (see page 229).
dAdjust the maximum embroidery speed setting (see page 229).
eAdjust the upper thread tension for embroidering (see page 225).
fSelect the height of the embroidery foot “W” during embroidering (see page 197).
gChange the display units (mm/inch).
hChange the initial mode of the display (embroidery/embroidery edit).
iChange the color of the background for the embroidery display area (see page 30).
jChange the color of the background for the thumbnail area (see page 30).
kAdjust the distance between the pattern and the basting stitching (see page 293).
lAdjust the distance between the appliqué pattern and the outline (see page 294).
a
d
e
f
b
c
g
k
l
h
i
j
7

2 - 3
Main parts
Basics of Disassembly
Basics
1 Removal of Top cover unit assy
1. Remove the top cover unit assy. 1.
→Refer to 3 - 3 "Disassembly of Top cover unit assy".
1
2 Removal of Accessory table assy
1. Remove the accessory table assy. 1.
→Refer to 3 - 4 "Disassembly of Accessory table assy".
1
3 Removal of Needle plate B assy
1. Remove the needle plate cover 1from the needle plate B assy. 2.
2. Remove the needle plate B assy. 2.
→Refer to 3 - 4 "Disassembly of Needle plate B assy".
1
2
4 Removal of Free arm cover
1. Remove the screw 1, and then remove the free arm cover 1.
1
1
8

2 - 4
Main parts
Basics of Disassembly
5 Removal of Free arm front cover assy
1. Remove the screw 1and the screw 2.
2. Remove the hook 1and the 2 hooks 2, and then remove the free arm
front cover assy. 3.
→Refer to 3 - 5 "Disassembly of Free arm front cover assy".
1
12
23
6 Removal of Base plate cover
1. Remove the 2 screws 1.
2. Remove the 4 hooks 1, and then remove the base plate cover 2.
12
1
9

2 - 5
Main parts
Basics of Disassembly
Basics
7 Removal of Face plate assy
1. Remove the face plate screw cap 1.
*Key point
• Remove the face plate screw cap 1by using the pin or etc.
2. Open the face plate connector cover 2.
3. Remove the 2 screws 1, and then remove the face plate assy. 3.
→Refer to 3 - 6 "Disassembly of Face plate assy".
2
1
1
3
8 Removal of Front thread guard cover
1. Remove the screw cap 1.
*Key point
• Remove the screw cap 1by using the pin or etc.
2. Remove the screw 1, and then remove the front thread guard cover 2.
1
2
1
10

2 - 6
Basics of Disassembly
Main parts
9 Removal of Belt cover
1. Remove the upper cover cap 1.
*Key point
• Remove it while inserting flat-blade screwdriver. in the position
of the right figure.
2. Remove the 2 screws 1, and then remove the belt cover 2.
*Key point
• Remove the hooks (7 locations) from the front cover assy., the
rear cover assy. and the connector cover 3.
→Refer to 3 - 7 "Disassembly of Belt cover".
1
1
2
3
11

2 - 7
Main parts
Basics of Disassembly
Basics
10 Removal of Bobbin winder (upper cover assy)
1. Remove the connector 1from the main PCB assy..
2. Remove the 3 screw caps 2from the bobbin winder (upper cover assy.)
3.
*Key point
• Remove the screw cap 2by using the pin or etc.
3. Remove the 6 screws 1, and then remove the bobbin winder (upper cover
assy.) 3.
→Refer to 3 - 22 "Bobbin winder unit".
1
3
2
3
1
11 Removal of Ground plate B
1. Remove the screw 1and the screw 2, and then remove the ground plate
B 1.
2
11
12

2 - 8
Basics of Disassembly
Main parts
12 Removal of Front cover assy
1. Remove the screw 1, and then remove the front cover assy. 1.
*Key point
• Remove the hook of the front cover while pushing the arrow 2
of the rear cover, and then remove the hook of the front cover
while pulling the arrow 3of the rear cover.
• Release the 2 hooks 4from the base plate assy..
2. Remove the connector 5from the panel PCB assy. 6.
3. Unlock the lock, and open the clamp assy. 7, and then remove the FFC 8
from the clamp assy. 7.
4. Unlock the connector 9of the panel PCB assy. 6, and then remove the
FFC 8from the panel PCB assy. 6.
→Refer to 3 - 8 "Disassembly of Front cover assy".
1
1
4
2
3
6
879
5
13

2 - 9
Main parts
Basics of Disassembly
Basics
13 Removal of Rear cover assy
1. Remove the screw 1, the screw 2and the 4 screws 3, and then remove
the rear cover assy. 1.
*Key point
• Release the 2 hooks 2from the base plate assy..
→Refer to 3 - 17 "Disassembly of Rear cover assy".
3
2
1
1
1
2
14

2 - 10
Basics of Disassembly
Main parts
14 Removal of Connector cover
1. Remove the connector 1of the FC jack assy. from the main PCB assy.,
and then remove the ferrite core 2from the clip 3.
2. Remove the 2 screws 1, and then remove the connector cover 4.
*Key point
• Release the 2 hooks 5from the base plate assy..
→Refer to 3 - 19 "Disassembly of Connector cover".
3
1
2
1
4
1
5
15

2 - 47
Main parts
Basics of Assembly
Basics
1 Attachment of Connector cover
1. Attach the connector cover 1to the base plate assy. with the 2 screws 1.
*Key point
• Check that the 2 hooks 2hang on the base plate assy..
2. Attach the ferrite core 3to the clip 4.
3. Attach the connector of the FC jack assy. 5to the main PCB assy..
→Refer to 3 - 225 "Assembly of Connector cover".
1Torque
0.79 – 1.18 N·m
1
2
1
1
1
4
5
3
Screw, Bind
M4X6
16

2 - 48
Basics of Assembly
Main parts

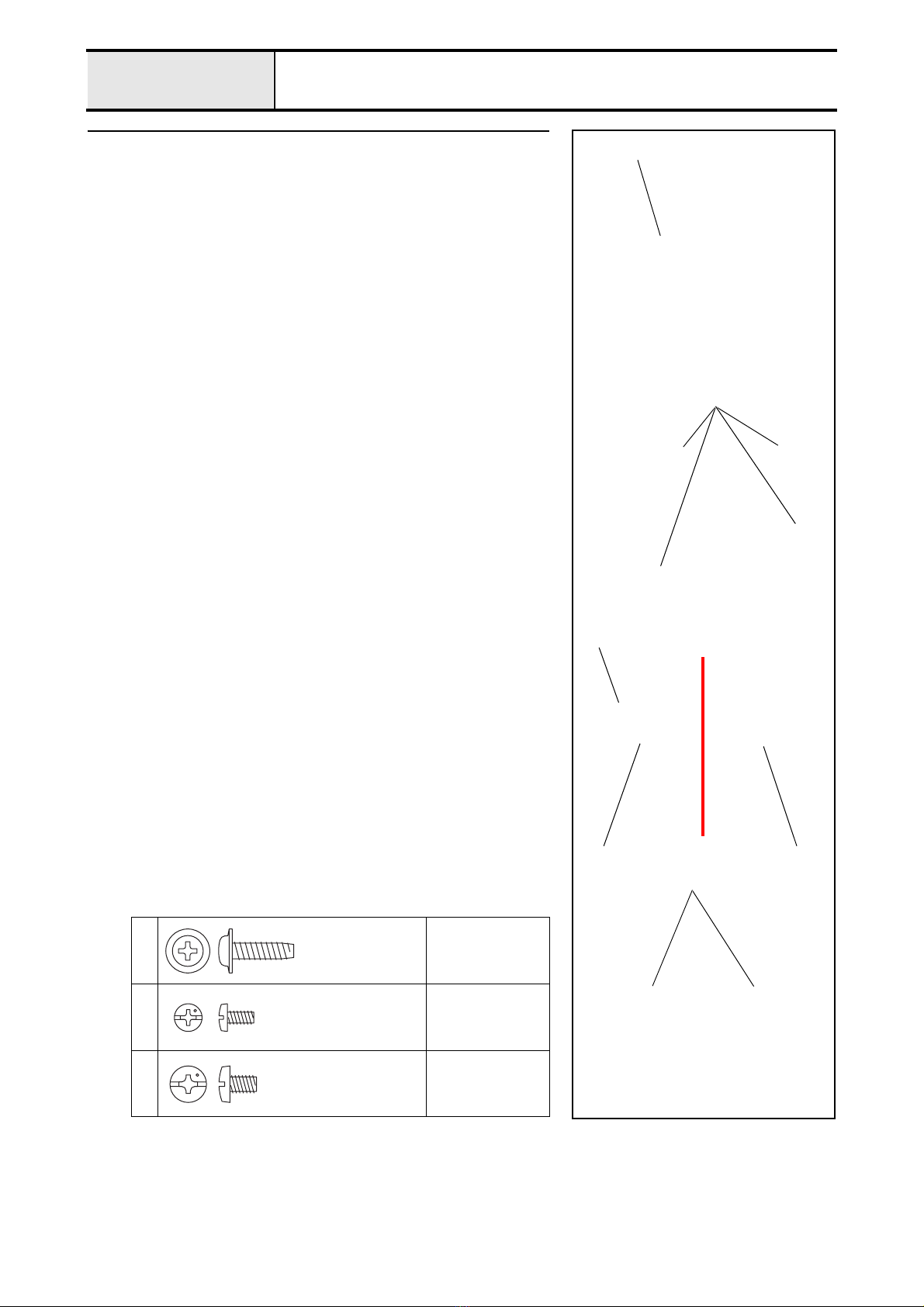

2 Attachment of Rear cover assy
1. Set the rear cover assy. 1to the arm bed, and then secure it with the 4
screws 1, the screw 2and the screw 3.
*Key point
• Check that the 2 hooks 2hang on the base plate assy..
• Check that the boss part of the rear cover assy. 1engaged
with the positioning hole of the arm bed.
→Refer to 3 - 226 "Assembly of Rear cover assy".
1Torque
0.78 – 1.18 N·m
2Torque
0.79 – 1.18 N·m
3Torque
0.79 – 1.18 N·m
1
1
2
2
1
3
Taptite, Cup B
M4X14
Screw, Bind
M3X6
Screw, Bind
M4X6
17

2 - 49
Main parts
Basics of Assembly
Basics
3 Attachment of Front cover assy
1. Attach the connector 1of the lead wire assy main-panel to the panel PCB
assy. 2.
2. Attach the FFC 3to the panel PCB assy. 2.
*Key point
• Connect the FFC 3to the connector 4of the panel PCB
assy. 2in the state that the blue surface of the FFC 3is
outside, and then lock it.
3. Set the FFC 3to the clamp assy. 5, and then close the clamp assy. 5,
and lock it.
4. Set the front cover 6, and then secure it with the screw 1.
*Key point
• Check that the 2 hooks 7hang on the base plate assy..
• Check that the hook 8and 9hang on the rear cover assy..
→Refer to 3 - 228 "Assembly of Front cover assy".
1Torque
0.59 – 0.78 N·m
1
9
6
8
7
2
354
1
Screw, Pan (S/P washer)
M3X6F
18

4 - 3
Inspection and
Adjustment

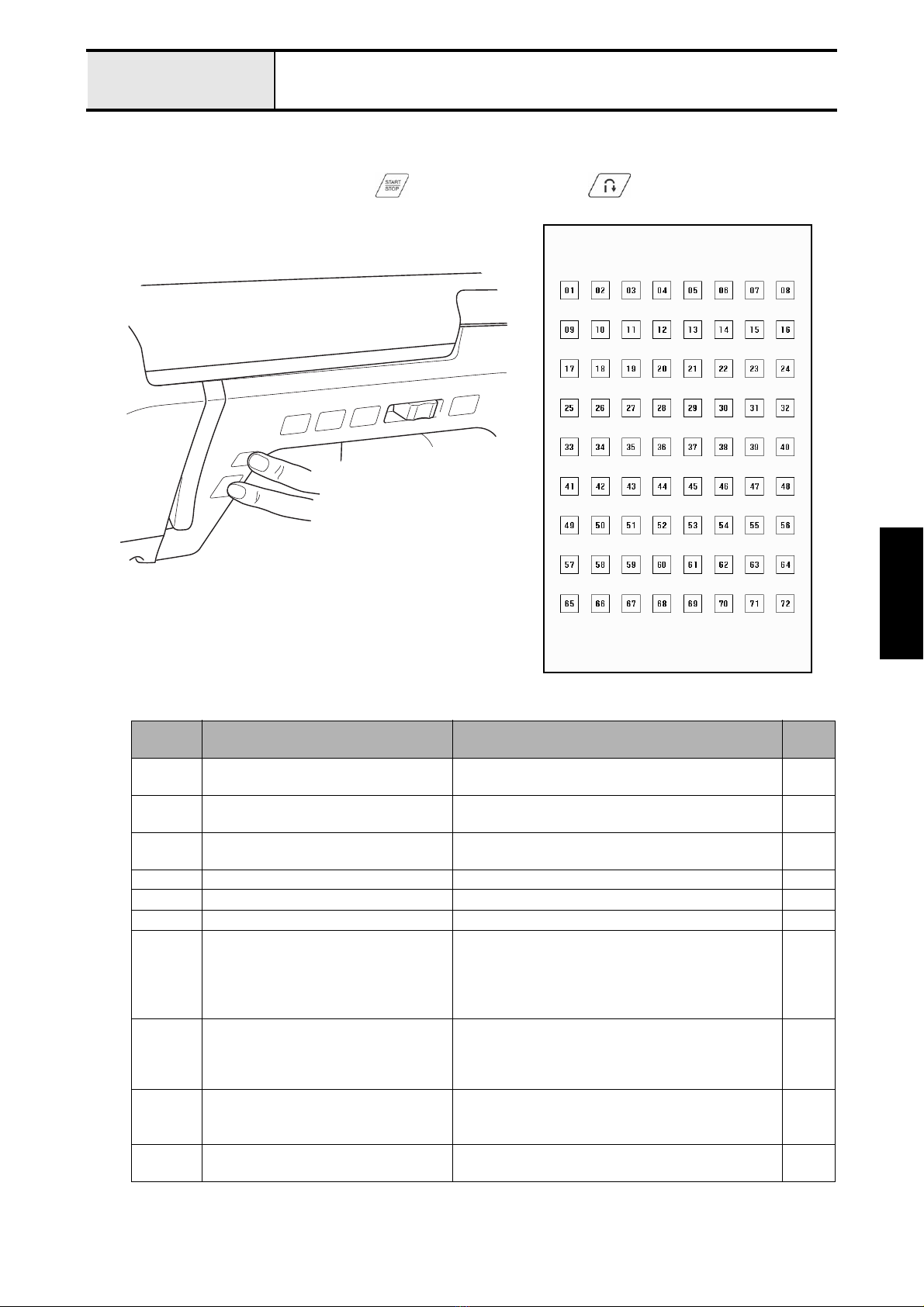

Test Mode Start Test mode and Contents
With front cover
1. How to start test mode
Turn on the power while pressing the (Start/Stop button) and the (Reverse stich button), then test
mode starts (test mode screen is displayed).
2. Contents of test mode
Test mode
No. Mode Contents of test mode Ref. page
01 Serial Numbers/Product ID Serial number/Product ID and software version are
displayed.
-
02 Fabric Thickness Setting/PF-PM Adjust Adjust the fabric thickness setting / Knee lifter
position.
4-20
/4-21
03 Pattern Adjustment Test pattern is sewn, and set up the correction value
of the vertical and horizontal. 4-26
04 3-Point Needle Drop Change needle position (left, center, right) 4-13
06 Feed Dog Position Feed dog is moves to front/center/left/right. 4-23
07 Presser Foot Height Presser foot height and AD value are displayed.
-
10 Lower Thread
Check the operation of the Lower thread detection
sensor.
(+.+: has lower thread, 0.0: empty lower thread)
* Turn the pulley by hand and shows 0.0 (lower
thread empty), then check the operation of sensor.
-
11 Upper Thread
Check operation of upper thread detection sensor.
(+.+: has upper thread, 0.0: empty upper thread)
* Pulling up thread and move thread take up spring,
then check the operation of sensor.
-
12 Upper Thread 1
Disable detection function of upper thread/lower
thread and needle plate A/B.
(Effective once when turning on at the next time.)
-
13 Forward and Reverse Feed Sewing 100 forward stitches (left base line), and 100
reverse stitches (right base line). 4-24
19

Test Mode
4 - 4
14 Speed Display target and actual rotation speed of upper
shaft.
-
15 Power Running the machine with the maximum electric
power.
-
19 Clearing Memory/Clearing Counter Embroidery and utility stitch count.
(Able to reset in maintenance)
-
22 NP Sensor Check upper shaft angle with buzzer ON/OFF. 4-12
23 Embroidery Max Position Trace the maximum size of embroidery. 4-32
24 LCD Check Check LCD.
-
28 Threading Check Check the needle threading operation. 4-18
29 Input Check Check switches and sensors function.
(+1: ON, 00: OFF) 4-5
32 VR AD Check
Display speed VR and foot controller AD value.
-
Display target and actual rotation speed of upper
shaft.
36 Side Feed Adjustment
Sewing side feed, 10 stitches right and left, and set
the correction value from the results of side feed
sewing.
4-25
42 Embroidery Position Adjust
Correct the initial position of embroidery by the 4
keys X direction (right and left) and Y direction (up
and down).
4-33
46 Error List Display previous 10 error messages appeared on
the screen.
-
47 Z Initial Phase/F Initial Phase Check Check initial phase of Z-PM/F-PM. -
52 LED Check/Speaker Check Check LED/Speaker operation. -
53 Extended Unit Check (Use only production line.) -
54 Camera Calibration Camera calibration. 4-36
57 Range of Camera View Check Check range of camera view. 4-39
59 Camera calibration Check (Use only production line.)
-
60 EEPROM USB HOST Write (Use only production line.) -
Test mode
No. Mode Contents of test mode Ref. page
Start Test mode and Contents
20

4 - 5
Inspection and
Adjustment
Test Mode

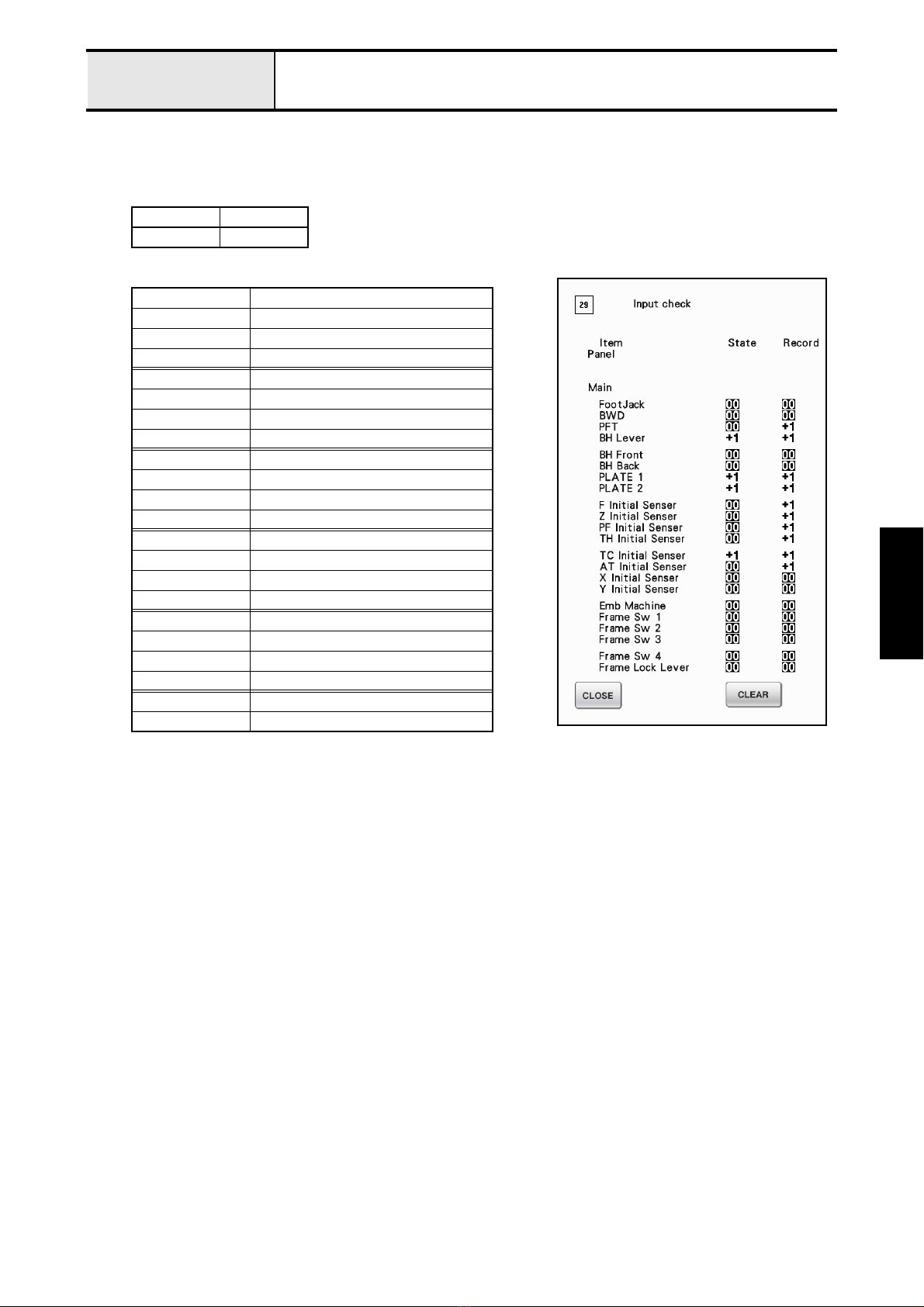

3. Check switches and sensors function (Test Mode No.29)
State: Current switch or sensor operation.
Record: Switch or sensor operating record. (Use in production line)
Clear button:Reset the record. (Use in production line)
Item:
+1 ON
00 OFF
Foot Jack Foot controller jack
BWD Bobbin winder SW
PFT Presser foot SW
BH lever Button hole Lever SW
BH Front Button hole front SW
BH Back Button hole back SW
PLATE 1 Needle plate A SW
PLATE 2 Needle plate B SW
F Initial Sensor F-pulse motor initial sensor
Z Initial Sensor Z-pulse motor initial sensor
PF Initial Sensor Presser foot-pulse motor initial sensor
TH Initial Sensor Threader-pulse motor initial sensor
TC Initial Sensor Thread cut-pulse motor initial sensor
AT Initial Sensor Auto tension-pulse motor initial sensor
X Initial Sensor X carriage initial sensor
Y Initial Sensor Y carriage initial sensor
Emb Machine Embroidery unit connector
Frame SW 1 Embroidery frame PCB assy. SW 1
Frame SW 2 Embroidery frame PCB assy. SW 2
Frame SW 3 Embroidery frame PCB assy. SW 3
Frame SW 4 Embroidery frame PCB assy. SW 4
Frame Lock Lever Embroidery frame Lock Lever SW
Start Test mode and Contents
21

4 - 7
Adjustment
Inspection and
Adjustment
Touch panel
[Adjustment standard]
Touch the 5 point in order from 1 to 5, and then “SUCCESS” is displayed.
[Adjustment procedure]
1. Turn the power on while pressing the (Start/Stop button), (Reverse stitch button) and
(Needle position button).
2. Touch the point (+) in order from 1 to 5.
*Key point
• Adjustment finishes when “SUCCESS” is displayed after pressing “5”.
• Adjust again when “ERROR” is displayed after pressing “5”.
*Note
• Use included touch pen.
Do not use acute hard tip one, otherwise touch panel will be damaged.
3. Turn the power off and on again. Check touch panel work correctly.
22
