BaByliss for MEN SuperStubble XTP 7898BU User manual

Model 7898BU
7898BU IB-18/117A.indd 1 10/26/2018 12:12 PM

SUPER STUBBLE XTP
The BaByliss for Men Super Stubble XTP gives extra power, precision
and performance for the very best in everyday stubble control.
Dene your style with 24 ultra-precise length settings, so you can
maintain your preferred facial hair style whether you want a sharp
shadow or short beard the Super Stubble XTP is the ultimate in stubble
control. 24 Motorised lengths offer a range of styles with maximum
precision and a contouring head to track the curves of your face for
exceptional accuracy and comfort. XTP Technology delivers an extra
powerful lithium-ion charging system for a faster charge and extra-long
power performance for reliable cordless use. 100% waterproof for use
in the shower or easy cleaning under the tap.
FEATURES
• Advanced oating contouring head tracks the curves of your face for
exceptional accuracy and comfort.
• Motorised control for a range of 24 different lengths from 0.4-5mm
with precise automatic adjustments and a memory function.
• Lithium-Ion power performance for reliable cordless use, even at
lower charge levels.
• Advanced blade technology with electro-chemically sharpened
blades for extreme sharpness and durability.
• LED screen displays selected cutting length and charge time
remaining.
• Re-engineered comb guide delivers ultimate length consistency,
removable for easy cleaning and precison cutting for edging and
shaping.
• An extra powerful, lithium-ion charging system for an 80 minutes
charge for 70 minutes use.
7898BU IB-18/117A.indd 2 10/26/2018 12:12 PM

• Shaver-style power lead for convenient rechargeable in the bathroom.
Also includes a standard 3-pin plug adaptor.
• Ergonomic design with curved body for easy control and complete
comfort in use.
• 3 Year Guarantee.
SAFETY CAUTIONS
• This appliance should only be used as described within
this instruction book. Please retain for reference.
IMPORTANT CHILD SAFETY
WARNING! Polythene bags over the product or packaging
may be dangerous. To avoid danger of suffocation, keep
away from babies and children. These bags are not toys.
IMPORTANT SAFETY
• Do not immerse the appliance in water or other
liquids.
• Always inspect the appliance before use for
noticeable signs of damage. Do not use if damaged
or if the appliance has been dropped. In the event of
damage contact the Conair Customer Care Line (refer to
‘UK After Sales Service’ section for further information).
• Only use the attachments supplied with this appliance.
• Do not leave the appliance unattended when switched
on.
• Do not place the appliance on any surface whilst in
operation.
• Special care is required when using the appliance close
7898BU IB-18/117A.indd 3 10/26/2018 12:12 PM

to the ears, eyes and face.
• This appliance should not be used by adults whose
reduced physical, sensory or mental capabilities, or
whose lack of experience and knowledge, might cause
a hazard, unless they have been correctly instructed to
understand the safe use and hazards involved and are
adequately supervised.
• Careful adult supervision is required when this appliance
is used on or near children. Do not use on very young
children.
• This appliance should not be used, cleaned or maintained
by children. Keep out of reach of children.
• Always ensure that this appliance is kept out of the reach
of children at all times, particularly during use and whilst
cooling.
• Allow the appliance to cool before storing away.
• This product contains batteries (Li-ion rechargeable
3.6V) that are not to be removed from the appliance for
charging.
• The batteries in this appliance are non-replaceable by the
end user. Only an authorised engineer should perform
this task for safety reasons.
• The supply terminals are not to be short circuited.
• For indoor, household, domestic use only.
• For the purposes of recharging the battery, only use
the detachable charging supply unit provided with this
appliance.
• This product complies fully with all appropriate EU
and UK Legislation and the standards relevant to this
type and class of appliance. We are an ISO9001:2015
7898BU IB-18/117A.indd 4 10/26/2018 12:12 PM

credited company that continually evaluates our Quality
Management System performance. If you have any
queries regarding product safety and compliance, please
contact the Conair Customer Care Line (refer to «UK After
Sales Service» section).
• Warning: If the LED displays the words ‘‘Hi’’ or ‘‘Lo’’,
please check that the adaptor input voltage is 4.5V1A
or Adaptor ‘‘CA81’’. If the LED displays the ‘‘Er’’ symbol,
please stop charging and contact the Conair Customer
Care Line on 03705 133191.
INSTRUCTIONS FOR USE
IMPORTANT : CHARGING
First time use
• The Super Stubble XTP is so easy to use, but before you do anything
you must take your time to charge the unit for 3 hours before its rst
use. Even if you want to use it plugged in to your shaver socket,
this initial super-charge ensures optimum power performance to give
smooth fast trimming every time. After the rst charge a full charge
will only take 80 minutes. Maximum battery capacity will only be
reached after 3 charging/discharging cycles.
• Connect the power adaptor to the socket on the underside of the
charging stand
• Plug the power stand adaptor into a suitable bathroom shaver
socket. If you don’t have a bathroom shaver socket, you can use
the 3-pin plug adaptor supplied with this product. Place the 2-pin
adaptor into the back of the supplied 3-pin plug adaptor and plug
into an electrical socket as normal.
• Always check that the charging indicator on the LED comes on when
you place the product in the power stand.
7898BU IB-18/117A.indd 5 10/26/2018 12:12 PM

Regular charging
• A full charge will take 80 minutes and will supply enough power for
minimum 70 minutes continuous cordless use. The approximate
remaining using time is shown on the LED display.
• In order to maintain the optimum capacity of the rechargeable
batteries, the appliance should be recharged for 3 hours every 3
months approximately.
• The Super Stubble XTP comes with a quick charge feature. A 5 minute
charge will provide enough power for approximately 3 minutes use.
• Charging takes approx. 80 minutes.
• When the unit is charging the display lights up for a few seconds
showing the running time remaining. The minutes will ash increase
until it reaches maximum capacity of 70 minutes.
• When LED display has less than 5 minutes left, the time symbol
indication will change to red.
Preparation for Use
Always inspect the super stubble before use to ensure the cutting head
is free from hair and debris and is running smoothly.
Operation
To switch the Super Stubble XTP on, press the O/I button. The LED will
also show the selected cutting height and approximate usage time
remaining. After 10 seconds, the blue LED for the usage time remaining
will be switched off but cutting height LED will be kept illuminated whilst
the motor runs. When there is approximately 5 minutes left shown on
the LED display, the time symbol will change colour to red and will
also start to ash. When the LED displays «00», this indicates that the
unit needs to be recharged, however it may continue to run for a short
while after.
Using the comb guide
The comb guide allows you to change the cutting length of your
trimmer. You’ll need to experiment to nd your preferred length, but as
7898BU IB-18/117A.indd 6 10/26/2018 12:12 PM

a guide, 0.4mm will give you very short stubble, whilst 1.6mm will give
you a longer stubble look. 2mm+ will give you a short beard.

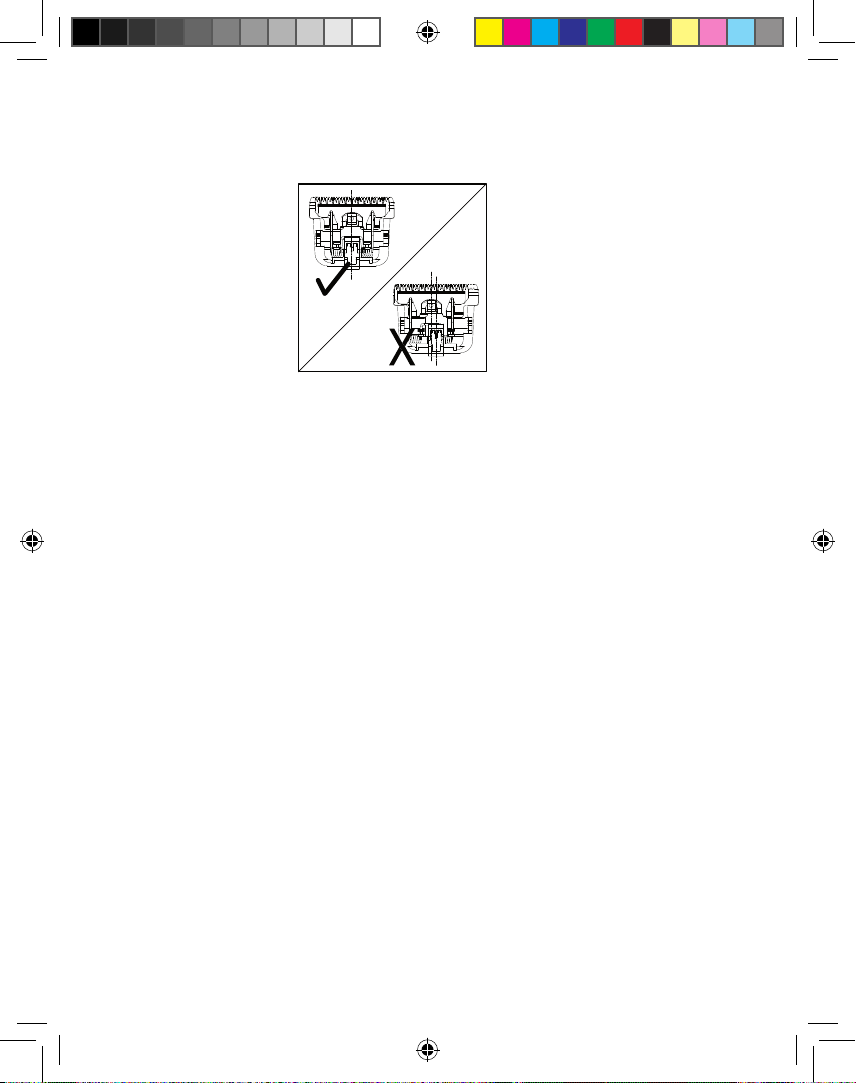

• Ensure the comb guide is correctly positioned by pushing the comb
guide gently downwards to secure into place.
• Use the digital touch control ‘‘up’’ or ‘‘down’’ buttons to adjust the
telescopic comb guide to the required length.
• The cutting lengths are displayed on the LED screen in ‘‘mm’’ – scroll
through the available length settings with the digital touch controls.
There are 24 length settings available: 0.4mm-5.0mm in 0.2mm
increments
• Select your required length – the length setting will then remain
displayed on the LED screen.
• Press the power button to switch the super stubble on.
Memory Function
This stubble trimmer has a memory function that stores the last chosen
length setting. When the unit is switched off the comb guide returns
to 0.4mm position. When the trimmer is switched back on the comb
guide automatically moves up to the last chosen length setting.
Travel lock feature
• The BaByliss For Men Super Stubble XTP has a travel lock feature
which will lock all buttons from activating accidently.
• To activate the travel lock, press and hold the I/O button for 2 seconds
until the time display counts downs from 5 to 1. When the countdown
reaches 1, the lock signal is shown.
• To de-activate the travel lock press and hold the I/O button for 2
seconds until the time display starts to count down from 5 to 1 and
the motor switches on and starts running. The travel lock is now
de-activated.
• When you place the unit in the charger, the travel lock is automatically
deactivated.
7898BU IB-18/117A.indd 7 10/26/2018 12:12 PM

Using the trimmer without the comb guide
• Using without the comb guide is ideal for detailing/shaping and
general tidying of edges.
• To detach the comb guide, gently hold the trimmer in one hand and
with your thumb and index nger push up on each side of the comb
guide (g. 1). Flip the comb guide to the back of the unit, gently pull
down and secure under the latch to lock into place (g. 2). To release
the comb guide, pull down and move away from the latch (g. 3).
• Switch the Super Stubble XTP on by pressing the ‘‘power on’’ button.
The LED will illuminate and the blades will start to move.
• If you are looking for an ultra-close nish, you can use the trimmer
without the comb guide. This will give you an extremely short cut.
IMPORTANT: please note when using the trimmer without the comb
guide, the cutting length will be below 0.4mm. The length setting
shown on the LED screen will no longer be relevant when the comb
guide is detached.
Super Stubble Top Tips
• Use on clean, dry hair.
• If possible, when using for the rst time, try and grow your facial hair
for a few days before cutting so you can trim down to a level that is
best for you.
• Set the cutting length as required.
• It is always best to start cutting with a longer length rst, then trim
again if the length is longer than desired.
Fig. 1 Fig. 2 Fig. 3
7898BU IB-18/117A.indd 8 10/26/2018 12:12 PM

• Hold the Super Stubble XTP against the hair, the teeth of the comb
guide should be pointing upwards and should be at against the face.
• Move the trimmer upwards through the hair, a little at a time, against
the direction of hair growth. The oating and contouring head will
follow the curves of your face to ensure both accuracy and comfort.
• The super stubble will work most effectively when cutting through
the hair at its own speed – never force through the hair. You may
experience a little resistance when trimming the neck area, where hair
is thicker and grows in many different directions. This is completely
normal.
• Just like shaving, extra time should be given when trimming under
the neck area, as again this is where hairs grow in many different
directions.
• Never switch the trimmer off whilst in the hair.
CLEANING & MAINTENANCE
• Regular cleaning will maintain the high performance of your Super
Stubble XTP.
• Switch off and remove the power cord if connected.
• Detach the comb guide by gently lifting the front of the comb guide
from both sides and ipping it over to the back of the unit and locking
it into position by clicking it securely onto the fastener on the back
of the handle.
• Use the cleaning brush supplied to brush away any hair and debris.
Do not use a sharp object to clean the trimmer blade.
• The blades can be removed to aid cleaning.
• To remove the blades hold the handle of the Super Stubble with one
hand, place your thumb underneath the blades and push the blades
away from the handle.
• Gently blow away any hair trapped beneath the blades.
• The blades can be rinsed under the tap. After rinsing the blades they
may need to be oiled. See oiling instructions below.
7898BU IB-18/117A.indd 9 10/26/2018 12:12 PM

• Before re-attaching blade to the trimmer, ensure the blades are dry
and moving blade is in the centre. Please refer to g. 4.
Fig. 4
• Please do not use any chemical liquids when cleaning the trimmer.
• Ensure you clean the blades after each use and before storing away.
• It is highly recommended to oil the blades from time to time with
the oil provided. This ensures optimum cutting performance. For
the rst use you will need to use the oil supplied with the product,
unscrew the cap and cut off the very end of the plastic tube with a
pair of scissors to release the oil. To oil the blades ensure the unit
is switched on. Gently squeeze the oil tube and apply 2 drops of oil
onto the blades. Leave the unit on for a further few seconds to allow
the oil to thoroughly spread the length of the blades. Switch off the
unit and remove any excess oil by gently dabbing with a cloth.
BATTERY DISPOSAL
This appliance contains Li ion batteries. To protect the environment
this appliance and its batteries must be disposed of safely. At the end
of its life, please take this appliance to a recycling centre, where the
internal rechargeable battery should be removed by a professional
and recycled separately. For more information about the recycling of
electrical and battery operated appliances please contact your local
council ofce or your household waste disposal service. For specic
enquiries regarding the replacement of batteries in this product please
contact our Conair Customer Care Line – see “UK After Sales Service”
section.
7898BU IB-18/117A.indd 10 10/26/2018 12:12 PM

UK GUARANTEE
The Conair Group Ltd, Unit 3, Waterfront Business Park,
Fleet GU51 3TW
This BaByliss for Men appliance is guaranteed for consumer use for 3
years and is only valid within the United Kingdom.
This guarantee covers consumer use only i.e. defects occurring under
normal use within the home from date of purchase or date of delivery,
whichever is later.
If the product develops a fault due to defects in materials or manufacture
within 12 months from the date of purchase, to avoid delays and
unnecessary inconvenience, where possible please return the product
to the point of purchase for an exchange,
If the product develops a fault due to defects in materials or manufacture
after 12 months from the date of purchase, and within the guarantee
period, Conair UK After Sales Service will repair or replace the product.
Exclusions
This guarantee will no longer be valid meaning that The Conair Group
Ltd will not be liable to repair or replace your product where:
1.) The appliance has been used on a voltage supply other than that
which is marked on the product, or advised within this instruction
booklet
2.) The appliance has been purchased from an unauthorised stockist*
3.) The appliance is used for professional / non domestic usage
4.) Repairs or alterations have been attempted by unauthorised persons
5.) The failure of the appliance is a direct result of misuse
6.) The failure is a result of not following the instructions for use
This guarantee does not cover any cosmetic damage due to misuse
of the product nor any damage to persons or property that occurs
because of product misuse.
7898BU IB-18/117A.indd 11 10/26/2018 12:12 PM

*unauthorised stockists include, but are not limited to online auction
sites, private sellers and those selling second hand goods, refurbished
products etc
Please contact the Conair Customer Care Line on 03705 133 191
(09:00 to 17:00 Monday to Friday) or e-mail [e-mail] for
further information on authorised stockists.
It is important to retain your proof of purchase. We recommend
attaching your receipt to this page.
Even where a refund may be applicable, no refund will be provided
without a valid receipt or proof of purchase, we will only be able
to offer a repair or replacement service. Please note this does
not apply if the product was purchased directly from The Conair
Group Ltd.
Guarantees on replacement products run from the original purchase
date or date of delivery, whichever is later, and not from the date of
replacement.
This guarantee is an additional benefit and does not affect your
statutory rights as a consumer.
If you have any queries regarding this guarantee please contact the
Conair Customer Care Line on 03705 133 191 (09:00 to 17:00 Monday
to Friday) or e-mail [e-mail]
7898BU IB-18/117A.indd 12 10/26/2018 12:12 PM

UK AFTER SALES SERVICE
For further advice on using the appliance, contact the Conair Customer
Care Line on 03705 133191 (09:00 to 17:00 Monday to Friday) or email
your enquiry to [e-mail].
If you should need to return your appliance to us please send it to the
following address:
Customer Care Centre
Conair Logistics
Unit 4
Revolution Park
Buckshaw Avenue
Buckshaw Village
Chorley
PR7 7DW
Please enclose your name and address, together with a copy of proof
of purchase and details of the fault.
Please note this Instruction Booklet is not the guarantee.
7898BU IB-18/117A.indd 13 10/26/2018 12:12 PM

7898BU IB-18/117A.indd 14 10/26/2018 12:12 PM

7898BU IB-18/117A.indd 15 10/26/2018 12:12 PM

IB-18/117B
7898BU IB-18/117A.indd 16 10/26/2018 12:12 PM
