Bacchus BA89D User manual

BA89D

Dear customer,
Thank you for buying your new fridge. To ensure that you get the best results
from your new fridge, please take time to read through these simple instruc-
tions in this booklet.
Please ensure that the packaging material is disposed of in accordance with
the current environmental requirements.
If the fridge is visibly damaged, do not connect it to the power supply,
Contact the store from where you purchased the appliance.
CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS _______________________ P.2-3
2. NAMES OF THE PARTS _____________________________________ P.4
3. INSTALLATION ____________________________________________ P.5
3.1. POSITIONING
3.2. HOW TO INSTALL
3.3. ELECTRICAL CONNECTION
4. OPERATION AND MAINTENANCE ___________________________ P.6-8
4.1. TEMPERATURE REGULATION
4.2. STORING FOOD AND DRINK
4.3. STORING FROZEN FOOD/FREEZING FRESH FOOD
4.4. IMPORTANT
4.5. ICE
4.6. THE CARE REQUIRED FOR BEST PERFORMANCE
4.7. LAMP
4.8. DEFROSTING FOOD
4.9. DEFROSTING THE APPLIANCE
4.10.PROLONGED PERIODS OF DISUSE
4.11. CLEANING THE APPLIANCE
5. TROUBLESHOOTING _______________________________________ P.8
6. HOW TO DISPOSE OF THE PACKING MATERIALS _______________ P.8
7. TECHNICAL INFORMATION AND CIRCUTIT DIAGRAM ___________ P.9
Always keep this instruction booklet together with the appliance for future consultation. In
the event of resale of the appliance or change of ownership, ensure that the instruction
booklet is supplied with the appliance so that new owner is fully aware of all instructions and
warnings present in this documents.
These warnings have been drawn up to ensure the safety of the user and others. Therefore
read all instructions carefully prior to appliance installation and use.
1.1. Disconnect the mains plug before carrying out any cleaning or maintenance
operations (e.g. bulb replacement).
1.2. This appliance has been designed to be used exclusively by adults. Ensure that
children do not play near or with the appliance.
1.3. All modifications to the electrical mains to enable appliance installation must be
carried out by a qualified technician.
1.4. Do not use an extension cord. On completion of installation, check that the appliance
is not standing on the power cable.
1.5. Domestic refrigerators and/or freezers are designed exclusively to store and/or
freeze foodstuffs.
1.6. During normal operation, the condenser and compressor, located at the rear of the
appliance can reach high temperatures. Ensure that installation is carried out a
according to the instructions contained in this booklet. Insufficient ventilation will
impair operation and damage the appliance. Never cover or obstruct the ventilation
slates on the appliance.
1.7. Never allow children to play with the appliance. Children must never be allowed to
sit on the drawers or hang on the appliance doors.
1.8. If the appliance is transported in a horizontal position, the oil in the compressor may
flow into the refrigerant circuit.
1.9. Leave the appliance standing vertically for at least two hours before switching it on, to
ensure that oil flows back into the compressor.
1.10. All refrigerators and freezers have surfaces that are subject to the formation of frost.
1.11. Depending on the models, this frost can be removed automatically. (Automatic
defrosting) or manually when necessary. Never attempt to remove frost with sharp
objects as this may damage the evaporator and impair efficient appliance operation.
Let the frost thaw naturally; Never use hot water.
1.12. Never put sparkling drinks or bottles of water in the low temperature compartments
(freezer/cooler) as they can explode.
1.13. We strongly advise against putting hot liquids or food in the refrigerator or filling
ridded containers to the maximum capacity.
1.14. Never carry out any modifications to your appliance.
1.15. Never attempt to repair the appliance alone. Repairs carried out by unqualified
persons can cause serious damage; always contact your nearest Service Center and
use original spare parts only.
1.16. The refrigerant and insulation in this appliance do not contain any gases harmful to
the ozone or which contribute to the greenhouse effect. However, disposal must be
carried out in compliance with the relative standards regarding protection of the
environment.
1.17. Never use the base, drawers, doors etc. To stand on or as support.
Caution: Please keep the products away from the fire or similar glowing
substance before you dispose the refrigerator.
Danger: Before you throw away your old refrigerator or freezer: take off the
doors. Leave the shelves in place so that children may not easily climb
inside.
Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
Warning: If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
Warning: This appliance can not be used in camping.
Warning: This appliance can not be used in public transportations.
Warning: The appliance shall be used for indoor only.
Attention: This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Keep the key out of reach of children and not in the vicinity of the refrigerator.
This appliance is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type
environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
1

2
1.15. Never attempt to repair the appliance alone. Repairs carried out by unqualified
persons can cause serious damage; always contact your nearest Service Center and
use original spare parts only.
1.16. The refrigerant and insulation in this appliance do not contain any gases harmful to
the ozone or which contribute to the greenhouse effect. However, disposal must be
carried out in compliance with the relative standards regarding protection of the
environment.
1.17. Never use the base, drawers, doors etc. To stand on or as support.
Caution: Please keep the products away from the fire or similar glowing
substance before you dispose the refrigerator.
Danger: Before you throw away your old refrigerator or freezer: take off the
doors. Leave the shelves in place so that children may not easily climb
inside.
Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
Warning: If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
Warning: This appliance can not be used in camping.
Warning: This appliance can not be used in public transportations.
Warning: The appliance shall be used for indoor only.
Attention: This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Keep the key out of reach of children and not in the vicinity of the refrigerator.
This appliance is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type
environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
1. IMPORTANT SAFETY INSTRUCTIONS
Always keep this instruction booklet together with the appliance for future consultation.
In the event of resale of the appliance or change of ownership, ensure that the
instruction booklet is supplied with the appliance so that new owner is fully aware of all
instructions and warnings present in this documents.
These warnings have been drawn up to ensure the safety of the user and others.
Therefore read all instructions carefully prior to appliance installation and use.
1)WARNING----Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
2)WARNING----Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
3)WARNING----Do not damage the refrigerant circuit to increase the risk of a leak when
handle, move, clean and use of refrigerator.
4)WARNING----Do not use electrical appliances inside the food storage compartments of
the appliances, unless they are of the type recommended by the manufacturer.
5)WARNING----DANGER: Never allow children to play with, operate, or crawl inside the
refrigerator. Risk of child entrapment. Before you throw away your old refrigerator or freezer:
Take off the doors
Leave the shelves in place so that children may not easily climb inside.
6)The appliance has to be unplugged before carrying out user maintenance on the
appliance.
7)This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure that they do not play
with the appliance. Cleaning and maintenance should not be made by children without
supervision.
8)If the SUPPLY CORD is damaged, it must be replaced by the manufacturer, its service
agent or similar qualified persons in order to avoid a hazard.
9)Please abandon the refrigerator according to local regulations as the unit contains flam
mable blowing gas and refrigerant.
10)Follow local regulations regarding disposal of the appliance due to flammable refrigerant
and blowing gas. All refrigeration products contain refrigerants, which under the guidelines
of federal law must be removed before disposal. It is the consumer's responsibility to comply
with federal and local regulations when disposing of this product.
11)This appliance is intended to be used in household and similar environments; such as:
staffkitchen areas in shops, offices and other working environments;
farm houses and by clients in hotels, motels and other residential type environments;
bed and breakfast type environments;
catering and similar non-retail applications.
12) Do not store or use gasoline or any inflammable liquors and liquids inside or in the vicinity
of refrigerator.
13) Do not use extension cords or ungrounded (two prong) adapters with this appliance. If
the power cord is too short, have a qualified electrician install an outlet near the appliance.
Use of an extension can negatively affect the performance of this appliance.

3
Always keep this instruction booklet together with the appliance for future consultation. In
the event of resale of the appliance or change of ownership, ensure that the instruction
booklet is supplied with the appliance so that new owner is fully aware of all instructions and
warnings present in this documents.
These warnings have been drawn up to ensure the safety of the user and others. Therefore
read all instructions carefully prior to appliance installation and use.
1.1. Disconnect the mains plug before carrying out any cleaning or maintenance
operations (e.g. bulb replacement).
1.2. This appliance has been designed to be used exclusively by adults. Ensure that
children do not play near or with the appliance.
1.3. All modifications to the electrical mains to enable appliance installation must be
carried out by a qualified technician.
1.4. Do not use an extension cord. On completion of installation, check that the appliance
is not standing on the power cable.
1.5. Domestic refrigerators and/or freezers are designed exclusively to store and/or
freeze foodstuffs.
1.6. During normal operation, the condenser and compressor, located at the rear of the
appliance can reach high temperatures. Ensure that installation is carried out a
according to the instructions contained in this booklet. Insufficient ventilation will
impair operation and damage the appliance. Never cover or obstruct the ventilation
slates on the appliance.
1.7. Never allow children to play with the appliance. Children must never be allowed to
sit on the drawers or hang on the appliance doors.
1.8. If the appliance is transported in a horizontal position, the oil in the compressor may
flow into the refrigerant circuit.
1.9. Leave the appliance standing vertically for at least two hours before switching it on, to
ensure that oil flows back into the compressor.
1.10. All refrigerators and freezers have surfaces that are subject to the formation of frost.
1.11. Depending on the models, this frost can be removed automatically. (Automatic
defrosting) or manually when necessary. Never attempt to remove frost with sharp
objects as this may damage the evaporator and impair efficient appliance operation.
Let the frost thaw naturally; Never use hot water.
1.12. Never put sparkling drinks or bottles of water in the low temperature compartments
(freezer/cooler) as they can explode.
1.13. We strongly advise against putting hot liquids or food in the refrigerator or filling
ridded containers to the maximum capacity.
1.14. Never carry out any modifications to your appliance.
Caution: Please keep the products away from the fire or similar glowing
substance before you dispose the refrigerator.
Danger: Before you throw away your old refrigerator or freezer: take off the
doors. Leave the shelves in place so that children may not easily climb
inside.
Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
Warning: If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
Warning: This appliance can not be used in camping.
Warning: This appliance can not be used in public transportations.
Warning: The appliance shall be used for indoor only.
Attention: This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Keep the key out of reach of children and not in the vicinity of the refrigerator.
This appliance is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type
environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
1. IMPORTANT SAFETY INSTRUCTIONS
Refrigerant
The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a
natural gas with a high level of environmental compatibility, which is nevertheless flammable.
During transportation and installation of the appliance, ensure that none of the components of
the refrigerant circuit becomes damaged.
Warning；Risk of fire/flammable materials
If the refrigerant circuits become damaged:
Avoid open flames and sources of ignition.
Thoroughly ventilate the room in which the appliance is situated.

4
Always keep this instruction booklet together with the appliance for future consultation. In
the event of resale of the appliance or change of ownership, ensure that the instruction
booklet is supplied with the appliance so that new owner is fully aware of all instructions and
warnings present in this documents.
These warnings have been drawn up to ensure the safety of the user and others. Therefore
read all instructions carefully prior to appliance installation and use.
1.1. Disconnect the mains plug before carrying out any cleaning or maintenance
operations (e.g. bulb replacement).
1.2. This appliance has been designed to be used exclusively by adults. Ensure that
children do not play near or with the appliance.
1.3. All modifications to the electrical mains to enable appliance installation must be
carried out by a qualified technician.
1.4. Do not use an extension cord. On completion of installation, check that the appliance
is not standing on the power cable.
1.5. Domestic refrigerators and/or freezers are designed exclusively to store and/or
freeze foodstuffs.
1.6. During normal operation, the condenser and compressor, located at the rear of the
appliance can reach high temperatures. Ensure that installation is carried out a
according to the instructions contained in this booklet. Insufficient ventilation will
impair operation and damage the appliance. Never cover or obstruct the ventilation
slates on the appliance.
1.7. Never allow children to play with the appliance. Children must never be allowed to
sit on the drawers or hang on the appliance doors.
1.8. If the appliance is transported in a horizontal position, the oil in the compressor may
flow into the refrigerant circuit.
1.9. Leave the appliance standing vertically for at least two hours before switching it on, to
ensure that oil flows back into the compressor.
1.10. All refrigerators and freezers have surfaces that are subject to the formation of frost.
1.11. Depending on the models, this frost can be removed automatically. (Automatic
defrosting) or manually when necessary. Never attempt to remove frost with sharp
objects as this may damage the evaporator and impair efficient appliance operation.
Let the frost thaw naturally; Never use hot water.
1.12. Never put sparkling drinks or bottles of water in the low temperature compartments
(freezer/cooler) as they can explode.
1.13. We strongly advise against putting hot liquids or food in the refrigerator or filling
ridded containers to the maximum capacity.
1.14. Never carry out any modifications to your appliance.
1.15. Never attempt to repair the appliance alone. Repairs carried out by unqualified
persons can cause serious damage; always contact your nearest Service Center and
use original spare parts only.
1.16. The refrigerant and insulation in this appliance do not contain any gases harmful to
the ozone or which contribute to the greenhouse effect. However, disposal must be
carried out in compliance with the relative standards regarding protection of the
environment.
1.17. Never use the base, drawers, doors etc. To stand on or as support.
Caution: Please keep the products away from the fire or similar glowing
substance before you dispose the refrigerator.
Danger: Before you throw away your old refrigerator or freezer: take off the
doors. Leave the shelves in place so that children may not easily climb
inside.
Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
Warning: If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
Warning: This appliance can not be used in camping.
Warning: This appliance can not be used in public transportations.
Warning: The appliance shall be used for indoor only.
Attention: This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Keep the key out of reach of children and not in the vicinity of the refrigerator.
This appliance is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type
environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
1. Cabinet Tabletop
2. Freezer Door Rack
3. Refrigerator Temerature Control
4. Refrigerator Shelves
6. Crisper Cover
7. Crisper
8. Leveling Leg
9. Door Pockets I Of Regrigerator
2. NAMES OF PARTS
12
3
4
5
9
7
8
6

5
3.1. Positioning
Position the appliance away from heat sources such as stoves, radiators, direct
sunlight etc. Before connect the power supply, remove the supporting base and
then screw down the front foot of appliance correctly to make it leveled correctly.
This appliance is suitable in ‘ST’ climate.
3.2. How to install
Install the refrigerator in a convenient location away form extreme heat and cold.
Allow sufficient clearance between the refrigerator and side wall so the door(s) will
open without obstruction. Refrigerator is not designed for recessed inst
Select a space with strong level floor.

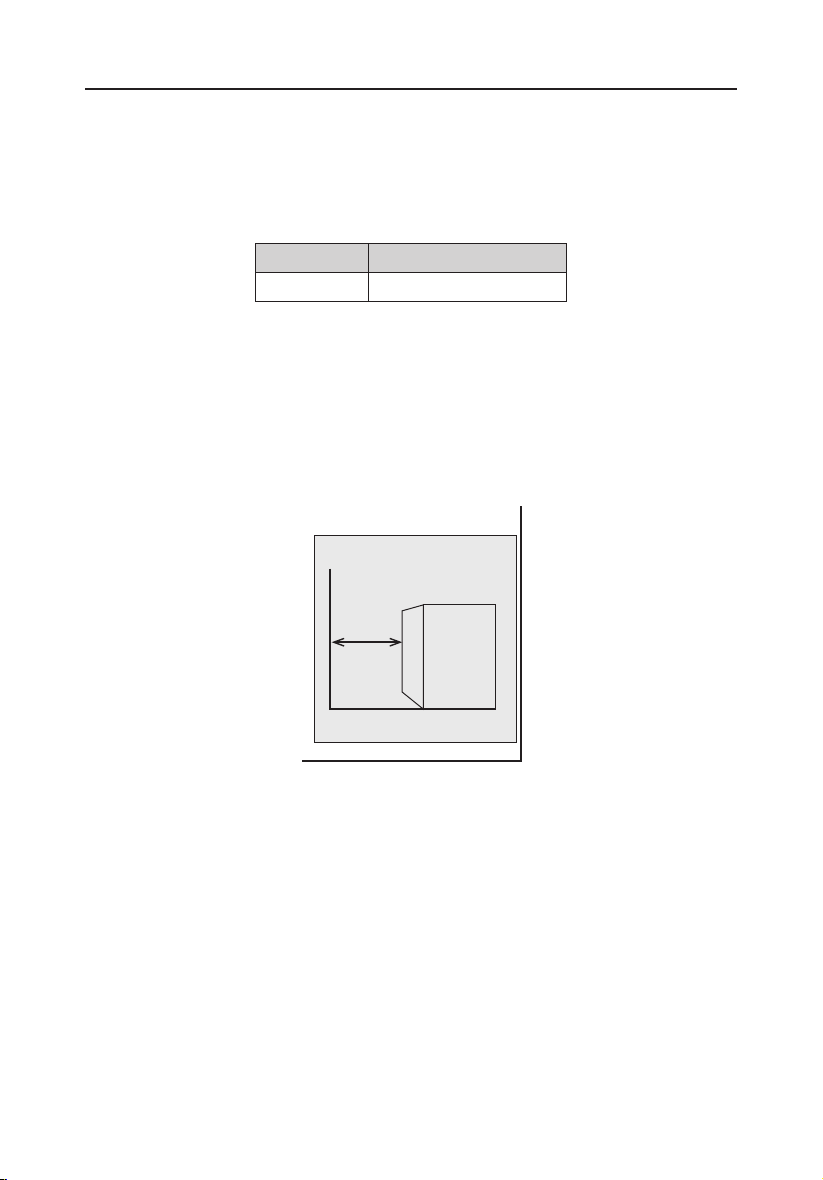

Allow at least 10 cm of space between the refrigerator’s side and the wall.
The appliance must be correctly connected to the power supply.
3.3. Electrical connection
Before connecting the appliance to the power supply, ensure that the voltage and
frequency as indicated on the data plate correspond to those of the electrical mains.
A deviation of -6% to +6% is admissible with respect to the rated voltage. For
operation with other voltage supplies, an adequately powered auto=transformer is
required.
Always connect the appliance to an efficient earthing system.
Put the appliance in upright position for at least 2 hours before switching it on.
4.1. Temperature Control Panels
Setting the Temperature Control
• To control the internal temperature, adjust
the control dials according to the ambient
temperature or purpose of use.
• The first time you turn the unit on, set the
temperatore control to “MAX” in
refrigerator section and “MID” in freezer
section.
• The range of the temperature control is
from position “OFF” the warmest to
“MAX” the coldest in refrigerator section
and from position “MIN” the warmest to
“MAX” the coldest in the freezer section.
Aer 24 to 48 hours, adjust the
temperature control to the setting that best
suits your needs. The setting of “MID” in
refrigerator section and “MID” in freezer
section should be correct for home or
office refrigerator use.
Note:
If the unit is unplugged, has lost
power, or is turned off, you must wait
3 to 5 minutes before restarting the
unit. If you attempt to restart before
this time delay, the refrigerator-
freezer will not start.
3. INSTALLATION
10 CM
Climate Class Ambient Temperature
ST From +18˚C to +38˚C

6
3.1. Positioning
Position the appliance away from heat sources such as stoves, radiators, direct
sunlight etc. Before connect the power supply, remove the supporting base and
then screw down the front foot of appliance correctly to make it leveled correctly.
This appliance is suitable in ‘ST’ climate.
3.2. How to install
Install the refrigerator in a convenient location away form extreme heat and cold.
Allow sufficient clearance between the refrigerator and side wall so the door(s) will
open without obstruction. Refrigerator is not designed for recessed inst
Select a space with strong level floor.
Allow at least 10 cm of space between the refrigerator’s side and the wall.
The appliance must be correctly connected to the power supply.
3.3. Electrical connection
Before connecting the appliance to the power supply, ensure that the voltage and
frequency as indicated on the data plate correspond to those of the electrical mains.
A deviation of -6% to +6% is admissible with respect to the rated voltage. For
operation with other voltage supplies, an adequately powered auto=transformer is
required.
Always connect the appliance to an efficient earthing system.
Put the appliance in upright position for at least 2 hours before switching it on.
4. OPERATION AND MAINTENANCE
4.1. Temperature Control Panels

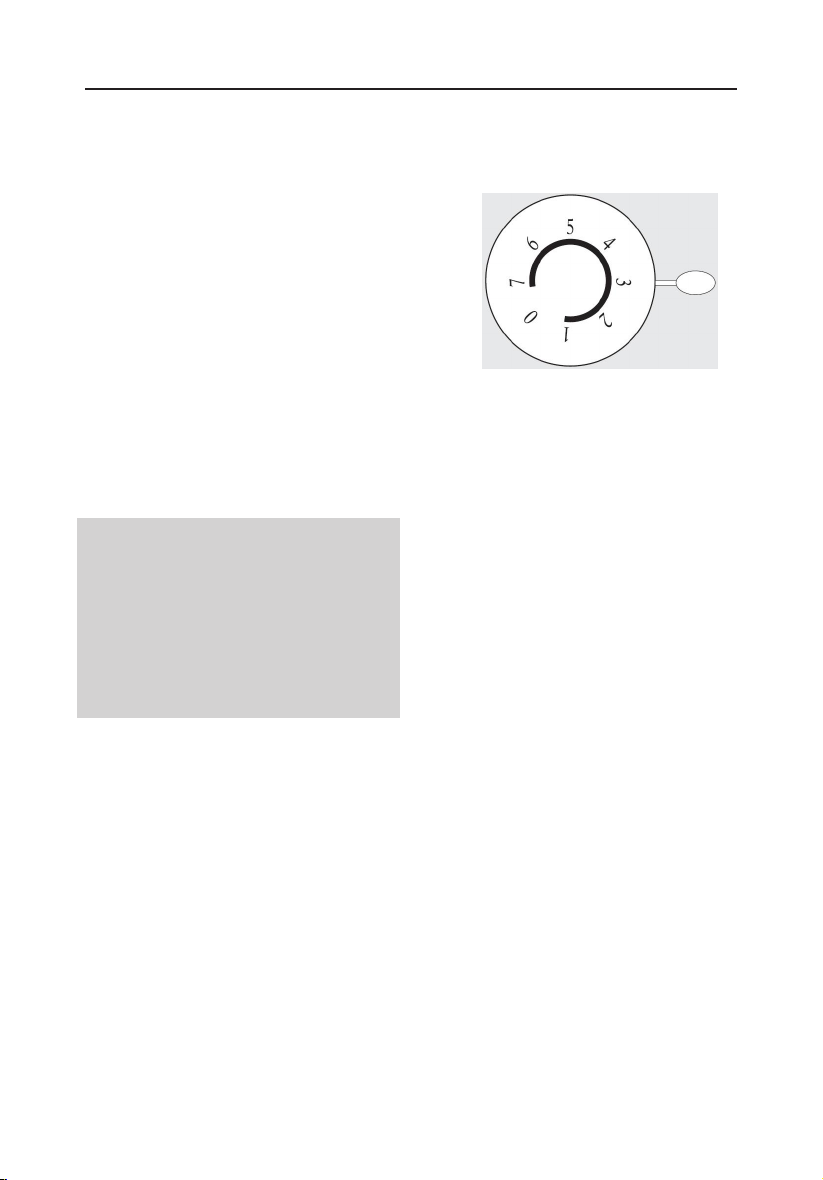

Setting the Temperature Control
•The temperature control maintains the
temperature in the refrigerator.Setting the
control at“1”is the warmest setting. Setting
the control at“7”is the coldest setting.
Initially set the Control at “4”.
•Allow 24 hours for the refrigerator to reach
theoperatingtemperature. If you want a
colder or warmer temperature, move the dial
one setting at a time. Moving the control to
“0”stops cooling but does not turn off the
power to the refrigerator. Setting the control
too high may cause freezing in the refrigerator
depending on the room temperature.
Note:
If the unit is unplugged, has lost
power, or is turned off, you must wait
3 to 5 minutes before restarting the
unit. If you attempt to restart before
this time delay, the refrigerator-
freezer will not start.

7
4.2. Storing food and drink
For optional use of the refrigerator compart-
ment observe the following instructions:
1. Never put hot liquids or food in the
refrigerator;
2. Cover or wrap food prior to storage
3. Arrange food so that air can circulate
freely inside the compartment.
Meat(all types:) Wrap in protective material
and store time should be less than two days
cooked food, cold meals etc. must be
covered well and stored in proper position in
the refrigerator.
Fruit and vegetables should be cleaned and
stored in the relative drawer.
Bananas, potatoes, onions and garlic should
not be stored in the refrigerator unless
wrapped first.
4.3.
Storing frozen food/freezing fresh food
Appliances with compartments can be used
to store frozen food for a maximum time of
one month.
The interval between purchase and placing
the food in the freezer should be as short as
possible.
Never exceed the storage period indicated
on the food packaging.
Only open the freezer door when necessary
and as quick as possible.
In the event of operation aer prolonged
periods of disuse, switch on the appliance
under no-load conditions for 2-3 hours taking
care to set the thermostat knot to the highest
setting, then place food in the refrigerator as
required and adjust the thermostat knob to
an intermediate setting.
4.4. Important
If food stored in the compartment is
defrosted, e.g. due to a power failure, it
should be consumed within a short time,
even if not completely thawed.
4.5. Ice
The appliance is supplied with an ice tray to
make ice. If the ice tray freezes onto the from
the compartment, never use metal and/or
sharp
objects to detach the tray from the
compartment.
4.6. The care required for best
performance, such as
Loadings in the refrigerating appliance
should not exceed its storage volume.
If the refrigerating appliance stopped for a
long time(due to interruption of power
supply or failure of the refrigerating
system), the frozen food(fresh food) had
better to be disposed of according to
user’s need.
It is better to arrange the food when
storage, to avoid cross-contamination.
Some types of fresh vegetables and fruits
are sensitive to cold; therefore they are not
suitable for storage in chill compartment.
4.7. Lamp
LED lamp can not be replaced by user. It
must be replaced by the manufacturer,
service agent or similarly qualified person.
4.8. Defrosting food
For optional cooking results with frozen
food, we recommend defrosting inside
the refrigerator or at ambient
temperature, the latter obviously require
less time.
If you need to save time and cook food in
the shortest time, you can cook small
items directly from frozen by lengthening
the cooking time slightly, or put the big
size items in a microwave oven to reduce
the defrosting time.
4.9. Defrosting the appliance
Frost on the inner cooling walls of the
refrigerator is eliminated automatically every
time the motor compressor is shut down.
Water from melted frost is collected by
means of a channel which leads to a water
tray installed above the motor compressor
at the rear of the unit. Heat generated by the
motor compressor ensures evaporation of
the water.Periodically clean the defrost
water drain outlet in the refrigerator
compartment. Frost should be removed
from the freezer compartment once it
reaches a thickness of over 3-4mm.
Never use metal objects to remove the ice
as it could damage the appliance.
4.10. Prolonged periods of disuse
If you do not intend to use the appliance for
long periods of time. Set the thermostat knob
of the “OFF” or “0” position and disconnect
the power supply. Then take out the foods,
defrost and clean the appliance. Leave the
door slightly open.
4.11. Cleaning the Appliance
Disconnect the power supply before cleaning
the appliance.
Do not use coarse or aggressive cleaning
agents as you may damage the surface.
Clean the exterior with cloth.
Remove the detachable accessories in the
interior of the appliance and clean with water
and liquid detergent. Plastic parts cannot be
washed in dishwashers.
Wash the interior of the appliance with wet
cloth, adding one or two spoonfuls of vinegar.
Aer cleaning, connect the appliance to
power supply and reload it.
5. TROUBLESHOOTING
Defective operation of the appliance is not always due to a technical fault but is offen caused by
incorrect installation or use. To avoid unnecessary technical assistance and relative expenses we
recommend the following procedures.
5.1. Internal temperature is not cool enough
Check • Make sure that the door closes properly;
• Make sure that the thermostat setting is correct;
• Make sure that the refrigerator is not positioned close to heat sources;
• Make sure that air can circulate freely at the rear of the appliance;
• Make sure that the condenser is not blocked.
5.2. Internal temperature is too low
Check • Make sure that the thermostat setting is correct.
5.3. Excessive appliance noise level
Check • Make sure that the appliance is leveled correctly.
5.4. Appliance operation failure
Check • Make sure that the thermostat is not set to “OFF” or “0”.
• Make sure that the power supply is not disconnected;
• Make sure that the pulg is inserted correctly into the mains socket;
• Make sure that the automatic cut-out on the mains line has not tripped or that
the fuse has not roken.
• Make sure that the power cable is not faulty.
Note: If the power cable need to be replaced, remove the plug from the power socket and install
the new cable, which must be requested from the Sevice senter and installed by a qualified
technician; ensure that it is properly connected and fixed.
If problems persist after the above procedures, contact your nearest Technical Assistance
department.
6. HOW TO DISPOSE OF THE PACKING MATERIAL
The packing material is recyclable.
The following procedure is recommended:
• dispose of paper, card and carton in the relative containers;
• dispose of plastics in the relative containers.
• If you have no cecycling bins in your area then you can put this material in the ordinary bins
and/or take it to the appropriate collection centers.
4. OPERATION AND MAINTENANCE

8
4.2. Storing food and drink
For optional use of the refrigerator compart-
ment observe the following instructions:
1. Never put hot liquids or food in the
refrigerator;
2. Cover or wrap food prior to storage
3. Arrange food so that air can circulate
freely inside the compartment.
Meat(all types:) Wrap in protective material
and store time should be less than two days
cooked food, cold meals etc. must be
covered well and stored in proper position in
the refrigerator.
Fruit and vegetables should be cleaned and
stored in the relative drawer.
Bananas, potatoes, onions and garlic should
not be stored in the refrigerator unless
wrapped first.
4.3.
Storing frozen food/freezing fresh food
Appliances with compartments can be used
to store frozen food for a maximum time of
one month.
The interval between purchase and placing
the food in the freezer should be as short as
possible.
Never exceed the storage period indicated
on the food packaging.
Only open the freezer door when necessary
and as quick as possible.
In the event of operation aer prolonged
periods of disuse, switch on the appliance
under no-load conditions for 2-3 hours taking
care to set the thermostat knot to the highest
setting, then place food in the refrigerator as
required and adjust the thermostat knob to
an intermediate setting.
4.4. Important
If food stored in the compartment is
defrosted, e.g. due to a power failure, it
should be consumed within a short time,
even if not completely thawed.
4.5. Ice
The appliance is supplied with an ice tray to
make ice. If the ice tray freezes onto the from
the compartment, never use metal and/or
sharp
objects to detach the tray from the
compartment.
4.6. The care required for best
performance, such as
Loadings in the refrigerating appliance
should not exceed its storage volume.
If the refrigerating appliance stopped for a
long time(due to interruption of power
supply or failure of the refrigerating
system), the frozen food(fresh food) had
better to be disposed of according to
user’s need.
It is better to arrange the food when
storage, to avoid cross-contamination.
Some types of fresh vegetables and fruits
are sensitive to cold; therefore they are not
suitable for storage in chill compartment.
4.7. Lamp
LED lamp can not be replaced by user. It
must be replaced by the manufacturer,
service agent or similarly qualified person.
4.8. Defrosting food
For optional cooking results with frozen
food, we recommend defrosting inside
the refrigerator or at ambient temperature,
the latter obviously require less time.
If you need to save time and cook food in
the shortest time, you can cook small
items directly from frozen by lengthening
the cooking time slightly, or put the big
size items in a microwave oven to reduce
the defrosting time.
4.9. Defrosting the appliance
Aer refrigerator operates some time,
water of food or moisture in air, which
enters refrigerator when opening its door,
will make a layer of frost on its evaporator.
Freezing efficiency may be decreased and
energy consumption be increased by too
thick layer of frost. So it should be
defrosted aer refrigerator operates a
period.
The product needs not artificial defrosting
because of its auto-defrosting function.
Water from melting frost is drained to drip
tray at lower part of its back through
drainpipes and is evaporated naturally.
4.10. Prolonged periods of disuse
If you do not intend to use the appliance for
long periods of time. Set the thermostat knob
of the “OFF” or “0” position and disconnect
the power supply. Then take out the foods,
defrost and clean the appliance. Leave the
door slightly open.
4.11. Cleaning the Appliance
Disconnect the power supply before cleaning
the appliance.
Do not use coarse or aggressive cleaning
agents as you may damage the surface.
Clean the exterior with cloth.
Remove the detachable accessories in the
interior of the appliance and clean with water
and liquid detergent. Plastic parts cannot be
washed in dishwashers.
Wash the interior of the appliance with wet
cloth, adding one or two spoonfuls of vinegar.
Aer cleaning, connect the appliance to
power supply and reload it.
5. TROUBLESHOOTING
Defective operation of the appliance is not always due to a technical fault but is offen caused by
incorrect installation or use. To avoid unnecessary technical assistance and relative expenses we
recommend the following procedures.
5.1. Internal temperature is not cool enough
Check • Make sure that the door closes properly;
• Make sure that the thermostat setting is correct;
• Make sure that the refrigerator is not positioned close to heat sources;
• Make sure that air can circulate freely at the rear of the appliance;
• Make sure that the condenser is not blocked.
5.2. Internal temperature is too low
Check • Make sure that the thermostat setting is correct.
5.3. Excessive appliance noise level
Check • Make sure that the appliance is leveled correctly.
5.4. Appliance operation failure
Check • Make sure that the thermostat is not set to “OFF” or “0”.
• Make sure that the power supply is not disconnected;
• Make sure that the pulg is inserted correctly into the mains socket;
• Make sure that the automatic cut-out on the mains line has not tripped or that
the fuse has not roken.
• Make sure that the power cable is not faulty.
Note: If the power cable need to be replaced, remove the plug from the power socket and install
the new cable, which must be requested from the Sevice senter and installed by a qualified
technician; ensure that it is properly connected and fixed.
If problems persist after the above procedures, contact your nearest Technical Assistance
department.
6. HOW TO DISPOSE OF THE PACKING MATERIAL
The packing material is recyclable.
The following procedure is recommended:
• dispose of paper, card and carton in the relative containers;
• dispose of plastics in the relative containers.
• If you have no cecycling bins in your area then you can put this material in the ordinary bins
and/or take it to the appropriate collection centers.
4. OPERATION AND MAINTENANCE

7. TECHNICAL INFORMATION AND CIRCUTIT DIAGRAM
• TECHNICAL INFORMATION
• CIRCUTIT DIAGRAM
81L
ST
R600a
28g
220-240V~
50Hz
1A
MAX 2W
27kg
Cyclopentane
BA89D
9
*:Optional component may be not used.
brown
orange
SWITCH
blue
blue
CAPACITOR*
L
E
N
brown
brown
red
POWER PLUG
blue
OVERLOAD
PROTECTOR
yellow/
green
yellow/
green
PTC STARTER COMPRESSOR
C
S
M
5
6
θ
THERMOSTAT
yellow/
green
LED Lamp
