Backyard Discovery GABLE User manual

STOP!
STOP!
16770-CB
Call Us First!
DO NOT RETURN TO STORE.
For immediate help with assembly or product information
call our toll free number:
1-888-827-9056
or email:
[e-mail]
Our staff is ready to provide assistance
April through October M-F 8:00 AM to 4:30 PM EST
Saturday 8:30 AM to 4:30 PM EST
November through March M - F 8:00 AM to 5:00 PM EST

(This page intentionally left blank.)

KEEP THIS MANUAL FOR FUTURE REFERENCE
ASSEMBLY MANUAL
BUILDING SIZE
GABLE
10' x 8' (305 x 244)
ACTUAL FLOOR SIZE
10' x 8' (305 x 244 cm)
BASE MODEL 10' x 7' 8-5/8" (305 x 235,3 cm)
10' x 12' (305 x 365,8 cm)
ADD ONE 10' x 4' 10' x 11' 8-5/8" (305 x 357,2 cm)
10' x 16' (305 x 487,7 cm)
ADD TWO 10' x 4' 10' x 15' 8-5/8" (305 x 479 cm)
07/01/202016770-CB
BEFORE YOU BEGIN
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
- CUSTOMER SERVICE -
Call: 1-888-827-9056 email: [email protected]
• BUILDING RESTRICTIONS AND APPROVALS
Be sure to check with local building department and homeowners association for specic restrictions and/ or requirements before building
.• ENGINEERED DRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
• SURFACE PREPARATION
To ensure proper assembly you must build your shed on a level surface. Recommended methods and materials to level your shed are
listed on page 6.
• CHECK ALL PARTS
Inventory all parts listed on pages 4 - 5. Contact our Customer Service Team if any parts are missing or damaged.
• ADDITIONAL MATERIALS
You will need additional materials to complete your shed. See page 6 for required and optional materials and quantities.

2

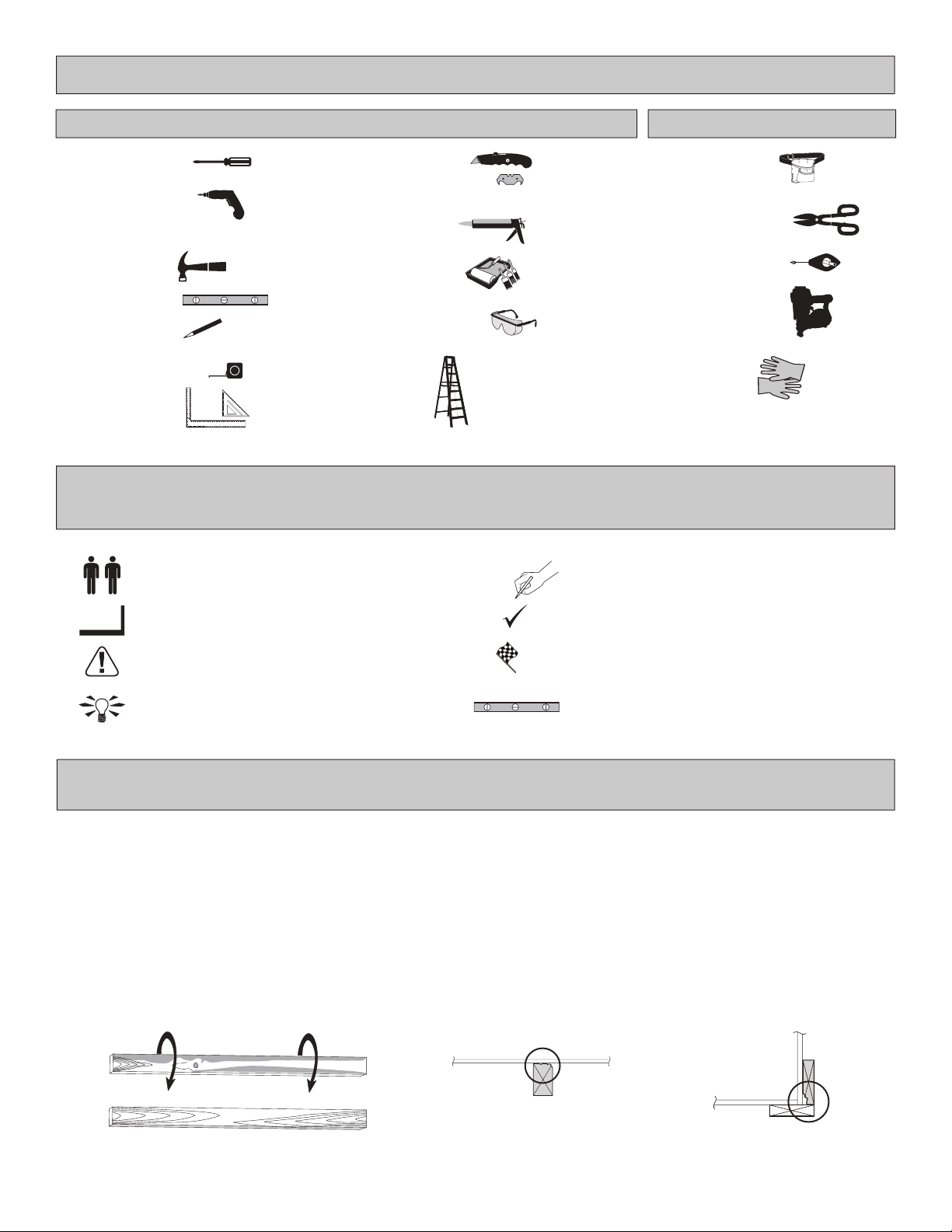

TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have  nished the assembly or installation.
= Level
❑Gloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
A
❑Safety Glasses
❑Tape Measure
❑Paint Tools
❑Ladder
❑Caulk Gun
❑Hammer
❑Level
FINISH
BEGIN
❑Pencil
❑Phillips
Screwdriver
❑Drill / Driver
❑3/8" Drill Bit
❑#2 Philips Drive Bit
❑Tool Belt/
Nail Pouch
❑Chalk Line
❑Nail Gun
• gun nails
❑Tin Snips
(for drip edge)
❑ Square or
❑Utility Knife
❑Shingle Blades
B C

PARTS IDENTIFICATION AND SIZES
DOOR TRUSSTRIM WALL
Treated lumber is stamped:
6 x 24" (15 x 61 cm)
x6 x4 x4
PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
ZJ
x1 5/8 x 3 x 72" (1,6 x 7,6 x 183 cm)
WOOD SIZE CONVERSION CHART
Nominal Board Size Actual Size
1 x 4
.................3/4" x 3-1/2" (1,9 x 8,9 cm)
2 x 4 ..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2 x 3 ..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1 x 3
.................3/4" x 2-1/2" (3,8 x 6,3 cm)
10x8' 10x12' 10x16'
x1 2 x 3 x 22-1/8" (5 x 7,6 x 56 cm)
LT
x4 2 x 3 x 72" (5 x 7,6 x 183 cm)
OY
x4 7/16 x 2-1/2 x 24-3/4" (1,1 x 6,3 x 62,9 cm)
7/16 x 2-1/2 x 48" (1,1 x 6,3 x 122 cm)
x6 x4 x4 2 x 3 x 69" (5 x 7,6 x 175,3 cm)
OV
x4 2 x 3 x 77" (5 x 7,6 x 196 cm)
PB
x2 2 x 3 x 92-5/8 " (5 x 7,6 x 235,3 cm)
PM
x2 2 x 3 x 94-1/2" (5 x 7,6 x 240 cm)
PR
2 x 4 x 65-7/8" (5 x 10 x 167 cm)
x6 x4 x4 CV
5/8 x 4 x 14" (1,6 x 10 x 35,6 cm)
x8 WNA
2 x 3 x 58" (5 x 7,6 x 147,3 cm)
x4 CDD
1 x 3 x 94-3/4"
(2,5 x 7,6 x 240,1 cm)
x2 x2 x2 HS
2 x 3 x 46-1/4" (5 x 7,6 x 117,5 cm)
x2 NH
2 x 3 x 48" (5 x 7,6 x 122 cm)
x2 x2 NK
Part identication is
stamped on some parts.
• Check these locations for part stamp.
RS RS
x4 1 x 3 x 7-1/2" (2,5 x 7,6 x 19 cm)
GBB
x4 3/4 x 5-1/8 x 8-3/8" (1,9 x 13 x 21,3 cm) LEFT PAINTED GREEN
RIGHT PAINTED RED
x2 x4
x4 x4
3
1 x 3 x 5" (2,5 x 7,6 x 12,7 cm) USED AS A GAUGE BLOCK FOR 3/4" (19 mm) MEASUREMENT
x1 GAA
3/4"
(19 mm)
XMA
x1 11/16 x 2-1/2 x 60-5/8" (1,7 x 6,3 x 154 cm)
x1 x1
OO
x2 69" Door Stiffener (175,3 cm)

WALL PANEL & DOORS PARTS LIST
ROOF PANELS
FASTENER/HARDWARE BAG (Shown Actual Size)
SOFFIT PANELS
x22
x45
x28
x118
x96
3" (7,6 cm)
2" (5,0 cm)
2" (5,0 cm)
3/4" (19 mm)
1-1/4" (3,2 cm)
x2 3/8 x 5 x 93-1/4" (0,9 x 12,7 x 236,9 cm)
x2 x2
x4 3/8 x 48 x 72"
(1 x 122 x 183 cm) x1 x1
x1x1
x1
RIGHT DOOR
x1
LEFT DOOR
x1 RIGHT
x1 LEFT
NOTE:
If you are using a nail gun, nails
may be used where screws are
shown for quicker assembly.
Length of nail must match screw length.
4
DOOR HARDWARE (Not Actual Size)
3/4" (19 mm) 3/4" (19 mm) 3/4" (19 mm)
64" Metal Threshold
Bagged seperately / special coating
x1
x4
x1 x1
x7 x11
Roof panels are
7/16" (11 mm)
thick.
x2x2 19" x 96"
(48 x 244 cm)
48" x 96"
(122 x 244 cm)

10 x 8'10 x 12'10 x 16'
5
ROOF PANELS
NOTES
Roof panels are
7/16" (11 mm)
thick.
Roof panels are
7/16" (11 mm)
thick.
Roof panels are
7/16" (11 mm)
thick.
x2
x2
x4
x2
x2
x2
x2
x2
x2
x4
19" x 96"
(48 x 244 cm)
19" x 48"
(48 x 122 cm)
19" x 48"
(48 x 122 cm)
19" x 96"
(48 x 244 cm)
19" x 96"
(48 x 244 cm)
48" x 96"
(122 x 244 cm)
48" x 96"
(122 x 244 cm)
48" x 96"
(122 x 244 cm)
48" x 48"
(122 x 122 cm)
48" x 48"
(122 x 122 cm)
2" (5,0 cm)
x1 1 lb. of 2" (5,0 cm)
2" (5,0 cm)
2" (5,0 cm)
x2
x2
1 lb. of 2" (5,0 cm)
1 lb. of 2" (5,0 cm)

6
10x8' 10x12' 10x16' ALL SIZES

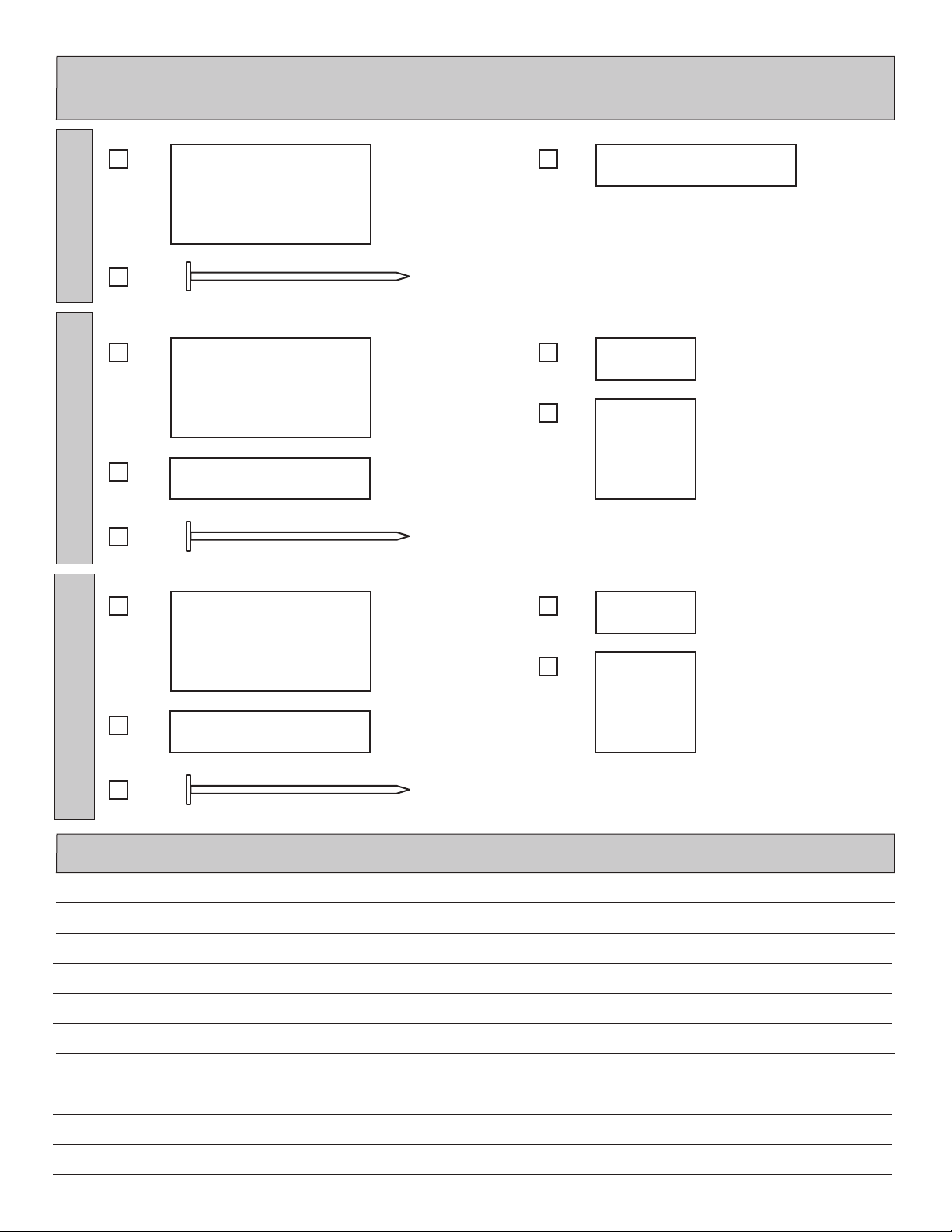

COMPLETING YOUR SHED
You will need these additional materials
TO VALIDATE YOUR WARRANTY YOU MUST USE THE FOLLOWING:
ADDITIONAL MATERIALS
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS
FOR INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
3-TAB SHINGLES (Bundles)....................
PAINT FOR SIDING (Gallons)..................
Use 10 0% acrylic latex exterior paint.
1" GALVANIZED ROOFING NAILS (lbs).
For shingles.
PAINT FOR TRIM .............................1 Quart
Use 10 0% acrylic latex exterior paint.
CAULK ............................................ 2 Tubes
Use acrylic latex exter ior caulk that is paintable.
FOUNDATION OR FLOOR MATERIALS
• Your shed kit does not include a wood oor frame or oor panel materials.
• See page 8 for the additional oor panel sizes and quantities required.
• This shed does not include any leveling materials.
• See the FLOOR LEVELING section on page 10 for recommended methods and suggested materials to properly level your
oor, as this will vary depending on your speci c site.
NOTES
468
1-½ 2 2-½
234
(2) coats r ecommended.
10x8' 10x12' 10x16'
DRIP EDGE (Feet)....................................
#15 ROOFING FELT (Sq ft. to cover).....
1" GALVANIZED ROOFING NAILS(lbs).
40 50 60
96 144 192
For r ng felt.
Shown actual size
NAIL BOXES (Not included)
3" (7,6 cm)
2" (5,0 cm)
x2 BOXES
x4 BOXES

A
B
C
4"
(10 cm)
3-1/2"
(8,9 cm)
D
D
7

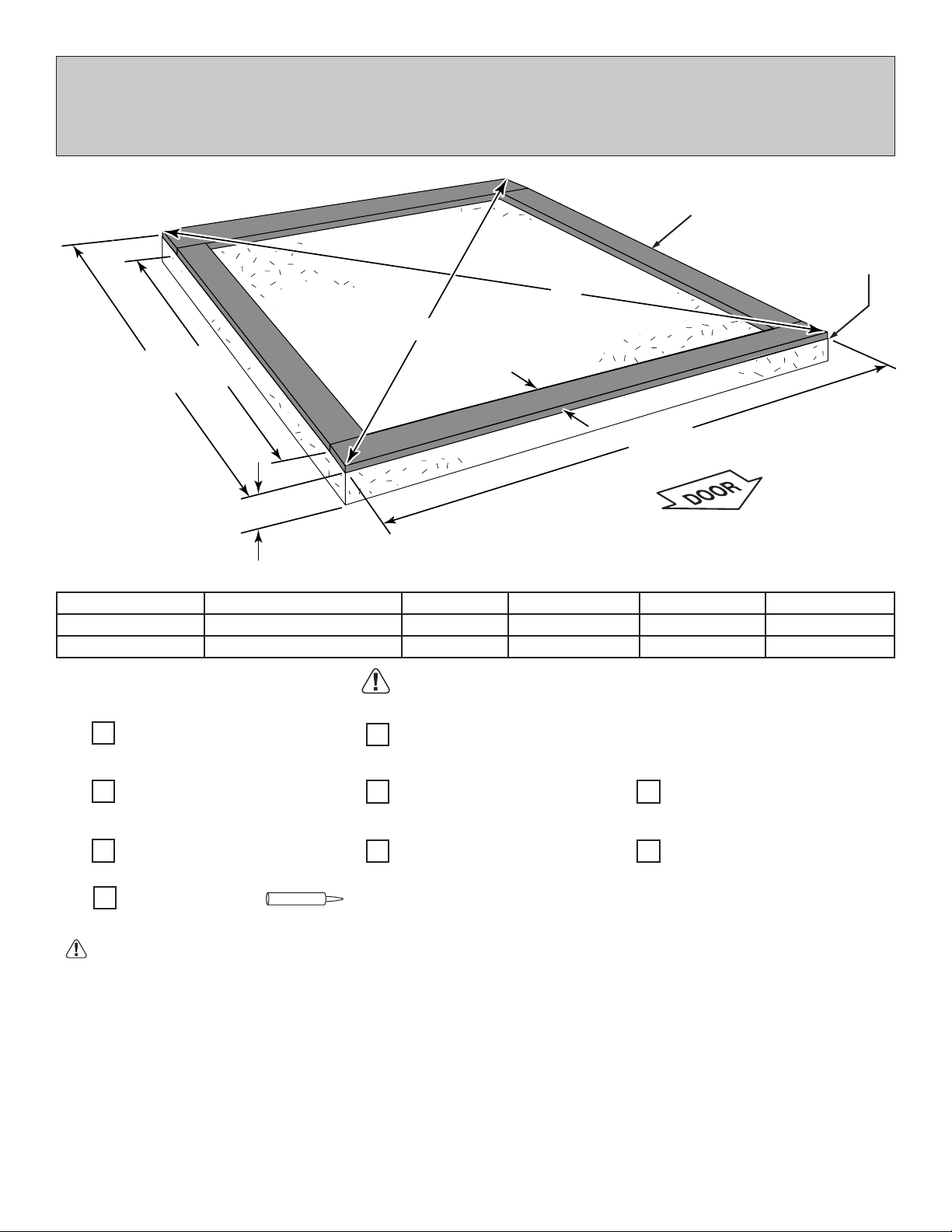

CONCRETE FOUNDATION
If you choose to install your kit on a concrete slab refer to the diagram below.
Attach the sill plates on the foundaton as shown, and continue on to page 21.
A B C DActual Floor SizeBuilding Size
• A treated 2 x 4" (5 x 10 cm) sill plate is required when installing your shed on concrete.
Purchase full length treated lumber, or butt shorter pieces end-to-end and seal seams with caulk.
• Use a high quality exterior grade caulk beneath all sill plates.
• Fasten 2 x 4" (5 x 10 cm) sill plates to slab using approved concrete anchors (fasteners not included).
• Check local code for concrete foundation requirements.
120" (305 cm)
120" (305 cm)
120" (305 cm)
85-5/8" (217 cm)
133-5/8" (339 cm)
181-5/8" (461 cm)
10'x 7'-8-5/8" (305 x 235 cm)
10'x 11'-8-5/8" (305 x 357 cm)
10'x 15'-8-5/8" (305 x 479 cm)
10'x 8' (305 x 244 cm)
10'x 12' (305 x 366 cm)
10'x 16' (305 x 488 cm)
92-5/8" (235 cm) 151-1/2" (385 cm)
140-5/8" (357 cm) 185" (470 cm)
188-5/8" (479 cm) 224" (568 cm)
Treated Sill Plate
Caulk between
sill plate and
concrete.
10' x 8' Building Requires:
10' x 12' Building Requires:
10' x 16' Building Requires:
2 x 4 x10' (5 x 10 x 305 cm)
x2
2 x 4 x10' (5 x 10 x 305 cm)
x2
2 x 4 x10' (5 x 10 x 305 cm)
x2
2 x 4 x 8' (5 x 10 x 244 cm)
x2
2 x 4 x 8' (5 x 10 x 244 cm)
x2 2 x 4 x 4' (5 x 10 x 122 cm) x2
2 x 4 x 8' (5 x 10 x 244 cm)
x2 2 x 4 x 8' (5 x 10 x 244 cm) x2
MUST be treated lumber.
Caulk
x1 or 2
Allow new concrete slabs to cure for at least seven (7) days.

FLOOR FRAME (Not Included)
You may need treated 2 x 4" boards cut to size and nails to complete your oor.
Floor panel sizes and quantities are shown below. MUST be treated lumber.
x4 2 x 4 x 72" (5 x 10 x 183 cm)
x2 2 x 4 x 72" (5 x 10 x 183 cm)
x4 2 x 4 x 72" (5 x 10 x 183 cm)
x4 2 x 4 x 48" (5 x 10 x 122 cm)
x2 2 x 4 x 48" (5 x 10 x 122 cm)
x4 2 x 4 x 48" (5 x 10 x 122 cm)
x6 2 x 4 x 45" (5 x 10 x 114,3 cm)
x6 2 x 4 x 89-1/2" (5 x 10 x 227 cm)
x6 2 x 4 x 93" (5 x 10 x 236,2 cm)
x6 2 x 4 x 89-1/2" (5 x 10 x 227 cm)
x6 2 x 4 x 89-1/2" (5 x 10 x 227 cm)
10 x 8'10 x 8' 10 x 12'10 x 12' 10 x 16'10 x 16'
8
2" (5,0 cm)
x1
x1
1 lb. of 2" (5,0 cm) Hot Dipped Galvanized Box-Type Nails.
1 lb. of 3" (7,8 cm) Hot Dipped Galvanized Deck-Type Nails.

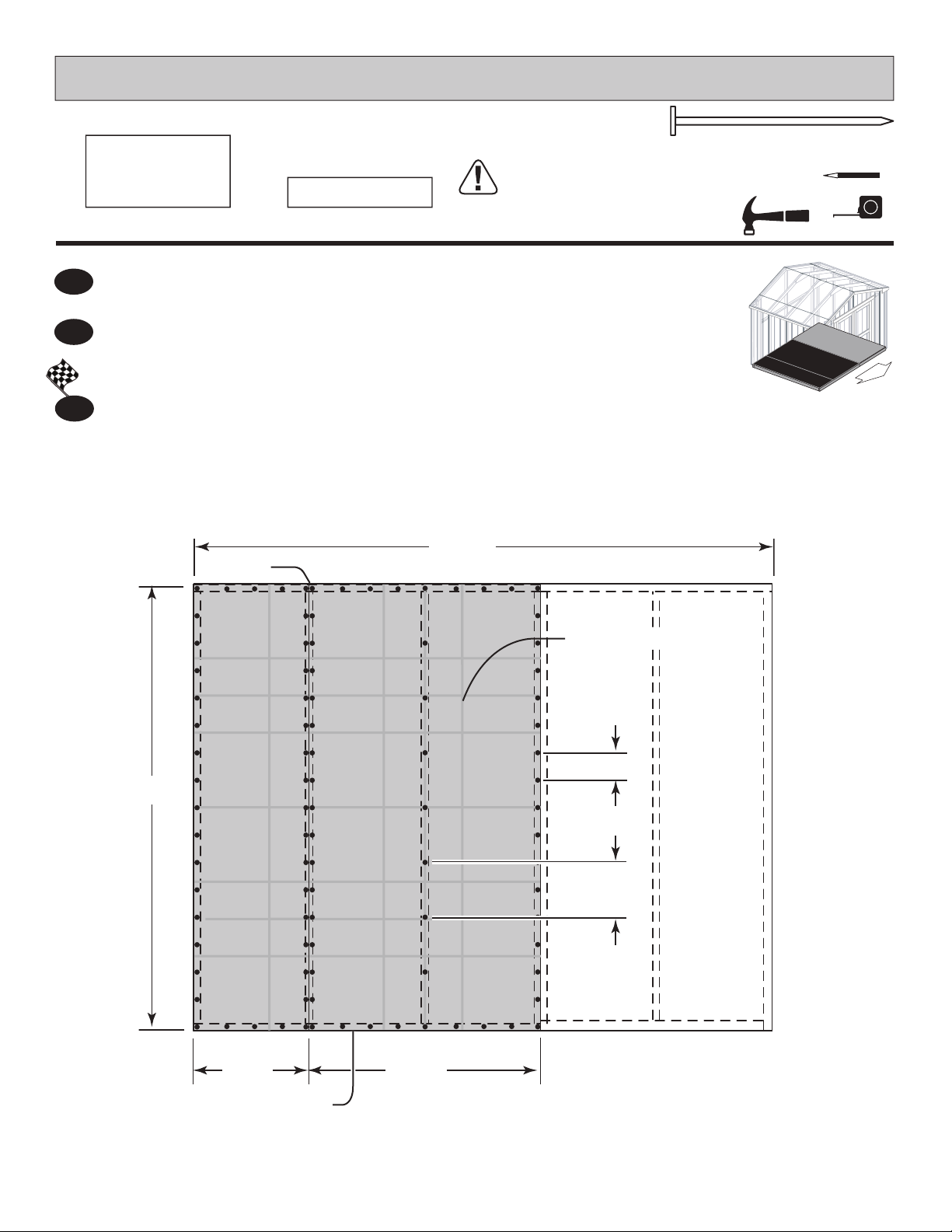

FLOOR PANELS (Not Included)
You may need oor panels and nails to complete your oor. Floor panel sizes and quantities
are shown below. Use a minimum of 5/8" (1,6 cm) Oriented Strand Board (OSB)
5/8 x 23-7/8 x 92-5/8" (1,6 x 60,6 x 235,3 cm)
5/8 x 23-7/8 x48" (1,6 x 60,6 x 122 cm)
5/8 x 23-7/8 x 92-5/8" (1,6 x 60,6 x 235,3 cm)
5/8 x 23-7/8 x 48" (1,6 x 60,6 x 122 cm)
5/8 x 23-7/8 x 96" (1,6 x 60,6 x 244 cm)
5/8 x 48 x 92-5/8" (1,6 x 122 x 235,3 cm)
5/8 x 48 x 92-5/8" (1,6 x 122 x 235,3 cm)
5/8 x 48 x 92-5/8" (1,6 x 122 x 235,3 cm)
5/8 x 48 x 48" (1,6 x 122 x 122 cm)
5/8 x 48 x 96" (1,6 x 122 x 244 cm)
x1
x1
x1
x1
x1
x2
x2
x2
x2
x2

DOOR
9
OPTIONAL WOOD FRAME FLOOR LEVELING OPTIONS
There are multiple ways to level your oor frame. Our recommended leveling method is shown below.
Leveling materials are not included in this kit.
PREFERRED METHOD - 4x4 TREATED RUNNERS (Typical for 10' x 12' Kit)
• 3" Screw angled into 4x4.
• (2) at each point frame and 4x4 touch.
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber. Never use
shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.
LEVELING METHODS
MATERIAL REQUIRED
x2 (10' x 8') 4" x 4" x 10' (10 x 10 x 305 cm) Treated Lumber
x4 (10' x 12') 4" x 4" x 10' (10 x 10 x 305 cm) Treated Lumber
x5 (10' x 16') 4" x 4" x 10' (10 x 10 x 305 cm) Treated Lumber
Fasteners for Frame to 4"x 4".
(3" Screws shown as one option.) Minimum (12 for each runner) 3" screws / exterior grade.
Use only wood treated for ground contact and fasteners approved for use with treated wood.
Always support frame seams.
Leveling higher than 16" not recommended.
LEVELING MATERIALS
Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
4" Block
8" Block
Gravel
Gravel
Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"
Runners are generally
12" (30,5 cm) from
ends of oor frame
and under seams.
4x4 Runners
(not included).
Seam
12"
(30,5 cm)
36"
(91,4 cm)
40-5/16"
(102,4 cm)
Centered 40-5/16"
(102,4 cm)
Centered 12"
(30,5 cm)
Measurements to
centers of 4x4's.

10
Use two 3" nails at each mark.
PARTS REQUIRED:
x6
x2
x2
x28
48"
(122 cm)
72"
(183 cm)
89-1/2"
(227 cm)
92-5/8"
(235 cm)
Orient parts as shown on at surface. Measure and mark from end of boards.
10' x 8' FLOOR FRAME (Not Included)
3" (7,6 cm)
2 x 4 x 72" (5 x 10 x 183 cm) Treated Wood
2 x 4 x 89-1/2" (5 x 10 x 227 cm) Treated Wood
2 x 4 x 48" (5 x 10 x 122 cm) Treated Wood
Center
on marks.
Center
on marks.
120"
(305 cm)
48"
(122 cm)
48"
(122 cm)
24"
(61 cm)
72"
(183 cm)
96"
(244 cm)
Offset Seam
Offset Seam
Flush
at ends.
BEGIN
2
1
DOOR
You have nished your 10' x 8' oor frame. If building 10' x 8' kit go to page 13.
If building 10' x 12' kit go to page 11. If building 10' x 16' kit go to page 12.
FINISH
3
HINT:
For easier nailing
stand on frame.
Toenailing
DOOR

DOOR
11
3
2
1
3" (7,6 cm)
Use two 3" nails at each mark. Go to page 14.
Orient parts as shown on at surface to build back section 2.
Measure and mark each dimension from end of boards.
Follow steps 1-3 on page 10 to build front 10' x 8' oor section 1.
PARTS REQUIRED:
Flush
at ends.
Center on
marks.
45"
(114,3 cm)
48 "
(122 cm)
48 "
(122 cm)
1-1/2"
(3,8 cm)
120"
(305 cm)
48"
(122 cm)
48"
(122 cm)
24"
(61 cm)
72"
(183 cm)
96"
(244 cm)
72"
(183 cm)
x2
x28
x2
x6
10 x 12' FLOOR FRAME (Not Included)
BEGIN
You will build two oor sections.
Offset Seam
2 x 4 x 45" (5 x 10 x 114,3 cm)
2 x 4 x 48" (5 x 10 x 122 cm)
2 x 4 x 72" (5 x 10 x 183 cm)
Offset Seam
Toenailing
HINT:
For easier nailing
stand on frame.
Section 2
Section 1

DOOR
12
3
2
1
3" (7,6 cm)
Use two 3" nails at each mark. Go to page 15.
Orient parts as shown on at surface to build back section 2.
Measure and mark each dimension from end of boards.
Follow steps 1-3 on page 10 to build front 10' x 8' oor section 1.
PARTS REQUIRED:
x2
x28
x2
x6
10 x 16' FLOOR FRAME (Not Included)
BEGIN
You will build two oor sections.
2 x 4 x 93 " (5 x 10 x 236,2 cm)
2 x 4 x 48" (5 x 10 x 122 cm)
2 x 4 x 72" (5 x 10 x 183 cm)
Offset
Seam
HINT:
For easier nailing
stand on frame.
Section 2
Section 1
Flush
at ends.
Center on
marks.
93"
(236,2 cm)
96 "
(244 cm)
48 "
(122 cm)
1-1/2"
(3,8 cm)
120"
(305 cm)
48"
(122 cm)
48"
(122 cm)
24"
(61 cm)
72"
(183 cm)
96"
(244 cm)
72"
(183 cm)
Offset Seam
Toenailing

DOOR
13
LEVEL AND SQUARE FLOOR FRAME
Before attaching  oor decking, it is important to level and square the  oor frame.
A level and square  oor frame is required to correctly construct your shed.
• 3" Screw angled into 4x4.
• (2) at each point frame and 4x4 touch.
DOOR
FINISH
5
BEGIN
2
3
4
1
Use level and check the frame is level before applying  oor panels.
Check for frame squareness by measuring diagonally across corners.
If the measurements are the same, the frame is square. The diagonal
measurement will be approximately 151-1/2" (385 cm).
When the frame is level and square secure one side of frame to the 4x4 runners using one fastener at
ends of each runner. At the opposite end of the frame, secure the frame to 4x4 runners with one fastener
at ends of each runner making sure the frame remains square (Fig. A).
Once the  oor frame is level and square fasten the frame at each point the frame contacts the 4x4
runners. Use minimum of 12 screws for each runner. Go to page 16.
See page 9 for the preferred  oor leveling method.
First, secure
at ends with
one fastener.
Second,
secure at
ends with
one fastener.
151-1/2"
(385 cm)
151-1/2"
(385 cm)
Fig. A
12"
(30,5 cm)
12"
(30,5 cm)

DOOR
DOOR
DOOR
14
• 3" Screw angled into 4x4.
• (2) at each point frame
and 4x4 touch.
Put both  oor sections together and attach as shown using 3" nails.
4
You have  nished your  oor frame. Proceed to level and square frame.
10 x 12' FLOOR FRAME (Not Included)
(4) Nails per side,
stagger pattern.
FINISH
5
FINISH
5
LEVEL AND SQUARE FLOOR FRAME
Before attaching  oor decking, it is important to level and square the  oor frame.
A level and square  oor frame is required to correctly construct your shed.
BEGIN
2
3
4
1
Use level and check the frame is level before applying  oor panels.
Check for frame squareness by measuring diagonally across corners. If the measurements are the
same, the frame is square. The diagonal measurement will be approximately 185" (470 cm).
When the frame is level and square secure one side of frame to the 4x4 runners using one fastener at
ends of each runner. At the opposite end of the frame, secure the frame to 4x4 runners with one fastener
at ends of each runner making sure the frame remains square (Fig. A).
Once the  oor frame is level and square fasten the frame at each point the frame contacts the 4x4
runners. Go to page 16.
See page 8 for the preferred  oor leveling method.
Fig. A
3" (7,6 cm)
x20
140-5/8"
(357,2 cm) 120"
(305 cm)
Section 2
Section 1
185"
(470 cm)
Runners are generally
12" (30,5 cm) from
ends of  oor frame
and under seams.
4x4 Runners
(not included).
Seam
12"
(30,5 cm)
36"
(91,4 cm)
40-5/16"
(102,4 cm)
Centered 40-5/16"
(102,4 cm)
Centered 12"
(30,5 cm)
Measurements to
centers of 4x4's.
185"
(470 cm)

DOOR
DOOR
DOOR
15
Put both  oor sections together and attach as shown using 3" nails.
4
You have  nished your  oor frame. Proceed to level and square frame.
10 x 16' FLOOR FRAME (Not Included)
(4) Nails per side,
stagger pattern.
FINISH
5
FINISH
5
LEVEL AND SQUARE FLOOR FRAME
Before attaching  oor decking, it is important to level and square the  oor frame.
A level and square  oor frame is required to correctly construct your shed.
BEGIN
2
3
4
1
Use level and check the frame is level before applying  oor panels.
Check for frame squareness by measuring diagonally across corners. If the measurements are the
same, the frame is square. The diagonal measurement will be approximately 224" (568 cm).
When the frame is level and square secure one side of frame to the 4x4 runners using one fastener at
ends of each runner. At the opposite end of the frame, secure the frame to 4x4 runners with one fastener
at ends of each runner making sure the frame remains square (Fig. A).
Once the  oor frame is level and square fasten the frame at each point the frame contacts the 4x4
runners. Continue on page 16.
See page 8 for the preferred  oor leveling method.
Fig. A
3" (7,6 cm)
x20
188-5/8"
(479 cm)
120"
(305 cm)
Section 2
Section 1
12"
(30,5 cm)
12"
(30,5 cm)
40-5/16"
(102,4 cm)
Centered
42"
(106,7 cm)
Centered
40-5/16"
(102,4 cm)
Centered
42"
(106,7 cm)
Centered
224"
(568 cm)
224"
(568 cm)
Runners are generally
12" (30,5 cm) from
ends of  oor frame
and under seams. 4x4 Runners
(not included).
Measurements to
centers of 4x4's.
Seam

Fig. C
DOOR
151-1/2"
(385 cm)
151-1/2"
(385 cm)
16
PARTS REQUIRED:
92-5/8"
(235 cm)
10' x 8' FLOOR PANELS (Not Included)
x55 2" (5 cm)
(2) Nails
Flush
Fig. A
Flush
at top
corner
edge.
Fig. B
(2) Nails
DOOR
Attach the 48 x 92-5/8" panel with the rough side up (painted-grid lines side)
with the 48" edge and corner ush to the oor frame (Fig A). Secure panel
with two 2" nails in the corners.
Move to the opposite end. Using the long edge of the panel as a lever move the
panel side-to-side until the top corner is ush to the oor frame (Fig. B).
Secure panel with two 2" nails in the corners.
2
BEGIN
1
3
4Continue attaching the panel using 2" nails 6" apart on edges and 12" apart inside panel.
Use a chalk line or use pre-painted grid lines to nail into joists under panel.
Ensure your oor frame is square by installing one panel and squaring frame.
Check the oor frame is square by measuring diagonally across the frame corners. If the measurements are the
same your oor frame is square. The measurement will be approximately 151-1/2" (385 cm) (Fig. C).
48" x 92-5/8"
(122 x 235,3 cm)
x1
Flush
6" (15 cm) edges of panel.
12" (30,5 cm) inside panel.
Grid lines UP
3/4"
(19 mm)
Approximately
120"
(305 cm)
48"
(122 cm)
Flush
FLOOR PANELS NOT INCLUDED.
SEE PAGE 8 FOR PANEL SIZES
AND QUANTITIES.

17
DOOR
Use a chalk line or grid lines on panels for 2" nails 6" apart on edges
and 12" apart inside panel. .
Continue installing panels with rough side up (painted grid lines).
5
If building the 10' x 8' kit, you have  nished Installing your  oor panels, and can
continue at p. 22. If building the 10' x 12' kit continue at page 18. If building the 10'
x 16' kit, continue at p. 20.
PARTS REQUIRED: x95
10' x 8' FLOOR PANELS (Not Included)
6
FINISH
7
2" (5 cm)
92-5/8"
(235 cm)
120"
(305 cm)
23-7/8"
(61 cm)
48"
(122 cm)
Flush
12" (30,5 cm)
6" (15 cm)
Flush
48" x 92-5/8"
(122 x 235,3 cm)
x1 x1
Grid lines UP.
5/8 x 23-7/8 x 92-5/8"
(1,6 x 61 x 235 cm)
FLOOR PANELS NOT
INCLUDED. SEE PAGE 8
FOR PANEL SIZES
AND QUANTITIES.

18
PARTS REQUIRED:
10' x 12' FLOOR PANELS (Not Included)
x55 2" (5 cm)
DOOR
Attach the 48 x 48" panel with the rough side up (painted-grid lines side) on
Section 2 with the 48" edge and corner ush to the oor frame and Section 1.
Secure using 2" nails 6" apart on edges and 12" apart inside panel. Use
a chalk line or use pre-painted grid lines to nail into joists under panel.
2
BEGIN
1
x1
6" (15 cm) edges of panel.
120"
(305 cm)
48"
(122 cm)
12" (30,5 cm)
inside panel.
Grid lines
U P.
48"
(122 cm)
Flush
92-5/8"
(235 cm)
3/4" (19 mm)
Approximately
48" x 48"
(122 x 122 cm)
Section 2
Section 1
FLOOR PANELS NOT
INCLUDED. SEE PAGE 8
FOR PANEL SIZES
AND QUANTITIES.
