BAIC Senova D70 User manual

I
Foreword
Thank you for purchasing this car.
This instruction manual applies to the model of NEW D70 series.Before using the vehicle for the first time, please be sure to read this manual
carefully and get familiar with the vehicle structure, various functions, operation methods and relevant regulations of BAIC as soon as possible.
The user will lose the right to claim because of failed following the instruction of the user manual, or the modification without the approval of BAIC.
The contents contained in the instruction manual will help you learn the correct method of driving and maintenance, so that you can fully enjoy the
fun of driving.
This manual aims to provide users with instructions on the use and maintenance of vehicles. Please check the purchase contract for the specific
configuration of the vehicles you purchased. If you have any questions about this car and this manual, please contact BAIC distributor in your
country.
The pictures, data and instructions contained in this manual conform to the current product definition. In view of BAIC will continue to modify and
improve the vehicle, the pictures, data and instructions in the operation manual are only for the introduction of the use method, not as a basis for
order acceptance.
We will continue to improve all models. Therefore, we reserve the right to change the vehicle, equipment or part of the technical specifications at
any time. Please understand. Data relating to delivery scope, appearance, performance, size, weight, fuel consumption, specifications and
vehicle functions are correct as of the time of delivered. Some of the equipment/functions described in this article may not be installed on your
vehicle ((For more details, please consult the authorized dealer of BAIC). All information, drawings or descriptions in this manual shall not be
deemed as a legal commitment.
BAIC solemnly declares that it is solely responsible for the revision of this manual, and reserves all rights and interests stipulated in the copyright
law and the right to modify.
Without the prior written consent of BAIC, it is not allowed to reproduce, copy or translate

II
Foreword
The equipment/functions marked with "*" are only applicable to some models or only used as optional parts or optional functions for some models.
Please refer to the real car configuration.
"Warning", "attention", "prompt" and some special symbols will appear frequently in this instruction manual. Special attention should be paid to
these contents, ignoring these warning instructions may lead to personal injury or damage to your vehicle.
"Warning" means that failure to follow instructions is likely to result in serious bodily injury or even death;
"Caution" means that dangerous or unsafe operation will result in personal injury or vehicle damage;
Tips give helpful information.
“ ” Indicate, which means "do not do this" or "do not let this happen."
“ ” Indicate, which means "please do this" or "this operation is feasible".
“ ” A similar sign that in order to indicate an item in the diagram.
“ ” A similar sign indicates the direction of movement or action.
BAIC International Development Co., Ltd

III
Notes to users
1. Before you use the vehicle, please be
sure to carefully read this instruction manual,
in the process of using the vehicle comply
with the operation method suggested in the
instruction manual, to ensure that familiar
with the operation and maintenance of the
vehicle and safe driving vehicles. We are
not responsible for any loss caused by
improper use of the vehicle.
2. Please be sure to carry out regular
vehicle maintenance and maintenance in
accordance with the
provisions of the maintenance information
form. 3. In order to adapt to drivers of
different sizes, the driving position should
be adjusted as follows:
●Seat forward and backward adjustment,
height adjustment *, backrest inclination
adjustment, headrest adjustment;Steering
wheel position adjustment;
●Internal and external rearview mirror
position adjustment.
4. Wearing safety belt is a necessary
guarantee for the safety of drivers and
passengers. Adults should wear seat belts
correctly and children should correctly
select and use child restraints and seat belts
in accordance with the relevant
requirements in this instruction manual.
●Whether the vehicle lamps work normally;
●Cleanliness of windscreen and rearview
mirror, working condition of wiper;
●Rearview mirror view angle position;
●Tire pressure and tire wear. The condition
of the tire has a direct impact on the
vehicle's power, economy and comfort,
more related to traffic safety, please
correctly use and maintain the wheels
(including spare wheels) according to the
regulations. Check the tire pressure when
the tire is cold.
●Engine oil, coolant, brake fluid and other
liquid level height;
●Battery status.
6. Put the start/stop button in "RUN" mode
to
check the alarm lights. 7. Engine operation:
●Do not run the engine in the closed
warehouse for a long time to prevent
exhaust poisoning;
●When the battery power failure, the engine
electronic control unit and starter will not
work properly, the engine cannot start
●When the engine is shut off, the vacuum
booster device will not work, and the brake
pedal trample force will be significantly
increased, and the braking efficiency will be
sharply reduced. Therefore, it is strictly
prohibited for vehicles to slide when the
engine is shut down
●For vehicles equipped with automatic
transmission, stop the vehicle before
leaving the vehicle, put the shift handle in
the position of "N", apply parking brake and
then put the shift handle in the position of
"P". For vehicles equipped with manual
transmission, stop the vehicle before
leaving the vehicle, and then put the shift
handle in neutral position and apply parking
brake

IV
●When braking in emergency or on wet
road, ABS can prevent the wheels from
locking, which is conducive to the stability of
driving direction. However, careful and safe
driving is still necessary
9. About the combined instrument alarm
lamp:
●If, while driving on combination instrument
have red alarm lamp (such as brake, engine
oil, coolant
temperature, etc.) to light, should be safe
parked car as soon as possible, according
to this instruction manual instructions to
check the vehicle, if necessary please
contact BAIC shop of distribute of engage
by special arrangement.
●If there is yellow alarm light on the
combination instrument on the way, please
check the vehicle according to the
instructions in this operation manual. If
necessary, please contact BAIC special
dealership for maintenance
10. Electrical accessories
●Any electrical accessories must be
connected in accordance with the specified
wiring location and wiring methods, please
go to BAIC dealership
11. The car is equipped with a catalytic
converter. It is strictly prohibited to use
leaded gasoline, otherwise the catalytic
converter will be damaged soon
12. Safety tips
Follow the following important driving rules
to help ensure the safety of drivers and
passengers throughout the journey!
●Strictly abide by traffic rules and drive
safely
●Do not drive after drinking or taking drugs;
●Observe the speed limit sign and do not
exceed the speed limit
13. When the front windshield is coated
internally, pay special attention not to let
water into the instrument panel; Daily use
vehicles don't take wet umbrellas, aside the
water glass with the liquid on the dashboard,
otherwise the water into the dashboard may
lead to electrical components damage is
installed on the dashboard
14. Please go to BAIC dealership for vehicle
repair and modification. BAIC shop of
distribute of engage by special arrangement
with the necessary tools, diagnostic
equipment, maintenance information and
have the qualification of the staff.

V
General contents
1
Instructions on safe operation
2
Control systems and equipment
3
Driving guide
4
Maintenance and service
5
Emergency treatment
6
Technical data
7
Maintenance information

1
1. Instructions on safe operation
Driving safety.................................................................................................................................................................................................................................... 2
Correct Sitting Posture of Driver.................................................................................................................................................................................................... 3
Pedal area......................................................................................................................................................................................................................................... 5
Seat belt.............................................................................................................................................................................................................................................7
Correctly fasten the seat belt....................................................................................................................................................................................................... 10
Seat belt inspection and maintenance........................................................................................................................................................................................13
Maintenance and disposal of seat belt pretensioner *............................................................................................................................................................. 14
Airbag system................................................................................................................................................................................................................................. 14
Conditions under airbag fold........................................................................................................................................................................................................ 22
Conditions under airbag does not unfold................................................................................................................................................................................... 23
The collision at bottom of the vehicle..........................................................................................................................................................................................26
Safety of child................................................................................................................................................................................................................................. 27
Child seat........................................................................................................................................................................................................................................ 28

2
Driving safety
This chapter mainly introduces important
information, operation essentials,
Suggestions and safety precautions of safe
driving. For the safety of drivers and
passengers, please read carefully and
observe relevant regulations
Caution
● Be sure to carry this instruction manual
with you. If you lend or resell a vehicle, be
sure to give the user manual to the user or
new owner.
Keep the vehicle in safe driving c
Driving a faulty vehicle is very dangerous, in
order to keep the vehicle in a safe driving
state, the driver should follow the provisions
of the "maintenance information table" and
go to BAIC brand authorized service center
for regular maintenance, and checking the
cars before drive.
Correctly adjust the seat
Before driving, the driver and passenger
should make the seat back upright and
adjust the seat position.
Fasten the seat belt while driving
The airbag only has an auxiliary protection
function and cannot replace the protective
effect of the seat belt in an accident.
Therefore, the driver and passengers must
fasten the seat belts correctly during driving.
Properly place all the child passengers
The children should be properly placed in
the two sides of the back seat, in case of the
child is too young to fasten the seat belt, It
must be properly placed in the child
protection device, adjust the children lock in
the LOCK state, and never leave children
alone in the car.
Be alert to the danger of airbags
Although the airbag have protect function,
but if the passengers is too close to the
airbag or it is not properly protected, when
the airbag open may cause injury to the
driver and passenger, especially to the
infant. Be sure to follow all instructions in
this manual.
Do not drive after drunk
Do not drive after drunk because people’s
reaction to environment will be reduced
after drinking, and also same for your
friends.
Never overspeed
Overspeed is one of the main causes of
vehicle collision and casualty accidents. Do
not drive beyond the speed limit specified by
the road, and do not exceed the safe speed
allowed by the actual road conditions while
driving.
Carrying pets safely
When carrying a pet in the car, make sure
that the pet is properly fixed. Do not play
with the pet while driving. Do not leave the
pet alone in the car.

3
Warning
●Do not be distracted by external factors,
such as smoking, eating, talking with
passengers or talking on the phone.
●Do not drive a vehicle when the reaction
capacity is declining. For example taking
drugs, alcohol, and medicine which can
prone to lethargy can reduce people's
reaction capacity.
●Strictly abide by traffic regulations and
speed limits
●When driving the vehicle, avoid crushing
crop straw, weeds, etc., in case of hooking
to the vicinity of the vehicle exhaust pipe,
causing the vehicle to catch fire.
Correct Sitting Posture of Driver
Correct Sitting Posture of Driver
The driver sitting correctly can reduce
driving fatigue and ensure the safety of the
vehicle.
To ensure driving safety, the driver should
be done before driving the following
operations:
●move the seat to the appropriate location,
make knee close section in the condition of
slightly curved, fully oil under the door pedal,
brake pedal and the clutch pedal dispatch
back to the right Angle, and back to back.
● Adjust the headrest so that the middle of
the headrest is flush with the middle of the
driver's ear and keep the back side of the
head as close as possible to the headrest.
● Adjust the steering wheel so that the chest
and the steering wheel are at least 25 cm
distance. Make sure the elbow is slightly
bent and hold the highest point of the
steering wheel.
● Adjust the mirror to the proper position.
● Fasten the seat belt in the correct way.

4
Front passenger correct sitting
In order to ensure the safe ride, the front
row passenger should do the following:
●Adjust the seat as much as possible to
maintain a proper distance between the
front passenger and the dashboard so that
the most effective safety is provided when
the airbag is triggered.
●Adjust the seat back to fit the back. Adjust
the headrest so that the middle of the
headrest is aligned with the middle of the
ear of the passenger in the front row, and
the back of the head is as close to the
headrest as possible.
●Correctly fasten the seat belt.
●Place your feet in the foot space in front of
the front seat.
Warning
● In order to reduce the risk of accidents
and injuries, the following must be strictly
observed：
● The distance between the driver's chest
and the steering wheel should not be too
close. Otherwise, the airbag cannot provide
effective protection and may cause harm to
the driver when deployed.
● The hands of the driver should always be
on the outer ring of the steering wheel (9 o
'clock and 3 o 'clock positions) to ensure
that all instruments and indicators on the
combined instrument can be seen.
● When the vehicle is moving, the driver is
not allowed to adjust the seat and the
headrest. If need, should park the car and
adjust the seat and headrest to the correct
position, then continue to drive.
Warning
● The front passenger should not be too
close to the instrument panel, otherwise the
airbag will not be able to provide effective
protection and may even cause injury to the
front passenger when deployed.
● Do not rest your feet on the instrument
panel or on the window during driving, also
do not sit cross-legged on the seat, always
keep the feet inside foot space, otherwise it
will be easy to get hurt in case of emergency
brake or accident.
● During driving, the seat back should not
be tilted excessively. The seat belt must be
properly worn to maintain the correct sitting
position to avoid injury during emergency
braking.

5
Back row passenger correct sitting
To ride safety, rear passengers should do
the following:
● Adjust the headrest so that the middle of
the headrest is aligned with the middle of
the rear passenger's ear and the back of the
head is as close as possible to the headrest
● Keep your seated posture as close as
possible to the back of the seat
● Place your feet in the foot space in front of
the rear seats and close to the floor
● Correctly fasten the seat belt.
● When carrying children, appropriate
protective measures must be taken in
accordance with relevant regulations.
Pedal area
M/T vehicle
①Clutch pedal
②Brake pedal
③Accelerator pedal
A/T vehicle*
①Brake pedal
②Accelerator pedal
Caution
● Before driving, you must ensure that all
pedals can be easily stepped on at any time
and can automatically return to the position.

6
Caution
●It is strictly prohibited to drive when
fastening high heels and slippers. High
heels may impede the brake pedal and the
clutch pedal to be depressed to the end.
Sliding may happen when depressing the
brake pedal when fastening slippers. You
cannot apply the maximum braking force in
a timely manner, which easily leads to
accidents.
Driver position foot mat
The foot mat should be fixed in the foot
space. After installation, please make sure
that the foot mat is close to the carpet, and
ensure that there is a certain distance
between the foot mat and the clutch pedal,
brake pedal and accelerator pedal, so that
there is no interference between the foot
mat and the pedal.
Caution
● When the brake pedal is pressed, if it is
blocked by the foot mat and other things, it
will affect the vehicle's brake and may
cause serious traffic accidents.
● Do not put anything in the driver's foot
space,
otherwise it may slip into the pedal area and
prevent the driver from operating the pedal.
In case of emergency braking or sudden
situation, the driver can easily cause serious
accidents if he cannot operate the brake
pedal.
● Must ensure that the foot mats are
securely fastened to the floor
● Do not put any other foot mats or
coverings on the vehicle foot mats to
prevent less pedal movement distance and
hindering the pedal movement
● Do not use more than 10mm thick mat

7
Seat belt
All seats in the car are equipped with
three-point seat belts.
The height of the upper fulcrum on the front
seat belt is adjustable. Some models’ front
seat belts have
pre-tightening force limiting function. For
driving safety, all passengers must wear
seat belts correctly.
Proper wearing of the seat belt can limit the
passengers to the appropriate position,
effectively preventing the passengers from
colliding with the interior parts of the vehicle
and absorbing a lot of kinetic energy,
reducing the damage to the passengers.
At the same time, the correct wearing of the
seat belt is also an important prerequisite for
the protection of the airbag. At the moment
of airbag deployment, the body position,
sitting posture and movement of the driver
and passenger have a greater impact on the
protection effect of the airbag.
Improper wearing of the seat belt and
abnormal seating posture may cause the
vulnerable parts of the head and neck of the
passenger to be injured
by the instantaneous impact force when the
airbag is deployed. Especially for children,
this kind of injury can be fatal. In the
moment of crash, the seat belt can restrain
the upper body of the driver and passenger
in time, ensuring that the people inside the
car is within the protection range after the
airbag is deployed, make the airbag work
most effectively.
Caution
In order to reduce the risk of accidents, the
following matters must be strictly observed：
●As long as the vehicle is driving, the driver
and passenger must always wear the seat
belt. This will reduce the damage to the
vehicle during emergency braking and traffic
accidents.
●It is strictly forbidden to wear one seat belt
for two person(even for children)
●Pregnant women or those who need care
from others must also wear seat belts. If you
do not wear a seat belt, you may be
seriously injured.
●take off the heavy clothe (such as big coat)
before wearing the seat belt, in order to
avoid seat belt not fit the

8
Caution
● When wearing the seat belt, it should not
be pressed against fragile or sharp things
(such as glasses, pens, etc.), otherwise the
passengers may be injured.
● Make sure that the buckle socket is not
stuck by other things, otherwise the lock
cannot be inserted into the buckle
● The locking of the seat belt must be
correctly inserted into the buckle. Wrong
wearing of the seat belt will affect the
protection of the seat belt.
● Seat belts must be kept clean at all times,
and heavily soiled seat belts may cause the
retractor rolling not smooth.
● If the belt webbing is broken or cracked,
the
fixing bolts are loose, and the retractor
malfunctions, the seat belt will not provide
protection in the event of an accident. You
should regularly check all parts of the seat
Caution
● In the event of a serious crash, the used
seat belt or the stretched seat belt should be
replaced at BAIC Service Center. Even if
there is no obvious deformation in the
appearance, it needs to be replaced. Also
check the seat belt fixtures.
● It is strictly forbidden to repair,
disassemble and install the parts on the
retractor or the seat belt. It is strictly
forbidden to modify the seat belt in any way.
Please repair the seat belt parts at BAIC
service center.

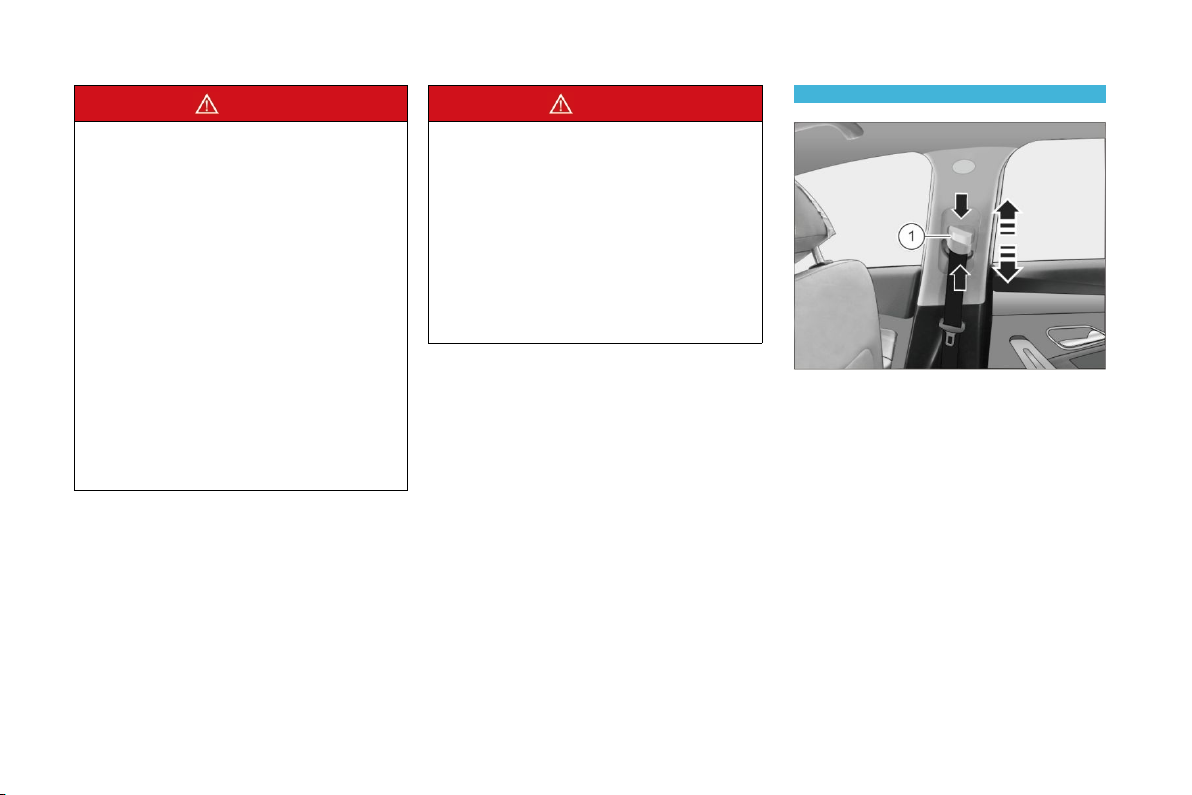

Seat belt height adjustment
Use the seat belt height adjustment device
to adjust the height of the fulcrum on the
seat belt to accommodate the shoulder
height of different driver and passenger.
1.Hold the lower end of the regulator guide
block 1.
2.Press the upper end lock button of the
guide block and hold it. 3.Move the guide
block up and down to adjust the seat belt to
the proper position.
4.Loosen the regulator guide block.

9
5.After the height adjustment is completed,
pull the seat belt firmly and check that the
adjuster is securely locked.
Warning
● The driver is forbidden to adjust the seat
belt height while driving.
Seat belt pre-tightening force limiting
function
Some models¡¯ seat belts are equipped
with pretightening force limiting devices,
which aimed to ensure that the seat belt
fastens the passenger's while crash.
When the severity of the crash accident
reaches a certain level, the pre-tightening
force limiting device may be activated, and
the retractor tightens the seat belt in the
rewinding direction to slow the passenger's
forward motion.
If the tightening force exceeds a certain limit,
the force limiting device will release the seat
belt and reduce the force acting on the
body.
When the pre-tightening force-limiting
device is triggered, white smoke may be
emitted. This is a normal phenomenon. It
does not mean that the car has a fire, so
don't worry.
Caution
● The seat belt with pre-tightening function
can only be used once. A new seat belt must
be replaced after the pretensioner is
detonated.
● When the pre-tightening force-limiting
device is triggered, white smoke may be
emitted. This is a normal phenomenon. It
does not mean that the car has a fire, so
don't worry.
● The seat belt pretensioner will become
very hot after the detonation, so do not
touch the relevant parts within a few
minutes after the pretensioner is detonated.

10
The consequences of not wearing the
seat belt
Many people think that in the event of a mild
crash, you can use your own hands to
support the body and will be without injury, it
is absolutely wrong.
Driver and passengers who are not wearing
seat belts will move forward at the speed
before the crash due to inertia. At this time,
the vehicle does not move at the same
speed as the driver and passenger, which
may cause injury to the driver and
passenger.
Even if the speed of the car is very low, the
force acting on the human body in the event
of a frontal crash is great. The passengers
cannot support his body only using hands,
and the people who are not wearing the
seat belt will be forcefully thrown forward.
Hit the steering wheel, the dashboard, the
windshield, or any things on the way
forward.
Correctly fasten the seat belt
How to Wear a Front Seat Belt
Before using the seat belt, first adjust the
front, rear, height and backrest angle of the
front seats to the proper position.
The upper part of the seat belt is close to
the front chest and over the shoulder.
The lower part of the seat belt is close to the
hip and should not be applied to the
abdomen. If the seat belt is not used
correctly, it not only cannot provide
protection, but also may cause other serious
injuries

11
Warning
● Do not wrap the seat belt when using the
seat belt. When the seat belt is wrapped
around the body, it will increase the
pressure on the body of the seat belt and
reduce the protection of the seat belt.
● Seat belts should be tightened as much
as possible without affecting comfort, which
can provide better protection. The seat belt
is not fastened and will greatly reduce the
protection.
Seat belt lock
Slowly pull the seat belt out of the retractor,
then insert the locking bolt into the buckle
until you hear the “click” buckle, then pull
back the seat belt to confirm the reliable
lock.
Seat belt adjustment
Gently pull the seat belt to adjust the length
of the seat belt, and adjust it to a
comfortable position as required. First,
lower the lower part of the seat belt as far as
possible, across the hips, and then lift the
upper part of the seat belt upwards so that
the lower part of the seat belt is in close
contact with the body. In this way, the body's
strong pelvic area can withstand greater
impact, thereby reducing the chance of
internal injuries to the abdomen

12
Seat Belt Unfastened
Press the red button beside the buckle of
the seat belt, and the latch will automatically
eject. Hold the seat belt, then return it and
the tensioner will automatically retract it.
Wear the Rear Seat Belt
The rear seat belts are worn in the same
way as the front seat belts
Pregnant woman wears seat belt
If the driver is pregnant, to protect the safety
of the pregnant woman and the fetus, the
belt should be passed evenly through the
chest and in front of the hip as low as
possible, and then flattened so that the
lower abdomen is not under pressure

13
Children wearing seat belts
The seat belts for this model are designed
for adults. It is recommended that children
12 years of age and younger and children
up to 1.5 m in height use specially fitted
child restraints
Seat belt inspection and
maintenance
Seat belt reliability check
The seat belt retractor will lock the seat belt
slip when the following three conditions are
encountered
When the seat belt is quickly pulled out of
the retractor; when the vehicle is
decelerating rapidly;
When the seat belt retractor is tilted at a
large angle.
In order to check the reliability of the seat
belt, grasp the upper part of the seat belt
and pull it quickly. At this time, the retractor
should lock the seat belt. If the retractor
cannot lock the seat belt, please go to the
BAIC Dealer for inspection or repair.
Seat belt maintenance
Regularly check that the seat belt and all its
components (such as buckles, bolts,
retractors, webbing and seat belt height
adjustments) are working properly
If the seat belt part is found to be damaged,
the webbing is cracked or otherwise
damaged, replace the entire seat belt
assembly.

14
Maintenance and disposal of seat
belt pretensioner *
Please go to authorized BAIC Dealer as
soon as possible when the following
conditions:
An accident occurred in the front of the
vehicle (shaded in the picture, but the seat
belt pretensioner did not work.
An accident occurred in the front of the
vehicle (shaded in the picture, but the seat
belt pretensioner did not work.
When performing any work on the belt
retractor with pre-tensioning device, please
carry it out by BAIC authorized Dealer.
Otherwise, the pre-tensioning device may
not work properly in the event of an
accident.
When you need to scrap the pretensioner,
you must abide by the relevant safety
regulations. The BAIC authorized Dealer is
familiar with the relevant safety regulations
and can provide you with inquiries.
Warning
● If the seat belt retractor is repaired by a
repair shop or non-professional authorized
by BAIC, or if the seat belt retractor is not
used properly, the potential risk of accidents
will be increased.
● It is not permissible to repair, disassemble
or install the seat belt or seat belt retractor
parts by yourself.
Airbag system
The airbag system serves as an auxiliary
protection. In order to fully protect the
triggered airbag system, the driver and
passenger must maintain a correct sitting
position and the child must be protected by
a suitable child seat.
Caution
● Dust generated during the deployment of
the airbag can irritate the skin and eyes, and
may cause some people to become
asthmatic. In the event of an accident, the
airbag is deployed and thoroughly clean all
exposed skin with water and warm soap.
● After the airbag is deployed, the
components of the airbag system will be hot
and should not be touched to avoid burns.
