Baileigh OS-1414 User manual

OSCILLATING VERTICAL
SPINDLE SANDER
MODEL: OS-1414
© 2012 Baileigh Industrial, Inc.
REPRODUCTION OF THIS MANUAL IN ANY FORM WITHOUT WRITTEN APPROVAL OF BAILEIGH INDUSTRIAL, INC.
IS PROHIBITED. Baileigh Industrial, Inc. does not assume and hereby disclaims any liability for any damage or loss
caused by an omission or error in this Operator’s Manual, resulting from accident, negligence, or other occurence.
Rev. 8/2012
Baileigh Industrial, Inc.
P.O. Box 531
Manitowoc, WI 54221-0531
Phone: [phone]
Fax: [phone]
[email protected]
OPERATOR’S
MANUAL

Table of Contents
THANK YOU & WARRANTY.......................................................................................... 1
INTRODUCTION ............................................................................................................3
GENERAL NOTES..........................................................................................................3
SAFETY INSTRUCTIONS.............................................................................................. 4
SAFETY PRECAUTIONS...............................................................................................6
TECHNICAL SPECIFICATIONS.....................................................................................9
TECHNICAL SUPPORT ................................................................................................. 9

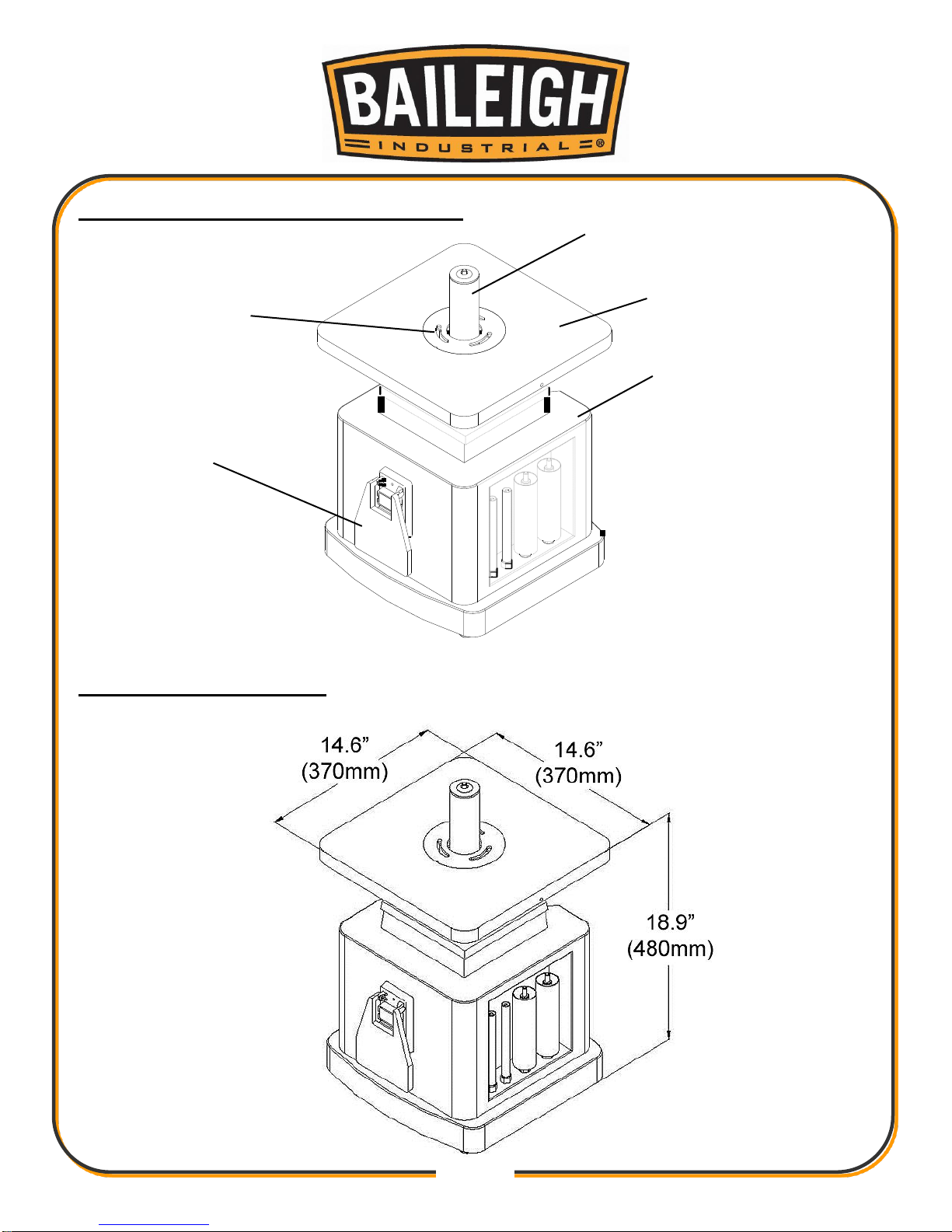

GETTING TO KNOW YOUR MACHINE.......................................................................10
OVERALL DIMENSIONS.............................................................................................. 10
INSTALLATION ............................................................................................................ 11
Cleaning .................................................................................................................... 11
Electrical.................................................................................................................... 12
Grounding Instructions .............................................................................................. 12
OPERATION................................................................................................................. 13
Tilting the Table......................................................................................................... 14
Mounting Spindle Drum............................................................................................. 14
SELECTION GUIDE FOR DRUM TO TABLE INSERT................................................. 15
MAINTENANCE............................................................................................................ 16
TROUBLESHOOTING.................................................................................................. 17
PARTS DIAGRAM 1 ..................................................................................................... 18
PARTS DIAGRAM 2 ..................................................................................................... 19
PARTS LIST ................................................................................................................. 20

1
1
THANK YOU & WARRANTY
Thank you for your purchase of a machine from Baileigh Industrial. We hope that you find it
productive and useful to you for a long time to come.
Inspection & Acceptance. Buyer shall inspect all Goods within ten (10) days after receipt thereof. Buyer’s
payment shall constitute final acceptance of the Goods and shall act as a waiver of the Buyer’s rights to inspect or
reject the goods unless otherwise agreed. If Buyer rejects any merchandise, Buyer must first obtain a Returned
Goods Authorization (“RGA”) number before returning any goods to Seller. Goods returned without a RGA will be
refused. Seller will not be responsible for any freight costs, damages to goods, or any other costs or liabilities
pertaining to goods returned without a RGA. Seller shall have the right to substitute a conforming tender. Buyer will
be responsible for all freight costs to and from Buyer and repackaging costs, if any, if Buyer refuses to accept
shipment. If Goods are returned in unsalable condition, Buyer shall be responsible for full value of the Goods.
Buyer may not return any special order Goods. Any Goods returned hereunder shall be subject to a restocking fee
equal to 30% of the invoice price.
Specifications. Seller may, at its option, make changes in the designs, specifications or components of the Goods
to improve the safety of such Goods, or if in Seller’s judgment, such changes will be beneficial to their operation or
use. Buyer may not make any changes in the specifications for the Goods unless Seller approves of such changes
in writing, in which event Seller may impose additional charges to implement such changes.
Limited Warranty. Seller warrants to the original end-user that the Goods manufactured or provided by Seller
under this Agreement shall be free of defects in material or workmanship for a period of twelve (12) months from
the date of purchase, provided that the Goods are installed, used, and maintained in accordance with any
instruction manual or technical guidelines provided by the Seller or supplied with the Goods, if applicable. The
original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of
the warranty period. The original end-user must also obtain a RGA from Seller prior to returning any Goods to
Seller for warranty service under this paragraph. Seller will not accept any responsibility for Goods returned without
a RGA. The original end-user shall be responsible for all costs and expenses associated with returning the Goods
to Seller for warranty service. In the event of a defect, Seller, at its sole option, shall repair or replace the defective
Goods or refund to the original end-user the purchase price for such defective Goods. Goods are not eligible for
replacement or return after a period of 30 days from date of receipt. The foregoing warranty is Seller’s sole
obligation, and the original end-user’s exclusive remedy, with regard to any defective Goods. This limited warranty
does not apply to: (a) die sets, tooling, and saw blades; (b) periodic or routine maintenance and setup, (c) repair or
replacement of the Goods due to normal wear and tear, (d) defects or damage to the Goods resulting from misuse,
abuse, neglect, or accidents, (f) defects or damage to the Goods resulting from improper or unauthorized
alterations, modifications, or changes; and (f) any Goods that has not been installed and/or maintained in
accordance with the instruction manual or technical guidelines provided by Seller.
EXCLUSION OF OTHER WARRANTIES. THE FOREGOING LIMITED WARRANTY IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. ANY AND ALL OTHER EXPRESS, STATUTORY OR IMPLIED
WARRANTIES, INCLUDING BUT NOT LIMITED TO, ANY WARRANTY OF MERCHANTABILITY OR FITNESS
FOR ANY PARTICULAR PURPOSE ARE EXPRESSLY DISCLAIMED. NO WARRANTY IS MADE WHICH
EXTENDS BEYOND THAT WHICH IS EXPRESSLY CONTAINED HEREIN.
Limitation of Liability. IN NO EVENT SHALL SELLER BE LIABLE TO BUYER OR ANY OTHER PARTY FOR
ANY INCIDENTIAL, CONSEQUENTIAL OR SPECIAL DAMAGES (INCLUDING, WITHOUT LIMITATION, LOST
PROFITS OR DOWN TIME) ARISING FROM OR IN MANNER CONNECTED WITH THE GOODS, ANY BREACH
BY SELLER OR ITS AGENTS OF THIS AGREEMENT, OR ANY OTHER CAUSE WHATSOEVER, WHETHER
BASED ON CONTRACT, TORT OR ANY OTHER THEORY OF LIABILITY. BUYER’S REMEDY WITH RESPECT
TO ANY CLAIM ARISING UNDER THIS AGREEMENT IS STRICTLY LIMITED TO NO MORE THAN THE
AMOUNT PAID BY THE BUYER FOR THE GOODS.

2
2
Force Majuere. Seller shall not be responsible for any delay in the delivery of, or failure to deliver, Goods due to
causes beyond Seller’s reasonable control including, without limitation, acts of God, acts of war or
terrorism, enemy actions, hostilities, strikes, labor difficulties, embargoes, non-delivery or late delivery of materials,
parts and equipment or transportation delays not caused by the fault of Seller, delays caused by civil authorities,
governmental regulations or orders, fire, lightening, natural disasters or any other cause beyond Seller's reasonable
control. In the event of any such delay, performance will be postponed by such length of time as may be reasonably
necessary to compensate for the delay.
Installation. If Buyer purchases any Goods that require installation, Buyer shall, at its expense, make all
arrangements and connections necessary to install and operate the Goods. Buyer shall install the Goods in
accordance with any Seller instructions and shall indemnify Seller against any and all damages, demands, suits,
causes of action, claims and expenses (including actual attorneys’ fees and costs) arising directly or indirectly out
of Buyer’s failure to properly install the Goods.
Work By Others; Safety Devices. Unless agreed to in writing by Seller, Seller has no responsibility for labor or
work performed by Buyer or others, of any nature, relating to design, manufacture, fabrication, use, installation or
provision of Goods. Buyer is solely responsible for furnishing, and requiring its employees and customers to use all
safety devices, guards and safe operating procedures required by law and/or as set forth in manuals and instruction
sheets furnished by Seller. Buyer is responsible for consulting all operator’s manuals, ANSI or comparable safety
standards, OSHA regulations and other sources of safety standards and regulations applicable to the use and
operation of the Goods.
Remedies. Each of the rights and remedies of Seller under this Agreement is cumulative and in addition to any
other or further remedies provided under this Agreement or at law or equity.
Attorney’s Fees. In the event legal action is necessary to recover monies due from Buyer or to enforce any
provision of this Agreement, Buyer shall be liable to Seller for all costs and expenses associated therewith,
including Seller’s actual attorneys' fees and costs.
Governing Law/Venue. This Agreement shall be construed and governed under the laws of the State of
Wisconsin, without application of conflict of law principles. Each party agrees that all actions or proceedings arising
out of or in connection with this Agreement shall be commenced, tried, and litigated only in the state courts sitting in
Manitowoc County, Wisconsin or the u.s. Federal Court for the Eastern District of Wisconsin. Each party waives
any right it may have to assert the doctrine of “forum non conveniens” or to object to venue to the extent that any
proceeding is brought in accordance with this section. Each party consents to and waives any objection to the
exercise of personal jurisdiction over it by courts described in this section. Each party waives to the fullest extent
permitted by applicable law the right to a trial by jury.
Summary of Return Policy.
10 Day acceptance period from date of delivery. Damage claims and order discrepancies will not be accepted
after this time.
You must obtain a Baileigh issued RGA number PRIOR to returning any materials.
Returned materials must be received at Baileigh in new condition and in original packaging.
Altered items are not eligible for return.
Buyer is responsible for all shipping charges.
A 30% re-stocking fee applies to all returns.
Baileigh Industrial makes every effort to ensure that our posted specifications, images, pricing and product
availability are as correct and timely as possible. We apologize for any discrepancies that may occur. Baileigh
Industrial reserves the right to make any and all changes deemed necessary in the course of business including but
not limited to pricing, product specifications, quantities, and product availability.
For Customer Service & Technical Support:
Please contact one of our knowledgeable Sales and Service team members at:
[phone] or e-mail us at [e-mail]

3
3
INTRODUCTION
The quality and reliability of the components assembled on a Baileigh Industrial machine
guarantee near perfect functioning, free from problems, even under the most demanding
working conditions. However if a situation arises, refer to the manual first. If a solution cannot be
found, contact the distributor where you purchased our product. Make sure you have the serial
number and production year of the machine (stamped on the nameplate). For replacement parts
refer to the assembly numbers on the parts list drawings.
Our technical staff will do their best to help you get your machine back in working order.
In this manual you will find: (when applicable)
Safety procedures
Correct installation guidelines
Description of the functional parts of the machine
Capacity charts
Set-up and start-up instructions
Machine operation
Scheduled maintenance
Parts lists
GENERAL NOTES
After receiving your equipment remove the protective container. Do a complete visual
inspection, and if damage is noted, photograph it for insurance claims and contact your
carrier at once, requesting inspection. Also contact Baileigh Industrial and inform them of the
unexpected occurrence. Temporarily suspend installation.
Take necessary precautions while loading / unloading or moving the machine to avoid any
injuries.
Your machine is designed and manufactured to work smoothly and efficiently. Following proper
maintenance instructions will help ensure this. Try and use original spare parts, whenever
possible, and most importantly; DO NOT overload the machine or make any unauthorized
modifications.
Note: This symbol refers to useful information throughout the manual.

4
4
LEARN TO RECOGNIZE SAFETY INFORMATION
This is the safety alert symbol. When you see this symbol
on your machine or in this manual, BE ALERT TO THE
POTENTIAL FOR PERSONAL INJURY!
Follow recommended precautions and safe operating
practices.
UNDERSTAND SIGNAL WORDS
A signal word –DANGER, WARNING, or CAUTION is
used with the safety alert symbol. DANGER identifies a
hazard or unsafe practice that will result in severe Injury
or Death.
Safety signs with signal word DANGER or WARNING are
typically near specific hazards.
General precautions are listed on CAUTION safety signs.
CAUTION also calls attention to safety messages in this
manual.
SAVE THESE INSTRUCTIONS
IMPORTANT
PLEASE READ THIS OPERATORS MANUAL CAREFULLY
It contains important safety information, instructions, and necessary operating procedures.
The continual observance of these procedures will help increase your production and
extend the life of the equipment.
SAFETY INSTRUCTIONS

5
5
PROTECT EYES
Wear safety glasses or suitable eye
protection when working on or around
machinery.
DUST HAZARD
Wear appropriate dust mask. Dust created while using
machinery can cause cancer, birth defects, and long term
respiratory damage. Be aware of the dust hazards associated
with all types of materials.
DUST PARTICLES AND IGNITION SOURCES
DO NOT operate the spindle sander in areas where explosion
risks are high. Such areas include locations near pilot lights,
open flames, or other ignition sources.
ROTATING SPINDLE ABRASIONS
DO NOT place hands or fingers near, or in contact with sanding
spindle during operation.
ENTANGLEMENT HAZARD –ROTATING SPINDLE
Contain long hair, DO NOT wear jewelry or loose fitting clothing.

6
6
PROTECT AGAINST NOISE
Prolonged exposure to loud noise can cause impairment or loss of
hearing. Wear suitable hearing protective devices such as ear muffs or
earplugs to protect against objectionable or uncomfortable loud noises.
HIGH VOLTAGE
USE CAUTION IN HIGH VOLTAGE AREAS. DO NOT assume the
power to be off.
(FOLLOW PROPER LOCKOUT PROCEDURES)
SAFETY PRECAUTIONS
Wood working can be dangerous if safe and proper operating procedures are not followed. As
with all machinery, there are certain hazards involved with the operation of the product. Using
the machine with respect and caution will considerably lessen the possibility of personal injury.
However, if normal safety precautions are overlooked or ignored, personal injury to the operator
may result.
Safety equipment such as guards, push sticks, hold-downs, feather boards, goggles, dust
masks and hearing protection can reduce your potential for injury. But even the best guard won’t
make up for poor judgment, carelessness or inattention. Always use common sense and
exercise caution in the workshop. If a procedure feels dangerous, don’t try it. REMEMBER: Your
personal safety is your responsibility.
1. FOR YOUR OWN SAFETY, READ INSTRUCTION MANUAL BEFORE OPERATING THE
MACHINE. Learn the machine’s application and limitations as well as the specific hazards.
2. Only trained and qualified personnel should operate this machine.
3. Make sure guards are in place and in proper working order before operating machinery.
4. Respirator Use. Always use a mask or respirator approved for wood dust when using this
machine to reduce the risk of respiratory problems.
WARNING:
FAILURE TO FOLLOW THESE RULES MAY RESULT IN
SERIOUS PERSONAL INJURY

7
7
SAFETY PRECAUTIONS (cont.)
5. Remove any adjusting tools. Before operating the machine, make sure any adjusting tools
have been removed.
6. Keep work area clean. Cluttered areas invite injuries.
7. Feed Rate. Never jam a piece part against the sanding surface. This can cause the piece
part to kick back causing personal injury or damage to the machine. Always hold the piece
part firmly and ease it against the spindle with light pressure.
8. Placement of Hands. To avoid personal injury, DO NOT place hands near, or in contact with
the sanding surface.
9. Sanding Sleeves. Sleeves that are worn or damaged can tear apart and become entangled
in or thrown out from the spindle resulting in personal injury.
10. Overloading machine. By overloading the machine you may cause injury from flying parts.
DO NOT exceed the specified machine capacities.
11. Dress appropriate. DO NOT wear loose fitting clothing or jewelry as they can be caught in
moving machine parts. Protective clothing and steel toe shoes are recommended when
using machinery. Wear a restrictive hair covering to contain long hair.
12. Foreign Material. ALWAYS inspect stock for staples, nails, knots, and other imperfections
that could become projectiles causing serious bodily harm.
13. Use eye and ear protection. Always wear ISO approved impact safety goggles
14. Do not overreach. Maintain proper footing and balance at all times. DO NOT reach over or
across a running machine.
15. Handling Piece Part. Hold the piece part with both hands, or use an appropriate jig to help
prevent the piece part from being thrown from the machine.
16. Stay alert. Watch what you are doing and use common sense. DO NOT operate any tool or
machine when you are tired.
17. Check for damaged parts. Before using any tool or machine, carefully check any part that
appears damaged. Check for binding of moving parts that may affect proper machine
operation.
18. Sanding Direction. NEVER sand pointed or tapered stock with the point facing the feed
direction, which could cause the piece part to be thrown from the machine.
19. Observe work area conditions. DO NOT use machines or power tools in damp or wet
locations. Do not expose to rain. Keep work area well lighted. DO NOT use electrically
powered tools in the presence of flammable gases or liquids.

8
8
SAFETY PRECAUTIONS (cont.)
20. DO NOT bypass or defeat any safety interlock systems.
21. Know the location of the ON - OFF switch and the “E”- STOP button.
22. Keep visitors a safe distance from the work area.
23. Keep children away. Children must never be allowed in the work area. DO NOT let them
handle machines, tools, or extension cords.
24. DO NOT operate machine if under the influence of alcohol or drugs. Read warning
labels on prescriptions. If there is any doubt, DO NOT operate the machine.
25. DO NOT touch live electrical components or parts.
26. Be Sure all equipment is properly installed and grounded according to national, state, and
local codes. If machine is equipped with a three-prong plug, it should be plugged into a
three-hole electrical receptacle. If an adapter is used to accommodate a two-prong
receptacle, the adapter plug must be attached to a known ground. Never remove the third
prong.
27. Inspect power and control cables periodically. Replace if damaged or bare wires are
exposed. Bare wiring can kill!
28. Maintain machine in top condition. Keep clean for best and safest performance. Follow
instructions for lubricating and changing accessories.
29. Reduce the risk of unintentional starting. Make sure switch is in “OFF” position before
plugging in power cord.
30. Never leave machine running unattended. TURN POWER OFF. Don’t leave machine
until it comes to a complete stop.
31. Make sure machine is disconnected from power supply while motor is being mounted,
connected or reconnected.
32. Sand Appropriate Material. Only use this sander for natural wood stock. It is NOT
recommended to sand particle board, plastics, laminates, medium-density fibre board
(MDF), metal, glass, ceramics, or products containing asbestos or lead paint. Some of these
materials contain hazardous dust and will shorten the life span of the sanding spindle.
33. Warning: The dust generated by certain woods and wood products can be injurious to your
health. Always operate machinery in well ventilated areas and provide for proper dust
removal. Use a wood dust collection system whenever possible.

9
9
TECHNICAL SPECIFICATIONS
Table Size (L x W)
14.6” x 4.6” (370 x 370mm)
Table Tilt
0~45°
Spindle Speed
1400rpm
Oscillations
24/min
Oscillation Stroke
.94” (24mm)
Sanding Sleeve Length
5.5” (141mm)
Maximum Workpiece Height
3.15” (80mm)
Dust Port Diameter
2” (50.8mm)
Motor
.5 hp (0.37kw) 230V 60Hz/1ph
Overall (L x W x H )
14.6” x 14.6” x 18.9” (370 x 370 x 480mm)
Net Weight
77 lbs. (35kg)
TECHNICAL SUPPORT
Our technical support department can be reached at 920.684.4990, and asking for the support
desk for purchased machines. Tech Support handles questions on machine setup, schematics,
warranty issues, and individual parts needs: (other than die sets and blades).
For specific application needs or future machine purchases contact the Sales Department at:
[email protected], Phone: [phone], or Fax: [phone].
Note: The specifications and dimensions presented here are subject to change
without prior notice due to improvements of our products.

10
10
GETTING TO KNOW YOUR MACHINE
OVERALL DIMENSIONS
Switch
Table Insert
Sanding Spindle
Table
Cabinet

11
11
INSTALLATION IMPORTANT:
Maintain an adequate working area around the machine for safety.
There should be 25” – 28” (635 – 710mm) in all directions around the machine.
Have the work area well illuminated with proper lighting.
Remove scrap and waste materials regularly, and make sure the work area is free from
obstructing objects.
Keep the floor free of oil and make sure it is not slippery.
If long lengths of material are to be fed into the machine, make sure that they will not extend
into any aisles.
Cleaning
Your machine may be shipped with a rustproof waxy oil coating and grease on the exposed
unpainted metal surfaces. To remove this protective coating, use a degreaser or solvent
cleaner. For a more thorough cleaning, some parts will occasionally have to be removed. DO
NOT USE acetone or brake cleaner as they may damage painted surfaces.
Follow manufacturer’s label instructions when using any type of cleaning product. After cleaning,
wipe unpainted metal surfaces with a light coating of quality oil or grease for protection.
WARNING: DO NOT USE gasoline or other petroleum products to clean
the machine. They have low flash points and can explode or cause fire.
CAUTION: When using cleaning solvents work in a well ventilated area.
Many cleaning solvents are toxic if inhaled.
GAS

12
12
Electrical
Connection to electrical power should be made by a qualified electrician. Observe local
electrical codes when connecting the machine.
The motor should be protected with a time delay fuse or circuit breaker with a amperage rating
slightly higher than the full load current of the motor.
Grounding Instructions
The appliance must be grounded, if it should malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock. This appliance is
equipped with a cord having equipment-ground conductor and grounding plug. The plug must
be inserted into an appropriate outlet that is properly installed and grounded in accordance with
all local codes and ordinances.
For grounded, cord-connected appliances:
This appliance is for use on a circuit having a normal rating more than 120 volt and is factory-
equipped with a specific electric cord and plug to permit connection to a proper electric circuit.
Make sure that the appliance is connected to an outlet having the same configuration as the
plug. No adaptor should be used with this appliance. If the appliance must be reconnected for
use on a different type of electric circuit, qualified service personnel should make the
reconnection.
For a permanently connected appliance:
This appliance must be connected to a grounded metal, permanent wiring system; or an
equipment-grounding conductor must be run with the circuit conductors and connected to the
equipment grounding terminal or lead on the appliance.
CAUTION: HAVE ELECTRICAL UTILITIES CONNECTED TO MACHINE BY
A CERTIFIED ELECTRICIAN!
Check if the available power supply is the same as listed on the machine nameplate.
WARNING: Make sure the grounding wire (green) is properly connected
to avoid electric shock. Improper connection of the equipment-grounding conductor
can result in a risk of electric shock. Check with a qualified electrician or service
person if you are in doubt as to whether the outlet is properly grounded. Do not
modify the plug provided with the appliance –if it will not fit the outlet; have a proper
outlet installed by a qualified electrician.

13
13
OPERATION
1. Select spindle that is smaller than the curve to be sanded.
2. Use an insert plate that comes closest to the spindle without touching it.
3. Make sure that spindle is properly positioned in taper sleeve socket. With the wrench
provided, tighten the nut.
Note: Never over tighten; it may be difficult to remove the spindle later.
4. When table is set at a 90° angle, sanding may be done from any corner, or location on table
around spindle.
5. When table is positioned at any angle other than 90°, it is necessary to position the work
piece over the centerline, as shown on table surface.
6. Always lock the table with the hand nut when setting at any angle, also to prevent
movement lock the tilting gear shaft.
7. Always loosen both table lock and tilting gear lock before changing the angle position of the
table. Never force the table if it does not tilt easily, reason may be that the locks are still
engaged. Never attempt to over ride the stop locks, this will cause damage to the tilting
performance.
8. A backing board is recommended when sanding thin pieces of metal or any other material.
A backing board can be easily constructed by using a piece of wood the length of the table,
pushing it into the spindle until a half circle is formed. Clamp each end of the board to the
table and proceed to sand the thin material.
9. Before leaving the machine, remove any particles or pieces left over from sanding, and
return the table to the 90° position.
CAUTION: Always wear proper safety equipment such as eye protection
with side shields, respirator, and hearing protection.

14
14
Tilting the Table
1. Loosen the two table lock knobs (A),
located under the table at both sides of the
machine.
2. Tilt the table forward to the desired angle
with your hands.
3. An angle scale is provided at the right side
of the trunnion to indicate the degree of
table tilt.
4. Tighten the two table lock knobs securely after the table degree has been adjusted.
Mounting Spindle Drum
1. Disconnect the sander from the power source.
2. Select the proper diameter of spindle drum.
3. Clean the taper part of the spindle drum before
mounting it into the spindle.
4. Use an open-end wrench to lock the spindle by
holding its flat surface. At the same time, use
another open-end wrench to tighten the spindle
drum.
5. Lift straight upward on the spindle drum to remove
it.
6. Install the spindle squarely into the chuck.
7. Tighten using two wrenchs. Do not over tighten the
spindle drum or it will be causing removable
problem.
WARNING: ALWAYS disconnect power to the machine before changing
spindles or working on it for any reason.

15
15
SELECTION GUIDE FOR DRUM TO TABLE INSERT
This machine is furnished with 10 drums. The range of drum diameter is from 1/4” to 4”. If the
drum diameter is changed, the table insert needs to be changed to the proper size.
The table below shows which table insert to use for various drum diameters.
Drum Number
Drum Dimension
Table Insert
＃1
1/4” Dia. x 5” long
＃1
＃2
3/8” Dia. x 6” long
＃1
＃3
1/2” Dia. x 6” long
＃1
＃4
5/8” Dia. x 6” long
＃1
＃5
3/4” Dia. x 9” long
＃1
＃6
1” Dia. x 9” long
＃2
＃7
1 1/2” Dia. x 9” long
＃2
＃8
2” Dia. x 9” long
＃3
＃9
3” Dia. x 9” long
None
＃10
4” Dia. x 9” long
None
WARNING: Failure to use the correct insert with the corresponding drum
may result in injury.

16
16
MAINTENANCE
Check daily for any unsafe conditions and fix immediately.
Check that all nuts and bolts are properly tightened.
On a weekly basis clean the machine and the area around it.
To keep spindle sander in perfect condition, clean machine and attachments at all times.
Clean tapered sleeves and tapered socket before use, this will protect spindle sleeves
from nicks.
Bent sleeves are easily straightened by placing them in the tapered socket and slipping a
small pipe over the steel shaft. Using a dial indicator check that it is in correct position.
Check gearbox for proper oil level (Approx. 1/4 up on sight glass).
We recommend that a small amount of grease be applied to table tilting screw once a
month.
No lubrication is required for the bearings, they are permanently lubricated.
Apply rust inhibitive lubricant to all non-painted surfaces when the machine will not be
used for an extended period of time.
Note: Proper maintenance can increase the life expectancy of your machine.
WARNING:
Make sure the electrical power is disconnected before
working on the machine.
Maintenance should be performed on a regular basis by qualified personnel.
Always follow proper safety precautions when working on or around any
machinery.

17
17
TROUBLESHOOTING
TROUBLE
CAUSES
CORRECTION
Motor does not run when
power switch is turned “ON”.
Switch is burned out.
Connection wire is loose or
damaged.
Replace the switch.
T ighten or replace the wire.
Motor does not run at full
speed.
Power voltage is too low.
2. Motor is damaged.
Test voltage.
Check and repair motor.
Motor does not reach full
power.
Incorrect power wiring.
Overload.
Replace with the correct size
power wiring.
Reduce sanding load.
Motor overheating
Motor is dirty.
Motor is damaged.
Clean motor.
Check and repair motor.
Excessive machine vibration
Machine is incorrectly leveled.
Adjust machine leveling
Mark on workpiece
Sanding drum is damaged.
Sanding cloth on drum is worn
in some areas.
Replace the sanding drum.
Replace sanding cloth
Sanding drum turns in wrong
direction
Wrong phase or voltage
Make sure the phase and
voltage comply with machine
requirement.
Burns on workpiece
Wrong abrasive grit on
sanding cloth
Use coarser grit to remove
more material from
workpiece.
WARNING:
Make sure the electrical disconnect is OFF before working on
the machine.

18
18
PARTS DIAGRAM 1
