Baintech BTBLANKET120 User manual

PRODUCT CODE: BTBLANKET120
12 Month warranty
www.baintech.com.au
120W
SOLAR BLANKET
BTBLANKET120
GREAT FOR
Included accessories:
PWM Regulator 6m Power Lead Red Anderson
Connection
Alligator Clamp
Connector
Efficiency Up to 24%
Model 120W (Blue)
Output 5.5V/2A & 18V/6.6A
Solar Cell Monocrystalline Sunpower solar cell
Rated Power 18V 120W
Unfolded Size 1560mm H x 770mm W
Weight 3.6kg
Charge controller 12V/24V 20A solar charge controller
Operating Temp -35� to +55�
Go off-grid with the Baintech 120w Solar Blanket. Designed to charge
your 4WD, RV and Marine batteries, this lightweight and compact
blanket will produce up to 6.6A in optimal conditions.
Designed with ease of use in mind, the simple plug and play Anderson
plug connection is secure, safe and easy to connect.
The Baintech blanket comes with a smart 20amp 12/24v PWM with
chemistry profiles for 3 types of batteries – sealed, GEL, and Flooded
(see separate PWM manual included)
• High efficiency
• Compact
• Light weight
• Easy to use – plug and play
• All accessories and PWM included
BAINTECH 120W
SOLAR BLANKET

Warning and Safety Instructions
Do not drive over the blanket, leave in wet environments - such as rain or sea water,
or unattended where wind and theft may occur. If wind is likely to be an issue, use
the supplied holes around the edge to tie down or peg the blanket to a secure spot.
1. Risk of explosive gases: Working in the vicinity of a lead-acid battery is dangerous.
Batteries generate explosive gases during normal operation. For this reason, it is of
utmost importance that you follow the instructions each time you use the solar panel
charger.
2. Solar panel charger should not be used by persons with reduced physical, sensory
or mental capabilities unless they are supervised by a person responsible for their
safety.
3. Do not charge non-rechargeable batteries by the solar panel charger. It can
damage the regulator or solar panel charger or create harm for the operator. Only
use the solar panel charger for charging standard lead-acid, lithium-polymer, Li-Fe,
Gel and AGM type 12V batteries .
4. Never smoke or allow a spark or flame in vicinity of battery or engine. This may
cause the battery to explode.
5. Please keep the junction box out of water, if there is some water in the junction
box, please make sure it’s dry before using. Always clean the blanket after use to
keep cells efficient and at their maximum.
ADD ON SOLAR ACCESSORIES
How to connect the blanket to your devices
The 120W Baintech solar blanket offers a simple plug and play solution. The blanket
comes with a PWM Solar Controller. The Solar Controller is normally used when there
is no internal controller in your equipment. ( ie: when you want to charge your car
battery, or a secondary battery in a trailer.)
OUTPUT
Connect the Anderson connector with solar charger controller and then connect the
Alligator clamps to your batteries. Always connect the battery you are wanting to charge
FIRST to the Solar Controller before connecting the Solar Blanket. The reason is the
Controller’s AUTO SENSING needs to know what voltage it has to be set at, before the
Controller can operate. The Controller can operate either at 12 or 24 volts Dc.
USING WITH THE BAINTECH POWERTOP
The grey Anderson connector on the Solar Controller is plugged into the Powertop’s
grey Anderson socket or the battery you are intending to charge. The red Anderson
socket is plugged into the cable from the blanket with the same. Plugging the grey
connector in first, allows the auto-select function to kick in and determined if the battery
is 12 or 24 volts before the blanket is connected.
12 month warranty
Visit www.baintech.com.au to nd out more
ADD ON:

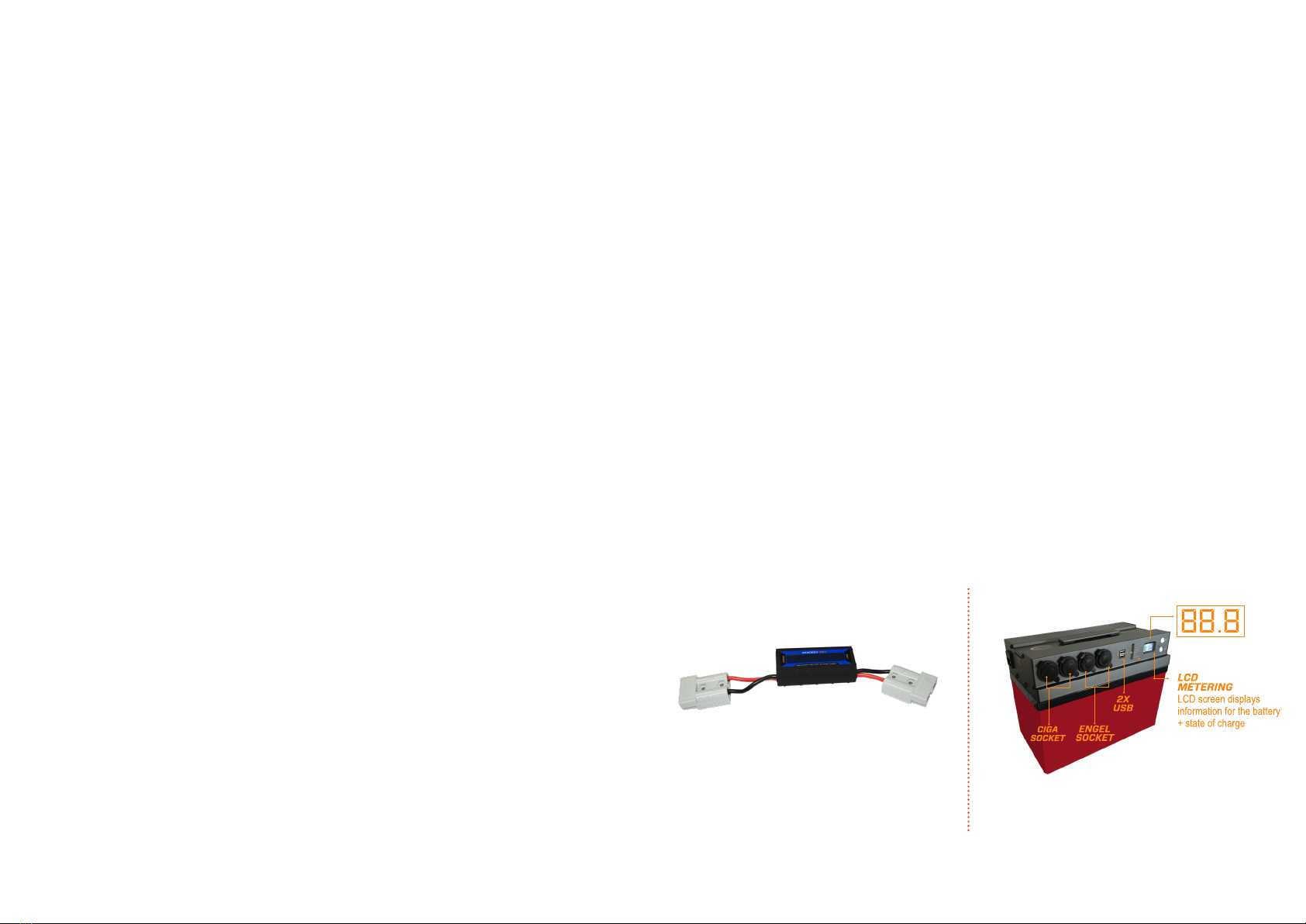

Baintech Watt Meter
Take the guesswork out of how
much power your solar panels are
generating. The Baintech Watt
meter once connected will give
you real time information on:
• Current (Amps/A)
• Voltage (Volts/V)
• Power (Watts/W)
Baintech PowerTop V3
Ready to go right off the shelf, this
fully portable plug-and-play system
features a 12V 135Ah AGM
battery with charging inputs for AC,
DC and solar.
BTWATT01
BTPTOP135V3

1 2
ViewStar AU series solar charge controller
1. Overview
Thank you for selecting the ViewStar AU series common positive solar charge
controller. The VS-AU controller is a PWM charge controller with built in LCD display that
adopts the most advanced digital technique. The multiple load control modes enable it can
be widely used on solar home system, traffic signal, solar street light, solar garden lamp,
etc. The features are listed below:
Adopt high quality components of ST,IR and Infineon, make sure product using lifespan
Terminals have UL and VDE certification, the product is more safer and more reliable
Controller can work continuously at full load within the environment temperature range
from -25 to 55 ℃
3-Stage intelligent PWM charging：Bulk, Boost/Equalize, Float
Support 3 charging options: Sealed, Gel, and Flooded
LCD display design, dynamically displaying device’s operating data and working
condition
Double USB design, the power supply charge for electronic equipment
With humanized button settings, operation will be more comfortable and convenient
Multiple load control modes
Energy statistics function
Battery temperature compensation function
Extensive Electronic protection
2. Product Features
①LCD ⑤Battery Terminals
②MENU Button ⑥Load Terminals
③RTS Port ⑦SET Button
④PV Terminals ⑧USB Output Ports※
※USB output ports provide the power supply of 5VDC/2.4A and have the short
circuit protection.
NOTE: Unplug the RTS, the temperature of battery will be set to a fixed
value 25ºC.
3. Wiring
(1) Connect components to the charge controller in the sequence as shown above and pay
much attention to the “+” and “-”. Please don’t insert the fuse or turn on the breaker during
the installation. When disconnecting the system, the order will be reserved.
(2)After power on the controller, check the LCD on. Otherwise please refer to chapter
6.Always connect the battery first, in order to allow the controller to recognize the system
voltage.
(3)The battery fuse should be installed as close to battery as possible. The suggested
distance is within 150mm.
(4) The VS AU series is a positive ground controller. Any positive connection of solar, load
or battery can be earth grounded as required.
NOTE: Please connect the inverter or other load that it has the large start
current to the battery rather than to the controller, if the inverter or other
load is necessary.
4. Operation
4.1 Button Function
Button Function
MENU button Browse interface
Setting parameter
SET button
Load ON/OFF
Clear error
Enter into Set Mode
Save data
4.2 LCD Display
Status Description
Item Icon Status
PV array
Day
Night
No charging
Charging
PV Voltage, Current ,Power
Battery
Battery capacity, In Charging
Battery voltage. current, temperature
Battery type
Load
Load ON
Load OFF
Load Voltage, Current, Load mode
Browse interface
NOTE：
1）When no operation, the interface will be automatic cycle, but the follow two interfaces
not be display.
2）Accumulative power zero clearing: Under PV power interface, press SET button and
hold on 5s then the value blink, press SET button again to clear the value.
3）Setting temperature unit: Under battery temperature interface, press SET button and
hold on 5s to switch.
Fault Indication
Status Icon Description
Battery over
discharged
Battery level shows empty, battery frame blink,
fault icon blink
Battery over
voltage
Battery level shows full, battery frame blink, fault
icon blink
Figure 2 Connection diagram
Figure 1 Characteristic
②
①
③ ④ ⑤ ⑥
⑦
⑧
Optional Accessory:
Name: Remote Temperature Sensor
Model: RTS300R47K3.81A
Acquisition of battery temperature for undertaking
temperature compensation of control parameters, the
standard length of the cable is 3m (length can be
customized). The RTS300R47K3.81A connects to the port
③on the controller.
※Thank you for selecting ViewStar AU series solar charge
controller. Please read this manual carefully before using the
product.
180W + 120W SOLAR BLANKET
SOLAR CONTROLLER

3 4
Battery
Overheating
Battery level shows current value, battery frame
blink, fault icon blink
Load failure Load overload
①
,Load short circuit
①When load current reaches1.02-1.05 times 1.05-1.25 times, 1.25-1.35 times and
1.35-1.5 times more than nominal value, controller will automatically turn off loads in 50s,
30s,10s and 2s respectively
4.3 Load mode setting
Operating Steps:
Under load mode setting interface, press SET button and hold on 5s till the number begin
flashing, then press MENU button to set the parameter, press SET button to confirm.
Timer 1 Timer 2
Light ON/OFF Disabled
Load will be on for 1 hour
since sunset
Load will be on for 1 hour
before sunrise
Load will be on for 2 hours
since sunset
Load will be on for 2 hours
before sunrise
～Load will be on for 3～13
hours since sunset ～Load will be on for 3～13 hours before sunrise
Load will be on for 14 hours
since sunset
Load will be on for 14
hours before sunrise
Load will be on for 15 hours
since sunset
Load will be on for 15
hours before sunrise
Test mode Disabled
Manual mode(Default load
ON) Disabled
NOTE: Please set Light ON/OFF, Test mode and Manual mode via Timer1. Timer2
will be disabled and display "2 n".
4.4 Battery Type
Operating Steps
Under Battery Voltage interface, press SET button and hold on 5s then enter into the
interface of Battery type setting. After choosing the battery type by pressing MENU button,
waiting for 5s or pressing SET button again to modify successfully.
Battery Type
①Sealed (Default) ②Gel ③Flooded
NOTE: Please refer to the battery voltage parameters table for the different battery
type.
5. Protections
Protection Conditions Status
PV Reverse
Polarity
When the battery is correct connecting, the
PV can be reversed. The controller is not
damage
Battery Reverse
Polarity
When the PV is not connecting, the battery
can be reversed.
Battery Over
Voltage The battery voltage reaches to the OVD Stop charging
Battery Over
Discharge The battery voltage reaches to the LVD Stop discharging
Battery
Overheating
Temperature sensor is higher than 65℃Output is OFF
Temperature sensor is less than 55℃Output is ON
Controller
Overheating
Temperature sensor is higher than 85℃Output is OFF
Temperature sensor is less than 75℃Output is ON
Load Short
Circuit
Load current ≥2.5 times rated current
One short circuit, the output is OFF 5s；
Two short circuit, the output is OFF 10s；
Three short circuit, the output is OFF 15s；
Four short circuit, the output is OFF 20s；
Five short circuit, the output is OFF 25s；
Six short circuit, the output is OFF
Output is OFF
Clear the fault:
Restart the controller
or wait for one
night-day cycle
(night time>3 hours).
Load Overload
Load current ≥2.5 times rated current
1.02-1.05 times, 50s,
1.05-1.25 times, 30s
1.25-1.35 times,10s
1.35-1.5 times 2s
Output is OFF
Clear the fault:
Restart the controller
or wait for one
night-day cycle
(night time>3 hours).
Damaged RTS The RTS is short-circuited or damaged Charging or
discharging at 25℃
6. Troubleshooting
Faults Possible reasons Troubleshooting
The LCD is off
during daytime when
sunshine falls on PV
modules properly
PV array
disconnection
Confirm that PV wire connections
are correct and tight
Wire connection is
correct, LCD not
display
1) Battery voltage is
lower than 9V
2) PV voltage is less
than battery voltage
1) Please check the voltage of
battery. At least 9V voltage to
activate the controller
2) Check the PV input voltage
which should be higher than
battery’s
Interface
blink Battery over voltage
Check if the battery voltage is
higher than OVD point (over
voltage disconnect voltage), and
disconnect the PV.
Interface
blink
Battery
over discharged
When the battery voltage is
restored to or above LVR point
(low voltage reconnect voltage),
the load will recover
Interface
blink Battery Overheating
The controller will automatically
turn the system off. But while the
temperature decline to be below
50 ºC, the controller will resume.
Interface
blink
Over load or Short
circuit
Please reduce the number of
electric equipments or check
carefully loads connection.
8. Disclaimer
This warranty does not apply under the following conditions:
1) Damage from improper use or use in an unsuitable environment.
2) PV or load current, voltage or power exceeding the rated value of controller.
3) The controller is working temperature exceed the limit working environment
temperature.
4) User disassembly or attempted repair the controller without permission.
5) The controller is damaged due to natural elements such as lighting.
6) The controller is damaged during transportation and shipment.
7.Technical Specifications
Item VS1024AU VS2024AU VS3024AU VS3048AU VS4524AU VS4548AU VS6024AU VS6048AU
Nominal system voltage 12/24VDC
Auto
12/24/36/48VDC
Auto
12/24VDC
Auto
12/24/36/48VDC
Auto
12/24VDC
Auto
12/24/36/48VDC
Auto
Battery input voltage range 9V～32V 9V～64V 9V～32V 9V～64V 9V～32V 9V～64V
Rated charge/discharge current 10A@55℃20A@55℃30A@55℃45A@55℃60A@55℃
Max. PV open circuit voltage 50V 96V 50V 96V 50V 96V
Battery type Sealed(Default) / Gel / Flooded
Equalize Charging Voltage※Sealed:14.6V/ Gel: No/ Flooded:14.8V
Boost Charging Voltage※Sealed:14.4V/ Gel:14.2V/ Flooded:14.6V
Float Charging Voltage※Sealed/Gel/Flooded:13.8V
Low Voltage Reconnect
Voltage※Sealed/Gel/Flooded:12.6V
Low Voltage Disconnect
Voltage※Sealed/Gel/Flooded:11.1V
Self-consumption ≤9.2mA/12V;≤11.7mA/24V; ≤14.5mA/36V;≤17mA/48V
Temperature compensation
coefficient -3mV/℃/2V（25℃）
Charge circuit voltage drop ≤0.29V
Discharge circuit voltage drop ≤0.16V
LCD temperature range -20℃～+70℃
Working environment
temperature -25℃～+55℃(Product can work continuously at full load)
Relative humidity ≤95%, N.C.
Enclosure IP30
Grounding Common Positive
USB output 5VDC/2.4A(Total)
Overall dimension 142x85x41.5mm 160x94.9x49.3mm 181x100.9x59.8mm 194x118.4x63.8mm 214x128.7x72.2mm
Mounting dimension 130x60mm 148x70mm 172x80mm 185x90mm 205x100mm
Mounting hole size Φ4.5mm Φ5mm Φ5mm Φ5mm
Terminals 4mm2/12AWG 10mm2/8AWG 16mm2/6AWG 16mm2/6AWG 25mm2/4AWG
Net weight 0.22kg 0.35kg 0.55kg 0.58kg 0.76kg 0.88kg 1.02kg 1.04kg
※Above the parameters are in 12V system at 25℃, twice in 24Vsystem, triple in 36V system and quadruple in 48V system.
Any changes without prior notice! Version number：V1.2
图3-2 参数设置方式
