Bak USA Atlas 10 User manual

BAK USA Technologies Corp.
425 Michigan Ave.
Buffalo, New York 14203
Atlas
10
User Guide

Bak USA
Atlas 10 User Guide
Version: v2 // 2016
Thanks for embracing the evolution of mobile technology with Bak
USA. We hope you enjoy your Atlas 10 experience. To best use your
device, please refer to this guide.
Hello there.

Attention
Keep the power cord away from young children.
• Observe precaution while using and handling to prevent electric shock. The power supply (adapter)
should not be handled by children.
• Do not drop, crush, step on, or otherwise abuse the power supply, battery pack, or power cord.
• Periodically inspect the device, power supply, and power cord for damage. Replace if necessary.
• Report any damage or loose parts to the seller immediately.
• Do not leave the device plugged in or powered on when enclosed in a non-ventilated container
(such as a backpack) as overheating may occur.
• You are encouraged to take a 5-minute break every 30 minutes of use.
Please follow these guidelines for the safe and proper handling of the device, power supply, battery
pack, and power cord.

Saftey Precautions
Please read and understand the following precautionary measures before using your device.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS.
IT IS RECOMMENDED TO USE THIS DEVICE IN AN ENVIRONMENT WHERE THE AMBIENT TEMPERATURE IS NO MORE THAN 95°F.
TO PREVENT HEARING DAMAGE, DO NOT LISTEN AT HIGH VOLUME LEVELS FOR LONG PERIODS.
1. Do not place near the re or other heat sources.
2. Do not expose to magnetic elds.
3. Do not place heavy objects on the device.
Like any other mobile device, this device emits radiofrequency (RF) energy from the
WiFi antenna, Bluetooth antenna, and 3G/LTE antennas (if applicable). The device has
passed standard tests by the FCC to ensure that RF radiation is below the maximum
recommended levels.
In addition to RF radiation, all electronic devices emit extremely low frequency
(ELF) waves. These waves are known to interact with the human body, the effects of
which are still being studied. According to the World Health Organization (WHO), no
major risks have been associated with ELF waves as of June 2016. For more detailed
information and the latest developments, please refer to the WHO website: http://
www.who.int/en/.
To limit your exposure to RF radiation, it is recommended that you hold the device
facing yourself or place the device on a desk. If the task does not require use of the
Internet or any communication modules, users can turn off RF radiation completely
by turning on ‘Airplane mode’ on the device. By limiting close range contact with the
devices, and by following the guidelines for operating the devices, you can further
minimize the amount of radiation to which you are exposed.
4.
5.
6.

Introduction .................................................................................................................
Package contents .......................................................................................................
Layout ..........................................................................................................................
Views .......................................................................................................................
Front ..............................................................................................................
Left ................................................................................................................
Back and Bottom .........................................................................................
Docking keyboard.........................................................................................
Function keys .........................................................................................................
Docking and undocking .............................................................................................
Docking into the keyboard ..........................................................................
Undocking from the keyboard
Installing your macro lens .........................................................................................
Power ON/OFF .............................................................................................................
Powering your device .............................................................................................
Powering on for the rst time.................................................................................
Powering off your device........................................................................................
Putting your device into sleep mode ....................................................................
Waking up your device ...........................................................................................
Basic touchscreen options.........................................................................................
9
9
9
10
11
11
12
Content
Section 1 Getting to Know Your Device page 1
Section 2 Using Your Device page 9
Section 3 Windows Interface page 15
Desktop and virtual desktop experience ..................................................................
Taskbar .........................................................................................................................
Start menu ...................................................................................................................
Search box - Cortana ..............................................................................................
App shortcuts area .................................................................................................
Notication area ..........................................................................................................
1
1
2
2
2
3
4
5
6
7
7
8
8
15
16
16
17
18
18

Charging your battery......................................................................................................
Inspecting your battery status ......................................................................................
Removing an App ............................................................................................................
Wireless LAN ...................................................................................................................
Enabling wireless connection ...................................................................................
Connecting to a wireless LAN ...................................................................................
Connecting an External Device .....................................................................................
Connecting to the USB port .......................................................................................
Connecting to the HDMI port .....................................................................................
Section 5 Battery page 27
Section 6 Windows Help and Troubleshooting page 30
Troubleshooting ..............................................................................................................
Section 7 Specications page 34
30
Settings screen ...............................................................................................................
Windows Activation ........................................................................................................
Setup Your Microsoft Account ......................................................................................
Replacing Desktop with Start screen ...........................................................................
Pin and unpin your app ..................................................................................................
Pinning an App to Start menu or taskbar .................................................................
Section 4 Setup and Connection page 19
19
20
20
21
22
22
22
23
23
23
24
25
26
27
28

1. Seal 8 Tablet
Package Contents:
Carefully unpack your box and take out the items listed as below. If any
items are missing or damaged, contact the seller immediately.
Getting to Know Your Device
1.
Depending on your order, optional add-ons might be included in a separate package.
1
1 Tablet with a Stylus 1 Docking Keyboard
1 USB Adapter 1 USB Cable
1 Macro Lens 1 Thermal Probe
1 Quick Start Guide

The Hardware
2
Front of tablet
Often for taking self-portraits or video
conferencing.
View and touch to operate the device.
Rest your stylus here.
Write on the screen or operate the device.
Press and hold to power device on/off.
Record sounds and speech.
1. Front Facing Camera
2. Power Button
3. Microphone
4. Touchscreen
5. Stylus Holder
6. Stylus

Left side of tablet
Protect the I/O interfaces and ports. Insert your micro SD card here.
Insert your micro SIM card here to access
data from your mobile network.
Hook up your HDMI-capable monitor here.
Push the buttons to adjust the sound
volume of your system.
Insert your USB devices such as your
USB adapter.
1. Rubber Cover
2. Volume Up/Down
3. Micro USB DC IN/Micro USB port
4. Micro SD Card Slot
5. Micro SIM Card Slot
6. Micro HDMI Port
Insert your headphone or microphone here.
7. Headphone/Microphone Jack
3

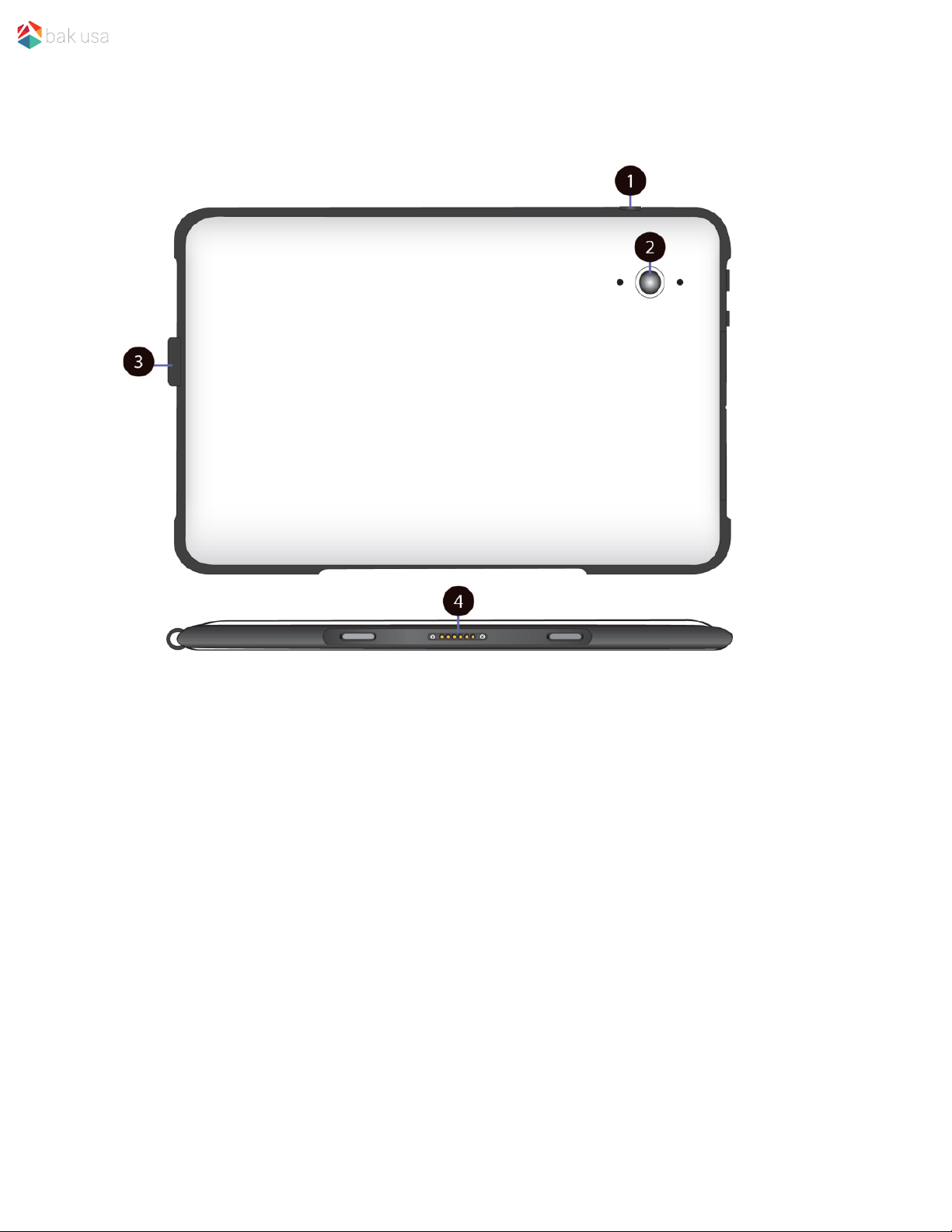

Back and bottom of tablet
Press to power device on/off.
Connect to the keyboard dock.
Take photos or record videos.
Rest the stylus here.
1. Power Button
2. Rear Facing Camera
3. Stylus Holder
4. Docking Connector
4

Keyboard
Dock your tablet here to use your device like a laptop.
Press here to open the Start menu.
1. Docking Connector
2. Windows Key
3. Touchpad
Use this to perform traditional mouse functions.
5

Function Keys
Press a key to perform a function. For example, if you want to mute or unmute
the system, press the F1 key.
Mute or unmute the system.
Decrease the volume.
Increase the volume.
Toggle the display output between
the device and external monitor.
Decrease the display brightness.
Increase the display brightness.
Open the Settings screen.
Play or pause music and video.
Speak to Cortana.
Note: If your software uses some of the function keys to perform didderent dedicated
functions, you can perform them by pressing “Fn” plus the desired function key.
6

Docking and Undocking
• Safely disconnect any USB device from the USB port on the device.
• Before trying to undock your tablet, power off your tablet and wait at least
10 seconds.
Before docking into or undocking from the keyboard
Docking into the keyboard
1. Hold your tablet with the button side facing the dock.
2. Gently press and insert the tablet into the docking connector on the dock.
3. When you hear a click sound, the tablet is successfully docked.
Undocking from the keyboard
1. Power off your device.
2. Set your keyboard on a stable surface.
3. Hold the tablet screen and pull it upward to detach.
Note:The tablet connector on the dock will
be locked at the position where the tablet
is connected. Do not bend the connector
when the tablet is docked. To unlock the
connector, undock your tablet.
7

Installing Your Macro Lens
Installing your macro lens will turn your camera into a microscope.
1. Take the macro lens.
2. Press it gently over the rear facing camera.
3. Fit the lens into the outer rim of the camera.
4. Activate any camera app in your tablet.
5. Gently rest the lens on the object you want to magnify.
8

Using Your Device
2.
If this is the rst time you turn this
device on, connect the AC adapter
and fully charge the battery.
Press the power button (normally
1 to 2 seconds). You will see the
power indicator LED on the right
side of the device light up green.
Powering on Your Device
Powering On/O
Powering on for the First Time
The laptop will require an initial setup:
1. Activate Windows 10.
2. Sign in or create a Microsoft account.
3. Set up a wireless connection and more.
Follow the on-screen instructions to complete the initial setup.
9
1.
2.

Powering o Your Device
Save all your data before powering off your device. To power off your device,
follow the steps below.
From the Start menu:
Click or tap the Windows
icon in the lower left corner
of the Desktop, or press
the Windows key on a
connected keyboard.
In the Start menu, click
or tap <Power>, as
shown on the right.
Select <Shut down>
from the power option
menu, as shown on
the right.
1.
2.
3.
10

When you will be away from your device for a short time, put the device to
sleep. To do so, perform one of the following:
• Press the power button once briefly.
• Open the Start menu, select <Power> and then <Sleep>.
Putting Your Device into Sleep Mode
Waking up Your Device
To wake up your device, perform one of the following:
• Press the power button once briefly.
• Press any key on the keyboard, tap the touchpad, or open the display panel.
• Tap the Bak USA logo on the screen.
11
Note: You are encouraged to put your computer to sleep before you move it. Moving your
computer while the hard disk is spinning may damage the hard disk, causing loss of data.

Basic Touchpad Operations
12
The touchpad works like a traditional mouse. Use it to move the cursor, left-click, right-
click, and double-click. Functions may vary based on the app you are using.
Left-click (aka Click) Tap once on the touchpad surface or press once
on the lower left corner of the touchpad.
Right-click Press once on the lower right corner of the touchpad.
Drag Press and continue to hold down the left corner,
and then move (drag) your nger across the
touchpad surface.
Vertical scroll
Drag two ngers vertically on the touchpad.
Horizontal scroll
Drag two ngers horizontally on the touchpad.
Action Name Explanation

• Do not use sharp objects to touch the screen; doing so may cause harm.
• Do not touch the touchscreen with a conductive material; doing so may cause harm.
• The following functions are application dependent.
• Some applications may not support these functions.
Gesture name Explanation
Tap
Double-tap
Press and hold
Touch an item once to start an app, open a link, or
perform an optional function. This is similar to a
left-click with a mouse.
Touch an iten twice in quick succession.
Press and leave your nger on an item. This will bring
up detailed information or open a menu with more
options. This is similar to a right-click with a mouse.
Basic Touchscreen Operations
13

Pinch
or
Rotate
Slide
Touch two ngers to the screen. Bring them together
or pull them apart to zoom in and out on visual apps
(such as pictures and maps).
Touch your thumb and forenger to an item, and
then twist in a circular motion to rotate an object.
(Note: Not all items are rotatable.)
Drag your nger across the screen to scroll through
lists and pages, to move an object, to draw, or to
write, depending upon your apps.
Gesture name Explanation
14
