BALAY 3VF782XA User manual

Start
8
Filling the salt dispenser
Adding rinse aid
Adding detergent
Select programme
Brief and handy:
everything your dishwasher
needs …
Before using for the first time,
read the Installation instructions
and Operating instructions!
54
3
2
1
6
97

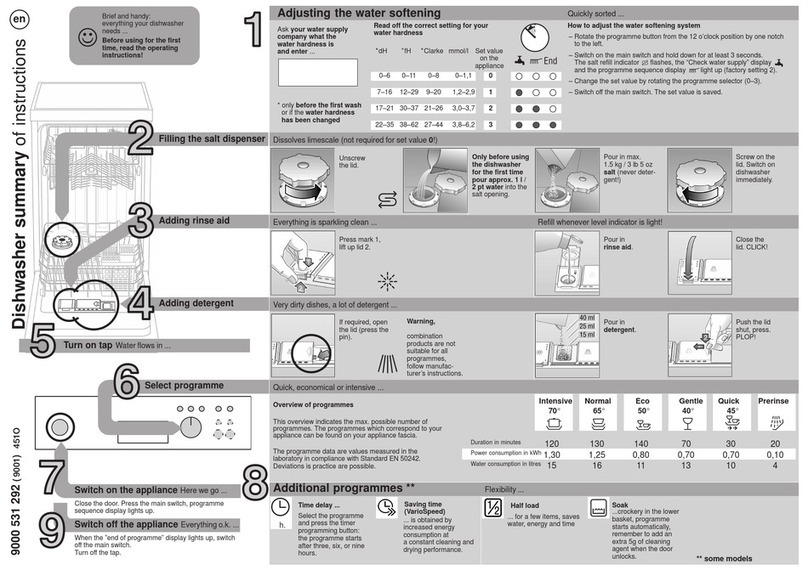

Summary of instructions Dishwasher
en
Switch on the device.
Switch off the appliance
Everything o.k....
Start programme Here we go...
9000 478 703 (8907) 640 MV
Ask your water
supply company
what the water
hardness
is and enter...
Adjusting the water softening system*
Quickly sorted ...
* only before the first
wash or if the water
hardness has been
changed
How to adjust
BA C
– Switch on ON/OFF switch.
– Hold down programme button Aand press START button until H:0...
is indicated on the digital display.
– Release both buttons.
The LED for button Aflashes and the factory set value of H:04
is indicated on the digital display.
– Press programme button C.
Each time the button is pressed the set value increases by one setting;
when the value reaches H:07, the display jumps back to H:00 (off).
– Press START button. The chosen setting has now been stored.
• ‹‹
• ‹‚
• ‹ƒ
• ‹„
• ‹…
• ‹†
• ‹‡
• ‹ˆ
:
:
:
:
:
:
:
:
0-8
9-10
11-12
13-15
16-20
21-26
27-38
39-62
0 -1.1
1.2-1.4
1.5-1.8
1.9-2.1
2.2-2.9
3.0-3.7
3.8-5.4
5.5-8.9
Water
hardness
value
°Clarke
Hardness
range
mmol/l Factory
setting
soft
soft
medium
medium
medium
hard
hard
hard
Dissolves limescale (not necessary for set value 0!) ...
$
Unscrew
cover.
Fill the salt
dispenser with
water before
the first wash only.
Add special salt
(never add
detergent!).
Screw on
the cover.
Wash
immediately.
Spick and span ...
%
Press
mark 1,
lift up
cover 2.
Fill in
rinse aid.
Screw on
the cover.
CLICK!
2
1
A lot of dirt, a lot of detergent ...
7
If required,
open the cover
(press button).
Attention:
Combination
products
are not suitable
for all programmes,
follow
manufacturer’s
instructions.
Pour detergent
into the dry
detergent
dispenser only.
Slide cover
shut, press.
PLOP!
15 ml
25 ml
50 ml
Overview of programmes
The max. possible number of programmes
is illustrated in this overview.
The corresponding programmes for your appliance
can be found on the fascia.
The programme data has been measured
in the laboratory according to European
standard EN 50242.
Deviations are possible in practice.
* half normal load
Quick, economical or intensive ...
Prerinse
Quick
45°
Gentle
40°
Eco
50°
Auto
45°–65°
Intensive
70°
Energy consumption in kWh
With Aquasensor
Water consumption in litres
Duration: hs : mins
±
Á
áéñù
àðø² ê
2:15 1:30-2:30 2:50 1:10 0:29 * 0:15
1,50 0,95-1,60 0,92 0,80 0,80 0,05
15 - 10 13 10 4
12 8-19 - 10 - -
Additional options**
Flexibility…
Express Wash
... is obtained by increased
energy consumption
at a constant cleaning
performance.
Half load
... for a few items,
saves water, energy
and time.
Extra drying
... improves the drying
result by increased
temperature
in the final rinse.
(Please take care
with delicate dishes.)
Hygiene
... the temperature
is increased during
the final rinse process.
This increases
the hygiene status.
Intensive zone
... perfect for
a mixed load.
Washing pressure
and washing temperature
are increased slightly.
** depending on model
Ÿ§Ï·¿

Maintenance and care Cleaning waste water pump
1
23
CLICK!
AB
For perfect rinsing results ...
Filters
... check,
if required,
clean.
Rotate
filter cylinder,
remove filter
system...
rinse
under
running
water ...
insert ... Screw on
filter system
NOTE
MARK!
Spray arms
...Remove
blockages/
deposits.
pull lower arm
upwards...
unscrew
upper arm …
clean spray nozzles
under running water
(if required
use toothpicks) ...
insert
lower arm ...
screw on upper
arm tightly
– Pull out the mains plug.
– Remove filters and scoop out water.
– Lever off cover (A).
– Check area around the fan impeller
for foreign objects.
– Click cover shut (B).
– Insert filters.
Rectifying minor faults yourself ...
... as it is worth doing it yourself!
Fault Possible causes Remedial action
Display “6” is lit Supply fitting jammed or calcified
1. Unscrew water connection.
2. Clean filter in the water connection.
3. Flow rate must be min. 10l/min.,
when water supply is open.
If the flow rate is less, replace the supply fitting.
Open supply fitting.
Install supply hose without kinks.
Display “E:25”
and “6” are lit
Waste water pump blocked Clean waste-water pump (see above).
Rust on the cutlery Cutlery not rust-resistant
Hard knife blades are more susceptible
Extraneous rust
Use dishwasher-proof cutlery.
Never wash rusting parts in the appliance.
Other fault display
“E:XX” is lit
Display “E:24”
and “6” are lit
Residual water
in the appliance
Appliance has technical defect
Waste water hose is blocked
or kinked
Cover not attached to waste
water pump
Call factory customer service (state fault display).
Unplug appliance.
Install waste water hose without kinks.
Attach cover (see above).
The programme has not yet ended Switch on and close the appliance or terminate
the programme (see Terminating the programme).
Fault Possible causes Remedial action
More information can be found in the operating instructions
Utensils are not clean
Sand or gritty residue
on the utensils
Utensils are situated close together
or one above the other
Too little detergent
Unsuitable programme selected
Spray arm nozzles blocked
Filters dirty, not seated firmly
Spray arms blocked
Separate the utensils, prevent contact points.
Follow manufacturer’s instructions (detergent).
Select a more intensive programme.
Clean the spray arms (see above).
Clean the filters (see above).
Arrange the utensils so that the spray
arms can rotate freely.
Stains and streaks
Milky deposits
on the utensils
(can be removed)
Milky deposits, glasses
cloudy/tarnished
(cannot be removed)
Plastic/utensils
discoloured
Rinse aid dosage too high/too low
Water softening system incorrectly set
No salt
Glasses not dishwasher-proof
Too little detergent
Discoloration caused by food colourings
(tomato sauce)
Streaks: reduce dosage.
Water or limescale stains: increase dosage.
Correctly set water softening system.
Refill with special salt.
Use dishwasher-proof glasses.
Use a detergent suitable for glasses.
Follow manufacturer’s instructions (detergent).
Discoloration is harmless; subsequent rinse cycles
will cause it to fade.
Utensils not dry Rinse aid Increase dosage.
Change the product.
The combined detergent used
has a poor drying performance
Use rinse aid.
Appliance setting Activate intensive drying (depending on model).
Dishwasher-proof utensils (not soiled with ash, wax, lubricating grease, ink
or adhesive labels; remove large remnants of jam, milk products and food
according to the operating instructions and check that the spray arms can rotate freely.
While the programme is running,
press the START button
for approx. 3 sec. (Reset).
The numerical display
indicates “0:01”;
approx. 1 minute after
the programme ends,
“0:00” is indicated.
Switch off the appliance.
Terminating the programme ... Loading the dishwasher correctly ...
