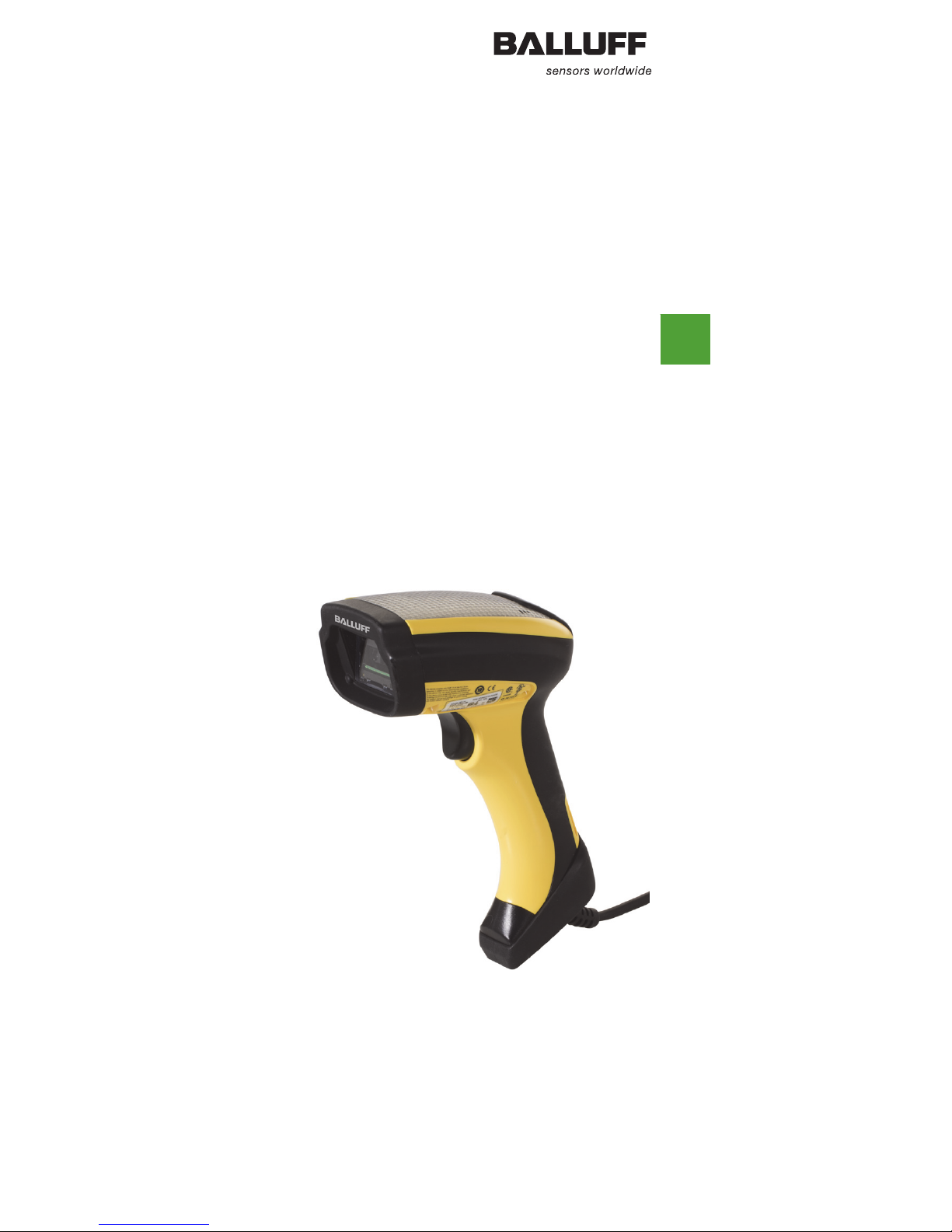

Balluff BVS HS-PC User manual

Balluff BVS HS-PC
Industrial Corded Handheld
Barcode Reader
Quick Guide
english

World Headquarters Germany
Balluff GmbH
Schurwaldstraße 9
73765 Neuhausen a.d.F
Service-Hotline [phone]
[email protected]
Subsidaries
USA
Balluff Inc.
8125 Holton Drive
Florence,
Kentucky 41042-0937
Phone [phone],
1-800-543-8390
[email protected]
Copyright Notice
Copyright © Balluff GmbH, Neuhausen a.d.F., Germany, 2015. All rights
reserved. In particular: Reproduction, modification, dissemination and
translation into other languages.
Please note that all texts, graphics and images in this operating manual are sub-
ject to copyright and other protection laws. Commercial copies, reproductions,
modifications and dissemination in any form require prior written agreement
from Balluff GmbH.
Owners of Balluff products are hereby granted a non-exclusive, revocable
license to reproduce and transmit this documentation for the purchaser's own
internal business purposes. Purchaser shall not remove or alter any proprietary
notices, including copyright notices, contained in this docu mentation and shall
ensure that all notices appear on any reproductions of the documentation.
An electronic version of this document is downloadable from the Balluff website
(www.Balluff.com).
If you visit our website and would like to make comments or suggestions about
this or other Balluff publications, please let us know via the "Contact" page.
Disclaimer
This document contains operating instructions and technical documentation for
BVS HS Handscanners by Balluff GmbH. All specifications and instructions in
this document, especially the Safety Notes section, must be strictly observed.
This operator’s manual must be carefully stored so that it is always available.
The information and illustrations in this operating manual were carefully checked
to the best of our ability. Nevertheless, Balluff GmbH cannot assume any liability
for the correctness and completeness of this information, since in spite of all
due care errors and mistakes cannot be completely avoided. In particular this
information and the illustrations do not constitute agreements as to condition
according to § 434 of the German Civil Code or guarantees according to § 443
of the GCC.
The information in this manual is based on current knowledge and experience of
Balluff GmbH.
No legally binding assurance of certain properties or suitability for a specific pur-
pose can be derived from the information in this operating manual.
Trademarks
The product, goods, company and technology names are trademarks of the
respective companies. In particular: Microsoft®, Windows®, Windows XP®,
.NET FRAMEWORK ® and Windows 7® are registered trademarks of Microsoft
Corporation ; QR Code (R) is a registered trademark of Denso Wave Incorpo-
rated. Balluff and Balluff Logo are registered trademarks of Balluff GmbH in
many countries.It is the user’s responsibility to observe any property rights and
provisions.
Patents
This product is covered by one or more of the following patents:
Design patents: AU344427, AU344428, AU344429, EP001970237,
TWD159476, TWD159477, TWD160254, TWD160255, USD682277,
USD702238, ZL201230284676.X
Utility patents: EP0996284B1, EP0999514B1, EP1128315B1, EP1172756B1,
EP1396811B1, EP1413971B1, EP1828957B1, JP4435343B2, US6478224,
US6512218, US6513714, US6561427, US6808114, US6877664,
US6997385, US7053954, US7234641, US7387246, US7721966,
US8245926, US8561906, US8743263
All patents belong to a third party!

BVS HS-PC
Industrial Corded Handheld Barcode Reader
www.balluff.com 3
END USER SOFTWARE LICENSE AGREEMENT (EULA)..............4
Description .......................................................................................8
General Features ............................................................ 8
Setting Up the Reader .....................................................................9

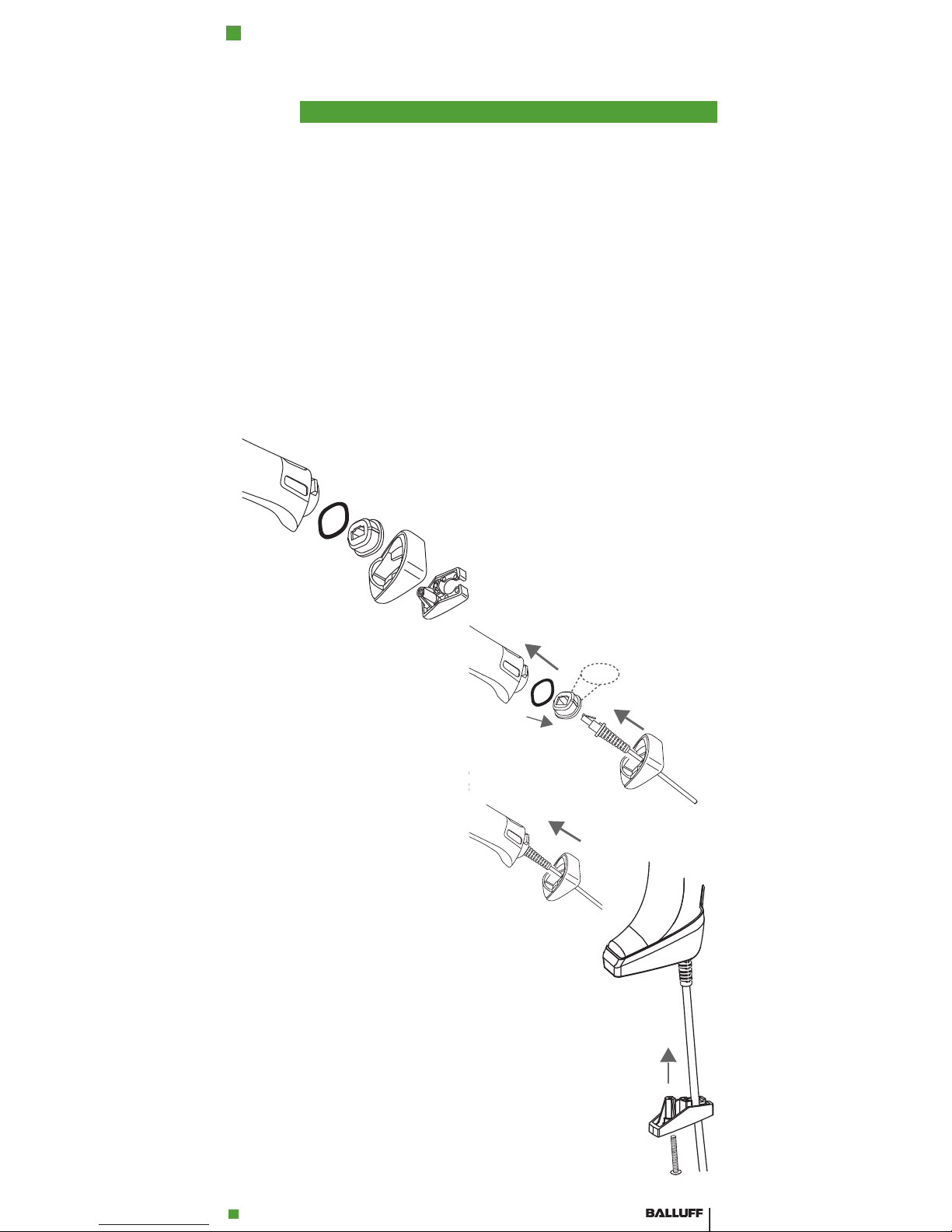

Connecting the Cable ..................................................... 9
Using the BVS HS-PC reader........................................................10
Selecting the Interface Type.........................................................11
Interface Selection ........................................................ 11
Configuring the Interface ..................................... 11
Scancode Tables ................................................ 14
Country Mode ..................................................... 14
Caps Lock State ................................................. 18
Programming .................................................................................19

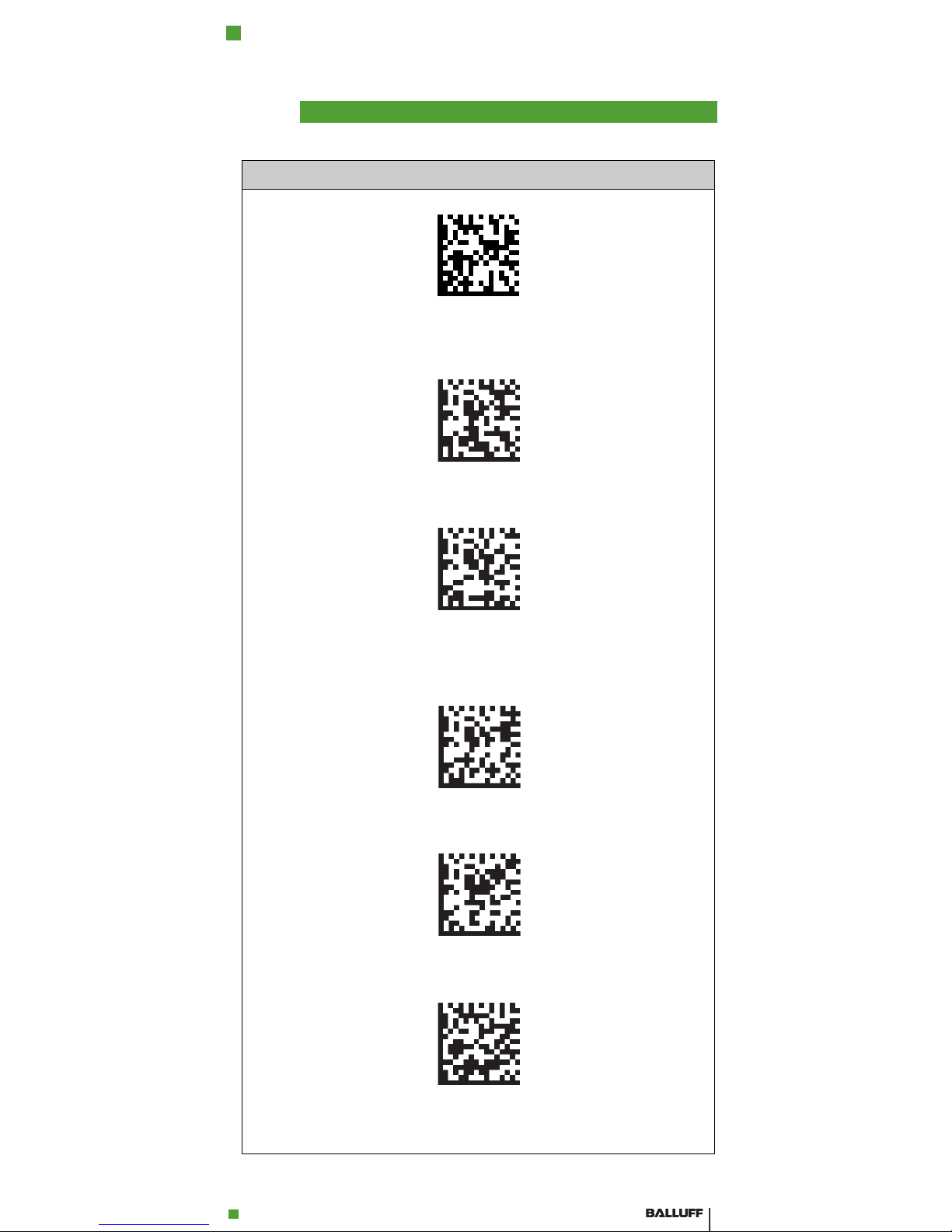

Using Programming Barcodes ...................................... 19
Configure Other Settings .............................................. 19
Resetting Product Defaults ........................................... 19
Reading Parameters......................................................................20
Good Read Green Spot Duration ................................. 20
Operating Modes ...........................................................................21
Scan Mode .................................................................. 21
Motion Aiming Control .................................................. 22
Pick Mode .................................................................... 23
Multiple Label Reading ................................................. 23
Technical Specifications ...............................................................24
LED and Beeper Indications .........................................................27
Error Codes ....................................................................................29
Cleaning..........................................................................................30
Regulatory Addendum ..................................................................31
Regulatory Information ................................................. 33
Power Supply ............................................................... 34
Imager Labeling ............................................................ 35
Aiming System .................................................... 35
WEEE Statement .......................................................... 39
Letter of Conformity ...................................................... 41
Ergonomic Recommendations.....................................................42
Services and Support ................................................... 42

1END USER SOFTWARE LICENSE AGREEMENT (EULA)
4
BVS HS-PC
Industrial Corded Handheld Barcode Reader
BALLUFF GMBH
1 END USER SOFTWARE LICENSE AGREEMENT (EULA)
FOR THE BVS HS-P Series
Notice to End User: There are two types of software covered by this END
USER LICENSE AGREEMENT ("EULA"): (1) The Balluff Product you have
acquired contains embedded software ("Embedded Software") which is inte-
gral to the Product's operation; and (2) Optional Application Software pro-
vided to you on an optional basis ("Application Software"). Embedded
Software and Application Software are collectively referred to as "Software"
and are subject to the terms and conditions contained in this EULA. Software
is provided only for use with, and for authorized end users of, the Balluff BVS
HS-P Series of hand held readers ("Product"). Portions of the Embedded
Software include or operate with Open Source software or libraries ("Open
Source"). Use of Open Source is subject to the Open Source licenses entitled
"******_***_BVS_HS-PReaders_OpenSource.zip" available at the following
website http://www.balluff.com.
This EULA (End User Software License Agreement) ("EULA" or "Agreement") is a
legally binding agreement governing the licensing of the Software and Documenta-
tion by Balluff GbmH. and its subsidiaries and affiliates ("Balluff") to the entity or per-
son who has purchased or otherwise acquired a Balluff Product ("End User"). For
purposes of this Agreement, any software that is not Embedded Software or Appli-
cation Software is software associated with a separate end-user license agreement
is licensed to you under the terms of that license agreement. Balluff and End User
hereby agree as follows:
1. Definitions.
1.1 "Affiliate" means a business entity currently existing or later acquired that is
controlled by, or is under common control with Balluff GmbH.
1.2 "Documentation" means materials such as user's guides, program reference
guides, quick reference guides, manuals, or similar materials associated with
or related to the Balluff Product, whether in printed, "online", or other form.
1.3 "Proprietary Information" means: (a) source code, object code, software,
documentation, and any related internal design, system design, data base
design, algorithms, technology, technical data or information, implementa-
tion techniques, and trade secrets related to the Software, (b) any other
trade secrets marked appropriately or identified as proprietary or confiden-
tial, and (c) any information that End User, under the circumstances, should
recognize as confidential. Proprietary Information does not include any infor-
mation that the receiving party can establish was (1) in the public domain, (2)
already in the receiving party's possession or rightfully known prior to
receipt, (3) rightfully learned from a third party not in violation of any other's
proprietary rights, or (4) independently developed without access to Propri-
etary Information.
1.4 "Balluff Product" means the Balluff BVS HS-P series scanner product,
including all embedded Software in and all Documentation related to such
product, which has been purchased or otherwise acquired by End User,
whether obtained directly or indirectly from Balluff.
1.5 "Software" means any software or computer programs of Balluff or its third
party licensors in machine readable form which is embedded in the Balluff
Product, whether obtained directly or indirectly from Balluff, including any
replacement, update, upgrade, enhancement or modification.
2. Scope Of License Granted.
2.1 Balluff grants to End User a non-exclusive, non-transferable, perpetual
license to use the Software, solely on the Balluff Product in which it is
embedded ("designated Balluff Product"), in machine-readable form only,
solely for End User's internal business purposes. This Agreement does not
convey ownership of the Software to End User. Title to the Software shall be
and remain with Balluff or the third party from whom Balluff has obtained a
licensed right. As used in this Agreement, the term "purchase" or its equiva-
lents when applied to the Software shall mean "acquire under license." End
User is not entitled to receipt or use of the source code to any Software.
2.2 End User shall not copy, modify, decompile, disassemble, reverse engineer,
or otherwise reproduce or remanufacture the Software, whether modified
or unmodified, nor sell, assign, sublicense, distribute, lend, rent, give, or oth-
erwise transfer the Software to any other person or organization, for pur-
poses other than as expressly provided in this Agreement, without Balluff's
prior written consent.

www.balluff.com
1END USER SOFTWARE LICENSE AGREEMENT (EULA)
5
BVS HS-PC
Industrial Corded Handheld Barcode Reader
3. Transfers, Support.
3.1 Any copying, installing, reproduction, remanufacture, reverse engineering,
electronic transfer, or other use of the Software on other than the designated
Balluff Product will be a material breach of this Agreement. However, Balluff
may elect not to terminate this Agreement or the granted licenses, but
instead may elect to notify End User that End User is deemed to have
ordered and accepted a license for each breaching use. End User shall pay
Balluff the applicable list price for such licenses as of the date of such
breach.
3.2 End User may obtain support for Software from Balluff at Balluff's standard
support fees and under Balluff's standard support terms and conditions in
effect at the time the support is requested.
3.3 End User shall make at its own cost and liability a back up copy of any data
processed and/or run through the Software.
4. Intellectual Property.
End User acknowledges that the Software constitutes valuable trade secrets of
Balluff or Balluff's third party licensors and that the Software is protected by intel-
lectual property laws and treaties. The license set forth in this Agreement does not
transfer to End User any ownership of Balluff's or its third party licensors' copy-
rights, patents, trademarks, service marks, trade secrets, or other intellectual prop-
erty rights and End User shall have no right to commence any legal actions to
obtain such rights. End User shall not remove, modify, or take any other action that
would obscure any copyright, trademark, patent marking, or other intellectual
property notices contained in or on the Balluff Product.
5. Proprietary Information.
5.1 End User acknowledges that Proprietary Information is the confidential, pro-
prietary, and trade secret property of Balluff and Balluff's third party licensors
and End User acquires no right or interest in any Proprietary Information.
5.2 End User shall not disclose, provide, or otherwise make available the Propri-
etary Information of Balluff or its third party licensors to any person other
than End User's authorized employees or agents who are under confidenti-
ality agreement, and End User shall not use the Proprietary Information other
than in conjunction with use of the Balluff Product exclusively for End User's
internal business purposes. End User shall take steps to protect the Propri-
etary Information no less securely than if it were End User's own intellectual
property.
5.3 The provisions of this Proprietary Information Section shall survive and con-
tinue for five (5) years after the termination of this Agreement.
6. Limited Warranty.
6.1 Balluff warrants that, under normal use and operation, the Balluff Product will
conform substantially to the applicable Documentation for the period speci-
fied in the Documentation. During this period, for all reproducible non- con-
formities for which Balluff has been given written notice, Balluff will use
commercially reasonable efforts to remedy nonconformities verified by Bal-
luff. End User agrees to supply Balluff with all reasonably requested informa-
tion and assistance necessary to help Balluff in remedying such
nonconformities. For all defects reported to Balluff within the warranty
period, Balluff's liability is limited to providing End User with one copy of cor-
rections or responding to End User's problem reports according to Balluff's
standard assistance practices. Balluff does not warrant that the product will
meet End User's requirements or that use of the product will be uninter-
rupted or error free, or that Balluff's remedial efforts will correct any noncon-
formance. This limited warranty does not cover any product that have been
subjected to damage or abuse, whether intentionally, accidentally, or by
neglect, or to unauthorized repair or unauthorized installation, and shall be
void if End User modifies the product, uses the product in any manner other
than as established in the Documentation, or if End User breaches any of the
provisions of this Agreement.
6.2 EXCEPT AS PROVIDED IN THIS AGREEMENT, THE BALLUFF PRODUCT
IS PROVIDED "AS IS" AND BALLUFF MAKES NO WARRANTIES OF ANY
KIND, EXPRESS OR IMPLIED, WRITTEN OR ORAL, WITH RESPECT TO
THE PRODUCT, AND SPECIFICALLY DISCLAIMS THE IMPLIED WARRAN-
TIES OF MERCHANT- ABILITY AND FITNESS FOR A PARTICULAR PUR-
POSE.

1END USER SOFTWARE LICENSE AGREEMENT (EULA)
6
BVS HS-PC
Industrial Corded Handheld Barcode Reader
7. Infringement.
7.1 Balluff will defend End User against any claim in a lawsuit that the Balluff
Product furnished hereunder infringe a United States patent or copyright of a
third party and Balluff will pay any damages finally awarded against End User
by a court of competent jurisdiction that are attributable to such claim or will
pay End User's part of any settlement that is attributable to such claim, pro-
vided, that 1) End User notifies Balluff promptly in writing of the claim, 2) Bal-
luff controls the defense or settlement of the claim, and 3) End User
cooperates fully with Balluff in such defense or settlement. All notices of a
claim should be sent to Balluff GbmH Schurwaldstraße 9, D-73765 Neuhau-
sen/Fildern, Germany. In the defense or settlement of any such claim, Balluff
may, at its option, 1) procure for End User the right to continue using the
Balluff Product, 2) modify the Balluff Product so that it becomes non-infring-
ing, 3) replace the Balluff Product with an equivalent product not subject to
such claim, or 4) provide End User an opportunity to return the Balluff Prod-
uct and receive a refund of the purchase price paid, less a reasonable allow-
ance for use.
7.2 Balluff shall have no liability to End User for claims of infringement based
upon 1) the use of any Balluff Product in combination with any product
which Balluff has not either furnished or authorized for use with such Prod-
uct 2) the use of any Balluff Product designed, manufactured, or modified to
the specifications of End User, or 3) End User's modification of the Balluff
Product without written authorization from Balluff.
7.3 THE FOREGOING STATES BALLUFF'S COMPLETE AND ENTIRE OBLIGA-
TION CONCERNING CLAIMS OF PATENT, COPYRIGHT, OR OTHER
INTELLECTUAL PROPERTY INFRINGEMENT, CANCELS AND SUPER-
CEDES ANY PRIOR AGREE- MENTS, WHETHER ORAL OR WRITTEN,
BETWEEN THE PARTIES CONCERNING SUCH CLAIMS, AND WILL NOT
BE MODIFIED OR AMENDED BY ANY PAST, CON- TEMPORANEOUS, OR
FUTURE AGREEMENTS OR DEALINGS BETWEEN THE PARTIES,
WHETHER ORAL OR WRITTEN, EXCEPT AS SET FORTH IN A FUTURE
WRITING SIGNED BY BOTH PARTIES.
8. Limitation Of Liability.
IN NO EVENT SHALL BALLUFF'S LIABILITY FOR DAMAGES, IF ANY, WHETHER
BASED UPON CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIA-
BILITY, STRICT LIABILITY, WARRANTY, OR ANY OTHER BASIS, WILL INCLUDE
LOST PROFITS, LOST DATA, INTERRUPTION OF BUSINESS OR SERVICE, OR
FOR ANY OTHER SPECIAL, PUNITIVE, EXEMPLARY, OR OTHER SIMILAR DAM-
AGES, EVEN IF BALLUFF HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. BALLUFF SHALL BE LIABLE FOR THOSE DAMAGES WHICH
OCCURRED DIRECTLY FROM ANY BREACH OF CONSTITUIONAL OBLIGA-
TIONS OF THIS AGREEMENT AND WHICH HAVE CAUSED ACTUAL FINANCIAL
LOSS AS OF THEIR OCCURRENCE.
9. Government Restricted Rights; International Use.
9.1 Use, duplication, or disclosure of the Software by the U.S. Government is
subject to the restrictions for computer software developed at private
expense as set forth in the U.S. Federal Acquisition Regulations at FAR
52.227-14(g), or 52.227-19 or in the Rights in Technical Data and Computer
Software clause at DFARS 252.227-7013(c)(1)(ii), whichever is applicable.
9.2 End User must comply with the applicable local laws of the country in which
the Balluff Product is used, with U.S. export control laws, and with this
Agreement. The provisions of the "United Nations Convention on Interna-
tional Sale of Goods" shall not apply to this Agreement.
10. Termination.
10.1 Either party may terminate this Agreement or any license granted under this
Agreement at any time upon written notice if the other party breaches any
provision of this Agreement.
10.2 Upon termination of this Agreement, End User immediately shall cease using
any nonembedded software and shall return to Balluff or destroy all non-
embedded software covered by this Agreement, and shall furnish Balluff with
a certificate of compliance with this provision signed by an officer orautho-
rized representative of End User. For embedded software, End User agrees
to sign a waiver prepared by Balluff concerning further use of the embedded
Software. End User's resumed or continued use of the embedded Software
after termination shall constitute End User's agreement to be bound by the
terms and conditions of this Agreement for such use.

www.balluff.com
1END USER SOFTWARE LICENSE AGREEMENT (EULA)
7
BVS HS-PC
Industrial Corded Handheld Barcode Reader
11. General Provisions.
11.1 Entire Agreement; Amendment. This document contains the entire agree-
ment between the parties relating to the licensing of the Software and super-
sedes all prior or contemporaneous agreements, written or oral, between
the parties concerning the licensing of the Software. This Agreement may
not be changed, amended, or modified except by written document signed
by Balluff..
11.2 Notice. All notices required or authorized under this Agreement shall be
given in writing, and shall be effective when received, with evidence of
receipt. Notices to Balluff shall be sent to the attention of Contract Adminis-
tration, Balluff GmbH Schurwaldstraße 9, D-73765 Neuhausen/Fildern,
Germany, or such other address as may be specified by Balluff in writing.
11.3 Waiver. A party's failure to enforce any of the terms and conditions of this
Agreement shall not prevent the party's later enforcement of such terms and
conditions
11.4 It is agreed that (a) place of jurisdiction for legal actions falling within the juris-
diction as regards the subject matter of the Amtsgericht (local courts) shall
be the Amtsgericht Stuttgart, Germany and (b) place of jurisdiction for legal
actions falling within the jurisdiction as regards the subject matter of the
Landgericht (regional courts) shall be the Landgericht Stuttgart, Germany.
11.5 German law shall apply exclusively without giving effect to its conflict of laws
principles.
11.6 In addition to these EULA, the General Terms and Conditions of Balluff shall
apply. In the event that individual provisions of the EULA contradict any pro-
vision of General Terms and Conditions, then, the EULA shall prevail. With-
out prejudice of the foregoing, should a clause of the EULA contradict the
applicable law, then, to the extent the General Terms and Conditions have
most favorable provision for Balluff in this respect, then the Parties shall refer
to the General Terms and Conditions of Balluff.
- END -
Software Product Policy
Balluff reserves the right to ship its products with the latest version of
software/firmware available. This provides our customers with the very
latest in Balluff software technology.

8
2Description
BVS HS-PC
Industrial Corded Handheld Barcode Reader
2Description
The Balluff BVS HS-PC-Series hand held readers are a featurerich and
rugged area imager reader. It is offered in several different models to
better fit the different needs of each customer.
The table below shows the unique features of each model:
2.1 General Features
Model P/N Optical feature
BVS HS-PC-
HDW-MA-02 Autofocus optic, High, standard and low density codes, wide angle
BVS HS-PC-
DPW-MA-01 High Density optic, high and medium density codes, DPM (laser, ink jet and dot peen)
Omni-
directional
Operating
To read a symbol or capture an image, you simply
aim the reader and pull the trigger. Since the
Balluff BVS HS-PC-Series hand held is a powerful
omni-directional reader, the orientation of the sym-
bol is not important.
Decoding
Thanks to powerful algorithms, Balluff BVS HS-
PC-Series hand held reliably decodes all major 1D
(linear) barcodes, 2D stacked codes (such as
PDF417), 2D matrix symbols (such as DataMatrix),
postal codes (such as POSTNET, PLANET). The
data stream — acquired from decoding a symbol
— is rapidly sent to the host. The reader is imme-
diately available to read another symbol.
Formatting
and
Concatenating
The string of a decoded code may be processed
according to either a simple or advanced data for-
matting and be concatenated.
Imaging
The Balluff BVS HS-PC-Series hand held can also
function as a camera by capturing entire images or
image portions of labels, signatures, and other
items.
Autoscanning
An autoscan command causes the reader to scan
continuously and to monitor the central zone of its
reading area.
Flash Memory
Flash technology allows you to upgrade the Balluff
BVS HS-PC-Series hand held reader as new sym-
bologies are supported or as improved decoding
algorithms become available.

www.balluff.com 9
3Setting Up the Reader
BVS HS-PC
Industrial Corded Handheld Barcode Reader
3 Setting Up the Reader
Follow the steps below to connect and get your reader up and commu-
nicating with its host.
1Connect the Cable to the reader and the Host, shown on page 9.
2Configure the Interface (see page 11).
3Configure the Reader starting on page 19 (optional, depends on
settings needed)
Connect the BVS HS-PC readers hand held by plugging directly into the
host device as shown. The power can also be supplied through an exter-
nal power supply via the Interface Cable supplied with a power jack.
3.1 Connecting the Cable
A. Rubber gasket
B. Cable Holder
C. Cover
D. Connector Holder
1Slip the cable through the
Cover.
2Push the Rubber Gasket
onto the Cable Holder.
3Push the Cable Holder and
gasket into the handle.
Ensure that the “Front”
marking on the Cable Holder
is facing out, with the arrow
pointing towards the front of
the scanner.
4Insert the end of the cable
into the socket of the Cable
Holder.
5Push the Cover along the
cable towards the reader,
and hook it over the yellow
“tooth” on the back of the
handle.
6Insert the cable through the
Connector Holder, and push
it up into the Cover.
7Insert and tighten the screw
to affix the cable assembly
to the reader handle.
A
B
C
D
FRONT>>
1
2
3
6
4
5
7

10
4Using the BVS HS-PC reader
BVS HS-PC
Industrial Corded Handheld Barcode Reader
4UsingtheBVSHS-PCreader
The BVS HS-PC reader normally functions by capturing and decoding
barcodes. The reader is equipped with an internal motion-sensing
function which activates the aiming system on device motion. The intel-
ligent aiming system indicates the field of view which should be posi-
tioned over the barcode:
Aiming System
The field of view indicated by the aiming system will be smaller when
the reader is closer to the barcode and larger when it is farther from the
code. Symbologies with smaller bars or elements (mil size) should be
read closer to the unit. Symbologies with larger bars or elements (mil
size) should be read farther from the unit.
If the entire barcode is within the aiming field, you will get a good read.
Successful reading is signaled by an audible tone plus a good-read
green spot LED indicator which is backprojected at the read code.
Reference the BVS HS-P series operation manual (OPM) for more infor-
mation about this feature and other programmable settings.
Model P/N Aimer pattern
BVS HS-PC-
DPW-MA-01
BVS HS-PC-
HDW-MA-02

www.balluff.com 11
5Selecting the Interface Type
BVS HS-PC
Industrial Corded Handheld Barcode Reader
5 Selecting the Interface Type
Upon completing the physical connection between the reader and its
host, proceed directly to Interface Selection below for information and
programming for the interface type the reader is connected to (for
example: RS-232, USB, etc.) and scan the appropriate barcode to
select your system’s correct interface type.
5.1 Interface Selection
All models are multi-interface and support RS-232 and USB.
Information and programming options for each interface type are pro-
vided in this section. For defaults and addi- tional information associ-
ated with each interface, proceed to the corresponding chapter in the
BVS HS-P series operation manual (OPM).
5.1.1 Configuring the Interface
Scan the appropriate programming barcode to selects the interface
type for your system.
NOTE
Unlike some other programming features and
options, interface selections require that you scan
only one programming barcode label. DO NOT
scan an ENTER/EXIT barcode prior to scanning an
interface selection barcode.
Some interfaces require the scanner to start in the
disabled state when powered up. If additional scan-
ner configuration is desired while in this state, pull
the trigger and hold for 5 seconds. The scanner will
change to a state that allows programming with
barcodes.

12
5Selecting the Interface Type
BVS HS-PC
Industrial Corded Handheld Barcode Reader
RS-232
RS-232 standard interface
RS-232
RS-232 Wincor-Nixdorf
RS232-WN
USB
USB Com to simulate RS-232 standard interface
USB-COMa
USB-OEM
USB-OEM
a. Download the correct USB Com driver from www.Balluff.com

www.balluff.com 13
5Selecting the Interface Type
BVS HS-PC
Industrial Corded Handheld Barcode Reader
USB (continued)
USB Keyboard with standard key encoding
USB-KBD
USB Keyboard with alternate key encoding
USB-KBD-ALT
USB Keyboard for Apple computers
USB-KBD-APPLE

14
5Selecting the Interface Type
BVS HS-PC
Industrial Corded Handheld Barcode Reader
5.1.2 Scancode Tables
Reference the BVS HS-PC-Series OPM for information about control
character emulation for keyboard interfaces.
5.1.3 Country Mode
This feature specifies the country/language supported by the keyboard.
This option is usable only with USB-KBD interface without the "Alter-
nate Key" mode.
COUNTRY MODE
ENTER/EXIT PROGRAMMING MODE
Country Mode = U.S.
Country Mode = Belgium
Country Mode = Britain
Country Mode = Croatia*
* Supports only the interfaces listed in the Country Mode feature description

www.balluff.com 15
5Selecting the Interface Type
BVS HS-PC
Industrial Corded Handheld Barcode Reader
COUNTRY MODE (continued)
Country Mode = Czech*
Country Mode = Denmark*
Country Mode = France
Country Mode = French Canadian*
Country Mode = Germany
Country Mode = Hungary*
* Supports only the interfaces listed in the Country Mode feature description

16
5Selecting the Interface Type
BVS HS-PC
Industrial Corded Handheld Barcode Reader
COUNTRY MODE (continued)
Country Mode = Italy
Country Mode = Japanese 106-key*
Country Mode = Lithuanian*
Country Mode = Norway*
Country Mode = Poland*
Country Mode = Portugal*
* Supports only the interfaces listed in the Country Mode feature description

www.balluff.com 17
5Selecting the Interface Type
BVS HS-PC
Industrial Corded Handheld Barcode Reader
COUNTRY MODE (continued)
Country Mode = Romania*
Country Mode = Spain
Country Mode = Sweden
Country Mode = Slovakia*
Country Mode = Switzerland*
* Supports only the interfaces listed in the Country Mode feature description

18
5Selecting the Interface Type
BVS HS-PC
Industrial Corded Handheld Barcode Reader
5.1.4 Caps Lock State
This option specifies the format in which the reader sends character
data. This applies to keyboard wedge interfaces. This does not apply
when an alternate key encoding keyboard is selected.
ENTER/EXIT PROGRAMMING MODE
Caps Lock State = Caps Lock OFF
Caps Lock State = Caps Lock ON
Caps Lock State = AUTO Caps Lock Enable

www.balluff.com 19
6Programming
BVS HS-PC
Industrial Corded Handheld Barcode Reader
6 Programming
The reader is factory-configured with a set of standard default features.
After scanning the interface barcode from the Interfaces section, select
other options and customize your reader through use of the program-
ming barcodes available in the BVS HS-PC reader. Check the corre-
sponding features section for your interface, and also the Data Editing
and Symbologies chapters of the OPM.
6.1 Using Programming Barcodes
This manual contains barcodes which allow you to reconfigure your
reader. Some programming barcode labels, Programming like the
"Reset Default Settings" on page 15, require only the scan of that single
label to enact the change.
Other barcodes require the reader to be placed in Programming Mode
prior to scanning them. Scan an ENTER/EXIT barcode once to enter
Programming Mode; scan the desired parameter settings; scan the
ENTER/EXIT barcode again to accept your changes, which exits Pro-
gramming Mode and returns the reader to normal operation.
6.2 Configure Other Settings
Additional programming barcodes are available in the OPM to allow for
customizing programming features. If your installation requires different
programming than the standard factory default settings, refer to the
OPM.
6.3 Resetting Product Defaults
If you aren't sure what programming options are in your reader, or
you've changed some options and want your custom factory settings
restored, scan the barcode below to reset the reader to its initial config-
uration. Reference the OPM for other options, and a listing of standard
factory settings.
NOTE
Factory defaults are based on the interface type.
Be sure your reader is configured for the correct
interface before scanning this label. See "Selecting
the Interface Type" on page 11 for more informa-
tion.
Reset Default Settings

20
7Reading Parameters
BVS HS-PC
Industrial Corded Handheld Barcode Reader
7 Reading Parameters
Move the reader toward the target and center the aiming pattern and
illumination system to capture and decode the image. See "Using the
BVS HS-PC reader" on page 10 for more information.
The aiming system will briefly switch off after the acquisition time, and if
no code is decoded will switch on again before the next acquisition.
The illuminator will remain on until the symbol is decoded.
As you read code symbols, adjust the distance at which you are hold-
ing the reader.
7.1 Good Read Green Spot Duration
Successful reading can be signaled by a good read green spot. Use
the barcodes that follow to specify the duration of the good read
pointer beam after a good read.
ENTER/EXIT PROGRAMMING MODE
Disabled ¨ Short (300 ms)
Medium (500 ms) Long (800 ms)
