High Speed Dome Camera BTZ-2700/3700

Speed Dome Camera Instruction Manual 2/53
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN THE COVERS.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONAL
This lightning flash with arrowhead symbol is intended to alert the user to
the presence of un-insulated "dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
This exclamation point symbol is intended to alert the user to the presence
of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
This Device compiles with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interface, and
(2) This device must accept any interference received, including
interference that may cause undesired operations.

Speed Dome Camera Instruction Manual 3/53
Important Safety Guide
1. Read, heed and follow all the Instructions
Read all the safety and operating instructions before using the product.
2. Keep this manual
Keep this manual for reference in future.
3. Attachments / Accessories
Use only the attachments or accessories specified by the manufacturer.
4. Installation
zDo not install near any heat resources such as radiators, heat registers, stoves, or other
appratus including amplifiers that product heat. Improperly installed product may fall,
cause serious injury to a child or adult and damage the product.
zDo not block any ventilation holes or openings. Install in accordance with the
manufacturer’s instructions.
zUse only with the cart, stand, tripod, bracket, mounting devices, or table specified by
the manufacturer.
zInstallation should be done only by qualified personnel and conform to all the
instructions by the manufacturer.
zRefer all servicing to qualified service personnel.
zUnless the product is specifically marked as IP66, more than IP66 or confirmed by the
manufacturer, it is designed for indoor use only and it must not be installed where
exposed to rain and moisture.
zDo not load on the product.
zUse stainless steel hardware to fasten the mount.
zTo prevent damage from water leakage when installing a mount outdoors on a roof or
wall, apply sealant properly around holes.
zThese servicing instructions are for use by qualified service personnel only. To reduce
the risk of electric shock, do not perform any servicing other that contained in the
operationg instructions unless you are qualified to do so.
zUse only replacement parts specified by the manufacturer.
5. Power source
This product should be operated only from the type of the power source indicated on the
marking label.
NOTICE

Speed Dome Camera Instruction Manual 4/53
Caution
Operating
zBefore using, make sure that the power supply and others are properly installed.
zWhile operating, if any abnormal condition or malfunction is observed, stop using the
product immediately and then contact your local dealer.
Handling
zDo not disassemble or tamper with the parts inside the product.
zDo not drop or subject the product to shock and vibration as this can damage the
product.
zCare must be taken when you clean the clear dome cover. Especially, scratch and dust
will ruin the quality of the product.
Installation and Storage
zDo not install the product in areas of extreme temperature, which exceed the allowable
range.
zAvoid installing in humid or dusty places.
zAvoid installing in places where radiation is present.
zAvoid installing in places where there are strong magnetic fields and electric signals.
zAvoid installing in places where the product would be subject to strong vibrations.
NOTICE

Speed Dome Camera Instruction Manual 5/53
①Introduction
Model Code
6
Features
8
Package Components
10
Main Part Description
11
②Installation
DIP Switch Setup
12
Installation with Ceiling Mount Bracket
15
Installation with Wall Mount Bracket
16
Wiring and Cabling
17
③Operation
Check Point before Operation
20
Check Points for Preset and Pattern Function before Operation
20
OSD Menu
21
Reserved Preset (Hot Keys)
21
Preset
22
Swing
22
Pattern
23
Group
24
Other Functions
24
OSD Display
26
④OSD Menu
Quick Programming Guide
27
Main Menu
27
Display Setup
28
Privacy Zone Mask Setup
29
Camera Setup
31
Motion Setup
36
Preset Setup
39
Swing Setup
41
Pattern Setup
42
Group Setup
43
System Initialize
46
⑤Specifications
47
Dimension
53
TABLE OF CONTENTS

Speed Dome Camera Instruction Manual 6/53
INTRODUCTION 1

Speed Dome Camera Instruction Manual 7/53
Features
Powerful Zoom Camera & Setup Options
Image Sensor : 1/4" Double density interline transfer CCD (BTZ-3700)
1/4" Super HAD color CCD (BTZ-2700)
Zoom : ×27 Optical Zoom, ×12 Digital Zoom (BTZ-2700)
×37 Optical Zoom, ×12 Digital Zoom (BTZ-3700)
Day & Night, Privacy Mask,WDR and HLC (WDR : BTZ-3700)
SNR (Super Noise Reduction) Function
Various Focus Mode : Auto-Focus, Manual Focus, Semi-Auto Focus
Various Setup Options in OSD Menu.
Powerful Pan/Tilt Functions
MAX. 360°/sec High Speed Pan/Tilt Motion
With the Vector Drive Technology, Pan/Tilt motions are accomplished along the
shortest path. As a result, the time to target view is remarkably short and the video on
the monitor is very natural in monitoring.
With the Micro-Stepping Control Technology, the video looks very natural at high
zoom magnification during a jog operation on a controller since the camera can be
controlled by 0.05°/sec. Hence it is very easy to make the camera focus on desired
target views at high zoom magnification. Additionally it is easy to make the camera
focus on desired positions with zoom-proportional pan/tilt movement.
Preset, Pattern, Swing, Group, Privacy Mask and More…
MAX. 127 Presets are programmable and each preset can have its own parameter
values independently from the other presets.
For an example, refer to the below table.
PresetNo. WhiteBalance AutoExposure ••• Label Remarks
Preset1 CaseA Case3 “ENTRANCE”
Preset2 CaseC Case5 “WAREHOUSE”
Preset3 CaseV Case2 “OFFICE”
•••
Preset95 −−−−ReservedforOSDMenu
•••
Preset128 CaseK Case9 “TERRACE”
INTRODUCTION 1

Speed Dome Camera Instruction Manual 8/53
zMAX. 8 sets of Swing are programmable. This function is that the camera moves
repetitively between two preset positions at programmed speeds.
zMAX. 4 Patterns are programmable. This function is that the camera memorizes the
path (mostly curve path) by the joystick of the controller and revives the trajectory
operated by the joystick as closely as possible.
zMAX. 8 sets of Group are programmable. This function is that the camera memorizes
the combination of Presets, Pattern and/or Swings sequently and runs Presets, Pattern
and/or Swings repetitively. A Group can be combined upto 20 functions with any of
Preset/Pattern/Swing.
zMAX. 8 Privacy Masks are programmable, not to intrude on any other’s privacy.
PTZ(Pan/Tilt/Zoom) Control
zWith the RS-485 communication connection, MAX. 255 units of cameras can be
connected to a single controller.
zPelco-D or Pelco-P protocols can be selected as a control protocol in the current
firmware version.
OSD(On Screen Display) Menu
zOSD menu is provided to display the status of camera and to configure the functions
interactively.
zThe information such as Camera ID, Pan/Tilt Angle, Direction, Alarm Input and Preset
is displayed on screen.

Alarm In/Out Function(Only for the models which have I/O function)
z3 alarm sensor inputs and 1 alarm sensor outputs are available.
zAlarm sensor input is decoupled with photo-couplers to avoid external electric noise
and shock perfectly.
zBoth of N.O.(Normal Open) sensors and N.C.(Normal Close) sensors can be used and
the signal range of the sensor input is from DC 5.0V to 12.0V for various applications.
zThe camera can be set to move to a Preset position or to run functions such as Pattern,
Swing and Group when there are external sensor activations. Also “Post Alarm”
function is possible, which is supposed to activate after user-defined time period and
sequentially in succession to the action by external sensor activations.
Reserved Presets(Hot Keys)
zMost camera setup options can be set up easily and directly with the reserved presets
(Hot Keys), without entering into OSD menu. For more information, refer to “Reserved
Presets(Hot Keys)” in this manual.
INTRODUCTION 1

Speed Dome Camera Instruction Manual 9/53
Network Function(Only for the IP addressable models)
zNetwork functions including remote monitoring, bidirectional audio and others are
available through IP based network such as LAN, ADSL/VDSL, and Wireless LAN. For
more information, refer to the separated manual for IP Addressable models.

Perfect Outdoor Environment Compatibility and Easy Installation
zThe fans and heaters are built-in in the camera for cold and hot temperature
environment. Also idealistic mechanical design protects the camera from water and
dust. (IP66 when installed properly with wall mount bracket only / Only for outdoor
models)
zIt is easy to install and repair the camera.
INTRODUCTION 1

Speed Dome Camera Instruction Manual 10/53
Package Component
Product & Accessories
zMain Body & Surface Mount Bracket zDefault Accessories
[Main Cable,Wrench]
zAccessories for The Models with Alarm In/Out
Function [I/O Cable]
zAccessories for The IP Addressable Models
[Crossover LAN Cable,Audio Cable,CD]
Brackets (Optional)
zWall Mount Bracket
[Screws :Machine M5×15,Hex Lag #14×50]
zCeiling Mount Bracket
[Screws :Machine M5×15,Anchor Bolt 3/8"×70]
INTRODUCTION 1

Speed Dome Camera Instruction Manual 11/53

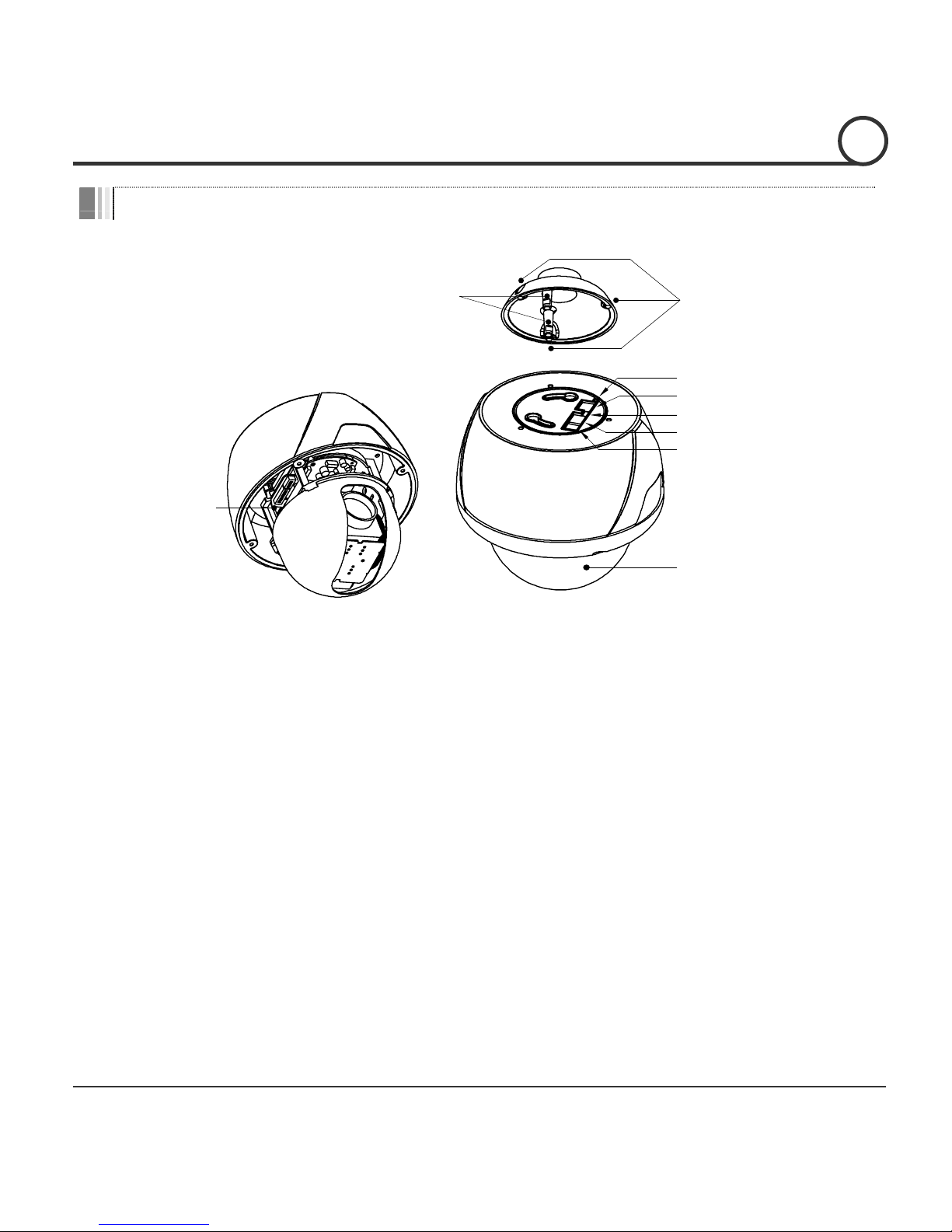

Main Part Description
DIP Switch
Dome Cover
Sensor I/O Port (I/O Model)
Main Connector
Audio Port (IP Model)
LAN Port (IP Model)
Reset Switch (IP Model)
Mounting Hook Mounting Screw Hole
zDome Cover Do not detach the protection vinyl from the dome cover before
finishing all the installation process to protect the dome cover from
scratches or dust.
zDIPSwitch Used to set up camera IDs and protocols.
zMounting Hook Used to assemble the main body with wall mount bracket or
ceiling mount bracket. Insert the mounting hooks into the holes on
the surface of the main body and turn the main body.
zMounting Screw Hole Used to assemble the main body with a bracket with screws.
zMain Connector Used for the power wire, the video cable and the RS-485
communication cable connection.
zSensorI/O Port Used for the sensor in/out connection. (The sensor I/O function
possible models only)
zLANPort Used for the Ethernet connection. (IP addressable models only)
zAudio Port Used for the audio in/out connection. (IP addressable models only)
zResetSwitch Used to initialize all the network configurations to the factory
default. (IP addressable models only) Press the button for more
than 5 seconds to initialize the network system.
INTRODUCTION 1

Speed Dome Camera Instruction Manual 12/53
DIP Switch Setup
Before installing the camera, set up the DIP switch to configure the camera ID and the
communication protocol.
Camera ID Setup
ON
ON
12345678
zID numbers of cameras are set up with binary numbers.
See the examples shown below.
Pin 1 2 3 4 5 6 7 8
BinaryValue 1 2 4 8 16 32 64 128
ex) ID=5 on off on off off off off off
ex) ID=10 off on off on off off off off
zThe camera ID range is “1~255”. Camera ID must not be
“0”!
zThe factory default of the camera ID is “1”.
zMatch the camera ID with the Cam ID setting of your DVR
or Controller to control the camera.

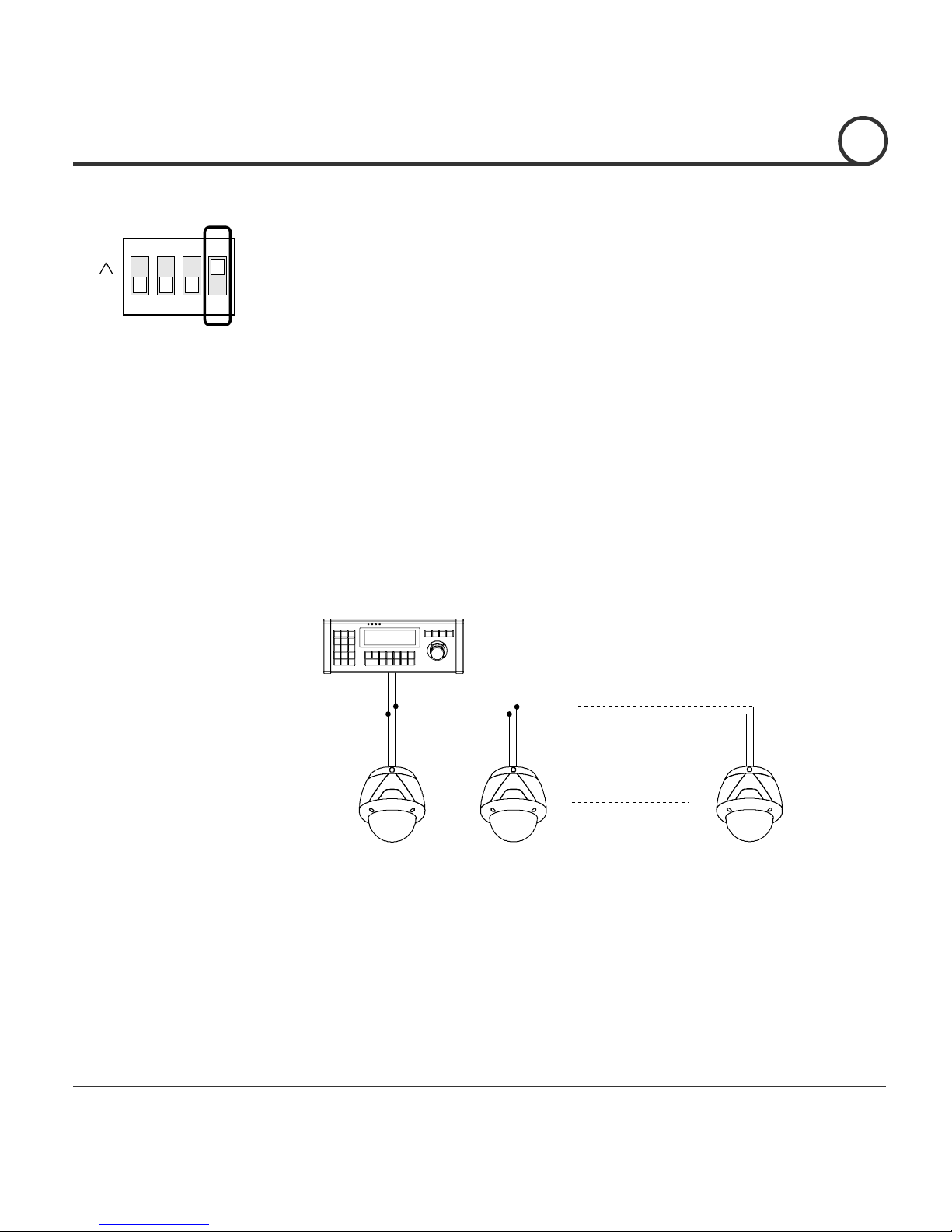

zIf you are connecting a single camera to a controller,
terminate the camera. When connecting more than one
camera to a single controller, terminate the last camera on
the communication line. The last camera means the camera
farthest in cable length from the controller.
zNote that the total length of the communication cable
between a controller and the camera(s) on the same
communication line must be less than 1.2Km.
INSTALLATION 2

Speed Dome Camera Instruction Manual 13/53
Communication Protocol Setup
1234
ON
ON
zSelect an appropriate Protocol with the DIP switch combination.
Switch Mode
P0
(Pin 1) P1 (Pin 2) P2 (Pin 3)
Protocol
OFF OFF OFF PELCO-D, 2400 bps
ON OFF OFF PELCO-D, 9600 bps
OFF ON OFF PELCO-P, 4800 bps
ON ON OFF PELCO-P, 9600 bps
Others Reserved
zMatch the camera protocol with the camera protocol in the setting of
your DVR or controller to control the camera.
zAdjust the DIP switch after turning off the camera. If you changed the
camera protocol by changing the DIP S/W, the change will be effective
after you reboot the camera.
zThe factory default protocol is “Pelco-D, 2400 bps”.
INSTALLATION 2

Speed Dome Camera Instruction Manual 14/53
Terminal Resistor Setup
1234
ON
ON
T
he terminal resistor is used for the following cases.
zCase 1 : In case that the control cable length between a camera and
a controller is relatively very long (1:1 Connection)
If the communication cable length is very long, the electrical signal will
bound in the terminal point. This reflected signal causes distortion of
original signal. Accordingly, the camera can be out of control. In this
case, the terminal resistor of both sides i.e. the camera and the
controller must be set to ‘ON’ state.
zCase 2 : In case that multiple cameras are connected to a
controller.
Due to similar reasons with the case 1, the terminal resister of the
controller and the last camera must be set to ‘ON’ state. The last camera
means the camera farthest in cable length from the controller. Do not
turn on the terminal resistor of all the cameras on the same
communication cable.
Controller
#1 #2 #n
Terminal Resistor ON
RS-485
Terminal Resistor
OFF
Terminal Resistor
OFF
Terminal Resistor
ON
INSTALLATION 2

Speed Dome Camera Instruction Manual 15/53

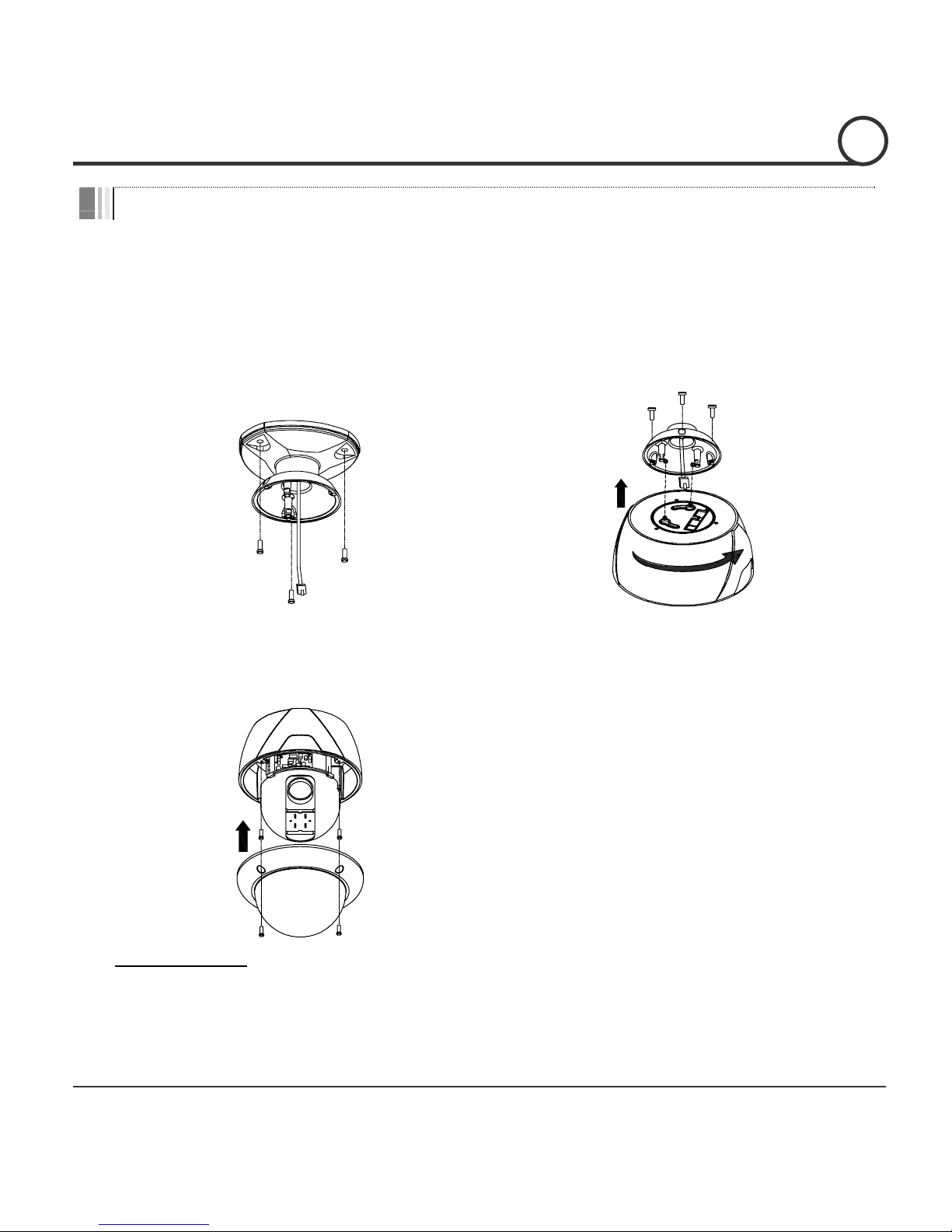

Installation with Ceiling Mount Bracket
①Remove the ceiling tile from the ceiling
and cut a hole whose diameter is
30~40mm on the ceiling tile to pass the
wire(s) and cable(s) through to the upside
of the ceiling. (In case of the wiring and
cabling through the mounting surface
only) Then prepare the ceiling mount
bracket. Pull the wire(s) for the system as
below. (Anchor Bolt 3/8"×70)
②Pull the wire(s) and cable(s) for the
system as below. Wire the cable(s) to the
ports. Insert the mounting hooks into the
holes on the surface of the main body and
turn the main body. Assemble the main
both with the camera mount adaptor with
the 3 screws. (Machine M5×15)
③Screw the dome cover to the main body
and remove the protection vinyl from the
dome cover.
Important Notice
zBefore starting the installation,make sure that the Camera ID and Protocol are set up properly.
zTo adjust the installation height from the mounting surface, the pipe and coupler should be needed
between the surface mount part of the ceiling mount bracket and the camera mount part of the ceiling
mount bracket.Note that they are not supplied by the manufacturer.
INSTALLATION 2

Speed Dome Camera Instruction Manual 16/53
Installation with Wall Mount Bracket
①Make a hole whose diameter is 30~40mm
on the mounting surface to pass the
wire(s) and cable(s) through the mounting
surface. (In case of the wiring and cabling
through the mounting surface only) Then
prepare the wall mount bracket. Pull the
wire(s) and cable(s) for the system as
below. Attach the wall mount bracket to
the mounting surface. (Hex Lag #14×50)
②Pull the wire(s) and cable(s) for the
system as below. Wire the cable(s) to the
ports. Insert the mounting hooks into the
holes on the surface of the main body and
turn the main body. Assemble the main
both with the camera mount adaptor with
the 3 screws. (Machine M5×15)
③Screw the dome cover to the main body
and remove the protection vinyl from the
dome cover.
Important Notice
zBefore starting the installation,make sure that the Camera ID and Protocol are set up properly.
INSTALLATION 2

Speed Dome Camera Instruction Manual 17/53
Wiring and Cabling
RS-485
BNC
SENSOR I/O
LAN CABLE
AUDIO
CABLE
MAIN CABLE
I/O CABLE
BROWSER
POWER
MONITOR
CONTROLLER / DVR
MIC SPEAKER
IR
SENSOR
DOOR
SWITCH
INTERNET
Port Description
zMain Cable
Port Pin Number (RJ45) Connector / Wire Color Signal
1 Video +
2,4 BNC Connector Video −
5 Red RS-485 +
3 Yellow RS-485 −
7 Orange Power +
6,8 White Power −
zI/O Cable
Port Pin Number (RJ25) Wire Color Signal
1 Blue IN COM +
2 Yellow IN 1 −
3 Green IN 2 −
4 Red IN 3 −
5 Black OUT A
6 White OUT B
zAudio Cable
Port Pin Number Connector / Wire Color Signal
1 RCA (Yellow) Audio IN
2 Audio GND
3 RCA (White) Audio OUT
INSTALLATION 2

Speed Dome Camera Instruction Manual 18/53
Power Description
Carefully check the voltage and current capacity of the rated power. The rated power is
indicated in the back of main unit.
Model InputVoltage
Range Current Consumption
BTZ-1000 A8.0
Analog Model
DC12V
Model DC 11V ~ 18V
AC24VModel Analog Model BTZ-2700& BTZ-3700 AC 17V ~ 29V 1.5A
For the DC input models, be careful with the polarity of DC power. The system should be
permanentally damaged by wrong DC input.
In case that the length of the power wire is very long, there may be voltage drop and the
syatem may not work properly. Make the length of the power wire as short as possible.
RS-485 Communication
For PTZ control, connect the cable(s) to your keyboard or DVR. To connect multiple
cameras to a single controller, RS-485 communication should be connected in parallel
as shown below. If you are connecting a single camera to a controller, terminate the
camera. When connecting more than one camera to a single controller, terminate the
last camera on the communication line. The last camera means the camera farthest in
cable length from the controller. Note that the total length of the communication cable
between a controller and the camera(s) on the same communication line must be less
than 1.2Km.
INSTALLATION 2
CONTROLLER / DVR
RS-485
+
-
#1
+
-
#2
+
-
#n
+
-

Speed Dome Camera Instruction Manual 19/53
Video
zUse BNC coaxial cable only.

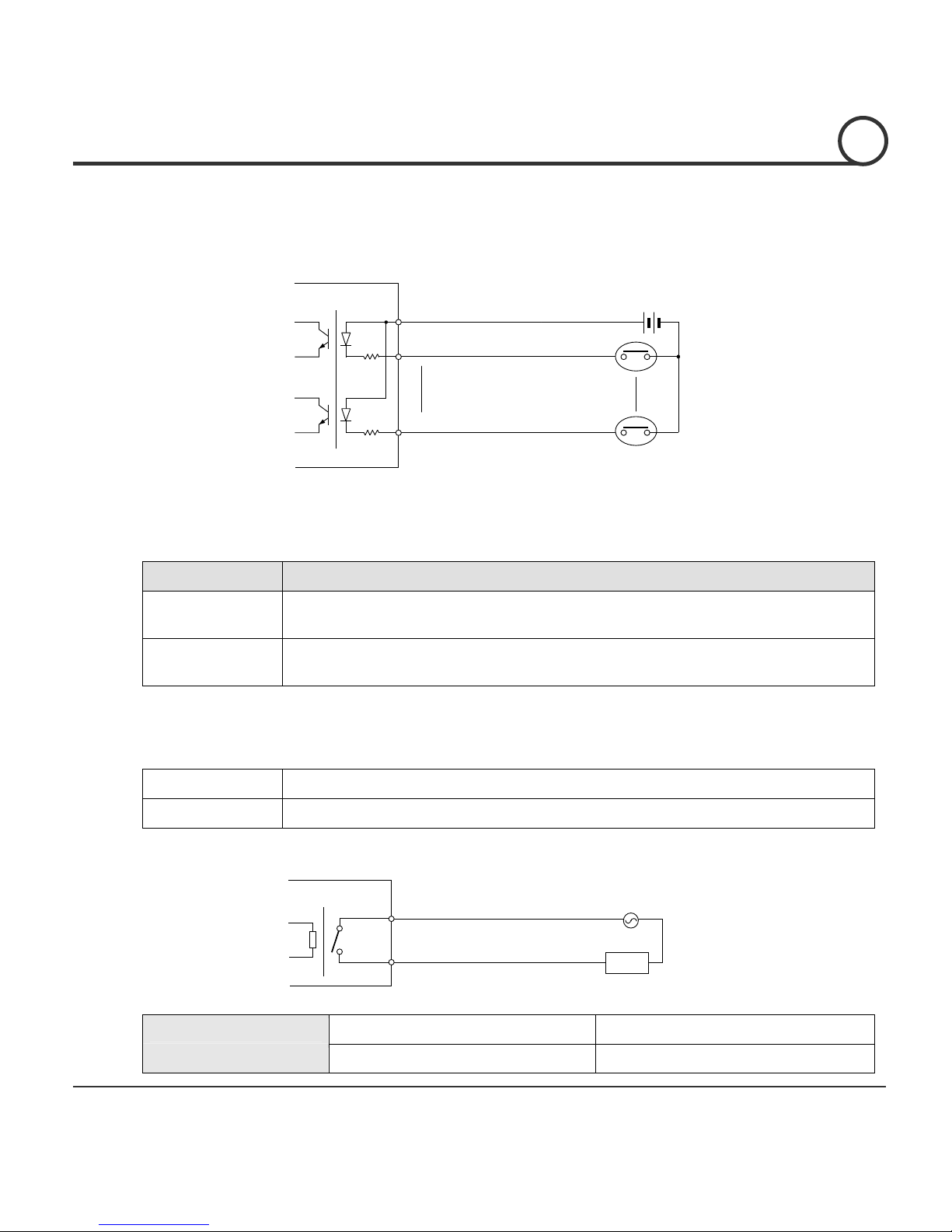

Alarm Input
Before connecting sensors, check driving voltages and output signal types of the sensors.
Since output signal types of the sensors are divided into Open Collector type and
Voltage Output type in general, the wiring must be done properly after considering
those types.
Signal Description
IN COM+ The electric power source to drive input circuit. Connect the (+) wire of electric
power source to drive the Sensors to this port as shown in the above circuit.
IN1 -,IN2-,IN3 - Connect the outputs of sensors to each port as shown in the above
circuit.
If you want to use Alarm Input, the types of sensors must be selected in OSD menu. The
sensor types are divided into Normal Open and Normal Close. If wrong sensor types are
selected, alarms should be activated reversely to sensor inputs.
~Normal Open Output Voltage is high state when sensor is activated
~NormalClose Output Voltage is high state when sensor is not activated
Relay Output
Internal
OUT 1
AC or DC
LOAD
The maximum loads are as follows.
Power Type DC Power AC Power
Maximum Load MAX. DC 24V, 1A MAX. AC 125V, 0.5A
IN COM+
+5V~12V
IN 1-
IN 3- +
+
-
-
+
-
Internal
Sensor 1
Sensor 3
INSTALLATION 2

Speed Dome Camera Instruction Manual 20/53
Check Points before Operation
zBefore turning on the system, check if the wire(s) and cable(s) are connected properly.
zCheck if the camera ID on the controller is properly selected. The camera ID must be
identical to that of the target camera. The camera ID can be checked by reading the DIP
switch of the camera or on OSD.
zIf your controller supports multi-protocols, the protocol must be changed to match to that of
the camera.
zAdjust the DIP switch after turning off the camera. If you changed the camera protocol by
changing the DIP S/W, the change will be effective after you reboot the camera.
zSince the operation method can be different by controllers, refer to your controller manual
if the camera can not be controlled properly. The operation of this manual is based on the
standard Pelco® Controller.
Check Points for Preset and Pattern Function before Operation
zCheck fully how to operate preset function and pattern function with your controller or DVR
in advance to operate the camera functions when using a controller or a DVR.
zRefer to the following table when using standard Pelco® protocol controllers.
< Go Preset > Input [Preset Number] and press [Preset] button shortly.
< Set Preset > Input[PresetNumber]and keep pressing [Preset] button for more than 2 seconds.
< Run Pattern > Input [PatternNumber] and press [Pattern] button shortly.
< Set Pattern > Input [Pattern Number] and keep pressing [Pattern] button for more than 2 seconds.
zIf your controller or DVR has no pattern button or function, use the Hot Keys with preset
numbers. For more information, refer to “Reserved Presets(Hot Keys)” in this manual.
OPERATION 3
