Operating Manual
Your Bambi Air Compressor is a precision engineered product.
By following these simple steps you will ensure years of trouble free use.
Parts & Service are available from your Bambi dealer.
It is important to quote Model, Type & Serial Number in all communications.
The substitution of parts not manufactured nor approved by Bambi can impair
performance, service life and create potential mechanical or personnel hazards and
will invalidate your warranty.
Bambi reserves the right to modify the contents of this operating booklet without
notice and the information is in no way binding on the company.
Warranty
Provided the operating instructions have been followed, and the compressor has
been properly maintained, Bambi VT and VTS compressors are guaranteed against
faulty workmanship for a period of 2 years.
The air receiver is guaranteed for 5 years.
The guarantee does not cover damage by misuse, incorrect parts or service.
Contact Bambi Air Ltd or your retailer for further information.
C
M
Y
CM
MY
CY
CMY
K
VT HandbookA5 Iss 6 0517 PRINT BnC.PDF 1 18/03/2019 13:09

1
1) Safety Precautions
What you must do:
• Read these instructions before using
your air compressor.
• Ensure the compressor has been
installed, electrically connected
and piped in by a properly qualified
person.
• Ensure the compressor is kept upright
at all times.
What you must not do:
• Do not attempt any maintenance on
the compressor until it has been
isolated from the power supply.
• Do not attempt any work on the
compressor until the air receiver
and pipe work systems are
depressurised.
• Compressed air is dangerous if
misused and can prove fatal. Avoid
any bodily contact with compressed air.
• During operation the motor will
become quite hot to the touch.
Avoid contact to prevent burns.
• Never tamper with the pressure relief
valve.
• Never lubricate the oil free motor or
pump assembly; this will cause
severe damage.
• Never obstruct cooling fans or outlet
vents.
2) Siting The Compressor
What you must do:
• Provide adequate protection from the
weather.
• Site the compressor level in both
planes.
• Larger models are heavy. Ensure the
surface has sufficient load bearing
capacity.
• Allow access for maintenance all
around the compressor.
• Site in a dry area, avoiding damp or
humid conditions. The site must be
dust free, well ventilated and have
a cool ambient temperature. 40°C
should be regarded as the maximum
allowable ambient.
What you must not do:
• Enclose the compressor or allow
hot air generated by the motor to
re-circulate around the compressor.
Ensure there is 30cm clearance
around the compressor
• Restrict air flow around the after
cooler, after cooler fan unit or end
cover ventilation [S models].
Important ! For Silenced VTS Models:
These compressors generate heat.
Never restrict any of the ventilation grilles
otherwise serious damage may occur.
Electrical Connections
Where applicable, compressors are supplied with a moulded plug in accordance with
national standards.
Never remove the moulded plug.
The use of extension cables is not recommended as this may cause voltage drops which
can result in damage to the motor.
Note !
Duplex models VT300/300D, VT400/400D must be connected to a dedicated fused 20 amp supply.
Wired in accordance with European Standard –
Single phase: Blue = neutral, Brown = live, Yellow & Green Stripe = earth
Three phase: Brown/Black/Grey = Phase conductors
Blue = Neutral
Yellow and Green Stripe = earth
Three phase compressors should be connected by a competent person
All three phase units require neutral supply

2
3) Unpacking Instructions for:
VTS75 / VTS150 / VTS200/ VTS250
3.1) Fitting Mounting Castors
Before using the compressor you must remove the external packaging and fit the
castors supplied as they also provide essential clearance for the lower cooling fan
exhaust.
Note !
Failure to do so will cause damage and invalidate your warranty
Remove the four bolts securing the compressor to its wooden packing, carefully lift
the compressor to enable you to screw in the four castors using the same mounting
holes.
Take care lifting the compressor, some models are heavy.
3.2) Removing Internal Transit Packing
Before using the compressor you must remove the internal packing, failure to do so
will cause damage to the compressor. The procedure is as follows -
3.3) Fitting Condensate Bottle – VTS Dryer models only
Compressors fitted with an air dryer are supplied with a
condensate tank which you will need to fit before use.
Attach the condensate bottle mounting bracket to the front panel
of the compressor using the 2 plastic clips provided. These are
a simple push fit.
Slide the condensate bottle into the mounting bracket.
Fig.2 - VTS Condensate bottle position
Push the black plastic condensate tube which emerges from the front panel into the
hole in the lid of the bottle. As on Fig. 2
Fit the exhaust silencer to the condensate tube by pushing firmly on to the end of the tube.
Re-fit the bottle lid.
Using the hex key provided,
remove the 3 bolts fixing the
left hand end cover in place
(when viewed from the front)
– see fig 1.
There are three packing
pieces, two either side of the
pump unit, one on top of the
cooling fan assembly.
Ensure that these are
removed.
Reassembly is a reverse of the above but do not over-tighten the cover fixing bolts.
Using the hex key
provided, remove the 4
bolts fixing the top cover
in place and remove the
top cover
- see fig 1a.
There is one packing
piece on the top of the
pump unit.
Ensure that this is
removed.
VTS75/150/200 VTS250D
Fig 1.
Fig 1a.

3
4) Operation

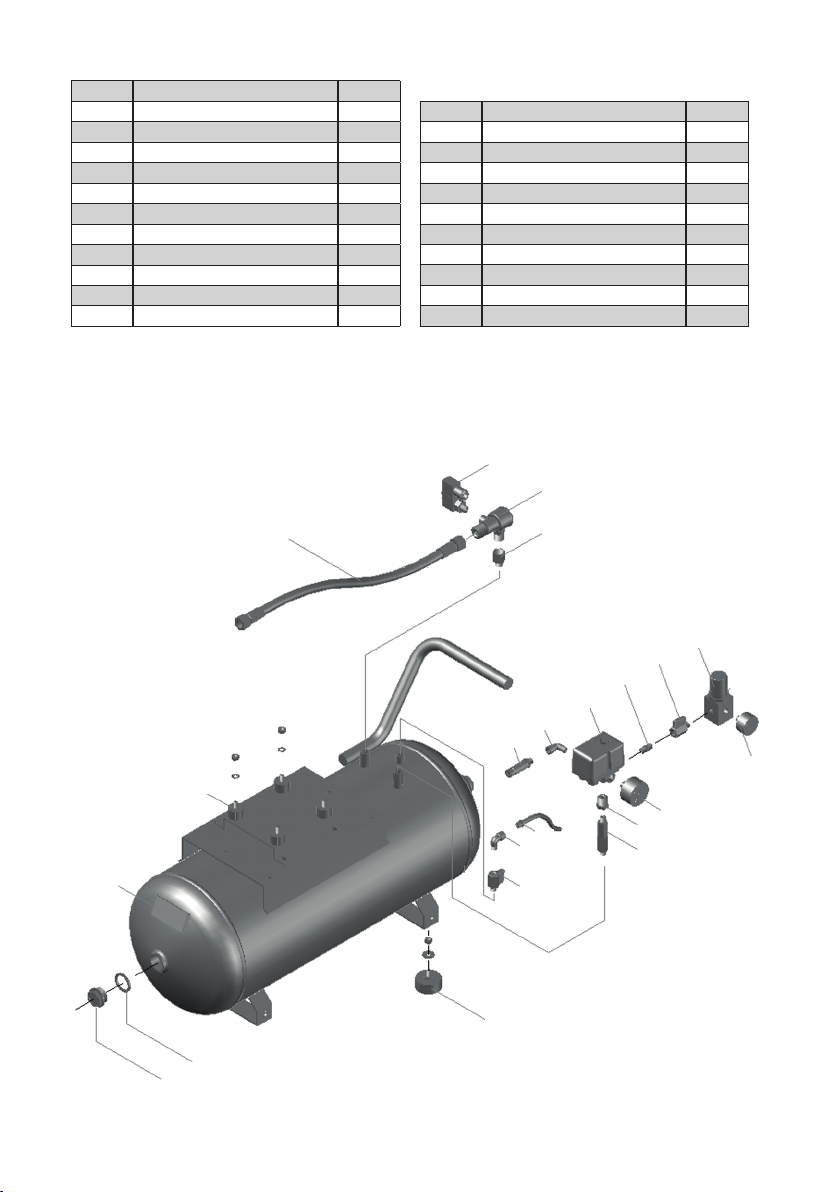

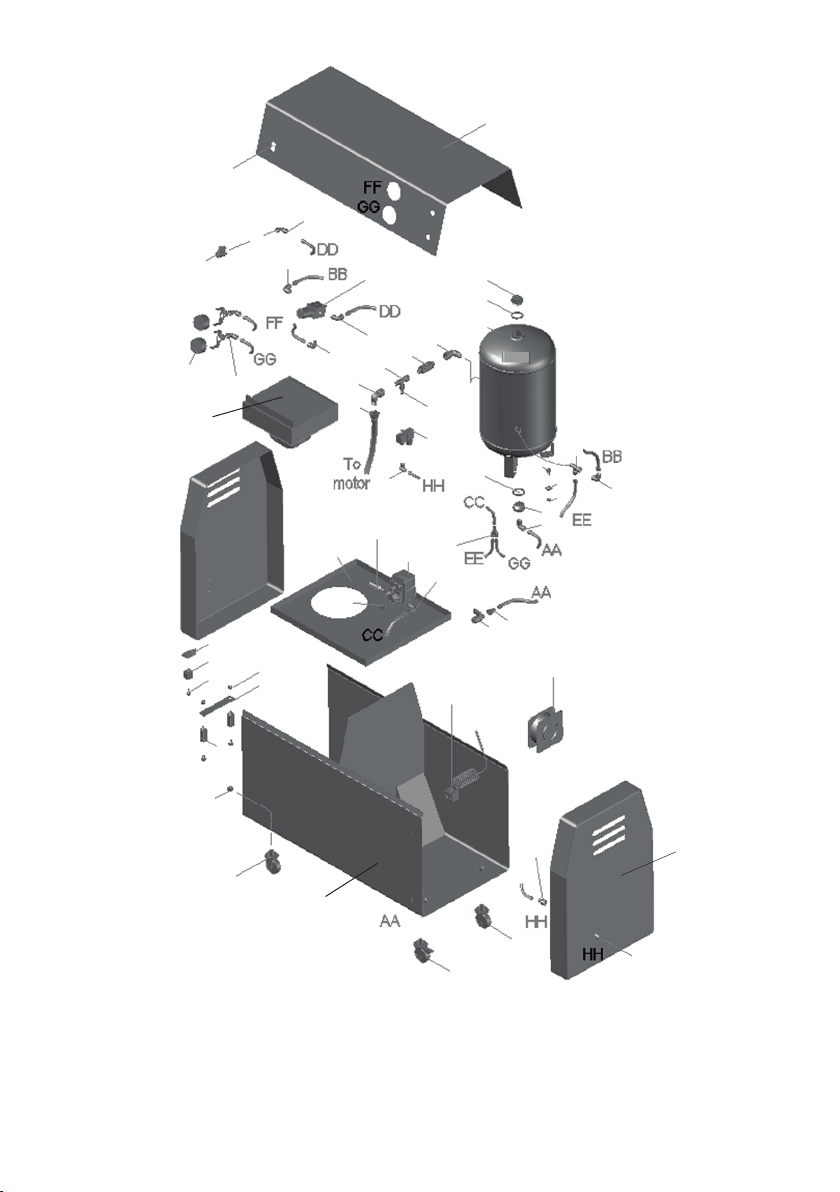

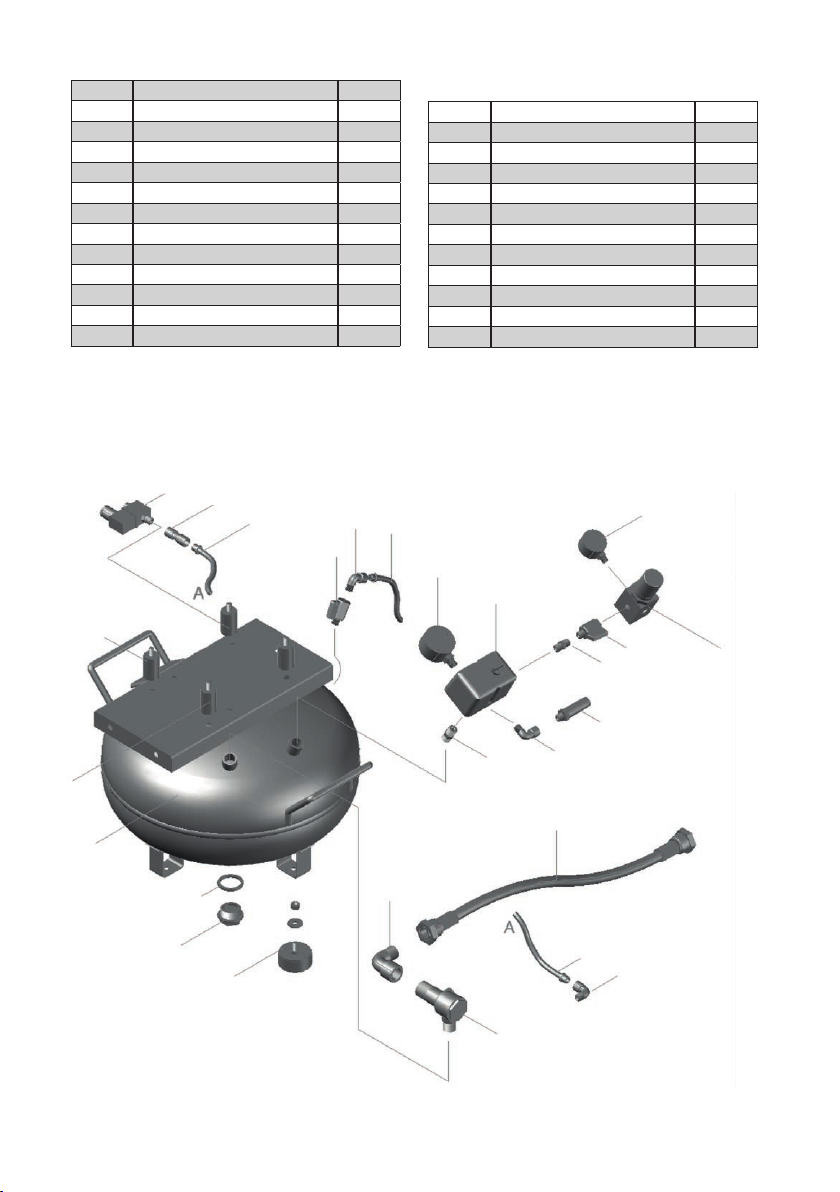

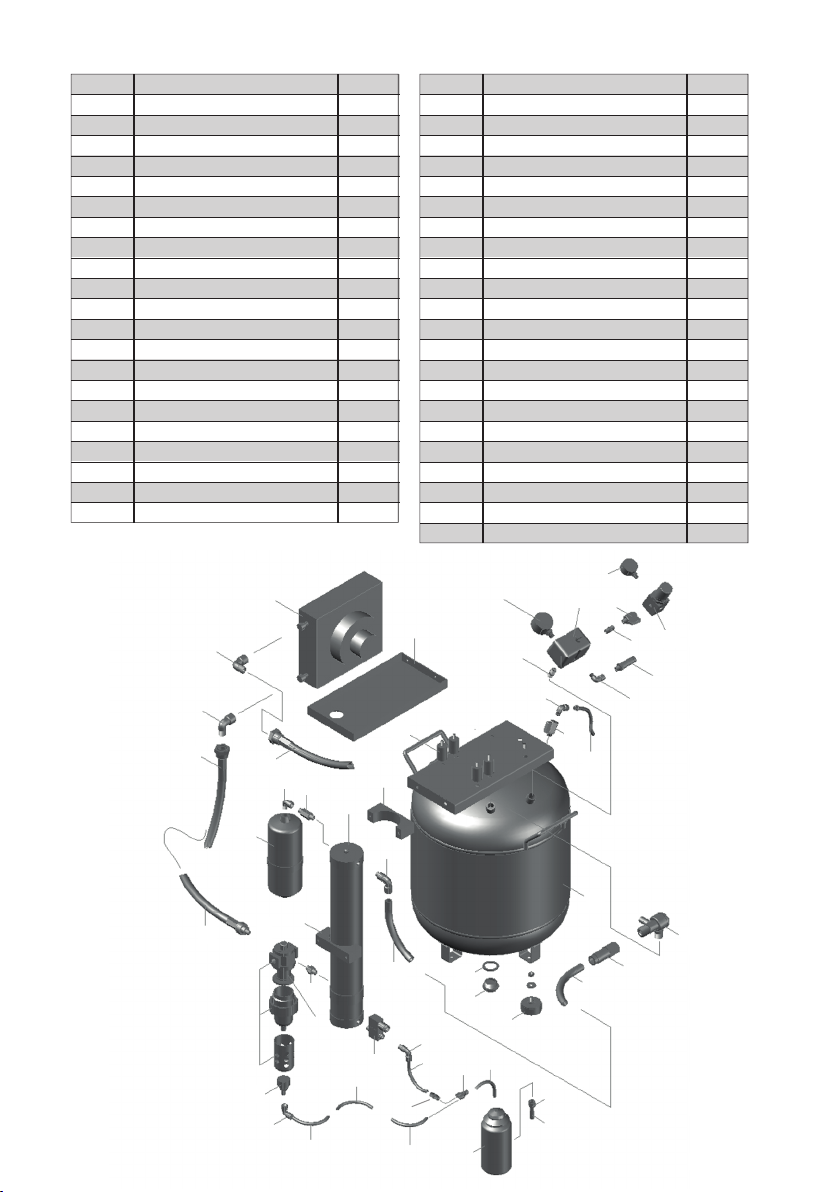

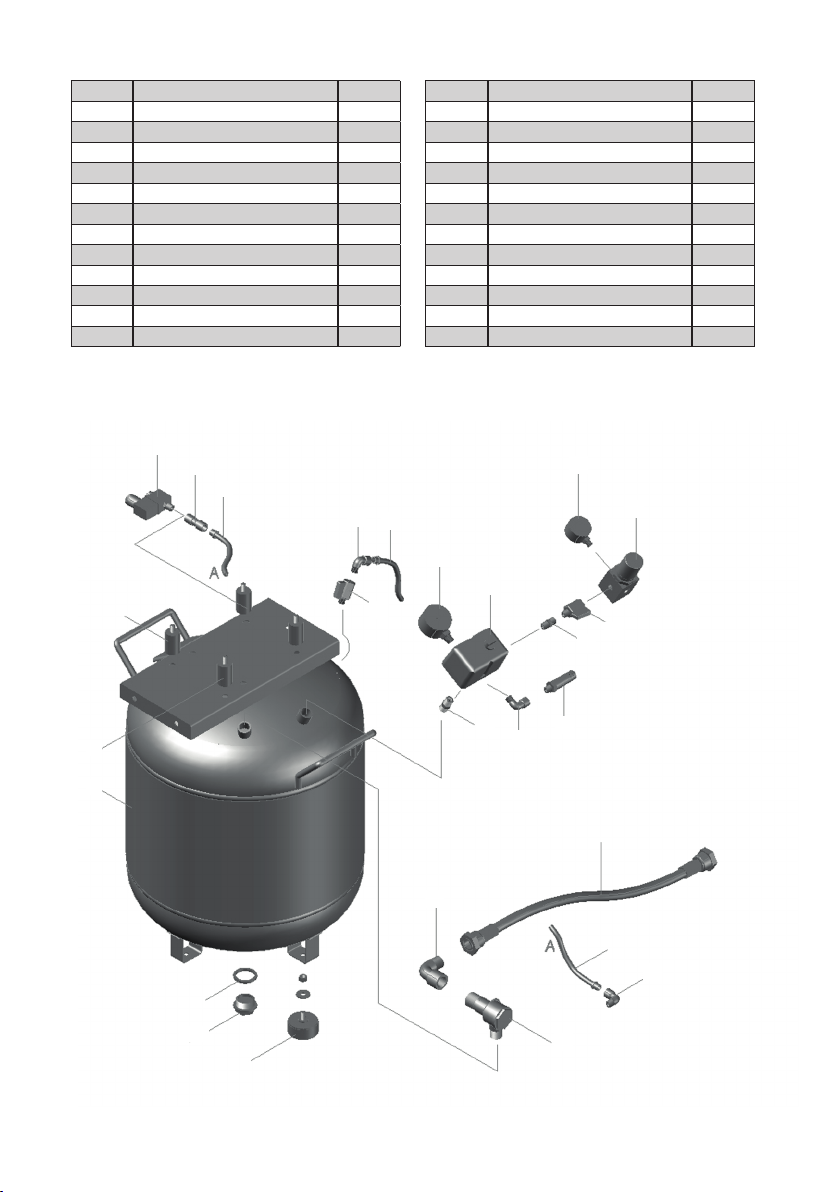

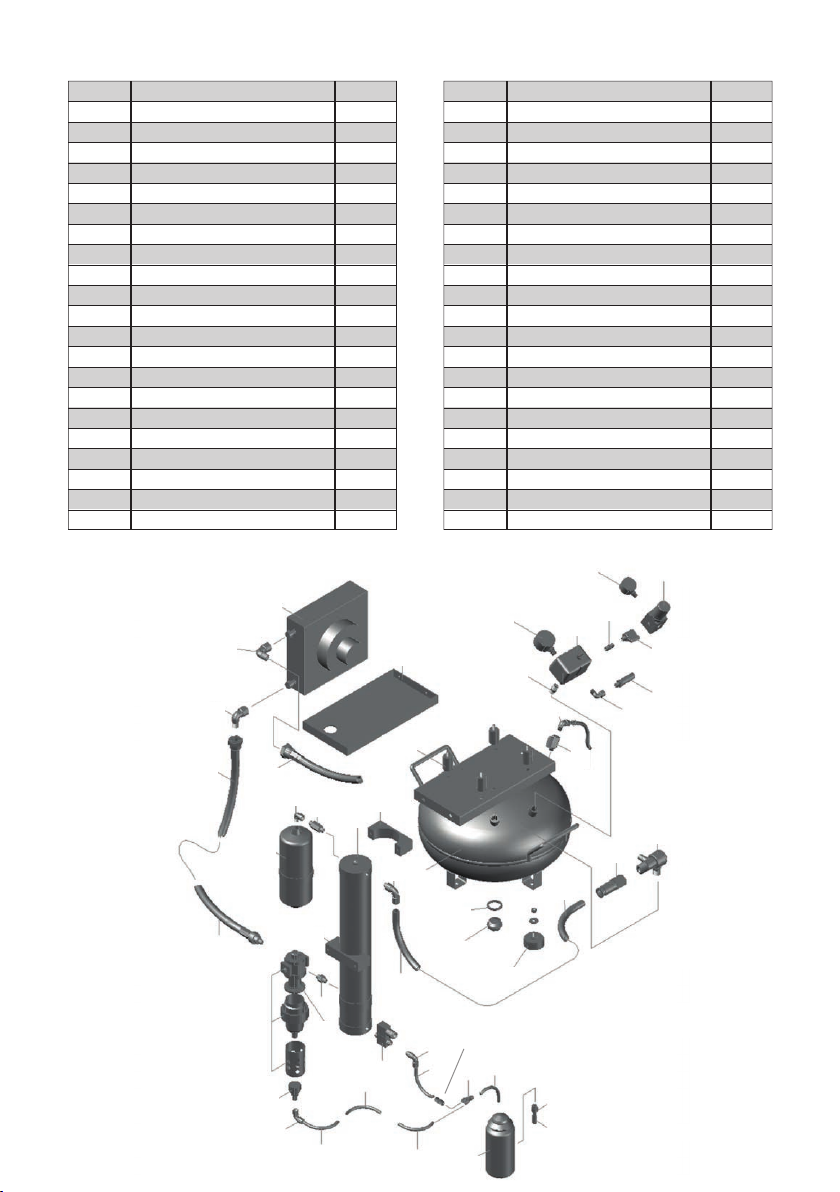

Refer to exploded parts diagrams and illustrations when reading this section.
Airline should be fitted to the regulator outlet.
Note ! For VTS Models
Ensure the transit packing has been removed as described in the previous section.
Failure to do so will cause damage and invalidate your warranty
4.1) Starting & Stopping
Plug the compressor into an outlet socket of nominal voltage and fitted with the
correct fuse as shown in section Electrical Connections.
Switch the compressor on (I) using the on/off switch located on the front panel or
pressure switch - see fig 3 pictures:
Fig. 3 On off switch versions
The compressor will start running and automatically
switch off at the preset pressure.
Note!
Duplex Models VT300/300D, VT400/400D are fitted with a sequential start system to
reduce electrical loading. You will notice one motor starting a few seconds after the
other [single phase only]. This is normal.
As air is used the pressure drops and the motor will restart at the preset pressure.
Approx 2 Bar differential.
Note !
Each time the compressor switches off or the power supply is interrupted, you will
hear a short hiss of air. You are hearing the unloader valve discharging the residual
delivery pipe pressure. This is normal.
4.2) Adjusting Outlet Pressure
Use the pressure regulator to adjust the outlet pressure.
To increase line pressure, rotate the black knob next to the
pressure gauge in a clockwise manner, to decrease turn anti
clockwise. It is possible to lock the setting by pushing the knob
down until it “clicks” home – see fig 4.
Fig 4: Gauge layouts
On cabinet [VTS] models, gauges are labelled.
On others:
The smaller gauge is SELECTED pressure
The larger is RECEIVER pressure
C
M
Y
CM
MY
CY
CMY
K
VT HandbookA5 Iss 6 0517 PRINT BnC.PDF 1 18/03/2019 13:13

4
5) Routine Maintenance
Refer to preventative maintenance section for frequency.
5.1) Draining the Air Receiver
Drain condensate from air receiver at a pressure of no more than 2 Bar.

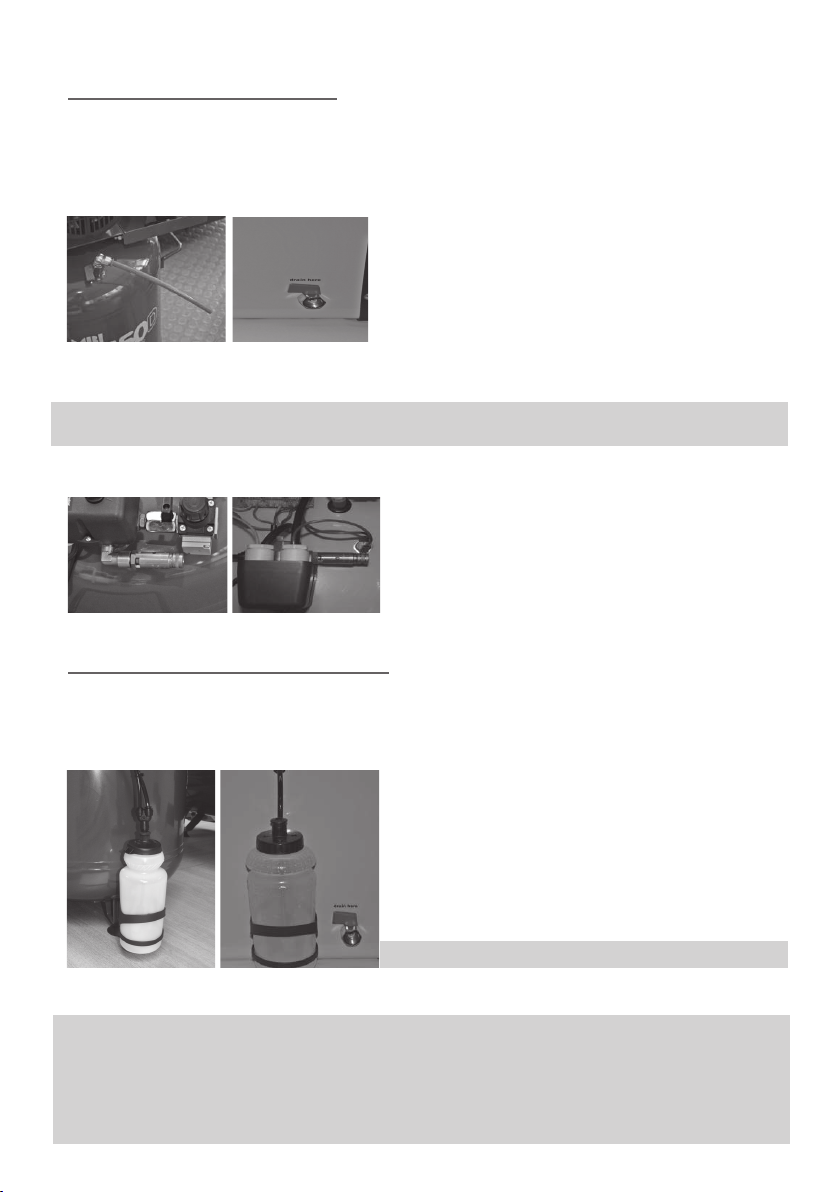

Slowly open the red coloured drain tap
provided to allow water to flow out – see fig 5.
Fig. 5 Drain tap types
Close drain tap when all water has drained off.
Draining is not required on dryer equipped
models.
Automatic drains where fitted do not require draining, however the condensate tank
will require emptying – see following section “Operation Dryer Models”.
Note !
Waste condensate must be handled in accordance with national environmental rules.
5.2) Check Pressure Relief Valve
Ensure the air receiver is not pressurised.
On “S” models, refer to section 8: Removing
Housing Cover
Unscrew the knurled end of the pressure
relief valve until an audible “click” is heard.
Retighten without using excessive force.
Fig. 6 Pressure relief valve positions
6) Operation – Dryer Models
When equipped with an air dryer unit, the compressor will automatically dry the compressed
air before it is stored in the air receiver. This happens automatically and requires no additional
maintenance.This eliminates the need to manually drain the air receiver.
Operation is similar to standard versions with
the following change :-
Each time the compressor switches off or the
power supply is interrupted, the dryer purge
valve opens and automatically activates
the drain valve on the after cooler filter
allowing the dryer tower to regenerate. All
accumulated moisture will discharge into the
condensate tank.
This should be emptied when it reaches ¾ full.
Do not exceed the recommended 50% duty cycle, otherwise the dryer will not activate
and the humidity of the air will increase.
Ensure the after cooler fins are kept clear of accumulated dust.
Fig. 7 Condensate tank locations

5
You must find the cause of the overload and rectify this before continuing to use the
compressor.
Check for -
• Drain tap not closed properly
• Air leaks on the pneumatic fittings
• Compressor not the correct size for the work load
• Cooling fan outlets restricted
Contact your service engineer to investigate the cause.
7) Technical
We recommend the compressor has a maximum 50% duty cycle to prolong pump life.
Note !
The motor must never be allowed to run continuously otherwise it will overheat and
may become damaged.
Do not ignore air leaks. All air connections must be leak free to prevent the
compressor from over heating.
The compressor is fitted with 2 thermal overloads. In the event of excessive
temperature the compressor will switch off and the external thermal protector will
activate. To re-set follow the procedure below-
Models: VT[H]75/75D, VT[H]150/150D, VT[H]200/200D, VT250/250D
Switch off at the pressure switch [see Fig. 2]. Allow 50 minutes for the motor to cool
down then switch back on at the pressure switch. The compressor will now restart.
Models: VTS75/75D, VTS150/150D, VTS200/200D, VTS250/250D
Do not switch the compressor off after overheating as this will prevent the internal
cooling fans which reduce the temperature inside the housing from running.
Allow 50 minutes for the motor to cool down.
Press the thermal re-set button, you will hear an audible click –
see fig 7.
The compressor will now restart.
Models: VT300/300D, VT400/400D
The re-set is integral with the pressure switch.
The pressure switch will automatically turn off (0) in the event of motor overload.
Turn the pressure switch to the on position [see Fig. 3].
The compressor will now restart.
If the compressor still does not run, switch off immediately and disconnect from the
mains supply.

6
Preventative Maintenance
Operation Daily Weekly Annually 2 Years
Drain Air Receiver •
Replace Air Intake Filter •
Check Pressure Relief Activation •
Clean After Cooler Fins •
Clean Ventilation Grilles •
Check Piston Ring •
Replace Air Dryer Filter •
Desiccant Change •
Coalescing Filter Element •
Above are to be considered minimum frequency
8) Removing Housing Cover (VTS Models Only)
For routine maintenance it may be necessary to remove the top cover. Adhere to the
following procedure:
Models: VTS 75/75D, 150/150D, 200/200D
Disconnect from the mains power supply and release all the air from the compressor
and the air system.
Using the hex key provided, remove the 3 bolts fixing each end cover in place and
remove the end covers.
Remove the bolts holding the top cover in place.
Gently lift up the top housing.
Note !
Do not use excessive force as this will strain the electrical and air connections.
Carefully pull apart the electrical multi connector by squeezing the side clips and
gently pulling the connector apart. Do not use excessive force.
To release the air connections, push the connector collar in and simultaneously pull
the air tube out.
Reassembly is a reverse of the above but check that -
•The air tubes are pushed fully home into the connector and seal
•The electrical connector is secure
•No wires or air tubes are trapped in the housing join
Models: VTS250/250D
Disconnect from the mains power supply and release all the air from the compressor
and the air system
Using the hex key provided, remove the 4 bolts fixing the top cover in place and
remove the top cover.

7
Technical Specification
VT 0.75Hp Pump Specification
Motor kW / Hp 0.55 / 0.75
Voltage 220/240
Frequency Hz 50
Amps 3.9
Displacement l/min 120
VT 1.5Hp Pump Specification
Motor kW / Hp 1.1 / 1.5
Voltage [Single phase - 3 phase] 220/240 - 380/415
Frequency Hz 50
Amps [Single phase - 3 phase] 6.8 - 2.9
Displacement l/min 175
VT 2.0Hp Pump Specification
Motor kW / Hp 1.5 / 2.0
Voltage [Single phase - 3 phase] 220/240 - 380/415
Frequency Hz 50
Amps [Single phase - 3 phase] 9.9 - 3.6
Displacement l/min 220
VT 2.5Hp Pump Specification
Motor kW / Hp 1.84 / 2.5
Voltage [Single phase - 3 phase] 220/240 - 380/415
Frequency Hz 50
Amps [Single phase - 3 phase] 12.9 - 4.6
Displacement l/min 300

8
VT75
Ref No. Description Part no.
1 Rubber foot BPB0601
2 Inspection plug BPB0243
3 Inspection plug seal BPB0502
4 24 litre tank BPB0260
5 30mm rubber mounting BPB1296
6 Solenoid c/w cable BPB0545
7 1/8 x 6mm push fitting BPB0154
86mm black nylon tube BPB0203
9 Drain valve tap BPB0281
10 3/8 x 10mm tube elbow BPB0277
11 Red nylon drain tube BPB0284
12 50mm tank pressure gauge BPB0658
13 Pressure switch BPB0550
14 40mm line pressure gauge BPB0657
15 Pressure regulator BPB0510
16
18 Safety valve BPB1084
19 1/4 M/F elbow BPB1139
20 3/8 adaptor BPB0283
21 Delivery pipe BPB0508
22 1/8 x 6mm elbow push fitting BPB0044
23 3/8 Elbow BPB0282
24 Non-return valve BPB0656
1
3
5
7
8
9
10 11
13
12
14
15
16
18
19
20
21
22
23
24
2
4
5
8
6
1/4 x 1/4 adaptor BPB1078
C
M
Y
CM
MY
CY
CMY
K
VT HandbookA5 Iss 6 0517 PRINT BnC.PDF 1 18/03/2019 13:14
17
C
M
Y
CM
MY
CY
CMY
K
VT HandbookA5 Iss 6 0517 PRINT BnC.PDF 1 18/03/2019 13:17
17 1/4 on-off tap BPB1079

9
VTH75
Ref No. Description Part no.
1 Rubber foot BPB0601
2 Inspection plug BPB0243
3 Inspection plug seal BPB0502
4 24 litre tank BPB0473
5 Non-return valve BPB0656
6 Reducing bush BPB0918
7 Solenoid c/w cable BPB0545
8 3/8 x 1/4 Reducing bush BPB0356
9 30mm rubber mounting BPB1296
10 Drain valve tap BPB0895
11 3/8 x 10mm tube elbow BPB0276
12 Red nylon drain tube BPB0284
13 50mm tank pressure gauge BPB1081
14 Pressure switch BPB0550
15 40mm line pressure gauge BPB1077
16 Pressure regulator BPB0510
17 1/4 x 1/4 adaptor BPB1078
18 1/4 on-off tap BPB1079
19 Safety valve BPB1084
20 1/4 M/F elbow BPB1139
21 1/4 Extension piece BPB0152
22 Delivery pipe BPB0798
1
7
15
16
17
18
19
20
22
2
4
11
13
14
12
3
8
6
5
9
10
21

10
VT75D
Ref No. Description Part no.
1 Condensate diffuser BPB0588
2 1/8 x 6mm push tube fitting BPB0154
3 Condensate bottle - complete BPB0088
4 6mm nylon tube BPB0203
5 6mm tube divider BPB0279
6 1/8 x 6mm Tube Elbow BPB0278
7 Solenoid valve c/w cable BPB0545
8 Dryer assembly BPB0548
9 1/4 x 3/8 un equal adaptor BPB0591
10 270mm Delivery pipe BPB0858
11 3/8 elbow BPB0282
12 Air filter BPB1359
12a Coalescing filter Auto-drain BPB1336
13 Air filter element BPB1367
14 10mm Nylon tube BPB0551
15 Aftercooler - complete BPB0560
16 Aftercooler mounting bracket BPB0557
17 30mm mounting rubber BPB1296
18 Drain valve tap BPB0281
19 Red nylon drain tube BPB0284
20 3/8 x 10mm tube swivel elbow BPB0277
21 3/8 Adaptor BPB0283
22 50mm tank pressure gauge BPB0658
23 Pressure switch BPB0550
24 1/4 Adaptor BPB1078
25 40mm line pressure gauge BPB0657
26 Pressure regulator BPB0510
27 1/4 On-off tap BPB1079
28 Safety valve BPB1084
29 1/4 elbow BPB1139
30 Non-return valve BPB0656
31 3/8 x 10mm straight tube conn. BPB0275
32 Rubber foot BPB0601
33 Inspection plug BPB0243
34 Inspection plug seal BPB0502
35 24 litre tank BPB0260
36 1/4 x 10mm Tube swivel elbow BPB0276
37 Dryer mounting clamp BPB0503
38 Purge tank bleed pipe BPB0775
39 Delivery pipe BPB0508
40 Purge tank BPB0484
21
1
3
5
6
7
8
9
10
11
14
12
11
16
17
19
20
22
23 24 25
26 27
28
29
30
31
32
33
34
35
36
37
38
2
15
41
39
40
30
10
15
15
15
41
13 15
15
4
18
43
42
C
M
Y
CM
MY
CY
CMY
K
VT HandbookA5 Iss 6 0517 PRINT BnC.PDF 1 18/03/2019 13:26
41 Push fit Reducer 10mm Male 6mm female BPB1338
Ref No. Description Part No.
1 1/4BSP Condensate Diffuser BPB1348
2 1/4BSPF x 10mm Tube connnector BPB1347
3 Condensate bottle - complete BPB0088
4 6mm nylon tube BPB0203
5 10mm Push fit Y connector BPB1346
6 1/8 x 6mm Tube Elbow BPB0278
7 Solenoid valve c/w cable BPB0545
8 Dryer assembly BPB0548
9 1/4 x 3/8 un equal adaptor BPB0591
10 270mm Delivery pipe BPB0858
11 3/8 elbow BPB0282
12 Air Filter - Centrifugal - Coalescing BPB1359
13 Coalescing filter Auto-drain BPB1336
14 Element for BPB1359 BPB1367
15 10mm Nylon tube BPB0551
16 Aftercooler - complete BPB0560
17 Aftercooler mounting bracket BPB0557
18 30mm mounting rubber BPB1296
19 Drain valve tap BPB0281
20 Red nylon drain tube BPB0284
21 3/8 x 10mm tube swivel elbow BPB0277
22 3/8 Adaptor BPB0283
23 50mm tank pressure gauge BPB0658
24 Pressure switch BPB0550
25 1/4 Adaptor BPB1078
26 40mm line pressure gauge BPB0657
27 Pressure regulator BPB0510
28 1/4 On-off tap BPB1079
29 Safety valve BPB1084
30 1/4 elbow BPB1139
31 Non-return valve BPB0656
32 3/8 x 10mm straight tube conn. BPB0275
33 Rubber foot BPB0601
34 Inspection plug BPB0243
35 Inspection plug seal BPB0502
36 24 litre tank BPB0260
37 1/4 x 10mm Tube swivel elbow BPB0276
38 Dryer mounting clamp BPB0503
39 Purge tank bleed pipe BPB0775
40 Delivery pipe BPB0508
41 Purge tank BPB0484
42
Push fit Reducer 10mm Male 6mm female BPB1338
43 Push fit elbow 10mm M/F BPB1345

11
VTH75D
Ref No. Description Part no.
1 Condensate diffuser BPB0588
2 1/8 x 6mm push tube fitting BPB0154
3 Condensate bottle - complete BPB0088
4 6mm nylon tube BPB0203
5 6mm tube divider BPB0279
6 1/8 x 6mm Tube Elbow BPB0278
7 Solenoid valve c/w cable BPB0545
8 Dryer assembly BPB0548
9 1/4 x 3/8 un equal adaptor BPB0591
10 10mm black nylon tube BPB0551
12 Air filter BPB1359
12a Coalescing filter - auto drain BPB1336
13 Air filter element BPB1367
14 3/8 elbow BPB0282
15 Aftercooler - complete BPB1231
16 1/4 x 10mm Elbow BPB0820
17 Non Return Valve BPB0656
18 1/4 Extension piece BPB0152
18a 1/4 x 3/8 Reducing bush BPB0356
19 Purge tank bleed valve BPB0775
20 30mm mounting rubber BPB1296
21 1/4 Drain valve tap BPB0895
22 Red nylon drain tube BPB0284
23 1/4 x 10mm Tube swivel elbow BPB0276
25 50mm tank pressure gauge BPB1081
26 Pressure switch BPB0550
27 1/4 On-off tap BPB1079
28 40mm line pressure gauge BPB1077
29 Pressure regulator BPB0510
30 1/4 adaptor BPB1078
31 Safety valve BPB1084
32 1/4 elbow BPB1139
35 Rubber foot BPB0601
36 Inspection plug BPB0243
37 Inspection plug seal BPB0502
38 24 litre tank BPB0473
40 Dryer mounting clamp BPB0503
42 Delivery pipe BPB0508
43 Purge tank BPB0484
44 Delivery pipe BPB0858
45 Push fit Elbow 6mm M/F BPB1339
46 Adaptor BPB0918
1
5
7
8
9
10
15
22
23
24
27 28
29
30
31
33
34 35
24
2
10
26
25
36
40
39
37
6
13
14
11
32
3
12
10
14 17
40
10
32
18
38
14
20
16
19
41
42
21
43
47 Push fit Reducer 10mm Male 6mm female BPB1338
4
Ref No. Description Part No.
1 1/4BSP Condensate Diffuser BPB1348
2
1/4BSPF x 10mm Tube connnector BPB1347
3 Condensate bottle - complete BPB0088
4 6mm nylon tube BPB0203
5 10mm Push fit Y connector BPB1346
6 1/8 x 6mm Tube Elbow BPB0278
7 Solenoid valve c/w cable BPB0545
8 Dryer assembly BPB0548
9 1/4 x 3/8 un equal adaptor BPB0591
10 10mm black nylon tube BPB0551
11 Air Filter - Centrifugal - Coalescing BPB1359
12 Coalescing filter - auto drain BPB1336
13 Element for BPB1359 BPB1367
14 3/8 elbow BPB0282
15 Aftercooler - complete BPB1231
16 1/4 x 10mm Elbow BPB0820
17 Non Return Valve BPB0656
18 1/4 Extension piece BPB0152
19 1/4 x 3/8 Reducing bush BPB0356
20 Purge tank bleed valve BPB0775
21 30mm mounting rubber BPB1296
22 1/4 Drain valve tap BPB0895
23 Red nylon drain tube BPB0284
24 1/4 x 10mm Tube swivel elbow BPB0276
25 50mm tank pressure gauge BPB1081
26 Pressure switch BPB0550
27 1/4 On-off tap BPB1079
28 40mm line pressure gauge BPB1077
29 Pressure regulator BPB0510
30 1/4 adaptor BPB1078
31 Safety valve BPB1084
32 1/4 elbow BPB1139
33 Rubber foot BPB0601
34 Inspection plug BPB0243
35 Inspection plug seal BPB0502
36 24 litre tank BPB0473
37 Dryer mounting clamp BPB0503
38 Delivery pipe BPB0508
39 Purge tank BPB0484
40 Delivery pipe BPB0858
41 Push fit elbow 10mm M/F BPB1345
42 Adaptor BPB0918
43
Push fit Reducer 10mm Male 6mm female BPB1338

12
VT150 / VT200
Ref No. Description Part no.
1 Rubber foot BPB0601
2 Inspection plug BPB0243
3 Inspection plug seal BPB0502
4 50 litre tank BPB0261
5 30mm Rubber mounting BPB1296
6 Solenoid valve c/w cable BPB0545
7 1/8 x 6mm push fitting BPB0154
86mm nylon tubing BPB0203
9 3/8 drain tap BPB0281
10a 3/8 x 10mm tube elbow [VT200] BPB0280
10b 3/8 x 10mm tube elbow [VT150] BPB0277
11 Drain tube BPB0284
12 50mm tank pressure gauge BPB0658
13 Pressure switch BPB0550
14 40mm line pressure gauge BPB0657
15 Pressure regulator BPB0510
16 1/4 adaptor BPB1078
17 On-off tap BPB1079
18 Safety valve BPB1084
19 1/4 elbow BPB1139
20 3/8 adaptor BPB0283
21 Delivery pipe BPB0508
22 1/8 x 6mm elbow tube fitting BPB0044
23 3/8 elbow BPB0282
24 Non-return valve BPB0656
1
3
5
6
7
8
10
9
11
12
13
14
15
16 17
18
19
20
21
22
23
24
4
5
8
2

VTH150 / VTH200
Ref No. Description Part no.
1 Rubber foot BPB0601
2 Inspection plug BPB0243
3 Inspection plug seal BPB0502
4 50 litre tank BPB0474
5 Non return valve BPB0656
6 Adaptor BPB0918
7 Solenoid valve c/w cable BPB0545
8 30mm Rubber mounting BPB1296
93/8 x 1/4 Reducing bush BPB0356
10 1/4 drain tap BPB0895
11 1/4 x 10mm tube elbow BPB0276
13
12 Drain tube BPB0284
13 50mm tank pressure gauge BPB1081
14 Pressure switch BPB0550
15 40mm line pressure gauge BPB1077
16 Pressure regulator BPB0510
17 1/4 Adaptor BPB1078
18 On-off tap BPB1079
19 Safety valve BPB1084
20 1/4 Elbow BPB1139
21 1/4 Extension piece BPB0152
22 Delivery pipe BPB0798
1
7
8
13
14
16
17
18
19
20
22
2
4
11
12
10
3
6
5
21
9
15

VT150D / VT200D
14
1
3
5
43
7
11
13
12
13
14
15
16 17
18
19
20
23
24
25
26
27
28
29
30
31
32
33
35
2
41
41
41
41
12
22
21
41
34
36
37
38
39
40
36
41
4
6
9
10
8
28
Ref No. Description Part no.
1 Condensate diffuser BPB0588
2 1/8 x 6mm Push fitting BPB0154
3 Condensate bottle complete BPB0088
4 6mm Nylon tube BPB0203
5 6mm Divider BPB0279
6 Push fit Elbow 6mm M/F BPB1339
7 Solenoid valve c/w cable BPB0545
8 Air filter BPB1359
8a Coalescing filter - automatic drain BPB1336
9 Air filter element BPB1367
10 1/4 x 3/8 adaptor BPB0591
11 270mm Delivery pipe BPB0858
12 38bsp M/F plated elbow BPB0282
14 Aftercooler BPB0561
15 Aftercooler bracket BPB0557
16 30mm Rubber mounting BPB1296
17 3/8 Drain tap BPB0281
18 10mm Drain tube BPB0284
19 3/8 x 10mm Elbow [VT200D] BPB0280
19a 3/8 x 10mm Elbow [VT150D] BPB0277
20 3/8 M adaptor BPB0283
21 50mm Tank pressure gauge BPB0658
22 Pressure switch BPB0550
23 40mm Line pressure gauge BPB0657
24 Pressure regulator BPB0510
25 1/4 Adaptor BPB1078
26 On/off tap BPB1079
27 Safety valve BPB1084
28 1/4 Elbow BPB1139
29 Non-return valve BPB0656
30 50 Litre tank BPB0261
31 3/8 x 10mm Connector BPB0275
32 Rubber foot BPB0601
33 Inspection plug BPB0243
34 Inspection plug seal BPB0502
35 1/4 x 10mm Swivel elbow BPB0276
36 Dryer mounting bracket BPB0503
37 Dryer assembly BPB0548
38 Delivery pipe BPB0508
39 Purge tank bleed valve BPB0775
40 Purge tank BPB0484
41 10mm Nylon tube BPB0551
42 Push fit Reducer 10mm Male 6mm Female BPB1338
42
Ref No. Description Part No.
1 1/4BSP Condensate Diffuser BPB1348
2 1/4BSPF x 10mm Tube connnector BPB1347
3 Condensate bottle complete BPB0088
4 6mm Nylon tube BPB0203
5 6mm Divider BPB0279
6 1/8 x 6mm Tube Elbow BPB0278
7 Solenoid valve c/w cable BPB0545
8 Air Filter - Centrifugal - Coalescing BPB1359
9 Coalescing filter - automatic drain BPB1336
10 Element for BPB1359 BPB1367
11 1/4 x 3/8 adaptor BPB0591
12 270mm Delivery pipe BPB0858
13 38bsp M/F plated elbow BPB0282
14 Aftercooler BPB0561
15 Aftercooler bracket BPB0557
16 30mm Rubber mounting BPB1296
17 3/8 Drain tap BPB0281
18 10mm Drain tube BPB0284
19 3/8 x 10mm Elbow [VT200D] BPB0280
19 3/8 x 10mm Elbow [VT150D] BPB0277
20 3/8 M adaptor BPB0283
21 50mm Tank pressure gauge BPB0658
22 Pressure switch BPB0550
23 40mm Line pressure gauge BPB0657
24 Pressure regulator BPB0510
25 1/4 Adaptor BPB1078
26 On/off tap BPB1079
27 Safety valve BPB1084
28 1/4 Elbow BPB1139
29 Non-return valve BPB0656
30 50 Litre tank BPB0261
31 3/8 x 10mm Connector BPB0275
32 Rubber foot BPB0601
33 Inspection plug BPB0243
34 Inspection plug seal BPB0502
35 1/4 x 10mm Swivel elbow BPB0276
36 Dryer mounting bracket BPB0503
37 Dryer assembly BPB0548
38 Delivery pipe BPB0508
39 Purge tank bleed valve BPB0775
40 Purge tank BPB0484
41 10mm Nylon tube BPB0551
42
Push fit Reducer 10mm Male 6mm Female BPB1338
43 Push fit elbow 10mm M/F BPB1345

VTH150D / VTH200D
15
1
5
7
8
10
11
17
20
21
2223
25
28
29
30
31
32
33
34
35 36
38
2
13
27
26
37
40
41
42
39
24
12
14
15
13
32
3
13
9
64
14
13
37
14
18
19
16
16
43
20 1/4 Drain tap BPB0895
21 Drain tube BPB0284
22 1/4 x 10mm Elbow BPB0276
23 Elbow BPB0044
24 50mm Tank pressure gauge BPB1081
25 Pressure switch BPB0550
26 40mm Line pressure gauge BPB1077
27 Pressure regulator BPB0510
28 1/4 Adaptor BPB1078
29 On/off tap BPB1079
30 Safety valve BPB1084
31 1/4 Elbow BPB1139
32 50 Litre tank BPB0474
33 Rubber foot BPB0601
34 Inspection plug BPB0243
35 Inspection plug seal BPB0502
36 1/4 x 10mm Swivel elbow BPB0276
37 Dryer mounting bracket BPB0503
38 Dryer assembly BPB0548
39 Delivery pipe BPB0508
40 Purge tank bleed valve BPB0775
41 Purge tank BPB0484
42 Adaptor BPB0918
Ref No. Description Part no.
1 Condensate diffuser BPB0588
2 1/8 x 6mm Push fitting BPB0154
3 Condensate bottle complete BPB0088
4 6mm Nylon tube BPB0203
5 6mm Divider BPB0279
6 Push fit Elbow 6mm M/F BPB1339
7 Solenoid valve c/w cable BPB0545
8 Air filter BPB1359
8a Coalescing filter - auto drain BPB1336
9 Air filter element BPB1367
10 1/4 x 3/8 adaptor BPB0591
11 3/8 x 10mm Elbow BPB0593
12 Black nylon tube BPB0551
13 3/8 Elbow BPB0282
14 Aftercooler BPB0869
15 Delivery pipe BPB0858
16 Non return valve BPB0656
17 Adaptor BPB0356
18 Extension BPB0152
19 30mm Rubber mounting BPB1296
43 Push fit Reducer 10mm Male 6mm Female BPB1338
44
Ref No. Description Part No.
1 1/4BSP Condensate Diffuser BPB1348
2 1/4BSPF x 10mm Tube connnector BPB1347
3 Condensate bottle complete BPB0088
4 6mm Nylon tube BPB0203
5 10mm Push fit Y connector BPB1346
6 1/8 x 6mm Tube Elbow BPB0278
7 Solenoid valve c/w cable BPB0545
8 Air Filter - Centrifugal - Coalescing BPB1359
9 Coalescing filter - auto drain BPB1336
10 Element for BPB1359 BPB1367
11 1/4 x 3/8 adaptor BPB0591
12 3/8 x 10mm Elbow BPB0593
13 10mm Black nylon tube BPB0551
14 3/8 Elbow BPB0282
15 Aftercooler BPB0869
16 Delivery pipe BPB0858
17 Non return valve BPB0656
18 Adaptor BPB0356
19 Extension BPB0152
20 30mm Rubber mounting BPB1296
21 1/4 Drain tap BPB0895
22 Drain tube BPB0284
23 1/4 x 10mm Elbow BPB0276
24 Push fit elbow 10mm M/F BPB1345
25 50mm Tank pressure gauge BPB1081
26 Pressure switch BPB0550
27 40mm Line pressure gauge BPB1077
28 Pressure regulator BPB0510
29 1/4 Adaptor BPB1078
30 On/off tap BPB1079
31 Safety valve BPB1084
32 1/4 Elbow BPB1139
33 50 Litre tank BPB0474
34 Rubber foot BPB0601
35 Inspection plug BPB0243
36 Inspection plug seal BPB0502
37 1/4 x 10mm Swivel elbow BPB0276
38 Dryer mounting bracket BPB0503
39 Dryer assembly BPB0548
40 Delivery pipe BPB0508
41 Purge tank bleed valve BPB0775
42 Purge tank BPB0484
43 Adaptor BPB0918
44
Push fit Reducer 10mm Male 6mm Female BPB1338

16
VTS75 / 150 / 200
Ref No. Description Part no.
1 On/Off switch APT626
2 Cabinet lid BPB0763
3 On/Off valve BPB1079
4 1/4 10mm Stud elbow BPB0820
5 1/4 10mm Tube elbow BPB0276
6 1/4 Regulator BPB0510
7 1/4 x 6mm Tube elbow BPB0758
8 1/4 Panel mounted gauge BPB0748
9 Cooling fan housing inc. cover BPB0767
10 1/4 x 6mm Elbow BPB0044
11 1/4 x 10mm Tube elbow BPB0276
12 Flanged inspection plug BPB0243
13 Inspection plug seal BPB0502
14 23ltr vessel BPB0795
15 3/8 Plated elbow BPB0282
16 3/8 Non-return valve BPB0822
17 3/8 Tee BPB0802
18 Delivery pipe BPB0798
19 3/8 x 1/8 Bush BPB0803
20 Solenoid valve / cable assembly BPB0545
21 1/6 x 6mm Elbow BPB0278
22 Inspection plug seal BPB0502
23 Hex screw BPB0265
24 1/4 Tee BPB1109
25 M6 x 25 washer BPB0121
26 M8 nut BPB0161
27 1/4 x 10mm Elbow BPB0276
28 Reducing bush BPB0255
29 1/4 x 6mm Tube swivel elbow BPB0042
30 6mm tube Y connector BPB0279
31 3/8 x 6mm Tube fitting BPB0756
32 Drain tap BPB0281
33 1/4 x 6mm Elbow BPB0042
34 Pressure switch BPB0550
35 Safety valve BPB1084
36 Cabinet tray BPB0764
37 0.75 & 1.5HP crankcase bracket BPB0347
37 2.0HP crankcase bracket BPB0517
38 20mm rubber mount BPB0273
39 40mm rubber mount BPB0272
40 M8 nyloc nut BPB0266
41 Motor mounting bracket 75 & 150 BPB0321
41a Motor mounting bracket 200 BPB0516
42 Cutout / reset switch BPB0722
43 Cooling fan BPB0727
44 End panel BPB0538
45 Cabinet base BPB0762
46 Swivel castor BPB0811
47 1/8 x 6mm Tube fitting BPB0154
48 Swivel castor with brake BPB0812
49 1/8 Silencer BPB0588
50 Thermal switch BPB0732

17
1
5
7
8
13
14
15
16
17
15
18 19
20
21
24
25
26 27
28
30
31
32
33
34
36
2
4
23
22
35
38
29
39
37
6
11
12
10
29
40
3
45
42
43
41/41a
44
46
29
47
46
48 49
50
9

Ref No. Description Part no.
1 On/off switch APT626
2 Cabinet lid BPB0763
3 Delivery pipe BPB0728
4 3/8 Bulkhead connector BPB0749
5 Air filter - Centrifugal - Coalescing BPB1359
6 3/8 x 10mm Tube elbow BPB0277
7 Element for BPB1359 BPB1367
8 Coalescing filter - auto drain BPB1336
9 Push fit elbow 10mm M/F BPB1345
10 Dryer mounting clamp [two halves] BPB0503
11 1/4 x 10mm Tube elbow BPB0276
12 Purge tank bleed pipe BPB0775
13 1/4 Elbow BPB1139
14 Dryer purge tank BPB0484
15 1/4 x 10mm Elbow BPB0820
16 On/off valve BPB1079
17 End panel BPB0538
18 1/4 x 63mm 0-160 gauge BPB0748
19 6mm tube elbow BPB0758
20 Regulator BPB0510
21 Solenoid valve / cable assembly BPB0545
22 1/8 x 6mm Tube fitting BPB0154
23 Aftercooler / fan assembly BPB0862
24 Dryer assembly BPB0548
25 Flanged inspection plug BPB0243
26 Inspection plug seal BPB0502
27 23ltr vessel BPB0795
28 3/8 x 10mm Tube connector BPB0275
VTS75D / 150D / 200D
18
29 3/8 Non-return valve BPB0822
30 3/8 Plated elbow BPB0282
31 Safety valve BPB1084
32 Pressure switch BPB0550
33 Delivery pipe BPB0508
34 1/4 Tee piece BPB1109
35 1/4 x 6mm Tube fitting BPB0043
36 1/2 x 1/4 Flanged bush BPB1237
37 M8 Hex full nut BPB0161
38 M8 x 25 washer BPB0121
39 M8 x 16mm set screw CP2737
40 10mm Push fit Y connector BPB1346
41 1/4 x 6mm Tube elbow BPB0042
42 Motor mounting bracket: 75/150 BPB0321
42a Motor mounting bracket: 200 BPB0516
43 0.75/1.5HP Crankcase mtg bracket BPB0347
43a 2HP Crankcase mounting bracket BPB0517
44 20mm Rubber mount BPB0273
45 40mm Rubber mount BPB0272
46 Cabinet base BPB0762
47 Cutout / Reset switch BPB0722
48 Cooling fan BPB0727
49 Swivel castor BPB0811
50 Water bottle c/w cap and cage BPB0088
51 Drain valve BPB0281
52 3/8 x 6mm Tube fitting BPB0756
53 Swivel castor with brake BPB0812
54 Thermal switch BPB0732
55 Elbow Adapter Push in 10mm to Push in 10mm BPB1364
56 Push fit reducer 10mm-6mm BPB1344
57 1/4 x 6mm Tube Swivel Elbow BPB0042
