BANGGOOD EN8829A User manual

Color Forecast Weather Station
(Save the Instructions for Future Reference)
Model: EN8829A

1.WEATHER STATION FEATURES
1.1 Weather Station Appearance---------------------------------------------------------01
1.2 Button Functions ----------------------------------------------------------------------04
2.INITIAL OPERATION-------------------------------------------------------------05
3.BACKLIGHT SETTING-----------------------------------------------------------06
4.TIME AND CALENDAR SETTING--------------------------------------------06
5.DAILY ALARM AND SNOOZE FUNCTION SETTING
5.1 Setting the Daily Alarm ---------------------------------------------------------------07
5.2 Switching On/Off the Alarm Signal--------------------------------------------------08
6.LUNAR PHASE----------------------------------------------------------------------08
7.WEATHER FORECAST AND BAROMETRIC
7.1 Weather Forecast ----------------------------------------------------------------------09
7.2 Barometric Pressure Display---------------------------------------------------------10
8 TEMPERATURE, HUMIDITY AND COMFORT DISPLAY
8.1 ℃ or ℉ Temperature Display -------------------------------------------------------10
8.2 Current Temperature and Temperature Trend Display -------------------------10
8.3 Current Humidity and Humidity Trend Display ----------------------------------11
8.4 Indoor Comfort Display--------------------------------------------------------------11
8.5 Maximum/Minimum Temperature and Humidity -------------------------------11
8.6 Temperature Alert Settings----------------------------------------------------------11
8.7 Activating and Deactivating Temperature Alert----------------------------------13
8.8 Outdoor Sensor Transmission------------------------------------------------------13
9. USB CHARGER-------------------------------------------------------------------14
10. LOW BATTERY-------------------------------------------------------------------14
11. PRODUCT SPECIFICATION -----------------------------------------------14
TABLE OF CONTENTS

01 WEATHER STATION
FEATURES

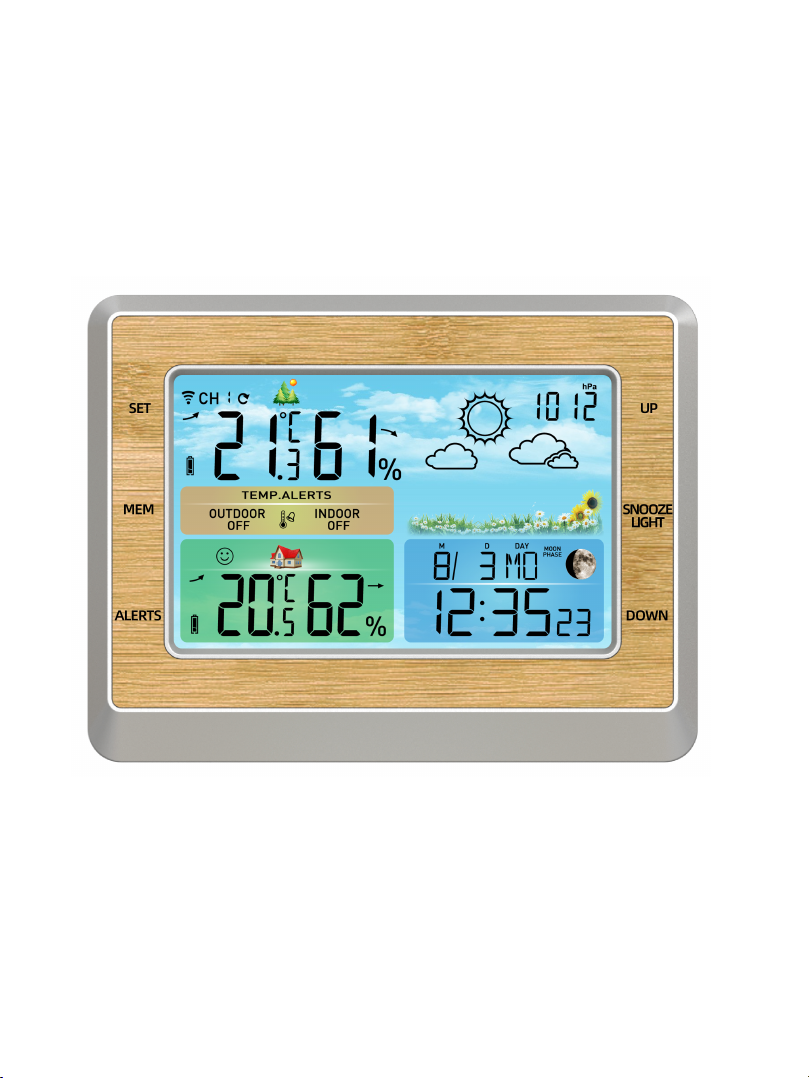

1.1 Weather Station Appearance

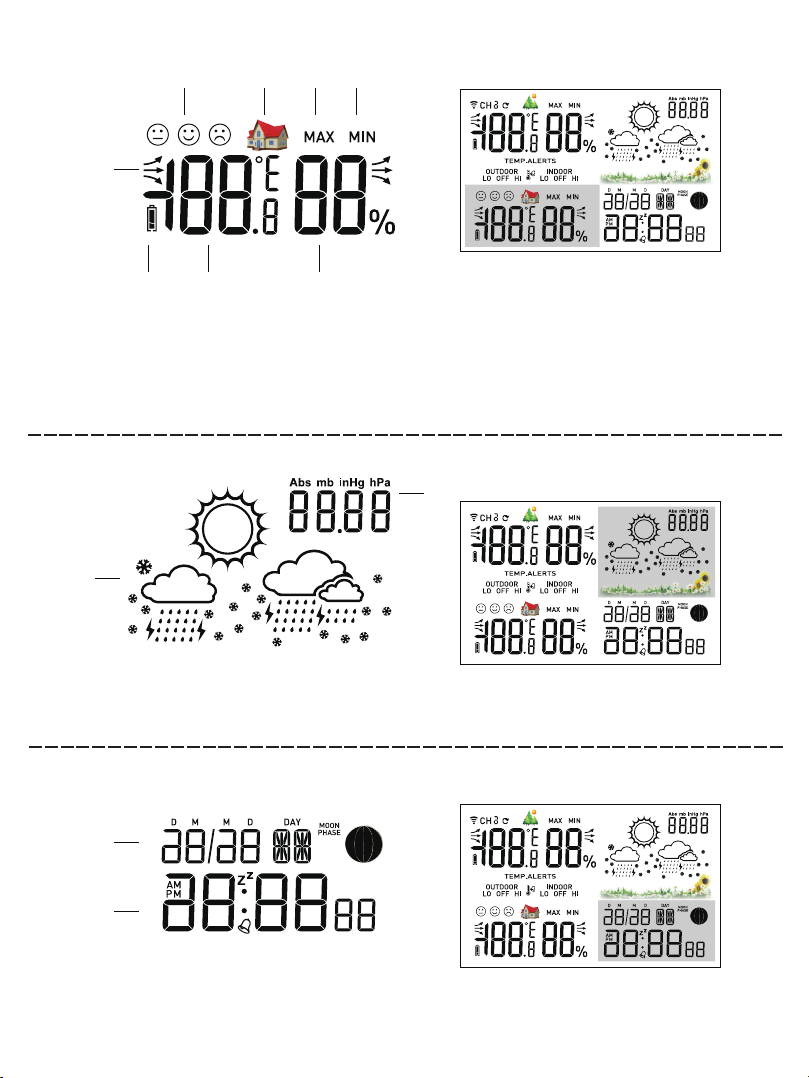

Part A- LCD Features
A1 Outdoor
A2 Sensor Strength
A3 Outdoor Channel
A4 Outdoor Temperature
A5 Temperature Trend
A6 Outdoor Humidity
A7 Humidity Trend
A8 Remote Battery Signal
A9 Maximum Value
A10 Minimum Value
B1 Outdoor Temperature Alerts (HIGH - LOW - OFF)
B2 Alert On
B3 Indoor Temperature Alerts (HIGH - LOW - OFF)
A2 A3 A1 A9 A10
A7
B3
A5
B1
A8 A4 A6
B2
01

C1 Indoor
C2 Indoor Comfort
C3 Indoor Temperature
C4 Temperature trend
C5 Indoor Battery Signal
C6 Indoor Humidity
C7 Maximum Value
C8 Minimum Value
D1 Weather Forecast
D2 Barometric Pressure
E1 Calendar and Moon Phase
E2 Time or Alarm Time
C2 C1 C7 C8
D2
C4
D1
E1
E2
C5 C3 C6
02

C FTX 1 2 3
CH
/
Part B- Weather Station Back
Part C - Wireless Outdoor Sensor
1 USB Charger Output Socket
2 Power Supply Socket
3 Station Table Stand
4 Battery Compartment
1 Remote Sensor ‒ Temperature
2 Outdoor Channel
3 Humidity
4 Battery Signal
5 “ °C/°F ” Switch Button
6 “TX” Reset Button
7 3 Channels Select
8 Wall Mount Hole
9 Battery Compartment
03
1
2
18
9
7
4
3
3
4
5
6
2
CH123

1.2 Button Function
B1 SET B2 MEM B3 ALERTS B4 UP B5 SNOOZE/LIGHT B6 DOWN
B4
B5
B6
B1
B2
B3
04
ALERTS
MEN
SET
SNOOZE
LIGHT
UP
DOWN
Function Normal Mode Time Setting Alarm Setting Temperature Alert Setting
Button
SET
MEM
ALERTS
UP
SNOOZE/LIG
HT
DOWN
Press Hold Press Hold HoldPress HoldPress
Switch Display
of Time or Alarm
View Indoor
/Outdoor
Max/Min Data
Turn On/Off
Temperature Alert
3 Channel Switch
Turn On and Adjust
Brightness of
Backlight in DC Mode
Turn On/Off Alarm
°C/°F
Switch
Turn on
the Backlight
Decrease Decrease
Continually Decrease Decrease Continually
Turn Off
the Alert Decrease
Turn on
the Backlight
Turn On
the Backlight
Increase Increase
Continually Increase Increase Continually Turn On
the Alert Increase
Temperature
Alert Setting
Clear Max
/Min Data
Time or
Alarm Setting
Confirm and
Go to
the Next Step
Confirm and
Go to
the Next Step
--- --- ---
--- --- --- --- --- ---
--- --- --- ---
---
---
--- ---
Switch Display
of Time or Alarm
Turn On Alert
and
Go to the
Next Step
Temperature
Alert Setting

02 INITIAL
OPERATION
Plug in the original power cord or insert 3 x AAA batteries observing
polarity. All icons on the screen of main unit will light up for 3
seconds, you will hear a beep, and the main unit will begin to detect
the indoor temperature and humidity.
Open the battery compartment of outdoor sensor, choose a channel
for ourtdoor sensor (1, 2 or 3, and press “ UP” button to set the
channel of the main unit match to the outdoor sensor’s), insert 2 x
AA batteries observing polarity, then the outdoor sensor will begin
to detect the temperature and humidity. The LED light flashes once
indicating that the outdoor sensor sends a wireless signal once.
After the indoor temperature and humidity detection is completed,
the main unit will begin to establish a connection with the outdoor
sensor ( note: please keep the channel of the main unit and outdoor
sensor consistent). At this time, the RF icon “ ” will appear and
flash in the “Outdoor” display area of the main unit.
The main unit can be connected to 3 outdoor sensors at the same
time, please make sure that the channels of the outdoor sensors
are different.
To get a strong signal, we suggest that:
--- A minimum distance of 8 feet to all sources of interference,
such as televsions or computer monitors.
--- The reception is weaker in rooms with concrete walls (e.g.: in
cellars) and in offices. In such circumstances, place the deivce
close to the window.
F.Y. I
05

03 BACKLIGHT
SETTING
04 TIME AND
CALENDAR SETTING
When powered by batteries, to save power, the backlight is only on
for 10 seconds by pressing “SNOOZE/LIGHT”.
When plugged in the power cord, press “SNOOZE/LIGHT” to turn on
the backlight and adjust the brightness. The sequence is Bright-
Slightly Bright - Dim - Off.
Press and hold “SET” button for 3 seconds to enter the time setting
operation, press “UP” and “DOWN” buttons to select, press “SET”
button once to confirm and go to the next step. The sequence steps
are as follows.
For example, press and hold “SET” button for 3 seconds, the 12/24
Hour Format display begins to flash, press “UP” and “DOWN”
buttons to select the mode you prefer, press “SET” button again to
confirm and Hour begins to flash.
Month/Date Format
Language of Weekday
Fahrenheit/Celsius
Barometric Unit
Weather Forecast
12/24 Hour Format
Hour
Minute
Year
Month
Date
06
1
2
3
4
5
7
8
9
10
11
6

05 DAILY ALARM AND
SNOOZE FUNCTION SETTING
5.1 Setting the Daily Alarm
During operation, if no operation is performed within 20 seconds,
the device will return to normal mode automatically.
There are 5 different languages of weekday optional ( EN: ENGLISH;
FR: FRENCH; IT: ITALIAN; SP: SPANISH; GE: GERMAN, When SP is
selected, the weekday will be in Spanish).
Weekday will adjust when year, month, and date are set.
The station offers 6 forecast icons based on barometric pressure. To
speed up device response and measurement time, you can also
manually calibrate the current weather icon.
Short press “SET” button once to switch the display of time or
alarm.
If select Alarm mode, the related “ ” icon is appeared.
Press and hold “SET” button for 3 seconds, the hour display begins
to flash, press “UP” and “DOWN” buttons to set the required hour.
Press “SET” button to confirm your setting, the Minute display
begins to flash, press “UP” and “DOWN” buttons to set the required
minute.
Press “SET” button to enter the setting of snooze time. The default
time is 5 minutes. “05” icon is flashing, short press “UP” or “DOWN”
to set from 5 to 60 minutes snooze time.
F.Y. I
07

06 LUNAR
PHASES
5.2 Swiching ON/OFF the Alarm Signal
When alarm is setting, there will be “ ” icon on the bottom of
display.
Short press “DOWN” button once to turn on/off alarm.
When alarm is sounding, the related icon flashes, press
“SNOOZE/LIGHT” once, the alarm will be silent and come on again
after the setting snooze duration.
Press any other buttons except the “SNOOZE/LIGHT” one time to
stop the alarm and it will sound on the following day. The related
icon won’t disappear.

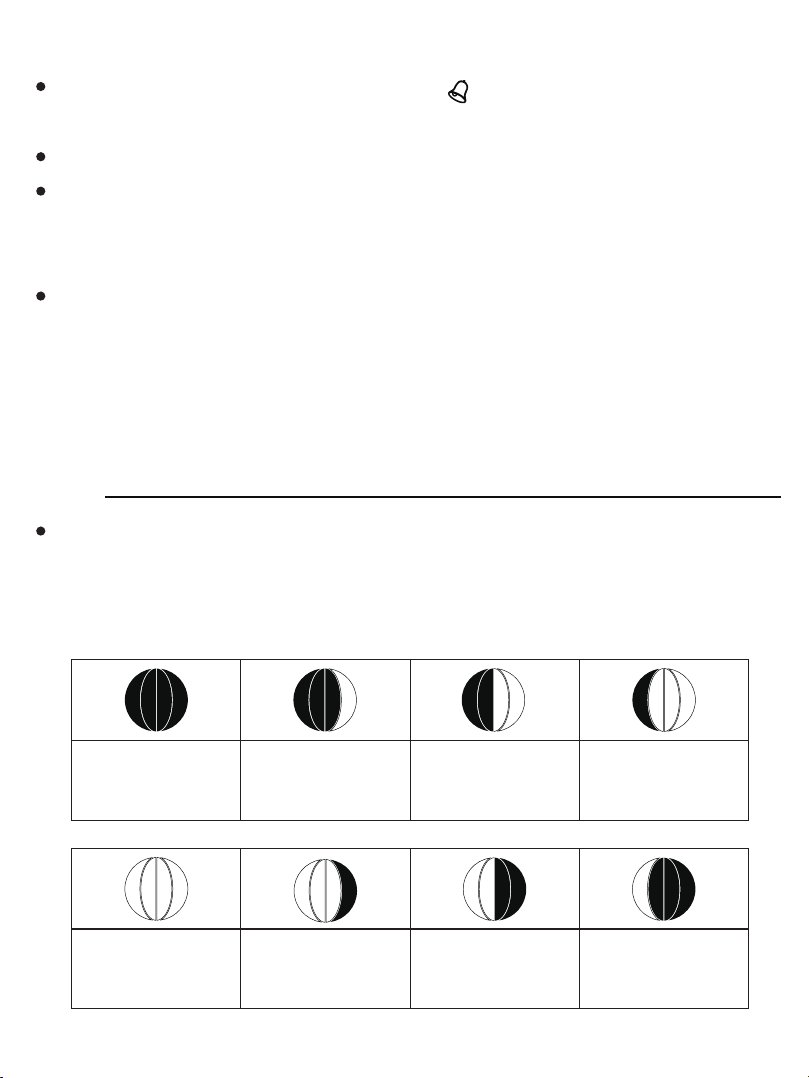

The device displays 8 different moon phases according to the calen-
dar. During the new moon, the moon phase screen won’t light up
until Waxing Moon.
New moon
Full moon
Waxing half-moon
Waning full moon
Half-moon
Half-moon Waning half-moon
Waxing full moon
08

07 WEATHER FORECAST
AND BAROMETRIC
7.1 Weather Forecast
The Station calculates a weather forecast for the next 6 -12 hours
based on the barometric pressure trend, NOT the current weather.
Of course this forecast can not compare to that of professional
weather services supported by satellites and high performace com-
puters, but merely provides an approximate indication of current
developments. Please give priority to the weather forecast of the
local weather forecast service.
The weather station displays the following weather symbols:
It usually takes about 7 to 10 days for barometric calibration as it
will ensure an accurate forecast for your location. When using the
device for the first time, please wait a few days to correct the weath-
er forecast. To speed up device response and measurement time,
you can also manually calibrate the current weather icon.
The flashing clouds indicate that the system is operating normally,
not that the product is malfunctioning.
The snowy weather forecast icon only appears when the outside
temperature is -4 ℃ / 24.8℉.
F.Y. I
Sunny Slightly Cloudy Cloudy Rainy Heavy Rainy Snowy
09

08 TEMPERATURE,
HUMIDITY AND COMFORT DISPLAY
7.2 Barometric Pressure Display
8.1 ℃ or ℉ Temperature Display
8.2 Current Temperature and Temperature Trend Display
Press and hold “SET” button for 3 seconds to set Time, Calendar and
Barometric unit. Press “UP” and “DOWN” buttons to set the baro-
metric unit to display in the “hPa/mb” or “inHg”.
Press “SET” to confirm your setting, the weather symbol begins to
flash, press “UP” and “DOWN” buttons to choose the current weath-
er symbol.
Press “SET” button to confirm your setting and return to normal
mode.
Barometric values are related to the temperature and humidity of
the environment and cannot be modified manually.
Press and hold “SNOOZE/LIGHT” button for 3 seconds to change the
temperature unit to °C or °F.
Or you can set the temperature unit in advance when setting the
time.
The temperature continued to rise more than 1℃/1.8℉ within
1 hour.
The cumulative value of the temperature rising or falling
continuously does not exceed 1℃/1.8℉ within 1 hour.
The temperature continues to drop more than 1℃/1.8℉ within
1 hour.
10

8.4 Indoor Comfort Display
8.5 Maximum/Minimum Temperature and Humidity
8.6 Temperature Alert Settings
8.3 Current Humidity and Humidity Trend Display
To view indoor&outdoor maximum&minimum temperature and
humidity data in the past 24 hours, press the “MEM” button.
Press once to show the maximum data
Press twice to show the minimum data
Press and hold “MEM” button for 3 seconds to clear and re-record
the maximum and minimum temperature and humidity.
Before entering the settings, you must select the remote channel,
different channels can set different temperature alarm ranges.
First you will arm the alert you wish to set, then you set the alert
value. If an alert is not armed (OFF), you will skip that alert value and
move to arm the next alert.
Short press “ALERTS” button to select the alert, the icon (HI-LO-OFF)
is flashing.
Alert setting order: Outdoor HIGH Temperature (HI)-- Outdoor
The humidity continued to rise more than 5% within 1 hour.
The cumulative value of the humidity rising or falling continu-
ously does not exceed 5% within 1 hour.
The humidity continues to drop more than 5% within 1 hour.
Comfortable too cold or too hot
11

LOW Temperature (LO)-- Indoor HIGH Temperature (HI)--Indoor LOW
Temperature(LO).
After selecting, press “UP” to arm ( icon is appeared) the alert if
you wish to set it and press “DOWN” to turn off the alert (leave alert
OFF to skip and move to next alert).
When the alert is armed (ON) press and hold the “ALERTS” button
to move to the alert value (The value is flashing).
Press “UP” or “DOWN” buttons to adjust the alert values.
Press the “ALERTS” button to confirm&move to the next alert.
12
ALERTS
123
456
789
When no HI or LO Temperature
Alert is set, OFF will show.
Short press “ALERTS” button to
set Outdoor HIGH Temperature (HI)
Then short press “ALERTS” button
to set Outdoor LOW Temperature (LO)
Press“UP”to arm
( icon is appeared)
Press “UP” and “DOWN” to adjust
the value
After setting, the HI and LO icon is
appeared
Press and hold the “ALERTS” button
to set the alert value
Repeat the same step to set Indoor
HIGH/LOW Temperature
Press“UP”to arm
( icon is appeared)
ALERTS
ALERTS
ALERTS
SNOOZE
LIGHT
DOWN

8.8 Outdoor Sensor Transmission
8.7 Activating and Deactivating Temperature Alert
When a channel is not connected to the remote sensor, the readings
of this channel will display “---”.
Please make the main unit stay in the same channel with remote
sensor.
When the current temperature exceeds the set HIGH&LOW tempera-
ture range, the alert alarm will be activated and sound for 5 seconds,
at the same time, the temperature value and alarm upper limit icon
“HI” or lower limit icon “LO” will be flash.
Press any button to stop the alarm, the alarm will be silent and
come on again if still exceeds the temperature range.
When the batteries are installed in the remote sensor, the main unit
will automatically connect to it.
The main unit can connect up to 3 remote sensors at the same time,
please make sure that the channels of the remote sensors are differ-
ent.
“UP” button in the main unit is the channel select button, keep
press “UP” button, the screen displays CH1, CH2, CH3, CYCLE mode
( there is a cycle symbol “ ” displayed next to CH, at this time, the
screen will cyclically display the readings of CH1, CH2 and CH3 every
5 seconds), press “UP” button again to back to CH1.
Press and hold “UP” button for 3 seconds to manually connect the
remote sensor, in the meantime, press the “TX” button of remote
sensor to speed up connection.
F.Y. I
13

09 USB
CHARGER
10 LOW
BATTERY
11 PRODUCT
SPECIFICATION
When you use USB charger to charge the electronic device, please
make sure weather station is powerd by orignal power cord, DO NOT
use batteries only.
If the battery icon “ ” appears, the batteries in the remote sensor
and main unit should be replaced as soon as possible.
The battery icon “ ” represent of full of electricity.
Screen size: 5.9 inches
Indoor temperature measurement range: -4°F (-20°C) to 158°F (70°C)
Outdoor temperature measurement range: -40°F (-40°C) to 158°F
(70°C)
Temperature unit: °F or °C
Indoor & Outdoor humidity measurable range: 20%RH ~ 95%RH
Barometric pressure measurement range: 850hPa/mb(25.1 inHg) to
1100hPa/mb(32.48 inHg)
Remote receiving range: 200 feet (60 meters) transmission range in
an open area
Power supply
--- Main unit: 3 x AAA or Power Adaptor
--- Remote sensor: 2 x AA
14

SAFETY
RISK OF EQUIPMENT DAMAGE
FCC STATEMENT
Temperature and humidity detection cycle
--- Remote sensor update time: CH1: 50S, CH2: 53S, CH3: 56S
The default setting of the temperature alert
--- The upper limit of outdoor: 158℉/70℃
--- The lower limit of outdoor: -40℉/-40℃
--- The upper limit of indoor: 158℉/70℃
--- The lower limit of indoor: -4℉/-20℃
If necessary, clean the battery and device contacts before inserting
the battery.
Remove drained batteries from the product as soon as possible .
Please do not make any changes to this item. Repairs are only
allowed in professional repair shops. Incorrect maintenance will
seriously endanger user safety.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
This device is not intended for use by persons (including children
under 8 years of age) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge unless they have
been given supervision or instruction by the person responsible for
their safety.
The weather station is a battery-operated product. If a battery is
swallowed accidentally, seek medical assistance immediately.
15

generates, uses and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device must not be co-located or operating in conjunction with
any other antenna or transmitter.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
16
