Barbeques Galore Arrosto Parts list manual

ASSEMBLY AND OPERATION INSTRUCTIONS
GAS
PIZZA OVEN
FOR OUTDOOR USE ONLY
ITEM CODE: ARRPIZGAS
ARROSTO
ARROSTO
ARROSTO GAS PIZZA OVEN-Manual_v5.indd 1 19/12/17 1:28 pm

ARROSTO GAS PIZZA OVEN-Manual_v5.indd 2 19/12/17 1:28 pm

WARRANTY AND CONSUMER GUARANTEE
Barbeques Galore Warranty is provided in addition to other rights and remedies as set out below
under ‘Consumer Guarantees’.
Warranty Term
Subject to the conditions set out below, this product is warranted to the purchaser to be free from
defects in workmanship and materials from the date of purchase for the terms specied below.
1 YEAR – Pizza Oven Stand and Body
1 YEAR – Cooking Surface, Burners, Hose & Regulator
Warranty Conditions
1. Barbeques Galore warranty is non transferable and is limited to the original purchaser.
2. Satisfactory proof of the purchase (as dened in the Competition and Consumer Act 2010
(CCA)) must be furnished at the time of notication of the defect for a claim under this
warranty to be enforceable.
3. This warranty covers all parts found to be defective in workmanship and/or materials during
the warranty period. Barbeques Galore total liability in respect of a claim by a consumer
under the CCA for a minor problem (as dened in the CCA) with a product is limited, at our
option, to providing the consumer with a refund, replacement product or repairing the product.
4. For major failures (as the term is dened in the CCA) you are entitled to a replacement or
refund and for compensation for any other reasonably foreseeable loss or damage.
5. To implement this warranty, please return the product to the place of purchase or nominated
service agent, otherwise a service call out fee will be charged and refunded if claim is
warrantable.
Installation Conditions
1. All installations must conform to the applicable Gas, Electrical and Building standards as laid
down by the local codes for state or region.
ARROSTO GAS PIZZA OVEN-Manual_v5.indd 3 19/12/17 1:28 pm

Warranty Exclusions
1. This warranty will be void and accordingly no claim of any nature will be enforceable if the
product has not been assembled, installed or operated according to the instructions, or has
been subject to abuse, improperly treated, neglected and/or if any repairs, maintenance or
service has been done by an unauthorised person.
2. This warranty does not cover
• rust due to improper care or lack of maintenance. Contact your place of purchase for
care and maintenance instructions
• commercial use
• claims arising from damage caused by abrasive chemical cleaners, heat discoloration
or fat res
Consumer Guarantee
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a major
failure.
Subject to the above paragraphs, all express or implied representations, conditions, statutory
guarantees, warranties and provisions (whether based on statute, common law or otherwise),
relating to this warranty, that are not contained in it, are excluded to the fullest extent permitted
by law.
Nothing in this warranty excludes, restricts or modies any condition, warranty, statutory guaran-
tee, right or remedy, implied or imposed by common law, statute or regulation, which cannot be
lawfully excluded, restricted or modied.
For Customer Reference (le in a safe place)
Purchased from __________________________________
Date Purchased _____/_______/_________ Record Serial Number ______________________
N.B Satisfactory proof of purchase like your sales docket must be kept for any claim under
this warranty to be enforceable.
Service Contact Point – Please contact your place of purchase for warranty repairs or service.
BRANCHES AUSTRALIA WIDE
Barbeques Galore Limited,
Building A2, Campus Business Park, 350-374 Parramatta Road, Homebush, NSW 2140
Telephone [phone] e-mail: [email protected]
Website: www.bbqgalore.com.au
ARROSTO GAS PIZZA OVEN-Manual_v5.indd 2 19/12/17 1:28 pm

3
READ ALL SAFEGUARDS AND INSTRUCTIONS THOROUGHLY!
YOUR SAFETY IS VERY IMPORTANT – FAILURE TO FOLLOW PROPER PROCEDURES AND SAFEGUARDS
MAY RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY.
DANGER DANGER
• This pizza oven is for OUTDOOR USE ONLY.
• Never operate this pizza oven unattended.
• The use of alcohol, prescription or non prescription
drugs may impair the consumer’s ability to properly
assemble or safely operate the pizza oven.
• Never operate this pizza oven within 7.5m (25 feet)
of any flammable liquids.
• Use this pizza oven only on a level, stable non-
combustible surface like brick, concrete or dirt. Do
not use pizza oven on or around any surface that
will burn or melt like wooden decks, dry grass,
leaves, wood rails, vinyl, or plastic.
• Never operate this pizza oven under any overhead
roof covering, awning or overhang. Never use inside
an enclosed area such as screen patios, garages,
buildings and tents. Keep a minimum clearance of
3m (10 feet) from all sides of the pizza oven to all
overhead construction and 1m (3 feet) from any
walls or rails.
• Never use in or on recreational vehicles and/or
boats.
• Never use this product for anything other than its
intended purposes. This pizza oven is not intended
for commercial use. Never use this pizza oven as a
heater.
• So not use or store flammable materials in or near
this appliance.
• Pizza oven is HOT while in use and after use.
• Avoid touching hot surfaces. Always wear
protective gloves or mitts when operating the pizza
oven.
• Keep children and pets away from the pizza oven at
all times.
• Always wear shoes and protective clothing during
operation of this pizza oven.
• Do not spray aerosoles in the vicinity of this
appliance while it is in operation.
• Do not modify this appliance and do not use
unauthorised spare parts.
• Do not allow anyone to conduct activities around the
pizza oven during or following its use until the unit
has cooled. The pizza oven is hot during operation
and remains hot for a period of time following its use.
• Never move the pizza oven when it is in use. Allow
the pizza oven to cool below 40ºC (115ºF) before
moving or storing it.
• Accessory attachments and cookware not supplied
with this pizza oven are not recommended for use.
• Perform a leak test before each use of the pizza
oven. (See page 12).
• Keep the gas supply hose away from any heated
surfaces.
• Never attach a gas cylinder, move or alter ttings
when the pizza oven is hot or in use.
• Do not attempt to disconnect any gas tting while
the pizza oven is in operation.
• Never use a gas cylinder if it appears to have dents,
gouges, bulges, re damage, erosion, leak age,
excessive rust, or other forms of visible external
damage. The cylinder may be hazardous and should
be checked by a liquid propane supplier.
• Before each use, inspect gas hose for any signs of
damage and check all nuts and screws to be sure
that they are tight and secure.
• When lighting your pizza oven, always ensure both
pizza oven door is open.
• When lighting your pizza oven, do not cover
the burner or restrict airow from the burner. An
explosion could occur.
• If burner does not ignite, turn o the control valve
and gas and wait 5 minutes [with the door still open]
before trying to light it again.
• If the burner goes out during operation, rstly turn
the control valve OFF, secondly turn the gas cylinder
OFF and thirdly, wait 5 minutes before opening the
door. After 5 minutes, follow the lighting instructions
in this manual.
• Do not place articles on or against this appliance.
ARROSTO GAS PIZZA OVEN-Manual_v5.indd 3 19/12/17 1:28 pm

4
READ ALL SAFEGUARDS AND INSTRUCTIONS THOROUGHLY!
YOUR SAFETY IS VERY IMPORTANT – FAILURE TO FOLLOW PROPER PROCEDURES AND SAFEGUARDS MAY
RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY.
DANGER DANGER
• Do not obstruct flow of combustion and
ventilation. Keep the ventilation opening(s) of
the cylinder enclosure free and clear of debris.
• Keep clear of the pizza oven hose. Tripping
over the pizza oven hose may result in the
spilling of HOT grease or water, causing
personal injury or property damage.
• In the event of an oil/grease fire, immediately
turn off gas supply and call the Fire
Department. Do not attempt to extinguish
a fire with water. A type BC or ABC fire
extinguisher may in some cases contain the
fire.
• Keep your hands, hair and face away from
the burner flame. Do not lean over or into the
pizza oven when lighting the burner. This pizza
oven has an open flame. Be careful of loose
hair and clothing during operation, which
could catch fire.
• After use, always turn the control knob OFF first,
then the gas cylinder valve OFF.
• Never use glassware, plastic, or ceramic
cookware in this pizza oven.
• Always disconnect the gas cylinder from your
pizza oven when not in use.
• Do not store a spare LP-gas cylinder under or
near the pizza oven.
• Cylinders must be stored outdoor, out of reach
of children, and must not be stored in a building,
garage, or any other enclosed area.
• If smell gas, shut off gas to appliance, extinguish
any open flame and open the pizza door. If the
odour continues, call your gas supplier or the fire
department.
OUTDOOR USE ONLY
SAVE AND FILE THESE INSTRUCTIONS FOR FUTURE REFERENCE
USE CAUTION AND COMMON SENSE WHEN OPERATING YOUR PIZZA OVEN.
SAVE THESE INSTRUCTIONS
WARNING
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.
DO NOT USE OR STORE FLAMMABLE MATERIALS IN OR NEAR THIS APPLIANCE.
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.
DO NOT MODIFY THIS APPLIANCE.
ARROSTO GAS PIZZA OVEN-Manual_v5.indd 4 19/12/17 1:28 pm

5
A. HARDWARE PACK
Tools needed for assembly
Phillips head screwdriver (not included).
Before assembly
Please read all instructions thoroughly before proceeding.
Find a large, clean area in which to assemble your pizza oven. Please refer to the parts list and
assembly diagram as necessary.
Ensure any transit protection or packaging is removed.
Do not throw out any packaging until pizza oven is fully assembled in case parts are still
enclosed.
M6x10mm screw
40 pcs
Rubber feet
4 pcs
M4x20mm screw
4 pcs
M6 washer
8 pcs
M5x12mm screw
3 pcs
M5x35mm screw
4 pcs
Spacer
4 pcs
ARROSTO GAS PIZZA OVEN-Manual_v5.indd 5 19/12/17 1:28 pm

6

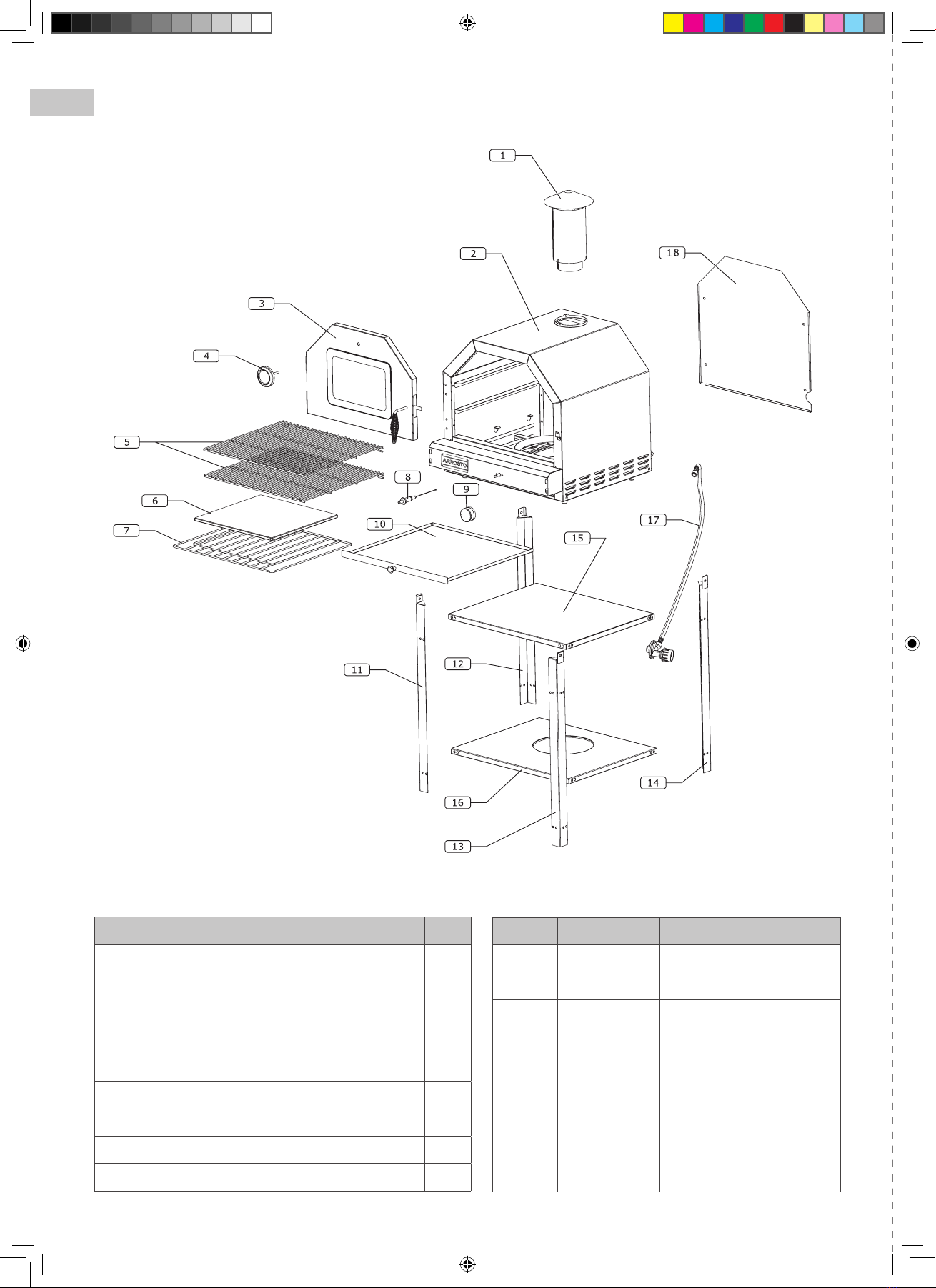

B. PARTS LIST
Line drawings are not to scale. Specications are subject to change without notice.
PIC NO ITEM CODE DESCRIPTION QTY
1HKGP01 Chimney 1
2HKGP02 Oven body 1
3HKGP03 Door 1
4HKGP04 Temperature guage 1
5HKGP05 Roast racks 2
6HKGP06 Pizza stone 1
7HKGP07 Wire support grid 1
8HKGP08 Igniter 1
9HKGP09 Control knob 1
PIC NO ITEM CODE DESCRIPTION QTY
10 HKGP10 Drip tray 1
11 HKGP11a Leg (front left) 1
12 HKGP11b Leg (back left) 1
13 HKGP11c Leg (front right) 1
14 HKGP11d Leg (back right) 1
15 HKGP12 Storage shelf 1
16 HKGP13 Gas bottle shelf 1
17 HKGP14 Hose & regulator 1
18 HKGP15 Heat shield 1
ARROSTO GAS PIZZA OVEN-Manual_v5.indd 6 19/12/17 1:28 pm

7
C. ASSEMBLY INSTRUCTIONS

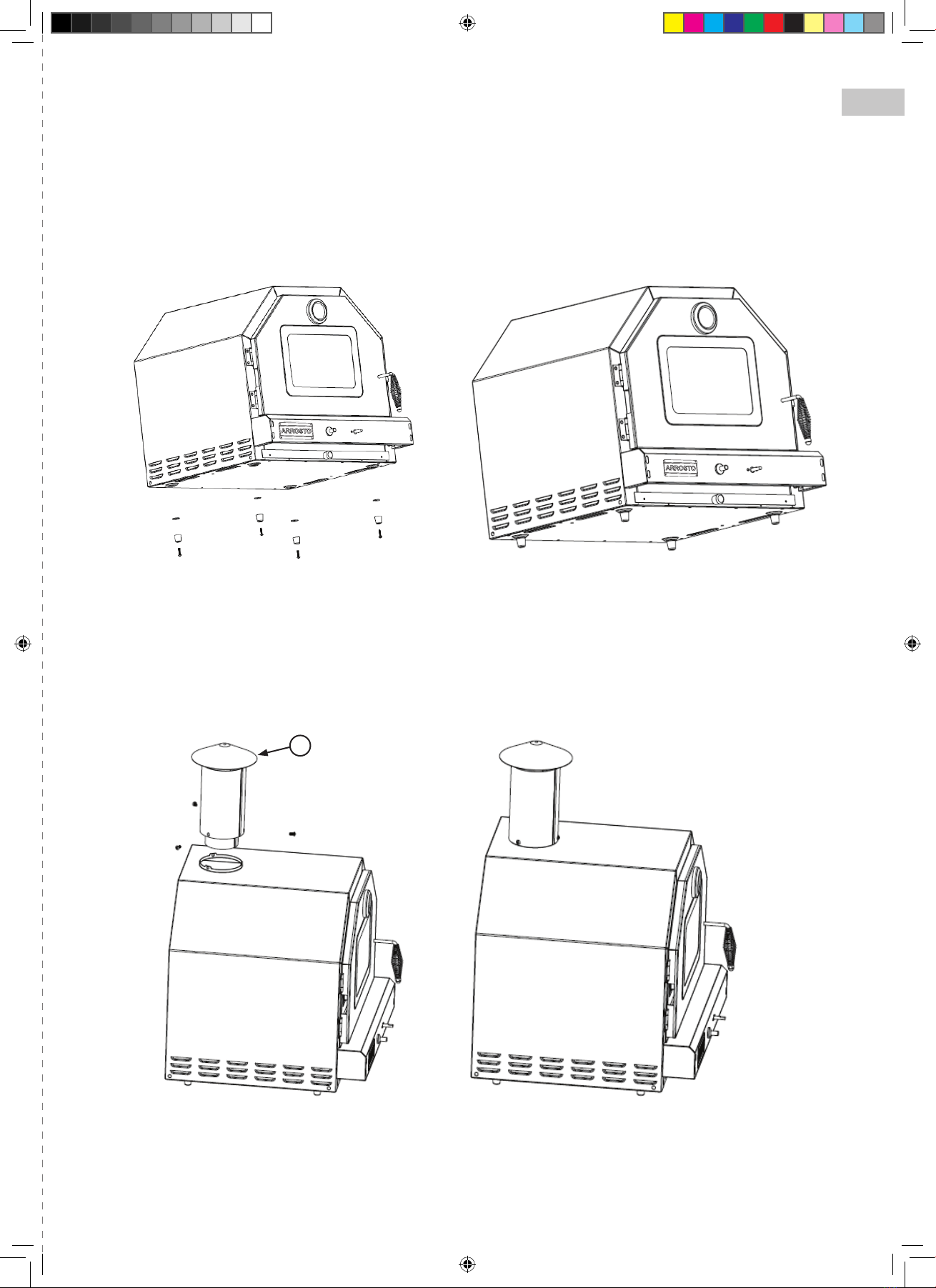

STEP 1 ATTACH MOLDED RUBBER FEET
— Attach the 4x rubber feet to the bottom of the oven body using 4 x M4x20mm screws as
shown below.

STEP 2 ATTACH SMOKE CHIMNEY
— Attach the smoke chimney (1) to the ring on the top of the oven body (2) using 3 x M5x12mm
screws as shown below.


1
ARROSTO GAS PIZZA OVEN-Manual_v5.indd 7 19/12/17 1:28 pm

8



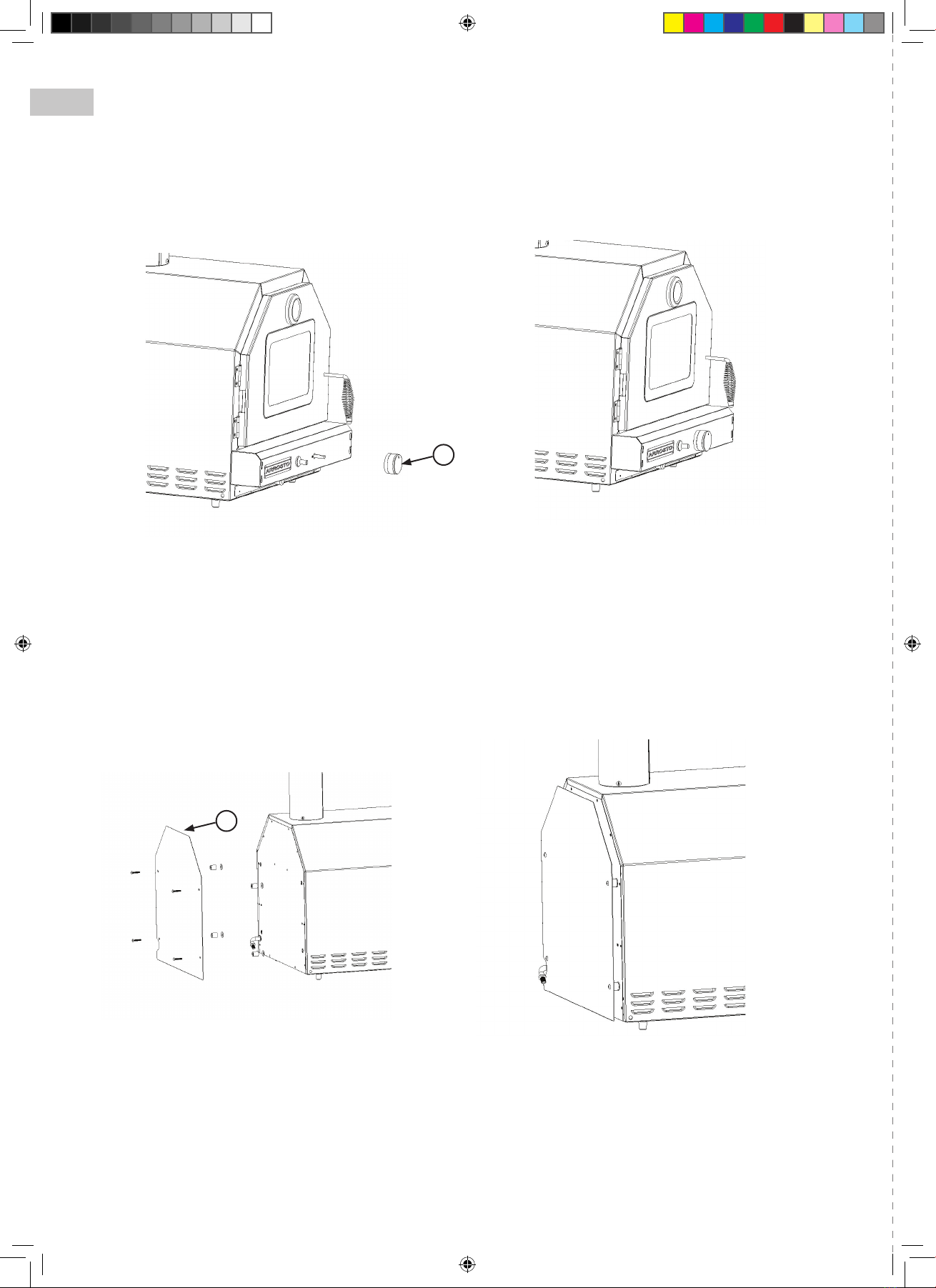

STEP 3 ATTACH CONTROL KNOB
— With the red dot on the control knob (9) in the top position, push the control knob firmly onto
the valve stem as shown below.
STEP 4 ATTACH HEAT SHIELD
— Attach the heat shield (18) to the back of the oven body (2). Place 4 x M5x35mm screws
through the four holes in the shield. Slide a spacer onto each screw and then a M6 washer
onto each screw. Fasten all screws and the shield to the oven body.


9
18
ARROSTO GAS PIZZA OVEN-Manual_v5.indd 8 19/12/17 1:28 pm

9



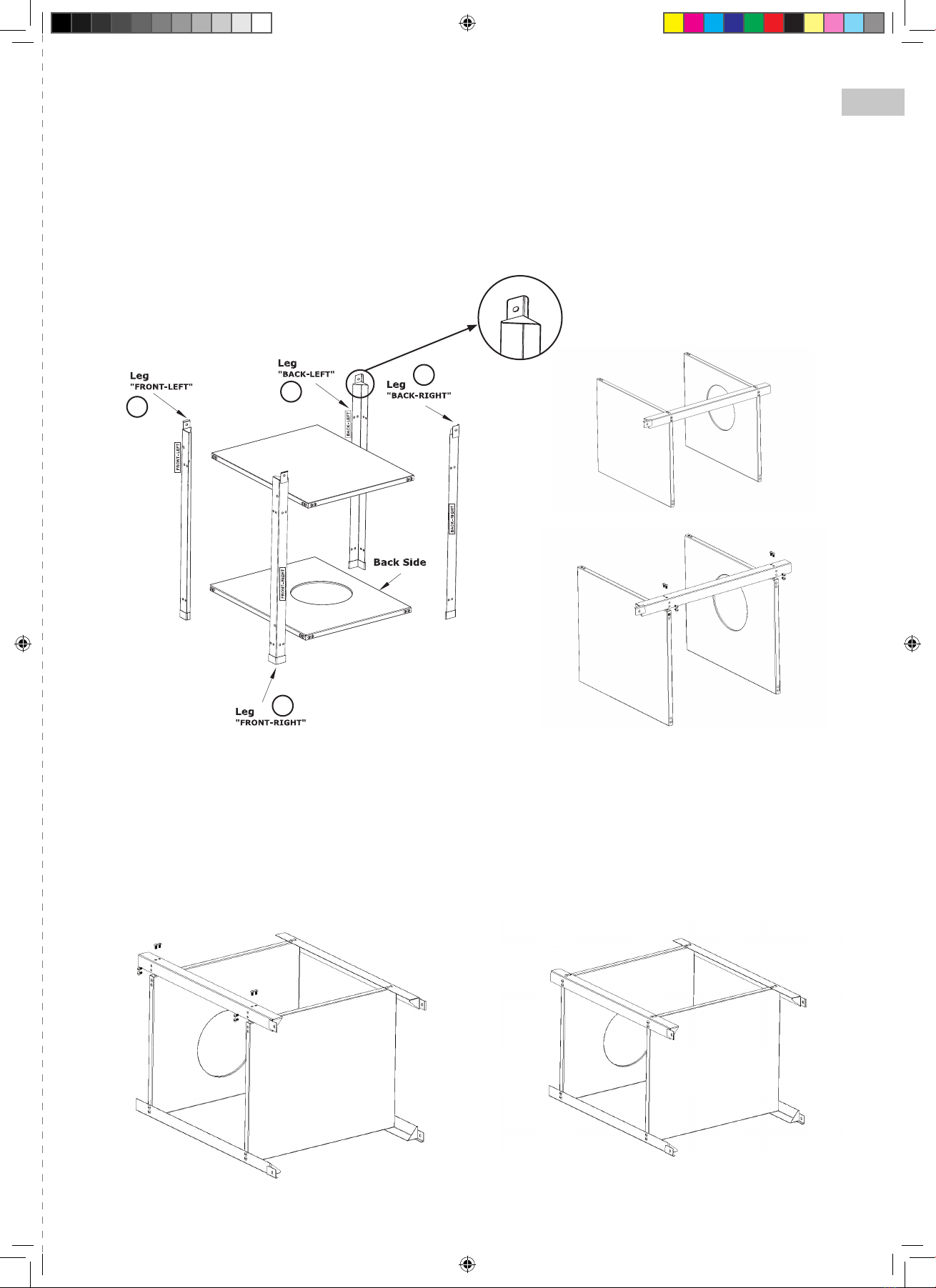

STEP 5 ASSEMBLING THE STAND
— The stand is made up of the top storage shelf (15), the gas bottle shelf (16) the front and back
legs (11,12,13,14). Please note the bottom shelf has an opening to hold the gas bottle. This
recess should be closest to the back of the pizza oven. The back legs can be recognised by
a small right angle at the top of the leg. Attach each leg to the storage and gas bottle shelves
using 8 x M6x10mm screws as shown below.
—Repeat for the other three legs.
— Attach the other 3 legs to the storage and gas bottle shelves using (8) M6x10mm screws in
each leg.
Note, the position of each leg tab, must be at the top and facing the correct direction as
shown above. Make sure all the screws are tightly assembled.




11
12
14
13
ARROSTO GAS PIZZA OVEN-Manual_v5.indd 9 19/12/17 1:28 pm

10
STEP 6 ATTACHING THE OVEN BODY TO THE STAND
— Place the stand upright. With a helper, put the oven body (2) in position on top of the stand,
and make certain that the holes in the legs match the attaching threaded holes in the sides of
the oven body. Fasten the oven to the stand with 4 x M6x10mm screws as shown below.
Your Arrosto Outdoor Gas Pizza Oven is now ready to use.
PLEASE READ THE LIGHTING INSTRUCTIONS CAREFULLY BEFORE USE!




STEP 7 INSERTING PIZZA STONE AND ROAST RACKS
— Locate the pizza stone (6) and the wire support grid (7). This support grid has wires to locate
and hold the pizza stone in the correct position. Place the support grid at the bottom of the
pizza oven, just above the burner. You will see that there are 3 tabs that extend from each
side of the inside of the pizza oven. The wire support grid rests on these.
Place the pizza stone (6) onto the wire support grid. The pizza stone should sit on the wire
support grid close to the front of the pizza oven.
— Place the wire roast racks (5) onto the support shelves inside the pizza oven above the pizza
stone as shown below.
ARROSTO GAS PIZZA OVEN-Manual_v5.indd 10 19/12/17 1:28 pm

11
D. THE GAS SYSTEM
1. GAS AND REGULATOR INFORMATION
This pizza oven is designed for Propane (LPG) gas use only. Gas bottles with a "POL"
connection are to be used with this pizza oven. Suitable regulators must have an outlet
pressure of 2.75 kPa. You must have the proper regulator and bottle in order for the pizza
oven to operate safely and eciently. Ensure that a 100% propane (LPG) rellable gas
cylinder currently certied to Australian Standard AS2030.1:2009 is used. Do not use
disposable gas cylinders. Please note the hose and regulator supplied with this pizza oven
are approved types and are specically designed for use with your pizza oven.
2. CONNECTING THE HOSE AND REGULATOR TO THE GAS BOTTLE
—Only use the hose assembly supplied with this appliance for direct connection to the
cylinder – DO NOT USE ADAPTORS. Do not use any other hose assembly. Check the
gas hose for damage or signs of abrasion before each use.
—Keep the hose clear of sharp edges and hot surfaces.
— Avoid twisting or kinking the exible hose.
—If damaged, do not use the hose and replace it immediately. If there is any doubt, contact
the customer service line on 1300 301 392.
— Make sure all pizza oven and gas cylinder control knobs are in the o position. Connect
the regulator to the gas cylinder by inserting the regulator connection into the gas bottle
outlet. This is tightened in an anti clockwise motion.
—Firmly hand tighten and then be sure to check for leaks at all gas connections.
BE SURE TO CHECK FOR LEAKS AT ALL CONNECTIONS
P.O.L. LEFT HAND THREAD
7/16" - 20 UNF THREAD

ARROSTO GAS PIZZA OVEN-Manual_v5.indd 11 19/12/17 1:28 pm

12
3. LEAK TESTING
Open the gas control valve on the cylinder. Check for leaks by brushing a solution 1/2 water
and 1/2 soap over all gas system joints, including all valve connections, hose connections
and regulator connections. DO NOT USE AN OPEN FLAME to test for leaks at anytime. If
bubbles form over any of the joints, there is a leak. Turn o the gas supply and re-tighten
all joints. If bubbles form again, do not use the pizza oven. Please contact the customer
service line on 1300 301 392. Check for leaks annually or whenever the gas cylinder is
relled.
—If you need a replacement hose and regulator or have any queries on the gas system,
please call our Customer Service line on 1300 301 392.
E. INSTALLATION
1. CHOOSING A LOCATION
This pizza oven is for outdoor use only and should be placed in a well-ventilated area. Take
care to ensure that the Minimum clearances: From sides: 1000mm, From back: 1000mm,
From above (vertical): 1000mm.
Keep this pizza oven away from any ammable materials!
2. OTHER PRECAUTIONS
Do not obstruct any of the ventilation openings in the pizza oven body. Also, always
position the gas cylinder in the gas bottle recess which is safely away from any source
of heat. Should you need to change the gas cylinder, conrm that the cylinder is o, and
that there are no sources of ignition (cigarettes, open ame, sparks, etc.) near before
proceeding. Before use be sure to inspect the gas hose and ensure it is free of any twisting
or tension. The hose should hang freely with no bends, folds, or kinks, which could obstruct
the free ow of gas. Apart from the connection point, no part of the hose should touch
any hot parts. Inspect the hose before use. If the hose is damaged, it must be replaced
with a hose from the manufacturer. Should minimum clearances not be adhered to severe
are up may be experienced due to a lack of airow around the pizza oven, thus voiding
manufacture’s warranty.
FOR STORAGE AND CYLINDER EXCHANGE,
DISCONNECT THE CYLINDER ONLY.
DO NOT DISCONNECT HOSE FROM APPLIANCE.
— DO NOT OPERATE THIS APPLIANCE BEFORE READING THE INSTRUCTION
BOOKLET
— DO NOT OPERATE THE APPLIANCE INDOORS
— DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE
— DO NOT STORE CHEMICALS OR FLAMMABLE MATERIALS, OR SPRAY
AEROSOLS NEAR THIS APPLIANCE
— DO NOT OPERATE IN AN ENCLOSED AREA
— DO NOT OPERATE THIS APPLIANCE BEFORE LEAK CHECKING HOSES AND
GAS CYLINDER CONNECTION
ARROSTO GAS PIZZA OVEN-Manual_v5.indd 12 19/12/17 1:28 pm

13
— DO NOT OPERATE THIS APPLIANCE BEFORE READING THE INSTRUCTION
BOOKLET
— DO NOT OPERATE THE APPLIANCE INDOORS
— DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE
— DO NOT STORE CHEMICALS OR FLAMMABLE MATERIALS, OR SPRAY
AEROSOLS NEAR THIS APPLIANCE
— DO NOT OPERATE IN AN ENCLOSED AREA
— DO NOT OPERATE THIS APPLIANCE BEFORE LEAK CHECKING HOSES AND
GAS CYLINDER CONNECTION
F. OPERATION: LIGHTING
WARNINGS
—Read all safeguards and instructions on page 3 before lighting the Gas Pizza Oven.
— Accessible parts may be very hot. Keep young children and pets away from the unit when it is
in use and/or when still hot.
— ONLY USE OUTDOORS IN WELL VENTILATED AREAS.
—This appliance is not intended to be installed or used on a recreational vehicle or boat.
—This appliance must only be serviced by an authorised person.
CARBON MONOXIDE HAZARD-THIS APPLIANCE CAN PRODUCE
CARBON MONOXIDE WHICH HAS NO ODOUR. USING IT IN
ENCLOSED SPACE (FOR EXAMPLE CARAVAN,TENT, CAR, MOBILE
HOME) MAY CAUSE DEATH.
SAFETY TIPS
Please observe the following points before using the pizza oven:
— Ensure pizza oven is placed on horizontal surface.
—DO NOT move appliance whilst in operation.
—Never leave pizza oven unattended when hot or in use.
— DO NOT modify this appliance or tamper with any parts. Any modication of this appliance is
dangerous and will nullify any warranty.
— Turn o the gas supply at the gas cylinder after use.
—Use protective gloves when cooking or handling any parts of the pizza oven while in use.
— In the event of a gas leak, shut o gas supply immediately and extinguish any ames. Contact
the customer service line -1300 301 392.
ARROSTO GAS PIZZA OVEN-Manual_v5.indd 13 19/12/17 1:28 pm

14
LIGHTING THE PIZZA OVEN
WARNING: OPEN DOOR BEFORE LIGHTING.
Piezo Ignition
1. Make sure the valve, the hose and the regulator are connected correctly as per the assembly
instructions.
2. Open the gas control valve on the gas cylinder.
3. Push down the control knob and keep pressing while turning anti-clockwise to the
90º position (‘HIGH’ position). Keep the knob pressed and push the ignition button several
times until burner has lit. If the burner has not lit, repeat this process.
4. If the burner does not light after 3 attempts, turn o the gas tap, wait 5 minutes and
then repeat step 3. If the pizza oven still fails to light, please refer to the manual ignition
instructions below.
5. When the burner is lit, adjust the heat by turning the knob to the HIGH or LOW position.
6. After use, turn all control knobs to the OFF setting and turn o the gas control valve at the
cylinder.
Manual Ignition
1. Remove pizza stone from support grid.
2. Open the gas control valve at the cylinder.
3. Insert lit match through the supporting grid and place near the burner.
4. Push and turn the control knob anti-clockwise to the HIGH ame position.
5. If burner still fails to light after 5 seconds, turn to OFF position and wait 2 minutes. Then
begin again from step 3. If the burner still fails to light after several attempts, call the
customer service line -1300 301 392.
WARNING: IF THE BURNER FAILS TO IGNITE, TURN THE CONTROL KNOB OFF
(CLOCKWISE) AND ALSO TURN THE CYLINDER VALVE OFF, WAIT FOR
5 MINUTES BEFORE OPENING THE DOOR, AND REPEAT THE LIGHTING
PROCEDURE.
ARROSTO GAS PIZZA OVEN-Manual_v5.indd 14 19/12/17 1:28 pm

15
TROUBLE SHOOTING
PROBLEM POSSIBLE CAUSE PREVENTION/ CURE
Burner will not light No Gas Flow Check LG Gas cylinder is full. Replace gas
cylinder.
Obstruction of gas flow Check for bent or kinked regulator hose.
Clean burner ports.
Spider webs or
obstruction in venturi
Clean venturi.
Burner ports blocked Clean burner ports.
Bad piezo ignitor spark Check to see if burner will match light.
Check to see if piezo electrode is producing spark.
The spark should be visible and jumping from the
ignitor to the burner. If you cannot see any spark
you may need to slightly adjust the position by
bending the electrode a little closer or further away
from the burner.
Replace piezo ignitor or replace the piezo wire.
Irregular flame pattern.
Flame does not run the
full diameter of burner
Burner ports blocked Clean burner ports.
Flame is yellow or orange Burner may be blocked Clean burner ports.
Spider webs or
obstruction in venturi
Clean venturi.
Food residue or grease
on burner
Clean burner.
Burner may have
residue
Turn burner to high setting for 5 mins and burn
with the door open.
Burner will not stay alight Gas Bottle is empty Check LG Gas cylinder is full. Replace gas
cylinder.
Flame Failure Device
(FFD) sensor is not
positioned correctly
Reposition FFD sensor. Refer to page 16 of
manual for instructions.
FFD device is faulty. Replace FFD.
IF YOU HAVE ANY QUESTIONS OR QUERIES ABOUT THE OPERATION OR MAINTENANCE OF
YOUR GAS PIZZA OVEN PLEASE CALL THE CUSTOMER SERVICE NUMBER ON 1300 301 392.
ARROSTO GAS PIZZA OVEN-Manual_v5.indd 15 19/12/17 1:28 pm

16
Please note when you initially light the unit you will need to push the control knob in and turn to
the left but continue pushing the control knob which will release the gas for it to ignite.
CORRECT POSITION OF THE FFD SENSOR
Please see the correct position of this sensor.
ADJUSTING SENSOR (DISCONNECT FROM GAS SUPPLY DURING THIS PROCEDURE)
If the ame in the burner is going out after you light the unit you may have to slightly adjust the
position of the sensor.
This is easily done by loosening the two nuts on either side and moving the sensor up or down
and then retightening to x in place.
FFD
FLAME FAILURE DEVICE (FFD)
The FFD is a safety feature of this unit that shuts o
gas to the appliance if the ame is not continuously
burning. Please note the sensor has been factory
tted to the burner and is already in its correct
position.
FFD
Loosen the two nuts to the
thermocouple sensor, then
adjust the height to correct
position.
LOW SETTING HIGH SETTING
Thermocouple
Sensor
Thermocouple
Sensor
ARROSTO GAS PIZZA OVEN-Manual_v5.indd 16 19/12/17 1:28 pm

17
F. CARE AND MAINTENANCE
WARNING
• Use caution when lifting and moving the pizza oven to avoid strains or back injury. 2 people are
recommended to lift or move the pizza oven.
• DO NOT store the pizza oven near gasoline or other combustible liquids or where combustible
vapour may be present. Keep the area around the pizza oven clear and free of combustible materials
and vapors.
• DO NOT store this pizza oven in an area accessible to children or pets. Store the pizza oven in a dry,
protected location.
• DO NOT allow anyone to conduct activities around the pizza oven following use until it has cooled. It
is hot during operation and remains hot for a period of time following use.
• This pizza oven becomes extremely hot. Allow the pizza oven to cool completely before handling.
If you must handle the pizza oven whilst it is hot, ALWAYS wear protective mitts or heat resistant
gloves. Allow the pizza oven to cool before cleaning the roast racks and pizza stone.
Regularly clean your pizza oven between uses and especially after extended periods of
storage. Never douse the pizza oven with water when its surfaces are hot.
In order to extend the life and maintain the condition of your pizza oven, we strongly
recommend that the unit be cooled, cleaned, dried and then covered when left outside for
any length of time, especially during the winter months.
1. CARE OF BURNERS
Ensure that there are no signs of blockage (debris, insects) in either the burner portholes,
the primary air inlet, or the neck of the burners. Use compressed air or a pipe cleaner wire to
clear obstructions. A wire brush can be used to remove corrosion from the burner surfaces.
2. PIZZA STONE
The pizza stone can be cleaned by scraping any excess food from the stone. Do not
immerse the pizza stone in water. A damp cloth maybe used to remove any food residue.
3. COOKING TIPS
Because the pizza stone sits directly above the burner it can get extremely hot. If you are
nding that your pizza bases are cooking too quickly or burning on the stone then the rst
step is to turn down the gas setting to low. Remember the stone will actually be a lot hotter
than the temperature gauge reading on the oven door.
If you are still cooking the pizzas quickly we recommend starting to cook the pizzas on either
of the two roasting racks rst. This will allow the pizza toppings to cook through rst before
placing the pizza on the stone to crisp the base. Also recommend the use of pizza trays if
you have them.
ARROSTO GAS PIZZA OVEN-Manual_v5.indd 17 19/12/17 1:28 pm

18
4. STORAGE
Store your pizza oven in a cool dry place. Cover the burner with aluminium foil in order to
prevent insects or other debris from collecting in burner holes if not used for long periods of
time. The gas cylinder should be disconnected from the pizza oven and stored outdoors.
To protect your pizza oven from weather, always keep your pizza oven covered while not in
use. Keep the area clear of all ammable liquids, combustible materials including but not
limited to wood, dry plants including grass, brush, paper and canvas.
The pizza oven may be stored indoors only if the cylinder is disconnected and removed.
Any indoor storage shall comply with Section 2 Minor storage and usage of AS/NZS 1596.
When using the pizza oven after extended periods of storage, please follow all of the care
and maintenance instructions.
Cylinders must be stored outdoors in a well ventilated area out of the reach of children.
WARNING: Ensure any covers are removed prior to operating the pizza oven.
5. MAINTENANCE SCHEDULE
It is recommended that your Gas Pizza Oven is serviced by an authorised gas technician
every 24 months.
DO NOT MODIFY THE PIZZA OVEN OR USE UNAUTHORISED PARTS.
ANY SERVICING SHALL BE CARRIED OUT BY AUTHORISED PERSONNEL.
ARROSTO GAS PIZZA OVEN-Manual_v5.indd 18 19/12/17 1:28 pm
