Bartlett Audio Bass Mic User manual
Bass Mic: Clip-On Mic for Bass
■Full, mellow sound -- better than a pickup
■Soft foam mount pressed into an f-hole will not scratch your
instrument
■Consistent sound from gig to gig
■Freedom of movement
■High sensitivity and low-impedance balanced output provide a
strong, hum-free signal
■Made in USA
Bartlett Audio
www.bartlettaudio.com © 2014 Bartlett Audio
The Bartlett Bass Mic is a professional quality, miniature microphone
that attaches to a bass f-hole for sound reinforcement. Specially voiced
to sound best on a bass, the mic provides a full, mellow tone. Applica-
tions include old-time, bluegrass, and jazz groups.
A bass tends to sound boomy when miked in an f-hole. The low-frequen-
cy response of the Bass Mic is rolled off to compensate, resulting in a
natural, non-boomy sound.
The Bass Mic has a tiny mic housing with a rugged 8-foot cable
attached to an XLR connector which houses the electronics. The micro-
phone requires phantom power, available from most mixers.
Type: Miniature omnidirectional condenser microphone.
Transducer: Electret condenser.
Frequency response: 40 Hz to 10 kHz. See Figure 1.
Polar pattern: Omnidirectional. See Figure 2.
Impedance: 200 ohms. Recommended load impedance >1000 ohms.
Sensitivity: 26.6 mV/Pa (-32 dBV/Pa). 1 Pa = 94 dB SPL.
Signal-to-noise ratio: >64 dB at 94 dB SPL. Noise is inaudible in
normal use.
Maximum SPL: 134 dB SPL produces 3% THD. The mic will not audi-
bly distort in normal use.
Cable: Permanently attached, 8-foot, black 2-conductor shielded cable
with XLR-type 3-pin connector.
Operating voltage: 18–48V phantom power.
Current draw: 4.5 mA.
Materials: Rugged brass circuit housing/XLR connector.
Finish: Black mic, silver circuit housing/XLR connector.
Net weight: 2.8 oz (79 g).
Dimensions: XLR connector 2.460” long x 0.747” diameter, mic 0.540”
long x 0.325” diameter.
SPECIFICATIONS

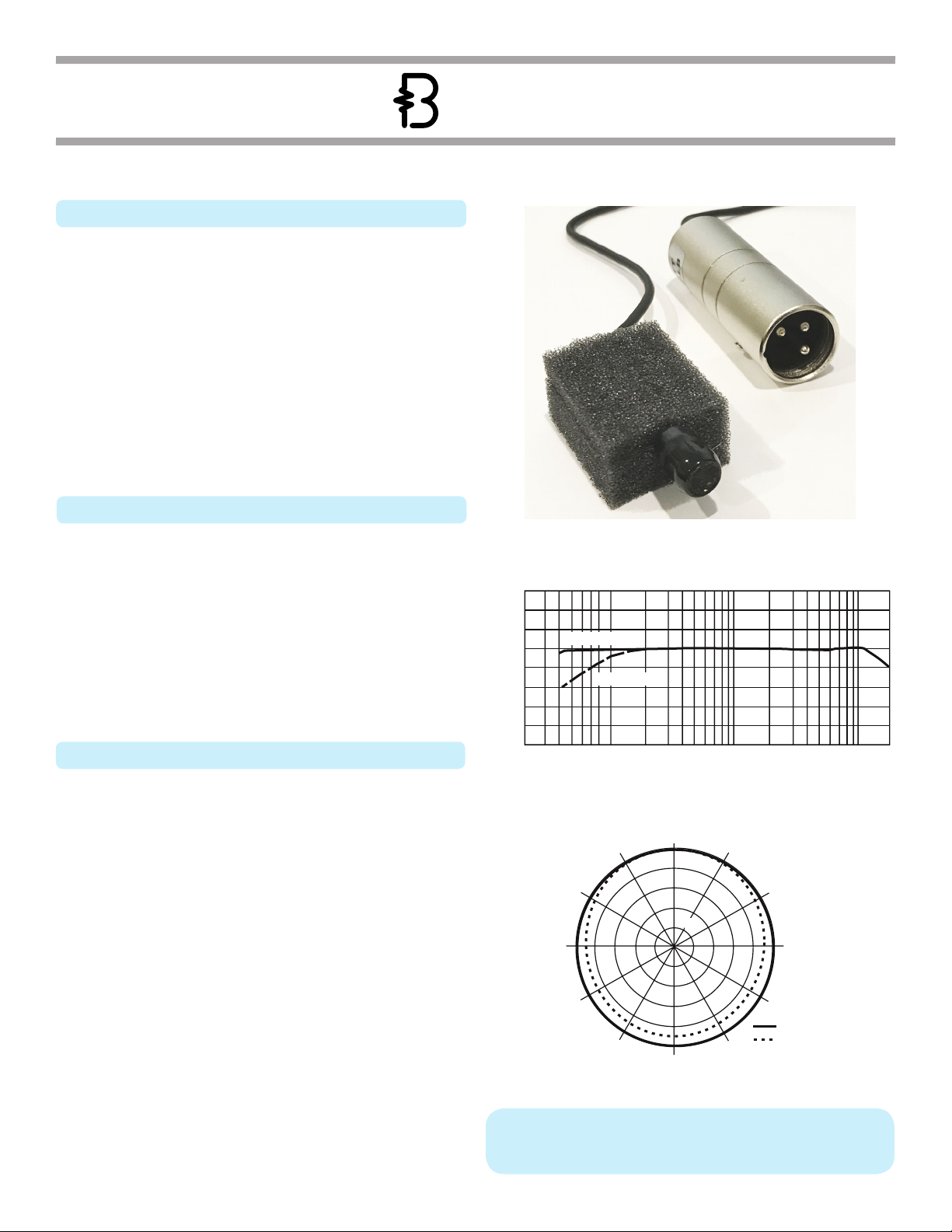

Figure 1. Frequency Response
Figure 2. Polar pattern
FEATURES
DESCRIPTION
BARTLETT
AUDIO
+15
+10
+ 5
0
– 5
–10
–15
–20
–25
20 100 1K 10K 20K
Frequency in Hz
dB
Inside f-hole
Outside f-hole
0 dB
– 5
–10
–15
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
0°
20 Hz - 4 kHz
10 kHz
– 20
1. Option 1: Plug the mic connector into a mic cable that is connected to
a mixer mic input. That input should supply phantom power.
2. Option 2: Plug the mic connector into a mic cable that is connected to
a phantom power supply. Then connect the phantom supply output to a
mixer mic input.
3. Turn on phantom power before use.
4. The microphone is very sensitive or “hot”. Be sure to turn down the
input gain trim on your mixer as needed to prevent mixer distortion and
feedback.
5. If you also use a pickup, mix the Bass Mic with the pickup to get a
variety of tones.
WARRANTY SERVICE
The Bartlett Bass Mic is guaranteed not to malfunction (except in cases
of abuse) for a period of two years from the date of rst purchase. Mic
cables and paint nish are excluded from this warranty.
If the microphone does not operate correctly, rst check its cable and
other connected cables. Repair or replace them if necessary. Make sure
that phantom power is turned on and that the microphone’s fader is up in
the mixer.
If the microphone still fails to operate, obtain a return authorization
and its cable in its original packaging to Bartlett Audio. Please include
proof of purchase and a note about the problem.
If the microphone’s specications change, any changes will appear in
the latest data sheet available online at www.bartlettaudio.com.
OPERATION
1. Supplied with the Bass Mic is a foam mount about 1 inch behind the
mic.
2. Stuff the foam mount in an f-hole with the mic just inside the f-hole.
MOUNTING THE BASS MIC ON YOUR INSTRUMENT
4-5-14
Press foam
mount into
f-hole
Mic is just
inside f-hole
Mic cable
