Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of Signal Words....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended Use ...........................................................................................7
1.4 Unintended Use.......................................................................................7
2General information.......................................................................................8
2.1 Liability and Warranty ..............................................................................8
2.2 Copyright Protection ................................................................................8
2.3 Declaration of Conformity ........................................................................8
3Transport, Packaging and Storage................................................................9
3.1 Delivery Check.........................................................................................9
3.2 Packaging................................................................................................9
3.3 Storage....................................................................................................9
4Technical Data.............................................................................................10
4.1 Technical Specifications ........................................................................10
4.2 List of Components of the Appliance .....................................................11
4.3 Functions of the Appliance.....................................................................12
5Installation and operation ............................................................................13
5.1 Installation..............................................................................................13
5.2 Basics of Thermal Processing in Microwave..........................................14
5.3 Cookware Suitable for Use in Microwave ..............................................15
5.4 Operation...............................................................................................16
6Cleaning......................................................................................................32
6.1 Safety Instructions for Cleaning.............................................................32
6.2 Cleaning.................................................................................................33
7Possible Malfunctions..................................................................................34
8Disposal....................................................................................................... 34

Safety
2 / 36 610837
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des G erätsu ndg ilt als wichtige Infor mationsquelle und N achschlagewer k.Die Ke nntnis aller enthaltene nSic herheitshin weise und Handlungs anweisungen schaf ft dieV oraussetzung f ürd as sichere und sachger echte Arbeiten mit d emG erät.D arüber hin aus müssen die für den Eins atzbereich des Geräts gelt enden örtlichen Unfall verhütungsvorsc hriften und allgemeine n Sicherheitsbesti mmungen eing ehalten werden. Diese Bedi enungsanleitung is t Bestandteil des Prod ukts und muss in unmitt elbarerN ähe des Geräts für das In¬stall ations-, Bedienungs- , Wartungs- und Reinigu ngspersonal jederzeit z ugänglich auf¬b ewahrt werden. Wenn das Ger ät an eine dritte Person
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
610837 3 / 36
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical Current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 36 610837
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
Flammable Materials
•Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
•To avoid fire hazard, clean the appliance regularly.
•Do not cover the appliance with, e.g., aluminium foil or cloths.
•Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
•Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
•In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
Fire or Explosion Hazard
•Do not place any objects inside the appliance (cookbooks, sponges, etc.).
Sudden activation of the appliance can cause damage to such objects, and
even burn them.
•When heating or cooking food products in containers from flammable materials
such as plastic or paper, remain near the appliance as there is a risk of the
appliance overheating.
•If objects in the device catch fire, leave the door closed, turn the appliance off
and remove the plug from its socket orR flip the main circuit breaker switch.
•Do not use metallic pots, pans or covers. Metal may lead to sparks in the
cooking chamber. Use only dishes resistant to high temperatures, designed for
use in microwave ovens (see sec. 5.3). Risk of fire!
•Do not prepare food products and beverages in closed or sealed containers.
Such containers may crack inside the device or injure the user when being
opened!
•Do not use the appliance for preparation of fresh or hard-boiled eggs, either in
shell or peeled, as eggs may explode.
•Food products with thick skins, such as potatoes, pumpkins, apples or
chestnuts, should be pierced prior to heating.

Safety
610837 5 / 36
EN
•Do not place solutions inside containing water, oil or grease, as such a mixture
may explode.
Safety of Microwave Oven Operation
•Do not fry any food products in the appliance. Hot oil can lead to skin burns
and/or damage to the appliance.
•Food products prepared in the appliance are heated unevenly. Also, containers
are usually hotter than the food products inside. Carefully check the temperature
of food products, especially those prepared for children. Risk of burns!
•During the heating of liquids in the microwave oven it is possible that the liquid
may reach boiling temperature without externally visible bubbling. For this
reason, special care must be taken when handling the container. Even a light
bump, e.g. when removing the liquid from the device, may lead to spillage. Risk
of burns!
•For that reason avoid using tall, narrow containers with a thin neck.
•Place a spoon (only in exceptional cases use a metallic one) or glass stirrer in
the beverage, then place the dish in the center of the rotating tray. Stir the liquid
prior to heating and after half the heating time has elapsed. After heating: wait
for a moment, carefully stir the liquid, then remove from the cooking chamber.
•As food prepared in the microwave is heated unevenly, the contents of
children’s bottles must be mixed thoroughly - optimally by shaking –then, before
giving the bottle to the child, check the temperature of the food. Prior to heating
food remove the bottle cap and nipple!

Safety
6 / 36 610837
EN
Microwave Radiation Hazard!
Exposure to microwave radiation may cause bodily injury. To avoid the effects of
this risk, follow the safety instructions presented below:
•Do not turn the microwave oven on when the door is open, as the appliance
may emit an excess of damaging electromagnetic waves.
•Never change the safety locks!
•It is extremely important to not damage the door and that it can be closed
properly. Example of damage to the door which may be unsafe include the
following:
–warping and indentations,
–cracked and/or properly secured hinges and screws,
–damaged door seals,
–cracked glass pane,
–damaged locking elements.
•The space between the door and the appliance must be free of foreign objects.
•Door seals must be tight and clean, as dirt and damage may allow
electromagnetic waves to escape from the microwave oven. Take care to
prevent buildup of any residues (e.g. cleaning agents, dust, grease, etc.).
Halten Sie Verpacku ngsmaterialien und St yroporteile von Kindern f ern.Si e können sich darin verfangen und erstic ken.
Operating personnel
•The appliance can be used by children of 8 years old and older, as well as by
people with reduced physical, sensory or mental abilities and those with limited
experience/knowledge as long as they are under supervision or have been
instructed on safe use of the appliance and possible risks. Children should not
play with the appliance.
•Do not leave the appliance unattended in the presence of children.
Improper Use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your own.
•Do not introduce any changes in the appliance nor modify it.

Safety
610837 7 / 36
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–preparing, heating-up, grilling and defrosting foods with the use of
suitable cookware.
This appliance is intended for use in households and similar places, e.g.:
–in employee canteens in shops, offices, and similar areas;
–on farms;
–by customers in hotels, motels, and other typical accommodation
establishments;
–in lodging-houses.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–for industrial and laboratory needs,
–as a storage compartment (e.g., for cookware/dishes),
–drying paper, textiles or other flammable materials,
–heating/heating up flammable, harmful, and quickly evaporating liquids or
materials, etc.

General information
8 / 36 610837
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, Packaging and Storage
610837 9 / 36
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical Data
10 / 36 610837
EN
4 Technical Data
4.1 Technical Specifications
Name:
Microwave 14250M-HLGR
Article number:
610837
Material:
stainless steel | steel, painted
Thermal processing chamber material:
stainless steel
Rotary plate material:
glass
Diameter of rotary plate, in mm:
270
Microwave output, in W:
1400
Convection output, in W:
1950
Grill output, in W:
1950
Number of magnetrons:
1
Number of power output levels:
10
Volume, in l:
25
Thermal processing chamber
dimensions (W x D x H), in mm:
315 x 348 x 198
Time setting, up to, in min.:
95
Connected load:
1,95 kW | 230 V | 50 Hz
Dimensions (W x D x H), in mm:
483 x 442 x 280
Weight, in kg:
16,6
We reserve the right to implement technical modifications.
Version / Characteristics
•Functions:
–heating
–defrosting
–grill (can be combined)
–convection (can be combined)
•Control: electronic, knob, button
•Timer
•Digital display, LED display

Technical Data
610837 11 / 36
EN
•Rotary plate
•Internal lighting
•The set includes: 1 grill pan, Ø275 mm, height 50 mm, detachable handle
4.2 List of Components of the Appliance
Fig. 1
1. Door safety lock system
2. Door handle
3. Door with sight glass
4. Ventilation openings
5. Housing
6. Grill heater
7. Roller ring
8. Rotary plate
9. Grill pan with detachable handle
10.Internal lighting
11.Control panel

Technical Data
12 / 36 610837
EN
Control Panel

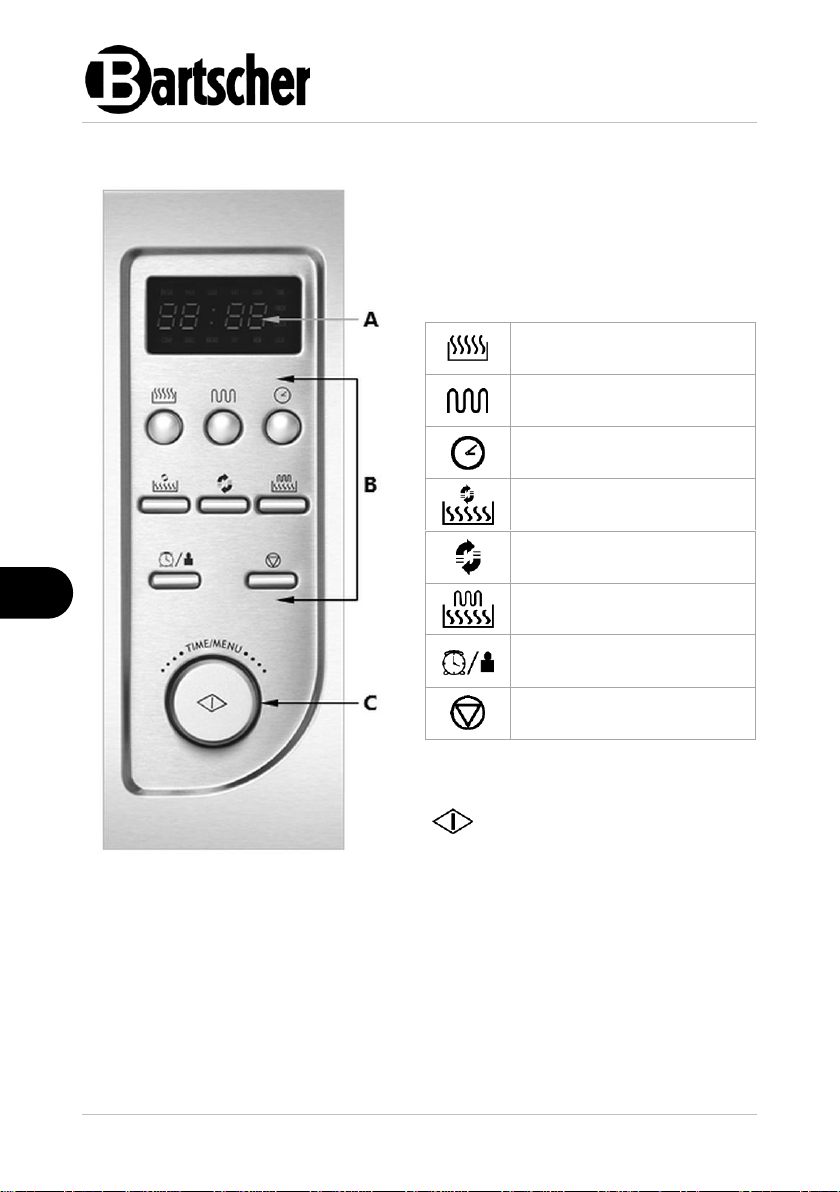

Fig. 2
A –Digital display
B –Function buttons
Microwave
Grill
Time
Microwave + convection
Convection
Microwave + grill
Clock / Scales
Stop / Reset
C –Time/Menu rotary controller
Start/Quick Start Button
4.3 Functions of the Appliance
The microwave is designed for preparing and defrosting foods with the use of
cookware suitable for use in microwave. The microwave offers many ways of
preparing foods, thanks to additional functions of convection and grill. The time and
output of a given function may be set independently and as needed.

Installation and operation
610837 13 / 36
EN
5 Installation and operation
5.1 Installation
Unpacking / Positioning
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels fixed on the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on surfaces that are:
–even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
•To ensure proper functioning, the device must have sufficient ventilation.
•Never block the ventilation ducts!
•It is necessary to maintain the following safe distances:
–above the device: 20 cm
–at rear of device: 10 cm
–at sides of device: 5 cm.

Installation and operation
14 / 36 610837
EN
•The device must remain a minimum distance of 2 m from radios, televisions,
and other such electronics in order to avoid interference with the signal
reception.
Power supply connection
•Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
•Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
5.2 Basics of Thermal Processing in Microwave
Instead of traditional heat sources, a microwave oven applies an electron lamp
which emits electromagnetic waves. These waves, like radio waves, are invisible
but their effects can be observed. Such waves can pass through materials such as
glass, porcelain, artificial materials and paper. As these materials do not contain
water, grease or oil, they are not heated by the microwaves. Simply put, the
microwaves directly reach the food product, causing molecules of water, grease
and oil to vibrate; friction results in the creation of heat which is used for defrosting,
heating or cooking. During cooking with microwaves, heat remains inside the
product being prepared, in opposition to the processes of boiling or grilling in which
heat enters the food from the outside. If the device is not damaged, energy created
by the microwaves remains inside the device and does not pose a threat to the
user.
•Carefully place food products to be cooked inside the microwave oven, with
larger pieces at the outer edges.
•Remember the cooking time. It is best to at first set the shortest possible time
and then lenghten cooking time as necessary. Excessive cooking time may
cause the food product to smoke or catch fire.
•Cover food products during cooking. This will ensure even cooking and prevent
splattering.
•Turn food products over while cooking. This will speed up the process of
cooking such products as chicken or hamburgers. Large products, such as a
roast, should be turned over at least once.
•Such dishes as dumplings should, after half of the cooking time has elapsed, be
turned over, moved from the top to bottom, moved from the outside to the
inside, etc.

Installation and operation
610837 15 / 36
EN
5.3 Cookware Suitable for Use in Microwave
•Check that a dish is suitable to be used in a microwave.
Test: place the empty dish together with a glass of water (never activate the
device when empty or with only an empty container inside), then heat at the
highest power level for 60 seconds. An appropriate dish will be lukewarm. If the
dish is hot, it is not appropriate for use in the microwave.
Proper materials for dishes for the microwave allow microwaves to pass
through. Energy goes through the container and heats the food product.
•Do not use metallic containers or containers containing metallic parts (e.g. gold
strips around the edge of a plate). Microwaves do not pass through metal.
•Do not use products from recycled materials, as they may contain small pieces
of metal. If such containers are used, sparks and even fire may result.
•Dishes of oval and round shapes should be used, as food products cook more
quickly in the corners of square-shaped containers.
•Wide, flat containers are best suited to use in the microwave as compared to
narrow and tall ones. Food products cook evenly in flat dishes.
•To avoid food from baking onto the edge of dishes, you may cover the edges
with thin strips of aluminum foil. Do not use too much aluminum foil, and leave a
minimum distance of 2.5 to 3.0 cm between the foil and walls of the microwave
cooking chamber.

Installation and operation
16 / 36 610837
EN
Information in the below table may be helpful in selecting the right cookware:
Cookware piece
Microwave
unit
operation
Grill
function
Convection
function
Combined
function *
Heat resistant glass
yes
yes
yes
yes
High temperature non-
resistant glass
no
no
no
no
Heat resistant ceramics
yes
yes
yes
yes
Plastic cookware suitable
for microwave
yes
no
no
no
Paper towels
yes
no
no
no
Metal tray / bowl
no
yes
yes
no
Metal rack
no
yes
yes
no
Aluminium film & aluminium
film container
no
yes
yes
no
Tab. 1
* Combined functions: 'Microwave + grill' and 'Microwave + convection'
5.4 Operation
Before Use
1. Remove accessories from the appliance chamber.
2. Prior to first operation, clean the appliance and its equipment according to
instructions in section 6 'Cleaning'.
3. Leave the door open for the chamber to dry completely.
Inserting Rotary Plate
1. Insert the roller ring (7) in the groove in
the bottom of the thermal processing
chamber.
2. Put the rotary plate (8) at the bottom of
the chamber with the ribbed side down
and rotate it until it engages with the
rotary plate drive (a).
Fig. 3

Installation and operation
610837 17 / 36
EN
Switching-On
WARNING!
Risk of burns by hot cookware!
Cookware may be very hot, as high temperature from food is being
radiated.
Remove cookware using only oven mitts or kitchen dish-cloth.
CAUTION!
Risk of incineration!
Observe the appliance especially with high output levels.
Reduce the output in the case of abnormal noises, pouring or bubbling of
liquids.
1. Before each use, check if the rotary plate and roller ring are correctly set.
The thermal processing chamber must be clean; the roller ring must lie in the
groove; the rotary plate must be snapped onto the drive of the rotary plate.
ATTENTION!
Never use the appliance without the rotary plate and without a container
with food nor without food in a container!
Nothing may protrude outside of the rotary plate edge.
Do not heat up food directly on the rotary plate.
When heating up a number of chunks / pieces, distribute them evenly in a
cookware / container, so that they do not touch each other.
2. Place a container with food on the rotary plate.
3. Make sure that door seals are free of foreign objects and that the door closes
securely.
4. Close the appliance door.
5. Plug the appliance into a suitable single socket.
When connecting the appliance for the firs time, a sound signal is heard, and the
digital display shows 'CLOCK' and '1:00'.
6. Set the required operating mode, output level and thermal processing time to
start the appliance. Follow indications provided in subsequent sections.

Installation and operation
18 / 36 610837
EN
When the settings are introduced and the selected program is activated, the thermal
processing chamber is lit, and the rotary plate rotates.
ATTENTION!
The rotary plate must always be able to rotate freely.
Settings
Data Input
1. When inputting data, press the buttons one by one.
With longer pauses, the appliance interrupts the process automatically.
All data are confirmed by the appliance with a sound signal, should they be
accepted. In the case of double sound signal, the appliance rejects data.
2. Check the data and try again.
Data Clearing
1. To clear data before the thermal processing starts, press the Stop / Reset
button.
Interrupting or Finishing Function
1. To interrupt operation, press the Stop / Reset button or open the appliance
door.
2. To continue operation, close the appliance door, and then press the Start/Quick
Start button.
3. To finish the thermal processing, press the Stop / Reset button again in
order to clear all instructions.
Program End
When the program ends, a sound signal is heard for 2 minuted until one of the
buttons is pressed or the door is opened.
The digital display shows 'END'.
1. Remove the prepared food from the oven.
2. Following the thermal processing of food with a large amount of water, leave the
appliance door open for some time, so that the thermal processing chamber
could dry.
