Batavia FIXXPACK BT-CID002 User manual

Page 1
Model: BT-CID002
Item-No.: 7064215
www.bataviapower.com
Cordless impact driver
Akku Schlagschrauber
Visseuse à percussion sans fil
Accu slagschroevendraaier
Avvitatore a percussione senza li
Destornillador eléctrico de impacto inalámbrico
Chave de impacto sem os
Bezprzewodowa wkrętarka udarowa
Operating instructions
PACK 12 V
7064215-Cordless_Impact_Driver-Ma-EN-WoF-2203-22.indb 17064215-Cordless_Impact_Driver-Ma-EN-WoF-2203-22.indb 1 22-03-2022 11:4322-03-2022 11:43

2
Page 2
4
9
5
8
7
3
10
1
2
6
7064215-Cordless_Impact_Driver-Ma-EN-WoF-2203-22.indb 27064215-Cordless_Impact_Driver-Ma-EN-WoF-2203-22.indb 2 22-03-2022 11:4322-03-2022 11:43

3
Prefer a digital instead of a paper manual
or another language than English?

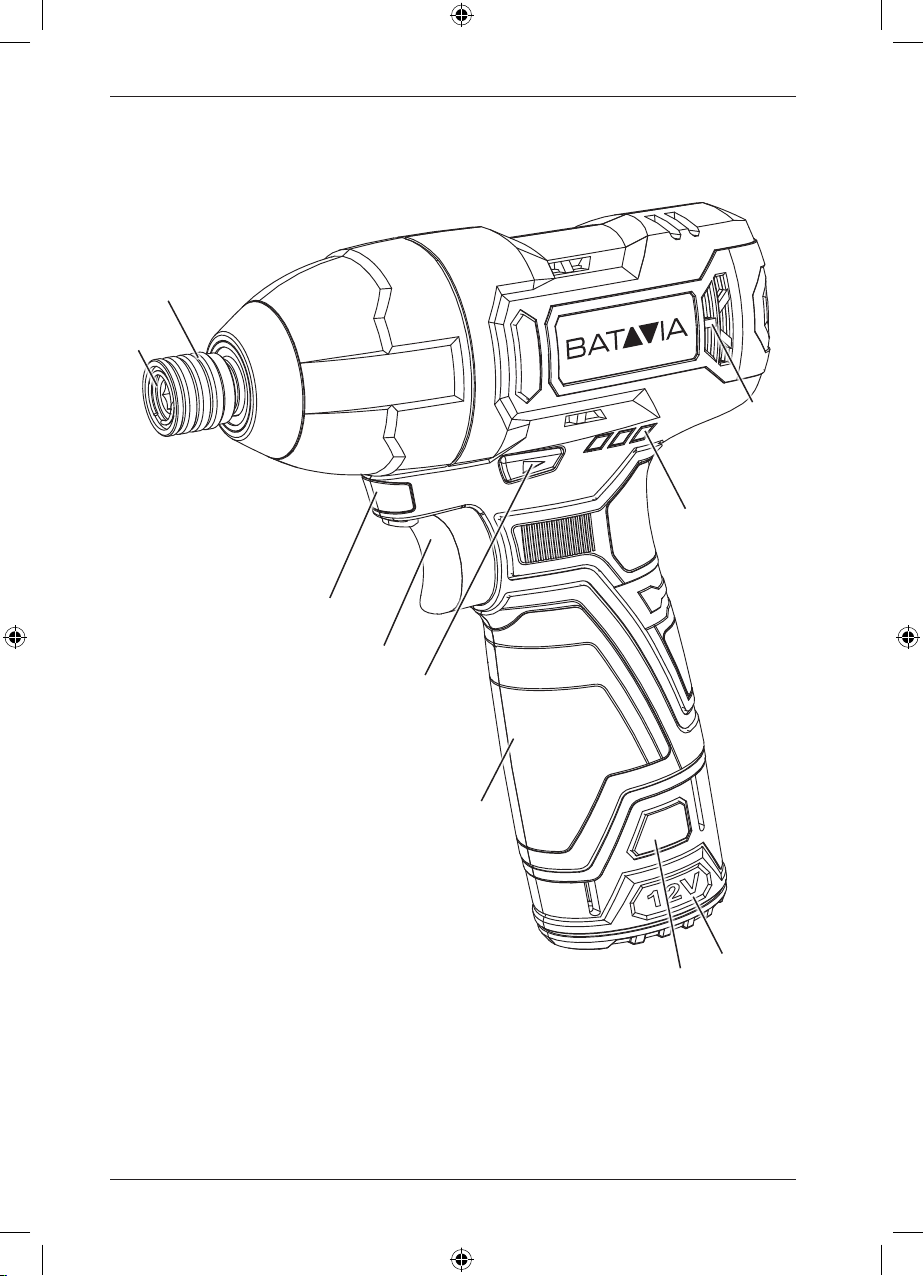

Overview
1. Hex bit holder
2. Collar
3. Motor vents
4. On / Off switch
5. Forward/Reverse switch
6. Hand grip
7. Battery release button
8. Battery (not included)
9. Work Light
10. Battery Charge Indicator
Contents
Safety instructions . . . . . . . . . 4
Before use . . . . . . . . . . . . 5
During use . . . . . . . . . . . . 5
Before first use . . . . . . . . . . 5
Intended use . . . . . . . . . . . 5
Operation . . . . . . . . . . . . 5
Accessories . . . . . . . . . . . 6
Maintenance and Cleaning . . . . . . 6
Technical data. . . . . . . . . . . 6
EC-Declaration of conformity . . . . . 7
PL
EN: Go to bataviapower.com or scan the QR-code. Less paper, more digital.
DE: Gehen Sie zu Bataviapower.com oder scannen Sie den QR-Code
FR: Allez sur Bataviapower.com ou scannez le code QR
NL: Ga naar Bataviapower.com of scan de QR-code
IT: Vai a Bataviapower.com o scansiona il codice QR
ES: Ir a Bataviapower.com o escanear el código QR
PT: Ir a Bataviapower.com ou digitalizar o código QR
PL: Wejdź na stronę Bataviapower.com lub zeskanuj kod QR
7064215-Cordless_Impact_Driver-Ma-EN-WoF-2203-22.indb 37064215-Cordless_Impact_Driver-Ma-EN-WoF-2203-22.indb 3 22-03-2022 11:4322-03-2022 11:43

English
4
DEAR CUSTOMERS
This cordless impact driver is designed for
tightening and undoing screws.
Please familiarize yourself with the proper
usage of the device by reading and follow-
ing each chapter of this manual, in the order
presented. Keep these operating instruc-
tions for further reference.
Please read all safety instructions!
This manual contains important informa-
tion on operating and handling the device.
Keep these operating instructions for fur-
ther reference. Please pass it on along with
the unit if it is handed over to a third party.
Battery and charger not included!
The battery is available separately under
-


These items are available online and in
participating stores.
1. Explanation of the symbols
Warning! To reduce the risk of
injury, the user must read the
instruction manual.
Denotes risk of personal injury, loss
of life or damage to the tool in case
of non-observance of the
instructions in this manual.
Always wear hearing protection.
The effects of noise can cause
hearing loss.
Wear safety glasses. When working
with electric power tools, sparks,
splinters, chips and dust particles
may be generated and these can
cause loss of sight.
CE stands for “Conformité
Européenne”, which means “In
accordance with EU Regulations”.
With the CE marking, the
manufacturer conrms that this
Electric tool complies with the
applicable European directives.
Do not dispose of electric power
tools with domestic refuse.
2. Safety instructions for cordless
Impact drivers
2.1 General
• The tool/charger is not intended for use

reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning
use of the tool/charger by a person
responsible for their safety.
• Ensure that children do not play with the
tool/charger.
• Ensure that the Forward/Reverse
switch (5)
position before making any adjust-
ments or changing accessories as well
as when carrying or storing the tool.
• Do not work materials containing


• Follow the dust-related national require-
ments for the materials you want to
work with.
• When using the machine, use safety
equipment including safety glasses or
shield, ear defenders, and safety gloves.
If operating the tool causes discomfort
in any way, stop immediately and review
your method of use.
• Battery chargers are for indoors use
only. Ensure that the power supply and
charger are protected against moisture
at all times.
• Ensure that the lighting is adequate.
• Ensure that the impact driver bit or

holder. Insecure accessories can be
ejected from the machine causing a
hazard.
• -
cally designed for use with impact driv-
ers. Conventional bits and accessories
may shear off during use, or be other-
wise damaged, potentially ejecting
dangerous projectiles.
• Ensure that fasteners are suitable for
impact driver use. Screws that are not
7064215-Cordless_Impact_Driver-Ma-EN-WoF-2203-22.indb 47064215-Cordless_Impact_Driver-Ma-EN-WoF-2203-22.indb 4 22-03-2022 11:4322-03-2022 11:43

5
English
suitable for high torque application may
be damaged.
• Bits get hot during operation, allow to
cool prior to handling them.
• Examine the bitholder regularly for
signs of wear or damage. Have dam-
-
vice centre.
• ALWAYS wait until the drill has come to
a complete stop before putting it down.
3. Before use
• Avoid damage that can be caused by
screws, nails and other elements in your
workpiece; remove them before you
start working.
• 
utility lines or call the local utility com-
-

shock; damaging a gas line can result in
an explosion; penetrating a water pipe
will cause property damage or an elec-

• 
clamped with clamping devices or in a
vice is held more securely than by

4. During use
• Hold power tool by insulated gripping
surfaces (6), when performing an oper-
ation where the cutting accessory or
fastener may contact hidden wiring
-
tacting a “live” wire may make exposed
metal parts of the power tool “live” and
could give the operator an electric

• In case of electrical or mechanical mal-
function, immediately switch off the
tool or unplug charger from power
source.
5. Before rst use
Remove the machine and the accessories
from the packaging. Check the machine for
transport damage and do not use the
machine in case of damages. Keep the
packing materials away from children, risk
of suffocation!
6. Intended use
The cordless impact driver is designed for
tightening and undoing screws.
The equipment is to be used only for its
prescribed purpose.
7. Operation
7.1 Direction control
• The direction of rotation can be set
using the Forward/Reverse Switch (5).
• For anti-clockwise rotation, push the
switch to the right.
• For clockwise rotation, push the switch
to the left.
Note: When the Forward/Reverse Switch is
in the central position, the drill is locked and
cannot be switched on. Use this setting as a
safety feature to prevent the drill from being
switched on accidentally.
7.2 Fitting a driver bit
WARNING: 
a maximum speed lower than the no load
speed of the machine.
1. Pull the Collar (2) of the Hex Bit Holder
(1) forward, and insert the bit.
2. Release the Collar.
3. Pull on the bit to check that it is

repeat the above procedure.
Note: Make sure screwdriver bits used are
hardened and suitable for use with an
impact driver.
7.3 Switching the machine on and off
The on/off switch (4) is used for activating
the machine and adjusting rotation speed.
• Pressing the on/off switch (4) will acti-
vate the machine, the further the switch
is being pushed, the faster the drill will
turn.
• Releasing the on/off switch (4) will stop
the machine.
WARNING: If the power tool gets exces-
sively hot in use, stop using the tool immedi-
ately and allow to cool before continuing
work. The cooling period can be reduced by
operating the drill at maximum speed with
no load. Always make sure the Motor Vents
(3) are not blocked and do not allow dust to
enter the body of the tool through the Motor
7064215-Cordless_Impact_Driver-Ma-EN-WoF-2203-22.indb 57064215-Cordless_Impact_Driver-Ma-EN-WoF-2203-22.indb 5 22-03-2022 11:4322-03-2022 11:43

English
6
Vents; dust, especially metallic dust, may
damage or destroy the tool.
7.4 LED lamp
The LED lamp (9) will be lit automatically as
(4).
8. Accessories
Use only accessories with an allowable
speed matching at least the highest no-load
speed of the tool.
9. Maintenance and Cleaning

mains power supply, before carrying out any
maintenance/ cleaning of the charger.
Remove the battery before carrying out any
maintenance/cleaning of the tool.
9.1 Maintenance
There are no inner parts of the tool which
need maintenance.
9.2 Cleaning
• Keep safety devices, ventilation open-
ings and the motor housing as free as
possible from dirt and dust. Rub the
electric power tool with a clean cloth or
blow over it with low pressure com-
pressed air.
• We recommend that you clean your
electric power tool immediately after
each use.
• Clean the electric power tool regularly
with a damp cloth and somewhat soft
soap.
Do not use any cleaning or solvent materi-
als; these can attack the device’s plastic
components. Make sure that no water can
get inside the electric power tool.
10. Technical data
Speed . . . . . . . . . . . . . . 0 – 2700 min-1
Bit holder . . . . . . . 
Max. torque. . . . . . . . . . . . . . .
Weight. . . . . . . . . . . . . . . . . . .0.8 kg
Sound Pressure Level LpA . . . . 
Uncertainty KpA. . . . . . . . . . . . . . .3 dB
Sound Power Level LWA . . . . . . 
Uncertainty KWA . . . . . . . . . . . . . . 3 dB
Hand Arm Vibration . . . . . . . .0.571 m/s2
Uncertainty K. . . . . . . . . . . . . .1.5m/s2
11. Disposal
Do not dispose of electric power
tools with domestic refuse.
The electric power tool is shipped in pack-
aging to reduce transport damage. This
packaging is a raw material and as such can
either be reused or can be fed back into the
raw material cycle. The electric power tool
and its accessories are made from various
materials such as metals and plastics. Take
defective components to a special refuse
collection point. Ask about these at your
specialist shop or local council. The product
and the user manual may be subject to
changes. Technical data may be changed
without prior notice.
11.1 Batteries
Think of the environment when disposing of
batteries. Contact your local authorities to

Do not dispose of batteries with domestic
refuse.
Do not dispose of by burning, risk of
explosion.
7064215-Cordless_Impact_Driver-Ma-EN-WoF-2203-22.indb 67064215-Cordless_Impact_Driver-Ma-EN-WoF-2203-22.indb 6 22-03-2022 11:4322-03-2022 11:43

7
English
12. EC-Declaration of conformity
We, the Batavia B.V., Weth. Wassebali-
estraat 6d, NL-7951 SN Staphorst, declare
by our own responsibility that the product
Cordless Impact Driver, Model BT-CID002,
Item-No 7064215 is according to the basic
-
pean Directives Electromagnetic Compati-
bility 2014/30/EU  2006/42/EC
2011/65/EU and their
amendments. For the evaluation of con-
formity, the following harmonized standards

EN62841-1:2015
EN62841-2-2:2014
AfPS GS 2019:01 PAK
EK9-BE-91(V4):2020
EN55014-1:2017
EN55014-2:2015
Staphorst, 09 March 2022
Meino Seinen, QA Representative Batavia


7064215-Cordless_Impact_Driver-Ma-EN-WoF-2203-22.indb 77064215-Cordless_Impact_Driver-Ma-EN-WoF-2203-22.indb 7 22-03-2022 11:4322-03-2022 11:43

Model: BT-CID002
Item-No.: 7064215
www.bataviapower.com
[email protected]
2YEARWARRANTY
This product has got a 2 year warranty
Dear Client, if for any reason this product is not working, please ensure you contact our Client Service Centre. Ensure you have your original receipt
of purchase. This warranty covers all defects in workmanship or materials in this Batavia product for a two year period from the date of purchase.
The warranty does not cover any malfunction, or defect resulting from misuse, neglect, alteration, or repair.
Dieses Produkt hat 2 Jahre Garantie

bitte immer zuerst an unseren Kunden-Service
            

Ce produit a 2 ans de garantie
Cher client, Si pour une raison quelconque, ce produit ne fonctionne pas, veuillez contacter notre Centre de service après-vente. Conservez le bon
d’achat original. Cette garantie couvre tous les défauts de matériau et de main d’œuvre constatés sur ce produit Batavia pendant une période de
deux ans à compter de la date d’achat. Les défauts de fonctionnement et autres résultant d’abus ou de mauvais emploi, de négligence, de
modifications ou réparations non autorisées sont exclus de la garantie.
Dit product heeft 2 jaar garantie
                 
alstublieft altijd eerst tot onze klantenservice. Bewaar altijd uw aankoopbewijs. De garantieservice is alleen van toepassing op materiaal- of
productiefouten. Uitgesloten zijn gebreken veroorzaakt door intensief gebruik, misbruik en incorrecte behandeling of extern geweld.
Questo prodotto è garantito per 2 anni
Centro Assistenza Clienti. Si
accerti di avere la ricevuta originale dell’acquisto. La garanzia copre tutti i difetti di fabbricazione o di materiale in questo prodotto Batavia per un

o riparazioni.
Este producto tiene dos años de garantía
                   .
Asegúrese de tener a mano la factura de compra original. Esta garantía cubre todos los defectos de mano de obra o materiales de este
producto de Batavia por un período de dos años a partir de la fecha de compra. La garantía no cubre ningún mal funcionamiento o

Este produto tem uma garantia de 2 anos
Estimado Cliente, se, por qualquer motivo, este produto não estiver a funcionar devidamente, contacte o nosso
Centro de Apoio ao Cliente
fabrico ou materiais do produto Batavia durante um período de dois anos, a contar da data de compra. A garantia não cobre

Produkt posiada 2-letnią gwarancję.
              

    

Deutschland – Kundenservice – Montag bis Freitag von 9 bis 17 Uhr
01805 937 832*
Other European countries – Customer Services /
Autres pays d’Europe – Service clientèle /
Overige landen Europa – Klantenservice
Monday till Friday from 8 am until 4 pm / Lundi jusqu’à Vendredi
de 9 - 17 heure / Maandag t/m vrijdag van 9 tot 17 uur
00800 664 774 00
BATAVIA B.V. | Weth. Wassebaliestraat 6d | 7951SN Staphorst | Netherlands
7064215/2 - ENGLISH ONLY


WARRANTY
2 YEARS
WARRANTY
2 YEARS
7064215-Cordless_Impact_Driver-Ma-EN-WoF-2203-22.indb 87064215-Cordless_Impact_Driver-Ma-EN-WoF-2203-22.indb 8 22-03-2022 11:4322-03-2022 11:43
