Baumatic BAH9009G User manual

User Manual for your
BAH9009G Cooker Hood
90 cm Island Chimney Hood in Stainless
Steel
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference.

1
YOUR COOKER HOOD’S SPECIFICATIONS ….……………..………….2
IMPORTANT SAFETY INFORMATION……………………………….…3-4
CARING FOR THE ENVIRONMENT…………………………………………5
USING YOUR COOKER HOOD………………………………..……………..6
MAINTAINING AND CLEANING YOUR COOKER HOOD ……….7-9
INSTALLATION INSTRUCTIONS ……………………….……...….10-17
CARBON FILTER …………..10
ELECTRICAL CONNECTION……………11
INSTALLING THE COOKER HOOD….….12-13
INSTALLATION NOTES –EXTRACTION / PURIFYING VERSION .….14
TROUBLESHOOTING ……………………………………………15
HT21/10/06
CONTENTS

2
Congratulations on purchasing a Cooker Hood!
To fully enjoy using your appliance long into the future,
please firstly familiarise yourself with its specifications,
safety advice and operational instructions included in this
manual. You will also need this manual to ensure that your
Cooker Hood has been installed properly.
DIMENSIONS
Width (canopy): 900 mm
Depth (canopy): 600 mm
Height (adjustable): 690- 1170 mm
Dimensions of Pipe Section:
270mm X 285mm
Your stainless steel Cooker Hood is fitted with:
Superior extraction tangential motor
Touch control operation
3 Speeds with Booster Function
4 Halogen lights
Extraction capacity –700m³/hr
Optional Extras: 1 x SQ1 carbon filter for air
recirculation.
Specifications of your LOH9009 Cooker Hood

3
o Any installation work must be
carried out by a qualified
electrician or competent person.
o The hood must be installed in
accordance with the installation
instructions and all measurements
followed.
oIf the cooker hood is installed
for use above a gas appliance then
the provision for ventilation must
be in accordance with the Gas
Safety Codes of Practice BS.6172,
BS.5440 & BS.6891 (Natural Gas)
and BS.5482 (LP Gas) 1994, the
Gas Safety (Installation & Use)
Regulations, the Building
Regulations issued by the
Department of the Environment,
the Building Standards (Scotland)
(Consolidated) Regulations issued
by the Scottish Development
Dptmt.
oIt is dangerous to alter the
specifications or to modify this
product in any way. Do not tamper
with it or attempt to alter it in the
attempt to customise it further.
oWhen installing the hood,
ensure that the following
recommended distances are being
observed between the cooker top
and the bottom of the cooker hood:
Electric cookers:
600 mm
Gas cookers:
600mm
* NOTE - DO NOT SET YOUR
COOKER HOOD LESS THAN
600mm ABOVE YOUR COOKER!
oWhen installed between
adjoining wall cabinets,
the cabinets must not
overhang the hob & must
hang 50mm or more
away from the side of the
hob surfaces.
oThe edges of the cooker
hood are sharp –be
mindful of this as you
handle your appliance,
especially during
installation and cleaning.
DO NOT CLEAN IN
BEHIND THE GREASE
FILTERS!
oIf the room where the
cooker hood is to be used
contains a fuel burning
appliance such as a
central heating boiler
then its flue must be of
the sealed or balanced
flue type.
oIf other types of flue or
appliances are fitted,
ensure that there is an
adequate supply of air in
the room.
oWhen the hood is being
used in its extractor
function, ensure that the
ducting is fire retardant
and that there are no
bends sharper than 90
degrees as this will
reduce the efficiency of
the hood.
Important Safety Information: Please Read this before installing & using.

4
oEnsure the ducting for
the extractor function
has the same diameter as
the outlet hole all the
way through.
o Keep young children from
using, playing with or
tampering with the
cooker hood. Older
children and infirm
persons should be
supervised if they are
using the cooker hood.
o Your cooker hood is for
domestic use only.
o Please dispose of the
packing material
carefully –children are
especially vulnerable to
it.
o Dirty oil is an even
greater fire risk.
o Always put lids on pots
and pans when cooking
on a gas cooker.
o The manufacturer
refuses to accept any
responsibility for
damages arising to the
hood or it‟s catching on
fire from failure to
observe fire safety advice
in these instructions.
o Remember that when in
extraction mode, your
cooker hood is removing
air from your room.
Ensure that proper
ventilation measures are
being observed. Note
that it removes odours
from your room, not
steam.
oWarning - Always ensure
that the cooker hood has
been disconnected from
the power supply before
carrying out any work on
the hood, including
replacing light bulbs.
oIf the supply cord is
damaged it must
replaced by the
manufacturer or service
agent in order to avoid
hazard.
Do not connect the
ducting system of this
appliance to any existing
ventilation system which
is being used for any
other purpose.
Do not install above a
cooker with a high level
grill.
 Never leave frying pans
unattended during use as
overheated fats and oils
might catch fire.
 Do not leave naked
flames under the cooker
hood.
Do not attempt to use
the cooker hood if it is
damaged in any way.
Never attempt to use it
without the grease filters

5
fitted or if the filters are
excessively greasy!
 Never flambé cook under
this cooker hood.
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person.
CONFORMITY TO W.E.E.E. DIRECTIVE
Environmental Note

6
To use your cooker hood:
1) Make sure it has been properly installed.
2) Find the CONTROL PANEL. It is located at the front of the
canopy. You have a Pushbutton control panel that looks like the
one pictured below.
3) The CONTROL PANEL’s buttons all perform separate functions.
You will need to understand what these do before you attempt to
use your cooker hood.
* Note: The hood should be switched on at least as soon as you start
cooking.
1. Turn on the power; the buzzer will buzz five times. The sound shows that
the appliance is powered.
2. Push the low button, the indicating light 1 on, the buzzer will buzz once,
and the motor runs at low speed. Push it again and the motor will stop.
3. Push the middle button, the indicating light 2 on, the buzzer will buzz
once, and the motor runs at mid speed. Push it again and the motor will
stop
4. Push the high button, the indicating light 3 on, the buzzer will buzz once,
and motor runs on high speed. Push it again and the motor will stop
Using your Cooker Hood:

7
5. Push the light button; the indicating light 4 on, and the two lighting lamps
will come on. Push it again and the lamps will turn off, with every push the
buzzer will buzz one time.
IMPORTANT: Before cleaning, always ensure that you have
switched your cooker hood OFF at the power switch, set at
the wall from the cable:
Cleaning
Clean the external parts with
mild liquid detergents on a
damp cloth.
Never use abrasive powder,
corrosive solvents or brushes.
Never insert pointed objects
into the motor‟s protective grid.
Only clean the control panel
and filter grill with a damp
cloth and delicate detergents.
Be sure to replace the
carbon filters at the
recommended intervals.
Build up could cause a
fire hazard.
Never take out the
grease filters and
attempt to clean the
space above where they
are set
________________________________________________
Anti-Grease Grille
Your cooker hood includes an anti-grease grille which helps
absorb vapour-suspended grease particles to protect your
kitchen & furniture from greasy residues.
The metal grille may become inflammable if it becomes
saturated with greasy residue.
Cleaning your Cooker Hood:

8
To prevent this fire hazard, the grille should be cleaned
regularly (depending on use) every 10-15 days and at least
once a month in hot water with normal washing-up detergent.
DO NOT USE A DISHWASHER TO ACHIEVE THIS.
First remove the grille by pulling down on it. Undo the
side catches.
You can now clean the anti-grease filter grilles.
Soak them for about one hour in hot water with a
grease-loosening detergent then rinse off thoroughly
with hot water.
Repeat the process if needed. Refit the grease grille
once it has dried.
Refit the grease grilles when dry.
Let the filter grilles dry thoroughly before refitting
them.
Maintenance -Cleaning the Anti-grease Filters
on: Please Read this before installing & using.

9
a) Changing the light bulb
Before changing the light bulb, ensure that the appliance is not live (i.e., ensure
that you have switched it off so that it‟s in the „0‟ position).
Remove the metal anti-grease filters (see Figure 2 below) and find the old bulb
located in the light fixture up inside the exposed canopy. Change the halogen bulb using
only halogen spares with a G4 coupling, max. 20W.
Maintenance –Changing the Light Bulb and Carbon Filter

10
* PLEASE NOTE - Defective bulbs should be replaced immediately.
Replace the metal anti-grease filters.
______________________________________________________________________________________
Installing / Changing the Carbon Filter.
Your Cooker Hood uses CARBON FILTERS to purify the air
for the air recirculation function.
You will find two filters that will attach to both sides of
the fan motor (please see figures at bottom of page).
The active carbon filters must be replaced regularly, at least once
every three months to allow normal operation.
Before starting to fit the carbon filter, turn the omni-polar switch
to zero (0).
Changing the Carbon Filters
Installing / Changing the Carbon Filter

11
1) Press the handle of the metal grease
filter towards the rear part of the unit
until it is released from the front
housing, and remove it by pressing
downwards (Fig. 2 - above).
2) Remove the old carbon filters by
twisting them anticlockwise until they
unlatch from the sides of the motor.
3) Place the new carbon filters (which
have two fixing tongues), turning
clockwise so that the tongues latch
onto the motor‟s sides. (Fig. 3 - left).
4) Reposition the anti-grease metallic filter grilles.
Before installation and usage, read all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on the identification plate (found
inside your Cooker Hood) and all the data inside the appliance are exactly the
same as the voltage and frequency in your home.
NOTE: The manufacturer declines all responsibility in the event of failure to observe all the
accident-prevention regulations in force which are necessary for normal use and regular
operation of the electric system.
______________________________________________
ELECTRICAL CONNECTION
Y
Yo ou ur r c co oo ok ke er r h ho oo od d i is s i in nt te en nd de ed d f fo or r f fi it tt te ed d w wi it th h p po ow we er r c co or rd d & & p pu ul lg g f fo or r
c
co on nn ne ec ct ti io on n t to o p po ow we er r o ou ut tl le et t . .
oThe power cable must be
connected to the terminals
marked L (live) and N (neutral)
in the hood and fixed with a
cable clamp.
oThe cooker hood‟s power cable
must be fitted upstream from the
electrical connection using an
omni-polar switch with a contact
distance of at least 3mm.
NOTE: (UK only) WARNING –THIS APPLIANCE MUST BE EARTHED. It should only be
connected by a competent person using fixed wiring via a DOUBLE POLE SWITCHED FUSED
SPUR OUTLET.
We recommend that the appliance is connected by a qualified electrician who is a member
of the N.I.C.E.I.C. and who will comply with the I.E.E. and local regulations. The wires in
the mains lead are coloured in accordance with the following U.K. code:
Blue= Neutral, Brown = Live, Green/Yellow = Ground
INSTALLATION INSTRUCTIONS - Electrical
INSTALLATION INSTRUCTIONS –Electrical Connection.

12
If you can only find two wires in the cable (blue and brown), neither must be
connected to the Earth terminal!
As the colours of the wires in the appliance‟s mains lead may not
correspond with the coloured markings identifying the terminals in
your spur box, please proceed as follows:
1）The BLUE WIRE must be connected to the terminal marked “N”(Neutral), or coloured Black
2）The BROWN WIRE must be connected to the terminal marked “L”(LIVE), or coloured Red
3）The Green/Yellow wire must be connected to the terminal marked “E” or
(Earth)(Fig 7 –at left) (Wire diagram-at right)
Installation Instructions

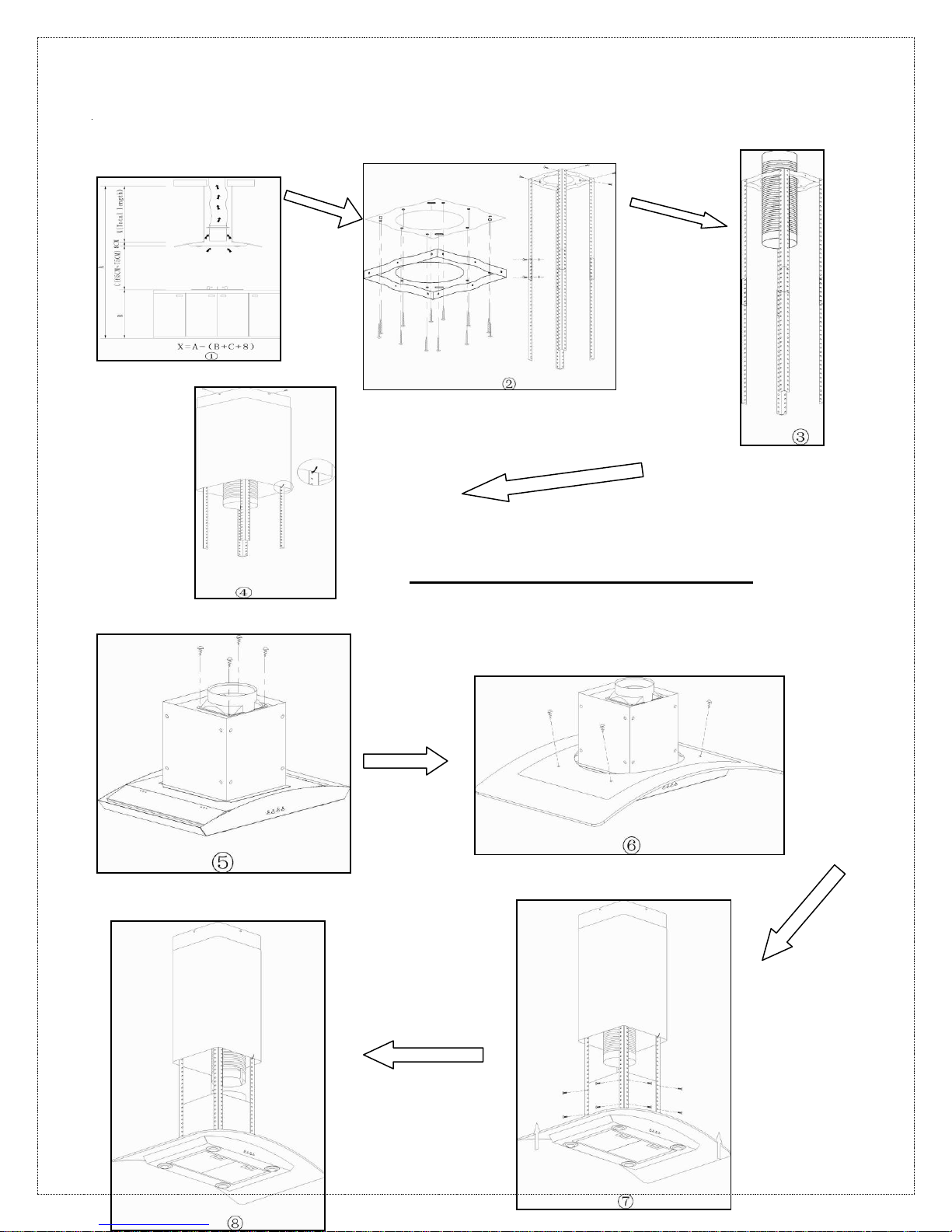

1. The ceiling must bear at least 40kgs weight, and the thickness of
the ceiling must be ≧30MM, see pic 2. Drill 1*170mm round hole in
the ceiling.
2. According to the hanging board, drill 12 holes in the ceiling, see pic 2.
12 ST6*40mm big flat screws will be used to fix the hanging board on
the ceiling, and then 8 M4*10 screws and a M4 nut with gasket will be
used to connect the angle iron into the hanging board, see pic 1. After
calculating the length of the angle iron, 16 M4*10 big flat screws and
a M4 nut with gasket should be used to connect the angle iron and
another angle iron ( the overlap length of angle iron can not be less
100MM).
3. Let one side of the extensible pipe go outside through the hole of
170MM, see pic 3.
4. 4 ST4*8 big flat screws will be used to connect the internal chimney
into the hanging board. Then put up the external chimney, two hooks
will be used to put up the external chimney in order to the next
installation, see pic 4.
5. 4 ST4*8 big flat screws will be used to install the outlet, see pic 5.
6. Adjust the 4 glass screws to check whether the glass and the cooker
hood body are connected well and fixed, see pic 6.
7. Hold up the hood, 16 M4*10 big flat screws will be used to connect
the hood body into angle iron, see pic 7.

13
8. Put the extendable pipe on the outlet; after ensuring everything is ok,
put down the hook and the external chimney, then the installation is
complete, see pic 9.
Installation Instructions

14
Ensure that you have fitted the
union (‘N’) (below and to the right)
see to the upper part of the hood
using the packaged two screws
supplied inside the packing (Fig. 1
–on right). Using a 125 mm
diameter pipe, connect the union
(N) on the upper part of the hood
(see Fig. 1) to the discharge outlet
for cooking vapours with a cross-
section of at least 150 cm².
PLEASE NOTE: If there is no
discharge outlet and the hood is to
be fitted to an outside wall of the
building, make a hole in the wall
that is large enough to fit a wind
and rain-proof shutter with a cross
section of at least 150 cm² and
connect this to the outlet union of
the unit by means of a pipe.
_____________________________________________________________________________________________________________________________________________________ _____________________________________________________________________
Extraction / Air Purifier Modes of Operation
Please note: For the extraction function, you will
need to connect a 125 mm diameter outlet chimney
to the union „N‟ in Fig. 2. This pipe is not provided
with your cooker hood. See figure on left.
N
N

15
.
Fig.2
AIR PURIFIER OPERATION - INSTALLATION Instructions
The cooker hood can be converted to work as an air purifier in the
event that there is no provision for an external air discharge duct.
In this case, air is recycled through the union „N‟ (Fig. 1 –above).
When using the unit as an air purifier, you need to install two active
carbon filters to absorb cooking vapours (please see page 10).

16
If something has gone wrong with your Cooker Hood, checking
against this chart might keep you from having to call for service.
Symptom
Solution
The cooker hood will not start!
Check that the hood is connected
to the electricity supply.
Check that the fan speed control is
set properly.
The cooker hood is not working
effectively!
The fan speed is not set high enough.
The grease filter is dirty.
The kitchen is not ventilated well
enough.
If the hood is set for recirculation,
check that the carbon filters have not
expired.
If the hood is set for extraction, check
that the ducting and outlets are not
blocked.
The cooker hood has switched off
during operation!
The safety cut-out device has been
tripped.
Turn off the hob and then wait for the
device to reset.
Note that if you have installed your
cooker hood too low, this will happen.
If it happens frequently, it will be
damaged.
Troubleshooting

17
CONDITIONS OF GUARANTEE
Dear Customer,
The conditions of guarantee which apply to your appliance are as
follows:This product is guaranteed for 3 years from the date of
original purchase.Think Appliances will repair any defect that arises
due to faulty manufacturing or workmanship free of charge during
this period.
Think Appliances will provide free of charge the parts required to
repair the appliance during the warranty period,only if they are fitted
by a qualified technician(for this phone Think appliances),for any
defect that arises due to faulty materials,manufacturing or
workmanship within a period of 3 years from the original purchase
date.
An additional and annually renewable insurance scheme for labour is
available should you wish to extend the warranty period.
Should any person other than a qualified techician interfere with the
appliance,the policy is negated and Think Appliance will be no further
liability.
The guarantee covers the appliance for normal domestic use
only,unless otherwise stated.
Any claims made under the terms of the guarantee must be
supported by the original invoice/bill of sale issued at the time of
purchase.
This guarantee is transferable only with the written consent of Think
Appliances.
If the appliance fails and is considered either not repairable or
uneconomical to repair between twelve months and five years from
purchase date,a free of charge replacement will not be offered.
The guarantee for any replacement will only be for the remainder of
the guarantee on the original product purchased.
Continued over page…….

18
This guarantee does not cover:
1 Sinks and taps
2 Failure to comply with the manufacturer’s instructions for use.
3 The replacement of cosmetic components or accessories
4 Accidental damage or wilful abuse.
5 Subsequent loss or damage owing to the failure of the appliance or
electrical supply.
6 Incorrect installation
7 Losses caused by Acts of God,civil war,failure to obtain spare
parts,strikes or lockouts
8Filters,fuses,light bulbs,external hoses,damage to
bodywork,paintwork,plastic
items,covers,baskets,trays,shelves,burner bases,burner
caps,decals,corrosion,rubber seals,refrigeration system blockage.
In the course of the work carried out it may be necessary to remove
the appliance from its operating position.Whilst all reasonable care
will be taken,Think Appliances cannot accept responsibility for
damage sustained to any property whatsoever in this process.
This guarantee is in addition to and does not diminish your statutory
or legal rights.
If you have any further questions please contact Think Appliances
Pty Ltd:
SERVICE DEPARTMENT
Phone:[phone]
Fax:[phone]
Email:[e-mail]
SALES DEPARTMENT
Phone:[phone]
Fax:[phone]
Web:www.thinkappliances.com
