Baumatic BD14SS User manual

1
BD14SS 14 cm Warming
Drawer
BD29SS 29 cm Warming
Drawer

User Manual for your Baumatic
BD14SS 14cm High warming
drawer
BD29SS 29cm High warming
drawer
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
GS 06/07/10
2

3
Contents
Environmentalnote 4
Important safety information 5 – 7
Specifications 8 - 12
BD14SS 8
BD29SS 9
Product specifications 10
Electricaldetails 10
Controlpanel 11-12
Using the warming drawer 12 - 15
Beforefirstuse 12
Selecting a temperature (BD14SS) 13
Selecting a temperature (BD29SS) 13 - 14
Ceramic glass (BD29SS) 14
Heatingtimes 14-15
Loadcapacity 15
Cleaning and maintenance 15 - 18
Diagrams showing the removal and refitting of the drawer 17
Removal of the drawer 18
Refitting the drawer 18
Installation 19 - 21
Electricalconnections 19
Installing the warming drawer into the kitchen cabinet 20
Positioning the appliance (without an oven) 20
Positioning the appliance (with an oven) 21
My appliance isn’t working correctly 22
Contactdetails 23

Environmental note
4
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.

IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Baumatic Technical
Department.
General Information
oThis appliance is designed for domestic household use and can
be built into a standard kitchen cabinet or housing unit.
oIMPORTANT: The adjacent furniture or housing and all
materials used in the installation must be able to withstand a
minimum temperature of 85°C above the ambient temperature
of the room it is located in, whilst in use.
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or discolouration at
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention of this temperature limit, or by placing adjacent
cabinet materials closer than 4mm to the appliance, will be the
liability of the owner.
oFor use in leisure accommodation vehicles, please refer to
the appropriate information given in the installation instructions
for this appliance.
oThe use of this appliance for any other purpose or in any other
environment without the express agreement of Baumatic Ltd.
will invalidate any warranty or liability claim.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of Guarantee. The foregoing does not
affect your statutory rights.
oRepairs may only be carried out by Baumatic Service
Engineers or their authorised service agent.
5

6
Warning and safety instructions
oThis appliance complies with all current European safety
legislation. Baumatic do wish to emphasise that this compliance
does not remove the fact that the appliance surfaces will
become hot during use and retain heat after operation.
Child Safety
oBaumatic strongly recommend that babies and young children
are prevented from being near to the appliance and not allowed
to touch the appliance at any time.
oIf it is necessary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision
at all times.
General Safety
oDo not allow electrical fittings or cables to come into contact
with areas on the appliance that get hot.
oDo not lean or sit on the open drawer, the telescopic runners
will become damaged.
oDo not use the appliance to heat the room it is located in or to
dry clothing.
oDo not install the appliance next to curtains or soft furnishings.
oDo not keep plastic or flammable objects inside the appliance.
oDo not use the appliance to warm, re-heat or cook foods or
beverages.
oDo not insert ANY objects through the slots in the protective
grill that covers the heating element and fan.
Cleaning
oCleaning of the warming drawer should be carried out on a
regular basis.
oGreat care should be taken whilst using this appliance and when
following the cleaning procedure.
oIMPORTANT: The appliance must be disconnected from the
mains before following the cleaning procedure.

Installation
This appliance must be correctly installed by a
suitably qualified person, strictly in accordance
with the manufacturer’s instructions.
oBaumatic Ltd. declines any responsibility for injury or
damage, to person or property, as a result of improper
use or installation of this appliance.
oHeat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately ventilated. If the appliance is going to be used for
prolonged periods of time, then additional ventilation may be
required.
oMake sure that the appliance is firmly secured to the cabinet.
oPlease consult with your qualified installer if you are in any doubt
about the amount of ventilation that you will require.
Declaration of conformity
oIn the parts destined to come into contact with foodstuffs, this
appliance is in accordance with the requirements of the EC
directive 89/109 transposed in the Italian Legislative Decree No.
108 of 25/01/92.
oCE: Appliance conforming to the European directives
89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent revisions
and “RoHS” directive 2002/95/CE.*
oThe manufacturer declares that the warming drawer is built
using certified materials and requires the appliance to be
installed in accordance with the standards currently in force. This
appliance must be used by a trained person for domestic
purposes only.
*The RoHS directive stands for “the restriction of the use of
certain hazardous substances in electrical and electronic
equipment”. This directive bans the placing on the EU market of
new electrical and electronic equipment containing more than
the agreed levels of lead, cadmium, mercury, hexavalent
chromium, polybrominated biphenyl (PBB) and polybrominated
diphenyl ether (PBDE) flame retardants.
7

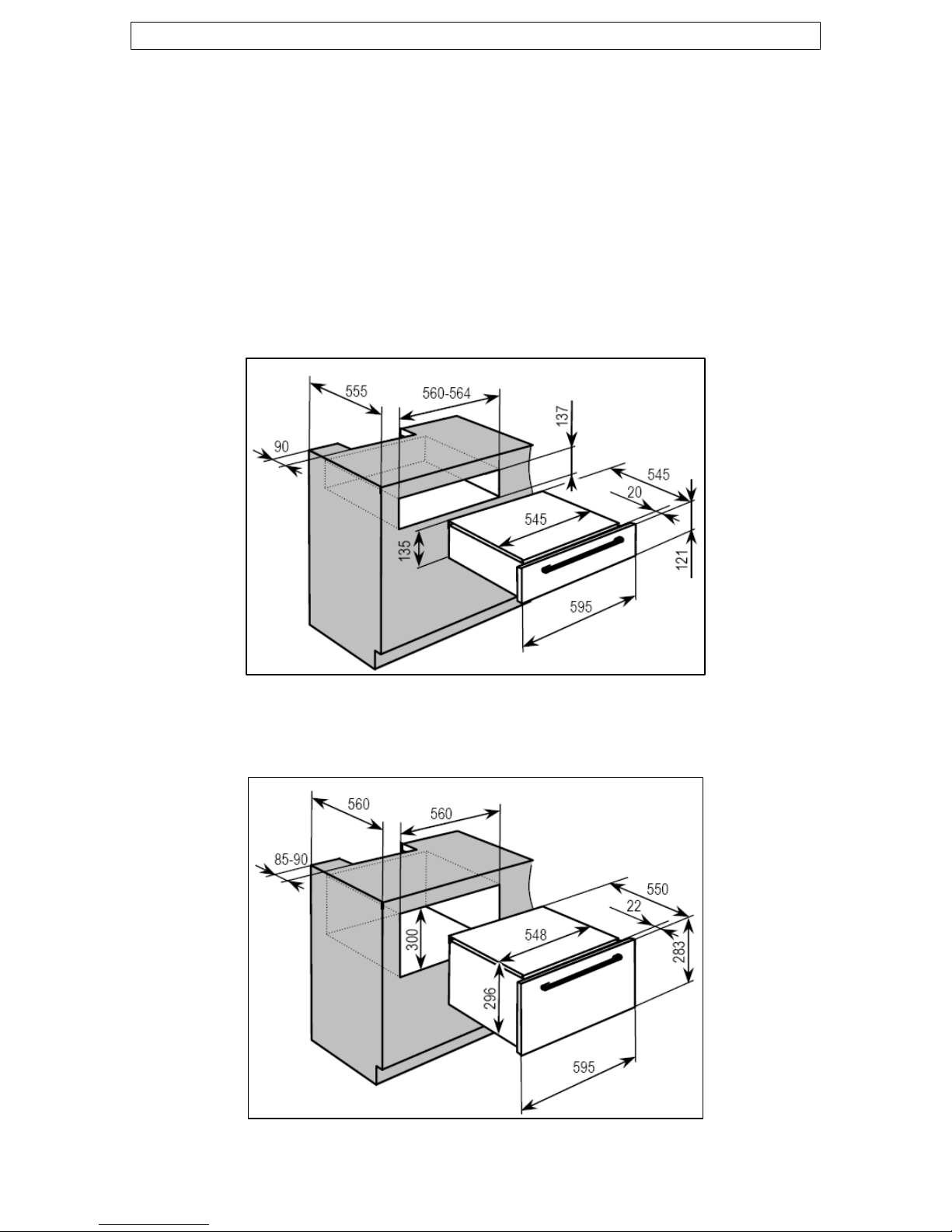

Specifications

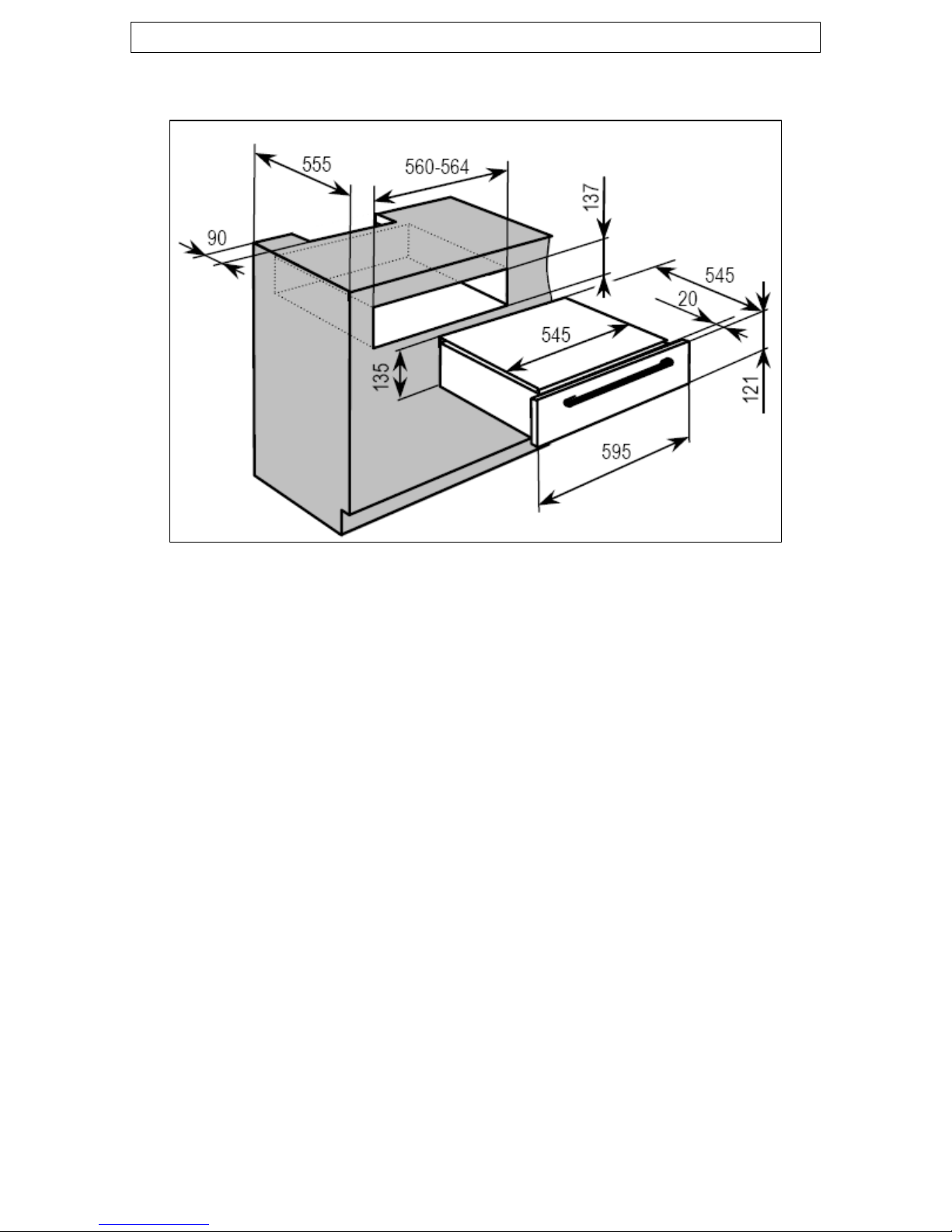

BD14SS
Product dimensions
Height: 135 mm
Width: 545 mm
Depth: 545 mm
Aperture dimensions
Height: 137 mm
Width: 560 - 564 mm
Depth: 555 mm
8

BD29SS
Product dimensions
Height: 296 mm
Width: 548 mm
Depth: 550 mm
Aperture dimensions
Height: 300 mm
Width: 560 mm
Depth: 560 mm
9

10
Product specifications
BD14SS
o3 functions
oAdjustable temperature up to 85 ºC
oIntegrated hot air fan
oHeater on the side
oFully expandable telescopic drawer
oHolds 6 place settings
oMaximum load: 25 kg
oCan be installed alone or together with a single or compact oven
BD29SS
o5 functions
oAdjustable temperature up to 70 ºC
oIntegrated hot air fan
oFully expandable telescopic drawer
oHolds 12 place settings
oMaximum load: 25 kg
oDesigned to be installed alone or together with single or compact
oven
Electrical details (both models)
Rated Voltage: 220 - 240 Vac 50 - 60 Hz
Supply Connection: 13 A (double pole switched fused
outlet with 3mm contact gap
Max Rated Inputs: 0.86 – 1.02 kW (BD29SS)
0.36 – 0.44 kW (BD14SS)
Mains Supply Lead: 3 x 1.5mm²

For future reference please record the following information which can
be found on the Rating Plate and the date of purchase which can be
found on your sales invoice. The rating plate for your oven can be
located by opening the oven door and looking on the right hand side of
the oven chassis.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….
Control Panel
BD14SS
oThe control panel can be located by opening the drawer of the
appliance. It is on the right hand side.
oWhen the button is pressed in (position 1), then the drawer is
switched on. When the button is popped out (position 0), the
drawer is turned off.
oAfter switching on the appliance and closing the warming
drawer, you can tell whether it is switched on and off by looking
at the light on the front of the warming drawer. If the light is lit,
then the warming drawer is on.
11

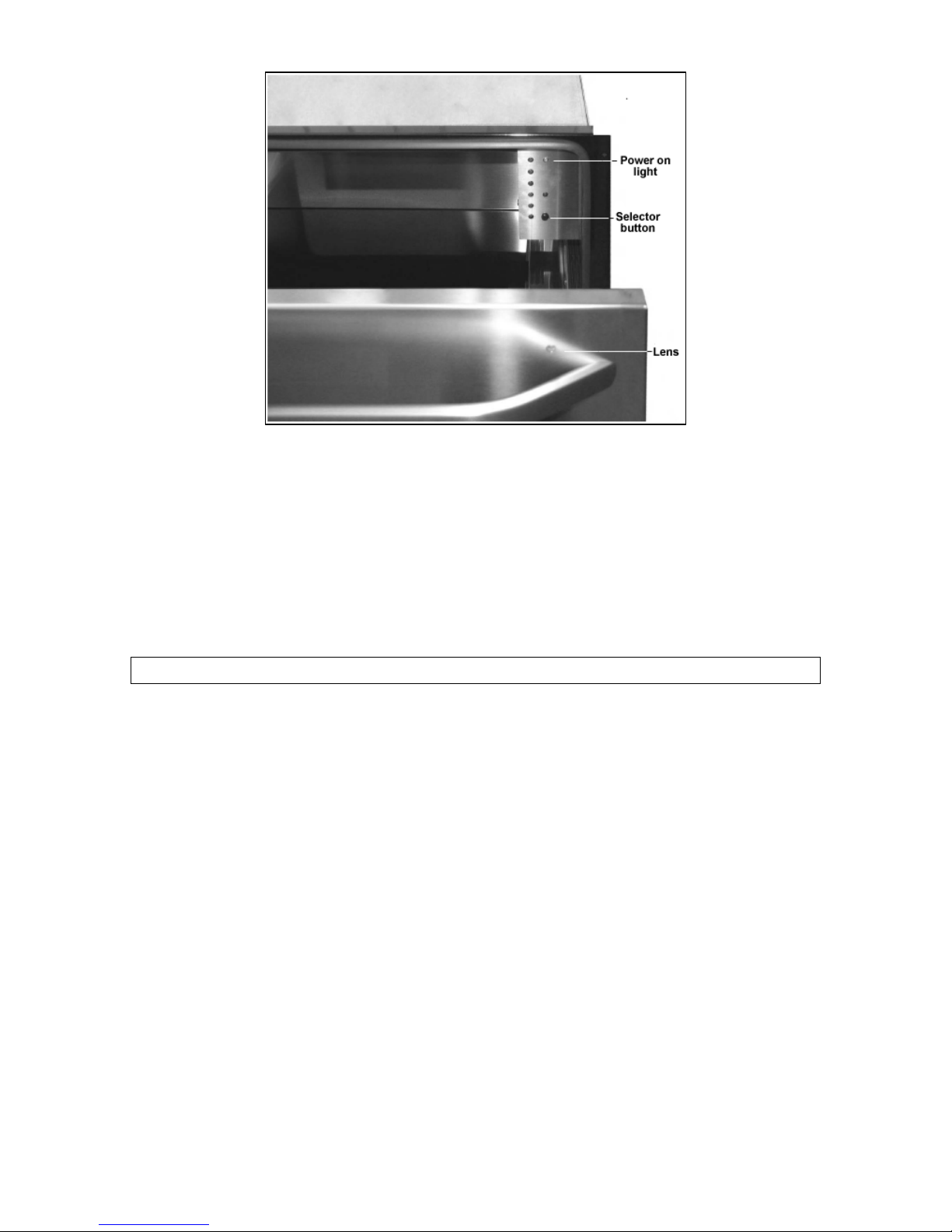

BD29SS
oTo switch the appliance on, simply press the selector button. The
power on indicator light will flash when the appliance is switched
on and the drawer is open.
oAfter switching on the appliance and closing the warming
drawer, you can tell whether it is switched on and off by looking
at the light on the front of the warming drawer. If the light is lit,
then the warming drawer is on.
Using the warming drawer
Before first use
oClean the surfaces with a soft damp cloth.
oTo remove any residue from the warming drawer that may have
been left from the manufacturing process, you should turn the
control knob to the maximum temperature setting.
oIt is perfectly normal for a smell to be produced during this
process.
oYou should make sure that any windows in the room are left
open during this process.
oIt is advisable for you not to remain in the room whilst the
burning off process is taking place.
oYou should leave the warming drawer on the maximum setting
for 2 hours.
12

Selecting a temperature (BD14SS)
oPlace the crockery that you wish to warm in the drawer.
oUse the control knob to the most suitable temperature for the
crockery that you are warming.
oThe control knob should only be turned clockwise. Do not
turn it past the MAX position; otherwise damage can be
caused to the thermostat.
oTurning the control knob to the cup symbol, will give you a
temperature of approximately 40°C and should be used to warm
cups or glasses.
oTurning the control knob to the plate symbol, will give you a
temperature of approximately 60°C and should be used to warm
plates and dishes.
oTurning the control knob to the MAX position, will give you a
temperature of approximately 85°C, this again can be used to
warm plates and dishes. You should ensure that the crockery is
designed to withstand this high a temperature.
oThe warming drawer will not start to heat until the drawer is fully
shut.
oIMPORTANT: Care should be taken when removing items
from the warming drawer, when appropriate you should
use oven gloves when removing items from the drawer.
You should make sure that the appliance is switched off
before removing items from the drawer.
Selecting a temperature (BD29SS)
oPlace the crockery that you wish to warm
in the drawer.
oThe temperature can be set between
30°C and 70°C.
13
urn oPress and hold the selector button to t
the appliance on and then continue to
push this button until the temperature
reaches your desired setting. The lights
to the left of the selector button indicate
the temperature that is set. The lights

14
will count from 1-6, then to MAX and then back to 1 again.
oWe recommend that you preheat the drawer on maximum for
approximately 10 minutes before selecting one of the higher
temperature settings (4-6). The MAX light will switch on when
the maximum temperature setting has been selected using the
selector button.
oThe warming drawer will not start to heat until the drawer is fully
shut. The ON neon will blink until the drawer is fully closed.
oTo turn the appliance off again, you should press and hold the
selector button, until the ON neon goes out.
oIMPORTANT: Care should be taken when removing items
from the warming drawer, when appropriate you should
use oven gloves when removing items from the drawer.
You should make sure that the appliance is switched off
before removing items from the drawer.
Ceramic glass (BD29SS)
IMPORTANT: Care should be taken when positioning items inside of
the warming drawer. They should be carefully placed inside of the
drawer and not dropped inside; otherwise damage can be caused to
the ceramic class.
If any cracks appear in the ceramic glass, you should stop
using the appliance immediately and unplug the appliance from
the mains supply. You should then contact the Baumatic
Service Department.
Heating times
The time required to heat crockery, depends on several
factors:-
oThe material that the crockery is manufactured from and the
thickness of the crockery.
oThe amount that has been loaded into the warming drawer.
oThe way in which the load has been arranged.
oThe temperature setting that has been selected.

It is not possible to give an exact heating time and you should
experiment to find out which heating temperature and time are the
most appropriate for particular types and amounts of crockery.
Load capacity
IMPORTANT: The drawer can withstand a maximum load of 25
kilograms.
BD14SS
o6 plates (Ø 28 cm)
o6 soup bowls (Ø 10 cm)
o1 serving dish (Ø 22 cm)
o1 serving dish (Ø 17 cm)
o2 x meat plates (Ø 36 cm)
BD29SS
o12 plates (Ø 28 cm)
o12 soup bowls (Ø 10 cm)
o1 serving dish (Ø 22 cm)
o1 serving dish (Ø 17 cm)
o2 x meat plates (Ø 36 cm)
Cleaning and maintenance
Cleaning operations must only be carried out
when the oven is cool.
The appliance should be disconnected from your
mains supply before commencing any cleaning
process.
oNever clean the oven surfaces by steam cleaning.
oAll surfaces of the warming drawer should only be cleaned with
warm soapy water, using either a sponge or soft cloth. No
abrasive cleaners should be used.
oIMPORTANT: The slots in the protective grill that covers the
heating element and fan should not be cleaned with water. Any
water penetration into this area may result in the breakdown of
the appliance, short circuits and/or create a hazard for the user.
oIf you use any form of cleaner on your appliance, then you must
check with the manufacturer of the cleaner that it is suitable for
use on your appliance.
oTo maintain the appearance of the stainless steel drawer front, a
good quality stainless steel cleaner should be utilised. Please
15

16
refer to the manufacturer’s instructions when using a stainless
steel cleaner.
oDO NOT USE detergents that contain soda, acids or chlorine,
abrasive detergents (powders or cream), abrasive sponges (e.g.
steel wool pads) or sponges that contain a residual abrasive
detergent.
oThe anti-slip warming drawer bottom (BD14SS) can be cleaned
if you are thoroughly cleaning the appliance. It can be hand-
washed with warm water and a mild detergent. The bottom
should be dried thoroughly afterwards and not placed back into
the appliance until it is completely dry.
oTo clean the ceramic glass (BD29SS), you should use a damp
cloth only to wipe clean the surface when it has cooled.
oAny damage that is caused to the appliance by a cleaning
product will not be fixed by Baumatic free of charge, even
if the appliance is within the guarantee period.

17

18
Removal of the drawer
The drawer can be removed if the appliance requires cleaning
on the inside (refer to the pictures on page 15).
oOpen the drawer completely (see pic. 1)
oUndo the 4 front screws (2 on both sides) - (pic.2)
oLift the 2 hooks (1 on both sides) - (pics. 3-4)
oTake hold of the front of the drawer on both sides, because the
rear section of the guide rails has been lubricated.
oCarefully remove the drawer in an upwards direction (pic. 5) and
set it down.
oThe appliance can now be cleaned on the inside with water and
detergent. Do not immerse the drawer in water once it has been
removed.
Refitting of the drawer
oFollow the above procedure in reverse.
oIMPORTANT: There is a tensioning hook under the warming
drawer on both the left-hand and right-hand sides. The drawer
can only be opened if the tensioning hooks are in the correct
position.

INSTALLATION
The installation must be carried out by a suitably
qualified person, in accordance with the current
version of the following.
oUK Regulations and Safety Standards or their European Norm
Replacements.
oBuilding Regulations (issued by the Department of the
Environment).
oBuilding Standards (issued by the Scottish Development
Department).
oIEE Wiring Regulations.
oElectricity At Work Regulations.
Before connecting the appliance, make sure that the supply voltage
marked on the Rating Plate corresponds with your mains supply
voltage.
WARNING: THIS APPLIANCE MUST BE EARTHED.
oThis appliance should be wired into a 13 A double pole switched
fused spur outlet, having 3 mm contact separation and placed in
an easily accessible position adjacent to the appliance. The spur
outlet must still be accessible even when your oven is located in
its housing.
oTo connect the oven power cord, loosen and remove the cover
on the terminal block, in order to gain access to the contacts
inside. Make the connection, securing the cord in place with the
cable clamp provided and then immediately close the terminal
block cover again.
oIf you have to change the oven power cord, the earthing
(yellow/green) conductor must always be 10 mm longer than the
line conductors.
oCare must be taken to ensure that the temperature of the mains
supply cable does not exceed 50°C.
oIf the mains supply cable is damaged, then it must be replaced
by an appropriate replacement which can be obtained from the
Baumatic Spares Department.
19

Installing the warming drawer into the kitchen cabinet
Positioning the appliance (without an oven)
oEnsure that the aperture that you will be fitting the warming
drawer into is of the size given in the diagrams below.
oThe warming drawer must be fitted into a housing unit with the
ventilation cut-outs shown in these diagrams.
oEnsure that the rear panel of the furniture housing unit has been
removed.
BD14SS
BD29SS
20
