Baumatic WD01SS User manual

1
WD01SS 14 cm Warming
Drawer
WD02SS 30 cm Warming
Drawer

User Manual for your Baumatic
WD01SS 14cm High warming
drawer
WD02SS 30cm High warming
drawer
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
GS 31/08/10
2

3
Contents
Environmentalnote 4
Important safety information 5 – 7
Specifications 8 - 11
WD01SSdimensions 8
WD02SSdimensions 9
Product specifications 10
Electricaldetails 10
Thewarmingdrawer 11
Using the warming drawer 11 - 14
Before first use 11 - 12
Setting the drawer to warm 12
Selecting a temperature 12 - 13
Heatingtimes 13
Loadcapacity 13-14
Cleaning and maintenance 14 - 15
Installation 15 - 19
Electrical connections 15 - 16
Installing the warming drawer into the kitchen cabinet 16 - 19
Positioning the appliance (without an oven) 16 - 17
Positioning the appliance (with an oven) 17 - 19
My appliance isn’t working correctly 19
Contactdetails 21

Environmental note
4
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.

IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Baumatic Technical
Department.
General Information
oThis appliance is designed for domestic household use and can
be built into a standard kitchen cabinet or housing unit.
oIMPORTANT: The adjacent furniture or housing and all
materials used in the installation must be able to withstand a
minimum temperature of 85°C above the ambient temperature
of the room it is located in, whilst in use.
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or discolouration at
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention of this temperature limit, or by placing adjacent
cabinet materials closer than 4mm to the appliance, will be the
liability of the owner.
oFor use in leisure accommodation vehicles, please refer to
the appropriate information given in the installation instructions
for this appliance.
oThe use of this appliance for any other purpose or in any other
environment without the express agreement of the manufacturer
will invalidate any warranty or liability claim.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of Guarantee. The foregoing does not
affect your statutory rights.
oRepairs may only be carried out by Baumatic Service
Engineers or their authorised service agent.
5

6
Warning and safety instructions
oThis appliance complies with all current European safety
legislation. Baumatic do wish to emphasise that this compliance
does not remove the fact that the appliance surfaces will
become hot during use and retain heat after operation.
Child Safety
oWe strongly recommend that babies and young children are
prevented from being near to the appliance and not allowed to
touch the appliance at any time.
oIf it is necessary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision
at all times.
General Safety
oDo not allow electrical fittings or cables to come into contact
with areas on the appliance that get hot.
oDo not lean or sit on the open drawer, the telescopic runners
will become damaged.
oDo not use the appliance to heat the room it is located in or to
dry clothing.
oDo not install the appliance next to curtains or soft furnishings.
oDo not keep plastic or flammable objects inside the appliance.
oDo not use the appliance to warm, re-heat or cook foods or
beverages.
oDo not insert ANY objects through the slots in the protective
grill that covers the heating element and fan.
Cleaning
oCleaning of the warming drawer should be carried out on a
regular basis.
oGreat care should be taken whilst using this appliance and when
following the cleaning procedure.
oIMPORTANT: The appliance must be disconnected from the
mains before following the cleaning procedure.

Installation
This appliance must be correctly installed by a
suitably qualified person, strictly in accordance
with the manufacturer’s instructions.
oBaumatic Ltd declines any responsibility for injury or
damage, to person or property, as a result of improper
use or installation of this appliance.
oHeat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately ventilated. If the appliance is going to be used for
prolonged periods of time, then additional ventilation may be
required.
oMake sure that the appliance is firmly secured to the cabinet.
oPlease consult with your qualified installer if you are in any doubt
about the amount of ventilation that you will require.
Declaration of conformity
oIn the parts destined to come into contact with foodstuffs, this
appliance is in accordance with the requirements of the EC
directive 89/109 transposed in the Italian Legislative Decree No.
108 of 25/01/92.
oCE: Appliance conforming to the European directives
89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent revisions
and “RoHS” directive 2002/95/CE.*
oThe manufacturer declares that the warming drawer is built
using certified materials and requires the appliance to be
installed in accordance with the standards currently in force. This
appliance must be used by a trained person for domestic
purposes only.
*The RoHS directive stands for “the restriction of the use of
certain hazardous substances in electrical and electronic
equipment”. This directive bans the placing on the EU market of
new electrical and electronic equipment containing more than
the agreed levels of lead, cadmium, mercury, hexavalent
chromium, polybrominated biphenyl (PBB) and polybrominated
diphenyl ether (PBDE) flame retardants.
7

Specifications

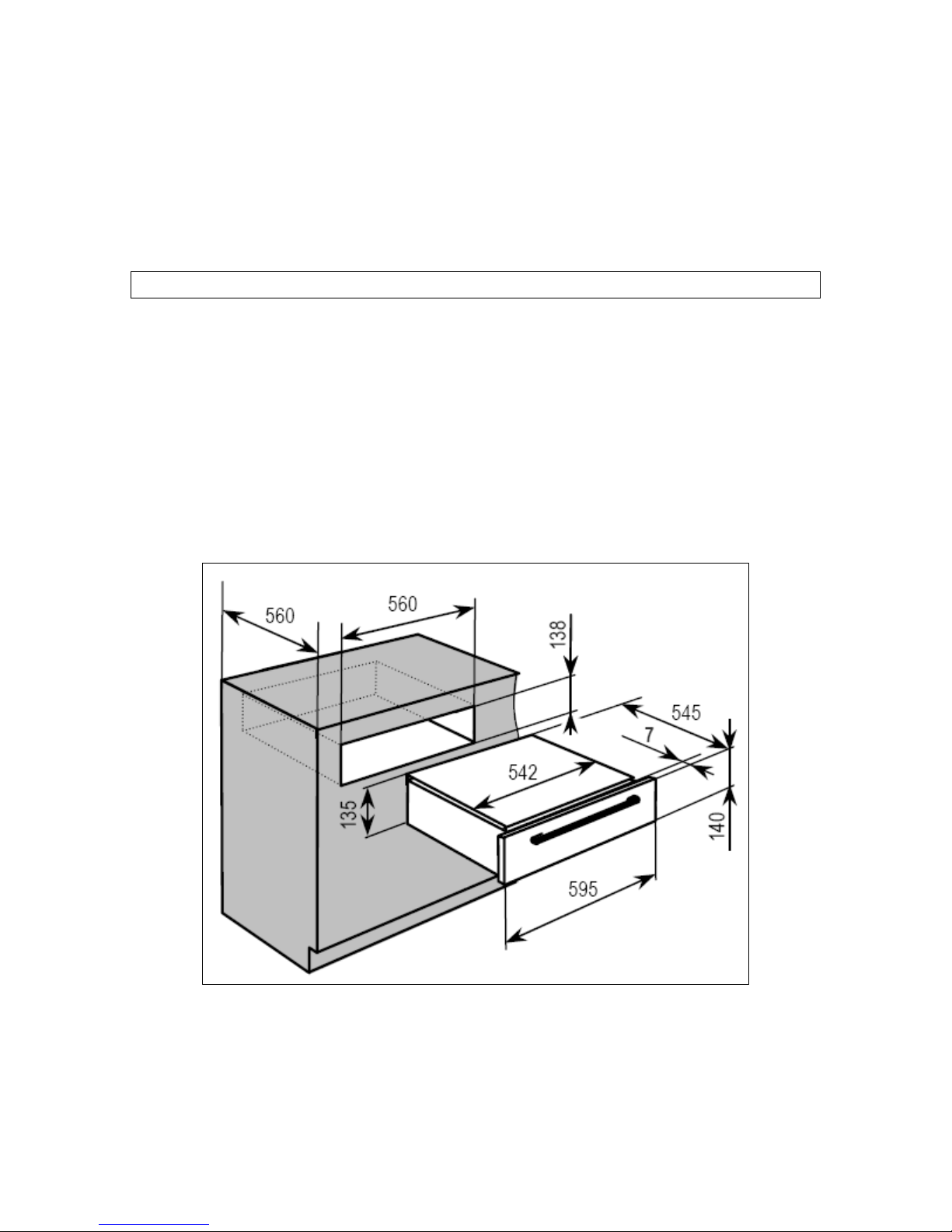

WD01SS
Product dimensions (with front panel)
Height: 140 mm
Width: 595 mm
Depth: 545 mm
Aperture dimensions* (without an oven)
Height: 138 mm
Width: 560 mm
Depth: 560 mm
* For more specific information on the size of the aperture required to
install the warming drawer, please see the “Installation” section of this
manual.
8

WD02SS
Product dimensions (with front panel)
Height: 300 mm
Width: 595 mm
Depth: 545 mm
Aperture dimensions* (without an oven)
Height: 298 mm
Width: 560 mm
Depth: 560 mm
*For more specific information on the size of the aperture required to
install the warming drawer, please see the “Installation” section of this
manual.
9

10
Product specifications
WD01SS
oAdjustable temperature (30ºC to 70ºC)
oIntegrated hot air fan
oHeater on the side
oFully expandable telescopic drawer
oHolds 6 place settings
oMaximum load: 20 kg
oCan be installed alone or together with a single or compact oven
WD02SS
oAdjustable temperature (30ºC to 70ºC)
oIntegrated hot air fan
oFully expandable telescopic drawer
oHolds 12 place settings
oMaximum load: 20 kg
oDesigned to be installed alone or together with single or compact
oven
Electrical details (both models)
Rated Voltage: 220 - 240 Vac 50 Hz
Supply Connection: 13 A (double pole switched fused
outlet with 3mm contact gap
Max Rated Inputs: 0.41 kW
Mains Supply Lead: 3 x 1.5mm²
For future reference please record the following information which can
be found on the Rating Plate and the date of purchase which can be
found on your sales invoice.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

The warming drawer
1) Temperature control dial
2) Power light
3) Timer switch
4) Drawer for dishes
5) Anti-skid mat
oThe controls are only visible when the warming drawer is open.
oWhen the drawer is closed, the power light on the front of the
drawer comes on to show the appliance is running.
oThe floor of the drawer is covered with an anti-skid mat that
prevents the dishes from sliding when the drawer is opened and
closed.
Using the warming drawer
Before first use
oClean the surfaces with a soft damp cloth.
oTo remove any residue from the warming drawer that may have
been left from the manufacturing process, you should turn the
control knob to the maximum temperature setting.
oIt is perfectly normal for a smell to be produced during this
process.
11

12
oYou should make sure that any windows in the room are left
open during this process.
oIt is advisable for you not to remain in the room whilst the
burning off process is taking place.
oYou should leave the warming drawer on the maximum setting
for 2 hours.
Setting the drawer to warm
oPlace the dishes into the drawer.
oSelect the temperature (see below section).
oSet the warming time using the timer dial (3). The minimum
time that can be set is 10 minutes. The maximum time that can
be set is 90 minutes.
oThe power light (2) turns on to show that the appliance is
switched on.
oClose the warming drawer.
oWhen the set time has elapsed, the hot air heating system stops
and a bell will sound.
oTo turn the bell off, turn the temperature dial to “0”.
Selecting a temperature
oPlace the crockery that you wish to warm in the drawer.
oUse the control knob (1) to set the most suitable temperature
for the crockery that you are warming. The temperature control
knob adjusts the temperature between 30°C and 70°C.
oThe temperature should be set at 40°C to warm cups or glasses.
This may be ideal for gently heating cups before pouring a hot
drink in them so that it stays hotter longer.
oThe temperature should be set at 60°C to warm plates and
dishes. Food served on preheated plates or dishes maintain their
heat but the dishes can still be touched without risking burns.
oIMPORTANT: Care should be taken when removing items
from the warming drawer, when appropriate you should
use oven gloves when removing items from the drawer.

13
You should make sure that the appliance is switched off
before removing items from the drawer.
Heating times
The time required to heat crockery, depends on several
factors:-
oThe material that the crockery is manufactured from and the
thickness of the crockery.
oThe amount that has been loaded into the warming drawer.
oThe way in which the load has been arranged.
oThe temperature setting that has been selected.
It is not possible to give an exact heating time and you should
experiment to find out which heating temperature and time are the
most appropriate for particular types and amounts of crockery. As a
general guide for a temperature setting of 60°C to heat evenly:
oDishes for a meal with six people take approximately 30
minutes.
oDishes for a meal with twelve people take approximately 40
minutes.
Load capacity
IMPORTANT: The drawer can withstand a maximum load of 20
kilograms.
WD01SS
Load capacities
Dimensions
(Ø)
6 x dinner plates
6 x soup bowls
1 x serving dish
1 x serving dish
1 x serving dish
2 x meat plates
28 cm
22 cm
22 cm
20 cm
18 cm
36 cm
16 x large plates
8 x bowls
28 cm
10 cm
24 x soup bowls 22 cm
40 x bowls 10 cm
60 x cups 8 cm

WD02SS
Load capacities Dimensions
(Ø)
12 x dinner plates
12 x soup bowls
2 x serving dishes
2 x serving dishes
2 x serving dishes
2 x meat plates
28 cm
22 cm
22 cm
20 cm
18 cm
36 cm
32 x large plates
(600g each)
28 cm
50 x large plates
(400g each)
22 cm
60 x bowls 10 cm
132 x cups 8 cm
Cleaning and maintenance
Cleaning operations must only be carried out
when the drawer is cool.
The appliance should be disconnected from your
mains supply before commencing any cleaning
process.
oNever clean the drawer surfaces by steam cleaning.
oAll surfaces of the warming drawer should only be cleaned with
warm soapy water, using either a sponge or soft cloth. No
abrasive cleaners should be used.
oIMPORTANT: The slots in the protective grill that covers the
heating element and fan should not be cleaned with water. Any
water penetration into this area may result in the breakdown of
the appliance, short circuits and/or create a hazard for the user.
oIf you use any form of cleaner on your appliance, then you must
check with the manufacturer of the cleaner that it is suitable for
use on your appliance.
oTo maintain the appearance of the stainless steel drawer front, a
good quality stainless steel cleaner should be utilised. Please
refer to the manufacturer’s instructions when using a stainless
steel cleaner.
oDO NOT USE detergents that contain soda, acids or chlorine,
abrasive detergents (powders or cream), abrasive sponges (e.g.
14

steel wool pads) or sponges that contain a residual abrasive
detergent.
oThe anti-slip warming drawer bottom can be cleaned if you are
thoroughly cleaning the appliance. It can be hand-washed with
warm water and a mild detergent. The bottom should be dried
thoroughly afterwards and not placed back into the appliance
until it is completely dry.
oAny damage that is caused to the appliance by a cleaning
product will not be fixed by Baumatic free of charge, even
if the appliance is within the guarantee period.
INSTALLATION
The installation must be carried out by a suitably
qualified person, in accordance with the current
version of the following.
oUK Regulations and Safety Standards or their European Norm
Replacements.
oBuilding Regulations (issued by the Department of the
Environment).
oBuilding Standards (issued by the Scottish Development
Department).
oIEE Wiring Regulations.
oElectricity At Work Regulations.
Before connecting the appliance, make sure that the supply voltage
marked on the Rating Plate corresponds with your mains supply
voltage.
WARNING: THIS APPLIANCE MUST BE EARTHED.
oThis appliance should be wired into a 13 A double pole switched
fused spur outlet, having 3 mm contact separation and placed in
an easily accessible position adjacent to the appliance. The spur
outlet must still be accessible even when your warming drawer is
located in its housing.

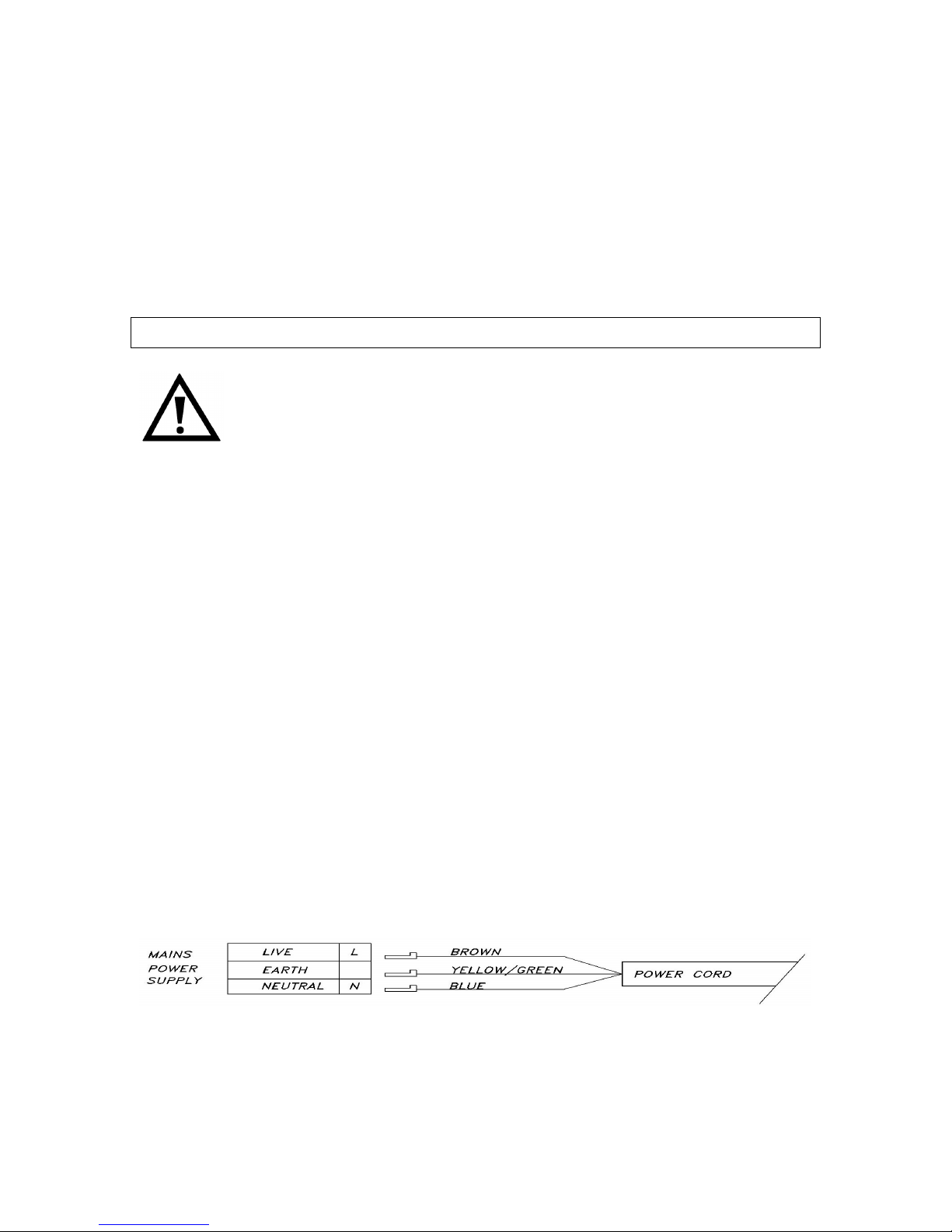

oTo connect the power cord, loosen and remove the cover on the
terminal block, in order to gain access to the contacts inside.
Make the connection, securing the cord in place with the cable
clamp provided and then immediately close the terminal block
cover again.
15

oIf you have to change the power cord, the earthing
(yellow/green) conductor must always be 10 mm longer than the
line conductors.
oCare must be taken to ensure that the temperature of the mains
supply cable does not exceed 50°C.
oIf the mains supply cable is damaged, then it must be replaced
by an appropriate replacement which can be obtained from the
Spares Department.
Installing the warming drawer into the kitchen cabinet
Positioning the appliance (without an oven)
oEnsure that the aperture that you will be fitting the warming
drawer into is of the size given in the diagrams below.
oEnsure that the rear panel of the furniture housing unit has been
removed.
WD01SS
16

WD02SS
Positioning the appliance (with an oven)
oEnsure that the aperture that you will be fitting the warming
drawer into is of the size given in the diagrams below.
oEnsure that the ventilation requirements shown in the diagrams
below are observed.
WD01SS
17

WD02SS
18

My appliance isn’t working correctly
oThe warming drawer isn’t heating crockery.
*Check that the appliance is switched on.
*Check that the drawer is closed completely.
*Check that the crockery has been warmed for a sufficient period
of time.
*Check that the drawer has not been left open for too long.
*Check your mains power supply.
oThe drawer does not close properly.
*Check that the loading of the drawer allows it to shut properly.
19

IMPORTANT: If your appliance appears not to be
operating correctly, then you should disconnect it
from your mains supply and then contact the
Baumatic Service Department on telephone
number [phone].
DO NOT ATTEMPT TO REPAIR THE APPLIANCE
YOURSELF.
Please note that if an engineer is asked to attend whilst the product is
under guarantee and finds that the problem is not the result of an
appliance fault, then you may be liable for the cost of the call out
charge.
The appliance must be accessible for the engineer to perform
any necessary repair. If your appliance is installed in such a
way that an engineer is concerned that damage will be caused
to the appliance or your kitchen, then he will not complete a
repair.
This includes situations where appliances have been tiled in,
sealed in with sealant, have wooden obstructions placed in
front of the appliance, like plinths. Or any installation other
than the one specified by Baumatic Ltd has been completed.
20
