BBG Industry 30 User manual

Industry 30
Weighing indicator
USER MANUAL
Edition:10052001A

Safety Instruction
For safety operation pls. follow the safety instruction.
WARNING
Setting. Calibration Inspection and Maintain of the indicator is
prohibited by Non-professional staff.
WARNING
Pls. make sure the weighing display have good ground in using
WARNING
The indicator is the static and sensitive equipment,
cut off the power during electrical connections,
internal components touched by hand is prohibited,
and please take the measure of anti-static.

LIST
1. Instruction..............................................................................................1
1.1 Main function..................................................................................1
1.2 Technical parameter ........................................................................1
1.3 Drawing...........................................................................................2
1.4 Battery instruction............................................................................3
2. Installation and calibration....................................................................4
2.1 Power supply connection...............................................................4
2.2 Loadcell connection .......................................................................4
2.3 communcation interface.................................................................5
2.4 4~20mA..........................................................................................6
2.5 Relay output signal.........................................................................6
3. Basic operation........................................................................................9
3.1 Keyboards......................................................................................9
3.2 Power on......................................................................................11
3.3 Zero function ................................................................................11
3.4 Tare function.................................................................................11
3.5 Total function................................................................................11
3.6 Print function ................................................................................13
3.7 Hold function ................................................................................13
4. Calibartion and Technical parameter setting.........................................13
4.1 Enter calibartion ...........................................................................13
4.2 Caliaration....................................................................................14
4.3 Technical parameter setting.........................................................16
5. Output format.........................................................................................22
5.1 Second display continuous output...............................................22
5.2 Conputer continous output...........................................................22
5.3 Serial interface receive PC command..........................................23
5.4 Print output format........................................................................24
5.5 PC/ Second display continuous output format.............................24
6. Maintain.................................................................................................25
6.1Toubleshooting for common problems..........................................25
6.2 Daily maintenance.........................................................................26
6.3 Default parameter recovery..........................................................26
6.4 Packing list...................................................................................29

1
1. Instruction
This weighing indicator is designed for bench scale. Floor scale, the basic
weighing function include: Hold. Print kg/lb conversion . optional: I/O , 4-20mA
output.
1.1 Main function
Weighing function:
Zero, tare, G.W, N.W, accumulation. printing, animal -weighing.
kg/lb convert. Overload remind.
Print format: S.N. G.W N.W Tare. Date, Time
Options:
Pinter
RS232/RS485 serial interface or second display
I/O
4-20mA
1.2 technical parameter
Accuracy class 5000 e
Resolution display: 30, 000 ADC: 2,000,000
Zero stability error TK0 < 0.1μV//K
Span stability error TKspn < ± 6 ppm//K
Sensitivity (internal) 0. 3 μV /d
Input voltage -30~30mV DC
Excitation circuit 5 VDC, 4 wire connection,
Maximum connect 6 load cell of 350Ω
AC power AC100~250V
Operation temperature - 10 °C ~ + 40 °C
Operation humidity ≤90%RH
Storage temperature - 40 °C ~ + 70 °C

2

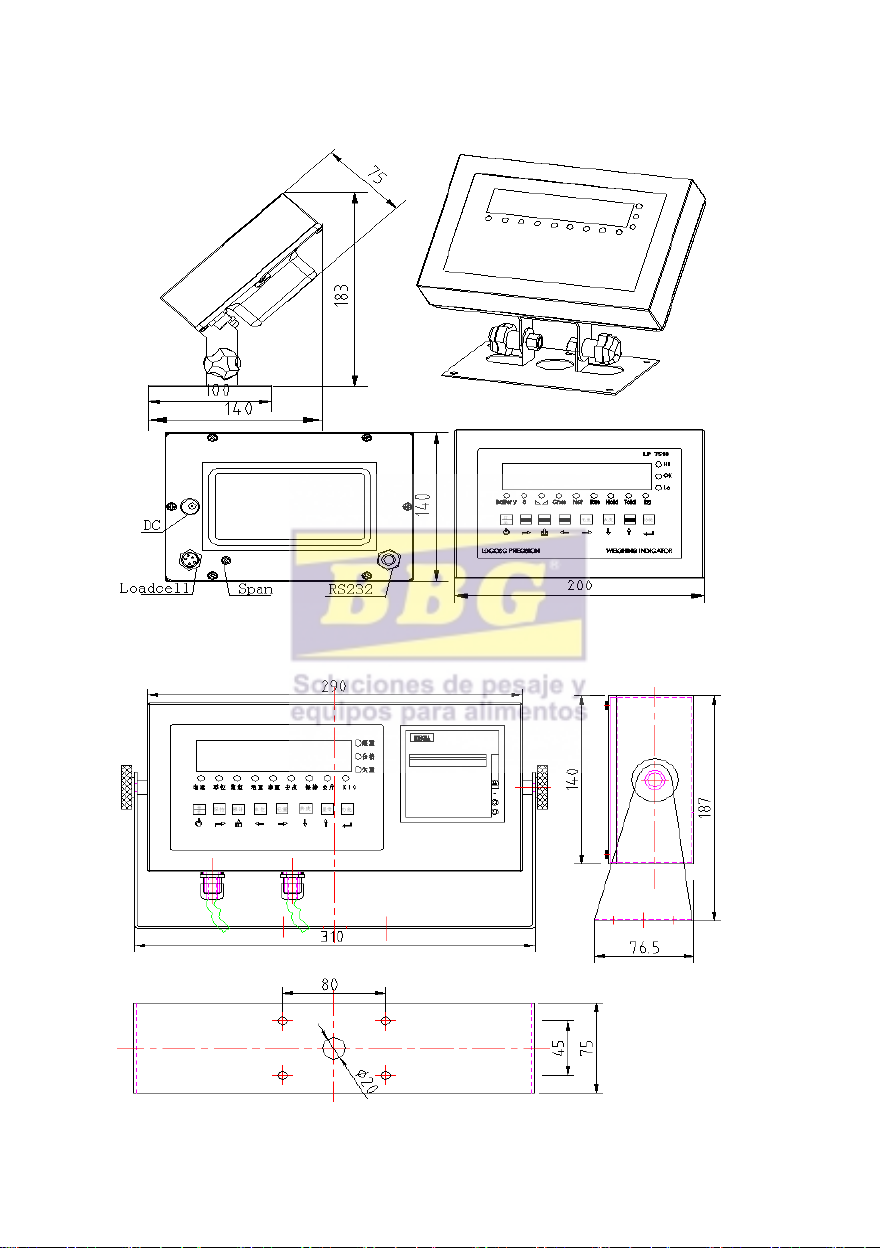

1.3 Outline（mm）

3
1.4 Battery instruction
1. . when you use the internal battery first time，you should charge
the battery fully, to prevent low voltage resulted from self leakage
of battery.
2. when the “red” light flash means low battery, pls. charge it in
time3. the light turns to red during charging
4. when the light turns to green, means fully charged.
5. if battery is not used for long time, take it out to avoid the
leakage.
6. In order to keep the battery in best using condition, it is suggest
that you fully discharge the battery every month, the method is that
using the indicator till it is automatically power off.

4
2.Installation and calibration
2.1 Power supply connection
The indicator is powered by adapter, you plug the adapter directly into
the “DC” pin at the back cover the indicator is ok.
2.2 Connection of load cell and indicator
The indicator can connect with 6 load cell of 350Ω at most, 4 wire or 6
wire load cell both ok.
There are two methods connection between load cell and indicator
A. quick disconnect, as below:
B. Terminal trip connection (inner connection)
1. the exciting voltage for the load cell is 5VDC, the largest output
current 120mA, maximum connect 6 pcs 350Ω load cell;
2. Load cell (or the signal cable for the junction box) is connected
with 5 bit
Terminal trip ( J3) on the circuit-board of weighing indicator.
3. Open Weighing indicator back cover, insert signal cable to the
terminal trip(J3), and make sure the screw is fixed tightly, the
connection as below:

5

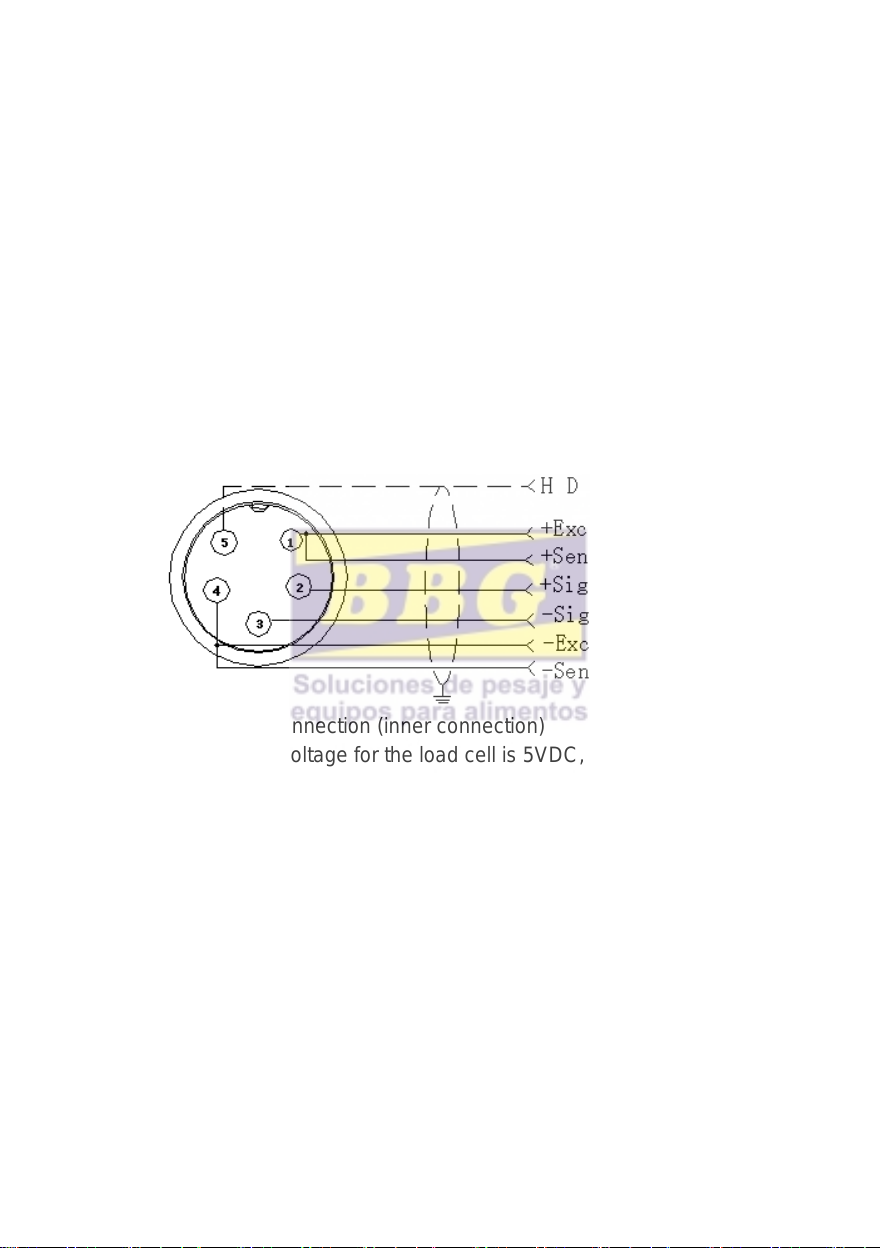

Weighing display Load cell
+EXC + voltage
+IN + output signal
HD ----------- Shielded wire
-IN - output signal
-EXC -IN HD +IN +EXC -EXC - voltage
2.3 Communication interface
RS232 : DB9 Pin or 3 Pin
DB9 definition

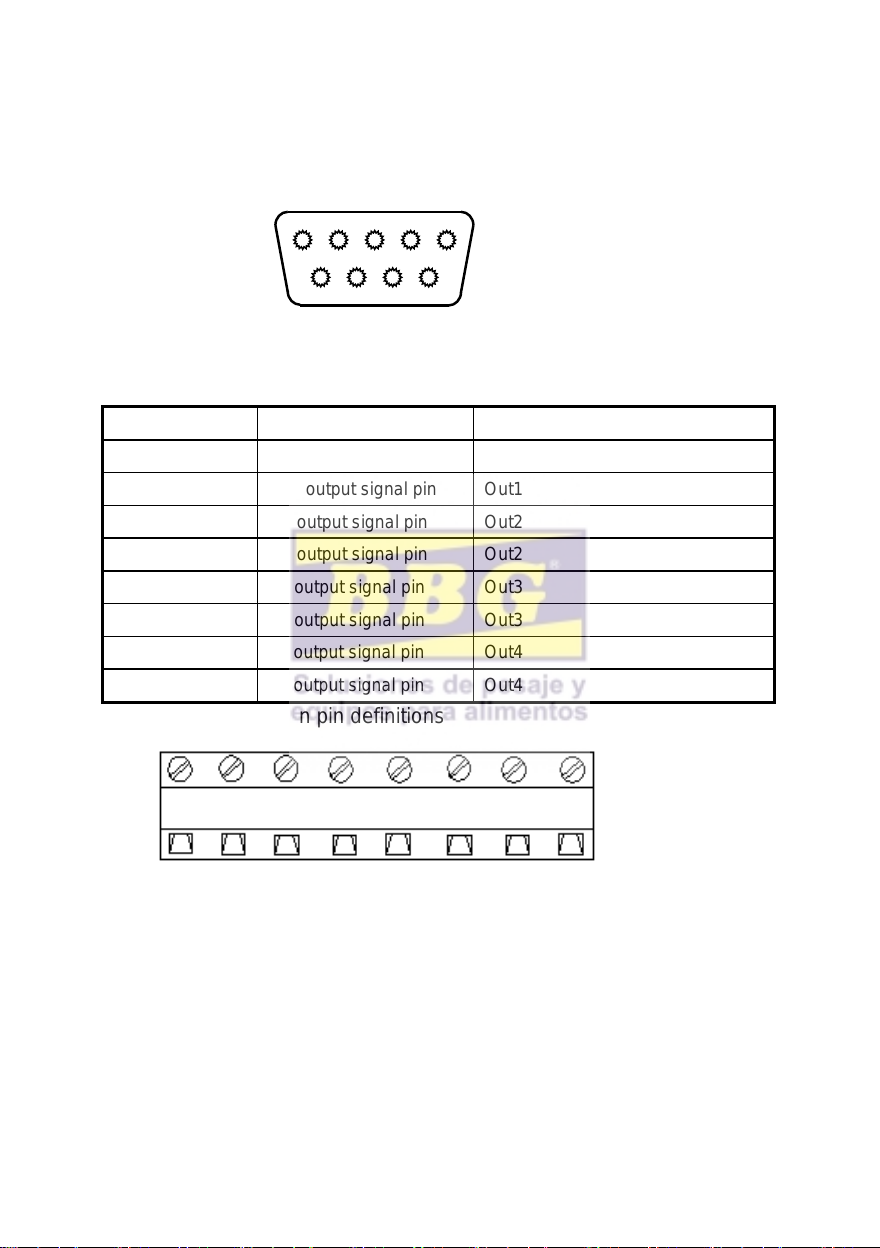

5 4 3 2 1
9 8 7 6
Pin function and definition as bellows:
DB9 joint
Definition
Function
2
TXD
Sending data
3
RXD
Receiving data
5
GND
Ground interface
Note: if RS485, The connection pin is 2 and 5 pin.
3 Pin definition

6
Inner connection
TXD RXD GND A B
Pin definitions：
Pins
Definitions
Function
RS232
TXD
Sending data
RXD
Receiving data
GND
Ground
RS485
A
RS485 output “A”port
B
RS485 output”B”port
2.4 4-20mA output
Technical parameters:
Resolutions: 1/1000
Outside Load: 100-350Ω
Connection:
1. Inside connection: 4-20mA, load input port connect with “I” of J2, Ground port
connect with “ GND” of J2
2. Outside connection: 4-20mA, load input port connect with “1” pin of DB9,
Ground port connect with “6” pin of DB9
Testing :

7
Connect the 250Ω to the 4-20mA, adjust the multimeter to the current stalls, the
red pan connect the loading port, and the black pan connect” GND” to test the
output current.
Calibration:
1. Press” Print” and “ Total” go to C32, show[out-4], the output current should be
4mA.
2. If Press [↑]show[out-5]，Pres[↓]show[out-20]，the output current should be
20mA.
3. Adjust the current, for example, adjust to [out-20], the output current should be
12mA, if not 12mA. Press [←](“Zero” key)or[→](Net/gross key)to adjust the current
to 12mA
2.5 Relay output signal function
The indicator can output 4 signal , connect with the outside equipment
the indicator can perform automatic control function and upper limit
and lower limit alarm function. Perform the 4 kinds function through
setting C33, 4 signals
As below
Output
port
Port definition
Function
C33＝0
Out1
Close output function
No output signal
Out2
Close output function
No output signal
Out3
Close output function
No output signal
Out4
Close output function
No output signal
C33＝1
Out1
Open overload control function
Output overload
control signal
Out2
Open compliance control function
Output compliance
control signal
Out3
Open underload control function
Output underload
control signal

8
Out4
Open stable control function
Output stable control
signal
C33＝2
Out1
Weight>=C13 instant connection
Feeding control
signal
Out2
Weight<=C14 instant connection
Feeding control
signal
Out3
OUT1、OUT2 close
When OUT1、OUT2
connect will output
alarm signal,
connect with buzzer
Out4
Weight<=C14 constant
connection
Weight>=C13 disconnect
Feeding start and
stop
C33＝3
Preserved, no function.
For example:
Check weigher application. Connect indicator with yellow, green, red 3
lights. Yellow light on when overload, if ok the green light on. If
underload red light on. And can connect with buzzer. There would be
alarm remind when overload.
C33=2 Feeding control application
For hopper scales. The target is between is 50~500kg, the Output
card can perform open and close feeding valve.
Parameter setting C13=500kg C14=50kg
C13=500kg upper limit , close feeding valve
C14=50kg lower limit, open feeding valve.
Connection: 1. Connect directly control machine, pls. connect OUT 4,
suggest connect another manually switch as the stop switch in
emergency
2. indicator output signal will influence the ON/OFF switch to control
machine, OUT 2 ON, OUT 1 OFF, OUT 3 connect buzzer, alarm
remind when start and stop.
Instruction: when the weight over 500kg, OUT 1 OU3 instant
connection and break off, OUT 4 break off; when weight under

9
50kg, OUT 2 OUT3 instant connection and break off, OUT 4
constant connection.
5 4 3 2 1
9 8 7 6
DB9 pin
definition
port
1 pin
1st output signal pin
Out1
6 pin
1st output signal pin
Out1
2 pin
2nd output signal pin
Out2
7 pin
2nd output signal pin
Out2
3 pin
3rd output signal pin
Out3
8 pin
3rd output signal pin
Out3
4 pin
4th output signal pin
Out4
9 pin
4th output signal pin
Out4
Inner connection pin definitions
01 01 02 02 03 03 04 04

10
3. Basic operation

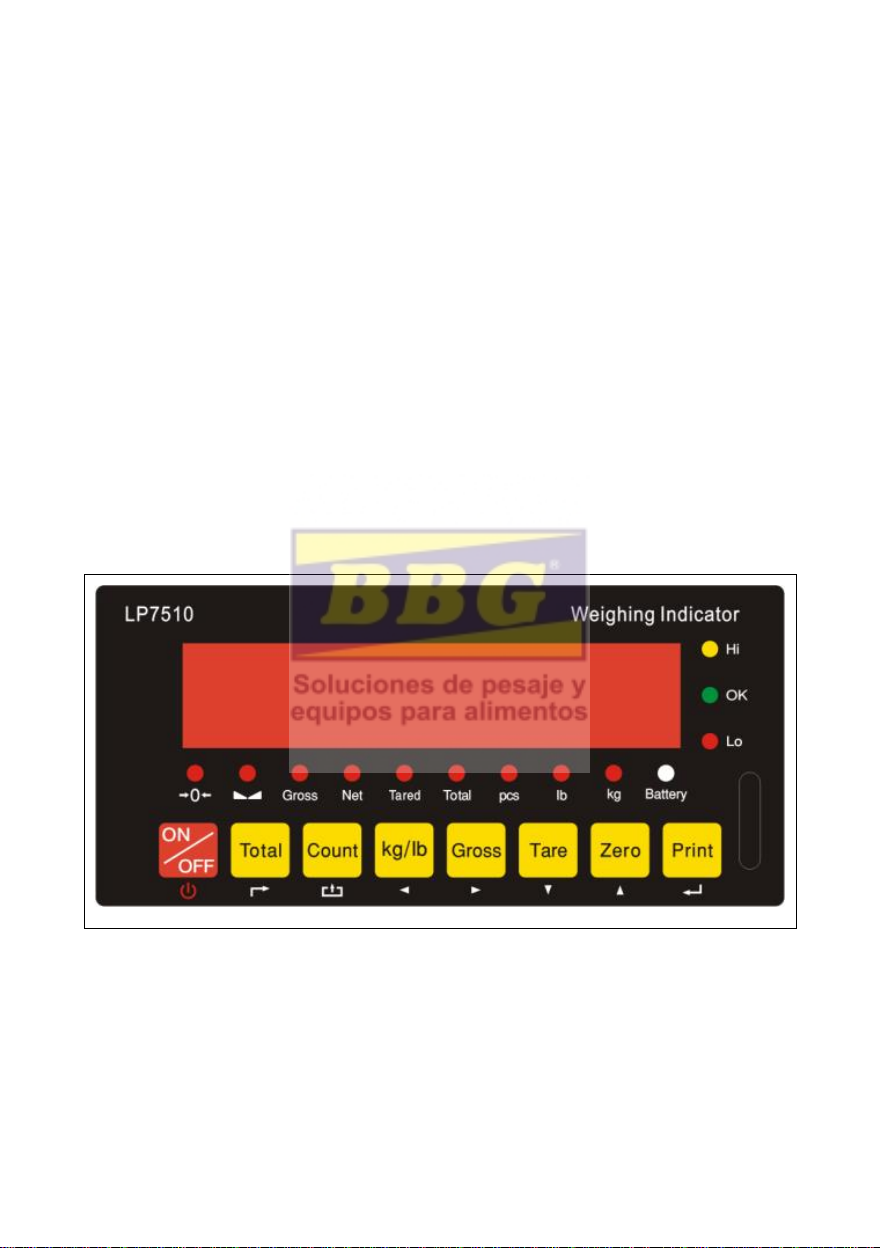

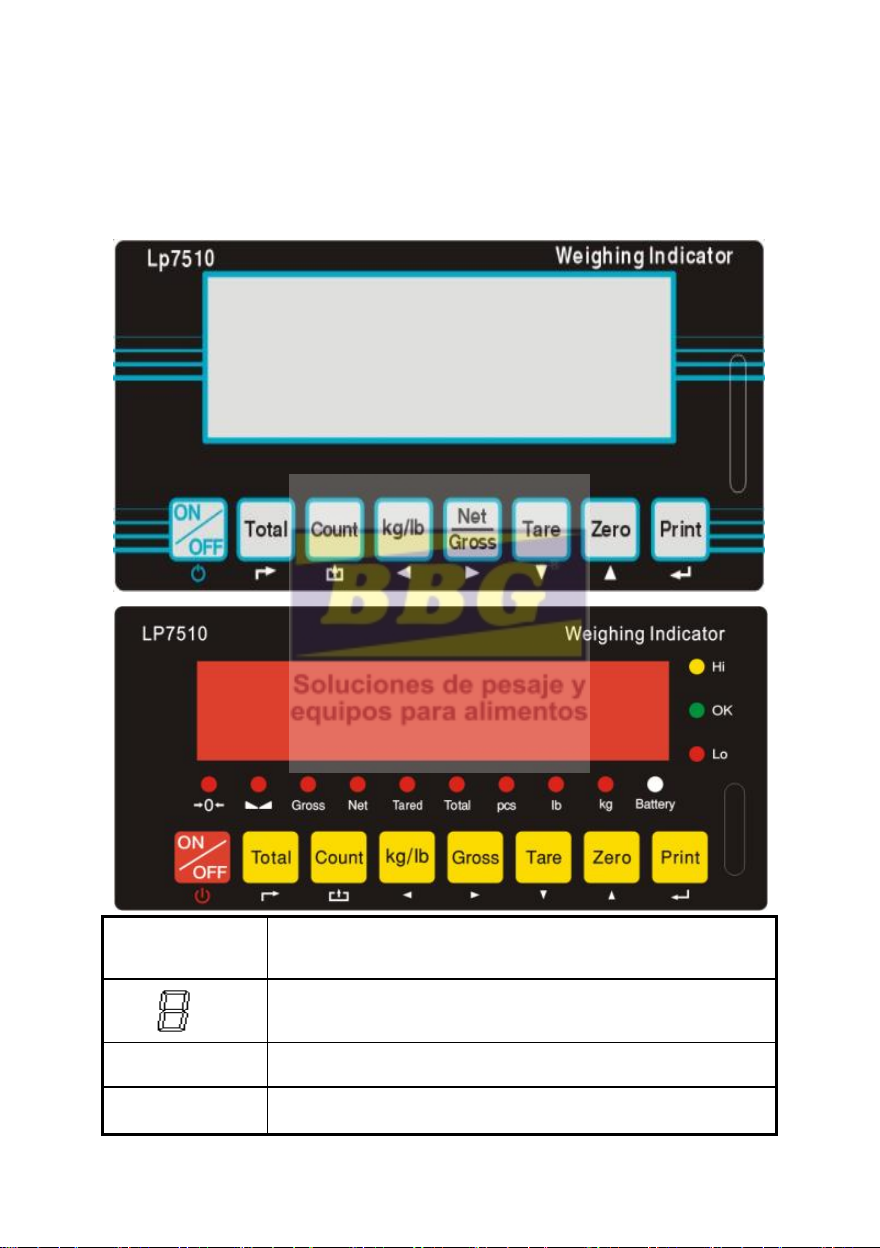

3.1 keypad
LED
instruction
Weighing data
kg
kg
lb
lb

11
Hold
Data hold
Gross
Gross weight
Net
Net weight
Tare
tare
The weighing data is stable
Weight is zero
Hi
Overload
OK
ok
Lo
Underload
.
Decimal
PCS
Show the counting status.
TOTAL
Go to accumulation mode
Keys function
keys
Key name
Key function
Print
1.work with “ZERO” TARE” “ON/OFF” key
to perform many functions. 2.Print
Zero
Zero the weight within tolerance
Tare
At G.W mode, get the tare weight. At N.W
mode, clear the tare, get the G.W
Gross weight
At N.W mode, check the G.W, after 3
seconds back to N.W automatically

12
Counting
Counting operation
Kg/lb convert
Covert between kg and lb
Accumulation
1. Accumulation
2. work together with “ Print” to perform
The accumulation function and check the
accumulation result

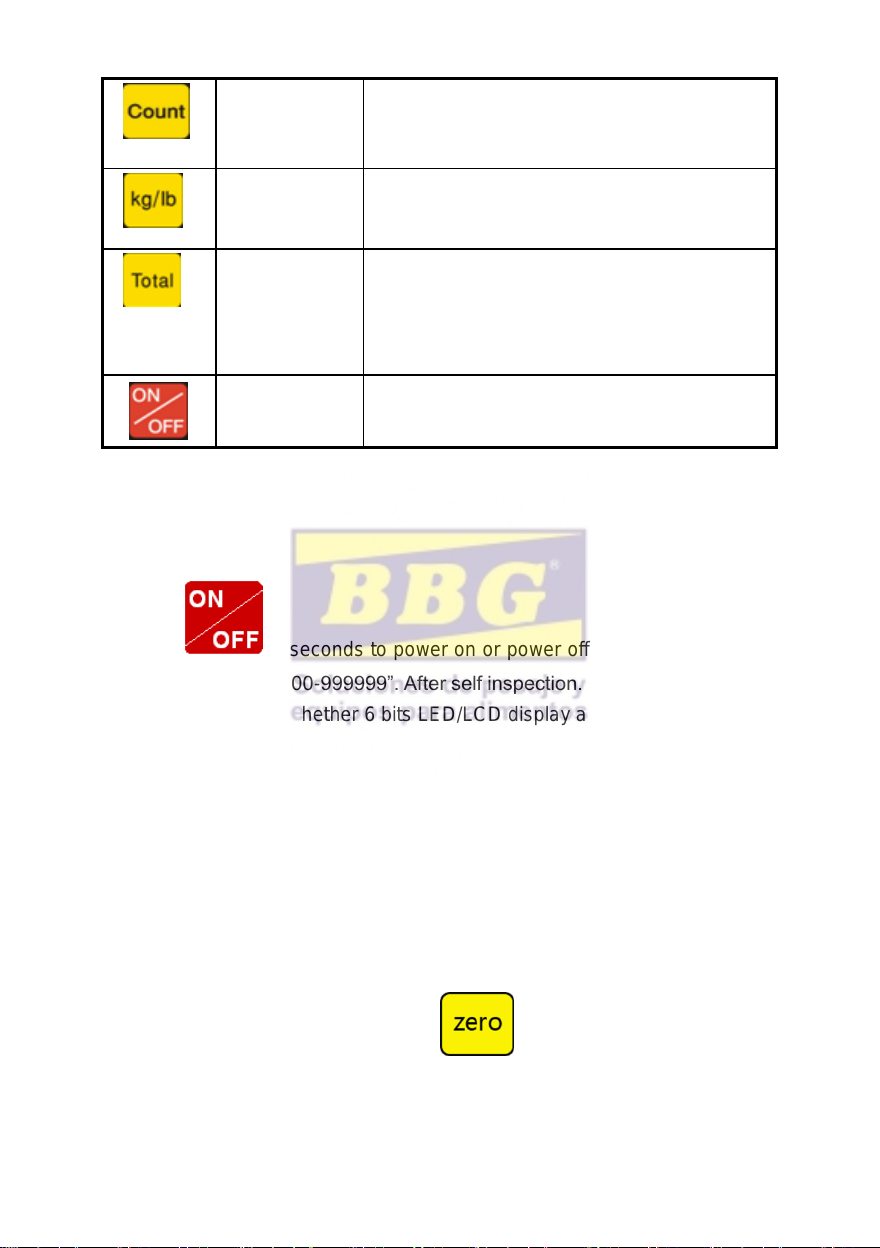

Power on/off
Press 2 seconds to power on or power off
3.2
Power on & off
Press 2 seconds to power on or power off, after power on the
indicator show”000000-999999”. After self inspection. It go to the weighing
mode. Pls. check it whether 6 bits LED/LCD display and the status light is
good or not.
3.3 Zero operation
1. Initial zero setting
When power on the indicator, if the weight on the scale is within the
initial zero tolerance, indicator show zero automatically.
2. Manually Zero setting
When the scales is stable, and not the negative display, you can zero
the weight within tolerance by press keys.
3.4 Tare operation

13
Press “TARE” key, the gross weight is tared, indicator show the Net
weight, the “Net” “tared” status light is on. At tare mode, Press” TARE”
key, clear the tare weight, the indicator will show the gross weight.
3.5 Accumulation operation
At Zero mode, load weight till stable, Press go to accumulation
mode, ”Total” light on, display” n 001”, and then display loaded weight; unload
the weight , back to zero, load the second weight again till stable. Press
display”n002” then display the second loaded weight. Repeat it agin
and again, maximum 999 times.
Check the accumulation
Press “ON/OFF “key and hold it then press “TOTAL”” key, display ”n**”, (it is
the accumulating times) then show total weight. there are 8 digits totally. It
shows the first 4 digits then the last 4 digits. For example, the first 4 digits
is”0012”, the last 4 digits is”34,56” It means the actual weight is “1234.56”
EXIT the accumulation function
When the indicator show the last 4 digits, Press hold it, the
indicator show “ clr n”, it means don’t clear the total Weight, Press “PRINT”
key to exit it; if you want to clear total weight, Press “ZERO” or “TARE” key,
“clrn” change to “clry” it means clear total weight ,then Press “PRINT” to clear
the total weight and exit accumulating mode.
3.6 Print
If the weighing is stable, after connect with printer, press” PRINT”
can print the weight. Note: at tare mode, print with tare. if negative
weight,, can not print. Set C30 for time format.

14
3.7 Hold
There are two different hold function. Peak hold function and data hold
function.And the setting is different accordingly.
C11=3 Automatic hold function C11=0 close hold function.
3.8 COUNT
1.At weighing mode, load the weights on the platform scales, Press”
Count” the indicator show” PCS 0” press” Zero” key input the quantity,
press” Print” to confirm it
2 . Load the goods on the platform scales, then the indicator will show
the quantity.
3. Press” Count” back to weighing mode.
4. If you want to weigh different goods, at weighing mode, put the
sample on the platform scales, press” Count” the indicator show”0”
Press “ Count” hold it and then press “ ON/OFF” the indicator show”
PCS 0”, press “Zero” input the sample quantity, press “ Print” to
confirm it. Then repeat the step 2 and 3.
4. Calibration and Parameter setting
4.1 Enter setting
There have two methods to enter the setting menu:
1. when the switch “ CAL” is off, press the “PRINT” hold it and
then press” TOTAL” enter C08-39 setting.
2. Take out the sealing screw on the back of indicator, then press
“CAL” , at the “SPAN” position as below. press “PRINT” hold it and
then press “TOTAL” key , enter C01-C39 setting.

15
The key functions in setting：
ENTER
UP
DOWN
LEFT
RIGHT
BACK
EXIT CALIBRATION
POWER
4.2. Step of calibration operation:
According to the second method which can enter setting menu,
C01-C39
step
Method of operation
display
Remark
1
[C01 ]
After you enter calibration
mode, it display [C01 ]
2
press
[C01 1]
Weight unit
option：1=kg

16
2=lb
3
press
press
press or
[C02 ]
[C02 0]
[C02 2]
Set decimal digits
option：0/1/2/3/4
Select decimal digit
example：two decimal point：
[C02 2]
4
press
press
press or
[C03 ]
[C03 1]
[C03 5]
Set graduation
option：1/2/5/10/20/50
Select required graduation
example：graduation 5：[C03 5]
5
press
press
press or /
[C04 ]
[0100.00]
[0100.00]
Max capacity
example：max weighing 100kg:
[0100.00]
6
press
press
press
press
[C05 ]
[C05 0]
[C05 1]
[CAL 9]
。。。。。。
[0000.00]
Zero calibration
Option
0=no need zero calibration
1=need zero calibration
calibration zero please choose 1 and
ensure scale is empty and “stable”
light is on
Ensure zero calibration, countdown.
Till show[0.00](example for two
decimal point)。
7
press
press
press or
press
press or
[C06 ]
[C06 0]
[C06 1]
[SPAN ]
[0100.00]
[0080.00]
calibration
option:
0=No need calibration
1= need calibration
Load weights on scales
according to max. capacity.
Suggest close to the max
capacity, at least 10% of max.
capacity.

17
press
[CAL 9]
……
[0080.00]
[CAL End]
For example: the weights is
80kg
As bellows:
Input the 0080.00, count down ,
then indicator shows 0080.00 ,
calibration is over.
If you want to set application
function parameter. Press
“PRINT” if you want to exit
press “COUNT”
8
press
press
press or
[C07 ]
[07 0]
[07 1]
Default parameters setting
option:0=non-restore default
parameters
1=restore default parameters
Note: after the above
parameters setting finish,
please do not set default
parameters to avoid the original
setting parameters is lost.
4.3 Application function parameters setting chart
Function
Setting
Item
parameters setting and instruction
warning
tone
C08
warning
tone
Options: 0 = close warning tone
1 = open warning tone
Automatic
power off
C09
Automatic
power off
option：0=close auto power off
10= power off automatically if no
change within 10 minute.
30= power off automatically if no
change within 30 minute.
60= power off automatically if no
change within 60 minute.
Power saving
C10
LED Version:
