BBQ grates P2255R User manual

22″Outdoor Charcoal Grill
Model No. P2255R
For Outdoor Use Only!
WARNING! BE CAREFUL OF SHARP EDGES DURING ASSEMBLY.
Made In China
Save these instructions for future reference. If you are having someone else to assemble
this unit, please give this manual to him or her to read and save for future use.
CONTACT 1-800-694-0013 FOR ASSISTANCE. DO NOT RETURN TO PLACE OF PURCHASE.

Exploded View & Hardware List
16
4 Pcs
6 Heat Resistant Washer
L. Heat Resistant Washer
M6 Steel Wing Nut
I. Large Wing Nut
M8 Zinc Plated Nut
F. Wheel Nut
2 Pcs
2 Pcs
2 Pcs
M8 Zinc Plated Wrench
Wrench
Screwdriver 1Pc
E. Screw M5x62
2 Pcs
G. Small Wing Nut
M4 Steel Wing Nut 2 Pcs
4 Aluminium
J. Small Washer
2 Pcs
K. Small Washer
5 Aluminium 6 Pcs
4 Zinc Plated Lock Washer
M. Small Lock Washer 2 Pcs
M5X12 Zinc Plated Philips Truss Head Screw
D. Screw
4 Pcs
8 Pcs
M5X12 Zinc Plated Philips Truss Head Screw
B. Screw
Hardware List
M4X12 Zinc Plated Philips Truss Head Screw
A. Screw
2 Pcs
M5X12 Zinc Plated Philips Truss Head Screw
3 Pcs
C. Screw
M5 Steel Wing Nut
H. Small Wing Nut
17 Pcs
4
8
1
3
6
11
5
8
9
7
10
2
12
12
11
13
14
14
15
1. Handle
2. Lid air vent
3. Lid
4. Buckle
5. Bottom bowl
6. Cooking grid
7. Charcoal pan
8. Bottom bowl air damper (2)
9. Back leg top
10. Front leg top
11. Front leg down (2)
12. Back leg down (2)
13. Hinge
14. Wheel (2)
15. Axle
16. Buckle support
Exploded view
2

Assembly Instructions
For easiest Assembly:
. To avoid losing any small components or hardware, assemble your product on a hard level surface that does not have
cracks or openings.
. Clear an area large enough to layout all components and hardware.
. When applicable, tighten all hardware connections by hand first. Once the step is completed, go back and fully tighten all
hardware.
. Follow all steps in order to properly assemble your product.
. The estimated assembly time is: 20-25 minutes.
Step 1
1L
3
2C
H
I
Attach handle (1) to lid (3) using 2 sets of heat resistant washers (L) and large wing nuts (I).
Attach air vent (2) to lid using 1 set of Medium screw (C) and medium wing nut (H).
Step 2
Attach buckle (4) to bottom bowl (5) using 2 sets of small screws (A) ,small washers (J), small lock washers (M) and small
wing nuts (G)
Attach air damper (8) to bottom bowl using 4 sets of medium screws (B) and medium wing nuts (H).
16
8
5
B
H
A4
JMG
3

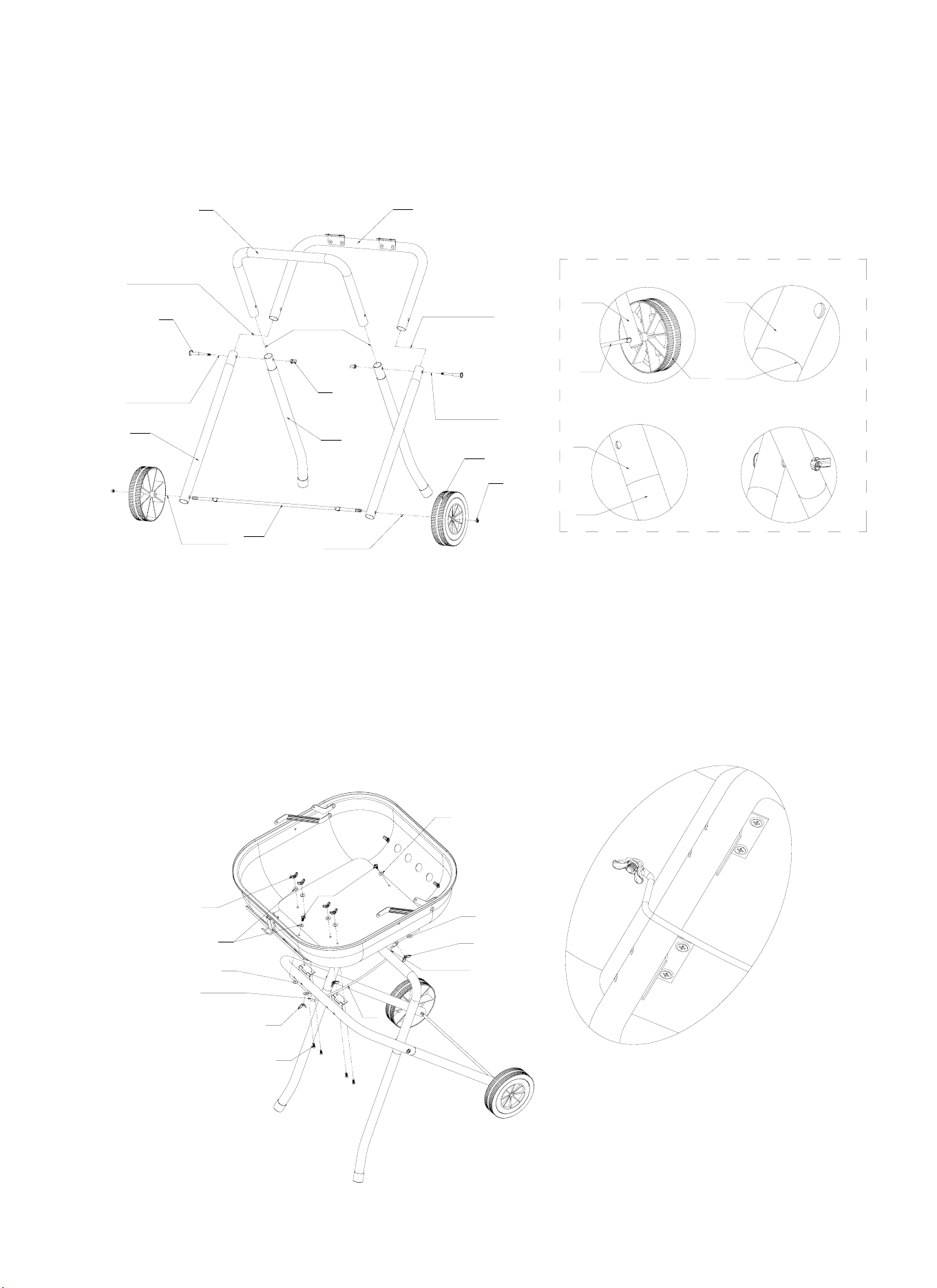

Step 3
Firstly: Attach wheel (14) to wheel leg down (11) using axle (15) and 2 wheel nuts (F).
Secondly: Insert wheel leg down into wheel leg top (10).
Thirdly: Insert front leg down (12) into front leg top (9).
Fourthly: Attach front leg assembly and wheel leg assembly using 2 sets of screws (E) and medium wing nuts (H)
Firstly
12
9
10
11
11
14
15
Fourthly
Thirdly
Secondly
Fourthly Fourthly
Thirdly
Secondly
Secondly
Firstly Firstly
F
14
15
11 12
H
E
10
9
Step 4
Attach wheel leg assembly to bottom bowl using 4 sets of medium screws (D), medium washers (K) and medium wing nuts
(H).
Attach hinge (13) to bottom bowl using 2 sets of medium screws (C), medium washers (K) and medium wing nuts (H).
Note: Long end of the hinge faces wheel leg top, short end of the hinge faces front leg top.
4
K
Long Short
H
D
H13
H
K
C
L
L

Step 5
Attach lid to bottom bowl using 4 sets of medium screws (B) and medium wing nuts (H).
H
H
B
B
Step 6
Insert charcoal pan (7) into bottom bowl.
Insert cooking grid (6) into bottom bowl.
7
6Secondly
First
5

Step 7
Lock lid
Unlock lid
Step 8
Congratulations your assembly is now complete. Read operating instructions before proceeding.
6

Appendix:
This grill can be folded and moved around easily. Please refer to steps below:
1, Fold up leg (Note: Always lock lid before folding legs).
2, Unfold legs (Note: Always open legs completely and are secured in place before lighting).
7

8
BARBECUE SAFETY HINTS
1. Stand your grill on a safe, level surface, away from flammable items such as wooden fences or over hanging tree
branches. NEVER USE your grill indoors.
2. DO NOT use petrol, paraffin, methyl lated spirit or lighter fuel to light your charcoal. Special lighting fluid, pastes and
fire lighters are available.
3. Once lit
DO NOT move your grill or leave it unattended.
4. Keep children and pets a safe distance from the grill.
5. Keep a fire extinguisher handy.
6. Remember that hot fat may drip out at the bottom of the fire bowl so keep your feet clear.
7. DO NOT touch metal parts of grill until it has completely cooled to avoid burns. All handle of grill will be hot
and unsafe to touch during use. Unless you are wearing protective gear (Potholders, gloves, BBQ mittens,
hot pad & etc.).
8. Ensure that the coals have completely cooked before removing the ash.
BARBECUE HELPFUL HINTS
1. To make it easier to clean your grill after use line the bottom bowl with aluminum cooking foil, shiny side up. Remember
to leave ventilation holes clear by piercing the foil where necessary. The process will lengthen the life of your barbecue
and reflect the heat more efficiently on to the food.
2. Charcoal is available in lump wood form (large irregular pieces) and as briquettes (uniformly sized pieces). As a guide
lump wood charcoal is best in grills for quickly cooked foods such as sausage and burgers while briquettes are more
suitable for a roast as they burn longer and hotter.
3. To light your grill, put a small quantity of charcoal in a pyramid shape. Insert a few fire lighters or spray with barbecue
lighting fluid or paste. Then light this area and as the fire spreads through more charcoal can be added to the top and
sides and spread over the whole cooking area. It is not advisable to completely fill the fire bowl as the grill may be come
far too hot to cook successfully.As a guide a 6.6lbs bag of charcoal in a 17’’ (43cm) diameter grill should last for at least
2 full barbecue fires.
4. It takes around 20-30 minutes for this grill to reach its full cooking temperature, although this does depend on the size of
the grill and fuel use (lump wood lights quicker than briquettes). As the coals heat up they will become covered in gray
ash when viewed in daylight and glow deep red in the dark. When the coals are fully covered then cooking temperature
is reached. If the barbecue is cooking too quickly then either raise the cooking grid or spread the coals further apart
using long handled tongs. If you need to replenish the charcoal always add to the sides and not to the center of the fire.
5. If the fire flares up due to dripping fat, dash the flames lightly with a fine water spray.
6. When you have finished cooking, never pour cold water directly on the coals to extinguish them as this may damage
your grill. Use old cinders, sand or a fine water spray.
7. To clean your grill, soak the cooking grate and tools in hot soapy water as soon as possible after use. Dry thoroughly and
store in a dry place. Do not leave your grill outside unprotected.
D
DA AN NG GE ER R! !
DO NOT use charcoal briquettes for indoor cooking or heating. TOXIC carbon monoxide fumes can accumulate
and cause asphyxiation. Live hot briquettes can create a fire hazard.
D
DA AN NG GE ER R! !
It is not intended to be installed in or on recreational vehicles and/or boats.

9
Limited Warranty
When this grill is assembled and operated in accordance with the printed instructions in this owner’s manual, we warrant to
the original consumer-purchaser, that for a period of one (1) year from the date of purchase, this grill shall be free from
defects in materials and workmanship. We may require reasonable proof of your date of purchase from us. Therefore,
you should retain your retail sales receipt or invoice. This warranty shall be limited only to the replacement of parts which
we determine, in our reasonable discretion, to be defective under normal use and service. Before returning any parts to us,
please contact our Customer Service Department at the toll free number listed below. Once we confirm, through
examination, that a defective part is covered by this limited warranty, we will replace it without charge. All transportation
charges for defective parts returned to us must be prepaid by you. We will send replacement parts to you with freight or
postage prepaid.
This limited warranty is non-transferable and does not cover any failures or operating difficulties due to abuse, accident,
alteration, misapplication, misuse, improper installation or improper maintenance, service by you or any third party, or failure
to perform normal and routine maintenance on the grill, as described in this owner’s manual. We assume no responsibility
for any defects caused by third parties. We disclaim all warranties for products that are purchased from sellers other than
us. This limited warranty does not cover damage to the grill finish, such as scratches, dents, discoloration, rust or other
weather damage.
THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. ANY AND ALL IMPLIED
WARRANTIES INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. FURTHER,
WE SHALL HAVE NO LIABILITY WHATSOEVER TO PURCHASER OR TO ANY THIRD PARTY FOR ANY SPECIAL,
INDIRECT, PUNITIVE, INCIDENTAL, OR CONSEQUENTIAL DAMAGES. THIS LIMITED WARRANTY GIVES THE
PURCHASER SPECIFIC LEGAL RIGHTS. A PURCHASER MAY HAVE OTHER RIGHTS DEPENDING UPON WHERE
HE OR SHE LIVES. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON HOW LONG A WARRANTY LASTS, SO THE
ABOVE EXCLUSION AND LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
We do not authorize any person or company to assume any other obligation or liability for us in connection with the sale,
installation, use, removal, return, or replacement of this grill, and no such representations are binding on us.
PLEASE DO NOT RETURN TO PLACE OF PURCHASE. CONTACT 1-800-694-0013 FOR ASSISTANCE.
