BBS Akura User manual

THE ULTIMATE DREAMCAST HDMI BOX
WITH SCANLINER
INSTRUCTION MANUAL
Thank you very much for purchasing this product and supporting the legendary Dreamcast console.
Please read this manual before use and retain it for future reference.
1

Introduction
AKURA is a Dreamcast HD I box with built-in scanline generator. It allows your DC to output audio
and video over HD I. Since Dreamcast natively supports 480p video, you can play your favourite DC
games in higher resolution on modern displays.
Akura has another built-in feature called Scanliner, which adds scanlines effect to your display.
This product is designed and manufactured by Team Beharbros, Dreamcast is a trademark of Sega
Enterprises Ltd.
2

Specifications
1. 480p Video output over HD I.
2. RGB/VGA switch to select the 15khz RGB mode or the 31khz VGA mode.
3. HD I connector for plugging to your TV/monitor.
4. Headphone audio output jack for plugging to a Hi-Fi system(amplifier) or TV.
5. Scanliner ON/OFF switch to turn it on or off.
6. Scanliner Width switch for selecting thin or thick scanlines.
7. Scanliner Even/Odd switch for selecting even or odd scanlines.
8. Luminosity adjustment as a bonus feature.
9. Blue power led.
10. High quality custom made Dreamcast audio/video cable.
11. Durable plexi case with laser etched Akura logo.
12. Small form factor: 2.9x2.9x0.71 inches or 7.5x7.5x1.8 cms
arts

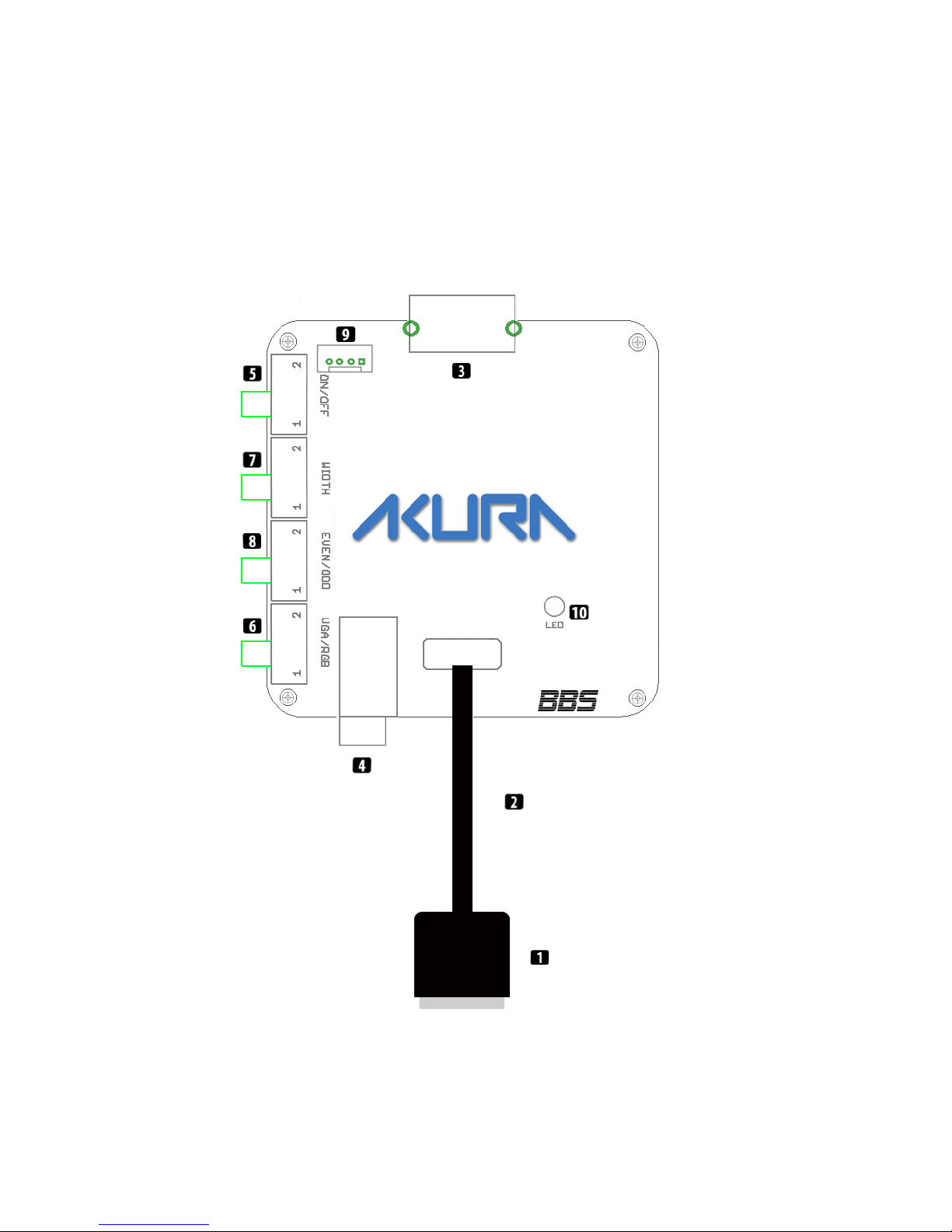

* Parts list as figured on the 2nd page.
1. Dreamcast AV plug.
2. Dreamcast AV cable.
3. HD I Connector for audio/video output.
4. Headphone audio output jack.
5. Scanliner feature ON/OFF switch to turn it on or off.
6. VGA/RGB mode select switch. (15/31khz).
7. Scanliner Width Select switch for selecting thin or thick scanlines.
8. Scanliner Even/Odd Select switch for selecting even or odd scanlines.
9. Firmware updating connector.
10. Blue power led.
3

RIMARY INSTRUCTIONS
1. ake sure your TV and Dreamcast is turned off
2. Connect your Akura's Dreamcast AV plug (1) to your console’s AV port on the back.
3. Connect your HD I cable (male to male, not included) between your Akura (3) and your
display (plasma, LCD, monitor etc.)
4. (Optional) You can also get stereo sound from your DC through the headphone jack(4), so
you can use your amplifier for a better gaming experience. You should turn off your stereo
system (amplifier) before connecting your cables to eliminate the risk of damaging your
speakers. Please don't connect 2 speaker systems (TV+Ampifier) at the same time... Use
either HD I or headphone jack for audio output.
5. Adjust the settings (RGB mode/scanlines) you prefer by the help of switches.
6. Turn on your TV and Dreamcast (amplifier too) and enjoy your VGA box with different
settings.
4

SETTINGS
RGB MODE
RGB mode can be set by the help of RGB/VGA Switch (6). Switch position 1 is for the 15khz RGB
mode, or 480i. If you change it to position 2, it will display 31khz VGA video or 480p. Currently Akura
only supports VGA compatible games.Some games are not compatible with the VGA mode, and the
console checks the type of cable plugged while booting, so it refuses to boot if the game doesn't
support the VGA mode. To eliminate this problem you can trick the console while booting(after the
beep sound) by switching to position 2 (VGA mode). This can work on most of the games, however
some games still may not support it, please check the incompatibility list on the web.
SCANLINES ON/OFF
Scanliner function can be turned on or off by the ON/OFF switch (5). When it’s in position 2,
scanlines will be displayed, when it’s switched to position 1, scanlines won’t be displayed.
This feature can be used on the fly, however it’s recommended to do it while the console is turned
off.
SCANLINES WIDTH SELECT
It’s possible to change the width of the scanlines, position 2 is the default mode which is thinner
scanlines (single line), position 1 is for the thicker scanlines (double lines).
EVEN / ODD SCANLINES
EVEN/ODD switch is used for selecting either even scanlines to be displayed or odd ones according
to your preferences.
BONUS MODE : LUMINOSITY ADJUSTMENT
As a bonus feature, while the EVEN/ODD switch is set to position 1, and the scanlines are turned off
(position 1) Akura can display a darker image without scanlines and when the EVEN/ODD switch is
set to position 2 again, it will display in its normal brightness.
5

WARRANTY
All our products are handmade using high quality imported components. Every component is tested
multiple times and chosen carefully for its longevity. When it’s totally assembled and ready to use,
we test it again for enough time before shipping it. However sometimes malfunctions can be occured
because of the workmanship or human errors by usage. We warrant our products to be free of
defects in materials and workmanship that result in failure during normal usage for 1 year. In case of
a malfunction, we advise you to consult us before trying to repair or replace any component. You can
send it back for repair or replacement. After this duration we will still keep standing back of our
products, even they are discontinued. Because your satisfaction is too important for us.
THANKS
SEGA, for creating this awesome console!
All the Dreamcast scene supporting this legendary console from the day one :
sites, modders, everyone...
Our friends and family for always believing and supporting us.
This product is designed and manufactured by Team Beharbros, Dreamcast is a trademark of Sega
Enterprises Ltd.
