Beale Street Audio LS10G-BSC User manual

Beale Street Audio
LS10G-BSC and LS10B-BSC 10” Down-Firing
Landscape Subwoofers
Installation Guide

2
Introduction
Congratulations and thank you for purchasing the Beale Street Audio
LS10G-BSC and LS10B-BSC 10” Down-Firing Landscape Subwoofers
The LS10G-BSC and LS10B-BSC 10” down-firing subwoofers are the
perfect way to add low-end sound to your outdoor audio system. The
compact design comes in 2 colors, black and green, making it easy to hide
while providing exceptional bass response. The IP65 rating allows the sub
to be weather and water resistant, making it an ideal solution for pools,
patios, and gardens. A perfect pairing with the Beale Basics 4” and 6.5”
Pendant Speakers with the optional landscape kit for a complete outdoor
landscape system.

3
Features
10” Down-Firing Landscape Subwoofer - Green
LS10G-BSC
• Weather and water-resistant landscape subwoofer designed to withstand sun, wind, and rain
• Perfect for year-round outdoor use
• Pair with Beale Basics 4” and 6.5” On-Wall/Pendant Speakers and WPV-LAND Landscape Kit for a
complete outdoor landscape system
• Woofer – 10” polypropylene cone
• RMS Power – 150W
• Frequency Response – 40Hz-300Hz
• Nominal Impedance – 4 Ohm
• Sensitivity – 86 dB
• IP Level – IP65
• Dimensions: 12.2” x 16.5” x 16.5” (310mm x 420mm x 420mm)
10” Down-Firing Landscape Subwoofer - Black
LS10B-BSC
Weather and water-resistant landscape subwoofer designed to withstand sun, wind, and rain
Perfect for year-round outdoor use
Pair with Beale Basics 4” and 6.5” On-Wall/Pendant Speakers and WPV-LAND Landscape Kit for a
complete outdoor landscape system
Woofer – 10” polypropylene cone
RMS Power – 150W
Frequency Response – 40Hz-300Hz
Nominal Impedance – 4 Ohm
Sensitivity – 86 dB
IP Level – IP65
Dimensions: 12.2” x 16.5” x 16.5” (310mm x 420mm x 420mm)
What’s Inside?
• LS10G-BSC Subwoofer
• 2 wire nuts
• 2 nail stakes
• Security eye bolt
• Product Manual
• LS10B-BSC Subwoofer
• 2 wire nuts
• 2 nail stakes
• Security eye bolt
• Product Manual
LS10G-BSC LS10B-BSC

4
Connect and Operate

5
1. Determine the location of the omnidirectional, down-firing subwoofer. Recommend
installing the sub within 15ft of the any other landscape full-range speakers. Make
sure that speaker wire is run to the location.
2. OPTIONAL: Measure the center-to-center distance between the key-hole slots and
install the two provided panhead nail stakes into the surface, leaving 1/4” of the
screws exposed above the surface.
NOTE: different types of surfaces and soil may require different stakes or mounting
hardware that is sold separately.

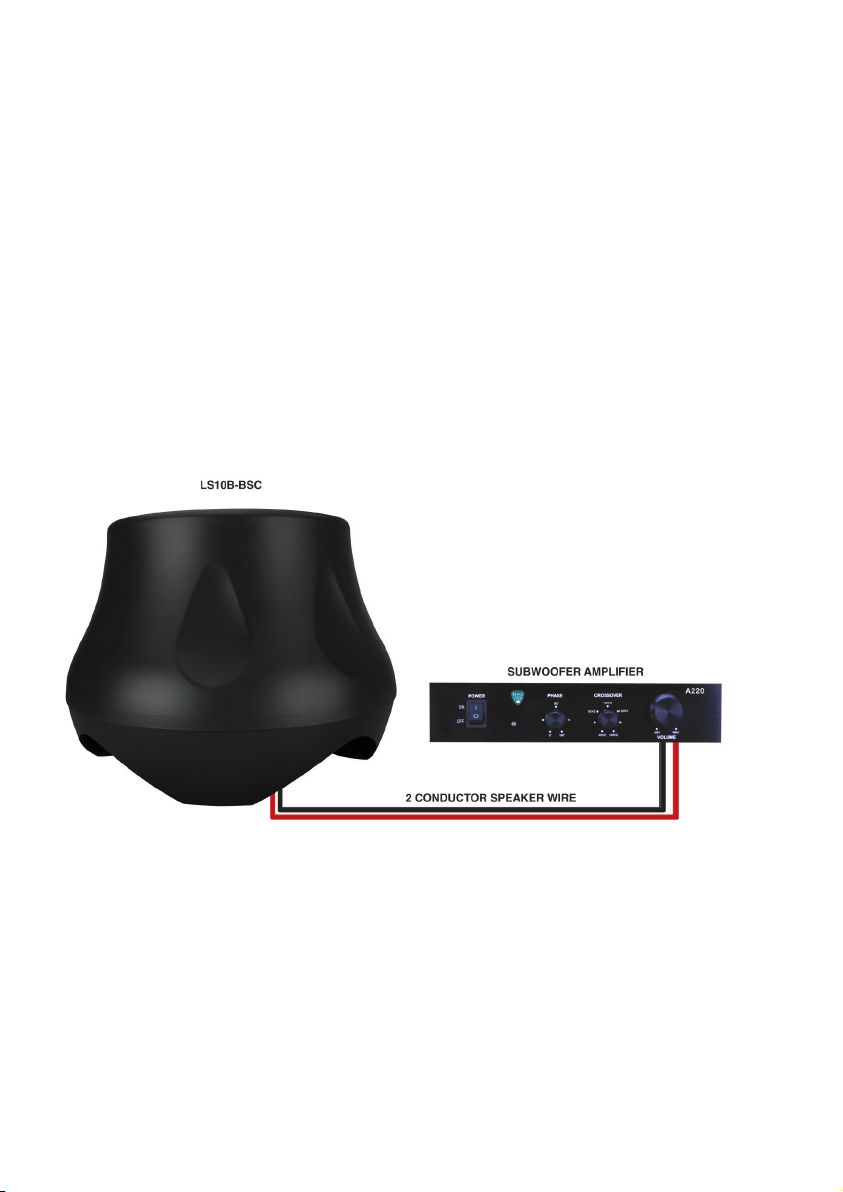

3. Connect the speaker wire run to the subwoofer location to the leads connected to the
subwoofer with the provided wire nuts.

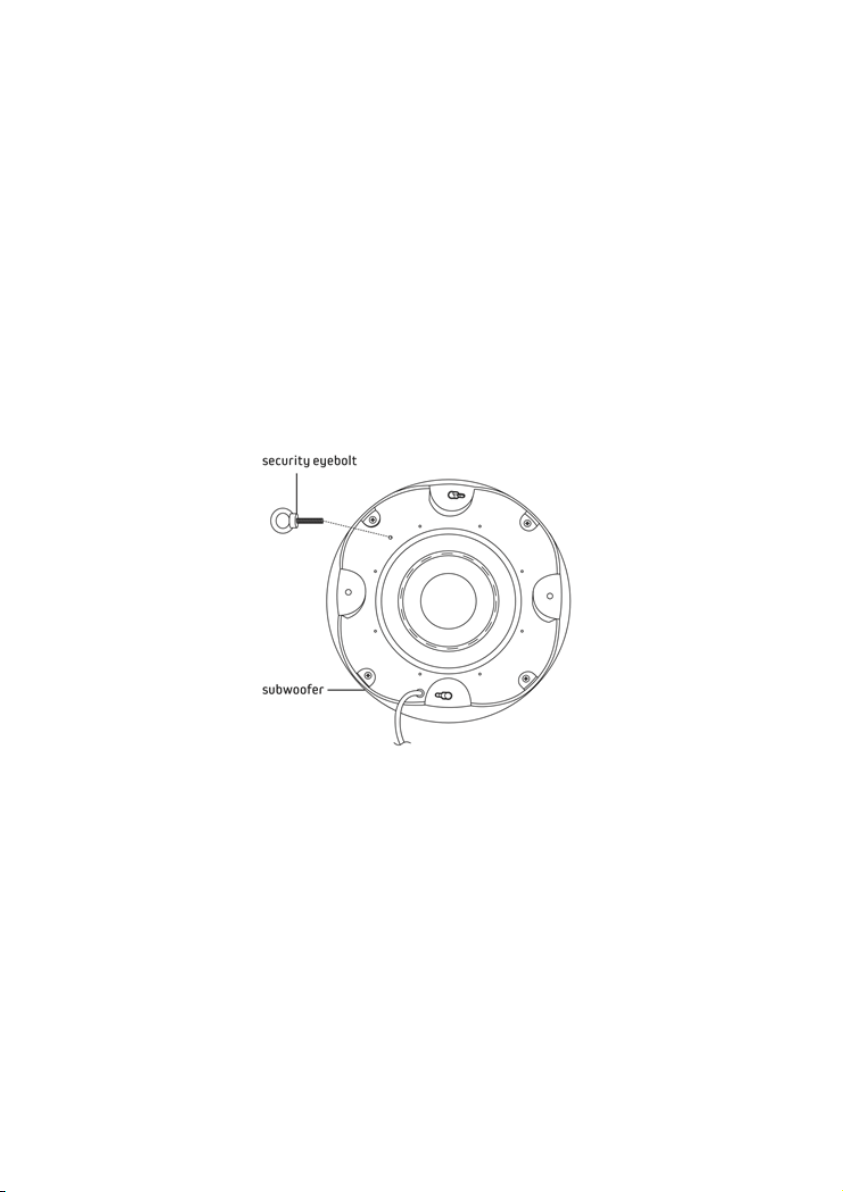

4. OPTIONAL: For added security, use the provided security eyebolt to the bottom of the
subwoofer and connect to a secure feature locally.
5. OPTIONAL: If you plan utilized the nail stakes in step 2, place the subwoofer onto the
pan head nail stakes and rotate the LS10B-BSC or LS10G-BSC clockwise so that the
keyhole slots lock down onto the nail stakes.

6
Description LS10G-BSC LS10B-BSC
Woofer 10" Polypropylene Cone
Frequency Response (+/-3dB) 40-300Hz
Impedance 4 ohm
Power Handling (RMS/PEAK) 150W/300W
Sensitivity 86dB
Colors Green Black
Rating IP65
Dimensions 12.2"x16.5" (310x420mm)
Weight 24 lbs (10.9kg)
Specifications

7
Limited Warranty
With the exceptions noted in the next paragraph, Vanco warrants to the original purchaser
that the equipment it manufactures or sells will be free from defects in materials and
workmanship for a period of two years from the date of purchase. Should this product, in
Vanco’s opinion, prove defective within this warranty period, Vanco, at its option, will repair
or replace this product without charge. Any defective parts replaced become the property
of Vanco. This warranty does not apply to those products which have been damaged due to
accident, unauthorized alterations, improper repair, modifications, inadequate maintenance
and care, or use in any manner for which the product was not originally intended.
Items integrated into Vanco products that are made by other manufacturers, notably
computer hard drives and liquid crystal display panels, are limited to the term of the
warranty offered by the respective manufacturers. Such specific warranties are available
upon request to Vanco. A surge protector, power conditioner unit, or an uninterruptible
power supply must be installed in the electrical circuit to protect against power surges.
If repairs are needed during the warranty period, the purchaser will be required to provide
a sales receipt/sales invoice or other acceptable proof of purchase to the seller of this
equipment. The seller will then contact Vanco regarding warranty repair or replacement.
TECHNICAL SUPPORT
In case of problems, please contact Vanco Technical Support by dialing 1-800-626-6445.
You can also email technical support issues to [email protected]om. When calling,
please have the Model Number, Serial Number (affixed to the bottom of the unit) and
Invoice available for reference during the call. Please read this Instruction Manual prior to
calling or installing this unit, since it will familiarize you with the capabilities of this product
and its proper installation. All active electronic products are 100% inspected and tested
to insure highest product quality and trouble-free installation and operation. The testing
process utilizes the types of high-definition sources and displays typically installed for
entertainment and home theatre applications. For additional information please visit www.
vanco1.com.
