BEATFOXX GT-25 User manual

Beatfoxx GT-25 Chuck Turntable
Operating Manual
Item No..: 00065927
Revision: *-01-2020

GT-25 Chuck
© 2020
This manual is protected by copyright. Any copying or reprint, even in excerpts, is only
allowed with written consent of Musikhaus Kirstein GmbH. The same applies to reproduction
or copying of images, even in altered form.
Contents
Intended purpose...................................................................................................2
SAFETY...................................................................................................................2
Connections ...........................................................................................................2
Product Description...............................................................................................3
Power Supply .........................................................................................................4
PREPARATION FOR USE ......................................................................................4
ASSEMBLY.............................................................................................................4
WALL MOUNTING VERTICAL................................................................................5
TURNTABLE OPERATION .....................................................................................6
BLUETOOTH FUNCTION OPERATION..................................................................6
LINE OUT OPERATION ..........................................................................................7
MAINTENANCE.......................................................................................................8
WEEE Declaration (Waste of Electrical and Electronic Equipment)..................8

GT-25 Chuck
2020-05-28 Beatfoxx GT-25 Chuck 1
Thank you for purchasing this product.To ensure you will be completely satisfied withthis product,
read and understand this manual carefully before use. Keep the manual in a safe place. The
Operating Manual must be passed on to all subsequent users.
Follow the Operating Manual!
The signal word WARNING identifies hazards, which can result without
precautions in serious injury.
The signal word NOTE indicates general precautions, which should be
observed in handling the product.
Images used in this manual may differ slightly from the actual product, as
long as it has no adverse effect on the properties and safety of the
product.
All personal formulations in these instructions are to be considered gender
neutral.
These operating instructions apply to persons who have been supervised or instructed in the
operation of the unit by a person responsible for their safety and who have proven to be able
to handle the unit.
Children should be supervised to ensure that they do not play with the
unit. Do not leave the children unattended.
All information contained in this Operating Manual is accurate to the best of our knowledge and
belief. Neither the author nor the publisher, however, can be held liable for damages or losses that
arise in connection with the use of this Operating Manual.
Other product, brand or company designations specified in this document are possibly the
trademarks of their respective owners. Compliance with all applicable copyright laws is the
responsibility of the user of this document.

GT-25 Chuck
2 Beatfoxx GT-25 Chuck 2020-05-28
Intended purpose
This device is designed for indoor use. The guarantee does not apply to devices that are
used for professional use.
SAFETY
Make sure that the unit is positioned so that no one can trip
over the power cord.
•Do not use this product near water (e.g. near a bathtub, washbasin, kitchen sink, in a damp
basement or near a swimming pool, etc.);
•Do not place this product near heat sources such as radiators, vents or other devices
(including amplifiers) that generate heat;
•Do not open this product. In the event of a malfunction, contact a qualified service
technician or the dealer;
•Do not leave this product plugged in when not inusefor a long time;
•Do not place any objects on the product.
•Clean only with a dry cloth.
•Do not block any ventilation openings.
•Protect the power cord from being kinked, in particular where the plug is fitted and at the
point whereit exitsfrom theapparatus.
•Only use attachments/ accessories specified by the manufacturer.
•Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power supplycordor plug isdamaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
Connections
Do not overload the wall power outlet. Use only power source as indicated.

GT-25 Chuck
2020-05-28 Beatfoxx GT-25 Chuck 3
Product Description
1. Cartridge & Stylus;
2. Tonearm;
3. Turntable;
4. Magnetic Record Holder;
5. Tonearm lever;
6. Speakers;
7. Phono Speed Selector;
8. On/Off and Volume-Knob;
9. Power Jack;
10. RCA-Line Out and AUX-In Jacks
11. AC Adapter.

GT-25 Chuck
4 Beatfoxx GT-25 Chuck 2020-05-28
Power Supply
This product is designed foruse with a 12 V 1AAC DC adapter. Attempting to operate this product
from a different power source may damage the product. Such damage is not covered by your
warranty.
This product is equipped with a standard household plug. If this plug does
not fit your outlet, you probably have an outdated, non-polarized outlet.
You should have your electrical outlet replaced by a qualified electrician.
PREPARATION FOR USE
1. Carefully remove the unitfrom carton and remove all packingmaterial from the unit.
2. Unwind the ACpower cord and extend it to its full length.
3. Place the unit on a stable, level surface, convenient to an AC outlet, out of a strong
magnetic field.
4. Connect the plug to your AC outlet.
5. Remove the white plasticstylus cover from thephonograph stylusbysliding it in the
direction of the arrow.
When removing the stylus cover, pay attention to the stylus as the stylus
damage is not covered by the warranty.
ASSEMBLY
1. Slide the handle of the guitar into the opening on the top of the guitar body.
2. Insert the blackmounting screw into the mounting hole on the back of the guitar body
and screw it tight.

GT-25 Chuck
2020-05-28 Beatfoxx GT-25 Chuck 5
WALL MOUNTING VERTICAL

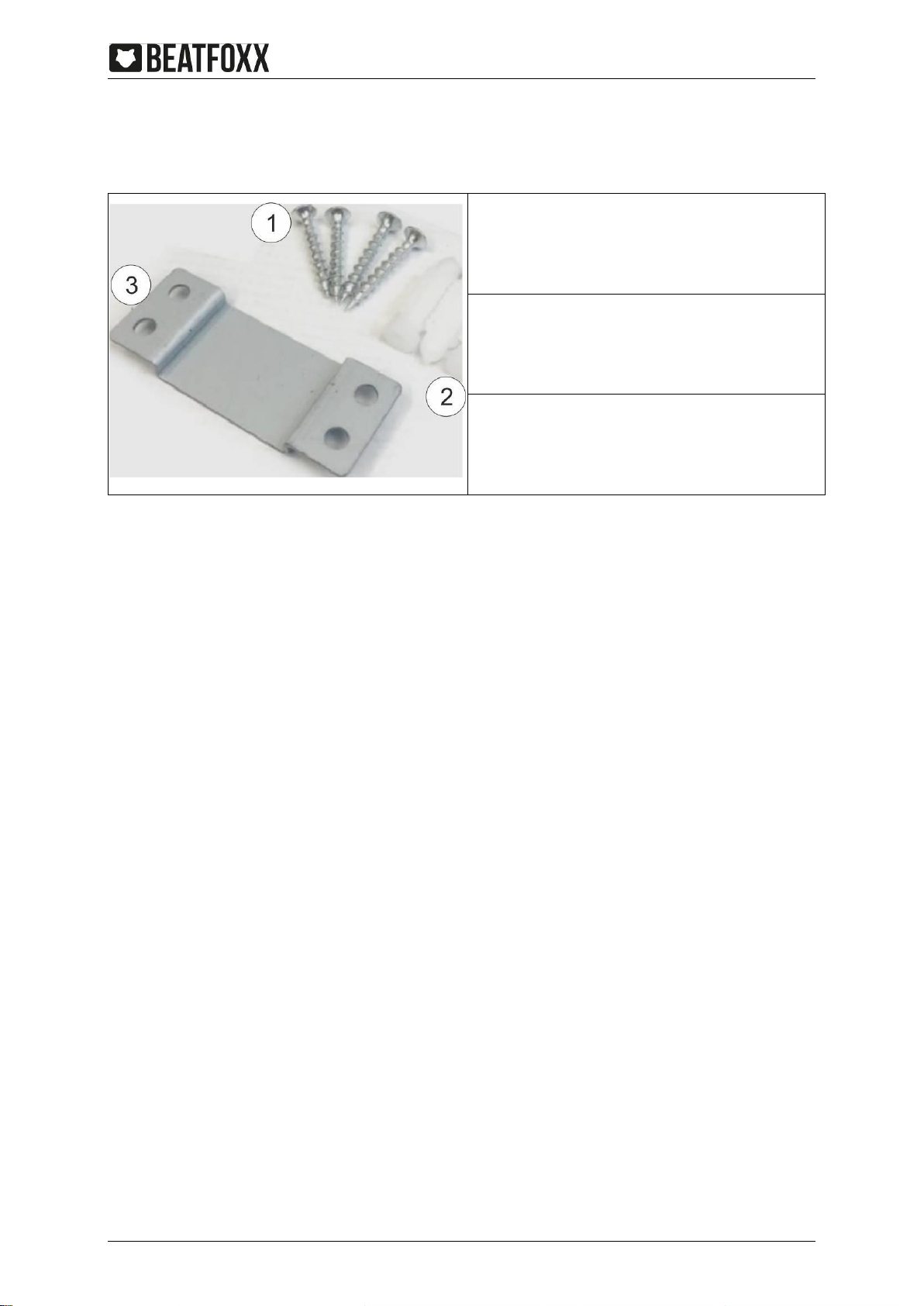

1. Wall Screws;+2 longer black screws for
neck fixation at Guitarhousieng
2. Wall Inserts (dowels);
3. Wall Bracket;
1. Hold the turntable against the wallwhere you want to place it.
2. Mark themiddle of the turntable at the top with adhesive tape and set the turntable
aside.
3. Place a mark 5.25" (13.3 cm)down from the adhesive tape.
4. Hold the wall bracket so that the top edge of the wall bracket is on the mark.
5. Mark the locationsfor the holes on the wall. The markings should correspond to the
openings on the wall bracket.
6. Drill the holes at the marked locations on the wall (1 /4" drill).
7. Insert the four dowels into the holes. The open end of the dowels must be flush with
the wall surface.
8. Tighten the wall bracket with four wall screws.
9. Use the 2 longerblack screwsto fixate the neck atthe backside of the Guitar-housing
10.Hang the turntable vertically on the mounted wall bracket.

GT-25 Chuck
6 Beatfoxx GT-25 Chuck 2020-05-28
TURNTABLE OPERATION
1. Turn the On/Off-Knob to switch on the device.
2. Turnthe Phono Speed Selectortothe correct speed (33 1/3,45 or 78 rpm)for the
selected record size.
3. Takeout the Magnetic Record Holder, place a record lightlyon the Turntable and put
the MagneticRecord Holder back in place to fixthe record.
4. Remove the stylusprotector.
5. Release the Tonarm lockand lift the Tonearm with the lever.
6. Move the Tonearm over the record to where you want it to start playing.
7. Move the Tonearm Lever to the lower position. The Tonearm slowly lowers onto the
record automatically.
8. Turn the Volume-Knob to adjust the desired volume.
The Tonearm stops automatically at the end of the recording.
BLUETOOTH FUNCTION OPERATION
1. Turn on the turntable and turn the Volume-Knob to the desired volume level.
The Bluetooth function is set to receive mode when the turntable is
switched on. Make sure the tonearm is in the resting position. A short
Bluetooth start tone can be heard.
2. Turn on your Bluetooth device. It will appear as "Beatfoxx GT-25" when it is recognized
byBluetooth on your turntable.
3. If you areasked for a passwordenter the password"0000" to pairthe turntable and the
Bluetooth device
When the turntable is paired with your Bluetooth device, you will hear a
short ton from the speakers.
4. Operate yourBluetooth device as usual and the sound is played through your
turntable. Enjoy the music.
A. Make sure your Bluetooth device and this unit is within 33ft
B. Checkand see if there are otherBluetooth devices nearby
interfering the signal and connection.
C. This unit is could be paired bymultiple different Bluetooth devices,
but could only be connected and played by one of them at a time.
Make sure no others device is actively connected to it already when
you are trying to connect the one you are working on.

GT-25 Chuck
2020-05-28 Beatfoxx GT-25 Chuck 7
LINE OUT AND AUX-OPERATION

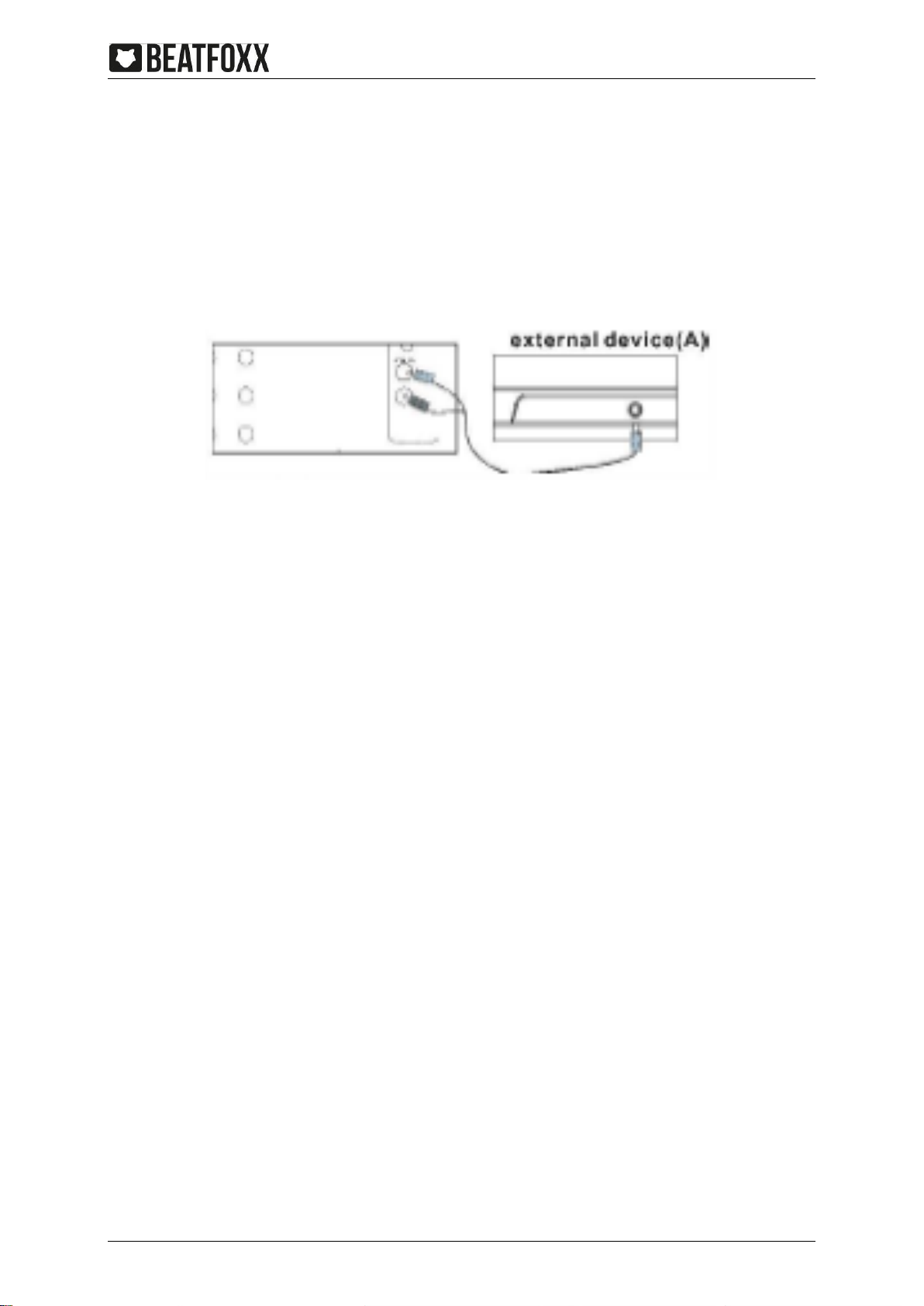

The RCA-Line Out jacks are great for connecting your Vertical Turntable to a stereo system
or recording device. Using an RCA-cable, you just plug into the left and right outputs from
your Vertical Turntable to the Phono or other input on your stereo system. Using an RCA to
headphone jack cable you can connect to other systems that have a headphone jack input.
By plugging an 3,5mm jack cable to the AUX-IN jack you can use your devices like
Smartphones, Tablets or MP3-Players as external music player.

GT-25 Chuck
8 Beatfoxx GT-25 Chuck 2020-05-28
MAINTENANCE
Your unit does not require any particular maintenance. However, in the event of a
malfunction, contact an Approved Service Center or the retailer you bought from.
WEEE Declaration
(Waste of Electrical and Electronic Equipment)
Your product has been designed and manufactured using quality materials and components
that are recyclable and reusable. The symbol means that your product must be disposed
separately from household waste at the end of its service life.
Dispose of this equipment at your local collection point or recycling center.
Please help to protect the environment in which we all live.
CE conformity
SIMPLIFIED EU DECLARATION OF CONFORMITY
Herewith Musikhaus Kirstein GmbH declares that the radio equipment type [Beatfoxx Chuck
GT-25] complies with Directive 2014/53 / EU. The full text of the EU declaration of conformity
is available at the following Internet address:
http://www.kirstein.de/docs/Konformitaetserklaerung/CE_Konformitaetserklaerung_00065927.pdf
All specifications and appearances are subject to change without notice. All information was
correct at time of printing. Musikhaus Kirstein GmbH does not guarantee for the accuracy or
completeness of any description, photograph or statement contained in this manual. Printed
colors and specifications may vary slightly from product. Products from Musikhaus Kirstein
GmbH are only sold through authorized dealer. Distributors and dealers are not agents of
Musikhaus Kirstein GmbH and have no authority to bind Musikhaus Kirstein GmbH legally in
any way.
Musikhaus Kirstein GmbH
Bernbeurener Str. 11
86956 Schongau –Germany
Telefon/Phone: [phone]
Telefax/Fax: [phone]-19
