Beco GNE490E20ZXP User manual

www.beko.com.trwww.beko.com
GNE490E20ZXP
EN

Please read this user manual first!
Dear Valued Customer,
We hope that your product, which has been produced in modern plants and checked under the most
meticulous quality control procedures, will provide you an effective service.
The user manual will help you use the product in a fast and safe way.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.
• The manufacturer reserves the right to make modifications on the product.
Remember that this user manual is also applicable for several other models.
Explanation of symbols
The following symbols are used along this user manual:
CImportant information or useful hints.
ARisk of injury and damage to property.
BRisk of electric shock.
Packaging materials of the product are
manufactured from recyclable materi-
als in accordance with our National
Environment Regulations.

2 /31 EN Refrigerator / User Manual
1 Instructions for safety and
environment 3
1.1. General Safety . . . . . . . . . . . . . . . . . . . . . . 3
1.1.1 HC Warning. . . . . . . . . . . . . . . . . . . . . . . . 5
1.1.2 For products with a water dispenser. . . . . . 5
1.2. Intended use. . . . . . . . . . . . . . . . . . . . . . . . 5
1.3. Child safety. . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4. Compliance with WEEE Directive and disposing
of the waste product . . . . . . . . . . . . . . . . . 6
1.5. Package Information . . . . . . . . . . . . . . . . . . 6
2 Your appliance 7
3 Installation 8
3.1. Appropriate location for installation . . . . . . . 8
3.2. Installing the plastic wedges . . . . . . . . . . . . 8
3.3. Adjusting the feet . . . . . . . . . . . . . . . . . . . . 9
3.4. Electrical connection . . . . . . . . . . . . . . . . . . 9
4 Preparation 10
4.1. Things to be done for energy saving. . . . . . 10
4.2. Initial use . . . . . . . . . . . . . . . . . . . . . . . . . 10
5 Operating the product 11
5.1. Indicator panel . . . . . . . . . . . . . . . . . . . . . 11
5.2. Indicator panel . . . . . . . . . . . . . . . . . . . . . 16
5.3. Ice machine . . . . . . . . . . . . . . . . . . . . . . . 20
5.4. Icematic . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.5. Ice container. . . . . . . . . . . . . . . . . . . . . . . 20
5.6. Blue light . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.7. Deodorising Module . . . . . . . . . . . . . . . . . 21
(FreshGuard) . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.8. Chiller compartment . . . . . . . . . . . . . . . . . 22
5.9. Crisper . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.10.Movable Middle Section . . . . . . . . . . . . . 22
5.11.Using the water dispenser . . . . . . . . . . . . 23
5.12.Filling the water dispenser's tank . . . . . . . 23
5.13.Cleaning the water tank . . . . . . . . . . . . . 24
5.14.Drip tray . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.15. Everfresh (Humidity-controlled crisper). . . 25
5.16.Freezing fresh food . . . . . . . . . . . . . . . . . 26
5.17.Recommendations for preserving the frozen
food . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.18.Deep-freeze information. . . . . . . . . . . . . . 27
5.19.Placing the food. . . . . . . . . . . . . . . . . . . . 27
5.20.Door open warning. . . . . . . . . . . . . . . . . . 27
5.21.Illumination lamp . . . . . . . . . . . . . . . . . . . 27
6Maintenance and cleaning 28
6.1. Avoiding bad odours . . . . . . . . . . . . . . . . . 28
6.2. Protecting the plastic surfaces . . . . . . . . . 28
7 Troubleshooting 29
Contents

3 / 31 EN
Refrigerator / User Manual
This section contains safety instructions
that will prevent the risk of personal injury
or property damage. Failure to follow
these instructions shall render any product
warranty void.
Intended use
AWARNING: When the product is
in its casing or placed,
make sure that the vents are
not blocked.
A
WARNING: To accelerate the
defrosting process, do not
use any mechanical or other
type of devices other than
those recommended by the
manufacturer.
AWARNING: Do not damage the
coolant circuit.
A
WARNING: Do not use
electrical appliances other
than those recommended by
the manufacturer for the food
storage compartments of the
product.
This product is intended for household use
and similar applications below.
- In staff kitchens in stores, offices
and other working environments;
- In farm houses and for
customers in hotels, motels and other
accommodation places.
- Bed and breakfast type
environments;
- For similar applications where
there is no food service or retailing.
1.1. General Safety
• Persons with physical, sensory or
mental disabilities; persons who
lack experience and information and
children should not approach, enter or
play with the product.
• Use of the product by these persons is
suitable only if the required instructions
are provided under the supervision of
a person responsible for the safety of
these persons.
• Failure to follow the instructions and
uncontrolled use of the product lead to
dangerous results!
• Unplug the appliance if a fault occurs
during operation.
• Wait for minimum 5 minutes to plug in
the product again after unplugging it.
• Unplug the product when not in use.
• Never touch the plug with wet hands!
Never unplug by pulling on the cable,
always pull out by grabbing the plug.
• Do not plug the refrigerator if the outlet
is loose.
• Unplug the product during installation,
maintenance, cleaning and repairing
procedures.
• If you will not operate the product
for a long period of time, unplug and
unload the food in it.The product
definitely should not be used when
the compartment which is located on
the upper or rear side of your product
and which contains electronic boards
(electronic board box cover) (1) is open.
1Instructions for safety and environment

Instructions for safety and environment
4 / 31 EN Refrigerator / User Manual
1
1
• Never use steam or steam assisted
cleaning materials to clean or
defrost the refrigerator. Steam will
cause short circuit or electric shock
since it would get into contact
with the electrical parts in the
refrigerator!
• Never wash the product by
spreading or pouring water onto it!
There is the risk of electric shock!
• Product shall never be operated in
faulty condition as there is risk of
electric shock. Do not perform any
operation before contacting the
authorized service.
• Connect your product to a grounded
outlet. Grounding installation
shall be performed by a skilled
electrician.
• If your product has LED type of
illumination;contact authorised
service when the light shall be
replaced or in case of any problem.
• Do not touch frozen food by hand!
They may stick to your hand!
• Do not put bottled or canned
liquid beverages in the freezer
compartment. They may burst!
• Place the beverages tightly closed
and vertically.
• Do not use flammable sprays near
the product since there is the risk of
fire or explosion.
• Flammable items or products that
contain flammable gases (e.g.
spray) as well as the explosive
materials should never be kept in
the appliance.
• Do not place containers filled with
liquid on top of the product. Spilling
water on an electrical component
may cause electric shocks or risk
of fire.
• Exposing the product to rain, snow,
sun and wind is dangerous with
respect to electrical safety. Do not
pull your product holding from door
handle while you are changing the
place of the product. Handle may
get loose.
• Pay attention not to have your hand
or any part of your body get caught
by the moving parts inside the
product.
• Never use the parts on your
refrigerator such as the door and
drawer as a means of support or
step. This will cause the product to
tip over or parts of it get damaged.
• Ensure that power cord is not
stepped over.

Instructions for safety and environment
5 / 31 EN
Refrigerator / User Manual
1.1.1 HC Warning
If the product is equipped with a
cooling system containing R600a
gas, pay attention not to damage the
cooling system and piping during
usage and transportation. This gas
is flammable. If the cooling system
is damaged, keep the product away
from potential sources that can cause
the system catch fire and ventilate
the room in which the unit is placed
immediately.
C
Information on the gas used
in production of your product
is available on the rating
plate located on the inner left
part of the product.
1.1.2 For products with
a water dispenser
• The pressure for cold water
inlet should be 90 PSi (6.2 bars)
maximum. If your water pressure
exceeds 80PSi (5.5 bars), use a
pressure limiting valve in your mains
system. If you do not know how to
check the water pressure, consult
professional plumbers.
• If there is a risk of water hammer
in your installation, definitely
use a water hammer preventive
equipment in your installation. If you
are not sure about the absence of a
water hammer, consult professional
plumbers.
• Do not make installation on the hot
water inlet. Take measures against
the freezing risk of the hoses.
The water temperature operating
temperature should be 33°F
(0.6°C) minimum and 100°F (38°C)
maximum.
• Use only potable water.
1.2. Intended use
• This product has been designed for
domestic use. It is not suitable for
commercial use.
• Product must be used only for storing
food and beverages.
• Do not store products (vaccines,
heat-sensitive medicines, medical
materials and etc.) that require a
precise temperature control in the
refrigerator.
• The manufacturer waives any
responsibility arisen from incorrect
usage or transportation.
• Original spare parts will be available
for 10 years after the purchase date
of the product.
1.3. Child safety
• Packaging materials shall be kept
away from the children as they are
dangerous for the children.
• Do not allow children to play with the
product.
• If there is a lock on the door of the
product, the key should be kept away
from reach of children.

Instructions for safety and environment
6 / 31 EN Refrigerator / User Manual
1.4. Compliance with WEEE
Directive and disposing
of the waste product
This product does not contain
harmful and forbidden materials described
in the "Regulation on the Control of the
Waste Electrical and Electronic Equipment"
issued by the T.R. Ministry of Environment
and Urbanization. Complies with the WEEE
Regulation.
This product has been
manufactured with high quality
parts and materials which can be
reused and are suitable for
recycling. Therefore, do not
dispose the product with normal
domestic waste or other waste at
the end of its service life. Take it to a collection
point for the recycling of electrical and
electronic equipment. Please consult your local
authorities to learn the nearest collection point.
You may help protecting the environment and
natural resources by recycling used products.
For children's safety, cut the power cable and
break the locking mechanism of the door, if
any, so that it will be non-functional before
disposing of the product.
1.5. Package Information
• Packaging materials of the product are
manufactured from recyclable materials in
accordance with our National Environment
Regulations. Do not dispose of the packaging
materials together with the domestic or other
wastes. Take them to the packaging material
collection points designated by the local
authorities.

7 / 31 EN
Refrigerator / User Manual

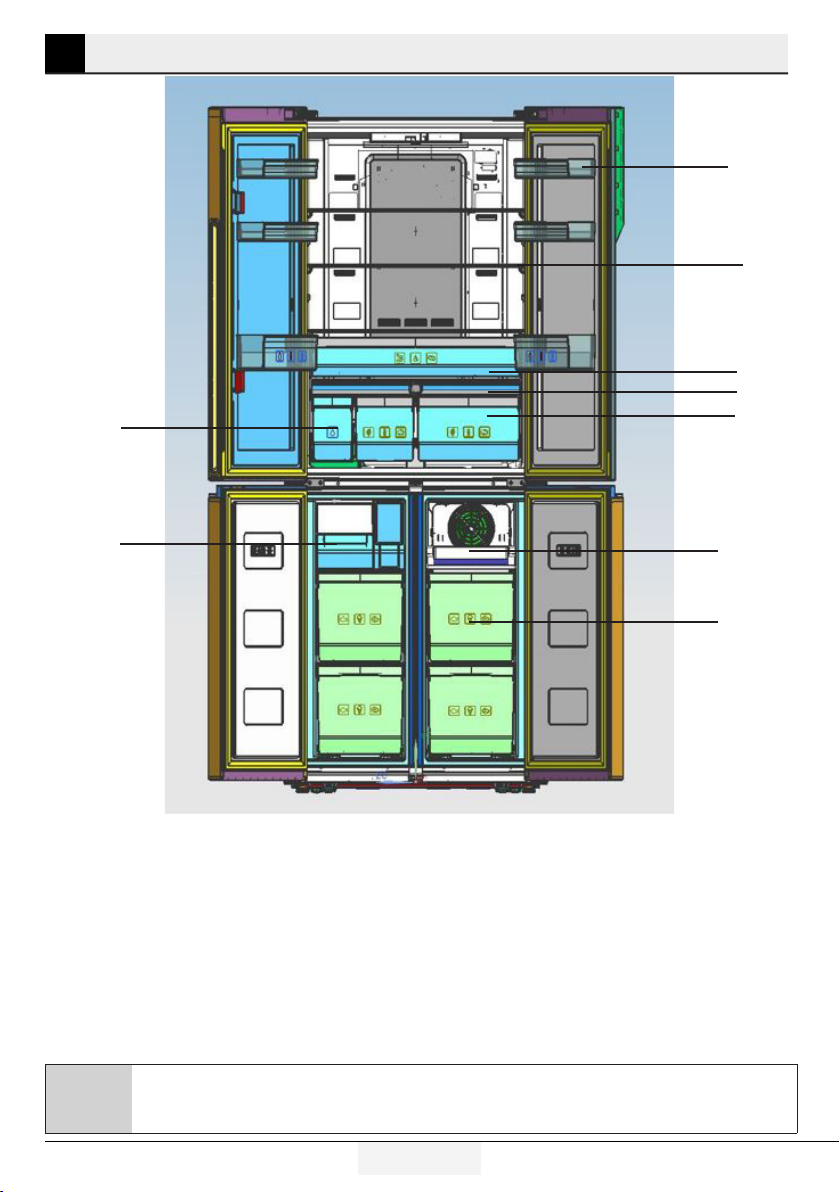

1. Door shelves of fridge compartment
2- Fridge compartment glass shelf
3- Chiller compartment
4- Everfresh
5- Crisper
6- Freezer compartment movable drawer
7- Freezer compartment drawers
8- Auto Icematic
9- Water reservoir
2Your appliance
CFigures in this user manual are given as an example and may not match the product exactly. If the
relevant parts are not available in the product you purchased, the figure applies to other models.
It may not apply to all models.
1
2
3
5
*6
7
*8
*9
*4

8 /31 EN Refrigerator / User Manual
3Installation
3.1. Appropriate location
for installation
Contact an Authorized Service for the installation
of the product. In order to prepare the product
for use, refer the information in the user manual
and ensure that electrical installation and water
installation are appropriate. If not, call a qualified
electrician and technician to have any necessary
arrangements carried out.
BWARNING: Manufacturer shall not
be held liable for damages that may
arise from procedures carried out by
unauthorized persons.
BWARNING: Product must not be plugged
in during installation. Otherwise, there is
the risk of death or serious injury!
AWARNING: : If the door clearance of the
room where the product shall be placed is
so tight to prevent passing of the product,
contact the authorized service.
•Placetheproductonalevelfloorsurfaceto
prevent jolts.
•Ifyouwillusetheproductwithinacabinet/
furniture, leave a clearance of minimum 2
cm between the side walls and the cabinet/
furniture.
•Installtheproductatleast30cmawayfrom
heat sources such as hobs, heater cores and
stoves and at least 5 cm away from electrical
ovens.
•Productmustnotbesubjectedtodirectsunlight
and kept in humid places.
•Appropriateairventilationmustbeprovided
around your product in order to achieve an
efficient operation. If the product is to be placed
in a recess in the wall, pay attention to leave
at least 5 cm distance with the ceiling and the
side walls.For versions which do not have plastic
wedges, make sure that a clearance of 5 cm is
left from the rear wall.
• In environments where the room temperature
drops below 10 °C, the refrigerator continues
to operate to preserve the food in the
freezer. However, the fresh food in the fridge
compartment may freeze due to the cold
environment.

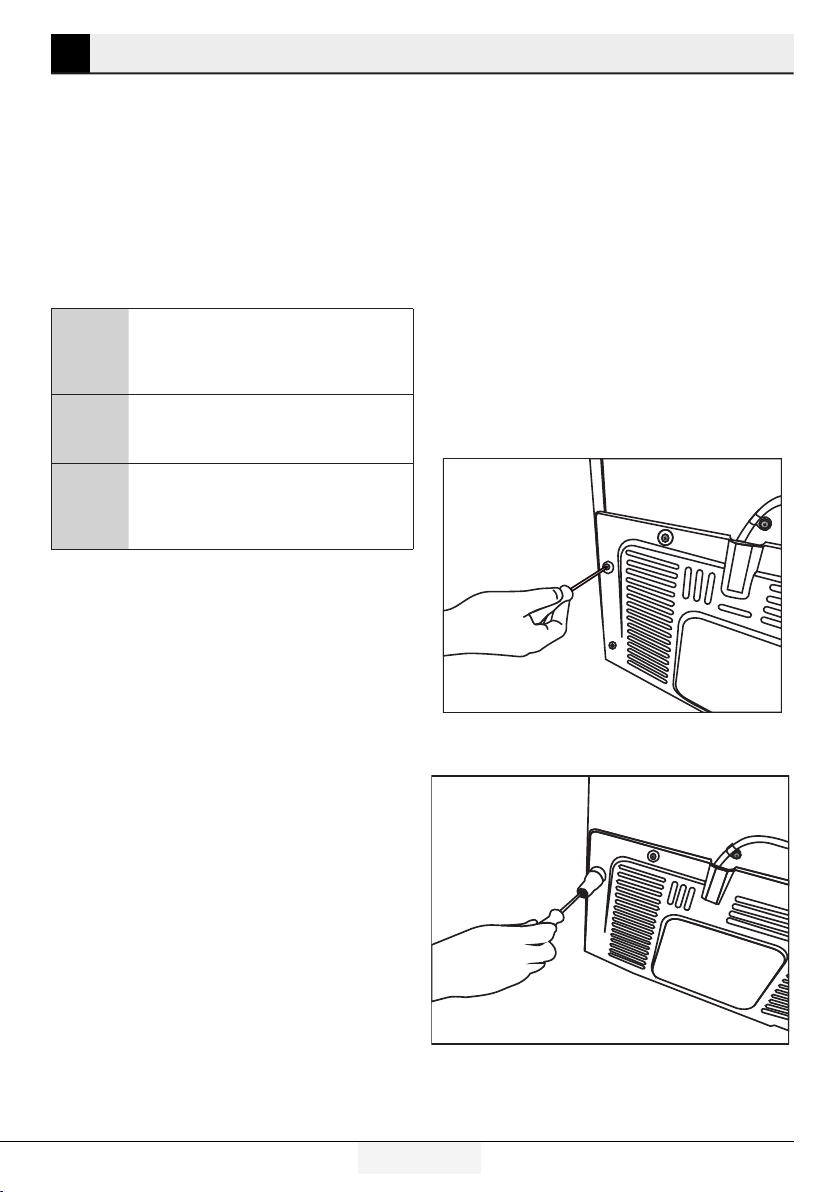

3.2. Installing the plastic wedges
Plastic wedges supplied with the product are
used to create the distance for the air circulation
between the product and the rear wall.
1. To install the wedges, remove the screws on the
product and use the screws supplied together with
the wedges.
2. Insert the 2 plastic wedges onto the rear ventilation
cover as illustrated in the figure.

Installation
9 /31 EN
Refrigerator / User Manual
3.3. Adjusting the feet
If the product stands unbalanced after
installation, adjust the feet on the front by
rotating them to the right or left.
3.4. Electrical connection
AWARNING: Do not make connections
via extension cables or multi-plugs.
BWARNING: Damaged power cable
must be replaced by the Authorized
Service Agent.
CIf two coolers are to be installed side
by side, there should be at least 4 cm
distance between them.
• Our company shall not be liable for any
damages that will arise when the product
is used without grounding and electrical
connection in accordance with the national
regulations.
• Power cable plug must be within easy reach
after installation.
• Do not use extension cords or cordless
multiple outlets between your product and
the wall outlet.
C
Warning for hot surfaces!
The side walls of your product are
equipped with coolant pipes to
improve the cooling system. The high
temperature fluid may flow through
these surfaces and may heat the
surfaces on the side walls. This is
normal and does not require service
maintenance. Be careful when touching
these areas.

10 /31 EN Refrigerator / User Manual
4.1. Things to be done
for energy saving
mehmet
AConnecting the product to electric energy
saving systems is risky as it may cause
damage on the product.
• Do not leave the doors of your refrigerator open
for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload the refrigerator, cooling
capacity will fall when the air circulation inside
is hindered.
• To be able to store the maximum amount
of food in the freezer compartment of your
refrigerator, remove the icebox and the ice
container and place them on top of the glass
shelf. The power consumption stated for your
refrigerator was determined after removing
the icebox, ice container, and upper and
middle drawers to allow maximum loading.
Using the lower drawer while loading is highly
recommended.
• Depending on the features of your product,
thawing frozen food in fridge compartment will
both provide energy saving and preserve the
food quality.
• Airflow should not be blocked by placing foods
in front of the freezer compartment fan. Foods
should be loaded by leaving minimum 5 cm
space in front of the protective fan grid.
• The temperature sensor in the freezer
compartment must be prevented from directly
contacting food packages. If they get in
contact, the power consumption of the product
may increase.
4Preparation
CInside of your product must be cleaned.
CIf two coolers are to be installed side
by side, there should be at least 4 cm
distance between them.
4.2. Initial use
Before starting to use your refrigerator, ensure that
all preparations are made in accordance with the
instructions in sections "Instructions for safety and
environment" and "Installation".
Run the product without putting any food for 6 hours
and do not open its door unless certainly required.
CYou will hear a noise when the compressor
starts up. The liquids and gases sealed
within the refrigeration system may also
give rise to noise, even if the compressor is
not running and this is normal.
CIt is normal that the front edges of
the refrigerator are hot. These areas
are designed to be warm to avoid
condensation.

11 / 31 EN
Refrigerator / User Manual
5Operating the product
5.1. Indicator panel
Indicator panels may vary according to the product model.
Audio – visual functions on the indicator panel helps you in using your product.
C*Optional: Figures in this user manual are given as an example and may not match the product
exactly. If the relevant parts are not available in the product you purchased, the figure applies to other
models.

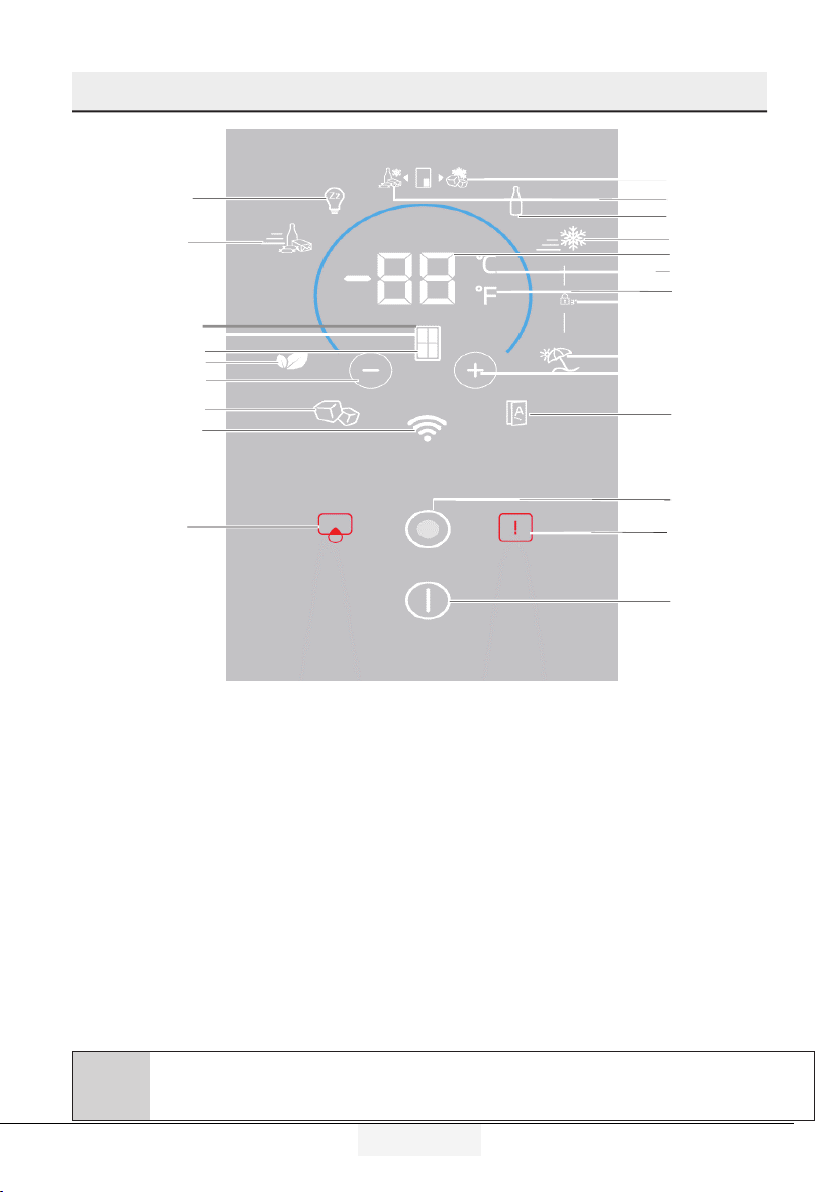

1. Temperature Setting/Temperature Increase
2. Temperature Setting-Slider/Temperature value
indicator
3. Temperature Unit Selection (°C) Celsius indicator
4. Temperature Unit Selection (°F) Fahrenheit
indicator
5. Temperature Setting/Temperature Decrease
6. Quick Cooling function indicator/button
7. * Wireless
8. Economy Mode indicator/button
9. *Joker Freezer indicator/button
10. *Auto Door
11. High Temperature Warning/Failure
12. *Bottle Cooler
13. *Filter Replacement Warning/Button
14. Menu Button
15. Product On/Off indicator/button
16. *Icematic indicator/button
17. *Sabbath Mode
18. Vacation Mode indicator/button
19. Key Lock indicator
20. Quick Freeze function indicator/button
21. Cabinet Selection
22. Fridge compartment indicator
23. Freezer compartment indicator
24. *Joker compartment indicator
1
2
3
4
*16
*17
18
20
21
22
23
19
5
6
8
*7
*10
*12
*13
14
15
11
*9a
*9b
*24
It may not apply to all models.

Operating the product
12 / 31 EN Refrigerator / User Manual
C*Optional: Figures in this user manual are given as an example and may not match the product
exactly. If the relevant parts are not available in the product you purchased, the figure applies to other
models.
1. Temperature Setting/Temperature Increase
2. Temperature Setting-Slider/Temperature value
indicator
3. Temperature Unit Selection (°C) Celsius indicator
4. Temperature Unit Selection (°F) Fahrenheit
indicator
5. Temperature Setting/Temperature Decrease
6. Quick Cooling function indicator/button
7. * Wireless
8. Economy Mode indicator/button
9. *Joker Freezer indicator/button
10. *Auto Door
11. High Temperature Warning/Failure
12. *Bottle Cooler
13. *Filter Replacement Warning/Button
14. Menu Button
15. Product On/Off indicator/button
16. *Icematic indicator/button
17. *Sabbath Mode
18. Vacation Mode indicator/button
19. Key Lock indicator
20. Quick Freeze function indicator/button
21. Cabinet Selection
22. Fridge compartment indicator
23. Freezer compartment indicator
It may not apply to all models.
1
2
3
4
*16
*17
18
20
21
22
23
19
5
6
8
*7
*10
*12
*13
14
15
11
*9a
*9b

Operating the product
13 / 31 EN
Refrigerator / User Manual
1. Temperature Setting/Temperature
Increase
It increases the temperature of the selected
compartment when pressed.
2. Temperature Setting-Slider/Temperature
value indicator
It shows the temperature value of the selected
compartment. Moreover, you can slide your
finger top-down or down-top to increase or
decrease the temperature value.
3. Temperature Unit Selection (°C)
Celsius indicator
When this button is pressed, the temperature
value will be activated as Celsius.
It is the Celsius indicator. When Celsius
indication has been activated, temperature
set values will be shown in Celsius and the
relevant icon will turn on completely;
the Fahrenheit icon will turn on by 50%.
4. Temperature Unit Selection (°F)
Fahrenheit indicator
When this button is pressed, the temperature
value will be activated as Fahrenheit.
It is the Fahrenheit indicator. When Fahrenheit
indication has been activated, temperature
set values will be shown in Fahrenheit and the
relevant icon will turn on completely;
the Celsius icon will turn on by 50%.
5. Temperature Setting/Temperature
Decrease
It decreases the temperature of the selected
compartment when pressed.
6. Quick cooling function indicator
When the Quick Cooling function has been
activated, the indicator will turn on completely.
When the function has been cancelled, the
product will return to its usual settings and the
indicator will turn on by 50%.
Quick cooling function button
It is used to activate or deactivate the quick
cooling function.
CUse quick cooling function when you
want to quickly cool the food placed
in the fridge compartment. If you want
to cool large amounts of fresh food,
activate this function before putting the
food into the product.
CIf you do not cancel it, quick cooling
will cancel itself automatically after 8
hours at the most or when the fridge
compartment reaches to the required
temperature.
CIf you press the quick cooling button
repeatedly with short intervals, the
electronic circuit protection will be
activated and the compressor will not
start up immediately.
CThis function is not recalled when
power restores after a power failure.
7. Wireless
When this button is pressed, the product will
be introduced to the home network for the first
time. Once the function has been activated,
the indicator will turn on by 100%; and if the
function has been cancelled, it will turn on by
50%.
8. Economy Mode indicator/button
Press this button to activate/deactivate the
economy mode.
Once the economy mode has been activated,
the indicator will turn on by 100%. While the
function is active, the freezer will start to work
on economy mode after at least 6 hours. Once
the function has been cancelled, the indicator
will turn on by 50%.
9a. *Joker Freezer indicator/button
Once the button has been pressed, the joker
compartment will function as a freezer and the
indicator will turn on by 100%. The joker fridge
indicator will turn on by 50%.

Operating the product
14 / 31 EN Refrigerator / User Manual
9b. *Joker fridge indicator/button
Once the button has been pressed, the joker
compartment will function as a fridge and the
indicator will turn on by 100%. The joker freezer
indicator will turn on by 50%.
10.* Auto Door
Press this button to activate/deactivate the auto
door mode. Once the function has been acti-
vated, the indicator will turn on by 100%. Once
the function has been cancelled, the indicator
will turn on by 50%.
While the function is active, touch the relevant
section on the door handle to open the door
automatically.
11. High Temperature Warning/Failure
This indicator illuminates during power failure,
high temperature failures and error warnings.
During long-term power failures, the highest
temperature value that the freezer compartment
reaches will blink on the digital display. After
checking the food located in the freezer com-
partment, press the high temperature warning
button to clear the warning.
12. *Bottle Cooler
Press this button to activate/deactivate the
bottle cooler mode.
Once the function has been cancelled, the
indicator will turn on by 100%. If the function is
cancelled, the indicator will turn on by 50%.
13. *Filter Replacement Warning/Button
This icon turns on when the filter needs to be
reset.
Once this button is pressed, the filter will be
reset and the reset icon will go off.
14. Menu Button
Use this button to switch the display to sleep
mode or cancel the sleep mode. If you do
not press any button or open the door for 30
seconds, it will automatically switch to sleep
mode.
15. Product On/Off indicator/button
To turn on/off the product, press and hold the
On/Off button for 3 seconds.
After the product has been turned off, only
the on/off indicator will turn on by 100%; all
the other indicators will go off. To turn on the
product, press and hold the same button for 3
seconds. The refrigerator will become active
and the on/off indicator will turn on by 50%.
16. *Icematic indicator/button
Press this button to activate/deactivate the
icematic. If the indicator is on by 100%, this
means that the icematic is working. If the
indicator is on by 50%, this means that the
icematic is off.
CWater flow from water tank will stop
when this function is not selected.
However, ice made previously can be
taken from the icematic.
17. *Sabbath Mode
Press this button to activate/deactivate the
Sabbath mode. Once the function has been
activated, the indicator will turn on by 100%.
Once the function has been cancelled, the
indicator will turn on by 50%.
18. Vacation Mode indicator/button
Press this button to activate the vacation
button; the vacation mode indicator will turn on
by 100%. When the vacation function is active,
“- -” will be displayed on the Temperature
Value display and no active cooling will be
performed in the fridge compartment. It is
not suitable to keep the food in the fridge
compartment when this function is activated.
Other compartments will continue to be cooled
according to their set temperatures.
To cancel this function, press the Vacation
function button again. Once the function has
been cancelled, the indicator will turn on by
50%.

Operating the product
15 / 31 EN
Refrigerator / User Manual
19. Key Lock indicator
Press quick cooling and vacation buttons
simultaneously for 3 seconds. While press-
ing the button, a countdown will start on the
temperature value display. Once the key lock
has been activated, the key lock indicator will
turn on by 100% and the key lock mode will
become activated. Buttons will not function if
the Key lock mode is active. Press quick cool-
ing and vacation buttons again simultaneously
for 3 seconds. While pressing the button, a
countdown will start on the temperature value
display. Once the key lock has been cancelled,
the key lock indicator will turn on by 50% and
the key lock mode will be deactivated.
Activate this function if you want to prevent
changing of the temperature setting of the
refrigerator.
20.Quick freeze function indicator
When the Quick Freeze function has been
activated, the indicator will turn on by 100%.
When the function has been cancelled, the
product will return to its usual settings and the
indicator will turn on by 50%.
Quick freeze function button
It is used to activate or deactivate the quick
freeze function.
Press this button to activate or deactivate
the quick freeze function. When you activate
the function, the freezer compartment will be
cooled to a temperature lower than the set
value.
CUse the quick freeze function when you
want to quickly freeze the food placed
in freezer compartment. If you want
to freeze large amounts of fresh food,
activate this function before putting the
food into the product.
CIf you do not cancel it, Quick Freeze
will cancel itself automatically after 4
hours at the most or when the fridge
compartment reaches to the required
temperature.
CThis function is not recalled when
power restores after a power failure.
21. Cabinet Selection
Press the cabinet selection button to see and
change the temperature value of the fridge or
freezer on the Temperature value indicator.
22. Fridge compartment indicator
When this indicator is active, temperature of
the fridge compartment will be displayed on
the temperature value indicator.
23. Freezer compartment indicator
When this indicator is active, temperature of
the freezer compartment will be displayed on
the temperature value indicator.
24.*Joker compartment indicator
When this indicator is active, temperature of
joker freezer compartment will be displayed on
the temperature value indicator.

Operating the product
16 / 31 EN Refrigerator / User Manual
5.2. Indicator panel
Indicator panels may vary according to the product model.
Audio – visual functions on the indicator panel helps you in using your product.
C*Optional: Figures in this user manual are given as an example and may not match the product
exactly. If the relevant parts are not available in the product you purchased, the figure applies to other
models.
It may not apply to all models.
14
2
*9
*13
8
3
*6
1
1
1
17
19
11
18
10
*12
*7a
*7b
15
5
4
4
4
16

Operating the product
17 / 31 EN
Refrigerator / User Manual
1. Temperature Setting-Slider/Temperature value
indicator
2. Temperature Unit Selection (°C) Celsius indicator
3. Temperature Unit Selection (°F) Fahrenheit
indicator
4. Temperature Setting/Temperature Decrease
5. Quick Cooling function indicator/button
6. * Wireless
7. *Joker Freezer indicator/button
8. High Temperature Warning/Failure
9. *Filter Replacement Warning/Button
10. Menu Button
11. Product On/Off indicator/button
12. *Icematic indicator/button
13. *Sabbath Mode
14. Vacation Mode indicator/button
15. Key Lock indicator
16. Quick Freeze function indicator/button
17. Fridge compartment indicator
18. Freezer compartment indicator
19. *Joker compartment indicator
1. Temperature Setting-Slider/Temperature
value indicator
It shows the temperature value of the selected
compartment. Moreover, you can slide your
finger top-down or down-top to increase or
decrease the temperature value.
2. Temperature Unit Selection (°C)
Celsius indicator
When this button is pressed, the temperature
value will be activated as Celsius.
It is the Celsius indicator. When Celsius
indication has been activated, temperature
set values will be shown in Celsius and the
relevant icon will turn on completely;
the Fahrenheit icon will turn on by 50%.
3. Temperature Unit Selection (°F)
Fahrenheit indicator
When this button is pressed, the temperature
value will be activated as Fahrenheit.
It is the Fahrenheit indicator. When Fahrenheit
indication has been activated, temperature
set values will be shown in Fahrenheit and the
relevant icon will turn on completely;
the Celsius icon will turn on by 50%.
4. Temperature Setting/Temperature
Decrease
It decreases the temperature of the selected
compartment when pressed.
5. Quick cooling function indicator
When the Quick Cooling function has been
activated, the indicator will turn on completely.
When the function has been cancelled, the
product will return to its usual settings and the
indicator will turn on by 50%.
Quick cooling function button
It is used to activate or deactivate the quick
cooling function.
CUse quick cooling function when you
want to quickly cool the food placed
in the fridge compartment. If you want
to cool large amounts of fresh food,
activate this function before putting the
food into the product.
CIf you do not cancel it, quick cooling
will cancel itself automatically after 8
hours at the most or when the fridge
compartment reaches to the required
temperature.
CIf you press the quick cooling button
repeatedly with short intervals, the
electronic circuit protection will be
activated and the compressor will not
start up immediately.
CThis function is not recalled when
power restores after a power failure.
6. Wireless
When this button is pressed, the product will
be introduced to the home network for the first
time. Once the function has been activated,

Operating the product
18 / 31 EN Refrigerator / User Manual
the indicator will turn on by 100%; and if the
function has been cancelled, it will turn on by
50%.
7a. *Joker Freezer indicator/button
Once the button has been pressed, the joker
compartment will function as a freezer and the
indicator will turn on by 100%. The joker fridge
indicator will turn on by 50%.
7b. *Joker fridge indicator/button
Once the button has been pressed, the joker
compartment will function as a fridge and
the indicator will turn on by 100%. The joker
freezer indicator will turn on by 50%.
8. High Temperature Warning/Failure
This indicator illuminates during power failure,
high temperature failures and error warnings.
During long-term power failures, the highest
temperature value that the freezer compart-
ment reaches will blink on the digital display.
After checking the food located in the freezer
compartment, press the high temperature
warning button to clear the warning.
9. *Filter Replacement Warning/Button
This icon turns on when the filter needs to be
reset.
Once this button is pressed, the filter will be
reset and the reset icon will go off.
10. Menu Button
Use this button to switch the display to sleep
mode or cancel the sleep mode. If you do
not press any button or open the door for 30
seconds, it will automatically switch to sleep
mode.
11. Product On/Off indicator/button
To turn on/off the product, press and hold the
On/Off button for 3 seconds.
After the product has been turned off, only
the on/off indicator will turn on by 100%; all
the other indicators will go off. To turn on the
product, press and hold the same button for 3
seconds. The refrigerator will become active
and the on/off indicator will turn on by 50%.
12. *Icematic indicator/button
Press this button to activate/deactivate the
icematic. If the indicator is on by 100%, this
means that the icematic is working. If the
indicator is on by 50%, this means that the
icematic is off.
CWater flow from water tank will stop
when this function is not selected.
However, ice made previously can be
taken from the icematic.
13. *Sabbath Mode
Press this button to activate/deactivate the
Sabbath mode. Once the function has been
activated, the indicator will turn on by 100%.
Once the function has been cancelled, the
indicator will turn on by 50%.
14. Vacation Mode indicator/button
Press this button to activate the vacation
button; the vacation mode indicator will turn on
by 100%. When the vacation function is active,
“- -” will be displayed on the Temperature
Value display and no active cooling will be
performed in the fridge compartment. It is
not suitable to keep the food in the fridge
compartment when this function is activated.
Other compartments will continue to be cooled
according to their set temperatures.
To cancel this function, press the Vacation
function button again. Once the function has
been cancelled, the indicator will turn on by
50%.
15. Key Lock indicator
Press quick cooling and vacation buttons
simultaneously for 3 seconds. While pressing
the button, a countdown will start on the

Operating the product
19 / 31 EN
Refrigerator / User Manual
temperature value display. Once the key lock
has been activated, the key lock indicator will
turn on by 100% and the key lock mode will
become activated. Buttons will not function if
the Key lock mode is active. Press quick cool-
ing and vacation buttons again simultaneously
for 3 seconds. While pressing the button, a
countdown will start on the temperature value
display. Once the key lock has been cancelled,
the key lock indicator will turn on by 50% and
the key lock mode will be deactivated.
Activate this function if you want to prevent
changing of the temperature setting of the
refrigerator.
16.Quick freeze function indicator
When the Quick Freeze function has been
activated, the indicator will turn on by 100%.
When the function has been cancelled, the
product will return to its usual settings and the
indicator will turn on by 50%.
Quick freeze function button
It is used to activate or deactivate the quick
freeze function.
Press this button to activate or deactivate
the quick freeze function. When you activate
the function, the freezer compartment will be
cooled to a temperature lower than the set
value.
CUse the quick freeze function when you
want to quickly freeze the food placed
in freezer compartment. If you want
to freeze large amounts of fresh food,
activate this function before putting the
food into the product.
CIf you do not cancel it, Quick Freeze
will cancel itself automatically after 4
hours at the most or when the fridge
compartment reaches to the required
temperature.
CThis function is not recalled when
power restores after a power failure.
17. Fridge compartment indicator
When this indicator is active, temperature of
the fridge compartment will be displayed on
the temperature value indicator.
18. Freezer compartment indicator
When this indicator is active, temperature of
the freezer compartment will be displayed on
the temperature value indicator.
19.*Joker compartment indicator
When this indicator is active, temperature of
joker freezer compartment will be displayed on
the temperature value indicator.
