Bedz King BK906ST User manual

TWIN OVER TWIN BUNK BED with STAIRS
Bedz King BK906ST
LEFT RIGHT
Thank you for purchasing your Furniture from Bedz King.
Every effort has been made to ensure your Furniture is
of the finest quality. If you have any questions, please do
not hesitate to contact us at [email protected]
page 1 of 12 (February/2019)

READ THESE INSTRUCTIONS CAREFULLY BEFORE
ATTEMPTING TO ASSEMBLE THIS BED
SAFETY WARNINGS AND GENERAL NOTES
Follow the information on the warning labels on the upper bunk bed
structure and on the carton. Do not remove warning label from the bed.
Always use the recommended size mattress or mattress support, or both,
to help prevent the likelihood of entrapment or falls.
The top surfaces of the mattress must be at least 5" below the upper edge of
the guardrails.
Do not allow children under 6 years of age to use the upper bunk.
Prohibit more than one person on the upper bunk.
Periodically check and ensure that the guardrails, ladder and other components
are in their proper position, free from damage, and that all connectors are tight.
Do not allow horseplay on or under the bed. Always prohibit jumping on
the bed.
Always use the ladder for entering and leaving the upper bunk.
Do not use substitute parts. Contact the manufacturer or dealer for replacement parts.
Use of a night-light may provide added safety for a child using the upper bunk.
If the bunk bed will be placed next to the wall, the guardrail that runs the full
length of the bed should be placed against the wall to prevent entrapment
between the bed and the wall.
Always use guardrails on both long sides of the upper bunk.
The use of a water or sleep floatation mattress is prohibited.
Keep these instructions for future reference.
We recommend assembling your bunk bed on the shipping carton to protect
your floor or carpet. Be certain all staples are out of the box before beginning
assembly on the shipping carton.
Strangulation Hazard Never attach or hang items to any part of the
bunk bed that are not designed for use with the bed for example, but not limited
to hooks, belts, and jump ropes.
page 2 of 12 (February/2019)

WARNING
Pursuant to the Consumer Product Safety Improvement Act (CPSIA) Sec. 102 the manufacturer certifies compliance with the Consumer
Product Safety Commission (CPS C) regulations listed below.
**** Product Information **** **** Safety Testing Information ****
Testing performed at one or more of the following independent testing locations:
BUNK BED -
BK 161 (Stairway) / BK 161EL (End Ladder)
Diversified Testing Laboratories Inc Armstrong Forensic Laboratory
Date of Manufacture: 336 West Front Street 330 Loch'n Green Trail
P.O. Box 4004 Arlington, TX 76012
Burlington, NC 27215
Manufactured by: Custodian of Test Records:
Bedz King LLC Manager of Compliance and Testing
Made in Brazil
Date Testing Location Regulation
816 111th Street Bedz King LLC January - April 2014 Armstrong 15 U.S.C. § 1278a
Arlington, TX 76011 816 111th Street November 2014 Armstrong 16 CFR 1303
Arlington, TX 76011 March 2014 Diversified ASTM F 1427-13
Children's Product Certificates avaliable at www.bedzking.com/certificates March 2014 Diversified 16 CFR 1213 and 16 CFR 1513
To help prevent serious or fatal injuries from entrapment or falls: - Use guardrails on both sides of upper bunk
- Never allow a child under 6 years on upper bunk. - Prohibit horseplay on or under bed (s).
- Use only maress which is 74" - 75" long and 37 1/2" - 38 1/2" - Prohibit more than one person on upper bunk.
wide on upper bunk. - Use ladder for entering and leaving upper bunk.
- Use only maress which is 74" - 75" long and 37 1/2" - 38 1/2" - STRANGULATION HAZARD - Never attach or hang
wide on lower bunk. items to any part of the bunk bed that are not designed
- Ensure thickness of maress and foundaon combined does not for use with the bed, for example, but not limited to
exceed 9" and maress is at least 5" below upper edge of guardrails. hooks, belts and jump ropes.
DO NOT REMOVE TH IS LABEL

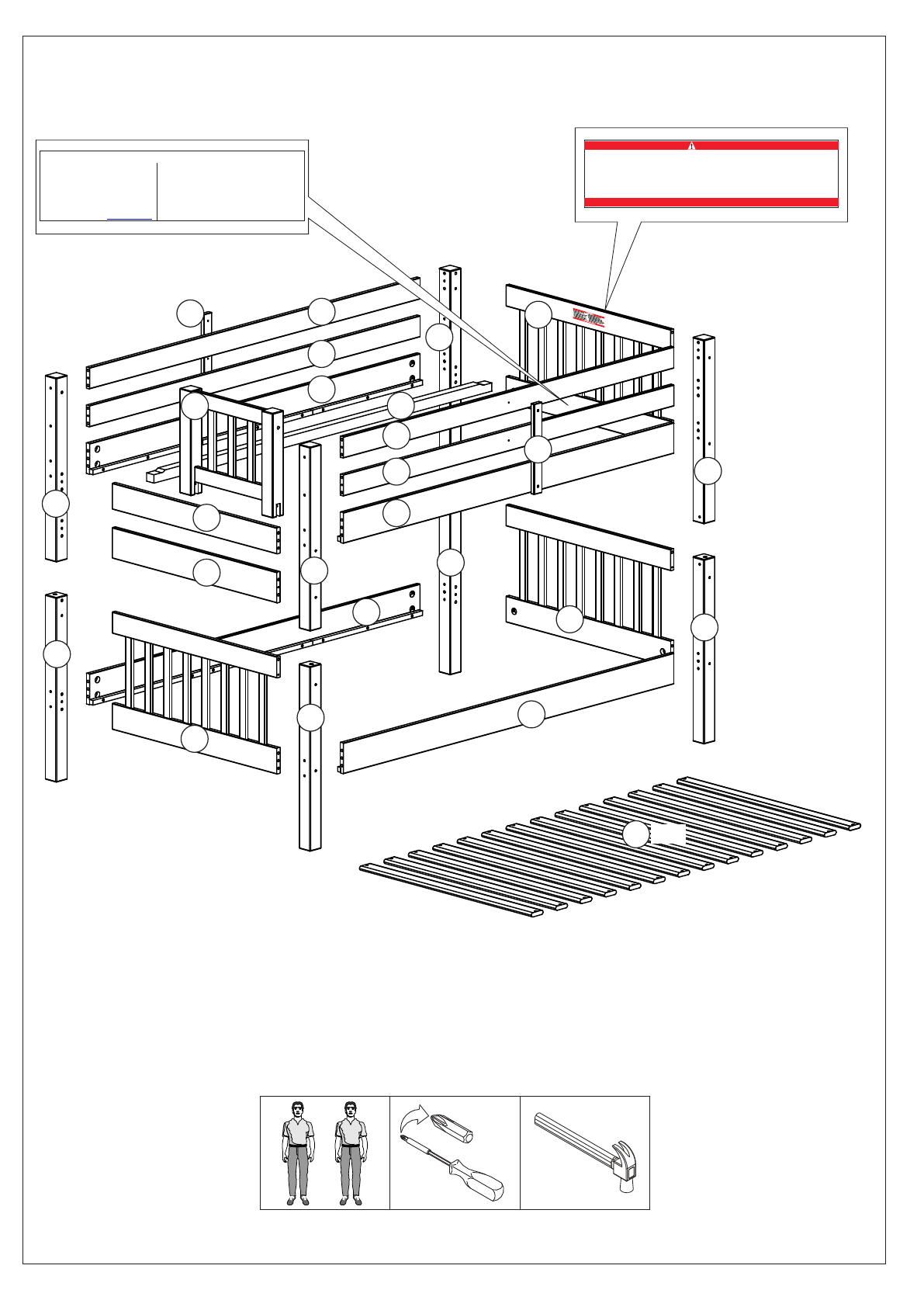

13 12 01
12 06
14 04 15
12 13
12 07
10 09 04
08 11 02
04 01 03
03
02 04
01
05 28x
page 3 of 12 (February/2019)

!WARNING:
CHOKING HAZARD - - Small Parts
Not for Children.
To be Assembled by an Adult.
SCREWS ARE SHOWN IN ACTUAL SIZE
Qty. Extra
A5 12
3,5x16
A10 74
3,5x30
B1 16 +2
7,0x100
B5 24 +2
1/4"
B30 24 +2
1/4"x120
C3 51 +2
10x40
C5 4
15x90
D13 2
G4 space block 2
G8 1
!WARNING:
CHOKING HAZARD - - Small Parts
Not for Children.
To be Assembled by an Adult.
page 4 of 12 (February/2019)

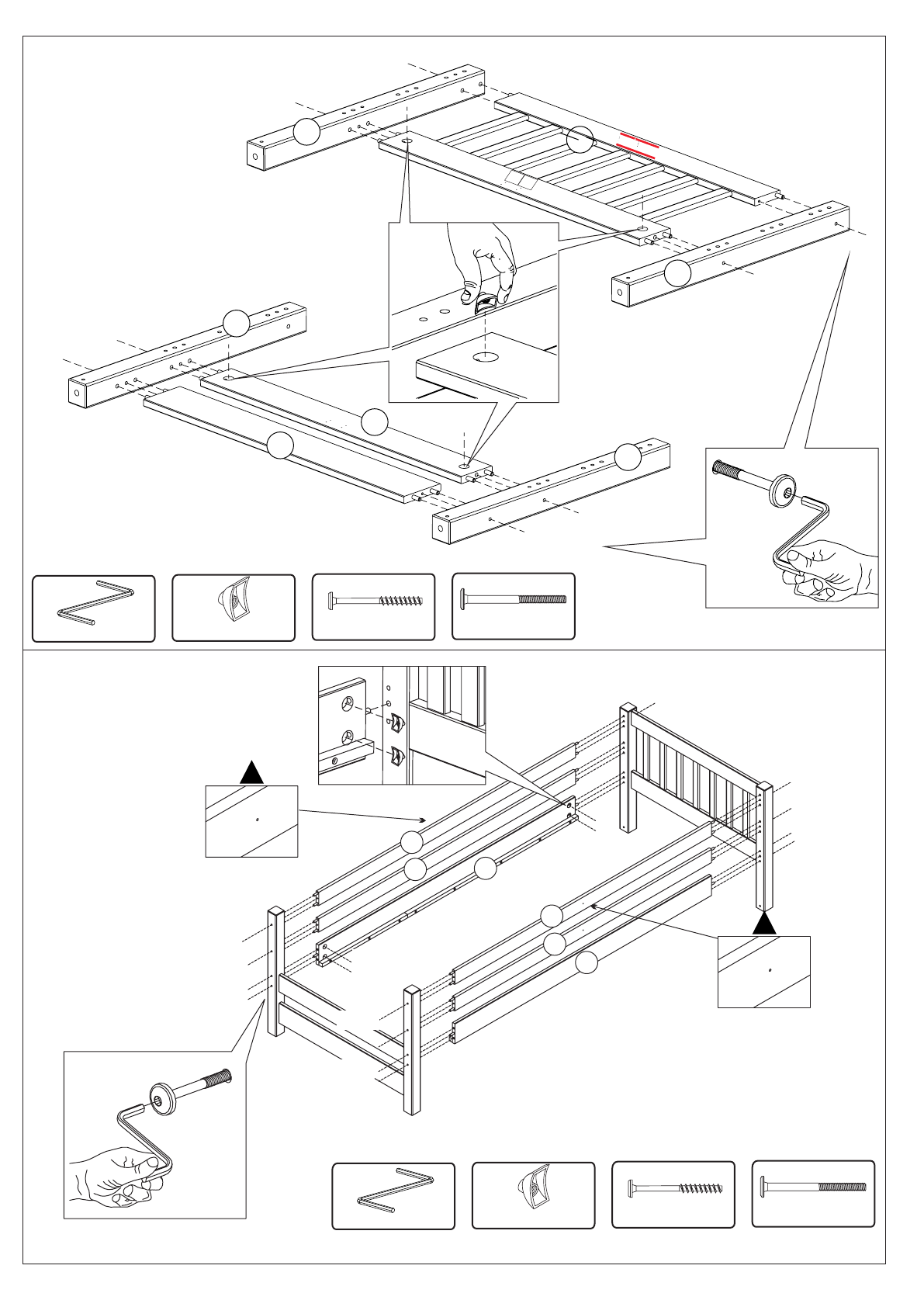

C3
01 C3
C3
C3C3
C3
12 4x
C3C3
C3
04
4x
C3
C3
C3 C3 08
01
3x C3
C3
C3
C3 - 50x
09
C3C3
C3
C3
02
G8+B30
02
G8+B1
B5 2x
01
B5
03 B1+G8
B5 B30+G8
B30
G8
G8 - 01x B5 - 04x B1 - 04x B30 - 04x page 5 of 12 (February/2019)

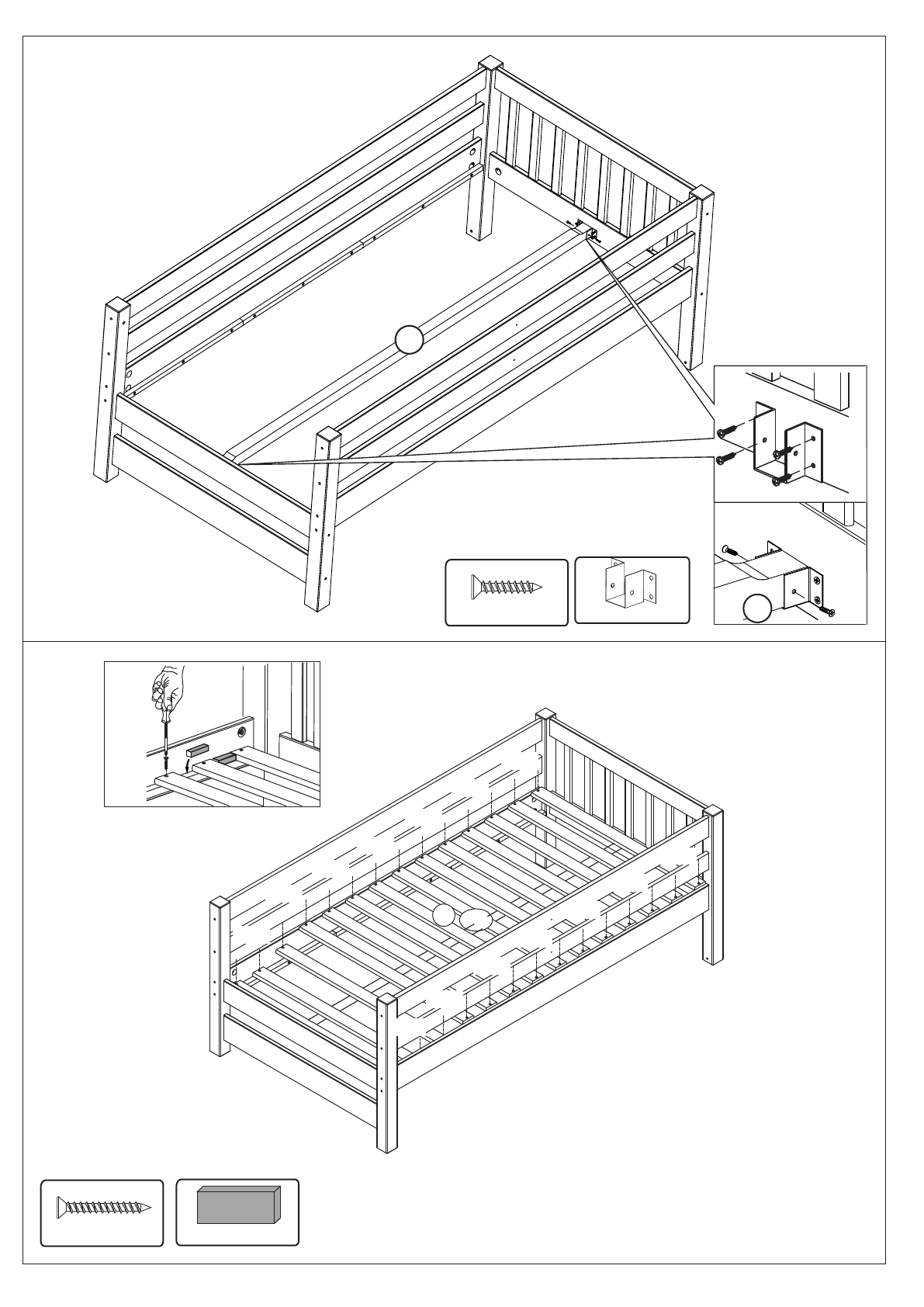

03
04
A10
G4 A10
A10
A10
A10
A10 A10
A10
A10 A10
A10 05 14x A10
A10
A10
A10
A10
space block
A10 - 28x G4 - 02x page 6 of 12 (February/2019)
B5
B5
B5
B5 B30+G8
B5 B30+G8
04 B5
B5 04
G8+B30
G8+B30 B5
A
B30 G8+B30
G8+B30
C
G8
B5 - 08x B30 - 08x G8 - 01x

B1
G8
05
06
B30 - 04x
G8 - 01x B5 - 04x B1 - 04x
06
WARNING
DO NOT REMOVETHIS LABEL
To help prevent serious or fatal injuries
from entrapment or falls:
Use only mattress which is 74!-75!long and
37 -38 !wide on upper bunk.
1/2! 1/2
Ensure thickness of mattress and foundation
combined does not exceed 9!and mattress is
at least 5!below upper edge of guardrails.
Never allow a child under 6 years on upper bunk.
Use guardrails on both sides of upper bunk.
Prohibit horseplay on or under bed(s).
Prohibit more than one person on upper bunk.
Use ladder for entering and leaving upper bunk.
STRANGULATION HAZARD - Never attach or hang
items to any part of the bunk bed that are not designed
for use with the bed,for example, but not limited to
hooks, belts, and jump ropes.
2224 Commerce Drive
Arlington,Texas 76011
Item #BK 901 PO 5810
Month/Year of Mfg.: November /2011
Bedz King LLC.
MADE IN BRAZIL CERTIFICATION LABEL
This bunk bed model has been tested by
an independent laboratory and is in
compliance withASTMF -1427 Standard
Consumer Safety Specification For Bunk
Beds and the Government Code of
Federal Regulations 1213 and 1513
01
07
11
08
09
10
page 7 of 12 (February/2019)
A
C
B30
G8
B5
B5
04
04
12
12
12
12
G8+B30
G8+B30
!
!
G8+B1
G8+B1
B30+G8
B30+G8
B1+G8
B1+G8
B1+G8
B5
B5
B5
B5
B30 - 08x
G8 - 01x B5 - 08x B1 - 08x
G8+B30
G8+B30
G8+B1
G8+B1
G8+B30
G8+B1
G8+B1
G8+B30
B5
B5
B30+G8
B1+G8
B1+G8
B30+G8
B5
B5
B5

07
15
A5
D13
A5 A5
A5
A5 - 12x D13 - 02x 15 A5
08
G4
A10 A10
A10
A10
A10
A10
A10 A10
A10
05 14x A10
A10 A10
A10
A10
A10
space block
A10 - 28x G4 - 02x page 8 of 12 (February/2019)

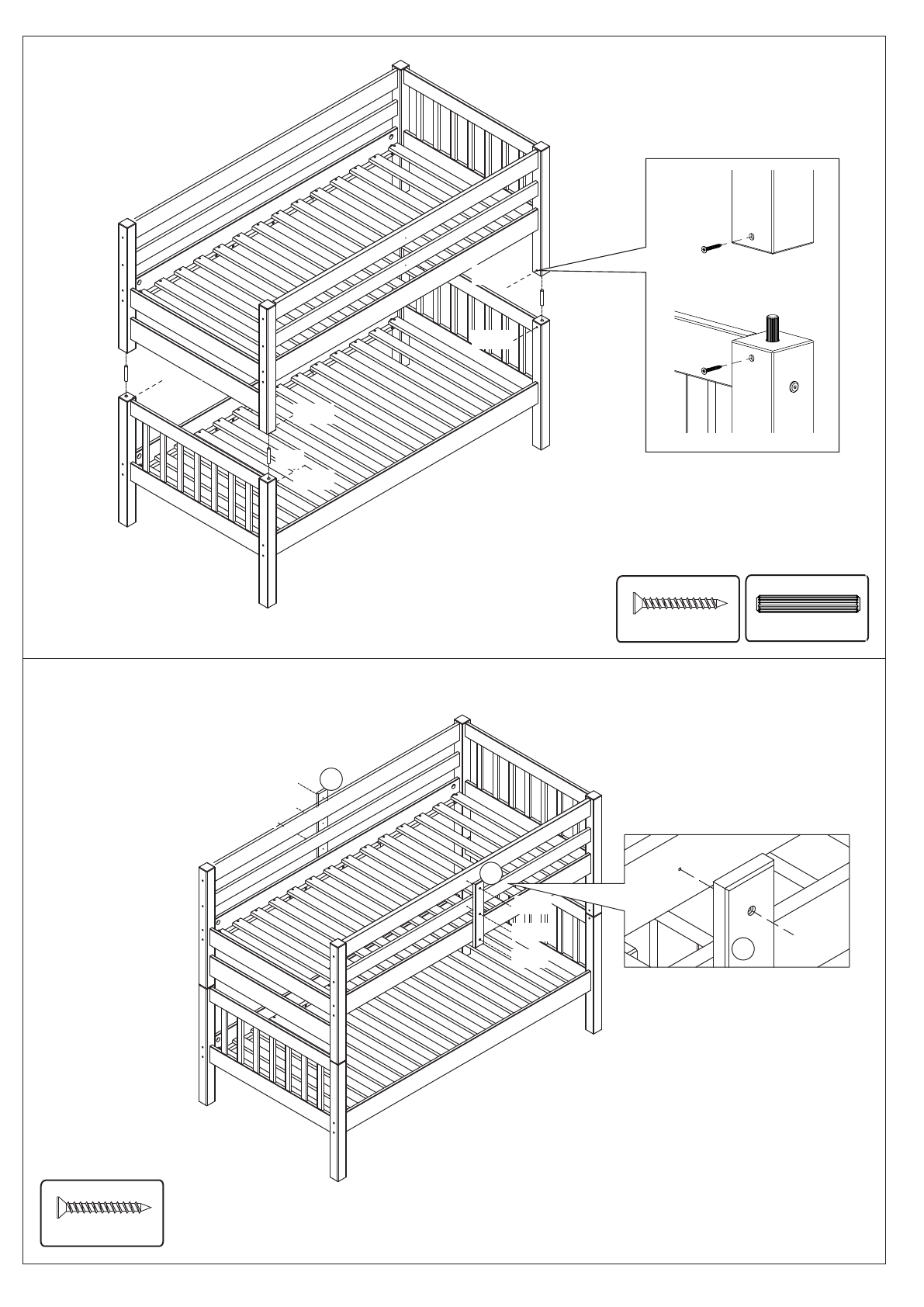

09
A10
A10
C5 C5
A10
A10
C5 A10
A10
C5
A10
A10 - 08x C5 - 04x
10
A10 13
A10
A10
13
A10
A10
A10 13 A10
A10 - 06x page 9 of 12 (February/2019)

11- Option LEFT
14
14
C3 A10
A10 A10
A10
A10 - 04x
C3 - 01x
page 10 of 12 (February/2019)

12 - Option RIGHT
14
14
C3
A10 A10
A10 A10
A10 - 04x
C3 - 01x
page 11 of 12 (February/2019)

BEDDING SPECIFICATION
- Always use the recommended size mattress or mattress support or both, to help
prevent the likelihood of entrapment or falls.
- All Bedz King bunk beds are supplied with a complete slat kit, so there is no need
for a foundation or bunkie board.
BED MATTRESS SPECIFICATIONS
Upper Bunk: Only use a mattress that is 74" - 75" long and 37 1/2" - 38 1/2" wide on
the upper bunk.
- Ensure thickness of mattress and foundation combined does not exceed 9".
Lower Bunk: Only use a mattress that is 74" - 75" long and 37 1/2" - 38 1/2" wide on
the lower bunk.
REPLACEMENT PARTS
- Replacement parts, including additional guardrails may be obtained by contacting
Bedz King LLC at [email protected]
- Guard rails are not available for the lower bunk. This bunk bed is not designed or
certified to have guard rails installed on the lower bunk.
ASSEMBLY TIPS
- Power tools are not recommended for assembling your furniture.
- Give yourself plenty of room to work.
- Due to the size of this bunkbed, it must be assembled within the space it will occupy.
- The assembly will require at least two people to complete.
- Make sure all the fasteners are tight.
- Take your time and read the instructions carefully.
page 12 of 12 (February/2019)

Stairs
Bedz King BK76 ST
LEFT RIGHT
Thank you for purchasing your Furniture from Bedz King.
Every effort has been made to ensure your Furniture is
of the finest quality. If you have any questions, please do
not hesitate to contact us at [email protected]
page 1 of 13 (April/2022)

26
27
25
27
25
26
27
25
26
page 3 of 13 (April/2022)

!WARNING:
CHOKING HAZARD - - Small Parts
Not for Children.
To be Assembled by an Adult.
SCREWS ARE SHOWN IN ACTUAL SIZE Qty. Extra
A1 18
4,0x30
A5 3
3,5x16
A10 23 +2
3,5x30
A16 6
4,0x40
B8 8
7,0x50
B19 4
7,0x70
B20 6
1/4"x50
B21 12
7,0x40
C1 58 +2
8,0x30
C3 4
10x40
D44 1
G1 28
10x10
G3 1
G8 1
!WARNING:
CHOKING HAZARD - - Small Parts
Not for Children.
To be Assembled by an Adult.
page 4 of 13 (April/2022)

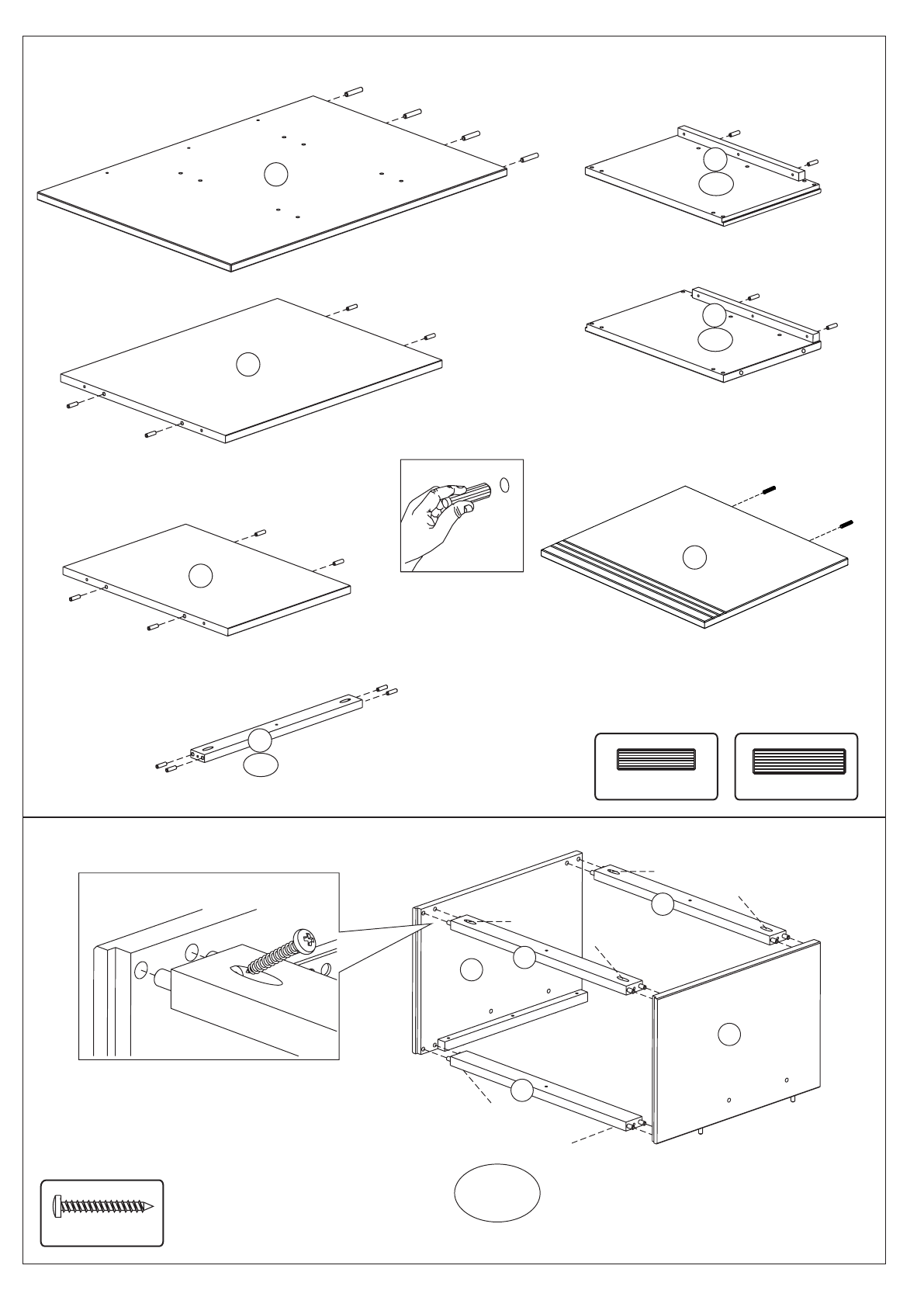

01 C3
C3 C1
C3
C3 C1
26
09 3x
C1
C1 27
3x
C1
C1
06
C1
C1
C1
C1 C1
C1 04
08
C1
C1
C1
C1
03
C1
C1 9x
C1 - 58x C3 - 04x
02 A1
A1 A1 03 A1
A1
26 03
27
03
A1
A1
3x
A1 - 18x page 5 of 13 (April/2022)

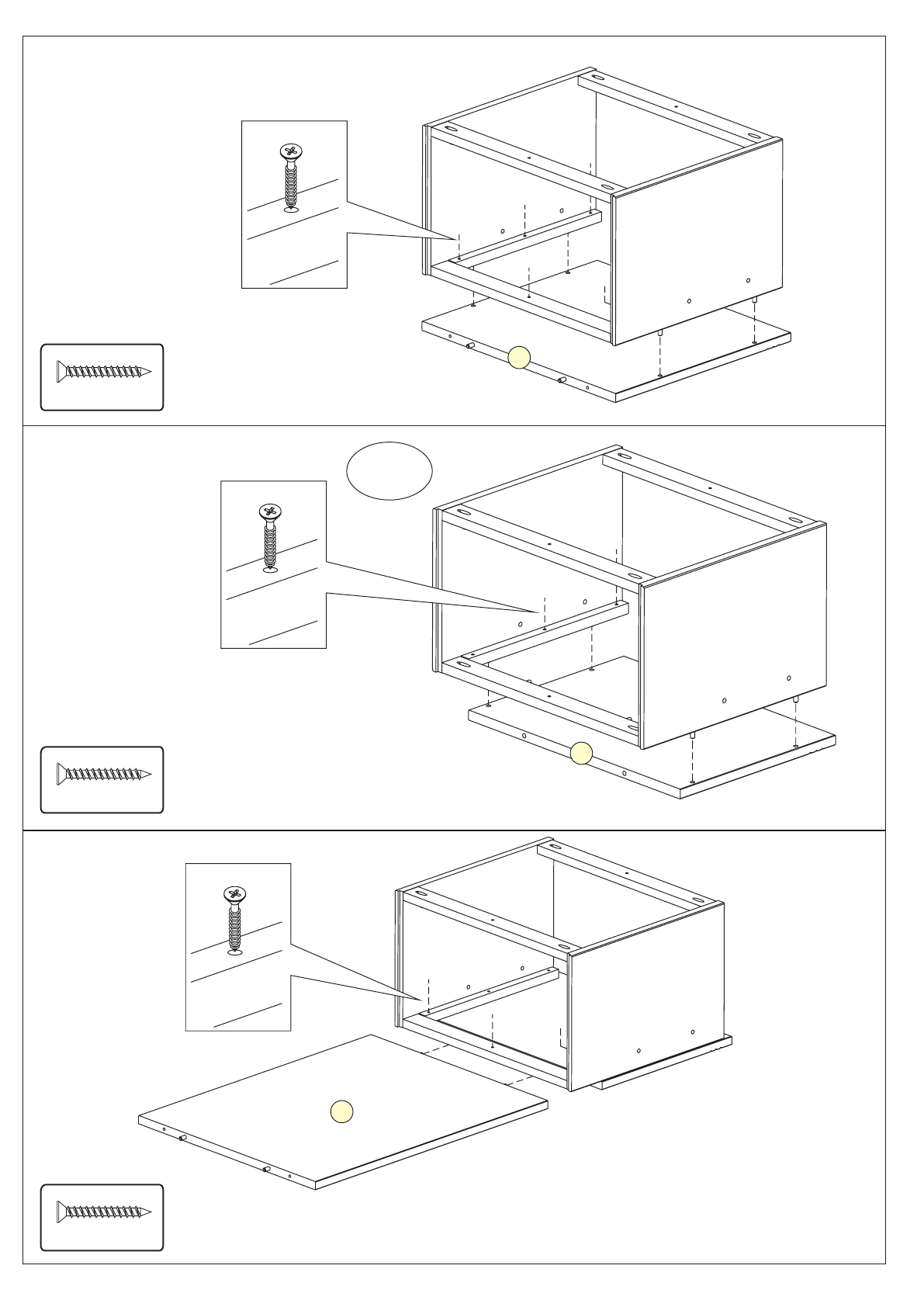

03
A10 - 07x
A10 A10
A10 A10
A10
A10
A10 A10
04
04
A10 - 08x
2x
A10
A10
A10 A10
A10
05
05
A10 - 03x
A10
A10
A10 A10
06
page 6 of 13 (April/2022)

06
G1
G1
G1
G1
G1
G1
F
si
G1
06
G1
07
inishing
de
G1
G1
G1
G1
G1
G1
G1 - 14x
07
A10
08
A10
A10 A10
A10 - 03x
08
G1
G1
G1
G1
G1
G1
Fi
side
G1
08
G1
07
nishing
G1
G1
G1
G1
G1
G1
G1 - 14x
page 7 of 13 (April/2022)

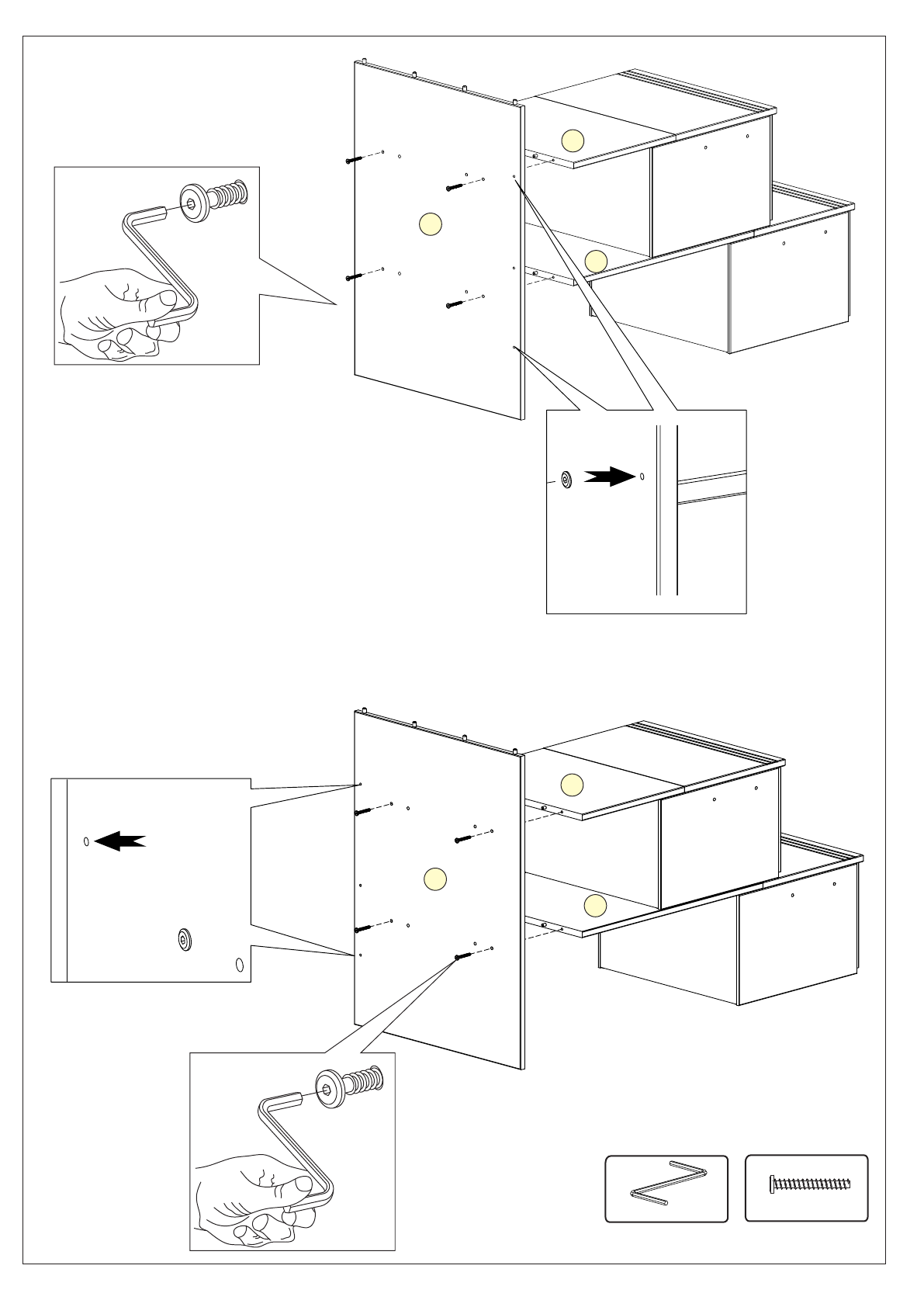

09 - RIGHT
G8+B8
G8+B8
08
B8 09
G8
G8+B8
G8+B8
06
09 - LEFT
G8+B8
G8+B8
08
G8+B8
09
G8+B8
06
B8
G8 G8 - 01x B8 - 04x
page 8 of 13 (April/2022)

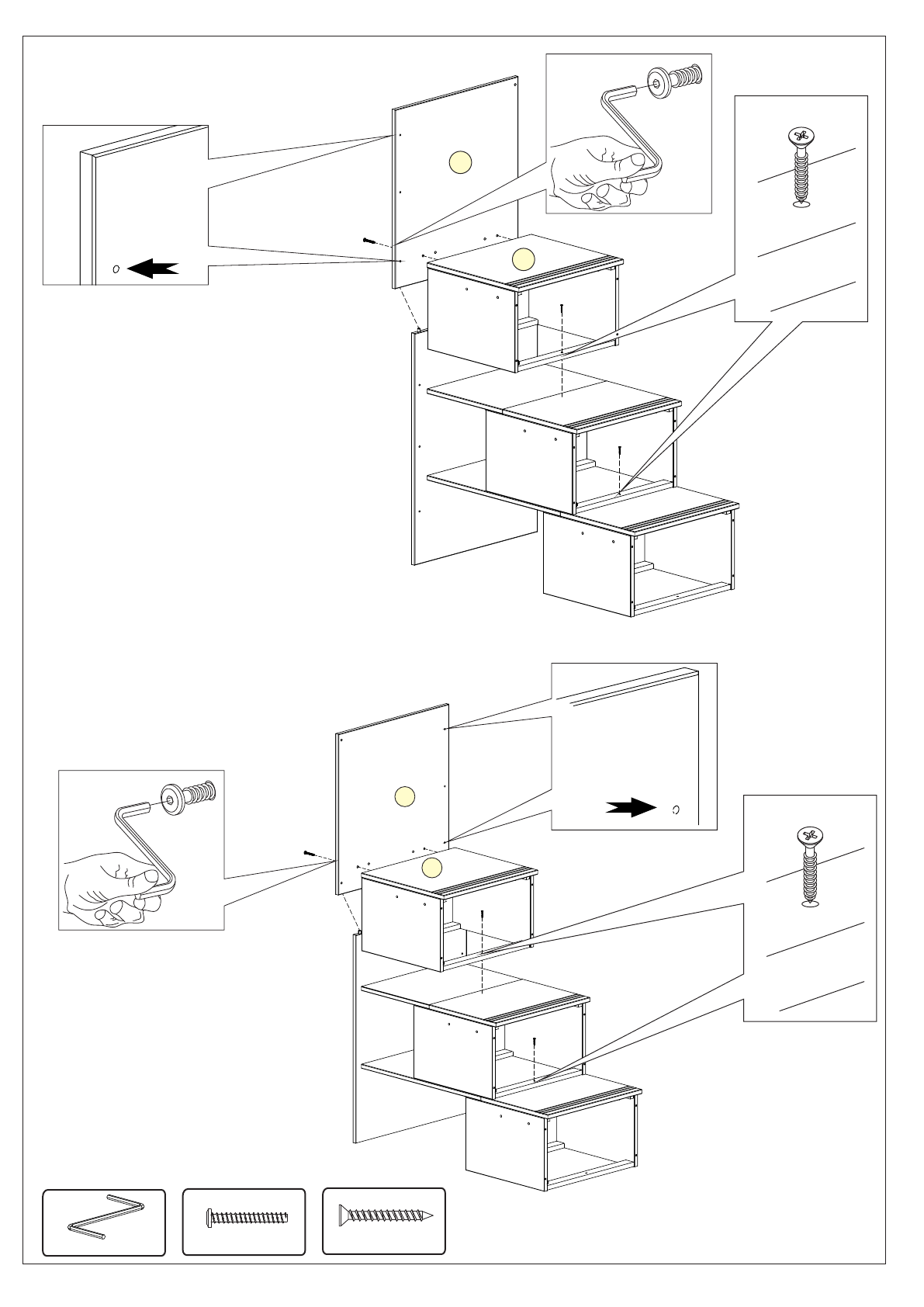

10 - RIGHT B8 A10
10 G8
G8+B8
G8+B8
04
A10
A10
10 - LEFT
10 A10
B8
04
G8 A10
A10
A10 - 02x
G8 - 01x B8 - 02x page 9 of 13 (April/2022)
