BeeSecure BEE-SD User manual

BEE-SD
Wire Free Optical Smoke Detector
Built-in Siren
>85dB
Self Test
App Control
Battery Life
10 Year(included)

BEE-OMS USER MANUAL 2
1. Introduction
Thank&you&for&choosing&BeeSecure&BEE-SD&Wire&Free&Optical&Smoke&Detector.&&
Prevent&fire&damage&with&the&BeeSecure&smoke&detector.&When&the&smoke&detector&detects&smoke,&
the&built-in&siren&is&activated&and&a&notification&is&sent&directly&to&your&phone.&The&smoke&detector&
can&be&set&remotely&via&the&BeeSecure&App&(BEE-HUB&is&required)&to&perform&a&self-check,&for&example.&
The&smoke&detector&can&easily&be&placed&on&the&ceiling,&at&the&top&of&the&stairs&or&in&other&places.&
With&the&BeeSecure&smoke&detector&you&give&fire&no&chance.&So&you&can&always&leave&your&home&with&
peace&of&mind!&Certified&according&to&the&European&standard&EN14604:&2005.&
Please&ensure&you&read&the&user&manual&completely&before&using&the&BEE-SD.&&
1.1 Product Description
Smoke Detector
ZigBee Wireless Base

BEE-OMS USER MANUAL 3
1.2 Specifications
Part%Name%
Smoke%Detector%
Dimensions%
110mm&(Diameter)×&42mm&(Height)&
Battery%
DC&3V&(1XCR123)&
Battery%Life%
10&years&(Non-replacable)&
Alarm%Current%
<12μA&
Standby%Current%
<35mA&
Alarm%Mode%
LED&flash&+&Siren&
Alarm%Volume%%
>85dB&
&
&
Part%Name%
ZigBee%Wireless%Base%
Dimensions%
94mm&(Diameter)×&18mm&(Height)&
Battery%%
DC&6V&(2XCR14505)&
Battery%Life%
>3years&
Standby%current%
<10uA&
Alarm%Mode%
APP&Alarm&Notification&
&
&The&product&should&not&be&modified&in&any&way&except&in&accordance&with&those&modifications&
described&in&the&instructions&
&
&
&
&
&
&
&

BEE-OMS USER MANUAL 4
1.3 What’s in the Box
Name%
Quantity%
Picture%
Smoke%Alarm%
1%
%
ZigBee%Wireless%Base%
1%
User%Manual%
1%
Screw%
2%
Anchor%Plug%
2%
1.4 Product Features
The&smoke&detector&can&detect&early&smoldering/flaming&fire&and&activate&a&siren&alarm&while&the&
LED&light&flashes.&With&the&self-check&button,&you&can&test&your&device&regularly&to&ensure&it&is&
functioning.&Together&with&the&BEE-HUB&(purchased&separately),&you&can&set&up&your&devices&
remotely,&including&&
• Rename&the&device&
• Receive&instant&alarm&notifications&
• Low&battery&warning&&
• Self-Check&remotely&
• Mute&&
• View&history&events&

BEE-OMS USER MANUAL 5
1.5 Steps to Follow
• Step%1:%Download&BeeSecure&App&and&register&&
• Step%2:&Install&Battery&of&the&ZigBee&Wireless&Base&
• Step%3:%Add&BEE-HUB&to&Wi-Fi&&
• Step%4:&Pair&BEE-SD&with&BEE-HUB&&
• Step%5:&Install&BEE-SD&
• Step%6:&Set&up&BEE-SD&from&the&APP&&
2. Getting%Started%%
2.1 Download%the%BeeSecure%App%and%Register%
Before&you&start&exploring&all&the&features&of&BEE-SD&using&the&APP&Control,&you&need&to&download&
the&BeeSecure&App&from&Apple&Store&or&Google&Play.&&
Register&your&personal&account&on&the&BeeSecure&App:&
1. Fill&in&your&first&name&and&last&name&
2. Enter&your&email&address&and&verification&code.&Get&verification&code&from&the&email&
account&you&entered&before.&&Read&“Terms&and&Conditions”&before&you&click&confirm.&
It&is&suggested&to&follow&the&steps&to&install&and&set&up&your&device.&While&connecting&the&BEE-SD&
with&the&hub,&please&keep&the&distance&between&the&device&and&hub&as&close&as&possible.&After&
successfully&connecting&the&hub&and&smoke&detector,&you&can&install&the&detector&up&to&20&meters&
from&the&hub&(depending&on&the&working&environment).&&

BEE-OMS USER MANUAL 6
2.2 Install%the%Battery%
Remove&the&insulating&film&between&the&batteries&and&the&metallic&blade&in&the&ZigBee&Wireless&
Base.&The&LED&light&at&the&base&will&blink&once&to&indicate&the&ZigBee&base&is&powered&on.&
2.3 Add%Hub%to%Wi-Fi%
Before&you&set&up&any&BeeSecure&devices,&you&need&to&add&the&BEE-HUB&to&your&WI-FI&first.&Follow&
the&steps&below&or&the&in-app&instructions&to&add&the&hub.&%
Please%note,%the%steps%below%is%based%on%iOS%phone.%The%User%Interface%of%Android%Phone%is%
slightly%different.%Follow%the%in-app%instructions%%
1. Tap&+%at&the&top&right&corner&of&the&App&Home&&
2. Select&BEE-HUB&from&the&device&list&
3. Plug&BEE-HUB&with&a&power&supply.&You&will&see&the&hub&indicator&flash&blue&which&means&
that&the&hub&is&ready&to&be&added&to&the&network.&&
*&If&the&indicator&does&not&flash&blue,&long&press&the&hub&button&to&reset&the&hub&until&it&
flashes&blue.&&
4. Select&Wi-Fi&and&input&the&password&for&the&Wi-Fi.&Click&Next.&
*Currently,&BeeSecure&does&not&support&5G&Wi-Fi&or&Wi-Fi&without&password.&

BEE-OMS USER MANUAL 7
5. -&iOS&user:&&Click&Setup.&The&system&will&redirect&you&to&the&Wi-Fi&settings&on&your&phone.&
Choose&BeeSecure-XXX&from&the&Wi-Fi&list,&input&BEESECURE&as&password&then&go&back&to&
the&BeeSecure&App.&Wait&until&the&caption&of&the&button&switches&to&Next.%Click&Next&
-&Android&user:&&Select&BeeSecure-XXX,&the&system&automatically&pops&up,&then&click&Next%
6. Wait&until&the&hub&has&been&found,&select&the&device,&click&join%Wi-Fi&and&then&Finish&
2.4 Pair%BEE-SD%with%BEE-HUB%
Pair&BEE-SD&with&BEE-HUB&to&establish&the&communication&between&the&hub&and&the&smoke&
detector&to&be&able&to&control&and&view&your&smoke&detector&from&the&APP.&&
1. Tap&+&at&the&top&right&corner&of&the&App&Home&&
2. Select&BEE-SD&from&the&device&list&
3. Follow&the&in-app&instructions&to&pair&BEE-SD&with&the&hub.&&
When&succeeded,&you&will&see&a&prompt&text&“Device%has%been%added”.%Return&to&the&App%Home,&
the&BEE-SD&will&appear&on&the&device&list&
&&&
2.5 Install BEE-SD
After&configuration,&the&smoke&detector&can&be&installed&up&to&20&meters&from&the&hub&(depending&
on&the&working&environment).&To&ensure&the&distance&between&the&smoke&detector&and&the&hub&is&
within&communication&range,&you&can&check&the&status&next&to&the&smoke&detector&in&the&Home&page.&
Green& light& indicates& the& device& is& online& and& functioning,& orange& light& indicates& the& device& is&
offline/outside&of&the&communication&range.&
&
On&step&5,&for&the&first-time&use,&iOS&user&will&request&to&input&the&password&to&connect&BEE-
HUB&and&Wi-Fi.&The&password&is&BEESECURE.&%After&the&first&connection,&iOS&will&remember&the&
password&and&no&longer&request&to&input&it&again.&&
Android&phone&users&do&not&need&to&input&the&password&
&

BEE-OMS USER MANUAL 8
1. Press&the&closure&lock&at&the&bottom&of&smoke&detector&indicated&in&the&picture&below&
2. Rotate&the&switch&on&the&smoke&detector&to&a&neutral&position.&Once&the&switch&is&on,&the&
device&is&powered&on&even&you&if&you&re-position&the&switch&to&the&off&position&
3. Mount&the&base&with&the&enclosed&mounting&screws&&
4. Press&the&smoke&detector&to&the&base&and&latch&it&in&by&turning&it&slightly&clockwise&
Please&carry&out&the&self-check&function&after/before&the&installation.&Self-check&the&device&
regularly,&to&ensure&the&smoke&detector&works.&Refer&section&2.6.3&
%
1%
&
2&
&
3&
&&
4&
&
Mounting&location:&
• Keep&the&distance&between&the&smoke&detector&and&the&hub&within&communication&range.&
• Place&the&smoke&detector&on&the&ceiling&at&the&top&of&a&stairwell,&or&where&smoke&would&
most&likely&be&detected.&Install&additional&detectors&if&there&are&closed&doors&preventing&

BEE-OMS USER MANUAL 9
smoke&from&reaching&the&detectors.&Add&extra&BEE-REPEATER&in&between&if&the&distance&
between&the&smoke&detector&and&the&hub&is&outside&of&communication&range.&
&
In&order&to&avoid&false&alarms,&please&AVOID&placing&the&smoke&detector&in&the&following&locations:&
• In&rooms&where&strong&water&vapor,&dust&or&smoke&arise&under&normal&conditions&
• Near&fireplaces&and&open&fires&
• Near&ventilation&shafts&as&the&air&stream&may&prevent&the&smoke&to&approach&the&detector&
• In&high&humid&rooms&with&temperatures&below&5&°&C&or&above&39&°&C&
• Less&than&15&cm&from&the&wall&when&mounted&on&the&ceiling&&
• At&the&peal&of&an&“A”&frame&ceiling,&mount&the&smoke&detector&less&than&15cm&from&the&peak.&
Dead&air&at&the&top&may&prevent&smoke&from&reaching&the&alarm&in&time&&
&

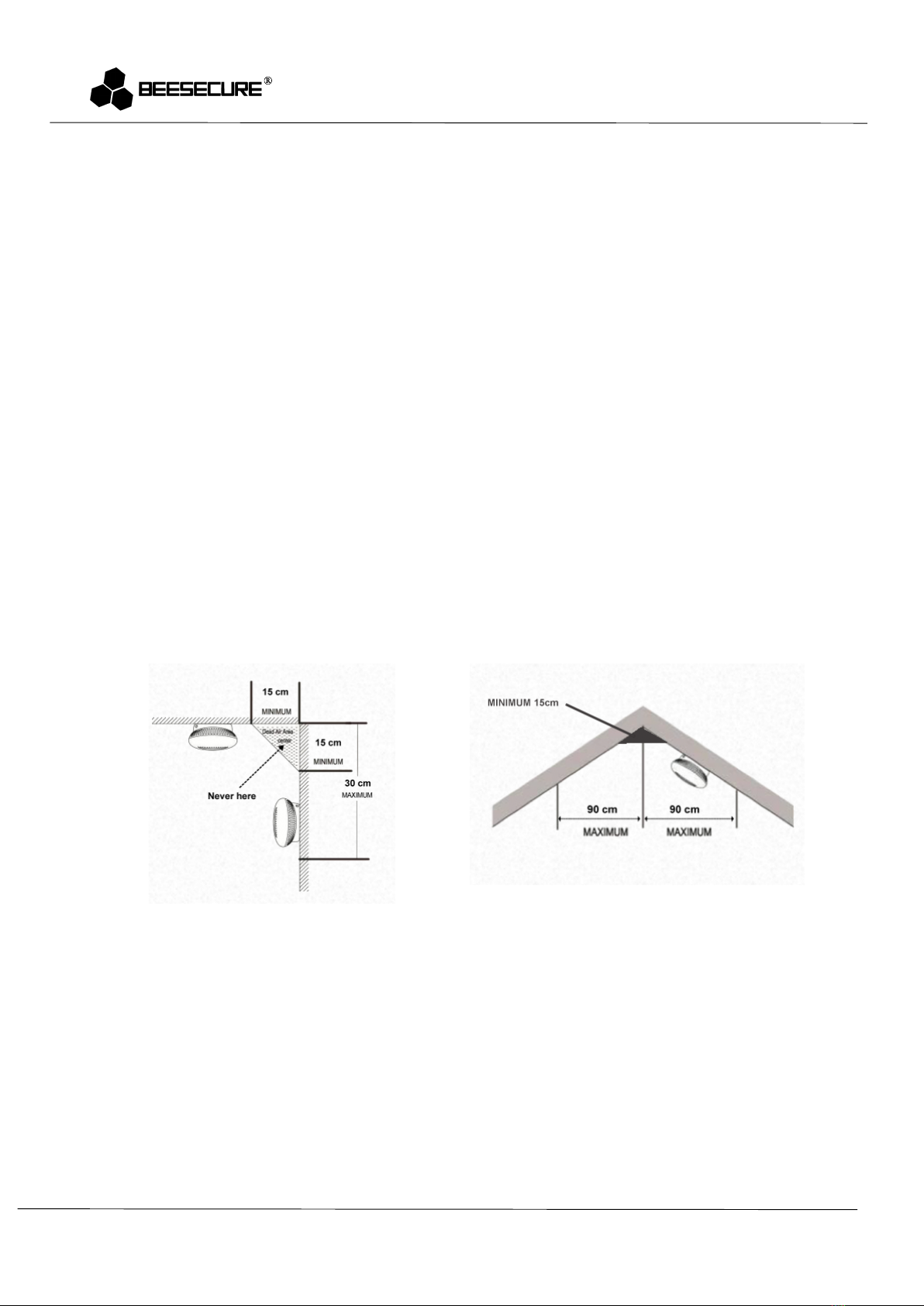

Mounting&Diagram:&
&
&
&
2.6 Set%up%the%BEE-SD%from%the%APP%
After&connecting&the&BEE-SD&with&the&BEE-HUB,&you&can&remotely&set&up&your&smoke&detector,&receive&
real-time&fire&alarming&events,&and&mute&the&alarm&remotely.&&
&
&
&

BEE-OMS USER MANUAL 10
2.6.1%Rename%the%Device%
Naming&your&devices&differently&is&very&helpful,&especially&when&you&have&multiple&devices&at&the&
same&time.&This&helps&to&identify&which&device&is&triggering&the&alarm.&&
1. Tap&the&top&right&corner&of&the&device&page&
2. Click&Device%Name&to&rename&the&smoke&detector&and&click&Confirm&
2.6.2%Alarm%On/Off%
You&can&switch&on/off&the&alarm&on&the&device&page.&By&switching&the&alarm&off,&it&will&disable&push&
notifications&to&your&mobile&phone.&This&means&that&you&will&not&receive&the&following&push&
notifications:&
• Instant&fire&alarm&notification&
• Detector&goes&offline&
• Low&Battery&Reminder&
&
&
2.6.3%Self-Check%
%
For&security&reasons,&we&strongly&suggest&you&to&carry&out&device&self-check&after&installation&and&
regularly&(once&per&week&is&suggested)&to&ensure&the&smoke&detector&is&working&normally.&&
There&are&two&ways&to&carry&out&self-check:&
1. From%the%device%locally:&Long&press&the&button&for&2&seconds&on&the&smoke&detector&when&
the&device&is&not&in&alarming&status;&Release&the&button&to&stop&testing.&
Please&note:&by&switching&off&the&alarm&on&the&device&page,&you&will&only&stop&receiving&
notifications&on&your&phone.&However,&the&device&will&still&emit&LED&light&signals&and&alarm&
sounds&whenever&smoke&is&detected.&
You&can&set&up&a&customized&schedule&to&receive&alarm&notifications&by&going&to&the&Group&
page&in&the&BeeSecure&App,&e.g.&9:00-18:00&Mon.-Fri.&Refer&to&the&Help&Manual&at&Mine->Help,&
in&the&BeeSecure&App&
&

BEE-OMS USER MANUAL 11
2. From%the%APP%remotely:&if&your&smoke&detector&is&connected&to&your&mobile&through&the&
BEE-HUB,&you&can&test&the&device&at&any&time&from&any&place&from&the&APP.&&Tap&“Self-Check”&
on&the&device&settings&page&
&
If&the&self-check&is&successful,&the&smoke&detector&will&generate&the&same&sound&and&flashing&light&as&
when&it&is&alarming.&At&the&same&time,&the&ZigBee&base&LED&will&flash&to&indicate&the&test&succeeded.&
The&status&of&“Self-Check”&on&the&app&will&be&changed&to&“Finished”.&&
&
If&the&self-test&failed,&the&LED&on&the&smoke&detector&will&flash&every&8&seconds,&along&with&one&“beep”.&
You&will&receive&a&failure&message&on&the&app.&&
&
When&you&operate&Self-Check&via&the&app,&the&test&result&will&show&within&10&seconds,&depending&on&
your&wireless&connection.&Try&again&if&the&self-check&failed&due&to&time-out.&&
2.6.4%Mute%%
Whenever&the&smoke&detector&is&alarming,&please&take&immediate&action.&If&it&is&a&false&alarm,&you&
can&mute&the&alarm&sound.&There&are&two&ways&to&mute&the&device:&
1. From%the%device%locally:&Press&the&button&once&on&the&smoke&detector&when&the&device&is&
chirping&
2. From%the%APP%remotely:&You&will&receive&an&instant&alarm&notification&if&your&smoke&
detector&is&connected&to&your&phone&and&activated.&Go&to&the&BEE-SD&device&settings&page,&
the&status&will&be&shown&as&“Alarming…”.&Tap&the&“Mute”&button&on&the&upper&right&corner.&
The&status&will&be&changed&to&muted.&
After&muting&the&device,&it&will&stop&chirping&and&the&LED&light&will&flash&every&9&seconds.&The&silence&
will&last&9&minutes.&If&smoke&is&still&detected,&the&smoke&alarm&will&switch&back&to&alarming&status&until&
the&smoke&is&dissipated.&Then&the&smoke&detector&will&work&normally.&&
&
&
&

BEE-OMS USER MANUAL 12
2.6.5%View%History%Message%
&
There&are&two&ways&which&you&can&view&from&the&app&all&smoke&detector&history&messages&
1. From&device&page&directly&
2. From&Message%Panel&
2.6.4%Delete%the%Device%
By&deleting&the&device,&you&will&remove&all&device&data&from&BeeSecure&cloud,&including&device&name,&
history&messages&and&etc.&&
&
1. Tap&the&upper&right&corner&on&the&device&
page&
2. Click&“Delete&device”&
&
&
If&you&want&to&relocate&the&device&and&connect&to&a&different&hub/operation&environment,&you&need&
to&delete&the&device&and&then&follow&the&steps&on&section&2.4&to&reconnect&the&smoke&detector&with&
a&new&hub.&
&
2.6.5%Reset%the%Device%
If&the&device&is&not&functioning&or&fails&to&carry&out&self-check,&you&can&try&to&reset&the&device&by&
pressing&the&RESET&BUTTON&at&the&ZigBee&base&（refer&to&section&1.1）&.&&After&resetting,&the&device&
is&restored&to&manufacturing&settings&but&all&the&data&stored&on&the&BeeSecure&cloud&will&remain,&
including&device&name&and&history&messages.&
&
&
From&device&page,&you&can&view&the&50&most&recent&messages&and&from&Message%panel&you&can&
view&unlimited&history&messages.&&

BEE-OMS USER MANUAL 13
3. Device%Status%
The&status&of&the&LED&and&sound&on&the&smoke&detector&indicates&the&device&status.&&
Device%Status%
LED%
Sound%
Working/Normal&
Flash&every&50&seconds&
No&
Smoke&Detected/Alarming&
Fast&Flashing&
Loud&pulsating&alarmtone&
Muted&
Flash&every&9&seconds&
No&
Detector&Low&Voltage&
Flash&every&50&seconds&
Beep&
Defect&
Flash&every&8&seconds&
Beep&
4. Low Battery
The&smoke&detector&and&the&ZigBee&wireless&base&are&both&operated&by&batteries.&Whenever&the&
battery&level&of&either&part&is&low,&you&will&receive&an&instant&low&battery&notification&at&your&phone:&
• Detector&Low&Battery&
The& typical& battery& life& for& the& smoke& detector& is& 10& years.& The& battery& is& embedded& and&
therefore& NON-replacable.& Whenever& the& battery& level& at& the& smoke& detector& is& low,&&the&
device&will&flash&every&50&seconds&along&with&a&“beep”.&In&the&meantime,&you&will&receive&an&
alarm& at& your& mobile& phone.& Dispose& the& currect& device& and& replace& a& new& one& as& soon& as&
possible!
&
• ZigBee&Base&Low&Battery&
You&will&receive&a&pushed&notification,&indicating&the&ZigBee&Base&Battery&is&running&low.&In&the&
meantime,&the&battery&level&indicator&at&the&device&page&of&BeeSecure&App&is&below&25%.&Follow&
the&same&steps&when&you&installed&the&batteries.&After&replacing&the&batteries,&all&user&data&
including&history&message,&device&settings&will&remain.&You&will&not&lose&any&data.&&&
&
Please&note,&&only&use&the&official&batteries&(CR14505)&while&replacing&the&batteries&for&
ZigBee&wireless&Base.&!
&

BEE-OMS USER MANUAL 14
5. Maintenance and Care
1. Carry&out&self-check&regularly&
2. Clean&the&device&at&least&once&per&month;&Gently&vacuum&the&outside&of&the&smoke&detector&
using&your&vacuum&soft&brush&attachment.&Never&use&water,&cleanser&or&solvents&as&they&might&
damage&the&unit.&
3. When& the& smoke& alarm& is& contaminated& by& excessive& dust& and/or& grime& or& constantly&
generates&false&alarm,&replace&the&smoke&detector&unit&immediately.&
4. Relocate& the& smoke& detector& if& it& generates& unwanted& alarms.& Refer& section& 2.5& Mounting&
Instructions&to&avoid&locations&for&details&
&
&
&
&
