BEETLE 330344 Datasheet

1
BEETLE
Children’s Electric RIDE-ON CAR
Owner’s Manual with Assembly Instructions
Styles and colours may vary.
Made in China.
The owner’s manual contains important safety information and instructions for assembly,
use and maintenance. The Ride-On Car must be assembled by an adult who has read and
understood the instructions in this manual. Keep the packaging away from children and
dispose of it properly before use. Keep this manual for future reference.
Maahantuoja / Importör / importer / Importöör / Importētājs / Importuotojas:
Toytrade, PL 499 FI-33101 Tampere, FINLAND
ko1020
330344, 606897 EN

2
1. About the Ride-On Car
This ride-on car will provide your child with many miles of riding enjoyment. To help as-
sure you and your rider a safe ride, we ask you to read this manual carefully and keep it for
future reference. Please follow the recommendations in this manual, as they are designed
to improve the safety and operation of your ride-on car and its rider.
Beetle Electric Ride-on manufactured by Zhejiang Jiajia Ride-on Co., Ltd. (Address: Xin-
cang Industrial Zone, Xincang Town, Pinghu City, Zhejiang Province, China). Trademarks,
design patents and copyrights are used with the approval of owner Volkswagen Zubehör
GmbH.
Battery 6 V 7 Ah (x1) / 6 V 10 Ah (x1) 12 V 4.5 Ah (x1)
Charger 6 V 1000 mA 12 V 500 mA
Suitable age: 37–96 months (3–8 years)
Maximum user weight: 30 kg
Speed: 2.5~5 km/h
Size of car: 108.5 x 63 x 53.5 cm
Powering method: Charging
Charge time: 8–12 hours
WARNING! Not suitable for children under 3 years. Risk of suocation, contains small parts.
Keep these details.

3
2. Parts list
Part no. Part name Qty (pcs) Remarks
2 WD
(two wheel drive)
1 Vehicle body 1
2 Rear gear box 2 1 PC labeled“R”, the other one labeled“L”
3 Rear wheel 2
4 Front wheel 2
5 Ø 10 washer 6
6 Lock nut 4
7 Hubcap 4
8 View mirror 2 left and right
9 Steering wheel 1
10 M5 x 30 machine skrew 1 Placed on the steering wheel
11 Ø 5 nut 1 Placed on the steering wheel
12 Seat 1
13 M5 x 16 Skrew 2
14 Hood 2
15 Ø 4 x 12 skrew 4
16 Charger 1
17 Spanner 1
18 Windshield 1

4
2
3
5
6
7
7
1
8
11
10
18
5
5
6
4
14
15
12
16
13
9
17
3. Diagram of the parts
NOTE: Some of the parts shown are to be assembled on both sides of vehicle.

5
4. Before You Begin the Assembly
Warning!
FOR THE SAFETY OF YOUR CHILD, PLEASE READ ALL THE WARNINGS AND INSTRUCTIONS
FOR ASSEMBLY/USE. KEEP THIS GUIDE FOR FUTURE REFERENCE.
• ADULT ASSEMBLY REQUIRED. This product contains small parts, which must be assem-
bled by an adult only. Keep children away when assembling.
• Always remove the protective packaging and polythene bags and dispose of them
before beginning the assembly.
• Make sure that the power switch is turned to‘OFF’before assembling the ride-on car.
• Before using the product for the rst time, charge the battery for 4–6 hours.

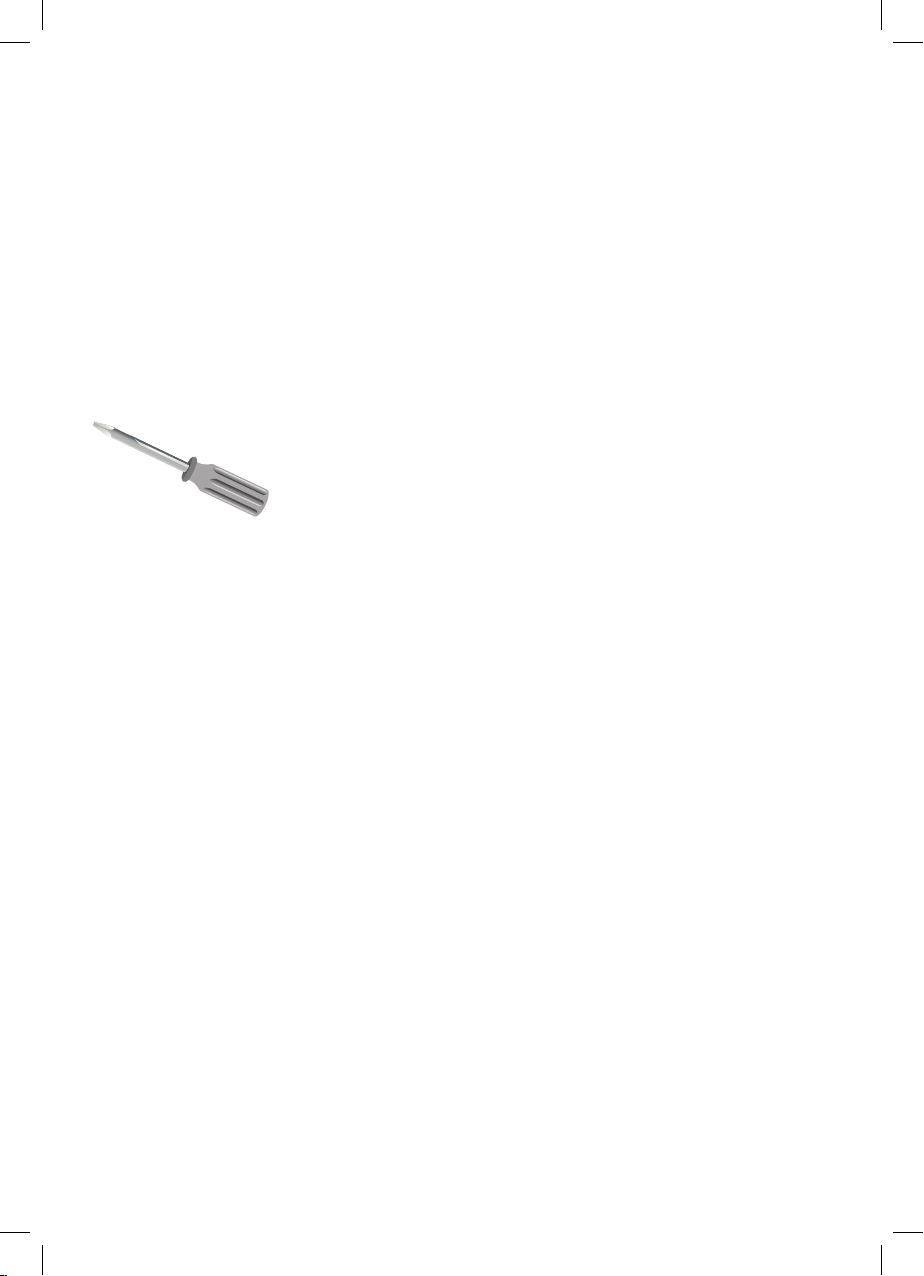

• Assembly tools required:
Screwdriver (not included)
BATTERY INFORMATION
• Non-rechargeable batteries must not be recharged.
• If removable rechargeable batteries are used, they must be charged only under adult
supervision.
• Remove rechargeable batteries from the product before charging.
• Do not mix old and new batteries. Do not mix dierent types of batteries: alkaline,
standard (carbon-zinc) or rechargeable (nickel-cadmium).
• Insert batteries as indicated inside the battery compartment: anode to anode, cath-
ode to cathode.
• Remove batteries during long periods of non-use. Always remove exhausted batteries
from the product. Battery leakage and corrosion can damage this product. Dispose of
batteries safely.
• Never short-circuit the battery terminals.

6
2
3
4
5
1
5. Attach the Rear Wheels (2 WD)
Remove all the parts from the rear axle.
1. Slide the gearbox onto the rear axle (from the left-hand side). The gearbox labelled
‘R’should be t to the ‘R’side of the vehicle body; the gearbox labelled‘L’ should be t
to the‘L’ side of the vehicle body. Keep the motor and the connector on the gear box
through the larger hole on the rear vehicle and out where the battery sits.
2. Slide the driving wheel on to the rear axle. Make sure the driving wheel (L/R) matches
the gearbox (L/R).
3. Slide a Ø 10 washer on to the rear axle.
4. Tighten a locknut to the end of the rear axle with a spanner.
HINT: An extra spanner has been provided to hold the Lock Nut on the other side of
the rear axle while tightening the Lock Nut on the other side.
5. Fit a hubcap to the wheel cover. Repeat for the other side.
Driving Wheel Rear bottom view
Rear axle

7
1
2
4
53
6. Attach the Front Wheels
Remove all the parts from the front axle.
1. Slide a Ø 10 washer on to the front axle.
2. Slide a normal wheel onto the front alxe.
3. Slide a Ø10 washer onto the front axle.
4. Tighten a Lock nut to the end of the front axle with a spanner.
5. “Snap”the hubcap to the wheel.
Repeat the above procedure to assemble the other normal wheel.
GAP
After assembling each wheel to the axles, please check the gap between the
screw thread and the outer side of the wheel (see the diagram). If the gap
is too large, please add two or three washers on the inner side of the wheel.
However, after tightening the nut on the outside of the wheel, please use
your nger to spin the wheel to check whether it moves smoothly. This is
very important: if the nut presses against the wheel and the wheel cannot
turn smoothly, the motor will be damaged easily! If the wheel is sti, remove
one or two washers to make sure that it can turn smoothly!
Front axle
Front bottom view

8
24
1
7
3
5
6
7. Attach the Steering Wheel
Attach the Steering Wheel
Turn the vehicle body upright.
Remove the M5x30 machine screw and the Ø 5 nut from the steering wheel.
1. Place the steering wheel over the steering column, which is protruding
from the middle of the steering wheel base.
2. Align the holes on each side of the steering wheel
with the holes at the end of the steering column.
3. Fasten the steering wheel to the end of the
steering column using the screw and nut.
End of the
steering column
Insert the batteries (NOT PROVIDED)
into the steering wheel.
1. Using a screwdriver, remove the
screw from the battery cover
located in the centre of the
steering wheel.
2. Remove the battery cover
from the top of the battery
compartment.
3. Insert two AA batteries in their
correct polarities.
4. Place the battery cover over
the battery compartment
and fasten with the screw you
removed in step 1.
HINT: If the steering wheel of your vehicle equipped with the sound function, please fol-
low the steps 1~4 to add the batteries (Not Included), and refer to the battery information
on page 41.

9
2
Fuse
box
Battery
8. Connect the Power Supply
1. Plug the red fuse connector into the terminal on battery.
2. Plug the vehicle connector into the motor connector on body as shown
above. Repeat for the other side.
Rear Top View
Red vehicle
connector
Red battery
connector
White vehicle
connector
White motor
connector

10
x2
1
2
3
9. Attach the Motor Hood(s) & Windshield
1. 1. Fit the motor hood over the motor.
2. 2. Insert two Ø4x12 screws and tighten.
Repeat for the other motor hood.
3. Fit tabs on the windshield into the grooves on the vehicle body, push
until you hear it“click” into place.
