Bego Eltropol 300 User manual

Translation of the original instructions
Eltropol 300 85955/11
English
en
en
Eltropol 300

22
85955 BA-en/11
English ⋅ Eltropol 300
en
Table of contents
General Instructions.............................................23
Safety instructions................................................25
Unit description ....................................................27
Scope of delivery, wearing parts and extras ........28
Technical data ......................................................28
Installation............................................................29
Filling....................................................................30
Securing objects...................................................31
Polishing...............................................................33
Changing the polishing solution ...........................35
Care and maintenance.........................................37
Elimination of malfunctions ..................................37
Signs, labels and stickers.....................................39
Disposal ...............................................................40
Certificate of Conformity............................Appendix
This unit documentation is part of the unit and
must be enclosed when selling or passing on
the unit.
• The unit has been designed solely for use in
dental laboratories and comparable establish-
ments for research, commercial and training
purposes. The unit must only be operated by
dental professionals, or they must provide
supervision if trainees or other persons operate
unit.
• The operating instructions must be read and
understood before the device is used. This par-
ticularly applies to the Safety information. The
warranty is void in cases of damage which is
caused by non-observance of the operating
instructions. We will also not accept liability for
any resulting consequential damages.

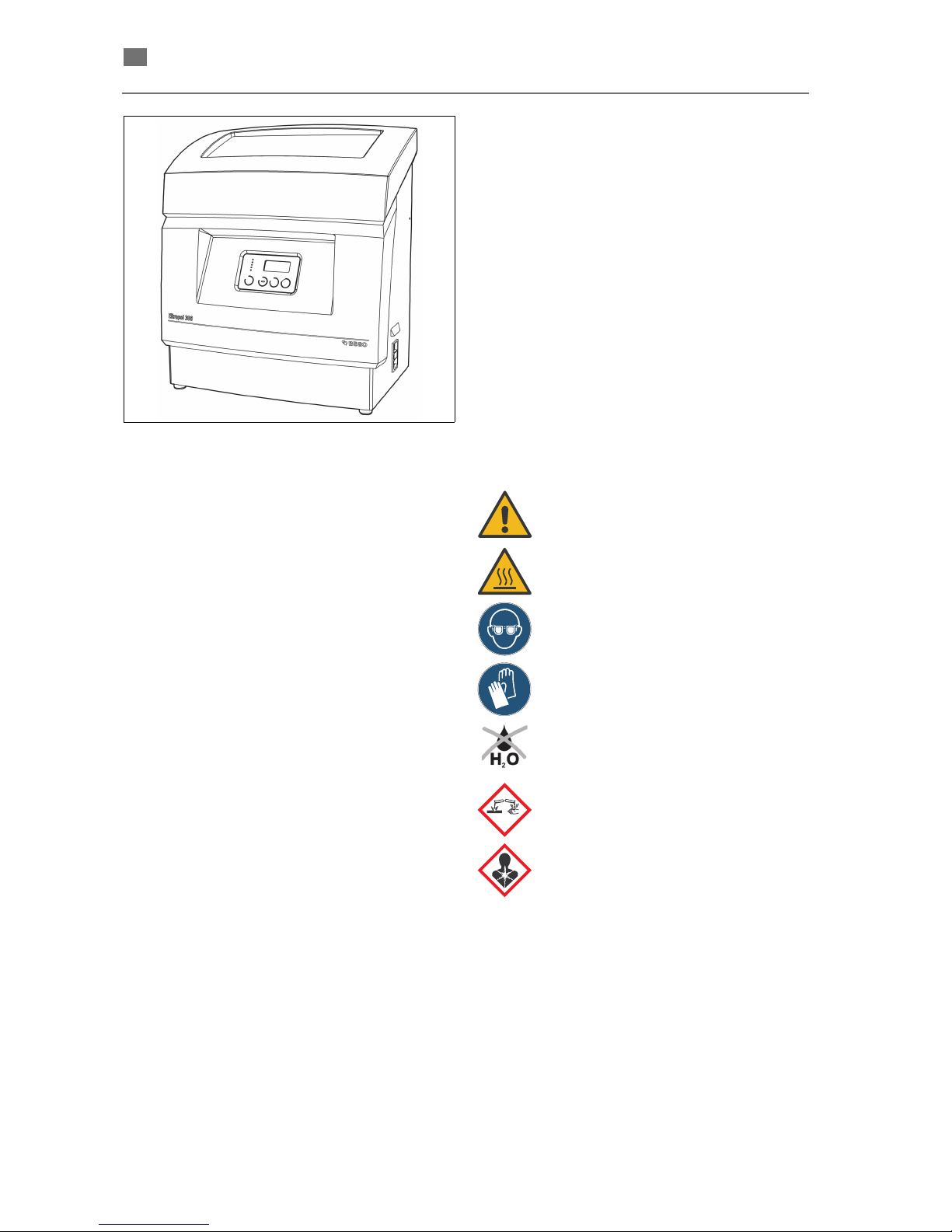

• Symbols used
This symbol indicates very important
information. Failure to comply with it may
result in personal injury.
This symbol warns about hot parts.
Use eye protection!
This symbol indicates that safety gloves
have to be worn.
Do not add water!
This symbol warns about caustic
materials.
Symbol for substances hazardous to the
human health

English ⋅ Eltropol 300
23
85955 BA-en/11
en
General Instructions
Importance of the operating Instructions
These operating instructions cover all the infor-
mation that is necessary according to the relevant
regulations for the safe operation of the device
described herein.
The operating instructions are a part of the machine.
The operating instructions should therefore
• always be kept at hand near the device until the
device is disposed of,
• and should be passed on with the device when
it is purchased, sold, or lent.
Contact the manufacturer if you do not understand
something in the operating instructions.
We welcome any suggestions or criticism. Please
feel free to notify us. Your effort will help us make the
operating instructions more user-friendly and
respond more effectively to your wishes and needs.
Target group
This document is directed toward everyone who
works with this device or performs service tasks that
are described in this document.
Contact information
BEGO Bremer Goldschlägerei Wilh. Herbst GmbH & Co. KG
Wilhelm-Herbst-Str. 1
28359 Bremen • Germany
Telephone: [phone]
Service-Hotline Tel.: [phone]
www.bego.com
Copyright by BEGO Bremer Goldschlägerei Wilh. Herbst GmbH & Co. KG
This user guide is protected by copyright. All rights reserved.
No part of this document may be reproduced without the express written permission of BEGO Bremer
Goldschlägerei Wilh. Herbst GmbH & Co. KG!

24
85955 BA-en/11
English ⋅ Eltropol 300
en
Conventions
These operating instructions contain references to
residual hazards, important user tips and handling
instructions that are identified with the following
symbols and words.
Warranty and liability
Our general terms and conditions of sale and
delivery apply. These are made available to the
customer on completion of the contract, at the latest.
Warranty and liability claims in the event of physical
injury or damage to property are invalid if they are
caused by one or more of the following:
• Improper use of the device;
• Improper installation, putting into operation,
operating and maintenance of the device;
• Operating the device with safety and protective
facilities that are defective, improperly installed
or inoperative
• Failure to heed the information in this manual
concerning the transport, storage, installation,
putting into operation, operation and service
and maintenance of this device;
• Unauthorized structural modifications to this
device;
• Inadequate monitoring/checking of parts of the
device that are subject to wear;
• Improperly performed repairs;
• Catastrophes caused by alien elements or
force majeure.
DANGER
This reference identifies hazards that
can cause serious bodily injury or
death if the relevant hazard instruc-
tions are not followed or not followed
properly.
WARNING
This reference identifies hazards that
can cause bodily injury or property
damage if the relevant hazard instruc-
tions are not followed or not followed
properly.
ATTENTION
This reference identifies only those
hazards that are potential damaging
to property and the environment.
NOTE
This symbol identifies user tips and particularly
useful information. It helps you optimally exploit
all the functions of your machine.
1. Sequential actions are described in sequentially
numbered paragraphs.
→Cross-references are identified with this symbol.

English ⋅ Eltropol 300
25
85955 BA-en/11
en
Safety instructions
Eltropol 300 is exclusively designed for the electro-
lytic polishing of Co-Cr partial denture bases using
Wirolyt polishing solution. Any other use is
considered to be improper. We shall not be liable for
any damage resulting from improper use.
One example of improper use is the heating of
water, other liquids, or foodstuffs!
The safety instructions must be followed in order to
prevent personal injury and damage to the machine.
We shall not be liable for damage due to failure to
comply with the safety instructions.
General safety instructions
Place of use. The unit has been designed solely
for use in dental laboratories and comparable estab-
lishments for research, commercial and training
purposes.
The unit may only be installed on an adequately
stable surface.
The unit must only be used in dry rooms.
Operator and operating personnel. The unit
must only be operated by dental professionals, or
they must provide supervision if trainees or other
persons operate unit.
Wear the protective clothing prescribed for use in
dental laboratories and observe the rules of
conduct.
The unit may only be operated by staff members
who are familiar with and follow the instructions of
this operating manual.
The operating manual must be easily accessible
when the machine is operated. Observe the national
accident prevention regulations in addition to this
operating manual.
Handling the machine. Prior to the electrical
connection check whether the specifications on the
rating plate correspond to the power supply
network. In the case of uncertainty, consult an
electrician.
The unit is categorised under protection class 1 and
may only be connected to properly earthed power
sources (earth contact sockets).
Modifications of the machine are not permitted.
Always keep signs and stickers such that they are
easy to read. They must not be removed.
Check the machine and leads for damage regularly.
The machine must not be operated if it has any
defects that may result in risks for the employees or
third persons.
Protect the leads against heat, oil and sharp edges.
The leads must not be used to carry the machine or
to pull out the mains plug.
Care and maintenance. The unit has been
designed for a service life of 10 years from the date
of manufacture. No liability is accepted for damages
arising from operation of the unit after this period.
Switch off the machine and pull out the mains plug
before performing any care, cleaning or mainte-
nance work.
Only use dry or slightly moist cloths for cleaning. Do
not spray the machine with water or immerse it in
water.
Repairs. Repairs may be carried out solely by
BEGO customer service or by persons authorised
by BEGO customer service.
Metallic housings must be grounded properly so as
to prevent them from carrying current. Otherwise
they are extremely dangerous because the
housings may be live due to damage to the
machine! Since a check to ensure a de-energized
state is mandatory after every intervention in the
machine (Germany: check in accordance with DIN
VDE 0701-1), only qualified electricians may open
the machine!
Only BEGO replacement and wearing parts may be
used.

26
85955 BA-en/11
English ⋅ Eltropol 300
en
Special safety instructions regarding this machine
Hazard warnings (R phrases)
R 22 Harmful if swallowed.
R 35 Causes severe burns.
Safety instructions (S phrases)
S 7/9 Keep container tightly closed and in a
well-ventilated place.
S 26 In case of contact with eyes, rinse
immediately with plenty of water and
seek medical advice.
S 36/37/39 Wear suitable protective clothing,
gloves and eye/face protection.
S 45 In case of accident or if you feel unwell,
seek medical advice immediately (show
the label where possible).
S 46 If swallowed, seek medical advice
immediately and show this container or
label.
S 28.2 After contact with skin, wash immedi-
ately with plenty of water and soap.
WARNING
The unit is designed to be used with
Wirolyt polishing solution.
ATTENTION! Wirolyt contains
glycol and sulphuric acid!
• Only transport or store the unit when
empty of Wirolyt!
• Only operate the unit when it is
closed! The fumes are a health haz-
ard (1).
• Wirolyt is classed under the interna-
tional hazard symbol C "Corrosive"
(2).
• Avoid contact with skin and eyes!
Risk of blinding (3)!
Wear safety glasses and safety
gloves (4)!
• Never add water!
When mixed, acid and water pro-
duce an extreme chemical reaction.
Spitting acid is the consequence
(5)!
• Dispose of as hazardous waste!
Used Wirolyt contains heavy metal
ions – do not allow it to enter the
sewer system (6)!
NOTE
See also: EC safety data sheet online at http://
www.bego.com.
(3) (4) (5)(1) (2a) (2b)
(6)

English ⋅ Eltropol 300
27
85955 BA-en/11
en
Unit description
Eltropol 300
Eltropol 300 is designed for the electrolytic polishing
of Co-Cr partial denture bases. One or two objects
may be polished simultaneously.
1 Main switch / fuse / mains connection
2 Power cable (EU / USA / ZA)
3 Control panel
4 Lid/cover
Polishing bath
1 Container for utensils (not for water!)
2 Contact for supplementary cathode
3 Cathode
4 Clips for object holder
5 Heating element
Object holder
1 Object hook
2 Crocodile clip with holder
3 Supplementary cathode
Intelligent technology
By gauging the electric current, the Eltropol 300
automatically proposes the optimum polishing time
required according to object size and the temper-
ature of the bath. If necessary, the proposed
polishing time and current may be adjusted
manually.
Innovative heating concept
The polishing bath is brought to operating temper-
ature and subsequently monitored using a unique
procedure. This means that there are no unreliable
heating elements and the bath heats up more
quickly.
Wear reduction measures
Due to the use of stainless steel instead of copper,
the object holders are subject to considerably less
decomposition in the glossing fluid than the usual
copper hooks.
Other measures designed to minimise wear are a
reduction in the number of moving parts by means
of a magnetic stirrer and an outer casing made of
stainless steel with an additional coating of
electrolyte-resistant paint.
Simplified bath emptying
The control panel indicates when it is time to change
the polishing solution. A drainage tube on the back
of the unit makes it convenient and safe to drain the
solution directly into a waste canister.
Safety
The operating temperature of approx. 40 °C is
monitored electronically. At temperatures exceeding
60 °C the unit displays an error message and cuts
out. An additional independent control circuit
causes the unit to shut down automatically at
temperatures over 70 °C. The unit may only be
switched on again once it has cooled down.
Polishing bath Object holder

28
85955 BA-en/11
English ⋅ Eltropol 300
en
Scope of delivery, accessories and consumables
Scope of delivery
Eltropol 300
100 … 240 V, 50 / 60 Hz ....................... REF 26310
with:
• Polishing bath
• 2 magnetic stirrers
• 2 object hooks
• 10 crocodile clips
• 1 supplementary cathode
• 1 spare clamp with holder
• 2 power cables (EU, USA, or ZA plug)
• Operating Instructions
Accessories
REF
Straight cathode for the supplementary
cathode.......................................................... 17003
Supplementary cathode ................................ 17000
Consumables
REF
Wirolyt polishing liquid (1.0 litre).................... 52460
Technical data
Height..........................................................452 mm
Width...........................................................400 mm
Depth ..........................................................275 mm
Weight (empty)................................................10 kg
Capacity of polishing bath.............................2 litres
Nominal voltage................ 100 … 240 V, 50 / 60 Hz
Maximum power consumption......................200 VA
Maximum polishing current ..............................10 A
Noise emission ...................................... < 70 dB (A)
NOTE
The spare parts list is appended.
When ordering spare parts please quote the REF,
quantity and equipment serial no. (SN).

English ⋅ Eltropol 300
29
85955 BA-en/11
en
Installation
The unit may only be installed on an adequately
stable surface.
The unit may only be used in an enclosed space.
The machine is subject to the provisions of class of
protection I and may only be connected to properly
grounded power sources.
Use the appropriate power cable (EU or USA plug)
included with the unit.
NOTE
The two 3.15 AT fuses secure the entire voltage
range from 90 V to 260 V.

30
85955 BA-en/11
English ⋅ Eltropol 300
en

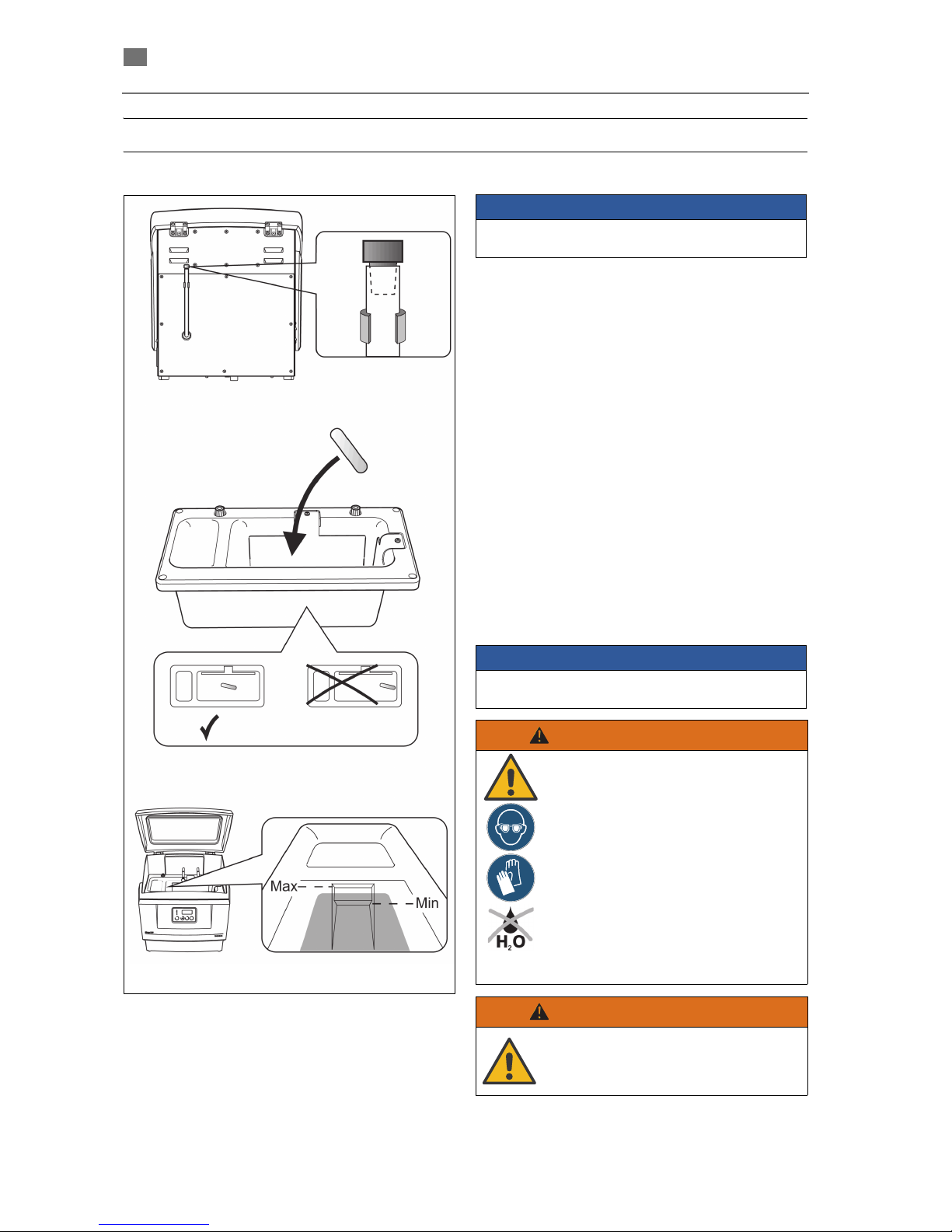

Filling
1. Open the unit cover and position the magnetic
stirrer in the centre of the polishing bath - only
then can the stirrer function properly.
(Magnetic stirring only takes place during heat-
ing or polishing.)
2. Fill the polishing bath (the large bowl) with
approx. 2 litres of Wirolyt. The fill level must be
between the marks for maximum and mini-
mum.
NOTE
The drainage tube must be closed and securely
clamped!
NOTE
If the solution level is too low the unit electronics
malfunction!
WARNING
ATTENTION!
Wirolyt contains glycol and
sulphuric acid!
• Avoid contact with skin and eyes!
Risk of blinding!
• Wear safety glasses and safety
gloves!
Never add water!
• When mixed, acid and water pro-
duce an extreme chemical reaction.
Spitting acid is the consequence!
WARNING
Only transport or store the unit when
empty of Wirolyt!

English ⋅ Eltropol 300
31
85955 BA-en/11
en
Securing objects
One or two objects may be secured and polished
simultaneously.
1. Securing the polishing object to the object
holder: use the retentions to hang it on the
hook, or secure the base with the crocodile
clip.
2. Insert the object holder into the unit and tighten
the screws. Please ensure that:
• the object is fully immersed in Wirolyt. (The
springs of the crocodile clip are not perma-
nently electrolyte-resistant and should
therefore not be immersed.)
• sufficient space remains at the bottom of the
polishing bath for the magnetic stirrer.
• the base surfaces of the polishing objects
must be aligned parallel to the longitudinal
sides of the bath. Exposed clasp tips must
never point directly towards the cathode, as
this would cause too much material to be
removed from them!
• object and cathode must not touch each oth-
er (error message E 10).
WARNING
• Avoid contact with skin and eyes!
Risk of blinding!
• Wear safety glasses and safety
gloves!
Never add water!
NOTE
• Polishing only works on clean, oxide-free met-
al objects. If necessary, blast objects prior to
polishing.
• Only use the electrolyte-resistant object holder
included with the unit! Copper object holders
wear down during polishing and produce sed-
iment, which impedes the magnetic stirring
process.
• To protect against severe wear during gloss-
ing, the tips of the clamps should be covered
with masking lacquer.

32
85955 BA-en/11
English ⋅ Eltropol 300
en
3. The electrolytic polishing current cannot reach
deep palates due to screening effects. These
spots generally remain matt. The supplemen-
tary cathode (REF 17000) provides the solu-
tion. It is mounted as shown, so that the point
of the bent rod points as far as possible into
the deep palate, without actually making con-
tact.
Spring
(internal)
Wirolyt
NOTE
• The springs of the crocodile clip are not per-
manently electrolyte-resistant and should
therefore not be immersed.
• If necessary, rinse the crocodile clip with water
after use. Dry thoroughly afterwards!
Never add water to acid!

English ⋅ Eltropol 300
33
85955 BA-en/11
en
Polishing
1. Switch on the unit using the main switch:
• 1 alarm tone;
• display briefly shows the software version,
then 0:00;
• heating the bath: the 5 LEDs light up in suc-
cession - "chaser" effect. After a maximum
of 25 minutes the operating temperature of
approx. 40 °C is reached: the LEDs go out.
2. Secure object to be polished.
3. Press the Start button:
• the display indicates the polishing time cal-
culated by the unit (according to object size
and bath temperature). The polishing time
can also be altered using the plus or minus
keys.
4. Start polishing: press the Start button again.
• the remaining polishing time is indicated on
the display (countdown meter);
• the strength of current during polishing is
indicated by the 5 LEDs. The current
strength can also be altered using the plus
or minus keys as required.
5. After polishing:
• triple alarm tone;
• display shows 0:00.
6. Remove the object holder with the polishing
object and rinse off under running water.
WARNING
• Avoid contact with skin and eyes!
Risk of blinding!
• Wear safety glasses and safety
gloves!
Never add water!
WARNING
Only operate the unit when it is
closed.
The fumes are a health hazard.

34
85955 BA-en/11
English ⋅ Eltropol 300
en
7. As a general rule, polishing must be effected in
two stages. The polishing object must be posi-
tioned anew in the bath each time (rotate
180°).
8. If the unit is not needed for longer periods,
switch it off.
Notes
• Polishing can start before the operating temper-
ature is reached. After 15 minutes, the Wirolyt
has already reached approx 30 °C. The bath
continues to heat up during polishing.
• The necessary polishing time and current
strength are both calculated by the unit. These
are influenced by the size of the object and the
bath temperature. If required, the settings may
be adjusted manually:
a) The polishing time may be set anywhere
between 60 seconds (00:60) and
12 minutes (12:00).
b) During polishing the current strength is indi-
cated by the LEDs (ammeter function). In
the default setting (level 3 = 100%) the cur-
rent may attain a maximum of 10 A, how-
ever this is only the case when polishing
two large objects in a hot bath. The current
may be manually limited to 70 % (level 2) or
50 % (level 1) of the calculated current. The
number of LEDs illuminated changes
according to level. After each polishing the
unit automatically returns to level 3!
• The polishing process can be interrupted by
pressing the Start button. Press again to call up
the polishing time calculated at the outset (not
the remaining polishing time). This may now be
altered manually. Press the Start button again
to start polishing with this setting.
• Uninterrupted polishing may cause the permit-
ted bath temperature to be exceeded. The unit
then displays the error message "E 30". Having
switched off the unit, wait approx. 1 hour before
switching it on again to resume polishing.
• An integrated fan switches on automatically, as
necessary, to cool down the unit electronics.
•
WARNING
If the object is to be polished a second
time, allow to dry thoroughly!
Never add water to acid!

English ⋅ Eltropol 300
35
85955 BA-en/11
en
Changing the polishing solution
The more it is used, the less effective the polishing
solution becomes. The unit calculates and displays
the optimum point at which to renew the solution.
• LED blinks: change solution soon.
• LED lights up: change solution now.
1. Switch off the unit at the main switch and pull
the plug out.
2. Carefully turn the unit around without tipping it
in order to reach the drainage tube on the back
of the unit.
3. Pull the drainage tube out of the clamp, hold it
upright and remove the stopper. Lower the
tube into a suitable canister with a capacity of
at least two litres and allow the polishing solu-
tion to drain off. Use a funnel if necessary.
WARNING
ATTENTION!
Wirolyt contains glycol and
sulphuric acid!
• Avoid contact with skin and eyes!
Risk of blinding!
• Wear safety glasses and safety
gloves!
Never add water!
• Dispose of as hazardous waste!
Used Wirolyt contains heavy metal
ions – do not allow it to enter the
sewer system!
WARNING
Risk of scalding!
• The operating temperature of
Wirolyt can reach 40-60 °C!

36
85955 BA-en/11
English ⋅ Eltropol 300
en
4. Having drained the tube, replace the stopper
and fasten securely with the clamp.
5. Fill the polishing bath with approx. 2 litres of
Wirolyt (see page 30).
6. Switch on the unit using the main switch:
The bath begins to heat up. (If the walls of the
polishing bath are still warm it can take a few
minutes for the heating process to begin.)
7. After filling, the monitoring of the polishing
solution needs to be reactivated. Press the
button and keep it depressed until you hear a
long alarm tone.
WARNING
Do not tilt the device to empty it!
• Injuries are possible. The device will
be damaged.
WARNING
Do not unscrew the polishing bath!
• The device will be damaged.
WARNING
• Never use water to clean the empty
polishing bath!
• Rinse out with Wirolyt if necessary.

English ⋅ Eltropol 300
37
85955 BA-en/11
en
Care and maintenance
1. Wipe the outside of the unit down with a damp
cloth as necessary.
2. If the bath is empty, the inside of the unit may
also be cleaned using a dry cloth. Caution! Pol-
ishing solution dregs contain acid and destroy
the cloths used!
Elimination of malfunctions
General remarks on eliminating malfunctions:
• Switch off the machine (exceptions: see *),
• Eliminate malfunction,
• Switch on machine.
• Notify Service if messages appear repeatedly.
• Have servicing work carried out only by author-
ized BEGO workshops!
Service-Hotline: [phone] - (270 ... 274)
DANGER
Warning of electric shock!
Danger to life!
Switch off the machine and pull out
the mains plug before performing any
care or maintenance work.
In the case of power connection
without mains plug: remove fuses,
secure machine so it cannot be
switched on again and check that it is
de-energized.
WARNING
Risk of injury!
• Avoid contact with skin and eyes!
Risk of blinding!
• Wear safety glasses and safety
gloves!
Never add water!
DANGER
Warning of electric shock!
Danger to life!
Switch off the machine and pull out
the mains plug before eliminating any
malfunctions!
In the case of power connection
without mains plug: remove fuses,
secure machine so it cannot be
switched on again and check that it is
de-energized.
WARNING
Risk of injury!
• Eliminate malfunctions only when
wearing appropriate protective
equipment!

38
85955 BA-en/11
English ⋅ Eltropol 300
en
Malfunction Cause Elimination
Unit switched on but no display No current * Connect power lead (p. 29).
*Switch on main switch (p. 33).
* Electricity supply intact?
Set voltage selector switch (p. 29).
Check unit fuse (p. 29).
"Emergency shut-down" The unit switches off automatically at
temperatures over 70 °C, and may only
be switched on again after approx.
1 hour.
No display, "SOS" alarm tone
(3x long, 3x short, 3x long)
Display defective Contact Customer service.
E 10 display Short circuit Re-position the object to be polished so
that it does not touch the cathode
(p. 31).
E 20 display Temperature sensor is defec-
tive
Contact Customer service.
E 30 display Bath too hot Switch on unit after approx. 1 hour
(p. 34).
E 40 display Stirrer is stuck Hang the object higher to ensure the
stirrer is able to rotate (p. 31).
Polishing is ineffective Only one polishing stage *As a general rule, polishing must be
performed twice (p. 33).
Bath is cold * Only begin polishing when the bath has
heated up sufficiently (p. 34).
Wirolyt is old Change polishing solution (p. 35).
Too little Wirolyt Top up Wirolyt (p. 30).
Polishing current is weak *Increase polishing current (p. 33, 34).
Stirrer missing or not in the
right position
Check whether the stirrer is lying in the
polishing solution (p. 30).
Object with deep palate *Use the supplementary cathode (p. 32).
Polishing is too effective Object too close to cathode * Align object in parallel (p. 31).
*Protect the clamp tips with masking lac-
quer (p. 31).
Polishing current is too strong * Reduce polishing current (p. 33, 34).

English ⋅ Eltropol 300
39
85955 BA-en/11
en
Signs, labels and stickers

40
85955 BA-en/11
English ⋅ Eltropol 300
en
Disposal
Instructions for disposing of the device
(Applicable only within the European Union)
The adjacent symbol on the ID plate of the BEGO device indicates that the device,
in accordance with the European directive on waste electrical and electronic
equipment, may not be disposed of as normal domestic waste.
As a customer, you contribute to the protection of the environment when you dispose
of the device correctly.
Disposal in Germany
BEGO offers you a disposal solution for all BEGO devices sold and put into operation
in Germany subsequent to August 13, 2005. Please contact us when it is time to
dispose of the device.
Disposal in other countries of the European Union
Please contact the company from which you purchased the BEGO device when it is
time to dispose of it. They will provide you with information concerning correct
disposal in your region.
