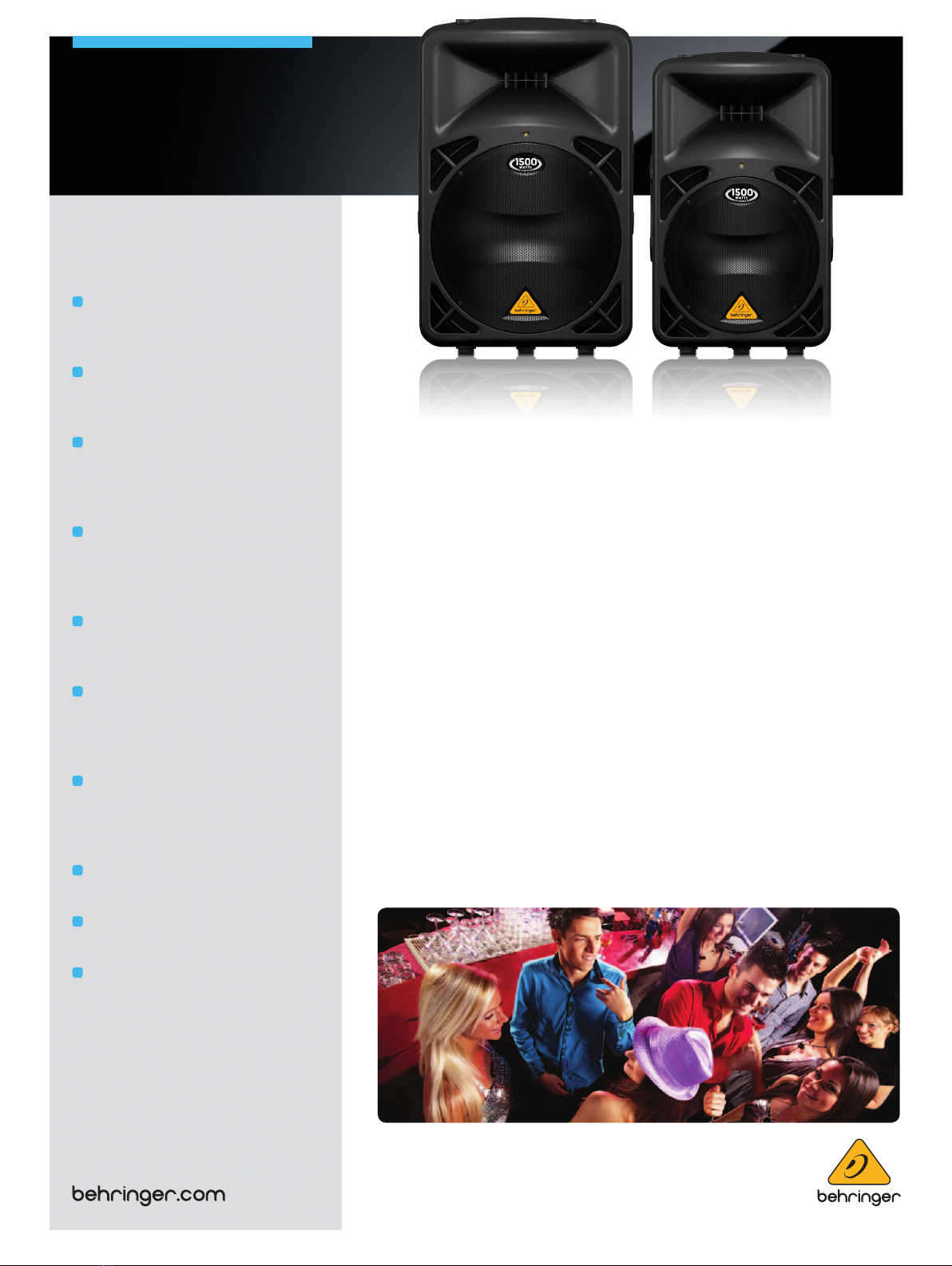

Behringer EUROLIVE B612D User manual

Thanks to our revolutionary Class-D
amplier technology and internal switch-
mode power supplies, EUROLIVE D
Seriesloudspeakers provide a much
better power-to-weight ratio than
competing active speakers. Put simply,
you get all the power of traditional
bi-amped active loudspeakers without
all the backbreaking weight. And the
sound quality of these lightweight
loudspeakers exceeds that of our
extremely popular EUROLIVE B215D and
B212D systems, plus we've given them
even more outputpower and a signicant
transducerupgrade.
Due to their high-eciency design,
EUROLIVE B615D and B612D active
loudspeakers crank out 1500 of the
cleanest, punchiest audio Watts we've
ever packed into a compact loudspeaker
system. The integrated sound processor
provides total system control for
dependable protection of the LF/HF
transducers, and thanks to the built-
in active high-pass lter, you can run
them full out without the slightest hint
of distortion. In addition, both models
feature an Ultra-Low Noise (ULN) Mic/Line
input with Level control and dedicated
2-band EQ (bass/treble) for easy control.
Intelligent by Design
One of the coolest things about active
loudspeakers is the lack of back-breaking
racks of amps, crossovers and EQs that are
often required to make passive speaker
systems sound almost as good. But that
comes with a trade-o—that extra
weight is transferred to the loudspeaker,
making it dicult for a single user to
heave all that mass onto the top of a
speaker stand. BEHRINGER EUROLIVE D
Series' “Intelligent-Design”merges the
best features of active loudspeakers
with signicantly lower weight through
the use of switch-mode power supplies
(SMPS) and Class-D amplier topology.
Active 1500-Watt 2-Way PA Speaker
System with 15" Woofer and 1.75"
Titanium Compression Driver
Continued on next page
High-power 1500-Watt 2-way PA
sound reinforcement speaker system
for live and playback applications
Ultra-compact and light weight
system delivers excellent sound even
at extreme sound pressure levels
Revolutionary Class-D amplier
technology: enormous power,
incredible sonic performance and
super-light weight
Internal switch-mode power supply
for noise-free audio, superior
transient response and very low
power consumption
Integrated sound processor for
ultimate system control and
speakerprotection
Extremely powerful 15/12''
long-excursion driver provides
incredibly deep bass and
acousticpower
State-of-the-art 1.75''
titanium-diaphragm compression
driverforexceptional high-
frequencyreproduction
Ultra-wide dispersion, large-format
exponential horn
Ultra-low noise Mic/Line input with
Volume control and Clip LED
Dedicated 2-band EQ for perfect
sound adjustment
EUROLIVE
B615D/B612D
Professional Powered Speakers

Page 2 of 5
Class-D Amplier Technology Delivers
High Power With Low Weight
Instead of operating relatively
continuously like Class-AB circuits,
Class-D amps switch on and o thousands
of times per second, delivering power
only as it is needed. In other words, the
amplier is either fully on or fully o,
which signicantly reduces the power
losses in the output devices. Although we
didn't invent Class-D technology, our R&D
Department has spent years perfecting
our own version with all the benets of
reduced weight and cool running—and
none of the drawbacks.

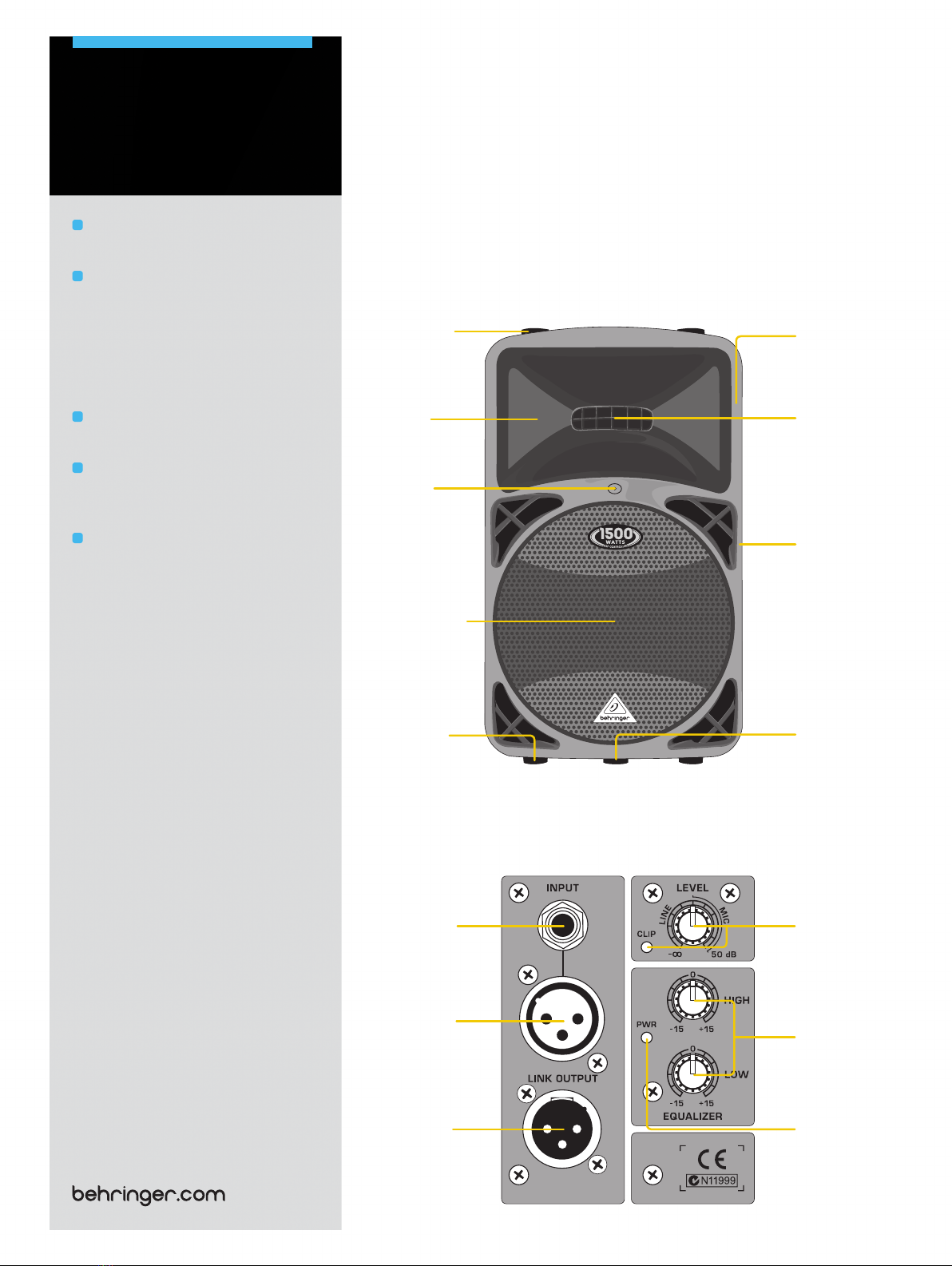

B615D/B612D rear panel callout
¼" INPUT jack for
balanced TRS and
unbalanced TS
connections
MIC/LINE input
jack with internal
microphone
preamplier for
balanced XLR
connections
LINK OUTPUT
XLR jack lets you
connect additional
BEHRINGER active
loudspeaker systems
LEVEL control
with CLIP LED for
optimizing input
signal level
EQ HIGH &
LOW shelving
equalization
controls, ±15 dB
@ 12 kHz and 80 Hz
Power LED
Continued on next page
POWER LED
Ultra-wide
dispersion,
large format
multi-cell horn
State-of-the-art 1.75"
titanium-diaphragm
compression driver
for exceptional
high-frequency
reproduction
Extremely powerful
15"/12" long-excursion
LF transducer provides
incredibly deep bass
and acoustic power
Ergonomically shaped
carry handles on each
side of enclosure
for easy transport
of system
Top-mounted,
weight-balanced
carry handle
1- ⁄" (35-mm)
pole socket for
standard speaker
stands
Rubber feet for
stacking enclosure
on structures or
subwoofers
Impact resistant,
molded enclosure.
Trapezoid shape
allowsuseaspowered
monitor wedge
Additional Line output allows linking
of additional speaker systems
Versatile trapezoidal enclosure
design allows dierent positioning:
• Stand mounting with 35-mm
polesocket
• Tilts on its side for use as a
oormonitor
Ergonomically shaped handles for
easy carrying and setup
High-quality components and
exceptionally rugged construction
ensure long life
Conceived and designed by
BEHRINGER Germany
EUROLIVE
B615D/B612D

Page 3 of 5
Instant PA System
With just a single EUROLIVE D Series
loudspeaker and a microphone you can
set up an instant sound system. Thanks to
the built-in preamp section, you just
connect a dynamic mic and raise and
lower the volume with the Level control.
Place the speaker on a tabletop or stand,
and power up. It's just that easy. And if
you need more coverage, say for a larger
room or audience, you can add more
active loudspeakers via the convenient
Link Output XLR connector.
Stereo Music System
You can even use two D Series
enclosures for stereo playback of your
music sound les without any additional
hardware. Just plug the appropriate
stereo “breakout”adapter into your deck's
output jack and run the cables to the
¼" inputs on each loudspeaker. Set the
Level and EQ controls the same on both
enclosures. Voilà, instant party!
Marvelous as Monitors
Thanks to their trapezoidal design,
these cabinets can be laid on their side
providing the ideal angle for onstage
monitor wedge applications. Hookup
is simple, requiring only a single XLR or
¼" cable from the monitor send on your
mixing console and power. Additional
monitors can be chained together via the
XLR Link Output jack on the rear panel.
Massive Power to Size Ratio
At the heart of each B615D and B612D
are two high-current ampliers with a
combined maximum output of 1500 Watts.
These Class-D amps are capable of driving
the speakers to their maximum without
damage or distortion thanks to their internal
active protection circuits. Putsimply,
thesesystems will astound you with their
massive punch, smooth midrange and
articulate top-end.
Custom-Designed Transducers
Let's face it; the transducers (woofers and
tweeters) are the only part of a sound
system you actually hear, so we never
cut any corners here. While some of our
competitors are content to buy o-the-shelf
transducers and plug them into their boxes,
we custom-design and build ours from
scratch. We wind the voice coils, process
the paper pulp into cones—and even
machine our own back plates. This enables
us to control the quality, and frankly to
make better components, like the long-
excursion 12 and 15" LF transducers and
state-of-the-art 1.75" titanium-diaphragm
compression drivers we load into each and
every B612D/B615D.
Continued on next page
Connecting a Microphone
XM8500 Mic
Connecting a Music Player
CD Player
EUROLIVE
B615D/B612D

Page 4 of 5
Processor Controlled Output
Hidden deep inside each
enclosure is the equivalent of an
active 2-way electronic crossover,
graphic EQ, parametric EQ, mic preamp,
limiter and two Class-D power ampliers,
yet overall weight is less than comparable
loudspeaker systems. These components
work together seamlessly to provide
optimal sound quality without you ever
having to touch a single knob.
As output demands rise, the
internal processor frees up LF amp
and transducer resources by reducing
program bass content, so that higher
overall system volume can be realized.
It's like having a tiny soundman inside
each cabinet constantly monitoring and
changing output parameters for the best
possible sound.
Which Speaker Should I Buy?
Well, let's start with your application…
are you giving a speech in a hotel
ballroom—or rocking out at the local bar
or dance club? Whether to choose one
speaker cabinet over another depends on
your bass requirements. A 15" woofer has
about 40% more surface area with which
to move air than a 12" and that translates
into more bass. So if you're addressing a
meeting, or jamming at the local blues
joint, the B612D might be all you'll ever
need. But if you're providing disco in a
busy nightclub, hosting Karaoke night
in your living room, or just want a little
more “thump”, then the B615D may be a
better choice.
Sound Value
EUROLIVE active PA loudspeakers
stand head and shoulders above the
rest of the pack and deliver exceptional
performance, even when pushed to
their limits. Lightweight and powerful,
with built-in mixers, 2 band EQ and
custom-designed transducers, B612D and
B615D active loudspeakers are ideal for
both speech and music applications—at a
price unheard of in this class.
Experience the B612D and B615D
at your local dealer today and nd out
why more and more professionals are
turning to BEHRINGER EUROLIVE Series
active loudspeakers for their superb
performance and extraordinary value.
Powerful Low Frequency Response
The EUROLIVE D Series was built with
extended low frequency handling in
mind. Thanks to their internally braced,
injection-molded, tuned-port enclosures,
these bad boys really crank out serious
quantities of bass. Keep in mind that bass
response varies according to LF transducer
size, so the larger the speaker, the more bass
you will be able to generate.
Articulate Midrange and Treble
Even if your particular application doesn't
include booming bass, you'll love the sheer
accuracy of these loudspeakers. Over a
year went into designing an exponential
horn/titanium-diaphragm compression
driver combination that could handle
serious hard rock or dance music—yet
also satisfy audiophiles with its musical
timbre and attention to detail. For spoken
word, singing or acoustical instruments,
the EUROLIVE D Series is un-matched for
its ability to articulate complex harmonic
content. In fact, many customers say these
are the most natural-sounding speakers
they've ever heard, even when compared to
systems costing much more.

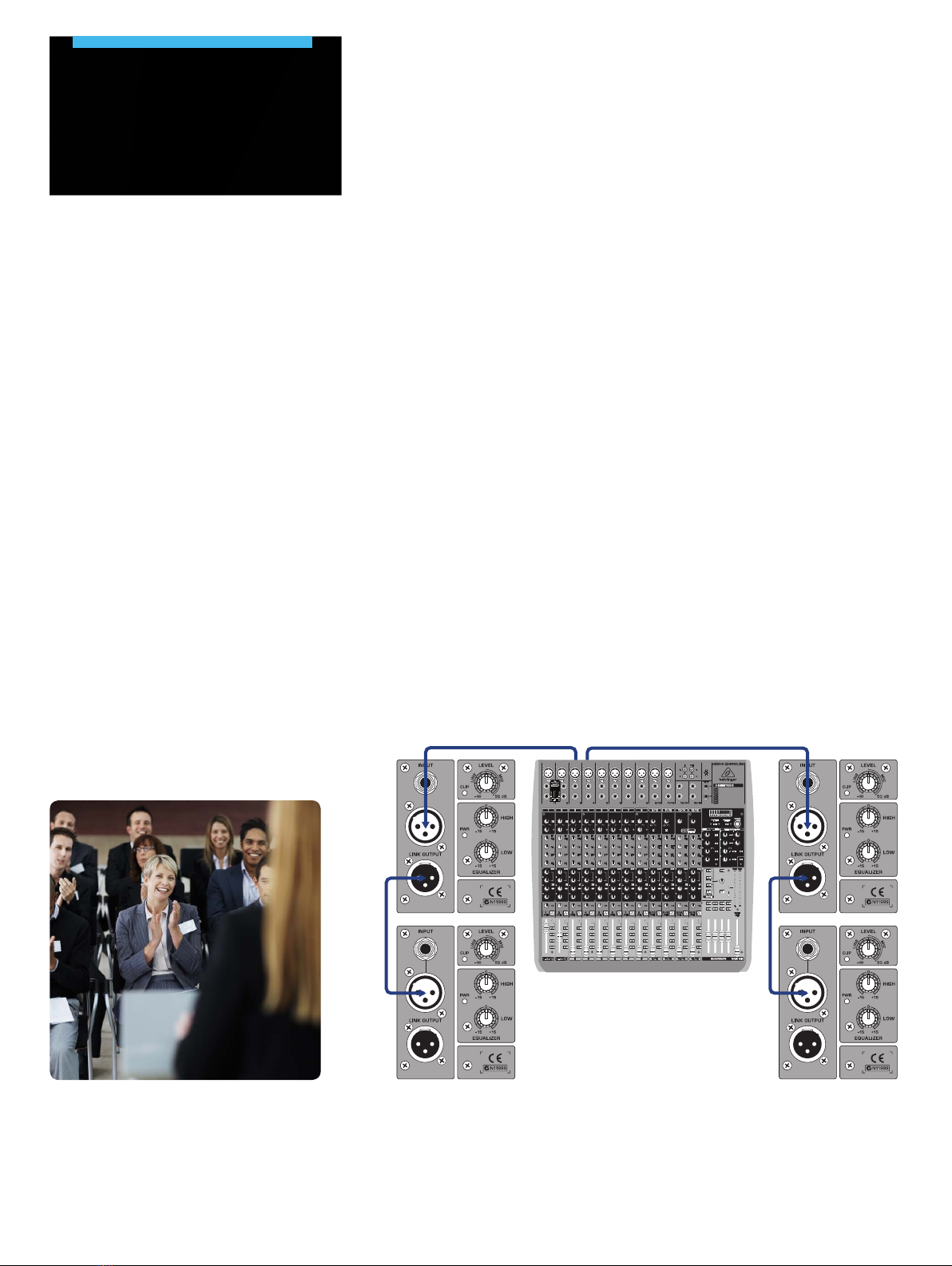

Connecting Multiple Loudspeakers
QX2442USB
EUROLIVE
B615D/B612D

Page 5 of 5
For service, support or more information contact the BEHRINGER location nearest you:
Technical specifications and appearances are subject to change without notice and accuracy is not guaranteed. BEHRINGER is part of the MUSIC Group (music-group.com). All trademarks are the property of their respective owners. MUSIC Group accepts no liability for any loss
which may be suffered by any person who relies either wholly or in part upon any description, photograph or statement contained herein. Colors and specifications may vary from actual product. MUSIC Group products are sold through authorized fullfillers and resellers only.
Fullfillers and resellers are not agents of MUSIC Group and have absolutely no authority to bind MUSIC Group by any express or implied undertaking or representation.This manual is copyrighted. No part of this manual may be reproduced or transmitted in any form or by any
means, electronic or mechanical, including photocopying and recording of any kind, for any purpose, without the express written permission of MUSIC Group IP Ltd. ALL RIGHTS RESERVED. © 2012 MUSIC Group IP Ltd.Trident Chambers,Wickhams Cay, P.O. Box 146, RoadTown,
Tortola, BritishVirgin Islands.
Europe
MUSIC Group Services UK
Tel: [phone]
Email: [email protected]om
USA/Canada
MUSIC Group Services NV Inc.
Tel: [phone]
Email: [email protected]om
Japan
MUSIC Group Services JP K.K.
Tel.: [phone]
Email: [email protected]om
Specications
B615D/B612D
Amplier Power Output
System
Max output power 1500 W
B615D
Speaker Size
Size 15" / 387 mm
1.75" / 44 mm
B612D
Speaker Size
Size 12" / 308 mm
1.75" / 44 mm
B615D/B612D
Audio Inputs
XLR (servo-balanced)
Sensitivity -40 dBu to +4 dBu
Input impedance 20 k
¼" TRS jack (servo-balanced)
Sensitivity -40 dBu to +4 dBu
Input impedance 20 k
Level control
Input Trim –∞ to + 30 dB
Max. input level +22 dBu
Link
Connector XLR connector
B615D
Loudspeaker System Data
Frequency Response 50 Hz to 18 kHz
Crossover frequency 1.8 kHz
Sound pressure level max. 126 dB SPL @ 1 m
Limiter Optical
Dynamic Equalizer Processor-controlled
B612D
Loudspeaker System Data
Frequency Response 60 Hz to 18 kHz
Crossover frequency 2.1 kHz
Sound pressure level max. 125 dB SPL @ 1 m
Limiter Optical
Dynamic Equalizer Processor-controlled
B615D/B612D
Equalizer
HIGH 12 kHz / ±15 dB
LOW 80 Hz / ±15 dB
Power Supply
Voltage (Fuses)
USA/Canada 120 V, 60 Hz (T 6.3 A H 250 V)
UK/Australia 240 V~, 50 Hz (T 3.15 A H 250 V)
Europe 230 V~, 50 Hz (T 3.15 A H 250 V)
Japan 100 V~, 50-60 Hz (T 6.3 A H 250 V)
Power consumption max. 600 Watts
Mains connection Standard IEC receptacle
B615D
Dimensions/Weight
Dimensions (H x W x D) 28.8 x 18.5 x 16.7"
732 x 470 x 424 mm
Weight 57.8 lbs / 26.2 kg
B612D
Dimensions/Weight
Dimensions (H x W x D) 25.9 x 15.5 x 15.1"
658 x 394 x 384 mm
Weight 49 lbs / 22.2 kg
Please note these specifications are preliminary and conceptual in nature, and as such are subject
to change as product development progresses. This information is supplied for market research
purposes only and is not to be made public in any manner. This document is solely the property of
The MUSIC Group, or one of its subsidiaries, and must be surrendered upon request of the owner.
EUROLIVE
B615D/B612D
