Beko DSFS 4530 User manual

tüm siyah yazılar matbaaya giderken
gönderilmiyor.
Atılım rması basıyor
DSFS 4530
DSFS 4530 S
DIS 4530
Dishwasher
Instruction Manual

This product was manufactured using the latest technology in environmentally friendly conditions.
Dear customer,
Please read carefully right through this instruction booklet before installing or
operating your dishwasher. The following instructions should prevent the risk of
personal injury and/or damage to the appliance.
Please keep these documents in a safe place for later reference.
This operating manual has been written for several different machines, and some
of the features mentioned here may not apply to your particular model.
Explanation of symbols
Throughout this User Manual the following symbols are used:
Important information or useful hints about usage
Warning for hazardous situations with regard to life and property
Warning for electric shock

DSFS 4530
DSFS 4530 S
DIS 4530
Dishwasher
Instruction Manual

Dear customer,
Please read carefully right through this instruction booklet before installing or
operating your dishwasher. The following instructions should prevent the risk of
personal injury and/or damage to the appliance.
Please keep these documents in a safe place for later reference.
This operating manual has been written for several different machines, and some
of the features mentioned here may not apply to your particular model.
Explanation of symbols
Throughout this User Manual the following symbols are used:
Important information or useful hints about usage
Warning for hazardous situations with regard to life and property
Warning for electric shock
This product was manufactured using the latest technology in environmentally friendly conditions.

CONTENTS
1. Dishwasher 3
2. Important safety instructions 5
General safety 5
Intended use 5
Children’s safety 6
3. Installation 7
Appropriate installation location 7
Connecting water supply 7
Connection to the drain 8
Adjusting the feet 9
Aquasafe+ 9
Electrical connection 9
Initial use 9
Disposing of packaging material 10
Transportation of the product 10
Compliance with the WEEE Directive
and Disposing of the Waste Product: 10
Compliance with RoHS Directive: 10
4. Prewashing 11
Tips for energy saving 11
Water softening system 11
Adjusting the water softening system 11
Adding salt 12
Detergent 13
Adding detergent 13
Tablet detergents 14
Rinse aid 15
Silverware basket 18
Collapsable lower basket wires 18
Collapsable lower basket wires
(2 & 4 pieces) 19
Adjusting the height of empty upper
basket 20
Adjusting the height of loaded upper
basket 21
5. Maintenance and cleaning 22
Cleaning the outer surface of the
product 22
Cleaning the interior of the machine 22
Cleaning the filters 22
Cleaning the hose filter 23
Cleaning the impellers 23
6. Troubleshooting 25

3EN














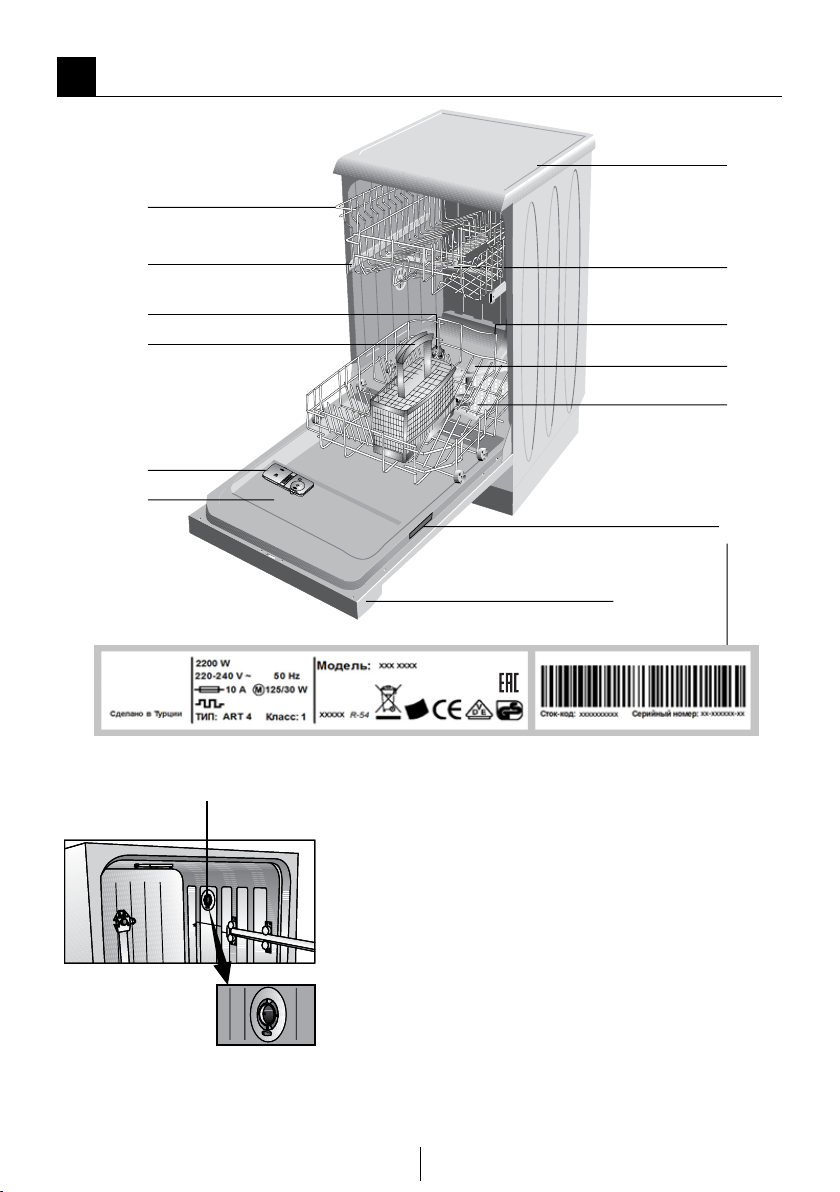

1Getting To Know Your Machine
View of the Machine
1. Upper dish basket with shelf
2. Guide rail for the upper dish basket
3. Salt container
4. Cutlery basket
5. Detergent dispenser
6. Door
7. Control panel
8. Filters
9. Lower sprayer arm
10. Lower basket
11. Upper sprayer arm
12. Housing (depends on the model)
13. Turbo fan heat drying system (depends on
the model)
14. Model and serial tag


4EN
Technical Specifications
Permitted water pressure: 0,3 –10 bar (= 3 – 100 N/cm² = 0,01-1,0Mpa)
Electrical connection: 220-240 Volts, 10 Amps (see type plate)
Energy efficiency class “A”
Electrical Safety class-1
Output: 1900-2200 W
Heat output: 1800 W
This device corresponds to the following EU directives:
2006/95/EC: Low Voltage Directive
2004/108/EC: EMV Directive
DIN EN 50242: Electrical dishwasher for home use Testing procedures for
practical service conditions
Because we continually strive to improve our products, we may change our
specifications and designs without prior notice.
Note for Testing Institutes
The necessary information for performance testing will be provided upon request.
The request can be done by e-mail through:
Please do not forget to write the model code and stock code information of the
appliance besides your contact information in the e-mail. The model code and
stock code information can be found on the rating label, which is placed on the
side of the door.
[email protected]

5EN
2Important safety instructions
This section contains safety
instructions that will help to get
protected from risk of personal injury
or property damage Failure to follow
these instructions shall void all
warranties.
General safety
• Never place the product on a
carpet-covered oor; otherwise,
lack of airow beneath the product
will cause electrical parts to
overheat. This will cause problems
with your product.
• Do not operate the product if the
power cable / plug is damaged!
Call the Authorised Service Agent.
• Connect the product to a grounded
outlet protected by a fuse
complying with the values in the
“Technical specifications” table. Do
not neglect to have the grounding
installation made by a qualified
electrician. Manufacturer shall not
be liable for any damages that will
arise when the product is used
without grounding in accordance
with the local regulations.
• The water supply and draining
hoses must be securely fastened
and remain undamaged.
• Unplug the product when not in
use.
• Never wash the product by
spreading or pouring water onto it!
There is the risk of electric shock!
• Never touch the plug with wet
hands! Never unplug by pulling
on the cable, always pull out by
grabbing the plug.
• The product must be unplugged
during installation, maintenance,
cleaning and repairing procedures.
• Always have the installation and
repairing procedures carried out
by the Authorised Service Agent.
Manufacturer shall not be held
liable for damages that may arise
from procedures carried out by
unauthorised persons.
• Never use chemical solvents in the
product. They bring forth risk of
explosion.
• When you pull the upper and lower
baskets out completely, the door of
the product will bear all the weight
of the baskets. Do not put other
loads on the door; otherwise, the
product may tilt.
• Never leave the door of the
product open apart from loading
and unloading procedures.
• Do not to open the door of the
product when it is running unless
necessary. Be careful for the rush
of hot steam when you need to
open the door.
Intended use
This appliance is intended to be used
in household and similar applications
such as:
• staff kitchen areas in shops,
offices and other working
environments;
• farm houses;
• by clients in hotels, motels
and other residential type
environments;
• bed and breakfast type
environments;
• Only dishwasher safe detergents,
rinse aids and additives must be
used.

6EN
• The manufacturer waives any
responsibility arisen from incorrect
usage or transportation.
• The service life of your product
is 10 years. During this period,
original spare parts will be
available to operate the appliance
properly.
• This product should not be
used by persons with physical,
sensory or mental disorders or
unlearned or inexperienced people
(including children) unless they are
attended by a person who will be
responsible for their safety or who
will instruct them accordingly for
use of the product.
Children’s safety
• Electrical products are dangerous
for the children. Keep children
away from the product when it is
in use. Do not let them to tamper
with the product.
• Do not forget to close the door of
the product when leaving the room
where it is located.
• Store all detergents and additives
in a safe place away from the
reach of the children.

7EN
3Installation
Refer to the nearest Authorised
Service Agent for installation of your
product. To make the product ready
for use, make sure that the electricity,
tap water supply and water drainage
systems are appropriate before calling
the Authorised Service Agent. If they
are not, call a qualified technician
and plumber to have any necessary
arrangements carried out.
CPreparation of the location and
electrical, tap water and waste
water installations at the place of
installation is under customer's
responsibility.
BInstallation and electrical
connections must be carried out
by the Authorised Service Agent.
Manufacturer shall not be held
liable for damages that may arise
from procedures carried out by
unauthorised persons.
BPrior to installation, visually check
if the product has any defects on
it. If so, do not have it installed.
Damaged products cause risks for
your safety.
AMake sure that the water inlet and
discharge hoses are not folded,
pinched or crushed while pushing
the product into its place after
installation or cleaning procedures.
When placing the product, pay
attention not to damage the floor,
walls, piping, etc. Do not hold the
product from its door or panel to
move it.
Appropriate installation
location
• Place the product on a solid and
at oor that has sufficient load
carrying capacity! The product
must be installed on a at surface
in order for the door to be closed
comfortably and securely.
• Do not install the product at places
where temperature may fall below
0ºC.
• Place the product at least 1 cm
away from the edges of other
furniture.
• Place the product on a rigid oor.
Do not place it on a long pile rug
or similar surfaces.
ADo not place the product on the
power cable.
• Make sure that you select a
location that will allow you to load
and unload the dishes in a fast
and comfortable manner.
• Install the product in a place close
to the tap and the drain hole.
Select the installation location
by considering that it will not be
changed after the connections are
made.
Connecting water supply
CWe recommend attaching a filter
on the house/apartment supply
water inlet to protect the machine
from damages that may arise
from impurities (sand, dirt, rust,
etc.) coming from the urban water
supply system or from your own
water system as well as to prevent
complaints such as yellowing or
sludge accumulation at the end of
washing.

8EN
Connection to the drain
Water discharge hose can directly be
connected to the drain hole or sink’s
drainage. The length of this connection
must be min. 50 cm and max. 100 cm
from the oor.
1011
• Open the taps completely after
making the connections to check
for water leaks.
AFor your safety, close the water
inlet tap completely after the
washing programme is over.
          






Permitted water temperature: up to
25°C
The dishwasher may not be connected
to open warm water devices or ow-
through water heaters.
• Do not use old or used water inlet
hose on the new product. Use the
new water inlet hose supplied with
the product.
• Connect the water inlet hose
directly to the water tap. Pressure
coming from the tap should be
minimum 0.3 and maximum
10 bars. If the water pressure
exceeds 10 bars, a pressure
relief valve should be installed in
between.
C Use a screw-on hose connector
to connect the water inlet hose to
a water tap with a ¾ inch external
thread. If required, use a filter
insert to filter deposits from the
pipes.
1009
A discharge hose longer than 4 meters
causes dirty washing.
Attach the water discharge hose
to the drainpipe without bending it.
Tightly fix the water discharge hose to
the drainpipe in order to prevent any
dislocation of the water discharge hose
during operation of the product.
CDrainpipe must be connected to
the sewage system and it should
not be connected to any surface
water.

9EN
Adjusting the feet
If the door of the product cannot be
closed properly or if the product swings
when you push it slightly, then you
need to adjust the feet of the product.
Adjust the feet of the product as
illustrated in the installation manual
supplied with the product.
Aquasafe+
(depends on the model)
Protect the Aquasafe+ system against
water leaks that may occur at hose
inlet. Water contact with the valve
box of the system must be prevented.
Otherwise, electrical assembly will get
damaged. If the Aquasafe system is
damaged, unplug the product and call
the Authorised Service Agent.
AAs the hose set contains electrical
connections and assemblies, never
shorten or lengthen the hose with
extension hoses.
1010


Electrical connection
Connect the product to a grounded
outlet protected by a fuse complying
with the values in the "Technical
specifications" table. Manufacturer
shall not be liable for any damages
that will arise when the product is used
without grounding in accordance with
the local regulations.
• Connection must comply with
national regulations.
• Power cable plug must be within
easy reach after installation.
AUnplug the product after the
washing programme is over.
• The voltage and allowed fuse or
breaker protection are specified
in the “Technical specifications”
section. If the current value of
the fuse or breaker in the house
is less than 16 Amps, have a
qualified electrician install a 16
Amp fuse.
• The specified voltage must be
equal to your mains voltage.
• Do not make connections via
extension cables or multi-plugs.
BDamaged power cables must be
replaced by the Authorised Service
Agent.
BIf the product has a failure, it
should not be operated unless it is
repaired by the Authorised Service
Agent! There is the risk of electric
shock!
Initial use
Before starting to use the product,
make sure that all preparations
are made in accordance with the
instructions in sections "Important
safety instructions" and "Installation".
• To prepare the product to do the
dishes, perform first operation
in the shortest programme with

10 EN
Compliance with the
WEEE Directive and
Disposing of the Waste
Product:
This product complies with EU WEEE
Directive (2012/19/EU). This product
bears a classification symbol for waste
electrical and electronic equipment
(WEEE).
This product has been manufactured
with high quality parts and materials
which can be reused and are suitable
for recycling. Do not dispose of the
waste product with normal domestic
and other wastes at the end of its
service life. Take it to the collection
center for the recycling of electrical and
electronic equipment. Please consult
your local authorities to learn about
these collection centers.
Compliance with RoHS
Directive:
The product you have purchased
complies with EU RoHS Directive
(2011/65/EU). It does not contain
harmful and prohibited materials
specied in the Directive.
detergent while the machine is
empty. During the initial use, fill the
salt reservoir with 1 litre of water
prior to filling it with salt.
CSome water might have remained
in the product due to the
quality control processes in the
production. It is not harmful for the
product.
Disposing of packaging
material
Packaging materials are dangerous to
children. Keep packaging materials in
a safe place away from reach of the
children.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.
Transportation of the product
AIf you need to move the product, do
it in upright position and hold from
the rear side. Slanting the product
onto its front side may cause the
electronic parts in it get wet and
damaged.
1. Unplug the product before
transporting it.
2. Remove water drainage and water
supply connections.
3. Drain the remaining water in the
product completely.

11 EN
4Prewashing
Tips for energy saving
Following information will help you
use the product in an ecological and
energy-efficient manner.
• Wipe away any coarse food
remnants on the dishes before
putting them in the product.
• Operate the product after filling it
completely.
• When selecting a programme,
refer to the "Programme Table".
• Do not put more detergent than
suggested on the detergent
package.
Water softening system
CThe dishwasher requires soft
water. If the hardness of the water
is above 6°dH, the water must be
softened and descaled. Otherwise,
ions that create the hardness will
accumulate on the surfaces of the
dishes and may adversely affect
the washing, shining and drying
performances of the product.
The product is equipped with a water
softening system which reduces the
hardness of incoming water. This
system softens the supply water that
enters into the product to a level that
will allow washing the dishes with the
required quality.
Adjusting the water softening
system
Washing performance will increase
when water softening system is
adjusted properly.
Use the test stripe supplied with the
product to determine the supply water
hardness in order to adjust the system.

12 EN
1012
Adding salt
Water softening system needs to be
regenerated in order for the product
operates with the same performance
continuously. Dishwasher salt is used
for this purpose.
CUse in your product only the
special softening salts produced
particularly for use in dishwashers.
CWe recommend using granular
or powder softening salts. Do not
use salts containing insoluble
substances such as table salt
or common salt in the machine.
Performance of water softening
system may deteriorate in time.
CSalt reservoir will fill with water
when you start the product.
Therefore, add the softening salt
before starting the machine.
1. First take the lower basket out to
add softening salt.
2. Turn the salt reservoir lid in counter
clockwise to open it (A, B).
CBefore initial use, fill the water
softening system with 1 litre of
water (C).
3. Fill the salt reservoir with salt by
using salt funnel (D). To speed up
dissolution rate of salt in water, stir
it with a spoon.
CYou can put about 2 kg of softening
salt into the salt reservoir.
4. Replace the lid and tighten it
securely when the reservoir is full.

13 EN
1014
1014

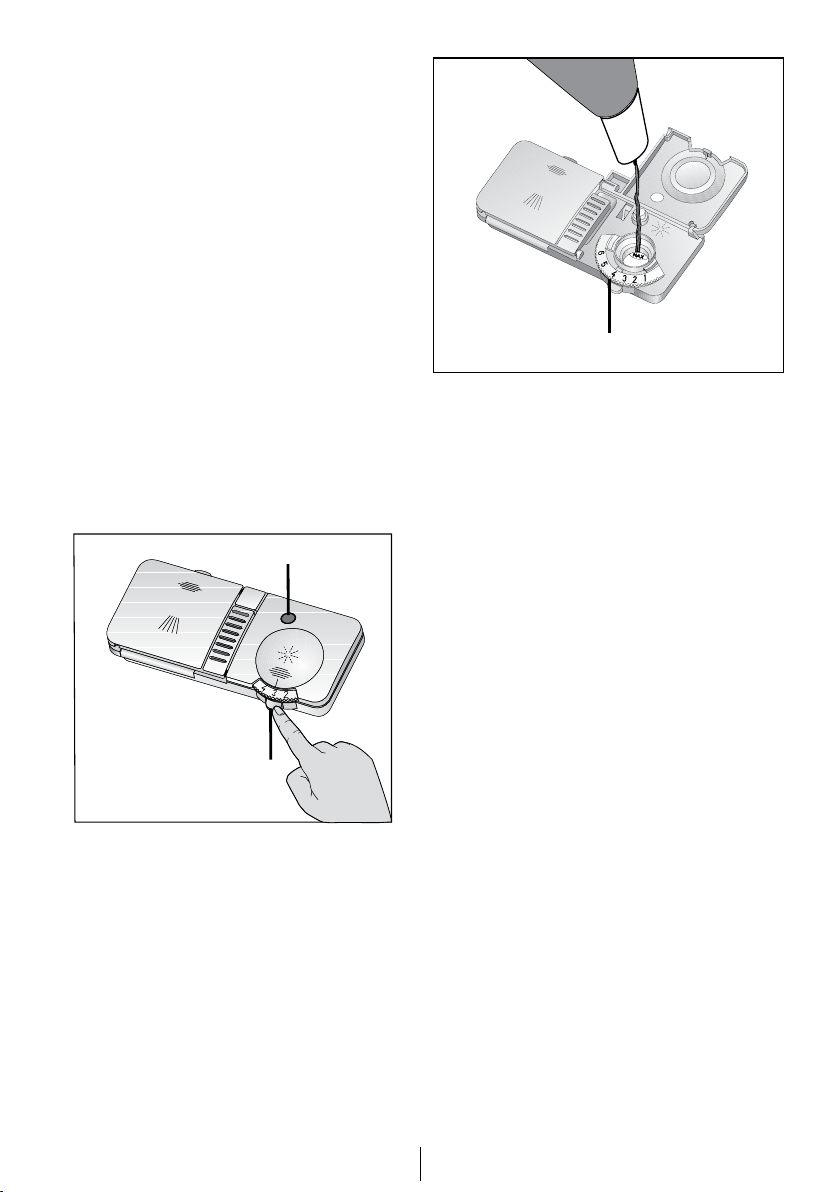

Put the detergent into the detergent
dispenser just before operating the
machine as illustrated below.
1. Push the latch to right to open the
detergent dispenser lid (A).
5. If you will not start a washing
programme immediately after
adding the salt, run the machine
empty in the shortest programme
to dissolve and wash away the
scattered salt in the machine.
CSince different salt brands in the
market have different particle sizes
and since the water hardness
may vary, dissolution of the salt in
water may take a couple of hours.
Therefore, Salt Indicator remains
on for a while after adding salt into
the machine.
Detergent
You can use powder or tablet detergent
in the machine.
COnly use in the machine the
detergents produced particularly
for use with dishwashers. We
recommend you not to use
detergents that contain chlorine
and phosphate as they are harmful
for the environment.
CContact the detergent producer if
the dishes are wet and/or if you
notice limescale spots particularly
on glasses after the washing
programme is over.
Adding detergent
CRefer to the “Programme Table”
to determine the correct amount
of detergent for the selected
programme.
BDo not put solvents into the
detergent dispenser. There is the
risk of explosion!
2. Put suggested amount of powder
or tablet detergent in the dispenser.
CInside the detergent dispenser,
there are level markings that help
you use appropriate amount of
detergent. When brimful, detergent
dispenser will contain 40 cm³ of
detergent. Fill detergent up to 15
cm³ or 25 cm³ level marks in the
detergent dispenser according
to fullness of the machine and/or
soiling degree of the dishes (1).

 




 



CIf dishes have been waiting for a
long time and have dried residues,
fill the 5 cm³ compartment too (5).

14 EN
2222
rinse aid and water softening salt
individually.
CInformation about suitable places
(detergent dispenser, basket etc.)
in the dishwasher to place the
tablet can be found amongst the
usage instructions on the packages
of the tablet detergents.
Tablet detergent types commonly found
in the market:
2in1: Contains detergent, rinse aid or
water softening salt
3in1: Contains detergent, rinse aid and
water softening salt
4in1: Contains glass protectors in
addition to detergent, rinse aid and
water softening salt
5in1: Contains glass and stainless
steel protectors in addition to
detergent, rinse aid and water
softening salt
CObserve the instructions of
the detergent manufacturer on
the package when using tablet
detergents.
When you switch to powder
detergent from tablet detergent:
1. Make sure that salt and rinse aid
reservoirs are full.
2. Set the water hardness to the
highest level and perform an empty
run.
3. After the empty washing cycle,
review the user manual and
readjust the water hardness level
so as to suit the water supply.
4. Make the appropriate rinse aid
settings.
CDepending on the model, salt
indicator and/or rinse aid indicator
must be enabled again if they were
disabled before.
3. Close the detergent dispenser lid
by pressing on it lightly. A "click"
will be heard when the lid is closed.
CIn programmes with prewash and
at high temperature, in which you
use tablet detergents, make sure
that the detergent dispenser lid is
closed firmly.
CUse powder detergent in short
programmes without prewash
since the solubility of the tablet
detergent changes depending on
the temperature and time.
AExcessive usage of powder
detergents will cause the detergent
not dissolve completely and will
also cause scratches on the
glassware.
Tablet detergents
Table detergents exhibit water
softening and / or rinse aid effect in
addition to detergent effect. Some
types of these detergents also contain
special-purpose washing chemicals
such as glass and stainless steel
protectors.

 



CTablet detergents give satisfying
results only under certain usage
conditions. The best washing
performance in dishwashers is
obtained by using detergent,

15 EN
1013_redaksiyon
1013_redaksiyon
Rinse aid
CThe rinse aid used in dishwashers
is a special combination used to
increase drying efficiency and
prevent water or limescale stains
on the washed items. For this
reason, care must be paid to have
rinse aid in the rinse aid reservoir
and to use rinse aids produced
specially for dishwashers only.
Check Rinse Aid Indicator to determine
whether it is necessary to add rinse
aid or not 3 (depends on the model).
Having a dark light on the indicator
shows that there is sufficient amount of
rinse aid in the dispenser. If the colour
of the indicator is light, add rinse aid.
1. Open the lid of the rinse aid
reservoir by pressing its latch (B).
4. Turn the rinse aid amount
adjuster manually to a position
between 1 and 6 (4). If there are
stains on tableware items after
washing, level must be increased
and if there is a blue trace after
wiping them by hand, it must be
decreased. This is set to position 4
as factory default.
Items not suitable for washing in the
dishwasher
• Never wash dishes soiled by
cigarette ash, candle remnants,
polish, dyestuff, chemicals, etc. in
your dishwasher.
• Do not wash iron alloy items in the
dishwasher. It can get corroded or
leave stains on other items.
• Do not wash silverware and
cutlery with wooden or bone
stems, glued pieces, or pieces that
are not resistant to heat, as well as
copper and tin-plated containers in
the dishwasher.
CDecorative prints of chinaware as
well as aluminum and silver items
may get discoloured or tarnished
after washing in the dishwasher
just as it happens in handwashing
as well. Some delicate glass types
and crystals may become dull in






2. Fill the reservoir until “MAX” level.
3. Close the lid of the reservoir by
pressing on it lightly.
CWipe clean any spilled rinse aid
outside the reservoir. Rinse aid
that spilled accidentally will cause
foaming and it will eventually
decrease washing performance.

16 EN
time. We strongly recommend
you to check if the tableware you
are going to purchase is suitable
for washing especially in the
dishwasher.
Placing the dishes into the
dishwasher
You can use your dishwasher in the
optimum way with respect to energy
consumption and washing and drying
performance only if you place the
dishes in an orderly way.
• Wipe away any coarse food
remnants (bones, seeds, etc.) on
the dishes before placing them in
the dishwasher.
• Place thin, narrow pieces in the
middle sections of baskets if
possible.
• There are two separate baskets in
which you can place your dishes in
the dishwasher. Place the heavily
soiled and bigger items in the
lower basket and smaller, delicate
and light items in the upper
basket.
• Place the hollowed dishes such as
bowls, glasses and pans upside
down in the dishwasher. Thus,
accumulation of water in deep
hollows is prevented.
ATo prevent possible injuries, always
place the sharp and pointed
dishes such as service fork, bread
knife, etc. upside down so as their
pointed ends will face down or
they will lie horizontally on the dish
baskets.
• Unload dishes in the lower basket
first and then the dishes in the
upper basket.

17 EN

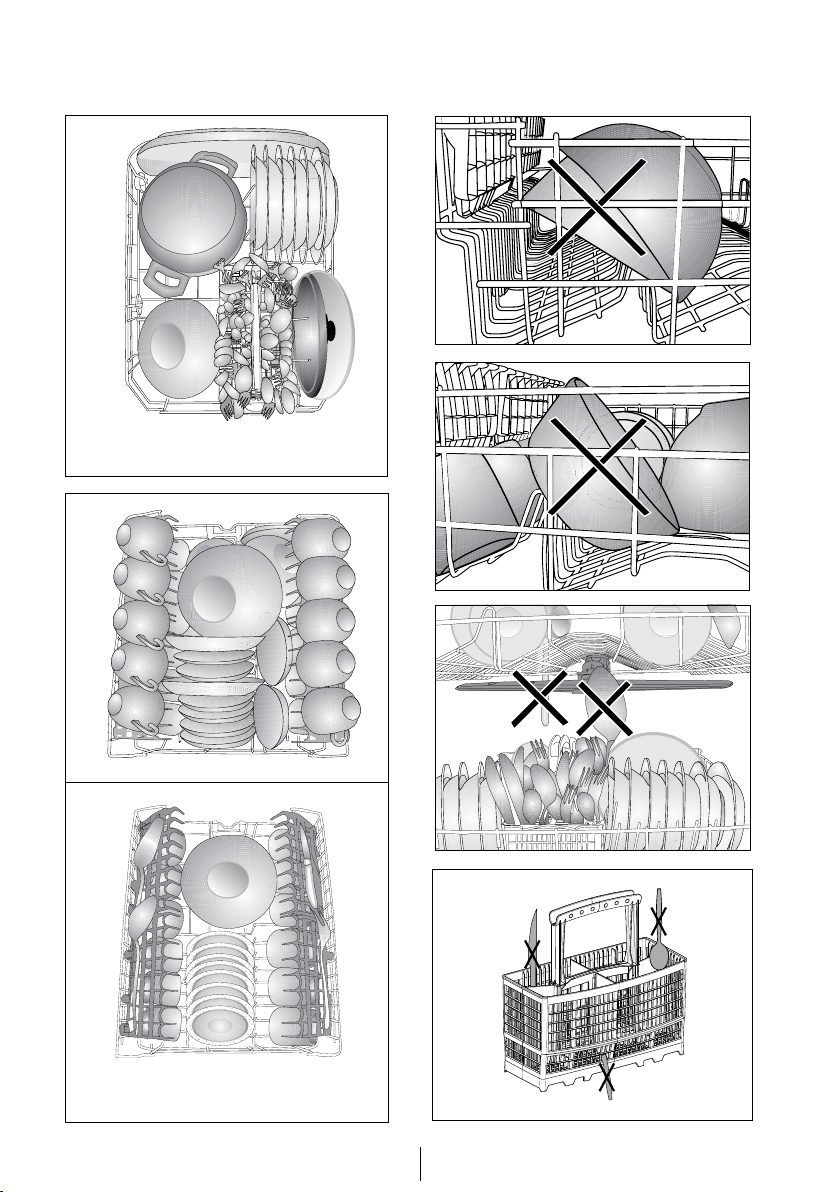

Suggestions for loading the
dishwasher
Lower basket
Upper basket
Improper loading of dishware
