Beko DSX93460 User manual

Dryer
User Manual
DSX 93460 W
2960311307_KM/130117.2102
EN

Please read this user manual first!
Dear Customer,
Thank you for prefering a Beko product. We hope that your product which has been
manufactured with high quality and technology will give you the best results. We advise you
to read through this manual and the other accompanying documentation carefully before
using your product and keep it for future reference. If you transfer the product to someone
else, give its manual as well. Pay attention to all details and warnings specified in the user
manual and follow the instructions given therein.
Use this user manual for the model indicated on the cover page.
Read the instructions.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful hints about usage.
AWarning for hazardous situations with regard to life and property.
BWarning against electric shock.
Warning against hot surfaces.
Warning against fire hazard.
Packaging materials of the product are manufactured from recyclable materials in
accordance with our National Environment Regulations.
Do not dispose of the packaging wastes with the domestic waste or other wastes, discard
them to the dedicated collection points designated by the local authorities.
This product was manufactured using the latest technology in environmentally friendly conditions.

TABLE OF CONTENTS
1 Important safety and
environmental instructions 4
1.1 General safety ........................................4
1.1.1 Electrcal safety ...............................5
1.1.2 Product safety .................................6
1.2 Mountng over a washng machne8
1.3 Intended use...........................................9
1.4 Chld safety..............................................9
1.5 Complance wth the WEEE
regulaton and dsposng of the waste
product .......................................................... 10
1.6 Complance wth RoHS Drectve: 10
1.7 Package nformaton ........................ 10
1.8 Techncal specfcatons ..................11
2 Your Dryer 12
2.1 Overvew.................................................12
2.2 Package contents...............................13
3 Installation 14
3.1 Appropriate installation location..14
3.2 Removing the transportation safety
assembly........................................................14
3.3 Connecting to the drain ...................14
3.4 Adjusting the feet ..............................15
3.5 Electrical connection.........................15
3.6 Transportation of the dryer............15
3.7 Warnings about sounds ...................16
3.8 Changing the illumination lamp ...16
4Electrical Connection 17
4.1 Attention! ...............................................17
4.2 Electrical requirements....................17
4.3 Fitting a different plug .....................17
4.4 Washer/dryer combination ............17
5 Preparation 18
5.1 Laundry suitable for drying in the
dryer................................................................ 18
5.2 Laundry not suitable for drying in the
dryer................................................................ 18
5.3 Preparing laundry for drying ......... 18
5.4 Things to be done for energy
saving............................................................. 18
5.5 Correct load capacity........................ 19
6 Operating the product 20
6.1 Control panel........................................20
6.2 Screen symbols...................................20
6.3 Preparing the machine.....................21
6.4 Program selection..............................21
6.5 Main programs .....................................21
6.6 Extra programs....................................21
6.7 Programme selection and
consumption table.................................... 23
6.8 Auxiliary functions............................24
6.9 Warning symbols ...............................24
6.10 End duration......................................24
6.11 Starting the programme............... 25
6.12 Child Lock............................................ 25
6.13 Changing the programme after it is
started ........................................................... 25
6.14 Canceling the programme ...........26
6.15 Programme end................................26
7 Maintenance and cleaning 27
7.1 Cleaning Lint Filter / Loading Door
Inner Surface............................................... 27
7.2 Cleaning the sensor .........................28
7.3 Draining the water tank ..................28
7.4 Cleaning the filter drawer .............29
7.5 Cleaning the evaporator..................30
8 Troubleshooting 31
9 Service 33

4 / EN Dryer / User Manual
1Important safety and environmental
instructions
Ths secton contans safety nstructons that wll help
protect from rsk of personal njury or property damage.
Falure to follow these nstructons shall vod any warranty.
1.1 General safety
•The dryer can be used by chldren at and above 8
years old and by persons whose physcal, sensory or
mental capabltes were not fully developed or who
lack experence and knowledge provded that they are
supervsed or traned on the safe usage of the product
and the rsks t brngs out. Chldren should not play wth
the product. Cleanng and mantenance works should not
be performed by chldren unless they are supervsed by
someone.
•Chldren of less than 3 years should be kept away unless
contnously supervsed.
•Adjustable feet should not be removed. The gap between
the dryer and the floor should not be reduced wth
materals such as carpet, wood and tape. Ths wll cause
problems wth the dryer.
•Always have the nstallaton and reparng procedures
carred out by the Authorsed Servce. Manufacturer
shall not be held lable for damages that may arse from
procedures carred out by unauthorsed persons.
•Never wash the dryer by sprayng or pourng water onto t!
There s the rsk of electrc shock!

5 / EN
Dryer / User Manual
Important instructions for safety and
environment
1.1.1 Electrcal safety
AElectrcal safety nstructons should be followed
whle electrcal connecton s made durng the
nstallaton.
AThe applance must not be suppled through an
external swtchng devce, such as a tmer,or
connected to a crcut that s regularly swtched on
and off by utlty.
•Connect the dryer to a grounded outlet protected by a
fuse at the value specfed on the type label. Have the
groundng nstallaton performed by a qualfed electrcan.
Our company shall not be lable for any damages that
wll arse when the dryer s used wthout groundng n
accordance wth the local regulatons.
•The voltage and allowed fuse protecton s stated on the
type label plate.
•The voltage specfed on the type label must be equal to
your mans voltage.
•Unplug the dryer when t s not n use.
•Unplug the dryer from the mans durng nstallaton,
mantenance, cleanng and repar works.
•Do not touch the plug wth wet hands! Never unplug by
pullng on the cable, always pull out by grabbng the plug.
•Do not use extenson cords, mult-plugs or adaptors to
connect the dryer to power supply n order to decrease the
rsk of fre and electrc shock.
•Power cable plug must be easly accessble after
nstallaton.
BDamaged mans cable should be changed by an
Authorsed Servce agent.
BIf the dryer s faulty, t must not be operated unless
t s repared by an authorsed servce agent! There s
the rsk of electrc shock!

6 / EN Dryer / User Manual
Important instructions for safety and
environment
1.1.2 Product safety
•Superheatng of the clothes nsde of the dryer can
occur f you cancel the programme or n the event
of a power falure whlst the dryer s runnng, ths
concentraton of heat can cause self-combuston
and fre so always actvate the ventlaton
programme to cool down or quckly remove all
laundry from the dryer n order to hang them up
and dsspate the heat.
Ponts to be taken nto consderaton for fre
hazard:
Below specfed laundry or tems must not be dred
n the dryer because of fre hazard.
•Unwashed laundry tems
•Items soled wth ol, acetone, alcohol, fuel ol,
kerosene, stan removers, turpentne, paraffn or
solvents must be washed n hot water wth plenty
of detergent before beng dred n the dryer.
Below specfed laundry or tems must not be
dred n the dryer due to the fre hazard:
•Garments or pllows bolstered wth rubber foam
(latex foam), shower caps, water resstant textles,
materals wth rubber renforcement and rubber
foam pads.
•Clothng cleaned wth ndustral chemcals.
Items such as lghters, matches, cons, metal parts,
needle etc. may damage the drum set or may lead
to functonal problems. Therefore check pockets off
the laundry that you wll load nto your dryer.
Never stop your dryer before the programme
completes. If you must do ths, remove all laundry
quckly and lay them out to dsspate the heat.

7 / EN
Dryer / User Manual
Important instructions for safety and
environment
Clothes that are washed nadequately may gnte on
ther own and even may gnte after dryng ends.
•You must provde enough ventlaton n order to prevent
gases extng from devces operatng wth other types of
fuels ncludng the naked flame from accumulatng n the
room due to the back fre effect.
AClothng that contans metal renforcements should
not be dred n the dryer. Dryer may be damaged
f metal renforcements come loose and break off
durng dryng.
CUse softeners and smlar products n accordance
wth the nstructons of ther manufacturers.
CAlways clean the lnt flter before or after each
loadng. Never operate the dryer wthout the lnt
flter nstalled.
•Never attempt to repar the dryer by yourself. Do not
perform any repar or replacement procedures on the
product even f you know or have the ablty to perform
the requred procedure unless t s clearly suggested n the
operatng nstructons or the publshed servce manual.
Otherwse, you wll be puttng your lfe and others’ lves n
danger.
•There must not be a lockable, sldng or hnged door that
may block the openng of the loadng door n the place
where your dryer s to be nstalled.
•Install your dryer n a sutable place that s dry, well
ventlated and unlkely to get below 5 degrees Centgrade.
•Make sure that pets do not enter the dryer. Check the
nsde of the dryer before operatng t.
•Do not lean on the loadng door of your dryer when t s
open, otherwse t may fall over.

8 / EN Dryer / User Manual
Important instructions for safety and
environment
•The lnt must not be allowed to accumulate around the
tumble dryer.
1.2 Mountng over a washng machne
•A fxng devce should be used between the two machnes
when nstallng the dryer above a washng machne. The
fttng devce can be obtaned through spare part supplers.
•Total weght of the washng machne and the dryer -wth
full load- when they are placed on top of each other
reaches to approx. 180 klograms. Place the products on a
sold floor that has suffcent load carryng capacty!
AWashng machne cannot be placed on the dryer.
Pay attenton to the above warnngs durng the
nstallaton on your washng machne.
Installation Table for Washing Machine and Dryer
Dryer
Depth
Washing Machine Depth
62 cm 60 cm 54 cm 50 cm 49 cm 45 cm 40 cm
54 cm Can be stacked Can be
stacked Cannot be
stacked
60 cm Can be stacked Cannot be
stacked

9 / EN
Dryer / User Manual
Important instructions for safety and
environment
1.3 Intended use
•Dryer has been desgned for domestc use. It s not sutable
for commercal use and t must not be used out of ts
ntended use.
•Use the dryer only for dryng laundry that are marked
accordngly.
•The manufacturer waves any responsblty arsen from
ncorrect usage or transportaton.
•Orgnal spare parts wll be avalable to repar the dryer for
a perod of 10 years.
1.4 Chld safety
•Packagng materals are dangerous for the chldren. Keep
packagng materals away from chldren.
•Electrcal products are dangerous for the chldren. Keep
chldren away from the product when t s operatng. Do
not let them tamper wth the dryer. Use the chld-proof
lock n order to prevent the chldren to tamper wth the
dryer.
CChld-proof lock s on the control panel.
(See Chld lock)
•Keep loadng door closed even when the dryer s not n
use.

10 / EN Dryer / User Manual
Important instructions for safety and
environment
1.5 Complance wth the WEEE regulaton
and dsposng of the waste product
Ths product comples wth EU WEEE Drectve
(2012/19/EU). Ths product bears a classfcaton
symbol for waste electrcal and electronc equpment
(WEEE).
Ths product has been manufactured wth hgh
qualty parts and materals whch can be reused and are
sutable for recyclng. Do not dspose of the waste product
wth normal domestc and other wastes at the end of ts
servce lfe. Take t to the collecton center for the recyclng
of electrcal and electronc equpment. Please consult your
local authortes to learn about these collecton centers.
1.6 Complance wth RoHS Drectve:
The product you have purchased comples wth EU RoHS
Drectve (2011/65/EU). It does not contan harmful and
prohbted materals specfed n the Drectve.
1.7 Package nformaton
Packagng materals of the product are manufactured
from recyclable materals n accordance wth our Natonal
Envronment Regulatons. Do not dspose of the packagng
materals together wth the domestc or other wastes. Take
them to the packagng materal collecton ponts desgnated
by the local authortes.

11 / EN
Dryer / User Manual
Important instructions for safety and
environment
1.8 Techncal Specfcatons
Height (Min. / Max.) 84,6 cm / 86,6 cm*
Width 59,5 cm
Depth 60,9 cm
Capacity (max.) 9 kg**
Net weight (plastic front door
usage) 49,5 kg
Net weight (glass front door
usage) 52 kg
Voltage
See type label***Rated power input
Model code
* Mn. heght: Heght wth adjustable feet are closed.
Max. heght: Heght wth adjustable feet are opened
maxmum.
** Dry laundry weght before washng.
*** For the locaton of the type label on the dryer (see 2.1
Overvew.)
CTechncal specfcatons of the dryer are subject to
specfcaton wthout notce to mprove the qualty of
the product.
CFgures n ths manual are schematc and may not
match the product exactly.
C
Values stated on markers on the dryer or n the other
publshed documentaton accompanyng wth the
dryer are obtaned n laboratory n accordance wth
the relevant standards. Dependng on operatonal and
envronmental condtons of the dryer, these values
may vary.

12 / EN Dryer / User Manual
2Your Dryer
2.1 Overview
11
10
1
2
3
4
5
6
7
8
9

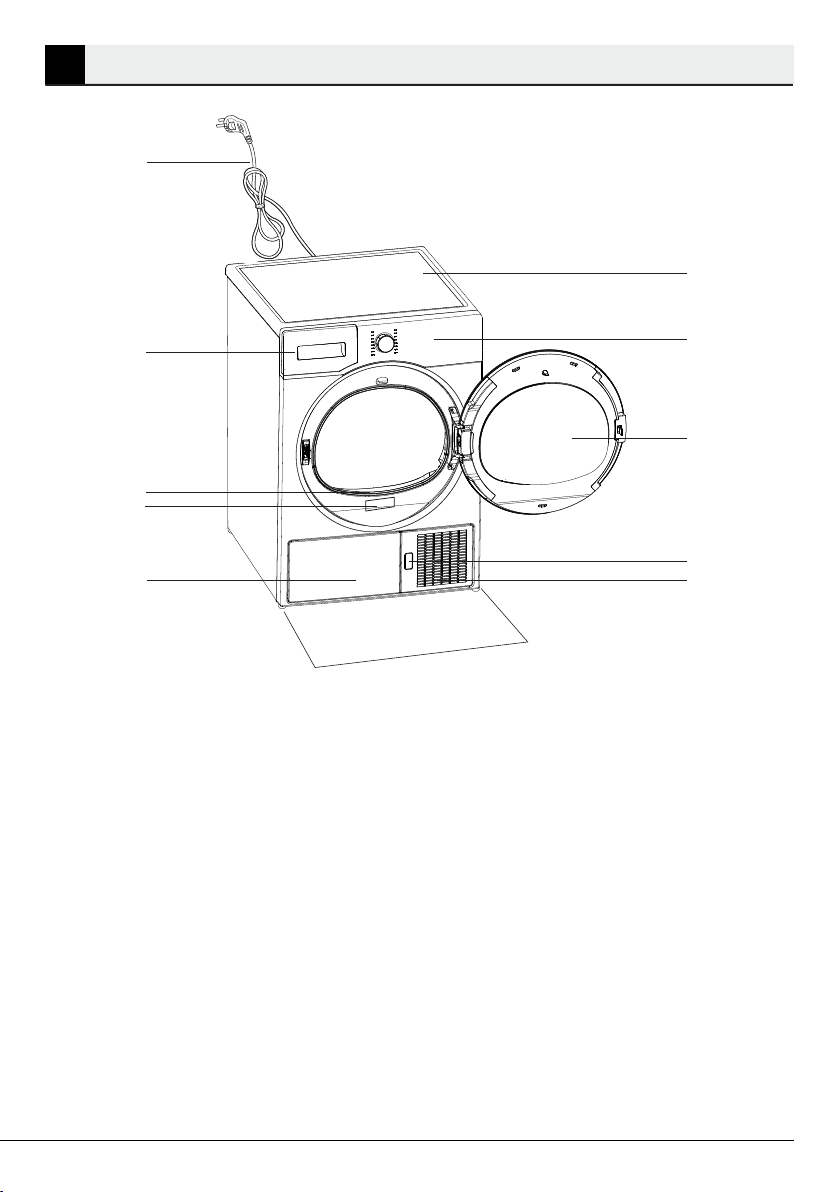

1. Top panel
2. Control panel
3. Loading door
4. Kick plate opening button
5. Ventilation grids
6. Adjustable legs
7. Kick plate
8. Type label
9. Lint filter
10. Water tank drawer
11. Power cord

13 / EN
Dryer / User Manual
2.2 Package Contents
12 3 5
4

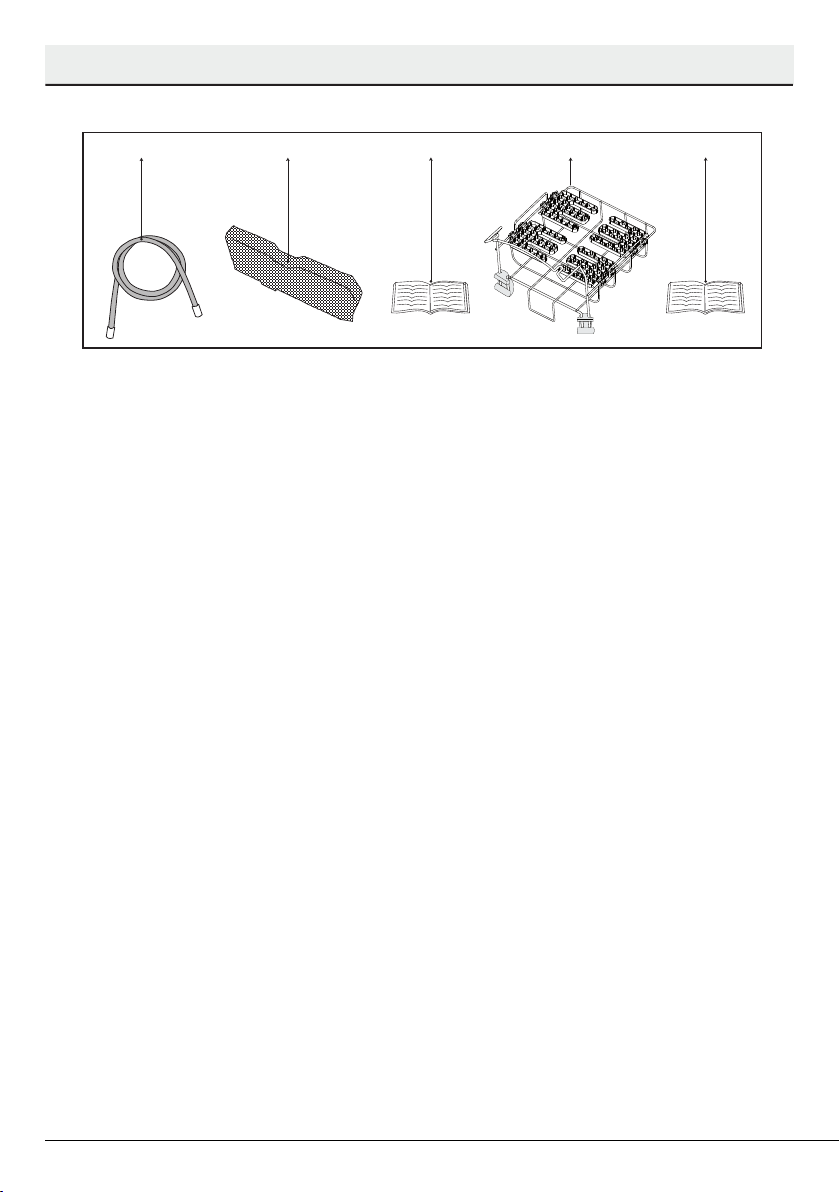

1. Water drain hose *
2. Filter drawer spare sponge*
3. User Manual
4. Drying basket*
5. Drying basket user manual*
*It can be supplied with your machine depending on its model.
Your Dryer

14 / EN Dryer / User Manual
3Installation
Before the calling the nearest Authorized
Service for the installation of the dryer,
ensure that electrical installation and
water drain is appropriate referring to the
user's manual. (See 3.3 Connecting to
the drain and 3.5 Electrical connection)
If they are not suitable, contact a qualified
electrician and technician to make necessary
arrangements.
CPreparation of the dryer's location
as well as the electrical and
waste water installations is under
customer's responsibility.
APrior to installation, visually check
if the dryer has any defects on
it. If the drier is damaged, do
not have it installed. Damaged
products cause risks for your
safety.
ALet your dryer wait for 12 hours
before starting to use it.
3.1 Appropriate installation
location
Install the dryer on a stable and level surface.
Dryer is heavy. Do not move it by yourself.
• Operate your dryer in a well ventilated,
dust-free environment.
• The gap between the dryer and the
surface should not be reduced by the
materials such as carpet, wood and tape.
• Do not cover the ventilation grills of the
dryer.
• There must not be a lockable, sliding or
hinged door that may block the opening
of the loading door in the place where
your dryer is to be installed.
• Once the dryer is installed, it should stay
at the same place where its connections
have been made. When installing the
dryer, make sure that its rear wall does
not touch anywhere (tap, socket, etc.).
• Place the dryer at least 1 cm away from
the edges of other furniture.
• Your dryer can be operated at
temperatures between +5°C and +35°C.
If the operating conditions fall outside
of this range, operation of the dryer
will be adversely affected and it can get
damaged.
• The rear surface of the tumble dryer
shall be placed against a wall.
BDo not place the dryer on the
power cable.
3.2 Removing the
transportation safety
assembly
ARemove the transportation safety
assembly before using the dryer
for the first time.
• Open the loading door.
• There is a nylon bag inside the drum that
contains a piece of styrofoam. Hold it
from its section marked with XX XX.
• Pull the nylon towards yourself and
remove the transportation safety
assembly.
ACheck that no part of the
transportation safety assembly
remains inside the drum.
3.3 Connecting to the drain
In products equipped with condenser
unit, water accumulates in the water tank
during the drying cycle. You should drain
accumulated water after each drying cycle.
You can directly drain accumulated water
through the water drain hose supplied with
the product instead of periodically draining
the water collected in the water tank.
Please refer to the detailed instructions
supplied with the accessories pack.

15 / EN
Dryer / User Manual
Installation
Connecting the water drain hose
1-2 Pull hose at the behnd of the dryer
by hand n order to dsconnect t from
where t s connected. Do not use any
tools to remove the hose.
3Connect one end of the dran hose
suppled wth the dryer to the
connecton pont from where you
removed the hose of the product n
prevous step.
4Connect the other end of the dran hose
drectly to the wastewater dran or to
the washbasn.
1
3 4
2
AHose connection should be made
in a safe manner. Your drain house
will be flooded if the hose comes
out of its housing during water
discharge.
CWater drain hose should be
attached to a height of maximum
100 cm.
CMake sure that the water drain
hose is not stepped on and it is
not folded between the drain and
the machine.
3.4 Adjusting the feet
• In order to ensure that the dryer
operates more silently and vibration-
free, it must stand level and balanced
on its feet. Balance the machine by
adjusting the feet.
• Turn the feet to left or right until the
dryer stands level and firmly.
CNever unscrew the adjustable
feet from their housings.
3.5 Electrical connection
For specific instructions for electrical
connection required during installation (see
1.1.1 Electrical Safety)
3.6 Transportation of the dryer
Unplug the dryer before transporting it.
Drain all water that has remained in the dryer.
If direct water drain connection is made, then
remove the hose connections.
A
We recommend carrying the
dryer in upright position. If it is
not possible to carry the machine
in the upright position, we
recommend carrying it by tilting
towards the right side when
looked from the front.

16 / EN Dryer / User Manual
Installation
3.7 Warnings about sounds
CIt is normal to hear a metallic
noise from the compressor
sometimes during operation.
CWater collected during operation
is pumped to water tank. It is
normal to hear pumping noise
during this process.
3.8 Changing the illumination
lamp
In case an illumination lamp is used in your
laundry dryer.To change the Bulb/LED used
for illumination of your tumble dryer, call your
Authorized Service.
The lamp(s) used in this appliance is not
suitable for household room illumination.
The intended purpose of this lamp is to
assist the user to place laundry in the tumble
dryer in a comfortable way. The lamps used
in this appliance have to withstand extreme
physical conditions such as vibrations and
temperatures above 50 °C.

17 / EN
Dryer / User Manual
Installation
4Electrical Connection
Make sure that you have an earthed power
outlet socket rated at 13 amps (minimum).
4.1 Attention!
When installed, the socket must be reachable
after installation, or a separate switch (which
can disconnect the two poles) must be used
in the installation. Check for suitability.For a
permanent connection, a master switch with
at least 3mm contact clearance and minimum
13 A rating must be used.
4.2 Electrical requirements
Before you insert the plug into the wall
socket make sure that the voltage and
the frequency shown in the rating label
corresponds to your electricity supply.
We recommend that this appliance be
connected to the mains supply via a suitable
switched and fused socket in a readily
accessible position. Should the mains lead
of the appliance become damaged or need
replacing at any time, it must be replaced by
a special purpose made mains lead which can
only be obtained from a Authorised Service
Agent.
AWarning
This appliance must be earthed
If the fitted moulded plug is not suitable for
your socket, then the plug should be cut off
and an appropriate plug fitted.
The moulded plug on this appliance
incorporates a 13A fuse. Should the fuse
need to be replaced an ASTA approved
BS1362 fuse of the same rating must be
used. Do not forget to refit the fuse cover.
In the event of losing the fuse cover, the
plug must not be used until a replacement
fuse cover has been fitted. Colour of the
replacement fuse cover must be the same
colour as that visible on the pin face of the
plug. Fuse covers are available from any good
electrical store.
In order to avoid hazards, damaged supply
cord should be replaced by the manufacturer,
its service agent or similarly qualified people.
Built-under installation
This appliance can be installed under a
worktop.
ADo not operate without the top
cover fitted. Risk of injury.
AImportant
4.3 Fitting a different plug
As the colours of the wires in the mains
lead of this appliance may not correspond
with the coloured markings identifying the
terminals on your plug, proceed as follows:
1 Connect the green - yellow or green (earth)
wire to the terminal in the plug marked ‘E’
or with the symbol or coloured green and
yellow or green.
2 Connect the blue (neutral) wire to the
terminal in the plug marked ‘N’ or coloured
black. Green and yellow
or green
N
Blue or black
L
Brown or red
3 Connect the brown (live) wire to the
terminal in the plug marked ‘L’ or coloured
red.
With the alternative plugs a 13A fuse must
be fitted either in the plug or adaptor or
in the main fuse box. If in doubt contact a
qualified electrician.
4.4 Washer/dryer combination
Do not stack washing machine on top of
the tumble dryer. This would damage both
appliances and guarantees would become
void. It is also unsafe to stack an appliance
on top of another without using a suitable
and approved stacking kit obtained from the
manufacturer of the appliances.
• A special stacking kit is required as an
optional extra please contact customer
service.

18 / EN Dryer / User Manual
5Preparation
5.1 Laundry suitable for drying in the dryer
Always obey the instructions given on the garment tags. Dry only the laundry having a
label stating that they are suitable for drying in a dryer and make sure that you select the
appropriate programme.
Drying
Settings

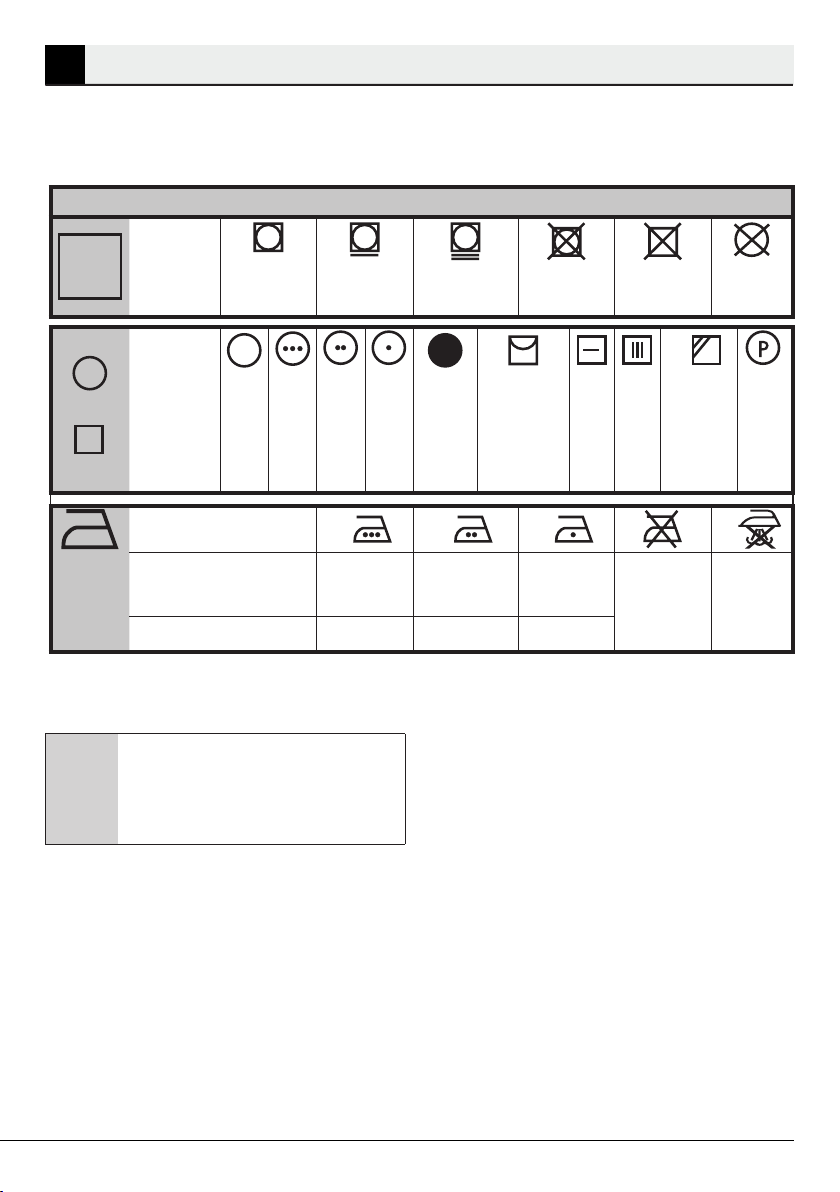

At any temperature At high temperature At medium temperature At low temperature Without heating Hang to dry Lay to dry Hang wet to dry Lay in shadow to dry Dry-cleanable
Iron -
IRON
Dry or Steam
Iron at high
temperature
Iron at medium
temperature Iron at low
temperature
Do not iron
Iron without
steam
Maximum temperature 200 0C150 0C110 0C
LAUNDRY DRYING SYMBOLS
Drying
Symbols Suitable for
dryer No Iron Sensitive /
Delicate dry
Do not dry
with dryer
Do not dry Do not dry-
clean
5.2 Laundry not suitable for
drying in the dryer
CDelicate embroidered fabrics,
woolen, silk garments, delicate
and valuable fabrics, airtight
items and tulle curtains are not
suitable for machine drying.
5.3 Preparing laundry for
drying
• Laundry may be tangled with each other
after washing. Separate the laundry
items before placing them into the dryer.
• Dry garments having metal accessories
such as zippers, inside out.
• Fasten the zippers, hooks and buckles
and button sheets.
5.4 Things to be done for
energy saving
Following information will help you use the
dryer in an ecological and energy-efficient
manner.
• Spin your laundry at the highest speed
possible when washing them. Thus, the
drying time is shortened and energy
consumption is reduced.
• Sort out the laundry depending on their
type and thickness. Dry the same type
of laundry together. For example thin
kitchen towels and table clothes dries
earlier than thick bathroom towels.
• Follow the instructions in the user
manual for programme selection.
• Do not open the loading door of the
machine during drying unless necessary.
If you must certainly open the loading
door, do not to keep it open for a long
time.

19 / EN
Dryer / User Manual
Preparation
• Do not add wet laundry while the dryer is
in operation
• Clean the lint filter before or after each
drying cycle. (See 7.1 Cleaning Lint
Filter / Loading Door Inner Surface)
• Clean the filter periodically when there
is visible air collection on it or when
the symbol lights up, if there is a filter
drawer cleaning warning symbol « »
available. (See 7. 4 Cleaning the filter
drawer)
• Ventilate the room, where the dryer is
located, well during drying.
5.5 Correct load capacity
Follow the instructions in the “Programme
selection and consumption table”. Do not
load more than the capacity values stated in
the table.
CIt is not recommended to load
the dryer with laundry exceeding
the level indicated in the figure.
Drying performance will degrade
when the machine is overloaded.
Furthermore, dryer and the laundry
can get damaged.
Following weights are given as examples.
Laundry Approximate
weights (g)*
Cotton quit covers
(double) 1500
Cotton quit covers
(single) 1000
Bed sheets (double) 500
Bed sheets (single) 350
Large tablecloths 700
Small tablecloths 250
Tea napkins 100
Bath towels 700
Hand towels 350
Blouses 150
Cotton shirts 300
Shirts 200
Cotton dresses 500
Dresses 350
Jeans 700
Handkerchiefs (10
pieces) 100
T-Shirts 125
*Dry laundry weight before washing.

20 / EN Dryer / User Manual
6Operating the product
6.1 Control panel
1. Program selection knob
2. Remaining duration indicator
3. On/Off button
4. Start/pause button
5. End duration button
6. Sound warning button
6.2 Screen symbols
1 2
456
3
Volume up
Filter
cleaning
Tank
full
Child-proof
lock Mute Anti
Creasing
