Beko DVD 2008 User manual

1
FEATURES OF 2008 DVD PLAYER
Full discs playback compatibility: DVD,DVD±R,DVD±RW, DVCD, MP3, CD-DA,
HDCD , Picture CD.
Excellent AV effect:
1.Composite video, S-Video and component video output. Built-in progressive output
enables a higher resolution of the pictures.
2.Supports PAL or NTSC system with aspect ratio of 4:3 or 16:9. Fiber optical and
coaxial audio outputs are also available.
Totally supports multi view-angle, multi-language, multi-subtitle and multi screen mode for
DVD discs.
Supports parental lock control that prevents children to watch unsuitable scenes.
Friendly-interfaced WINDOWS setup menu.
Displays the JPEG picture files.
MP3 three-dimensional (3D)dynamic playback interface.
Possesses agile zoom function, and pictures can be zoomed during playback.
NTSC/PAL/AUTO compatible, no compression of pictures.
Dynamic screen saver function.
Supports setup of video quality.
Software update automatically.
Notes: "Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing
Corporation. Manufactured under license from Dolby laboratories.
Confidential unpublished works. C 1992-1997 Dolby Laboratories. Inc. All rights reserved.

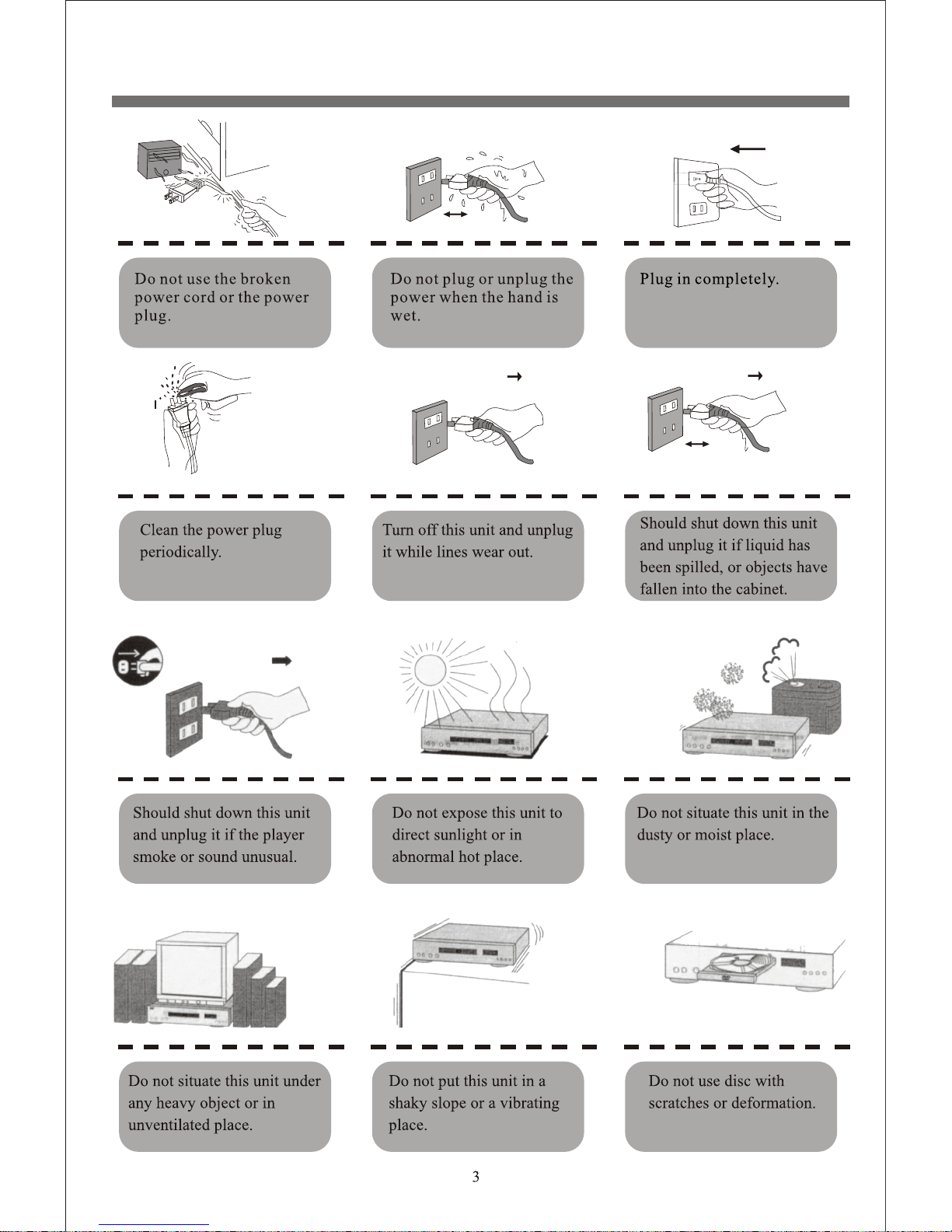

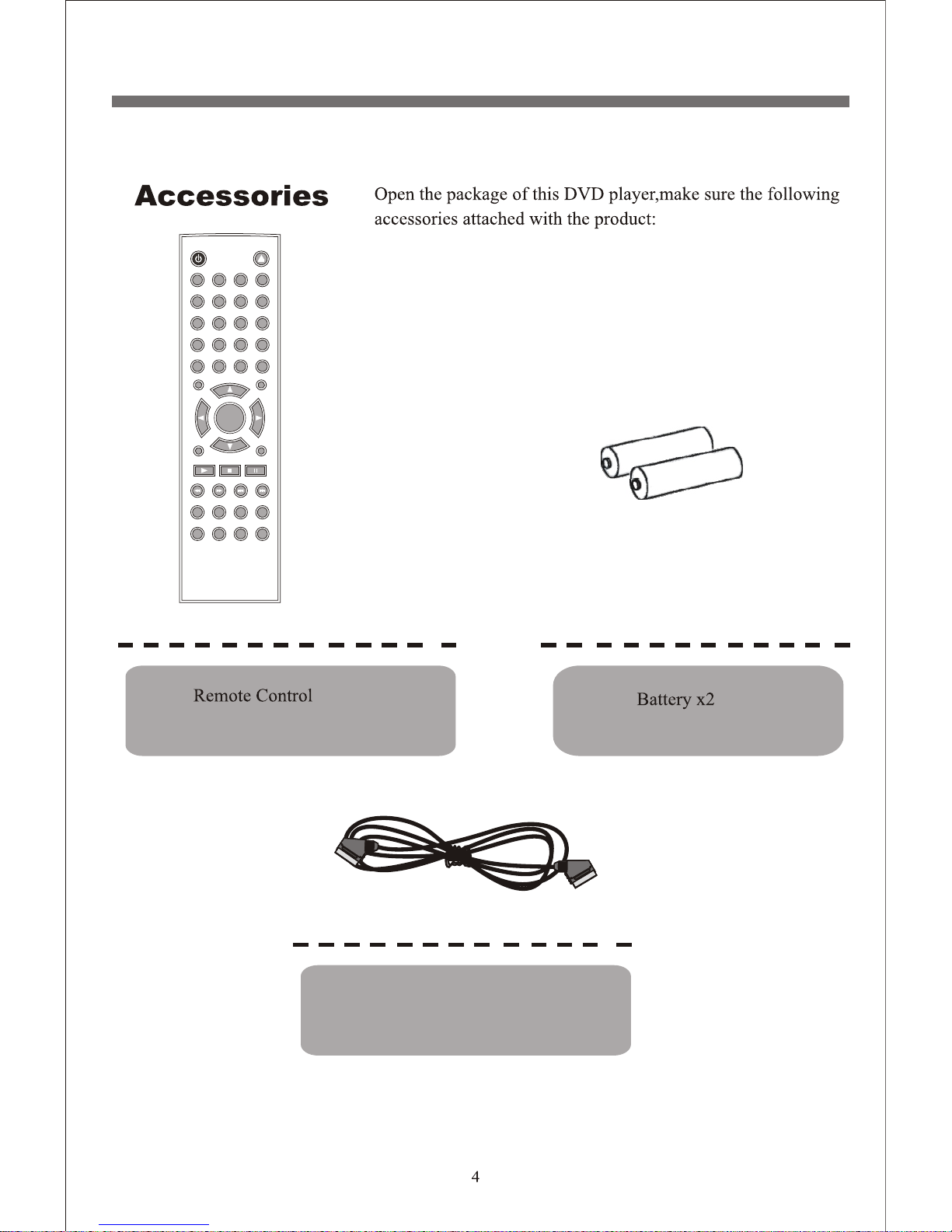

SCART Cord
POWER OPEN/CLOSE
112233
445566
778899
00
MUTE
AUDIO
SUBTITLE
ANGLECLEAR
+10+10
DISPLAYTITLESEARCHRETURN
MENU PBC
SETUP VIDEO
PAUSE/STEPSTOPPLAY
FB FF
- VOL +REPEATA-B
SLOW ZOOM PROGRAM N/P
PREV NEXT
ENTERENTER

Playback
Playback DIVX VIDEO
20-22
23
24
25
2008

6
Front Panel/Rear Panel
Front Panel
Rear Panel
SUBWOOFER
COMPONENT Y
COMPONENT Cb/Pb
COMPONENT Cr/Pr
COMPOSITE VIDEO OUT
CENTER
AUDIO (L)
AUDIO (R) COAXIAL OUTPUT
S-VIDEO
OPTICAL FIBER
SCART OUTPUT
DISC TRAY
STOP
PLAY/PAUSE
OPEN/CLOSE
VFD SCREEN
POWER
2008
SBN

7
DVD VFD
DVD VFD
Notes:
It is normal if some VFD indicators disappear in playing procedure without harm.
SVCD
ALL
PBC
DVD INDICATOR
DTS INDICATOR
CD, VCD, SVCD INDICATOR
DOLBY INDICATOR
PBC INDICATOR
MP3 INDICATOR
TIME INDICATOR
CHAPTER / TRACK
NUMBER INDICATOR
REPEAT PLAYBACK INDICATOR
PLAY/PAUSE INDICATOR
ANGLE INDICATOR

8
Remote Control
1.POWER: switch DVD player on or go to standby mode
2.PROGRAM: program playback
3.AUDIO:audio language selector
4.ANGLE: select DVD camera angle
5.SUBTITLE:subtitle language selector
6.PBC:open or close the PBC(VCD2.0)
7.ZOOM: enlarge video image
8.DIRECTION BUTTONS: select an item
9.ENTER: acknowledge selection
10.MUTE: mute sound
11.STOP: stop playback
12.PLAY: start playback
13.FB: fast reverse playback
14.FF: fast forward playback
15.REPEAT: repeat chapter, track, title or disc
16.A-B: repeat a specific segment
17.VOL: volume up +; volume down -
18.SLOW: slowly playback
19.PAUSE/STEP:pause and step playback
20.PREV: go to a previous chapter or track
21.NEXT: go to a next chapter or track
22.MENU: access menu of a disc
23.SEARCH: go to a specific scene
24.TITLE: title of a DVD disc
25.DISPLAY: to display information of a disc
26.SETUP: setup function
27.VIDEO: switch video output
28.CLEAR: clear input
29.0-9,+10,numerical key: select numbered items
30.N/P:switch the TV type
31.OPEN/CLOSE: open or close tray
32.RETURN
POWER OPEN/CLOSE
112233
445566
778899
00
MUTE
AUDIO
SUBTITLE
ANGLECLEAR
+10+10
DISPLAYTITLESEARCHRETURN
MENU PBC
SETUP VIDEO
PAUSE/STEPSTOPPLAY
FB FF
- VOL +REPEATA-B
SLOW ZOOM PROGRAM N/P
PREV NEXT
ENTERENTER

++
--
++
--
1
2
3
9
Preparations for the Remote Control
Insert the batteries into the remote control, and
you can use it to operate DVD player.
Open the cover
Insert batteries
Make sure to match the + and - to
the mark inside the battery
compartment.
Close the cover.
Direct the remote control at the remote sensor
of the DVD player.
Do not drop or give the remote control a shock.
Do not leave the remote control near an
extremely hot or humid place.
Do not spill water or put anything wet on the
remote control.
Do not open the remote control.
Notes on the Remote Control
Operating with the Remote Control
This section shows you how to use the
remote control.
Point the remote control at the
remote sensor and press the
buttons.
Angle: About 30°in each direction of the
remote sensor.
Do not expose the remote sensor of the
DVD player to a strong light source such
as direct sunlight or illumination. If you
do so, you may not be able to operate the
DVD player with the remote control.
Notes on Batteries
Improper use of batteries may cause battery
leakage and corrosion. To operate the remote
control correctly, follow the instructions below.
Do not insert the batteries into the remote control
in the wrong direction.
Do not leave the discarded or exhausted batteries
in the remote control.
Do not use different types of batteries together, or
mix old and new batteries.
If you do not use the remote control for a long
period of time, remove the batteries to avoid
possible damage from battery corrosion.
If the remote control does not function correctly or
if the operating range becomes reduced, replace
all batteries with new ones.
If battery leakage occurs, wipe the battery liquid
from the battery compartment, then insert new
batteries.
The battery can last for about 1 year when
normally used.
POWER OPEN/CLOSE
112233
445566
778899
00
MUTE
AUDIO
SUBTITLE
ANGLECLEAR
+10+10
DISPLAYTITLESEARCHRETURN
MENU PBC
SETUP VIDEO
PAUSE/STEPSTOPPLAY
FB FF
- VOL +REPEATA-B
SLOW ZOOM PROGRAM N/P
PREV NEXT
ENTERENTER

10
(1)If the TV has component video input (YcbCr/YPbPr) jacks, you can connect them to the
YcbCr/YPbPr jacks of the DVD player to get a clearer picture, and use these jacks rather
than the S-VIDEO OUTPUT jack.
(2)DVD player setup: (Setup the DVD player according to the connected TV.)
If the TV system is PAL, select PAL output.
If the TV system is NTSC, select NTSC output.
Connect the DVD player to the wide screen TV,
set the “TV TYPE” as“16:9 ” in FUNCTION SETUP.
If the DVD player is connected to an ordinary TV, set the “TV TYPE” to “4：3 PS”
or “4：3 LB” in FUNCTION SETUP.
Connecting to a TV Connect the DVD player to a TV.
Connecting to an Interlaced Scanning TV
COMPONENT VIDEO OUTPUT
AUDIO OUTPUT (R)
AUDIO OUTPUT (L)
COMPOSITE VIDEO OUTPUT
S-VIDEO OUTPUT TV
Notes:
MODEL:SH318H

11
Connecting to a TV Connect the DVD player to a TV.
Connecting to a Progressive Scanning TV
COMPONENT VIDEO OUTPUT
AUDIO OUTPUT (R)
AUDIO OUTPUT (L)
SCART OUTPUT
TV
Notes:
1.Select progressive when you have a TV
that can accept progressive signals to
enjoy accurate color reproduction and
high quality images.
2.If your TV has a component video (YPbPr)
input connector , connect the YPbPr video
out jacks on the DVD player to corresponding
input on the TV.
3.If your TV has a SCART input connector ,
connect the SCART out jacks on the DVD
player to the corresponding input on the TV.

12
Connecting to an Audio System You can enjoy the sound of discs in stereo.
Connecting to the Amplifier System
TV
COMPOSITE VIDEO OUTPUT
Notes:
Refer to the user’s manual of the connected equipment as well.
When you connect the DVD player to other equipment, be sure to turn off the power and unplug all the
equipment from the wall outlet before making any connections.
If you place the DVD player near a tuner or radio, the radio broadcast sound might be distorted. In this
case, place the DVD player away from the tuner or radio.
The output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver’s
volume to a moderate listening level. Otherwise, a sudden high volume may damage the speakers.
Turn off the audio system before you connect or disconnect the DVD player’s power cord. Otherwise,
the speaker may be damaged.
AUDIO OUTPUT(R)
AUDIO OUTPUT(L)
MODEL:SH318H

13
Connecting to an Audio System
Connecting to the Amplifier with Digital Input Port
Dolby Digital
Dolby Digital is the surround sound technology used in theatres showing the latest movies,
and is now available to reproduce this realistic effect at home. You can enjoy motion
picture and live concert DVD video discs with this dynamic realistic sound by connecting
the DVD player to a 5.1-channel amplifier with a Dolby Digital decoder or Dolby Surround
decoder, you will obtain the full benefit from the DVD movies that provide full 5.1-channel
Dolby Digital sound tracks, as well as from those with the Dolby Surround mark.
TV
COMPOSITE VIDEO OUTPUT
OPTICAL FIBER OUTPUT
COAXIAL OUTPUT

14
AU D IO I N
VC D LD D V D V C R TUNER
AC-3/5 1/2CH IN
R SR
L SL SW
C
SPEAKERS IM P EDAN C E 8ΩSPEAKERS IM P EDAN C E 8Ω
CEN SR SL RL
CENTER SURROUND FRONT
+
-
+
-
S-WOOFER
OUT

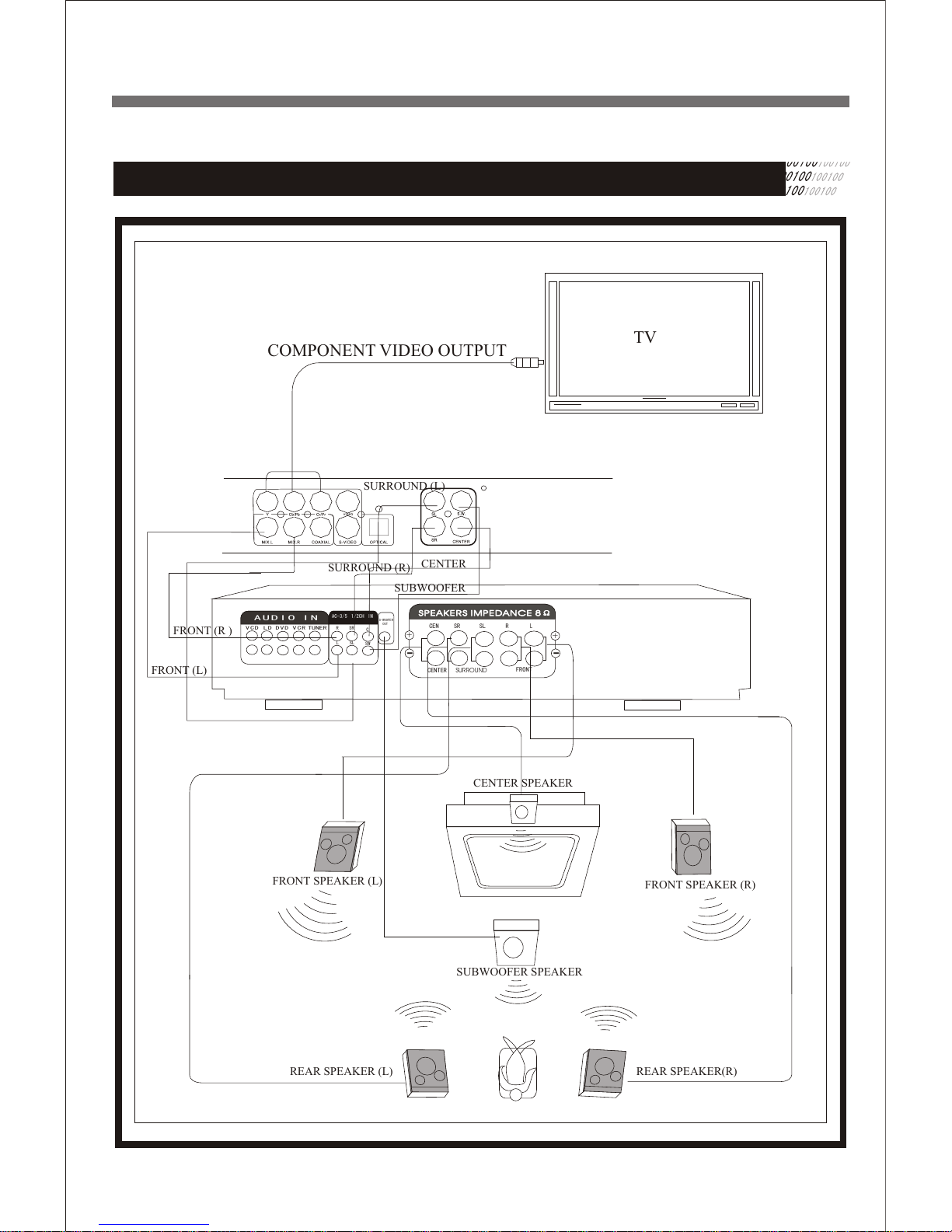

Connecting to the Amplifier with 5.1-channel Surround Input
COMPONENT VIDEO OUTPUT TV
SUBWOOFER
SURROUND (L)
CENTER
SURROUND (R)
FRONT (L)
FRONT SPEAKER (L)
CENTER SPEAKER
FRONT SPEAKER (R)
SUBWOOFER SPEAKER
REAR SPEAKER (L) REAR SPEAKER(R)
FRONT (R )

15
Basic Playback
Preparations
If you want to play a DVD, VCD or CD-DA disc, turn on the TV and select the video input source which is
connected to the DVD player.
If you want to enjoy the sound of disc from the audio system, turn on the audio system and select the input
source which is connected to the DVD player.
For connection details, see ‘Connections’.
1.Turn on the DVD player
Press the POWER button on the front panel,
And then press the PLAY button to wakeup
the DVD.
When the Player is not used for a long
period,please pull off the power plug.
2.Open the tray
Press the OPEN/CLOSE button to open the
disc tray.
3.Place the disc
When the disc tray is open, place the disc on
the disc tray, with the playback side down..
Notes:
There are two different disc sizes.Place the disc in
the correct guide on the disc tray.If the disc is out of
the guide,It may damage the disc and cause the DVD
player to malfunction.
Do not place anything except the DVD,VCD,CD and
MP3 discs on the disc tray.
4.Play
Press the PLAY button, the disc tray closes
and playback starts.
When playing a DVD disc with the title menu
recorded or VIDEO CD with the playback
control (PBC),a menu screen will appear.
Notes:
For the playback control(PBC)of the VCD2.0 and
SVCD, please refer to PBC Playback.
When not using the menu screen(with PBC) of the
VCD2.0 or SVCD, you can press the PBC button to
turn off the “PBC”.
Notes
Do not move the DVD player during playback.Doing so may damage the disc.
Use the OPEN/CLOSE button on the remote control or DVD player to open or close the disc
tray. Do not push or touch the disc tray while moving. Doing so may cause the DVD player
to malfunction.
Do not push up on the disc tray or put any objects other than discs on the disc tray.Doing so may
cause the DVD player to malfunction.

16
Enjoy pictures of higher quality
Sometimes when playing DVD discs, on the TV screen there is unusual interference that are not common in
ordinary television broadcast. This is because the high-resolution pictures of DVD discs contain a wide
range of information. The extent of the interference depends on the TV set connected with the DVD player,
and it is recommended that you set the TV set to a low contrast ratio when watch a DVD disc.
Playback Control
1.Direction Buttons
Press the direction buttons to move the cursor to the selected
item, then press the ENTER button to confirm it.
2.Play
Press this button to play the disc.
3. Pause/Step
Press this button once to pause the playback. and press this
button twice to step the playback
4.Clear
Press this button to clear the input digits (displays on the screen)
when programming tracks or in searching operation.
5.Number Buttons
When playing a VCD disc, press the number buttons directly to
play your favorite track in PBC off status. If the track number is
from 1 to 9, you can directly press the number. If the track
number is more than 9, you should use button 10+ and the other
number buttons together to select the track, eg.: for track 25,
first, press the +10 button twice, then press button 5.
6.STOP
When playing a DVD disc, press this button the first time during
playback, the DVD player memorizes the location where you
stopped (press PLAY to resume playback from the memorized
point). Press this button again to stop the disc (then press PLAY
to start playing from the beginning of the disc).
7.FF / FB
You may speed up a DVD , CD, VCDor Mp3 disc by pressing
the FF / FB buttons on the Remote control . You can fast
reverse at 2X,4X,8X and 20X.
The DVD player allows for Slow Motion playback . Press this
button to select :1/2-1/3-1/4-1/5-1/6-1/7
Press PLAY button to resume normal playback.
11.A-B
You can replay a specific portion of a disc
repeatedly using this function
Press the A-B button on the Remote control
to select the starting point for the section to be
repeated.
Press the A-B button on the Remote control
again to select the ending point This section will
now continue to repeat until; A-B is pressed for
a third time to resume normal playback
12. REPEAT
This function can be used to repeatedly play a
Title Chapter , Track or other part of a disc.
DVD-Press REPEAT on the Remote Control to
cyclically select CHAPTER REPEAT-TITLE
REPEAT -REPEAT ALL-REPEAT OFF .
CD/VCD - When PBC is off , Press REPEAT on
the Remote Control to cyclically select REPEAT
ONE-REPEAT ALL-REPEAT OFF.
13. PROGRAM
You can program the player to play a customised
order of specific tracks , title or chapters . To program
a DVD follow the instructions below.
1)Press the PROGRAM button to initiate the program
function
2)Press LEFT or RIGHT to highlight either T for title
or C for CHAPTER
3)Press the Numeric button of the desired title and
chapter
4)Highlight PLAY on the screen using the direction
button and press ENTER. Your programmed list w
will now be set
5)Press the PLAY button after programming to begin
playback of the memorised play-list . The memory
is erased if the disc tray is opened . The unit is
powered OFF or the STOP button is pressed twice.
For CD programming follow the above steps 1-5.For
steps 2-3, enter the track number instead of the title
and chapter numbers
9.NEXT /P REV
Press skip to select the next (previous) chapter (for DVD) or
track (for VCD/CD/MP3).
10.ZOOM
This feature allows you to enlarge the picture on
screen 2X , 3X, 4X,1/2X,1/3X, and 1/4X the
original size . Press the ZOOM button to
cyclically scroll through the available strengths
8.SLOW

17
Playback Control
16. DISPLAY
Press this key to display on TV the time information of current
playback. For different discs, different choices are available.
17. MENU
For DVD discs, press this button to enter DVD menu (if
supported by the discs).
18. PBC
For SVCD or VCD2.0 discs, press this button to open/close the
PBC functions.
a.In the PBC display of the SVCD or VCD2.0, if the PLAY
button is pressed, the player will enter PBC playback status.
If the PBC is turned off, the disc will be played as VCD1.0/1.1.
b.When PBC is set to ON, menu of the disc appears on the
screen, press the number buttons to select and play the track
you want.
c.Press this button to return to the interface of selecting
tracks.
Set Hot Button
19. OPEN/CLOSE
Press this button to open or close the disc tray.
20. POWER
When this button is pressed, the DVD player will
enter standby status. Press this button again to
resume the player.
Note: When the Player is not used for a long
period,please pull off the power plug.
21. VIDEO
The user can adjust the output mode of the
pictures among INTERLACE-YUV , TV-RGB
P-SCAN YPBPR or S-Video output.
This button is a hot button, it has the same
function as the VIDEO SETUP item in the
SETUP menu. As for details of connection with
the TV set, please refer to the CONNECTIONS
chapter.
22. AUDIO
This button allows the user to select a preferred
audio language from those included on the disc.
DVD Function
23. TITLE
For DVD discs,press this button to enter the title
menu, then press the direction buttons and PLAY
button to select and play.(If it is supported by
the discs.)
24. ANGLE
Press this button to change the camera angle of
the scene you are watching if the scene was
recorded from multiple angles. (It needs support
of the discs.)
25. SUBTITLE
For those DVD discs that have multiple languages
of caption recorded, press this button to change
the caption to different languages.
14.SEARCH
Press this button to search the playback point by chapter number
or title time (for DVD discs), disc time or track time or track
number (for SVCD/VCD/CD discs)
15.N/P
Press this button to swith the TV type ,NTSC-PAL-AUTO

©
18
Volume Control
26. VOLUME
With an analog Audio connection . The volume can be adjusted
using the VOL+ and VOL- buttons . The volume can be muted
by pressing the MUTE button on the remote control.
27. MUTE
Press this button to set the play mute, press this button again to
cancel the mute state.
When Mp3 disc is being played,the playback menu
will appear on the screen,as shown in the following figure.
Mp3 Playback
You can either into the directory that you want to play by
using the directional button, and then the first song will
be played. The directional button can also be used to choose
any file you would like to play in the file area.When the
cursor is in left film column, Press number key to select file.
When in right one it can select document.
Screen Saver Function
In the stop status and when no discs in the player,
the player will enter screen saving status
automatically 3 minutes later. Press the PLAY
button or OPEN/CLOSE button to resume the
player.
[ ]
1MMEGFMF TRACK1.MP3
01:1MMEGFMF
02:1OMMEGFM
03:2MMFGFMF
04:3MMEGFMG
05:4MMEGFMG
06:5MMEGFMJ
07:6MMEGFMN
08:7MMEGFMC
09:8MMEGFMC
10:9MMEGFMC
01:TRACK1
02:TRACK2
03:TRACK3
04:TRACK4
05:TRACK5
06:TRACK6
07:TRACK7
08:TRACK8
09:TRACK9
Playback Divx VIDEO
©©
DivX Video is an encoder/decoder, based on
the MPEG-4 compression system, which is
used to encrypt and display compressed
video data.This enables the DVD player to
play back videos compressed in the DivX
format. This results in playback quality
with less artefacts and higher compression.
DivX video files have the suffix .AVI. DivX
Video data are packed into the AVI file
along with audio data which is compressed
as MP3 data, this means:
DivX Video and MP3 audio form the AVI file.
Further information on DivX Video and how
to create AVI files can be found under www.
DivX Networks.de.
©
©
©
©
©
The playback menu of the JPG picture is similar to MP3
playback menu. Please refer to MP3 playback.
When playing the JPG pictures, press STOP button to enter
the picture previewing mode. After entering this mode,
operate with the direction buttons and play button. Press
PLAY or ENTER button to return to the playback mode.
JPEG Picture Display 1After the disc compartment shuts and
the DivX Video CD is scanned, the file
browser (the table of contents) of the
DivX Video CD is displayed.
2Select the folder or track required with
>>
- A list of sub-directories appears.
©
<< or >> <<.
[ ] D01_DIVX1_.AVI
-
01.— 01.D01_DIVX1_
02.E01_PRELOA
04.E03_INTER4
05.E04_AES_EN
06.E05_8AUDIO
07.E06_LONGER
08.E07_LONGER
09.E08_8SUBTI
03.E02_PRELOA
10.F01_44KHZ_I
