Beko BBBF2410 User manual

Congélateur/Réfrigérateur
Manuel d'utilisation
Manual del usuario
Refrigerador
57 7389 0000/AF
BBBF2410
EN / FR / ES
Refrigerator
User manual

Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
Therefore, read this entire user manual carefully before using the product and
keep it as a reference. If you handover the product to someone else, give the
user manual as well.
The user manual will help you use the product in a fast and safe way.
 Read the manual before installing and operating the product.
 Make sure you read the safety instructions.
 Keep the manual in an easily accessible place as you may need it later.
 Read the other documents given with the product.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

EN
2
1 Your refrigerator 3
2 Important Safety
Warnings 4
Intended use ...............................................4
For products with a water dispenser;6
Child safety ..................................................6
Compliance with WEEE Directive and
Disposing of the Waste Product: .......6
Compliance with RoHS Directive:.......6
Package information................................6
HC Warning .................................................. 7
Things to be done for energy saving 7
3 Installation 8
Points to be paid attention to when
the relocation of the refrigerator.......8
Electrical connection ...............................8
Disposing of the packaging...................8
Disposing of your old refrigerator......9
Placing and Installation...........................9
Door Open Warning..................................9
Changing the illumination lamp .........9
CONTENTS
4Preparation 10
Reversing the doors...............................11
5 Using your refrigerator 13
Freezing fresh food ................................15
Recommendations for preservation of
frozen food.................................................16
Placing the food.......................................16
Deep-freeze information.....................16
6Maintenance and cleaning17
7
Troubleshooting 18

EN
3
1. Butter & Cheese sections
2. Adjustable door shelves
3. Bottle holder
4. Bottle shelf
5. Adjustable front feet
6. Freezer compartment
7. Crisper
8. Crisper cover and glass
9. Adjustable shelves
10. Fan
11. Indicator panel
C Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
1Your refrigerator
5
1
2
3
4
7
6
8
9
10
11

EN
4
2Important Safety Warnings
Please review the following
information. Failure to observe this
information may cause injuries or
material damage. Otherwise, all
warranty and reliability commitments
will become invalid.
The usage life of the unit you
purchased is 10 years. This is the
period for keeping the spare parts
required for the unit to operate as
described.
Intended use
This product is intended to be used
 indoors and in closed areas such as
homes;
 in closed working environments such as
stores and offices;
 in closed accommodation areas such as
farm houses, hotels, pensions.
 This product should not be used
outdoors.
General safety
 When you want to dispose/scrap the
product, we recommend you to consult
the authorized service in order to learn
the required information and authorized
bodies.
 Consult your authorized service for all
your questions and problems related to
the refrigerator. Do not intervene or let
someone intervene to the refrigerator
without notifying the authorised
services.
 For products with a freezer
compartment; Do not eat cone ice cream
and ice cubes immediately after you take
them out of the freezer compartment!
(This may cause frostbite in your mouth.)
 For products with a freezer
compartment; Do not put bottled and
canned liquid beverages in the freezer
compartment. Otherwise, these may
burst.
 Do not touch frozen food by hand; they
may stick to your hand.
 Unplug your refrigerator before cleaning
or defrosting.
 Vapor and vaporized cleaning materials
should never be used in cleaning and
defrosting processes of your refrigerator.
In such cases, the vapor may get in
contact with the electrical parts and
cause short circuit or electric shock.
 Never use the parts on your refrigerator
such as the door as a means of support
or step.
 Do not use electrical devices inside the
refrigerator.
 Do not damage the parts, where the
refrigerant is circulating, with drilling or
cutting tools. The refrigerant that might
blow out when the gas channels of the
evaporator, pipe extensions or surface
coatings are punctured causes skin
irritations and eye injuries.
 Do not cover or block the ventilation
holes on your refrigerator with any
material.
 Electrical devices must be repaired
by only authorised persons. Repairs
performed by incompetent persons
create a risk for the user.
 In case of any failure or during a
maintenance or repair work, disconnect
your refrigerator’s mains supply by
either turning off the relevant fuse or
unplugging your appliance.
 Do not pull by the cable when pulling off
the plug.

EN
5
 Place the beverage with higher proofs
tightly closed and vertically.
 Never store spray cans containing
flammable and explosive substances in the
refrigerator.
 Do not use mechanical devices or other
means to accelerate the defrosting
process, other than those recommended
by the manufacturer.
 This product is not intended to be used by
persons with physical, sensory or mental
disorders or unlearned or inexperienced
people (including children) unless they
are attended by a person who will be
responsible for their safety or who will
instruct them accordingly for use of the
product
 Do not operate a damaged refrigerator.
Consult with the service agent if you have
any concerns.
 Electrical safety of your refrigerator shall be
guaranteed only if the earth system in your
house complies with standards.
 Exposing the product to rain, snow, sun
and wind is dangerous with respect to
electrical safety.
 Contact authorized service when there is a
power cable damage to avoid danger.
 Never plug the refrigerator into the wall
outlet during installation. Otherwise, risk of
death or serious injury may arise.
 This refrigerator is intended for only storing
food items. It must not be used for any
other purpose.
 Label of technical specifications is located
on the left wall inside the refrigerator.
 Never connect your refrigerator to
electricity-saving systems; they may
damage the refrigerator.
 If there is a blue light on the refrigerator, do
not look at the blue light with optical tools.
 For manually controlled refrigerators,
wait for at least 5 minutes to start the
refrigerator after power failure.
 This operation manual should be handed
in to the new owner of the product
when it is given to others.
 Avoid causing damage on power cable
when transporting the refrigerator.
Bending cable may cause fire. Never
place heavy objects on power cable. Do
not touch the plug with wet hands when
plugging the product.
 Do not plug the refrigerator if the wall
outlet is loose.
 Water should not be sprayed directly on
inner or outer parts of the product for
safety purposes.
 Do not spray substances containing
inflammable gases such as propane gas
near the refrigerator to avoid fire and
explosion risk.
 Never place containers filled with water
on top of the refrigerator, otherwise this
may cause electric shock or fire.
 Do not overload your refrigerator
with excessive amounts of food.
If overloaded, the food items may
fall down and hurt you and damage
refrigerator when you open the door.
Never place objects on top of the
refrigerator; otherwise, these objects
may fall down when you open or close
the refrigerator's door.
 As they require a precise temperature,
vaccines, heat-sensitive medicine and
scientific materials and etc. should not
be kept in the refrigerator.
 If not to be used for a long time,
refrigerator should be unplugged. A

EN
6
possible problem in power cable may
cause fire.
 The plug's tip should be regularly
cleaned; otherwise, it may cause fire.
 The plug’s tip should be cleaned
regularly with a dry cloth; otherwise, it
may cause fire.
 Refrigerator may move if adjustable legs
are not properly secured on the floor.
Properly securing adjustable legs on
the floor can prevent the refrigerator to
move.
 When carrying the refrigerator, do not
hold it from door handle. Otherwise, it
may be snapped.
 When you have to place your product
next to another refrigerator or freezer,
the distance between devices should be
at least 8cm. Otherwise, adjacent side
walls may be humidified.
For products with a water
dispenser;
Pressure of water mains should be
minimum 1 bar. Pressure of water
mains should be maximum 8 bars.
 Use only potable water.
Child safety
 If the door has a lock, the key should be
kept away from reach of children.
 Children must be supervised to prevent
them from tampering with the product.
ADANGER : Risk of child entrapment.
Before you throw away your old
refrigerator or freezer :
Take off the doors.Leave the shelves
in place so that children may not easily
climb inside.
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies with EU WEEE
Directive (2012/19/EU).

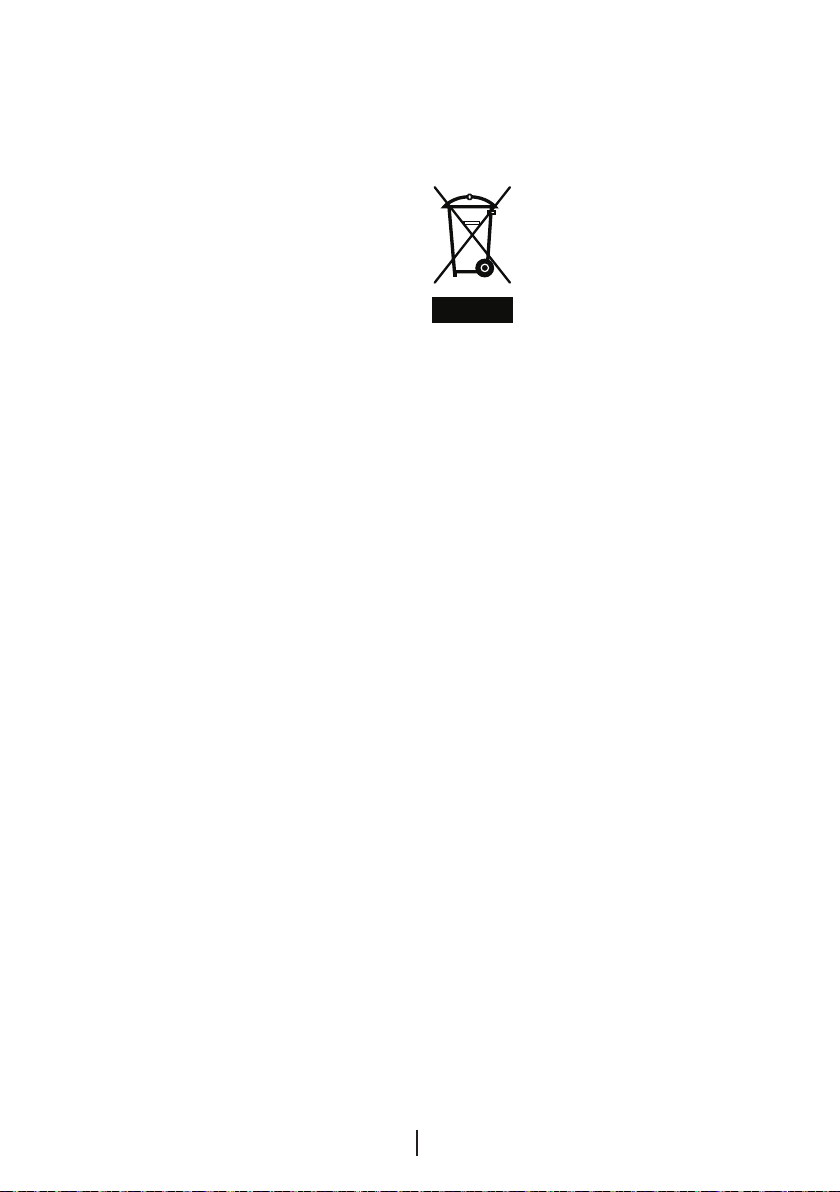

This product bears a
classification symbol for
waste electrical and
electronic equipment
(WEEE).This product has
been manufactured with
high quality parts and materials which
can be reused and are suitable for
recycling. Do not dispose of the waste
product with normal domestic and
other wastes at the end of its service
life. Take it to the collection center for
the recycling of electrical and
electronic equipment. Please consult
your local authorities to learn about
these collection centers.
Compliance with RoHS
Directive:
The product you have purchased
complies with EU RoHS Directive
(2011/65/EU). It does not contain
harmful and prohibited materials
specified in the Directive.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations.
Do not dispose of the packaging
materials together with the
domestic or other wastes. Take
them to the packaging material
collection points designated by
the local authorities.

EN
7
ADANGER: Risk of child
entrapment. Before you throw away
your old refrigerator or freezer:
 Take off the doors.
 Leave the shelves in place so that
children may not easily climb inside.
HC Warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage
and transportation. In the event of
damage, keep your product away from
potential fire sources that can cause
the product catch a fire and ventilate
the room in which the unit is placed.
ADANGER – RiskOf Fire orExplosion.
Flammable Refrigerant Used. Do Not
Use Mechanical Devices To Defrost
Refrigerator. Do Not Puncture
Refrigerant Tubing”.
ADANGER –RiskOfFireOrExplosion.
Flammable Refrigerant Used. To Be
Repaired Only By Trained Service
Personnel. Do Not Puncture
Refrigerant Tubing”.
ACAUTION – Risk Of Fire Or
Explosion. Flammable Refrigerant
Used. Consult Repair Manual/Owner’s
Guide Before Attempting To Service
This Product. All Safety Precautions
Must be Followed.
ACAUTION – Risk Of Fire Or
Explosion. Dispose Of Properlty In
Accordance With Federal Or Local
Regulations. Flammable Refrigerant
Used.
ACAUTION– Risk Of Fire Or
Explosion Due To Puncture Of
Refrigerant Tubing; Follow Handling
Instructions Carefully. Flammable
Refrigerant Used”.
Ignore this warning if your
product's cooling system contains
R134a.
Type of gas used in the product is
stated in the type plate which is on
the left wall inside the refrigerator.
Never throw the product in fire for
disposal.
Things to be done for
energy saving
 Do not leave the doors of your
refrigerator open for a long time.
 Do not put hot food or drinks in your
refrigerator.
 Do not overload your refrigerator so
that the air circulation inside of it is not
prevented.
 Do not install your refrigerator under
direct sunlight or near heat emitting
appliances such as ovens, dishwashers
or radiators.
 Pay attention to keep your food in closed
containers.
 For products with a freezer
compartment; You can store maximum
amount of food items in the freezer
when you remove the shelf or drawer of
the freezer. Energy consumption value
stated for your refrigerator has been
determined by removing freezer shelf
or drawer and under maximum load.
There is no harm to use a shelf or drawer
according to the shapes and size of food
to be frozen.
 Thawing frozen food in fridge
compartment will both provide energy
saving and preserve the food quality.

EN
8
3Installation
BIn case the information which are
given in the user manual are not
taken into account, manufacturer
will not assume any liability for this.
Points to be paid attention
to when the relocation of
the refrigerator
1. Your refrigerator should be
unplugged.Before transportation of
your refrigerator, it should be emptied
and cleaned.
2. Before it is re-packaged,
shelves, accessories, crisper, etc.
inside your refrigerator should be
fixed with adhesive tape and secured
against impacts. Package should be
bound with a thick tape or sound
ropes and the transportation rules
on the package should be strictly
observed.
3. Original packaging and foam
materials should be kept for future
transportations or moving.
Before you start the refrigerator,
Check the following before you
start to use your refrigerator:
1. Attach 2 plastic wedges as
illustrated below. Plastic wedges
are intended to keep the distance
which will ensure the air circulation
between your refrigerator and the
wall. (The picture is drawn up as a
representation and it is not identical
with your product.)
2. Clean the interior of the
refrigerator as recommended in the
“Maintenance and cleaning” section.
3. Connect the plug of the
refrigerator to the wall socket. When
the fridge door is opened, fridge
internal lamp will turn on.
4. When the compressor starts to
operate, a sound will be heard. The
liquid and gases sealed within the
refrigeration system may also give
rise to noise, even if the compressor
is not running and this is quite normal.
5. Front edges of the refrigerator
may feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.
Electrical connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
The connection must be in
compliance with national regulations.
 The power plug must be easily
accessible after installation.
 Electrical safety of your refrigerator shall
be guaranteed only if the earth system
in your house complies with standards.
 The voltage stated on the label located
at left inner side of your product should
be equal to your network voltage.
 Extension cables and multi plugs must
not be used for connection.
BA damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated
before it is repaired! There is the risk
of electric shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by

EN
9
classifying them in accordance with
the waste instructions stated by your
local authorities. Do not throw away
with regular house waste, throw away
on packaging pick up spots designated
by the local authorities.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old refrigerator
without giving any harm to the
environment.
 You may consult your authorized dealer
or waste collection center of your
municipality about the disposal of your
refrigerator.
Before disposing of your refrigerator,
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
AIf the entrance door of the
room where the refrigerator will be
installed is not wide enough for the
refrigerator to pass through, then call
the authorized service to have them
remove the doors of your refrigerator
and pass it sideways through the door.
1. Install your refrigerator to a
place that allows ease of use.
2. Keep your refrigerator away
from heat sources, humid places and
direct sunlight.
3. There must be appropriate air
ventilation around your refrigerator
in order to achieve an efficient
operation. If the refrigerator is to be
placed in a recess in the wall, there
must be at least 5 cm distance with
the ceiling and at least 5 cm with the
wall. Do not place your product on the
materials such as rug or carpet.
4. Place your refrigerator on an
even floor surface to prevent jolts.
Changing the illumination
lamp
To change the Bulb/LED used for
illumination of your refrigerator, call
your AuthorisedService.
The lamp(s) used in this appliance
is not suitable for household room
illumination. The intended purpose
of this lamp is to assist the user to
place foodstuffs in the refrigerator/
freezer in a safe and comfortable
way.The lamps used in this appliance
have to withstand extreme physical
conditions such as temperatures
below -20 °C.
(only chest and upright freezer)
Door Open Warning
*May not be available in all models
An audio warning signal will be
given when the door of your product
is left open for at least 1 minute. This
warning will be muted when the door
is closed or any of the display buttons
(if any) are pressed.

EN
10
4Preparation
 Your refrigerator should be installed at
least 30 cm away from heat sources
such as hobs, ovens, central heater
and stoves and at least 5 cm away
from electrical ovens and should not be
located under direct sunlight.
 The ambient temperature of the room
where you install your refrigerator
should at least be 50ºF. Operating your
refrigerator under cooler conditions than
this is not recommended with regard to
its efficiency.
 Please make sure that the interior of
your refrigerator is cleaned thoroughly.
 If two refrigerators are to be installed
side by side, there should be at least 2
cm distance between them.
 When you operate your refrigerator
for the first time, please observe the
following instructions during the initial
six hours.
 The door should not be opened
frequently.
 It must be operated empty without any
food in it.
 Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
 Original packaging and foam materials
shouldbekeptforfuture transportations
or moving.

EN
11
Reversing the doors
Proceed in numerical order
1
5
2
6
3
4
8
7
11
12
9
10
13
14
16
15
H1
H1
H2
H2
H3
H3
H4
H4
1
2
5
6
12
11
16
15

EN
12
177.5 cm /69.88"
55.6 cm /21.89"
54.5 cm /21.46"
(H) Height (cm) unpacked
(W) Width (cm) unpacked
(D) Depth (cm) unpacked
(H) Height (cm)packed
185.6 cm /73.07 "
(W) Width (cm)packed
57.6 cm /22.68 "
(D) Depth (cm)packed
58.5 cm/23.03"
Gross Weight (Kg) / lbs
73 kg /160.94
Net Weight (Kg) / lbs
68.9 kg /151.9
Max weight
with the door
panel for the
door.19mm-3/4"
4 mm
1/8 ''

EN
13
1- On/Off function
Press the On/Off button for 3
seconds to turn off or turn on the
fridge.
2- Quick Fridge Function
When you press Quick Fridge button,
the temperature of the compartment
willbe colderthan theadjusted values.
This function can be used for food
placed in the fridge compartment and
required to be cooled down rapidly.
If you want to cool large amounts
of fresh food, it is recommended to
active this feature before putting the
food
into the fridge. Quick Fridge indicator
will remain lit when the Quick Fridge
function is enabled. To cancel this
function press Quick Fridge button
again. Quick Fridge indicator will turn
off and return to its normal settings.
If you do not cancel it, Quick Fridge
will cancel itself automatically after 2
hoursorwhenthefridgecompartment
reaches to the required temperature.
This function is not recalled when
power restores after a power failure.
3-Vacation Function
Press the Quick Fridge\Vacation
button for 3 seconds to activate
Vacation function.
"--" icon comes on when the function
is active. Function is deactivated
by pressing the same button for 3
seconds again or by pressing Fridge
set button.
4- Fridge Set Function
This function allows you to make
the fridge compartment temperature
setting. Press this button to set
the temperature of the fridge
compartment to 37, 40, 43, 46 °F
respectively.
5- Off Indicator
Off Indicator lits when the fridge is
"Off" mode.
6- Quick Fridge Indicator
This icon lits when the Quick Fridge
function is active.
7- Fridge Compartment
Temperature Setting Indicator
Indicates the temperature set for the
Fridge Compartment.
8- Vacation Indicator
This icon lits when the Vacation
function is active.
5Using your refrigerator
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

EN
14
9- High Temperature Error /
Warning Indicator
This light comes on during high
temperature failures and error
warnings.
10- Economic Usage Indicator
Economic Usage Indicator turns on
when the Freezer Compartment is
set to 5°F. Economic Usage Indicator
turns off when the Quick Fridge or
Quick Freeze function is selected.
11- Freezer Compartment
Temperature Setting Indicator
Indicates the temperature set for the
Freezer Compartment.
12- Eco-Extra Indicator
Eco-Extra Indicator lits when the Eco
Extra function is active.
13- Quick Freeze Indicator
This indicator lits when the Quick
Freezer function is active.
14- Freezer Set Function
This function allows you to make the
freezer compartment temperature
setting. Press this button to set the
temperature of the freezer
compartment to 5, 0 ,- 5, -10 °F
respectively.
15- Quick Freeze Function
Quick Freeze indicator turns on
when the Quick Freeze function is on.
To cancel this function press Quick
Freeze
button again. Quick Freeze indicator
will turn off and return to its normal
settings. If you do not cancel it, Quick
Freeze will cancel itself automatically
after 4 hours or when the freezer
compartment reaches to the required
temperature.
If you want to freeze large amounts
of fresh food, press the Quick Freeze
button before putting the food into
thefreezercompartment.Ifyoupress
the Quick Freeze button repeatedly
with short intervals, the electronic
circuit protection will be activated
immediately.
This function is not recalled when
power restores after a power failure.
16- Eco-Extra (Special Economic
Usage) Function
Press the Quick Freeze\Eco Extra
button for 3 seconds to activate the
Eco Extra Function. Refrigerator will
start operating in the most economic
mode at least 6 hours later and the
economic usage indicator will turn
on when the function is active. Press
the Quick Freeze button for 3 seconds
again to deactivate the Eco Fuzzy
Function.
17- Alarm Off
When the fridge door is opened for
2 minutes or when there a sensor
failure, a sound alarm turns on. Alarm
can be turned off by pressing "Alarm
Off" button.
Sensor failure alarm will not sound
till power failure. If you close the
door and then open again "Door open
alarm" will be activated again after 2
minutes later.

EN
15
Freezer
Compartment
Adjustment
Fridge
Compartment
Adjustment
Explanations
5°F 40ºF This is the normal recommended setting.
0,-5 or -10°F 40°F These settings are recommended when
the ambient temperature exceeds 91°F.
Quick Freeze 40°F Use when you wish to freeze your food in
a short time. Your refrigerator will return
to its previous mode when the process is
over.
-5°F or colder 37°F Ifyouthink thatyourfridgecompartment
is not cold enough because of the hot
conditions or frequent opening and
closing of the door.
-5°F or colder Quick Freeze You can use it when your fridge
compartment is overloaded or if you
wish to cool down your food rapidly. It is
recommended that you activate quick
fridge function 4-8 hours before placing
the food.
Freezing fresh food
 It must be preferred to wrap or cover
the food before placing them in the
refrigerator.
 Hot food must cool down to the room
temperature before putting them in the
refrigerator.
 The foodstuff that you want to freeze
must be fresh and in good quality.
 Foodstuff must be divided into portions
according to the family’s daily or meal
based consumption needs.
 The foodstuff must be packaged in an
airtight manner to prevent them from
drying even if they are going to be kept
for a short time.
 Materials to be used for packaging must
be tear-proof and resistant to cold,
humidity, odor, oils and acids and they
must also be airtight. Moreover, they
must be well closed and they must be
made from easy-to-use materials that
are suitable for deep freeze usage.
 Frozen food must be used immediately
after they are thawed and they should
never be re-frozen.
 Please observe the following
instructions to obtain the best results.
1. Do not freeze too large quantities
of food at one time. The quality of
the food is best preserved when it is
frozen right through to the core as
quickly as possible.
2. Placing warm food into the freezer
compartment causes the cooling
system to operate continuously until
the food is frozen solid.
3. Take special care not to mix already
frozen food and fresh food.
Recommended Using Temparature: FF: 4°C /40 °F Frz : -15°C/5 °F

EN
16
Recommendations for
preservation of frozen food
 Prepacked commercially frozen food
should be stored in accordance with the
frozen food manufacturer's instructions
for a ( 4 star) frozen food storage
compartment.
 To ensure that the high quality achieved
by the frozen food manufacturer and the
food retailer is maintained, the following
should be remembered:
1. Put packages in the freezer as
quickly as possible after purchase.
2. Ensure that contents are labeled and
dated.
3. Do not exceed "Use By", "Best
Before" dates on the packaging.
Defrosting
The freezer compartment defrosts
automatically.
Placing the food
Freezer
compartment
shelves
Various frozen
food such as
meat, fish, ice
cream, vegetables
and etc.
Egg tray Egg
Fridge
compartment
shelves
Food in pans,
covered plates
and closed
containers
Fridge
compartment
door shelves
Small and
packaged food or
drinks (such as
milk, fruit juice
and beer)
Crisper Vegetables and
fruits
Freshzone
compartment
Delicatessen
products (cheese,
butter, salami and
etc.)
Deep-freeze information
Food must be frozen as rapidly
as possible when they are put in a
refrigerator in order to keep them in
good quality.
It is possible to keep the food for
a long time only at 0°F or lower
temperatures.
You can keep the freshness of food
for many months (at 0°For lower
temperatures in the deep freeze).
WARNING! A
 Foodstuff must be divided into portions
according to the family’s daily or meal
based consumption needs.
 Foodstuff must be packaged in an
airtight manner to prevent them from
drying even if they are going to be kept
for a short time.
 Materials necessary for packaging:
 Cold resistant adhesive tape
 Self adhesive label
 Rubber rings
 Pen
Materials to be used for packaging
the foodstuff must be tear-proof and
resistant to cold, humidity, odor, oils
and acids.
Foodstuff to be frozen should not
be allowed to come in contact with
the previously frozen items to prevent
their partial thawing.
Frozen food must be used
immediately after they are thawed
and they should never be re-frozen.

EN
17
6Maintenance and cleaning
Cleaning your fridge at regular
intervals will extend the service life of
the product.
BWARNING:
Unplug the product before cleaning it.
 Never use gasoline, benzene
or similar substances for cleaning
purposes.
 Never use any sharp and
abrasive tools, soap, household cleaners,
detergent and wax polish for cleaning.
 For non-No Frost products,
water drops and frosting up to a
fingerbreadth occur on the rear wall of
the Fridge compartment. Do not clean it;
never apply oil or similar agents on it.
 Only use slightly damp
microfiber cloths to clean the outer
surface of the product. Sponges and
other types of cleaning cloths may
scratch the surface
 Dissolve one teaspoon of
bi-carbonate in half litre of water. Soak
a cloth with the solution and wrung
it thoroughly. Wipe the interior of the
refrigerator with this cloth and the dry
thoroughly.
 Make sure that no waterenters
the lamp housing and other electrical
items.
 If you will not use the
refrigerator for a long period of time,
unplug it, remove all food inside, clean it
and leave the door ajar.
 Check regularly that the door
gaskets are clean. If not, clean them.
 To remove door and body
shelves, remove all of its contents.
 Remove the door shelves by
pulling them up. After cleaning, slide
them from top to bottom to install.
 Never use cleaning agents or
water that contain chlorine to clean the
outer surfaces and chromium coated
parts of the product. Chlorine causes
corrosion on such metal surfaces.
6.1 Avoiding bad odours
 Materials that may cause
odour are not used in the production
of our refrigerators. However, due to
inappropriate food preserving conditions
and not cleaning the inner surface of the
refrigerator as required can bring forth
the problem of odour. Pay attention to
following to avoid this problem:
 Keeping the refrigerator clean
is important. Food residuals, stains, etc.
can cause odour. Therefore, clean the
refrigerator with bi-carbonate dissolved
in water every few months. Never use
detergents or soap.
 Keep the food in closed
containers. Microorganisms spreading
out from uncovered containers can
cause unpleasant odours.
 Never keep the food that have
passed best before dates and spoiled in
the refrigerator.
6.2 Protecting the plas-
tic surfaces
Do not put liquid oils or oil-cooked
meals in your refrigerator in unsealed
containers as they damage the plastic
surfaces of the refrigerator. If oil is
spilled or smeared onto the plastic
surfaces, clean and rinse the relevant
part of the surface at once with warm
water.

EN
18
7Troubleshooting
Check this list before contacting the
service. Doing so will save you time
and money. This list includes frequent
complaints that are not related to
faulty workmanship or materials.
Certain features mentioned herein
may not apply to your product.
The refrigerator is not working.
 The power plug is not fully settled. >>>
Plug it in to settle completely into the
socket.
 The fuse connected to the socket
powering the product or the main fuse is
blown. >>> Check the fuses.
Condensation on the side wall of
the cooler compartment (MULTI
ZONE, COOL, CONTROL and FLEXI
ZONE).
 The door is opened too frequently >>>
Take care not to open the product’s door
too frequently.
 The environment is too humid. >>>
Do not install the product in humid
environments.
 Foods containing liquids are kept in
unsealed holders. >>> Keep the foods
containing liquids in sealed holders.
 The product’s door is left open. >>> Do
not keep the product’s door open for
long periods.
 The thermostat is set to too low
temperature. >>> Set the thermostat to
appropriate temperature.
Compressor is not working.
 In case of sudden power failure or pulling
the power plug off and putting back on,
the gas pressure in the product’s cooling
system is not balanced, which triggers
the compressor thermic safeguard. The
product will restart after approximately
6 minutes. If the product does not
restart after this period, contact the
service.
 Defrosting is active. >>> This is normal
for a fully-automatic defrosting product.
The defrosting is carried out periodically.
 The product is not plugged in. >>> Make
sure the power cord is plugged in.
 The temperature setting is incorrect.
>>> Select the appropriate temperature
setting.
 The power is out. >>> The product will
continue to operate normally once the
power is restored.
The refrigerator’s operating noise
is increasing while in use.
 The product’s operating performance
may vary depending on the ambient
temperature variations. This is normal
and not a malfunction.
The refrigerator runs too often or
for too long.
 The new product may be larger than the
previous one. Larger products will run for
longer periods.
 The room temperature may be high.
>>> The product will normally run for
long periods in higher room temperature.
 The product may have been recently
plugged in or a new food item is placed
inside. >>> The product will take longer
to reach the set temperature when
recently plugged in or a new food item is
placed inside. This is normal.
 Large quantities of hot food may have
been recently placed into the product.
>>> Do not place hot food into the
product.
 The doors were opened frequently or
kept open for long periods. >>> The
warm air moving inside will cause the
product to run longer. Do not open the
doors too frequently.
 The freezer or cooler door may be ajar.
>>> Check that the doors are fully
closed.

EN
19
 The product may be set to temperature
too low. >>> Set the temperature to a
higher degree and wait for the product
to reach the adjusted temperature.
 The cooler or freezer door washer
may be dirty, worn out, broken or not
properly settled. >>> Clean or replace
the washer. Damaged / torn door
washer will cause the product to run for
longer periods to preserve the current
temperature.
The freezer temperature is very
low, but the cooler temperature is
adequate.
 The freezer compartment temperature
is set to a very low degree. >>> Set the
freezer compartment temperature to a
higher degree and check again.
The cooler temperature is very
low, but the freezer temperature
is adequate.
 The cooler compartment temperature
is set to a very low degree. >>> Set the
freezer compartment temperature to a
higher degree and check again.
The food items kept in cooler
compartment drawers are frozen.
 The cooler compartment temperature
is set to a very low degree. >>> Set the
freezer compartment temperature to a
higher degree and check again.
The temperature in the cooler or
the freezer is too high.
 The cooler compartment temperature
is set to a very high degree. >>>
Temperature setting of the cooler
compartment has an effect on
the temperature in the freezer
compartment. Wait until the
temperature of relevant parts reach
the sufficient level by changing the
temperature of cooler or freezer
compartments.
 The doors were opened frequently or
kept open for long periods. >>> Do not
open the doors too frequently.
 The door may be ajar. >>> Fully close
the door.
 The product may have been recently
plugged in or a new food item is
placed inside. >>> This is normal. The
product will take longer to reach the set
temperature when recently plugged in
or a new food item is placed inside.
 Large quantities of hot food may have
been recently placed into the product.
>>> Do not place hot food into the
product.
Shaking or noise.
 The ground is not level or durable. >>>
If the product is shaking when moved
slowly, adjust the stands to balance the
product. Also make sure the ground is
sufficiently durable to bear the product.
 Any items placed on the product may
cause noise. >>> Remove any items
placed on the product.
The product is making noise of
liquid flowing, spraying etc.
 The product’s operating principles
involve liquid and gas flows. >>> This is
normal and not a malfunction.
There is sound of wind blowing
coming from the product.
 The product uses a fan for the cooling
process. This is normal and not a
malfunction.
There is condensation on the
product’s internal walls.
 Hot or humid weather will increase icing
and condensation. This is normal and not
a malfunction.
 The doors were opened frequently or
kept open for long periods. >>> Do not
open the doors too frequently; if open,
close the door.
 The door may be ajar. >>> Fully close
the door.
