Beko BFSB3622SS User manual

BFSB3622SS
57 6190 0000/AP -EN-FR-ES
EN/ FR/ ES
Refrigerator
User Manual
Réfrigérateur
Manuel d’utilisation
Refrgerador
Manual del usuari

Please read this manual before using the product!
Dear Customer,
We'd like you to make the best use of our product, which has been manufactured in modern facilities
with care and meticulous quality controls.
Thus, we advice you to read the entire user manual before you use the product. In case the product
changes hands, do not forget to hand the guide to its new owner along with the product.
This guide will help you use the product quickly and safely.
• Please read the user guide carefully before installing and operating the product.
• Always observe the applicable safety instructions.
• Keep the user guide within easy reach for future use.
• Please read any other documents provided with the product.
Keep in mind that this user guide may apply to several product models. The guide clearly indicates any
variations of different models.
CImportant information and useful
tips.
ARisk of life and property.
BRisk of electric shock.
The product’s packaging is made of
recyclable materials, in accordance
with the National Environment
Legislation.

2 / 28 EN Refrigerator / User Guide
1 Important instructions for safety and
environment 3
1.1 General safety. . . . . . . . . . . . . . . . . . . . . . . 3
1.1.1HCA warning . . . . . . . . . . . . . . . . . . . . . . . 4
1.1.2For products with a water dispenser . . . . . . 4
1.2 Intended use. . . . . . . . . . . . . . . . . . . . . . . . 5
1.4 Compliance with WEEE Directive and Disposing
of the Waste Product: . . . . . . . . . . . . . . . . 5
1.5 Compliance with RoHS Directive:. . . . . . . . . . 5
1.6 Package information. . . . . . . . . . . . . . . . . . . 5
2 Refrigerator 7
3 Installation 8
3.1. Right place for installation . . . . . . . . . . . . . . 8
3.2. Attaching the plastic wedges . . . . . . . . . . . . 8
3.3. Adjusting the stands . . . . . . . . . . . . . . . . . . 9
3.4. Power connection . . . . . . . . . . . . . . . . . . . . 9
3.5. Water connection . . . . . . . . . . . . . . . . . . . 10
3.6. Connecting the water hose to the
refrigerator . . . . . . . . . . . . . . . . . . . . . . . 10
3.7. Connecting the water line to the water
supply . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.8. Water filter . . . . . . . . . . . . . . . . . . . . . . . . 10
4 Preparation 11
4.1. What to do for energy saving . . . . . . . . . . . 11
4.2. First Use . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5 Using the product 13
5.1. Indicator panel . . . . . . . . . . . . . . . . . . . . . 13
5.2. Activating water filter change warning . . . . 16
5.3. Taking ice / water . . . . . . . . . . . . . . . . . . . 18
5.4. Drip tray . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.5. Zero degree compartment. . . . . . . . . . . . . 19
5.6. Vegetable bin . . . . . . . . . . . . . . . . . . . . . . 19
5.7. Blue light . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.8. Ionizer . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.9. Odour filter . . . . . . . . . . . . . . . . . . . . . . . . 19
5.10.Icematic and ice storage box . . . . . . . . . . 19
5.11.Ice-maker . . . . . . . . . . . . . . . . . . . . . . . . 20
5.12.Freezing fresh food . . . . . . . . . . . . . . . . . 22
5.13.Recommendations for storing frozen foods 22
5.14.Deep freezer details . . . . . . . . . . . . . . . . . 22
5.15.Placing the food. . . . . . . . . . . . . . . . . . . . 23
5.16.Door open alert . . . . . . . . . . . . . . . . . . . . 23
5.17.Interior light . . . . . . . . . . . . . . . . . . . . . . . 23
6 Maintenance and cleaning 24
6.1 Avoiding bad odours . . . . . . . . . . . . . . . . . . 24
6.2 Protecting the plastic surfaces . . . . . . . . . . 24
7 Troubleshooting 25
Table of Contents

3 /28 EN
Refrigerator / User Guide
1 Important instructions for safety and environment
This section contains safety instructions that will
help protect from risk of personal injury or property
damage. Failure to follow these instructions shall
void any warranty.
Intended use
– WARNING: Keep ventilation openings, in the
appliance enclosure or in the built-in structure,
clear of obstruction.
– WARNING: Do not use mechanical devices or
other means to accelerate the defrosting
process, other than those recommended by the
manufacturer.
– WARNING: Do not damage the refrigerant circuit.
NOTE :This warning is only applicable to
appliances with refrigerating circuits which are
accessible to the user.
– WARNING: Do not use electrical appliances
inside the food storage compartments of the
appliance, unless they are of the type
recommended by the manufacturer.
This appliance is intended to be used in household
and similar applications such as
– staff kitchen areas in shops, offices and other
working environments;
– farm houses and by clients in hotels, motels and
other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
1.1 General safety
•Thisproductcanbeusedbychildrenatand
above 8 years old and by persons whose
physical, sensory or mental capabilities were
not fully developed or who lack experience and
knowledge provided that they are supervised or
trained on the safe usage of the product and the
risks it brings out. Children must not play with
the product. Cleaning and maintenance works
should not be performed by children unless they
are supervised by someone.
•Unplugtheproductifafailureoccurswhileitis
in use.
•Iftheproducthasafailure,itshouldnotbe
operated unless it is repaired by the Authorised
Service Agent. There is the risk of electric shock!
•Connecttheproducttoagroundedoutlet
protected by a fuse complying with the values in
the rating plate. Have the grounding installation
made by a qualified electrician. Our company
shall not be liable for any damages that will arise
when the product is used without grounding in
accordance with the local regulations.
•Unplugtheproductwhennotinuse.
•Neverwashtheproductbyspreadingorpouring
water onto it! There is the risk of electric shock!
•Nevertouchtheplugwithwethands!Never
unplug by pulling on the cable, always pull out by
grabbing the plug.
•Itisrecommendedtocleanthetipoftheplug
regularly with a dry cloth.
•Donotplugtherefrigeratorifthewalloutletis
loose.
•Neverconnectyourrefrigeratortoelectricity-
saving systems. Such systems are harmful for the
product.
•Unplugtheproductduringinstallation,mainte-
nance, cleaning and repairing procedures.
•Alwayshavetheinstallationandrepairing
procedures carried out by the Authorised
Service Agent. Manufacturer shall not be
held liable for damages that may arise from
procedures carried out by unauthorised persons.
•Donoteatconeicecreamandicecubesim-
mediately after you take them out of the freezer
compartment! This may cause frostbite in your
mouth!
•Donottouchfrozenfoodbyhand!Theymaystick
to your hand!
•Donotputbottledandcannedliquidbeveragesin
the freezer compartment. They may burst!
•Neverusesteamandsteamassistedcleaning
materials to clean or defrost the refrigerator.
Steam will cause short circuit or electric shock
since it would get into contact with the electrical
parts in the refrigerator!
•Donotusemechanicaldevicesorothermethods
to accelerate the defrosting process, other than
those recommended by the manufacturer.

4 / 28 EN Refrigerator / User Guide
Safety and environment instructions
•Neverusethepartsonyourrefrigeratorsuchas
the door and drawer as a means of support or
step. This will cause the product to tip over or
parts of it get damaged.
•Donotdamagethecoolingcircuit,wherethe
refrigerant is circulating, with drilling or cutting
tools. The refrigerant that might blow out when
the gas channels of the evaporator, pipe exten-
sions or surface coatings are punctured may
cause skin irritations and eye injuries.
•Donotcoverorblocktheventilationholeson
the refrigerator with any material.
•Placethebeveragewithhigherproofstightly
closed and vertically.
•Donotusegaseousspraysneartheproduct
since there is the risk of fire or explosion!
•Flammableitemsorproductsthatcontain
flammable gases (e.g. spray) as well as the
explosive materials should never be kept in the
appliance.
•Donotplacecontainersfilledwithliquidontop
of the product. Spilling water on an electrical
component may cause electric shocks or risk of
fire.
•Donotstoreproducts(vaccines,heat-sensitive
medicines, scientific materials and etc.) that
require a precise temperature control in the
refrigerator.
•Ifyouwillnotoperatetheproductforalong
period of time, unplug and unload the food in it.
•Iftheproductisequippedwithbluelight,donot
look at the blue light with optical tools.
•Exposingtheproducttorain,snow,sunand
wind is dangerous with respect to electrical
safety.
•Inproductswithmechanicalcontrol(thermo-
stat), wait for minimum 5 minutes to plug in the
product again after unplugging it.
•Donotoverloadtheproduct.Itmayfallwhen
the door is opened, and cause injury or dam-
age. Similar problems may occur in case of
putting things on top of the product.
•Iftheproduct'sdoorisequippedwithahandle,
do not pull by the handle when changing the
place of the product. Handle may get loose.
•Payattentionnottohaveyourhandoranypart
of your body get caught by the moving parts
inside the product.
1.1.1 HCA warning
•Ifyourproduct’scoolingsystemcontainsR600a:
This gas is flammable. Therefore, pay attention
to not damaging the cooling system and piping
during usage and transportation. In the event of
damage, keep your product away from potential
fire sources that can cause the product catch a fire
and ventilate the room in which the unit is placed.
Ignore this warning if your product’s cooling
system contains R134a.
Type of gas used in the product is stated in the
type plate which is on the left wall inside the refrig-
erator.
Never throw the product in fire for disposal.
CIf the product is equipped with a cooling
system containing R134a gas, ignore this
warning.
CYou can learn the gas used in production of
your product on the rating plate located on
the left inner part of it.
AWARNING: Never dispose the product
in fire.
1.1.2 For products with a
water dispenser
• Pressure for cold water inlet shall be maximum
90 psi (620 kPa). If your water pressure
exceeds 80 psi (550 kPa), use a pressure
limiting valve in your mains system. If you do
not know how to check your water pressure,
ask for the help of a professional plumber.
• If there is risk of water hammer effect in
your installation, always use a water hammer
prevention equipment in your installation.
Consult Professional plumbers if you are not
sure that there is no water hammer effect in
your installation.
• Do not install on the hot water inlet. Take
precautions against of the risk of freezing
of the hoses. Water temperature operating
interval shall be 33°F (0.6°C) minimum and
100°F (38°C) maximum.
•Useonlypotablewater.

5 /28 EN
Refrigerator / User Guide
Safety and environment instructions
1.2 Intended use
•Thisproducthasbeendesignedfordomestic
use. It is not suitable for commercial use and it
must not be used out of its intended use.
•Productmustbeusedonlyforstoringfood.
•Themanufacturerwaivesanyresponsibility
arisen from incorrect usage or transportation.
•Originalsparepartswillbeprovidedfor10
years, following the product purchasing date.
1.3 Children's safety
•Ifthedoorhasalock,thekeyshouldbekept
away from reach of children.
•Childrenmustbesupervisedtopreventthem
from tampering with the product.
A
DANGER: Risk of child entrapment.
Before you throw away your old
refrigerator or freezer:
•Takeoffthedoors.
•Leavetheshelvesinplacesothat
children may not easily climb
inside.
1.4 Compliance with WEEE
Directive and Disposing
of the Waste Product:
This product complies with EU WEEE
Directive (2012/19/EU). This product
bears a classification symbol for waste
electrical and electronic equipment
(WEEE).This product has been
manufactured with high quality parts
and materials which can be reused
and are suitable for recycling. Do not dispose
of the waste product with normal domestic
and other wastes at the end of its service life.
Take it to the collection center for the recycling
of electrical and electronic equipment. Please
consult your local authorities to learn about these
collection centers.
1.5 Compliance with RoHS Directive:
The product you have purchased complies with EU
RoHS Directive (2011/65/EU). It does not contain
harmful and prohibited materials specified in the
Directive.
1.6 Package information
•Packagingmaterialsoftheproductare
manufactured from recyclable materials in
accordance with our National Environment
Regulations. Do not dispose of the packaging
materials together with the domestic or other
wastes. Take them to the packaging material
collection points designated by the local
authorities.
• « Contact qualified personnel for disposal. »
• « Contact qualified personnel for servicing. »
A
DANGER: Risk Of Fire or Explosion.
Flammable Refrigerant Used.
Do Not Use Mechanical Devices
To Defrost Refrigerator. Do Not
Puncture Refrigerant Tubing”.

6 / 28 EN Refrigerator / User Guide
Safety and environment instructions
A
DANGER: Risk Of Fire Or Explosion.
Flammable Refrigerant Used. To Be
Repaired Only By Trained Service
Personnel. Do Not Puncture
Refrigerant Tubing”.
A
CAUTION : Risk Of Fire Or Explosion.
Flammable Refrigerant Used.
Consult Repair Manual/Owner’s
Guide Before Attempting To
Service This Product. All Safety
Precautions Must be Followed.
A
CAUTION : Risk Of Fire Or Explosion.
Dispose Of Properlty In Accordance
With Federal Or Local Regulations.
Flammable Refrigerant Used.
A
CAUTION : Risk Of Fire Or Explosion
Due To Puncture Of Refrigerant
Tubing; Follow Handling
Instructions Carefully. Flammable
Refrigerant Used”.

7 /28 EN
Refrigerator / User Guide
2 Refrigerator
C*Optional: Figures in this user guide are schematic and may not be exactly match your product. If your
product does not comprise the relevant parts, the information pertains to other models.
1- Freezer compartment
2- Cooler compartment
3- Fan
4- Butter-cheese compartment
5- Glass shelves
6- Cooler compartment door shelves
7- Minibar accessory
8- Water tank
9- Bottle shelf
10- Odour filter
11- Zero degree compartment
12- Vegetable bins
13- Adjustable stands
14- Frozen food storing compartments
15- Freezer compartment door shelves
16- Icematics
17- Ice storage box
18- Ice-maker decorative lid
*Optional
2
3*4
5*6
1
*7
*11
*16
*16
*17
*18
12
13
14
15
13
*8
10
*9

8 / 28 EN Refrigerator / User Guide
3 Installation
3.1. Right place for installation
Contact the Authorized Service for the product's
installation. To ready the product for installation,
see the information in the user guide and make
sure the electric and water utilities are as required.
If not, call an electrician and plumber to arrange
the utilities as necessary.
BWARNING: The manufacturer
assumes no responsibility for any
damage caused by the work carried out
by unauthorized persons.
BWARNING: The product’s power cable
must be unplugged during installation.
Failure to do so may result in death or
serious injuries!
AWARNING: : If the door span is too
narrow for the product to pass, remove
the door and turn the product sideways;
if this does not work, contact the
authorized service.
•Placetheproductonaflatsurfacetoavoid
vibration.
•Placetheproductatleast30cmawayfromthe
heater, stove and similar sources of heat and at
least 5 cm away from electric ovens.
•Donotexposetheproducttodirectsunlightor
keep in damp environments.
•Theproductrequiresadequateaircirculationto
function efficiently. If the product will be placed
in an alcove, remember to leave at least 5 cm
distance between the product and the ceiling
and the walls.
•Donotinstalltheproductinenvironmentswith
temperatures below -5°C.
3.2. Attaching the plastic wedges
Use the plastic wedges in the provided with
the product to provide sufficient space for air
circulation between the product and the wall.
1. To attach the wedges, remove the screws on the
product and use the screws provided with the wedges.
2. Attach 2 plastic wedges on the ventilation cover
shown as j in the figure.

9 /28 EN
Refrigerator / User Guide
Installation
3.3. Adjusting the stands
If the product is not in balanced position, adjust the
front adjustable stands by rotating right or left.
In order to adjust the doors vertically,
•Loosenthefixingnutatthebottom
•Screwadjustingnut(CW/CCW)accordingtothe
position of the door
•Tightenthefixingnutforthefinalposition
In order to adjust the doors horizontally,
• Loosen the fixing bolt on the top
• Screw the adjusting bolt (CW/CCW) on the side
according to the position of the door
• Tighten the fixing bolt on the top for the final
position
3.4. Power connection
AWARNING: Do not use extension or
multi sockets in power connection.
BWARNING: Damaged power cable
must be replaced by Authorized
Service.
CWhen placing two coolers in adjacent
position, leave at least 4 cm distance
between the two units.
• Our firm will not assume responsibility for any
damages due to usage without earthing and
power connection in compliance with national
regulations.
• The power cable plug must be easily
accessible after installation.
• Do not use multi-group plug with or without
extension cable between the wall socket and
the refrigerator.
adjusting nut
fixing nut
fixing nut
adjusting nut

10 / 28 EN Refrigerator / User Guide
Installation
3.5. Water connection
Depending on the model of the refrigerator, you
can connect it either to a demijohn or water mains.
First you must connect the water hose to the
refrigerator.
CIn cases where a demijohn is used, a
separate pump must also be used.
AWARNING: Refrigerator and the pump, if
any, must be unplugged during connection.
CFollowing parts may not be supplied with
your product since they are not required
when using a demijohn.
Your product comes with an internal water filter for
use inside the fridge. Part number of the filter is
4918450200 and you can use this part number
when ordering replacement filters.
3.6. Connecting the water
hose to the refrigerator
1.Slip the union (b) onto the water hose (a).
2.Push the water hose downwards firmly to slip it
onto the water inlet valve (c).
3.Tighten the union (c) by hand to secure it onto
the water inlet valve.
CNormally, you are not required to tighten
the union with a tool. However, you can use
a spanner or pliers to tighten the union if
there is a leakage.
3.7. Connecting the water
line to the water supply
Connect the water line to a water supply valve. If a
valve is not present or you are not sure, consult a
qualified plumber.
3.8. Water filter
(in some models)
Your refrigerator may be equipped with an external
or internal filter depending on its model. To fit the
water filter, follow the instructions below referring
to the figures supplied:

11 /28 EN
Refrigerator / User Guide
4 Preparation
4.1. What to do for energy saving
mehmet
AConnecting the product to electronic
energy-saving systems is harmful, as it
may damage the product.
• Do not keep the refrigerator doors open for
long periods.
• Do not place hot food or beverages into the
refrigerator.
• Do not overfill the refrigerator; blocking the
internal air flow will reduce cooling capacity.
• The energy consumption value specified for
the refrigerator was measured with the freezer
compartment’s upper shelf removed, other
shelves and the lowest drawers in place and
under maximum load. The top glass shelf can
be used, depending on the shape and size of
food to be frozen.
• Depending on the product’s features;
defrosting frozen foods in the cooler
compartment will ensure energy saving and
preserve food quality.
• Since hot and humid air will not directly
penetrate into your product when the doors
are not opened, your product will optimize
itself in conditions sufficient to protect your
food. Functions and components such as
compressor, fan, heater, defrost, lighting,
display and so on will operate according to
the needs to consume minimum energy under
these circumstances.
• The baskets/drawers that are provided with the
chill compartment must always be in use for
low energy consumption and for better storage
conditions.
• Food contact with the temperature sensor in
the freezer compartment may increase energy
consumption of the appliance. Thus any
contact with the sensor(s) must be avoided.
• Make sure the foods are not in contact with
the cooler compartment temperature sensor
described below.
4.2. First Use
Before using your refrigerator, make sure the
necessary preparations are made in line with
the instructions in “Safety and environment
instructions” and “Installation” sections.
• Keep the product running with no food
inside for 6 and do not open the door, unless
absolutely necessary.
CA sound will be heard when the
compressor is engaged. It is normal to
hear sound even when the compressor is
inactive, due to the compressed liquids
and gasses in the cooling system.
CIt is normal for the front edges of the
refrigerator to be warm. These areas are
designed to warm up in order to prevent
condensation.
CIn some models, the instrument panel
automatically turns off 5 minutes after
the door has closed. It will be reactivated
when the door has opened or pressed on
any key.

12 / 28 EN Refrigerator / User Guide
Preparation
182 cm -71 ¾”
91 -35 7/8”
72- 28 5/16”
Height (cm/inch) unpacked
Width (cm/inch) unpacked
Depth (cm/inch) unpacked
Height (cm/inch)packed
191-75 1/4"
Width (cm/inch)packed
98 -38 1/2"
Depth (cm/inch) packed
78- 30 5/8"
Gross Weight (Kg) / lbs
128-282.2
Net Weight (Kg) / lbs 116 -255.7
30 5/16”
182 cm
71 ¾”
72 cm
77 cm
28 5/16”
91cm
35 7/8”

13 /28 EN
Refrigerator / User Guide
5 Using the product
CThe figures in this user guide are intended as drafts and may not perfectly match your product. If your
product does not comprise the relevant parts, the information pertains to other models.
1. Freezer compartment temperature setting
2. Economy mode
3. Energy saving function (display off)
4. Power failure/High temperature / error
warning indicator
5. Cooler compartment temperature setting
6. Rapid cooling
7. Vacation function
8. Keypad lock / filter replacing alert cancellation
9. Water, fragmented ice, ice cubes selection
10. Ice making on/off
11. Display on/off/Alarm off
12. Autoeco
13. Rapid freezing
1 2 *3
4
(*)
13
12
5
6
78
9
1011.1
11.2
5.1. Indicator panel
Indicator panels may vary depending on the model of your product.
Audial and visual functions of the indicator panel will assist in using the refrigerator.

14 / 28 EN Refrigerator / User Guide
Using the product
1. Freezer compartment temperature setting
Pressing the button ( ) will enable the freezer
compartment temperature to be set at -15,-16,-
18,-19 ,-20,-21,-22,-15...
5,-8, -6, -4, -2, 0, 3, 5, -8, -6,-4, -2, 0 °F
2. Economy mode
Indicates the refrigerator is running on energy-
saving mode. This indicator will be active when the
freezer compartment temperature is set at -15 or
the energy-saving cooling is engaged by eco-extra
function. ( )
3.Energy saving function (display off)
If the product doors are kept closed for a long time
energy saving function is automatically activated
and energy saving symbol is illuminated. When
energy saving function is activated, all symbols
on the display other than energy saving symbol
will turn off. When the Energy Saving function is
activated, if any button is pressed or the door is
opened, energy saving function will be cancelled
and the symbols on display will return to normal.
Energy saving function is activated during delivery
from factory and cannot be cancelled.
4. Power failure/High temperature / error
warning indicator
This indicator ( ) will light up in case of
temperature faults or fault alerts. This indicator
illuminates during power failure, high temperature
failures and error warnings. During sustained
power failures, the highest temperature that the
freezer compartment reaches will flash on the
digital display. After checking the food located in
the freezer compartment press the alarm off button
to clear the warning.
5. Cooler compartment temperature setting
After pressing the button ( ), the
cooler compartment temperature can
be set to 8,7,6,5,4,3,2.. respective
ly.39,40,41,42,43,44,45,46,33,34,35,36,37,38,
39 °F.
6. Rapid cooling
For rapid cooling , press the button; this will
activate the rapid cooling indicator ( ).
Press this button again to deactivate this function.
Use this function when placing fresh foods into
the cooler compartment or to rapidly cool the
food items. When this function is activated, the
refrigerator will be engaged for 1 hour.
7. Vacation function
When the Vacation function ( ) is active, the
cooler compartment temperature indicator displays
the inscription "- -" and no cooling process
will be active in the cooling compartment. This
function is not suitable to keep food in the cooler
compartment. Other compartments will remain
cooled with the respective temperature set for
each compartment.
Press the vacation function button again to cancel
this function. ( )
8. Keypad lock / Keypad lock / filter replacing
alert cancellation
Press keypad lock button ( ) to activate the
keypad lock. You may also use this function to
prevent changing the refrigerator's temperature
settings. The refrigerator's filter must be replaced
every 6 months. If you follow the instructions in
the section 5.2, the refrigerator will automatically
calculate the remaining period and the filter
replacing alert indicator ( ) will light up when
filter expires.
Press and hold the button ( ) for 3 seconds to
turn off the filter alert light.
9. Water, fragmented ice, ice cubes selection
Navigate the water ( ), ice cube ( ) and
fragmented ice ( ) selections using the button
number 8. The active indicator will remain lit.
10. Ice making on/off
Press the button ( ) to cancel ( ) or
activate ( ) ice-making.
11.1 Display on/off
When you press the Display off button and when the (
) function is lit, all the other icons of the
display will go off and the display will enter the energy
saving mode. When you press the Display off button
again and when the( ) function is lit, all
the other icons of the display will be lit and the display
will exit the energy saving mode.

15 /28 EN
Refrigerator / User Guide
Using the product
11.2 Alarm off warning
In case of power failure/high temperature alarm,
after checking the food located in the freezer
compartment press the alarm off button to clear
the warning.
12. Autoeco
Press the auto eco button ( ), for 3 seconds to
activate this function. If the door remains closed
for a long time when this function is activated, the
cooler section will switch to economic mode. Press
the button again to deactivate this function.
The indicator will light up after 6 hours when the
auto eco function is active. ( )
13. Rapid freezing
Press the button ( ) for rapid freezing. Press the
button again to deactivate the function. If the user does not deactivate the Sabbath mode,
the refrigerator will automatically cancel it in 72
hours.
Sabbath Mode:
Press the Rapid cooling Button for 3 seconds to
activate or deactivate the Sabbath Mode. When
Sabbath Mode is activated, the display, alarm,
door opening or light buttons will not function:
The cooling algorithm is set according to the
sabbath fashion.
(This feature is optional)

16 / 28 EN Refrigerator / User Guide
Using the product
5.2. Activating water filter
change warning
(For products connected to the mains water
line and equipped with filter)
Water filter change warning is activated as follows:
Automatic filter usage time calculation is not enabled ex factory.
It must be enabled in products equipped with a filter.
The S4 display board we use in the refrigerator has a nine-key system.
Set values are shown in the display.
The automatic filter counter function is not actived at the end of the production. The filter counter must be
activated on the display, before the product shouldn’t be used
The S4 display card used in the refrigerator has a nine-button system. The display shows the set values.
After the product is energized, it is expected to see the cabin set values on the display and if we press
the Key Lock button for 3 second, the filter counter is activated.

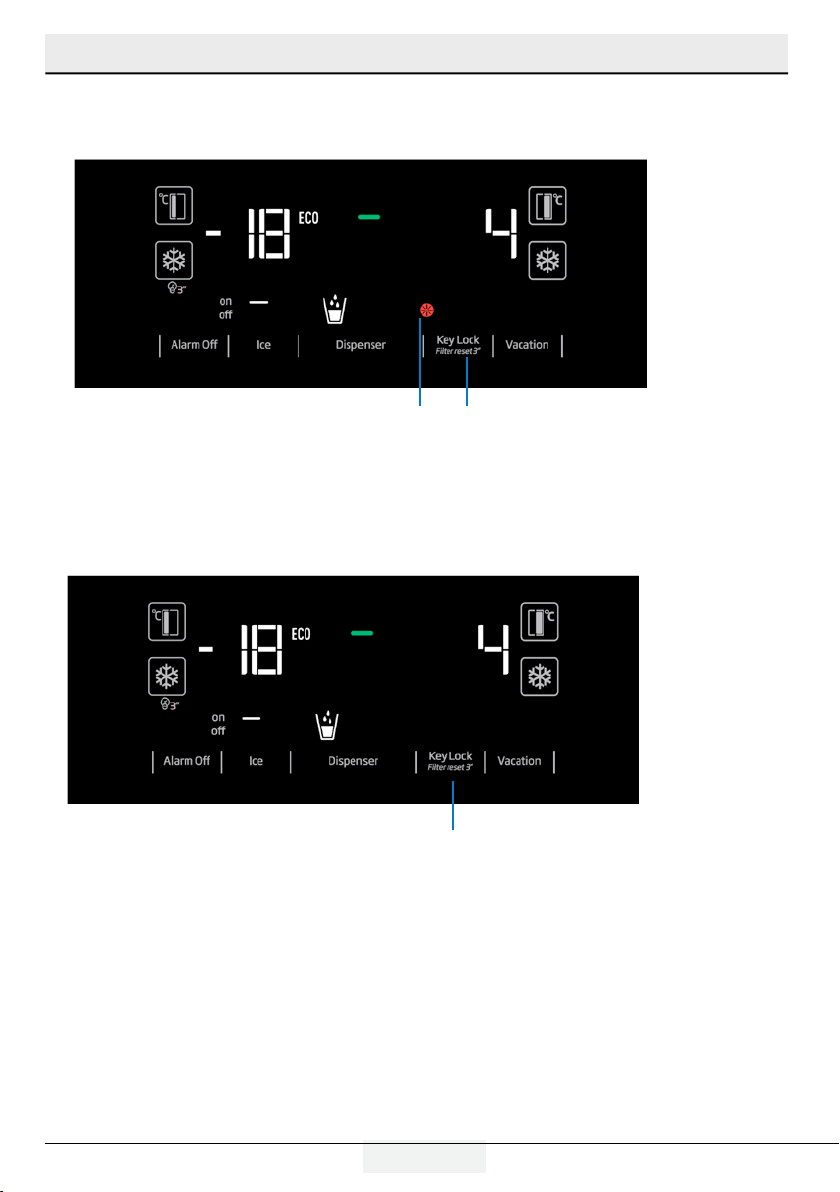

Freezer Set
Fridge Set
Quick Fridge
Alarm Off
Ice On/Off
Dispenser Mode Key Lock)
/ Filter Reset Vacation
Quick Freeze /
(Ecofuzzy)
Press the Key Lock button for 3 seconds to activate the
filter counter
*(3second pressing)

17 /28 EN
Refrigerator / User Guide
Using the product
Activating filter counter is complete. After 3120 hours (130 days), the filter warning LED lights up and
warns the user.
Once the filter has been replaced, press the Key Lock button for 3 seconds. The filter counter is activated
again. 3120 hours are expected to be completed for next warning
NOTE: This function must be triggered and activated manually by the customer. If this function is not
desired to be used again, the second time after the warning LED has been turned off, it must be not
activated the function.
Again, press the Key Lock button for 3 seconds to
activate the filter counter
LED can be turned off by pressing the button for 3
seconds when the filter warning LED is activated
Filter warning LED

18 / 28 EN Refrigerator / User Guide
Using the product
5.3. Taking ice / water
(Optional)
To take water ( ) / ice cube ( ) / fragmented
ice ( ), use the display to select the respective
option. Take water/ice by pushing the trigger
on the water fountain forward. When switching
between ice cube ( ) / fragmented ice ( )
options, the previous ice type may be discharged a
few more times.
• You must wait approximately 12 hours before
taking ice from the ice / water fountain for the
first time. The fountain may not discharge ice if
there is insufficient ice in the ice box.
• The 30 pieces of ice cubes (3-4 Litres) taken
after first operating should not be used.
• In case of power blackout or temporary
malfunction, the ice may partly melt and re-
freeze. This will cause the ice pieces to merge
with each other. In case of extended power
blackouts or malfunction, the ice may melt
and leak out. If you experience this problem,
remove the ice in the ice box and clean the
box.
AWARNING: The product’s water
system should be connected to cold
water line only. Do not connect to hot
water line.
• The product may not discharge water during
first operation. This is caused by the air in
the system. The air in the system must be
discharged. To do this, push the water fountain
trigger for 1-2 minutes until the fountain
discharges water. The initial water flow may be
irregular. The water will flow normally once the
air in the system is discharged.
• The water may be cloudy during first use of
the filter; do not consume the first 10 glasses
of water.
• You must wait approximately 12 hours to get
cold water after first installation.
• The product’s water system is designed
for clean water only. Do not use any other
beverages.
• It is recommended to disconnect the water
supply if the product will not be used for long
periods during vacation etc.
• If the water fountain is not used for a long
time, the first 1-2 glasses of water received
may be warm.
5.4. Drip tray
(optional)
The water dripping from the water fountain
accumulates on the drip tray; no water drainage is
available. Pull the drip tray out or push on the edges
to remove the tray. You may then discharge the water
inside the drip tray.

19 /28 EN
Refrigerator / User Guide
Using the product
5.5. Zero degree compartment
Use this compartment to keep delicatessen
at lower temperatures or meat products for
immediate consumption. Do not place fruits and
vegetables in this compartment. You can expand
the product's internal volume by removing any
of the zero degree compartments. To remove the
compartment, simply pull forth, lift up and pull out.
5.6. Vegetable bin
The refrigerator's vegetable bin is designed to
keep vegetables fresh by preserving humidity.
For this purpose, the overall cold air circulation is
intensified in the vegetable bin. Keep fruits and
vegetables in this compartment. Keep the green-
leaved vegetables and fruits separately to prolong
their life.
5.7. Blue light
The product's vegetable bins comprise blue
light. The vegetables in the bin will continue
photosynthesize under the blue light's wavelength
effect and remain live and fresh.
5.8. Ionizer
The ionizer system in the cooler compartment's
air duct serves to ionize the air. The negative
ion emissions will eliminate bacteria and other
molecules causing odour in the air.
5.9. Odour filter
The odour filter in the cooler compartment's air
duct will prevent undesirable odour formation.
5.10.Icematic and ice storage box
(Optional)
Fill the icematic with water and put in place. The
ice will be ready after approximately two hours. Do
not remove the icematic to take the ice.
Turn the buttons on the ice chambers right-hand
side by 90°; the ice will fall to the ice storage box
below. You may then remove the ice storage box
and serve the ice.
CThe ice storage box is intended for
storing ice only. Do not fill with water.
Doing so will cause it to break.
