Beko BTM220W User manual

EN
BTM220W
BTM245PX
BTM245W
BTM340W
BTM345PX
BTM345W
BTM425PX
BTM425W

Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
Therefore, read this entire user manual carefully before using the product and
keep it as a reference. If you handover the product to someone else, give the
user manual as well.
The user manual will help you use the product in a fast and safe way.
• Read the manual before installing and operating the product.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

EN
2
1 Your Refrigerator 3
2 Important Safety
Warnings 4
Intended use ..................................... 4
General safety ................................... 5
For products with a .......................... 9
water dispenser; ................................ 9
Child safety........................................ 9
Compliance with WEEE Directive and
Disposing of the Waste Product: .......9
Package information........................ 10
HC warning ..................................... 10
Things to be done for energy saving 10
Recommendations for the fresh food
compartment................................... 11
3 Installation 12
Points to be paid attention to when the
relocation of the refrigerator ............. 12
Electrical connection........................ 12
Disposing of the packaging ............. 13
Disposing of your old refrigerator ..... 13
Placing and Installation .................... 13
Adjusting the legs ............................ 14
Door Open Warning......................... 14
Changing the illumination lamp ....... 14
4 Preparation 16
CONTENTS
5 Using your refrigerator 17
Indicator panel................................. 17
Indicator panel................................. 20
Freezing fresh food .......................... 22
Recommendations for preservation of
frozen food ...................................... 22
Placing the food .............................. 22
Deep-freeze information .................. 23
Making ice....................................... 23
Twist Ice – matic ............................ 24
Ice container.................................... 24
Fan.................................................. 25
Crisper ............................................ 25
Chiller compartment ........................ 25
Description and cleaning of odour
filter: ............................................... 26
6 Maintenance and
cleaning 27
Protection of plastic surfaces .......... 27
7 Troubleshooting 28

EN
3
Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
1Your Refrigerator
1. Freezer - compartment
door shelf
2. Temperature setting button
3. Moving door shelf
4. Egg section
5. Bottle shelf
6. Adjustable feet
7. Crisper
8. Chiller compartment
9. Lock and key
10. Bottle shelf
11. Fridge - compartment
glass shelf
12. Fan
13. Freezer compartment shelf
14. Icebox / Ice-making
compartment
15. Freezer compartment
16. Fridge compartment
*optional
15
16
*1
*2
*3 4
66
*7
*8
*9
*14
*13
*14
*9
*10
11
12
12
*5

EN
4
2Important Safety Warnings
Please review the
following information.
Failure to observe this
information may cause
injuries or material
damage. Otherwise, all
warranty and reliability
commitments will
become invalid.
Original spare parts will
be provided for 10 years,
following the product
purchasing date.
Intended use
A
WARNING:
Keep ventilation
openings, in
the appliance
enclosure or
in the built-in
structure, clear of
obstruction.
A
WARNING:
Do not use
mechanical devices
or other means
to accelerate the
defrostingprocess,
other than those
recommended by
the manufacturer.
A
WARNING:
Do not damage the
refrigerant circuit.
A
WARNING:
Do not use
electrical
appliances inside
the food storage
compartments
of the appliance,
unless they
are of the type
recommended by
the manufacturer.
This appliance is intended
to be used in household
and similar applications
such as
– staff kitchen areas in
shops, offices and other
working environments;
– farm houses and by
clients in hotels, motels
and other residential type
environments;
– bed and breakfast type
environments;
– catering and similar
non-retail applications.

EN
5
General safety
• When you want to
dispose/scrap the
product, we recommend
you to consult the
authorized service
in order to learn the
required information and
authorized bodies.
• Consult your authorized
service for all your
questions and problems
related to the refrigerator.
Do not intervene or let
someone intervene to
the refrigerator without
notifying the authorised
services.
• For products with a
freezer compartment;
Do not eat cone ice
cream and ice cubes
immediately after you
take them out of the
freezer compartment!
(This may cause frostbite
in your mouth.)
• For products with a
freezer compartment;
Do not put bottled
and canned liquid
beverages in the
freezer compartment.
Otherwise, these may
burst.
• Do not touch frozen food
by hand; they may stick
to your hand.
• Unplug your refrigerator
before cleaning or
defrosting.
• Vapor and vaporized
cleaning materials
should never be used in
cleaning and defrosting
processes of your
refrigerator. In such
cases, the vapor may
get in contact with the
electrical parts and
cause short circuit or
electric shock.
• Never use the parts on
your refrigerator such as
the door as a means of
support or step.
• Do not use electrical
devices inside the
refrigerator.
• Do not damage the
parts, where the
refrigerant is circulating,
with drilling or cutting
tools. The refrigerant
that might blow out
when the gas channels
of the evaporator, pipe
extensions or surface
coatings are punctured
causes skin irritations
and eye injuries.

EN
6
• Do not cover or block
the ventilation holes on
your refrigerator with any
material.
• Electrical devices must
be repaired by only
authorised persons.
Repairs performed by
incompetent persons
create a risk for the user.
• In case of any failure or
during a maintenance or
repair work, disconnect
your refrigerator’s mains
supply by either turning
off the relevant fuse
or unplugging your
appliance.
• Do not pull by the cable
when pulling off the plug.
• Ensure highly alcoholic
beverages are stored
securely with the lid
fastened and placed
upright.
• Never store spray
cans containing
flammable and explosive
substances in the
refrigerator.
• Do not use mechanical
devices or other means
to accelerate the
defrosting process,
other than those
recommended by the
manufacturer.
• This product is not
intended to be used by
persons with physical,
sensory or mental
disorders or unlearned
or inexperienced people
(including children)
unless they are attended
by a person who will
be responsible for their
safety or who will instruct
them accordingly for use
of the product
• Do not operate a
damaged refrigerator.
Consult with the service
agent if you have any
concerns.
• Electrical safety of your
refrigerator shall be
guaranteed only if the
earth system in your
house complies with
standards.
• Exposing the product
to rain, snow, sun and
wind is dangerous with
respect to electrical
safety.
• Contact authorized
service when there is a
power cable damage to
avoid danger.

EN
7
• Never plug the
refrigerator into the wall
outlet during installation.
Otherwise, risk of death
or serious injury may
arise.
• This refrigerator is
intended for only storing
food items. It must not
be used for any other
purpose.
• Label of technical
specications islocated
on the left wall inside the
refrigerator.
• Neverconnectyour
refrigerator to electricity-
saving systems; they
may damage the
refrigerator.
• If there is a blue light on
the refrigerator, do not
look at the blue light with
optical tools.
• For manually controlled
refrigerators, wait for at
least 5 minutes to start
the refrigerator after
power failure.
• This operationmanual
should be handed in to
the new owner of the
product when itisgiven
to others.
• Avoid causing damage
on power cable when
transporting the
refrigerator. Bending
cable may cause re.
Never place heavy
objects on power cable.
Do not touch the plug
with wet hands when
plugging the product
• Do not plug the
refrigerator if the wall
outletis loose.
• Water should not be
sprayed on inner or outer
parts of theproduct for
safety purposes.
• Do not spray substances
containing inammable
gases such as propane
gas near the refrigerator
to avoid re and
explosion risk.
• Never place containers
lled with water on top
of the refrigerator; in
the event of spillages,

EN
8
this may cause electric
shock or re.
• Do not overload the
refrigerator with food.
If overloaded, the food
itemsmay fall downand
hurt youand damage
refrigerator when you
open the door.
• Never place objects on
top of the refrigerator;
otherwise, these objects
may fall downwhen
youopen or close the
refrigerator’s door.
• As they require a precise
temperature, vaccines,
heat-sensitive medicine
and scientic materials
and etc. should not be
kept in the refrigerator.
• If not to be used for a
long time, refrigerator
should be unplugged.
A possible problem in
powercable may cause
re.
• Refrigerator may move
if adjustable legs are not
properly secured on the
oor. Properly securing
adjustable legson the
oorcan prevent the
refrigerator to move.
• When carrying the
refrigerator, do not hold
it from door handle.
Otherwise, it may be
snapped.
• When you have toplace
your product next to
another refrigerator or
freezer, thedistance
between devices
should be at least 8cm.
Otherwise, adjacent side
walls may be humidied.

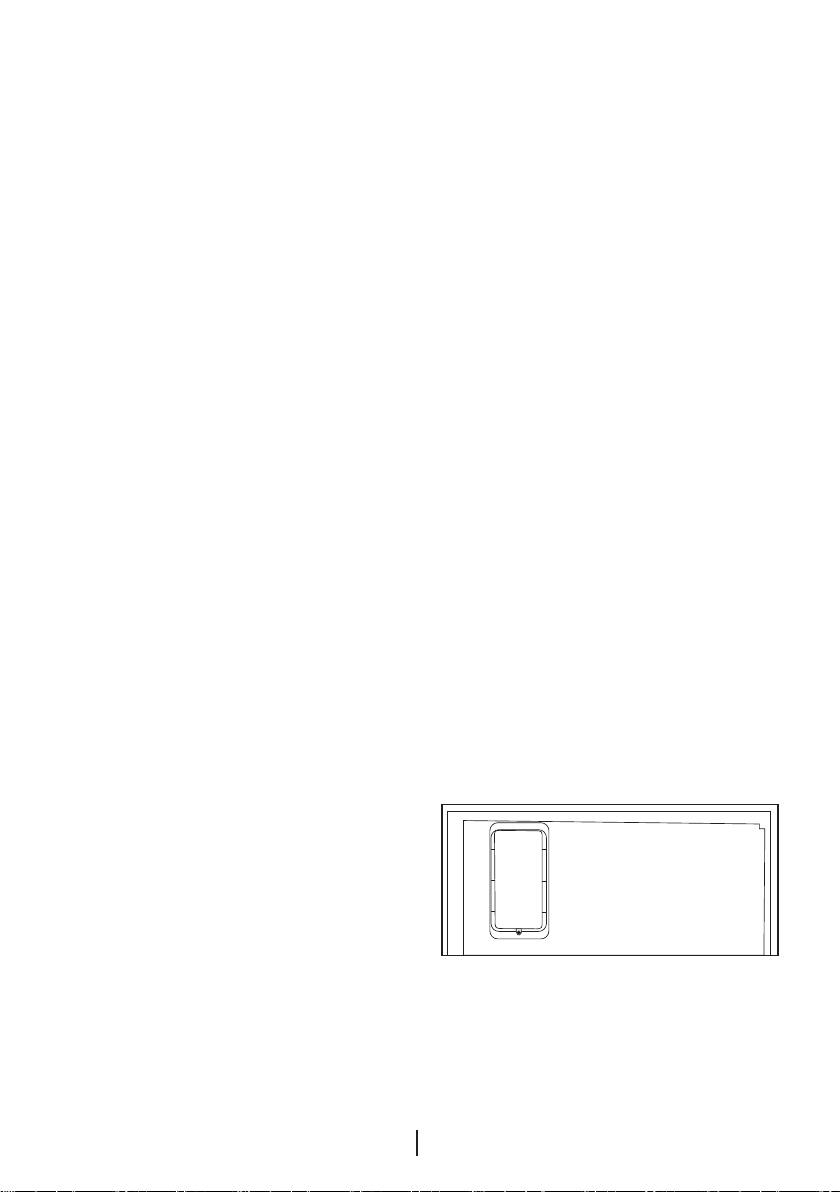

• The product shall never
be used while the
compartment which is
located at thetop or
back of your product
and in which electronic
boards are available
(electronic board box
cover) (1) isopen.
1

EN
9
For products with a
water dispenser;
• Pressure for cold water
inlet shall be maximum
90 psi (6.2 bar). If your
water pressure exceeds
80 psi (5.5 bar), use a
pressure limiting valve
in your mains system. If
you do not know how
to check your water
pressure, ask for the
help of a professional
plumber.
• If there is risk of water
hammer effect in your
installation, always
use a water hammer
prevention equipment
in your installation.
Consult Professional
plumbers is you are not
sure that there is no
water hammer effect in
your installation.
• Do not install on the
hot water inlet. Take
precautions against
of the risk of freezing
of the hoses. Water
temperature operating
interval shall be 33°F
(0.6°C) minimum
and 100°F (38°C)
maximum.
• Use only potable water.
Child safety
• If the door has a lock,
the key should be kept
away from reach of
children.
• Children must be
supervised to prevent
them from tampering
with the product.
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies
with EU WEEE Directive
(2012/19/EU). This product
bears a classification
symbol for waste electrical
and electronic equipment
(WEEE).
This product has been manufactured
with high quality parts and materials
which can be reused and are suitable
for recycling. Therefore, do not dispose
the product with normal domestic
waste at the end of its service life. Take
it to a collection point for the recycling
of electrical and electronic equipment.
Please consult your local authorities
to learn the nearest collection point.
Help protect the environment and
natural resources by recycling used
products. For children’s safety, cut the
power cable and break the locking
mechanism of the door, if any, so
that it will be non-functional before
disposing of the product.

EN
10
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.
Do not forget...
Any recycled substance is an
indispensable matter for nature and
our national asset wealth.
If you want to contribute to the
re-evaluation of the packaging
materials, you can consult to your
environmentalist organizations or the
municipalities where you are located.
HC warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the
product catch a fire and ventilate the
room in which the unit is placed.
Ignore this warning if your
product's cooling system contains
R134a.
Type of gas used in the product is
stated in the type label which is on the
left wall inside the refrigerator.
Never throw the product in fire for
disposal.
Things to be done for energy
saving
• Do not leave the doors of your
refrigerator open for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload your refrigerator so
that the air circulation inside of it is not
prevented.
• Do not install your refrigerator
under direct sunlight or near heat
emitting appliances such as ovens,
dishwashers or radiators. Keep your
refrigerator at least 30cm away from
heat emitting sources and at least
5cm from electrical ovens.
• Pay attention to keep your food in
closed containers.
• For products with a freezer
compartment; You can store
maximum amount of food items in
the freezer when you remove the
shelf or drawer of the freezer. Energy
consumption value stated for your
refrigerator has been determined
by removing freezer shelf or drawer
and under maximum load. There
is no harm to use a shelf or drawer
according to the shapes and size of
food to be frozen.
• Thawing frozen food in fridge
compartment will both provide energy
saving and preserve the food quality.

EN
11
Recommendations for the
fresh food compartment
*May not be available in all models
Do not allow the food to touch the
temperature sensor in fresh food
compartment. To allow the fresh food
compartment keep its ideal storage
temperature, sensor must not be
hindered by food.
Do not place hot foods in the product.

EN
12
3Installation
BIn case the information which are
given in the user manual are not
taken into account, manufacturer will
not assume any liability for this.
Points to be paid attention
to when the relocation of the
refrigerator
1. Your refrigerator should be
unplugged.Before transportation of
your refrigerator, it should be emptied
and cleaned.
2. Before it is re-packaged,
shelves, accessories, crisper, etc.
inside your refrigerator should be
fixed with adhesive tape and secured
against impacts. Package should
be bound with a thick tape or sound
ropes and the transportation rules
on the package should be strictly
observed.
3. Original packaging and foam
materials should be kept for future
transportations or moving.
Before you start the refrigerator,
Check the following before you
start to use your refrigerator:
1. Clean the interior of the
refrigerator as recommended in the
“Maintenance and cleaning” section.
2. Connect the plug of the
refrigerator to the wall socket. When
the fridge door is opened, fridge
internal lamp will turn on.
3. When the compressor starts to
operate, a sound will be heard. The
liquid and gases sealed within the
refrigeration system may also give rise
to noise, even if the compressor is not
running and this is quite normal.
4. Front edges and both sides of
the refrigerator may feel warm. This is
normal. These areas are designed to
be warm to avoid condensation.
Electrical connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
The connection must be in compliance
with national regulations.
• The power plug must be easily
accessible after installation.
• Electrical safety of your refrigerator
shall be guaranteed only if the earth
system in your house complies with
standards.
• The voltage stated on the label
located at left inner side of your
product should be equal to your
network voltage.
• Extension cables and multi plugs
must not be used for connection.

EN
13

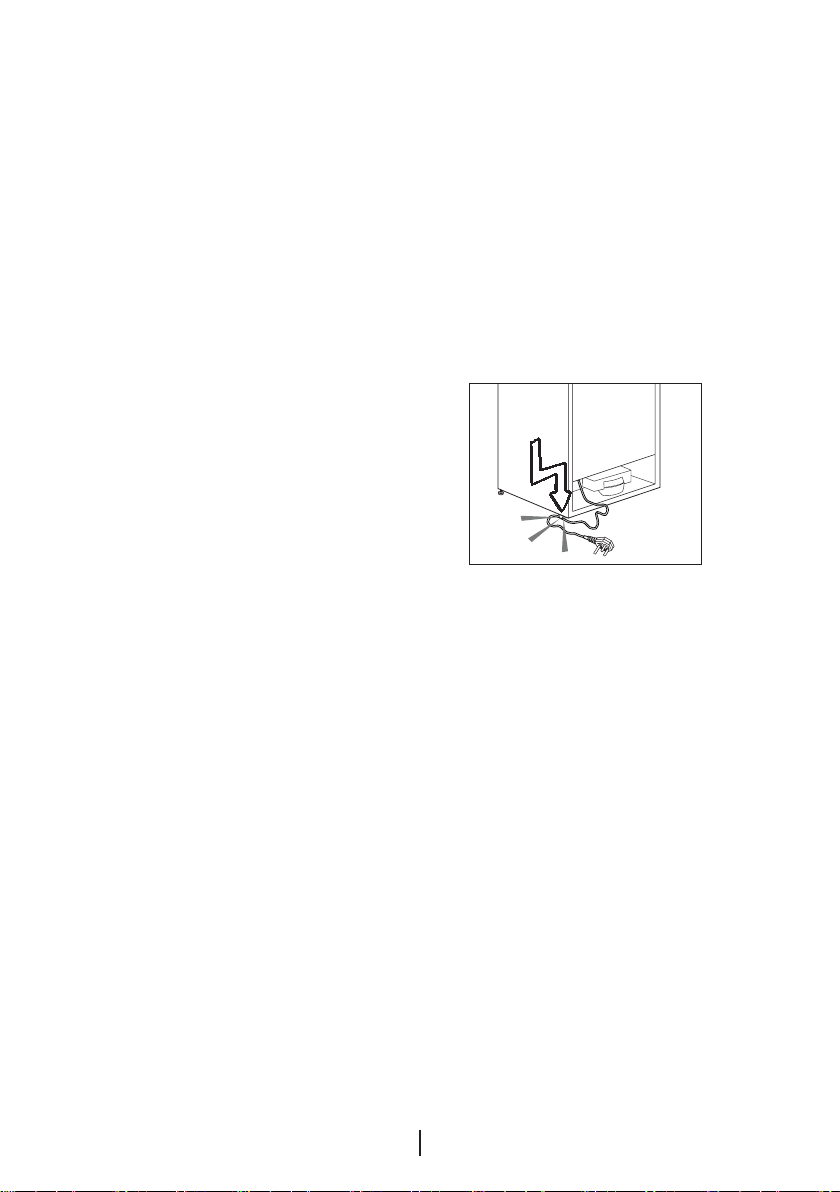

BA damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated before
it is repaired! There is the risk of
electric shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with
the waste instructions stated by your
local authorities. Do not throw away
with regular house waste, throw
away on packaging pick up spots
designated by the local authorities.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old refrigerator without
giving any harm to the environment.
• You may consult your authorized
dealer or waste collection center of
your municipality about the disposal
of your refrigerator.
Before disposing of your refrigerator,
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
AIf the entrance door of the room
where the refrigerator will be installed is
not wide enough for the refrigerator to
pass through, then call the authorized
service to have them remove the
doors of your refrigerator and pass it
sideways through the door.
1. Install your refrigerator to a
place that allows ease of use.
2. Keep your refrigerator away
from heat sources, humid places and
direct sunlight.
3. There must be appropriate air
ventilation around your refrigerator in
order to achieve an efficient operation.
If the refrigerator is to be placed in a
recess in the wall, there must be at
least 5 cm distance with the ceiling
and at least 5 cm with the wall. Do not
place your product on the materials
such as rug or carpet.
4. Place your refrigerator on an
even floor surface to prevent jolts.

EN
14

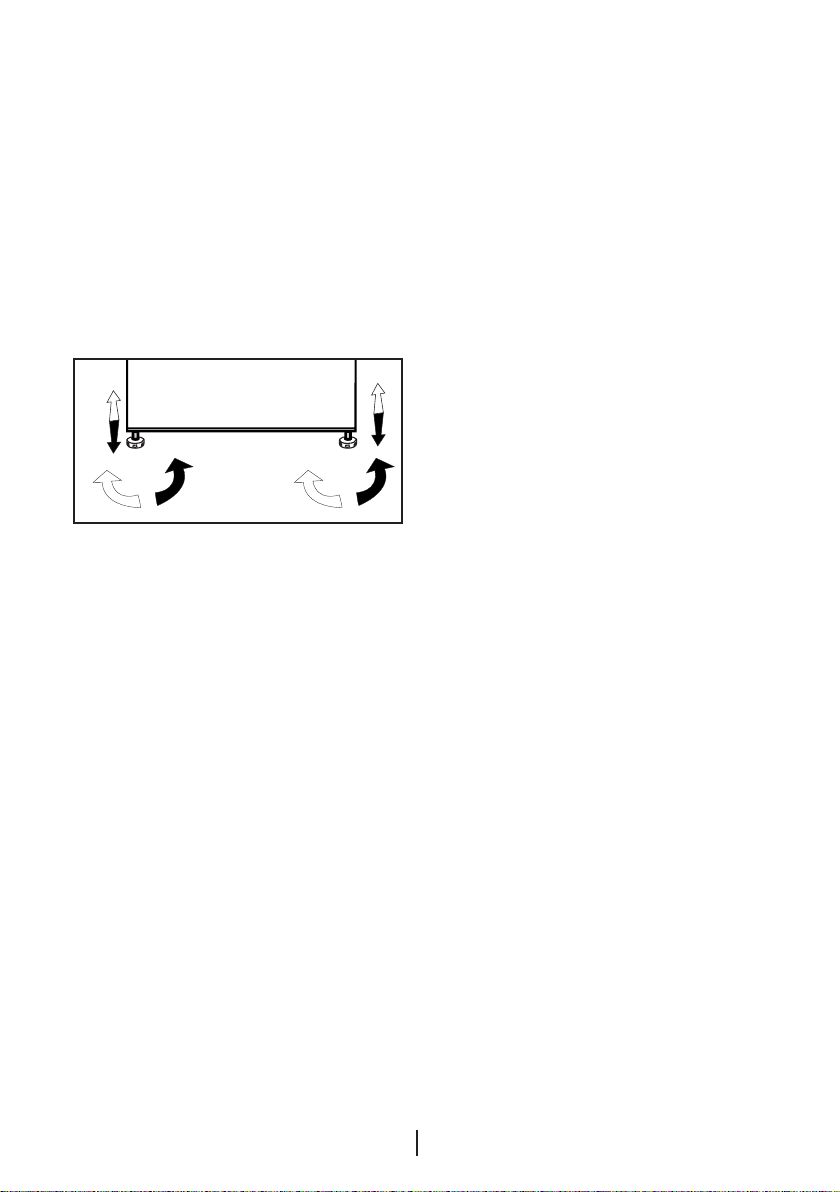

Adjusting the legs
If your refrigerator is unbalanced;
You can balance your refrigerator
by turning its front legs as illustrated
in the figure. The corner where the
leg exists is lowered when you turn
in the direction of black arrow and
raised when you turn in the opposite
direction. Taking help from someone to
slightly lift the refrigerator will facilitate
this process.
Changing the illumination
lamp
To change the Bulb/LED used for
illumination of your refrigerator, call
your AuthorisedService.
The lamp(s) used in this appliance
is not suitable for household room
illumination. The intended purpose of
this lamp is to assist the user to place
foodstuffs in the refrigerator/freezer
in a safe and comfortable way.The
lamps used in this appliance have to
withstand extreme physical conditions
such as temperatures below -20 °C.
(only chest and upright freezer)
Door Open Warning
*May not be available in all models
An audio warning signal will be given
when the door of your product is
left open for at least 1 minute. This
warning will be muted when the door
is closed or any of the display buttons
(if any) are pressed.

EN
15
mm5721
1001 mm
115 
50 mm
50 mm
50 mm
50 mm
100 mm

EN
16
4Preparation
• Your cooler/freezer should be
installedatleast 30 cmaway from
heat sources such as hobs, ovens,
central heater and stoves and at least
5 cm away from electrical ovens and
should not be located under direct
sunlight.
• Please make sure that the interior
of your cooler/freezeriscleaned
thoroughly.
• If two coolers are to be installed side
by side, there should be at least 2 cm
distance between them.
• When youoperate your cooler/freezer
for the rst time, please observe the
following instructions during the initial
six hours.
• Its door should not be opened
frequently.
• It must be operated empty without
placing any foodinit.
• Do not unplug your cooler/freezer.
If a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
• The baskets/drawers that are
provided with the chillcompartment
must always be in usefor low energy
consumptionand for better storage
conditions.
• Food contactwith thetemperature
sensor in the freezercompartment
may increase energy consumption of
the appliance. Thus any contact with
the sensor(s) must be avoided.
• This product has been designed to
functionatambient temperatures
up to 43 °C (90 SDgr F). Evenif the
ambient temperature falls to -15
°C, frozen foodin the freezer does
not thaw thanks to its Advanced
Electronic Temperature Control
System. For the rst installation, the
product should NOT be placed under
low ambient temperatures. This is
because the freezercannot go down
to standard operation temperature.
When reaching continuous operation,
the product can be moved to
another place. Thus, later you can
place your product in the garage
or an unheated room without the
concern ofcausing frozen food to
get rotten. However, it islikely that
above mentioned low temperatures
may cause the freezing of the foodin
the fridge compartment; thus, please
consume the fooditems in thefridge
in a controlledway as needed. When
ambient temperature goes back
to normal, youmay change button
setting according to your need.
• If the ambient temperature is below
0°C, the foodin fridge compartment
will freeze. Therefore, we recommend
not using the fridge compartment
in such low ambient temperatures.
You may continuetouse the freezer
compartment as usual.
• In some models, the instrument panel
automatically turns o 5 minutes
after the door has closed.It will
be reactivated when the door has
opened or pressed onany key.
• Due to temperature change as a
result ofopening/closing the product
door during operation, condensation
on the door/body shelves and the
glass containers is normal.

EN
17

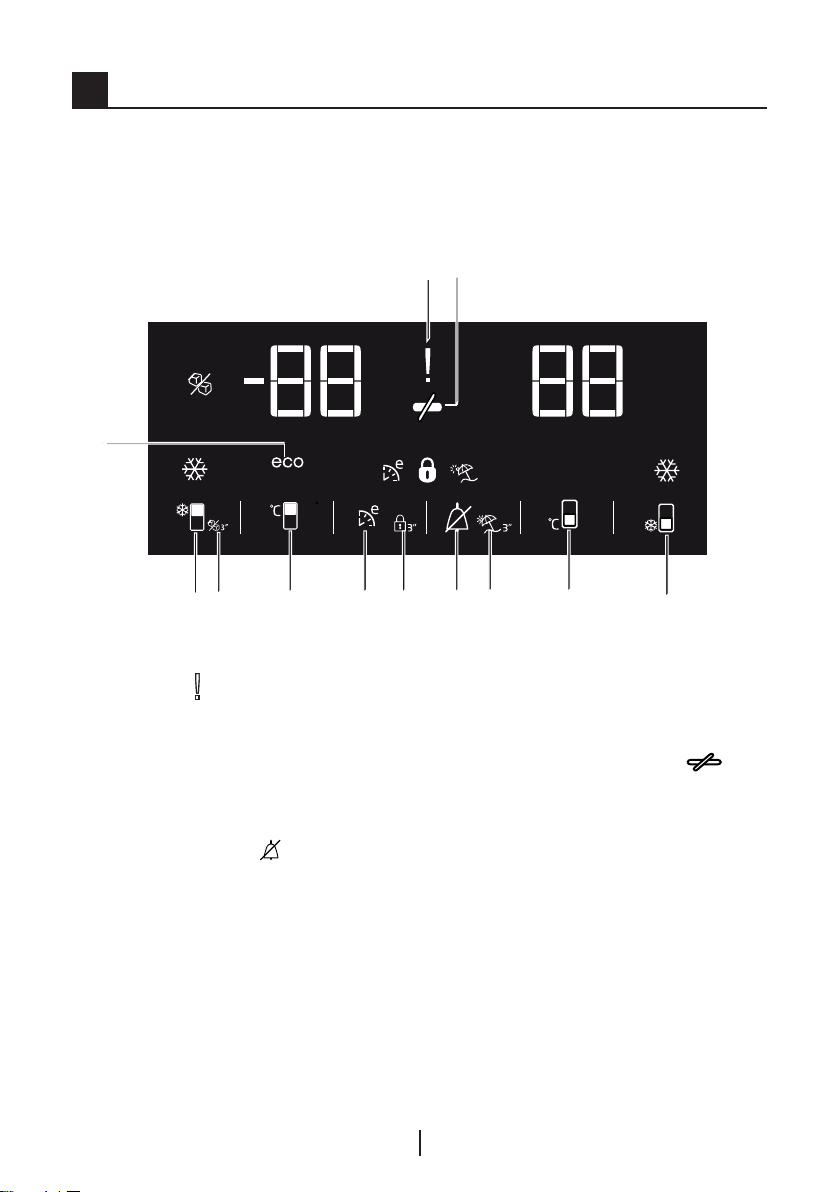

Indicator panel
Indicator panel allows you to set the temperature and control the other
functions related to the product without opening the door of the product. Just
press the inscriptions on relevant buttons for function settings.
5Using your refrigerator
Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
1
3
45
6
789
*10
12
11
2
1. Power failure/High temperature
/ error warning indicator
This indicator ( ) illuminates during
power failure, high temperature failures
and error warnings. During sustained
power failures, the highest temperature
that the freezer compartment reaches
will flash on the digital display. After
checking the food located in the
freezer compartment ( ) press the
alarm off button to clear the warning.
Please refer to "remedies advised
for troubleshooting" section on
your manual if you observe that this
indicator is illuminated.
2. Energy saving function (display
off):
If the product doors are kept closed
for a long time energy saving function
is automatically activated and energy
saving symbol is illuminated. ( )
When energy saving function is
activated, all symbols on the display
other than energy saving symbol will
turn off. When the Energy Saving
function is activated, if any button is
pressed or the door is opened, energy
saving function will be canceled and
the symbols on display will return to
normal.

EN
18
Energy saving function is activated
during delivery from factory and cannot
be canceled.
3.Quick fridge function
The button has two functions. To activate or
deactivate the quick cool function press it briefly.
Quick Cool indicator will turn off and the product
will return to its normal settings. ( )
CUse quick cooling function
when you want to quickly cool
the food placed in the fridge
compartment. If you want to
cool large amounts of fresh
food, activate this function
before putting the food into
.the product
CIf you do not cancel it, quick
cooling will cancel itself
automatically after 1 hours or
when the fridge compartment
reaches to the required
.temperature
CIf you press the quick cooling
button repeatedly with short
intervals, the electronic circuit
protection will be activated
and the compressor will not
.start up immediately
CThis function is not recalled
when power restores after a
.power failure
4. Fridge compartment
temperature setting button
Press this button to set the
temperature of the fridge compartment
to 8, 7,6, 5,4,3, 2, 8... respectively.
Press this button to set the fridge
compartment temperature to the
desired value. ( )
5.Vacation Function
In order to activate vacation function,
press the this button ( ) for 3
seconds, and the vacation mode
indicator ( ) will be activated. When
the vacation function is activated, “- -”
is displayed on the fridge compartment
temperature indicator and no active
cooling is performed on the fridge
compartment. It is not suitable to keep
the food in the fridge compartment
when this function is activated. Other
compartments shall be continued to
be cooled as per their set temperature.
To cancel this function press
Vacation function button again.
6. Alarm off warning:
In case of power failure/high
temperature alarm, after checking
the food located in the freezer
compartment press the alarm off
button ( ) to clear the warning.
7. Key lock
Press key lock button ( )
simultaneously for 3 seconds. Key lock
symbol
( ) will light up and key lock mode will
be activated. Buttons will not function
if the Key lock mode is active. Press
key lock button simultaneously for 3
seconds again. Key lock symbol will
turn off and the key lock mode will be
exited.
Press the key lock button if you want
to prevent changing of the temperature
setting of the refrigerator ( ).
8. Eco fuzzy
Press and hold eco fuzzy button for 1
seconds to activate eco fuzzy function.
Refrigerator will start operating in
the most economic mode at least 6
hours later and the economic usage

EN
19
indicator will turn on when the function
is active ( ). Press and hold eco
fuzzy function button for 3 seconds to
deactivate eco fuzzy function.
This indicator is illuminated after 6
hours when eco fuzzy is activated.
9. Freezer compartment
temperature setting button
Press this button to set the
temperature of the freezer
compartment to-16,-17,-18,-19,-20,-
22,-24,-16... respectively. Press this
button to set the freezer compartment
temperature to the desired value.( )
10. Icematic function (optional)
Indicates whether the icematic is on
or off. ( )If On, then the icematic is
not operating. To operate the icematic
again press and hold the On-Off
button for 3 seconds.
CWater flow from water tank
will stop when this function is
selected. However, ice made
previously can be taken from
.the icematic
11. Quick freeze function button
Press this button to activate or
deactivate the quick freezing function.
When you activate the function, the
freezer compartment will be cooled to
a temperature lower than the set value.
( )
CUse the quick freeze function
when you want to quickly
freeze the food placed in fridge
compartment. If you want to
freeze large amounts of fresh
food, activate this function
before putting the food into
.the product
CIf you do not cancel it, Quick
Freeze will cancel itself
automatically after 24 hours or
when the fridge compartment
reaches to the required
.temperature
CThis function is not recalled
when power restores after a
.power failure
12. Economic usage indicator
Indicates that the product is running
in energy-efficient mode. ( )This
indicator will be active if the Freezer
Compartment temperature is set to
-16 or the energy efficient cooling is
being performed due to Eco-Extra
function.
CEconomic usage indicator is
turned off when quick cooling
or quick freeze functions are
.selected
