Beko DN162220X User manual

www.beko.com.trwww.beko.com
DN161220
DN162220X
DN162220
EN HE

EN
1
Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and checked
under the most meticulous quality control procedures, will provide you an effective service.
Therefore, read this entire user manual carefully before using the product and keep it as
a reference. If you handover the product to someone else, give the user manual as well.
The user manual will help you use the product in a fast and safe way.
• Read the manual before installing and operating the product.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.
Remember that this user manual is also applicable for several other models. Differences
between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

EN
2
CONTENTS
1 Your Refrigerator 3
2 Important Safety
Warnings 4
Intended use .....................................4
General safety ..................................4
For products with a ..........................8
water dispenser;................................8
Child safety........................................9
Compliance with WEEE Directive and
Disposing of the Waste Product: .......9
Package information..........................9
HC warning .......................................9
Things to be done for energy saving 10
Recommendations for the fresh food
compartment...................................10
3 Installation 11
Points to be paid attention to when the
relocation of the refrigerator .............11
Electrical connection........................11
Disposing of the packaging .............12
Disposing of your old refrigerator .....12
Placing and Installation ....................12
Adjusting the legs ............................13
Changing the illumination lamp .......13
Door Open Warning.........................13
4 Preparation 14
5 Using your refrigerator 15
Indicator panel.................................15
Temperature setting button..............26
Setting the temperature of your
refrigerator.......................................26
Dual cooling system ........................26
Recommendations for preservation of
frozen food ......................................27
Defrosting........................................27
Placing the food ..............................27
Deep-freeze information ..................28
Egg section .....................................28
Description and cleaning of odor
filter ................................................29
Water Dispenser ..............................30
Blue light .........................................32
Sliding storage container .................32
Rotary storage container .................33
Auto Icematic .................................34
Icematic and ice storage container ..35
Making ice.......................................36
Humidity-controlled crisper (Ever
Fresh) ..............................................36
Ice-cream machine..........................38
6 Maintenance and
cleaning 40
Protection of plastic surfaces ..........40
7.
Troubleshooting 41

EN
3
1Your Refrigerator

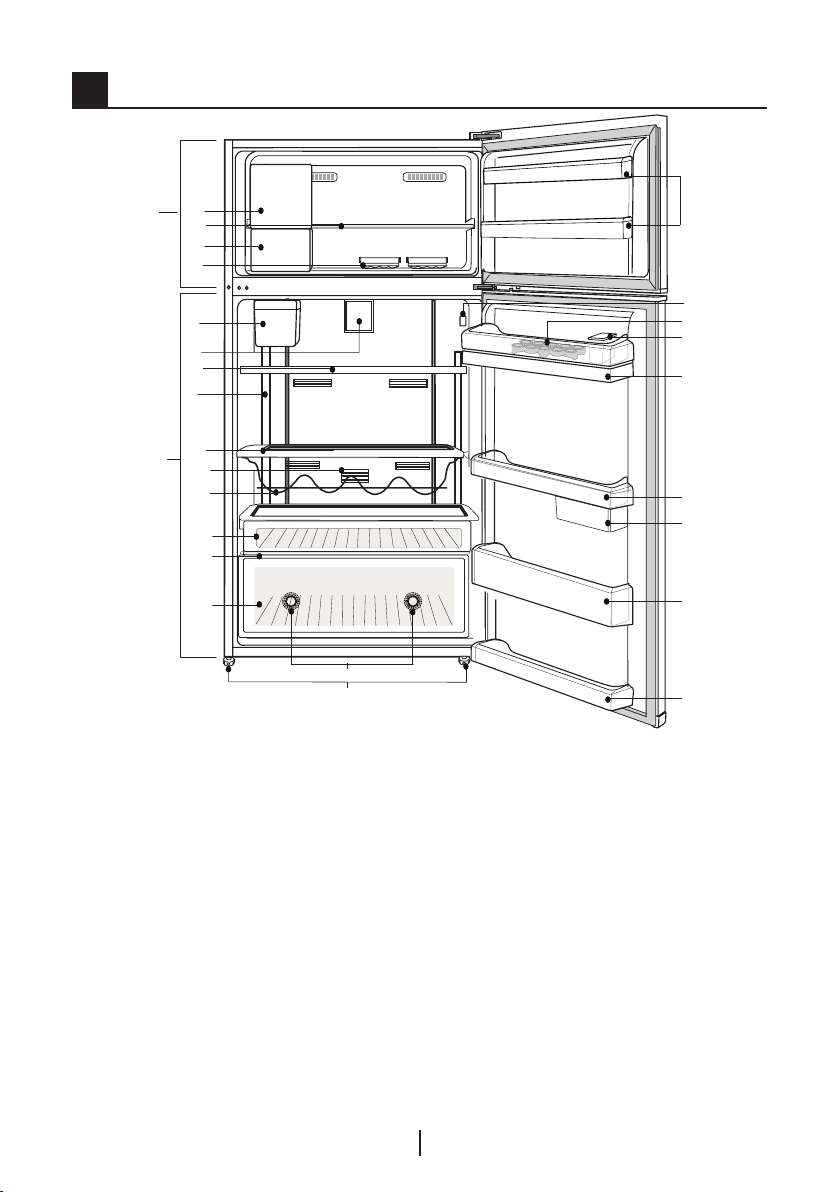

1. Door shelves of the freezer compartment
2. Temperature setting indicator
3. Egg section
4. Water dispenser filling tank
5. Water dispenser reservoir
6. Door shelves of fridge compartment
7. Sliding and rotary storage containers
8. Blue light
9. Adjustable legs
10. Crisper
11. Crisper cover
12. Breakfast compartment
13. Bottle shelf
CFigures in this user manual are schematic and may not correspond exactly to you product. If
the subject parts are not included in the product you have purchased, then it is valid for other
models.
1
4*
3
16
*15
17
2*
15
5*
*6
*6
*6
*8
*7
9
*10
*12
11
*13
*14
*18
*19
*20
*22
21
23
24
14. Odor filter
15. Glass shelves of fridge compartment
16. Illumination glass
17. Impeller
18. Automatic Icematic water tank
19. Icebox
20. Ice storage container
21. Freezer compartment glass shelf
22. Ice-cream making machine / Quick Freeze
compartment
23. Freezer compartment
24. Fridge compartment
*optional

EN
4
2Important Safety Warnings
Please review the
following information.
Failure to observe this
information may cause
injuries or material
damage. Otherwise, all
warranty and reliability
commitments will become
invalid.
The service life of your
product is 10 years. During
this period, original spare
parts will be available
to operate the product
properly.
Intended use
This product is intended to
be used
• indoors and in closed
areas such as homes;
• in closed working
environments such as
stores and offices;
• in closed
accommodation areas
such as farm houses,
hotels, pensions.
• It should not be used
outdoors.
General safety
• When you want to
dispose/scrap the
product, we recommend
you to consult the
authorized service
in order to learn the
required information and
authorized bodies.
• Consult your authorized
service for all your
questions and problems
related to the refrigerator.
Do not intervene or let
someone intervene to
the refrigerator without
notifying the authorised
services.
• For products with a
freezer compartment;
Do not eat cone ice
cream and ice cubes
immediately after you
take them out of the
freezer compartment!
(This may cause frostbite
in your mouth.)
• For products with a
freezer compartment;
Do not put bottled
and canned liquid
beverages in the
freezer compartment.

EN
5
Otherwise, these may
burst.
• Do not touch frozen food
by hand; they may stick
to your hand.
• Unplug your refrigerator
before cleaning or
defrosting.
• Vapor and vaporized
cleaning materials should
never be used in cleaning
and defrosting processes
of your refrigerator. In
such cases, the vapor
may get in contact with
the electrical parts and
cause short circuit or
electric shock.
• Never use the parts on
your refrigerator such as
the door as a means of
support or step.
• Do not use electrical
devices inside the
refrigerator.
• Do not damage the
parts, where the
refrigerant is circulating,
with drilling or cutting
tools. The refrigerant
that might blow out
when the gas channels
of the evaporator, pipe
extensions or surface
coatings are punctured
causes skin irritations
and eye injuries.
• Do not cover or block
the ventilation holes on
your refrigerator with any
material.
• Electrical devices must
be repaired by only
authorised persons.
Repairs performed by
incompetent persons
create a risk for the user.
• In case of any failure or
during a maintenance or
repair work, disconnect
your refrigerator’s mains
supply by either turning
off the relevant fuse
or unplugging your
appliance.
• Do not pull by the cable
when pulling off the plug.
• Ensure highly alcoholic
beverages are stored
securely with the lid
fastened and placed
upright.
• Never store spray
cans containing
flammable and explosive
substances in the
refrigerator.
• Do not use mechanical
devices or other

EN
6
means to accelerate
the defrosting process,
other than those
recommended by the
manufacturer.
• This product is not
intended to be used by
persons with physical,
sensory or mental
disorders or unlearned
or inexperienced people
(including children) unless
they are attended by
a person who will be
responsible for their
safety or who will instruct
them accordingly for use
of the product
• Do not operate a
damaged refrigerator.
Consult with the service
agent if you have any
concerns.
• Electrical safety of your
refrigerator shall be
guaranteed only if the
earth system in your
house complies with
standards.
• Exposing the product to
rain, snow, sun and wind
is dangerous with respect
to electrical safety.
• Contact authorized
service when there is a
power cable damage to
avoid danger.
• Never plug the
refrigerator into the wall
outlet during installation.
Otherwise, risk of death
or serious injury may
arise.
• This refrigerator is
intended for only storing
food items. It must not
be used for any other
purpose.
• Label of technical
specifications is located
on the left wall inside the
refrigerator.
• Never connect your
refrigerator to electricity-
saving systems; they
may damage the
refrigerator.
• If there is a blue light on
the refrigerator, do not
look at the blue light with
optical tools.
• For manually controlled
refrigerators, wait for at
least 5 minutes to start
the refrigerator after
power failure.

EN
7
• This operation manual
should be handed in to
the new owner of the
product when it is given
to others.

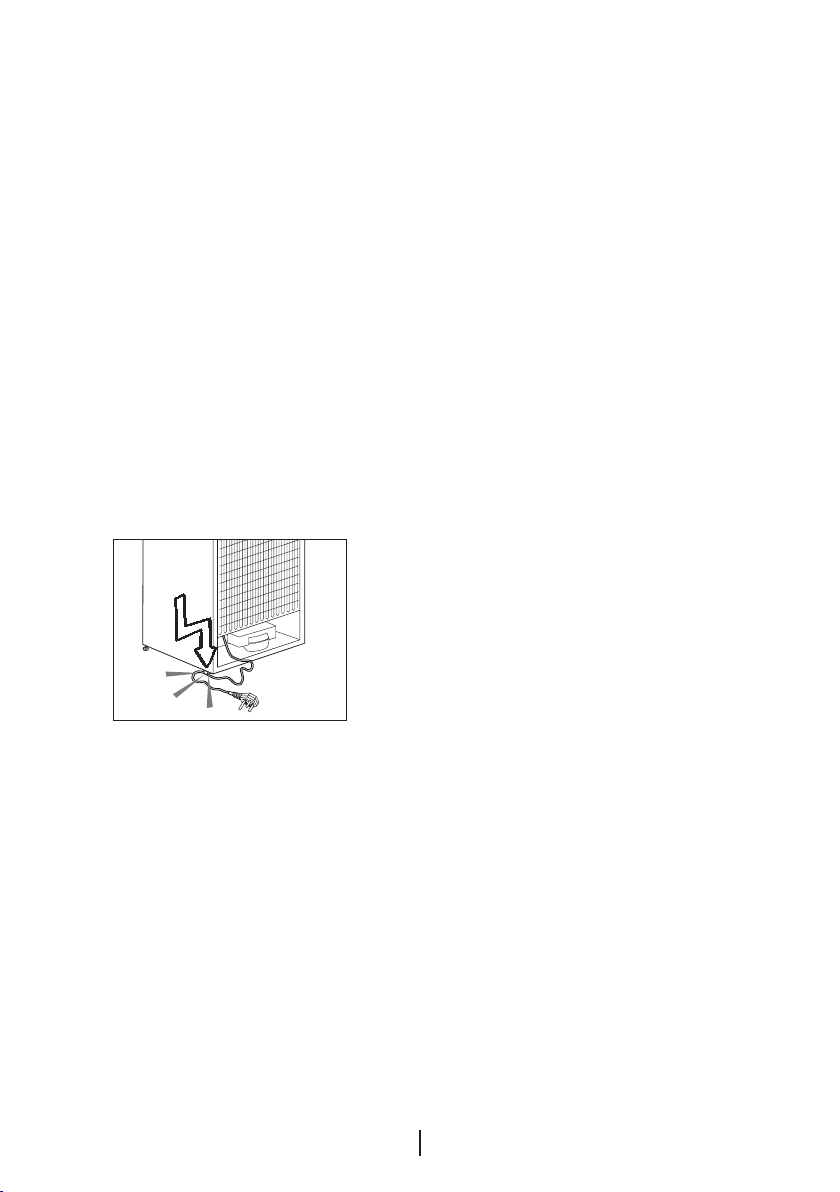

• Avoid causing damage
on power cable when
transporting the
refrigerator. Bending
cable may cause fire.
Never place heavy
objects on power cable.
Do not touch the plug
with wet hands when
plugging the product
• Do not plug the
refrigerator if the wall
outlet is loose.
• Water should not be
sprayed on inner or outer
parts of the product for
safety purposes.
• Do not spray substances
containing inflammable
gases such as propane
gas near the refrigerator
to avoid fire and
explosion risk.
• Never place containers
filled with water on top
of the refrigerator; in the
event of spillages, this
may cause electric shock
or fire.
• Do not overload the
refrigerator with food.
If overloaded, the food
items may fall down and
hurt you and damage
refrigerator when you
open the door.
• Never place objects on
top of the refrigerator;
otherwise, these objects
may fall down when
you open or close the
refrigerator’s door.
• As they require a precise
temperature, vaccines,
heat-sensitive medicine
and scientific materials
and etc. should not be
kept in the refrigerator.
• If not to be used for a
long time, refrigerator
should be unplugged.
A possible problem in
power cable may cause
fire.

EN
8
• The plug’s tip should be
cleaned regularly with a
dry cloth; otherwise, it
may cause fire.
• Refrigerator may move
if adjustable legs are not
properly secured on the
floor. Properly securing
adjustable legs on the
floor can prevent the
refrigerator to move.
• When carrying the
refrigerator, do not hold
it from door handle.
Otherwise, it may be
snapped.
• When you have to place
your product next to
another refrigerator or
freezer, the distance
between devices
should be at least 8cm.
Otherwise, adjacent side
walls may be humidified.

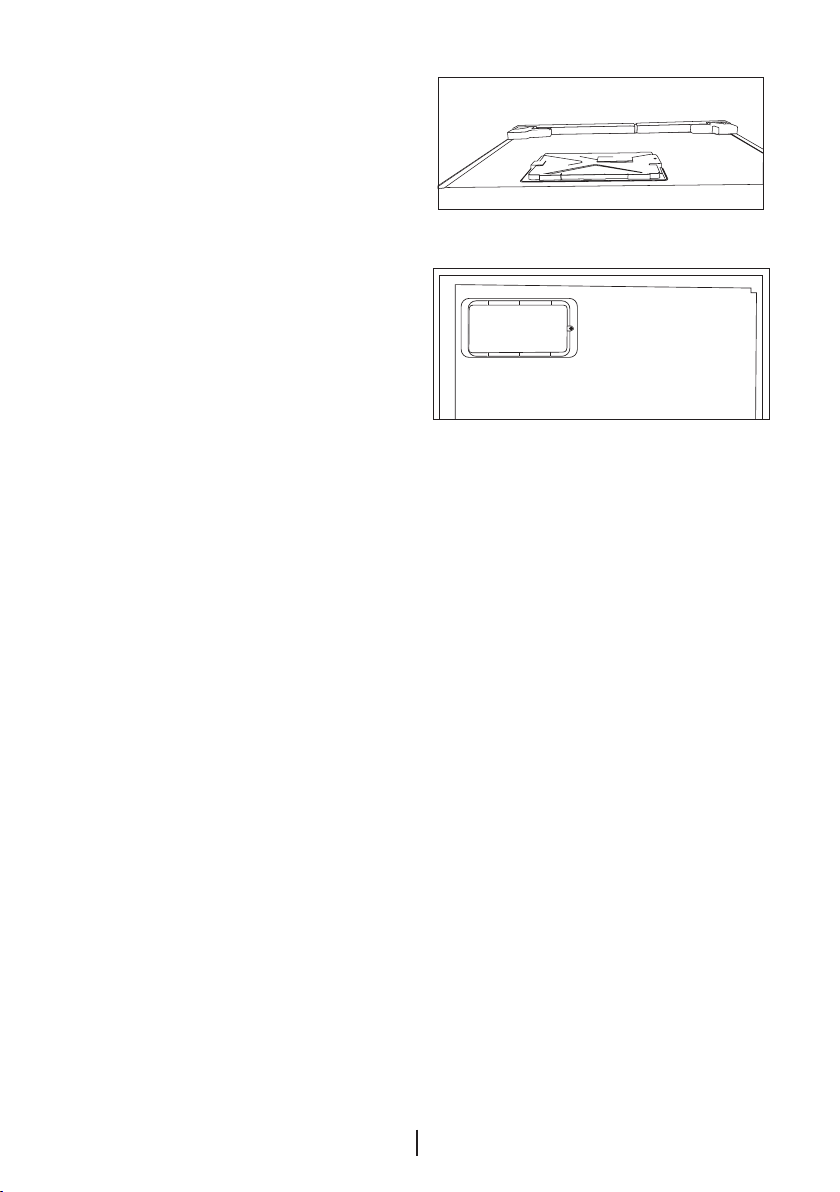

• The product shall never
be used while the
compartment which is
located at the top or
back of your product
and in which electronic
boards are available
(electronic board box
cover) (1) is open.
1
1
For products with a
water dispenser;
• Pressure for cold water
inlet shall be maximum
90 psi (6.2 bar). If your
water pressure exceeds
80 psi (5.5 bar), use a
pressure limiting valve
in your mains system. If
you do not know how
to check your water
pressure, ask for the
help of a professional
plumber.
• If there is risk of water
hammer effect in your
installation, always
use a water hammer
prevention equipment
in your installation.

EN
9
Consult Professional
plumbers is you are not
sure that there is no
water hammer effect in
your installation.
• Do not install on the
hot water inlet. Take
precautions against
of the risk of freezing
of the hoses. Water
temperature operating
interval shall be 33°F
(0.6°C) minimum
and 100°F (38°C)
maximum.
• Use only potable water.
Child safety
• If the door has a lock, the
key should be kept away
from reach of children.
• Children must be
supervised to prevent
them from tampering
with the product.
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies with
EU WEEE Directive (2012/19/
EU). This product bears a
classification symbol for
waste electrical and electronic
equipment (WEEE).
This product has been manufactured with
high quality parts and materials which can
be reused and are suitable for recycling.
Therefore, do not dispose the product
with normal domestic waste at the end of
its service life. Take it to a collection point
for the recycling of electrical and electronic
equipment. Please consult your local
authorities to learn the nearest collection
point. Help protect the environment
and natural resources by recycling used
products. For children’s safety, cut the
power cable and break the locking
mechanism of the door, if any, so that it will
be non-functional before disposing of the
product.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our National
Environment Regulations. Do not dispose
of the packaging materials together with
the domestic or other wastes. Take them
to the packaging material collection points
designated by the local authorities.
Do not forget...
Any recycled substance is an indispensable
matter for nature and our national asset
wealth.
If you want to contribute to the re-
evaluation of the packaging materials,
you can consult to your environmentalist
organizations or the municipalities where
you are located.
HC warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential fire
sources that can cause the product catch a
fire and ventilate the room in which the unit
is placed.

EN
10
Recommendations for the
fresh food compartment
*optional
Do not allow the food to touch the
temperature sensor in fresh food
compartment. To allow the fresh food
compartment keep its ideal storage
temperature, sensor must not be hindered
by food.
Do not place hot foods in the product.
Ignore this warning if your product's
cooling system contains R134a.
Type of gas used in the product is stated in
the type label which is on the left wall inside
the refrigerator.
Never throw the product in fire for disposal.
Things to be done for
energy saving
• Do not leave the doors of your refrigerator
open for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload your refrigerator so
that the air circulation inside of it is not
prevented.
• Do not install your refrigerator under direct
sunlight or near heat emitting appliances
such as ovens, dishwashers or radiators.
Keep your refrigerator at least 30cm away
from heat emitting sources and at least
5cm from electrical ovens.
• Pay attention to keep your food in closed
containers.
• For products with a freezer compartment;
You can store maximum amount of
food items in the freezer when you
remove the shelf or drawer of the freezer.
Energy consumption value stated for
your refrigerator has been determined
by removing freezer shelf or drawer and
under maximum load. There is no harm
to use a shelf or drawer according to the
shapes and size of food to be frozen.
• Thawing frozen food in fridge
compartment will both provide energy
saving and preserve the food quality.

EN
11
3Installation
BIn case the information which are given
in the user manual are not taken into
account, manufacturer will not assume
any liability for this.
Points to be paid attention
to when the relocation of the
refrigerator
1. Your refrigerator should be
unplugged.Before transportation of your
refrigerator, it should be emptied and
cleaned.
2. Before it is re-packaged, shelves,
accessories, crisper, etc. inside your
refrigerator should be fixed with adhesive
tape and secured against impacts.
Package should be bound with a thick
tape or sound ropes and the transportation
rules on the package should be strictly
observed.
3. Original packaging and foam
materials should be kept for future
transportations or moving.
Before you start the refrigerator,
Check the following before you start to
use your refrigerator:

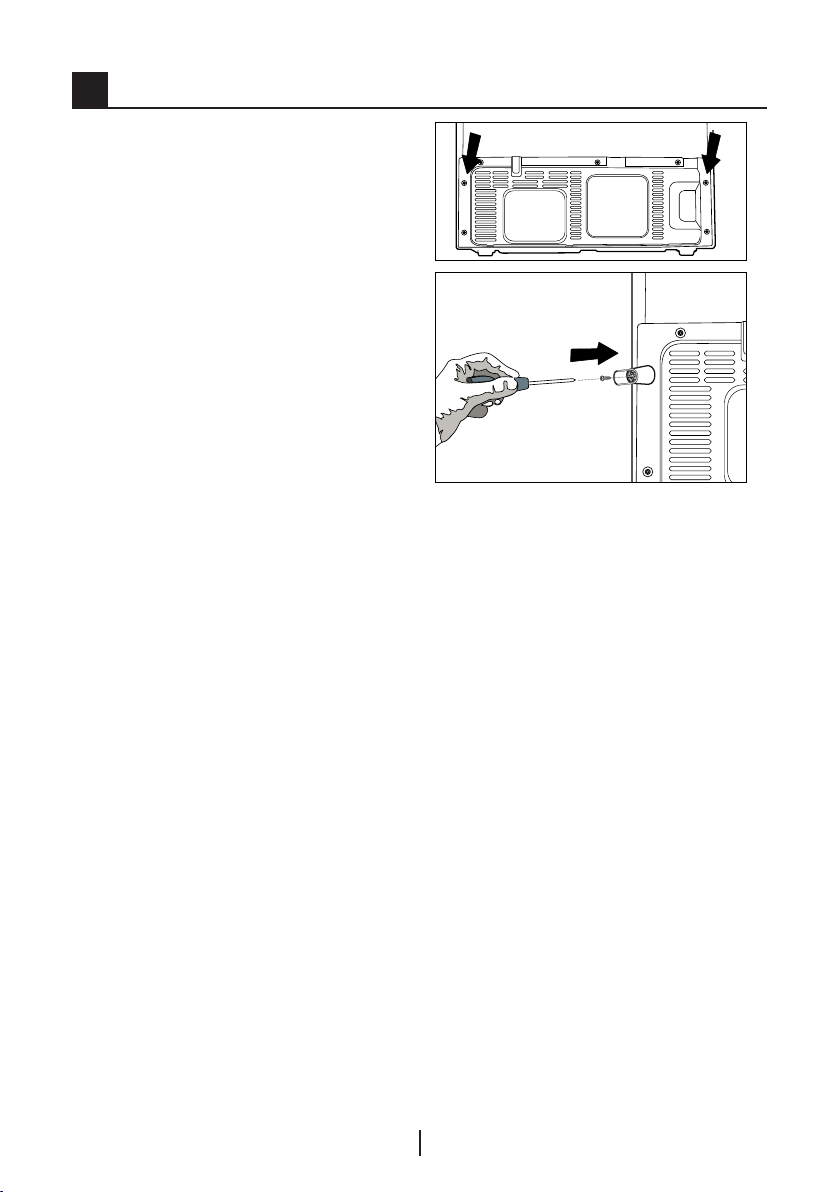

1. Attach 2 plastic wedges as
illustrated below. Plastic wedges are
intended to keep the distance which will
ensure the air circulation between your
refrigerator and the wall. (The picture is
drawn up as a representation and it is not
identical with your product.)
2. Clean the interior of the refrigerator
as recommended in the “Maintenance and
cleaning” section.
3. Connect the plug of the refrigerator
to the wall socket. When the fridge door is
opened, fridge internal lamp will turn on.
4. When the compressor starts to
operate, a sound will be heard. The liquid
and gases sealed within the refrigeration
system may also give rise to noise, even if
the compressor is not running and this is
quite normal.
5. Front edges of the refrigerator
may feel warm. This is normal. These
areas are designed to be warm to avoid
condensation.
Electrical connection
Connect your product to a grounded
socket which is being protected by a fuse
with the appropriate capacity.
Important:
The connection must be in compliance
with national regulations.
• The power plug must be easily accessible
after installation.
• Electrical safety of your refrigerator shall be
guaranteed only if the earth system in your
house complies with standards.

EN
12
• The voltage stated on the label located at
left inner side of your product should be
equal to your network voltage.
• Extension cables and multi plugs must not
be used for connection.
BA damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated before it is
repaired! There is the risk of electric shock!
Disposing of the packaging
The packing materials may be dangerous
for children. Keep the packing materials out
of the reach of children or dispose of them
by classifying them in accordance with
the waste instructions stated by your local
authorities. Do not throw away with regular
house waste, throw away on packaging
pick up spots designated by the local
authorities.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old refrigerator without
giving any harm to the environment.
• You may consult your authorized dealer
or waste collection center of your
municipality about the disposal of your
refrigerator.
Before disposing of your refrigerator, cut
out the electric plug and, if there are any
locks on the door, make them inoperable in
order to protect children against any danger.
Placing and Installation
AIf the entrance door of the room where
the refrigerator will be installed is not wide
enough for the refrigerator to pass through,
then call the authorized service to have
them remove the doors of your refrigerator
and pass it sideways through the door.
1. Install your refrigerator to a place
that allows ease of use.
2. Keep your refrigerator away from
heat sources, humid places and direct
sunlight.
3. There must be appropriate air
ventilation around your refrigerator in
order to achieve an efficient operation. If
the refrigerator is to be placed in a recess
in the wall, there must be at least 5 cm
distance with the ceiling and at least 5 cm
with the wall. Do not place your product on
the materials such as rug or carpet.
4. Place your refrigerator on an even
floor surface to prevent jolts.

EN
13
Adjusting the legs
If your refrigerator is unbalanced;
You can balance your refrigerator by
turning its front legs as illustrated in the
figure. The corner where the leg exists is
lowered when you turn in the direction of
black arrow and raised when you turn in
the opposite direction. Taking help from
someone to slightly lift the refrigerator will
facilitate this process.
Changing the illumination
lamp
To change the Bulb/LED used for
illumination of your refrigerator, call your
AuthorisedService.
The lamp(s) used in this appliance is not
suitable for household room illumination.
The intended purpose of this lamp is to
assist the user to place foodstuffs in the
refrigerator/freezer in a safe and comfortable
way.The lamps used in this appliance have
to withstand extreme physical conditions
such as temperatures below -20 °C.
(only chest and upright freezer)
Door Open Warning
*May not be available in all models
An audio warning signal will be given when
the door of your product is left open for at
least 1 minute. This warning will be muted
when the door is closed or any of the display
buttons (if any) are pressed.

EN
14
4Preparation
• Your cooler/freezer should be installed at
least 30 cm away from heat sources such
as hobs, ovens, central heater and stoves
and at least 5 cm away from electrical
ovens and should not be located under
direct sunlight.
• Please make sure that the interior of your
cooler/freezer is cleaned thoroughly.
• If two coolers are to be installed side
by side, there should be at least 2 cm
distance between them.
• When you operate your cooler/freezer for
the first time, please observe the following
instructions during the initial six hours.
• Its door should not be opened frequently.
• It must be operated empty without placing
any food in it.
• Do not unplug your cooler/freezer.
If a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
• The baskets/drawers that are provided
with the chill compartment must always
be in use for low energy consumption and
for better storage conditions.
• Food contact with the temperature sensor
in the freezer compartment may increase
energy consumption of the appliance.
Thus any contact with the sensor(s) must
be avoided.
• This product has been designed to
function at ambient temperatures up to
43 °C (90 SDgrF). Even if the ambient
temperature falls to -15 °C, frozen food
in the freezer does not thaw thanks to its
Advanced Electronic Temperature Control
System. For the first installation, the
product should NOT be placed under low
ambient temperatures. This is because
the freezer cannot go down to standard
operation temperature. When reaching
continuous operation, the product can be
moved to another place. Thus, later you
can place your product in the garage or
an unheated room without the concern
of causing frozen food to get rotten.
However, it is likely that above mentioned
low temperatures may cause the freezing
of the food in the fridge compartment;
thus, please consume the food items in
the fridge in a controlled way as needed.
When ambient temperature goes back to
normal, you may change button setting
according to your need.
• If the ambient temperature is below 0°C,
the food in fridge compartment will freeze.
Therefore, we recommend not using the
fridge compartment in such low ambient
temperatures. You may continue to use
the freezer compartment as usual.
• In some models, the instrument panel
automatically turns off 5 minutes after
the door has closed. It will be reactivated
when the door has opened or pressed on
any key.
• Due to temperature change as a result of
opening/closing the product door during
operation, condensation on the door/
body shelves and the glass containers is
normal.

EN
15
Indicator panel
Indicator panels may vary depending on the model of your product.
Audial and visual functions of the indicator panel will assist in using the product.
5Using your refrigerator
45
76
8
9
123

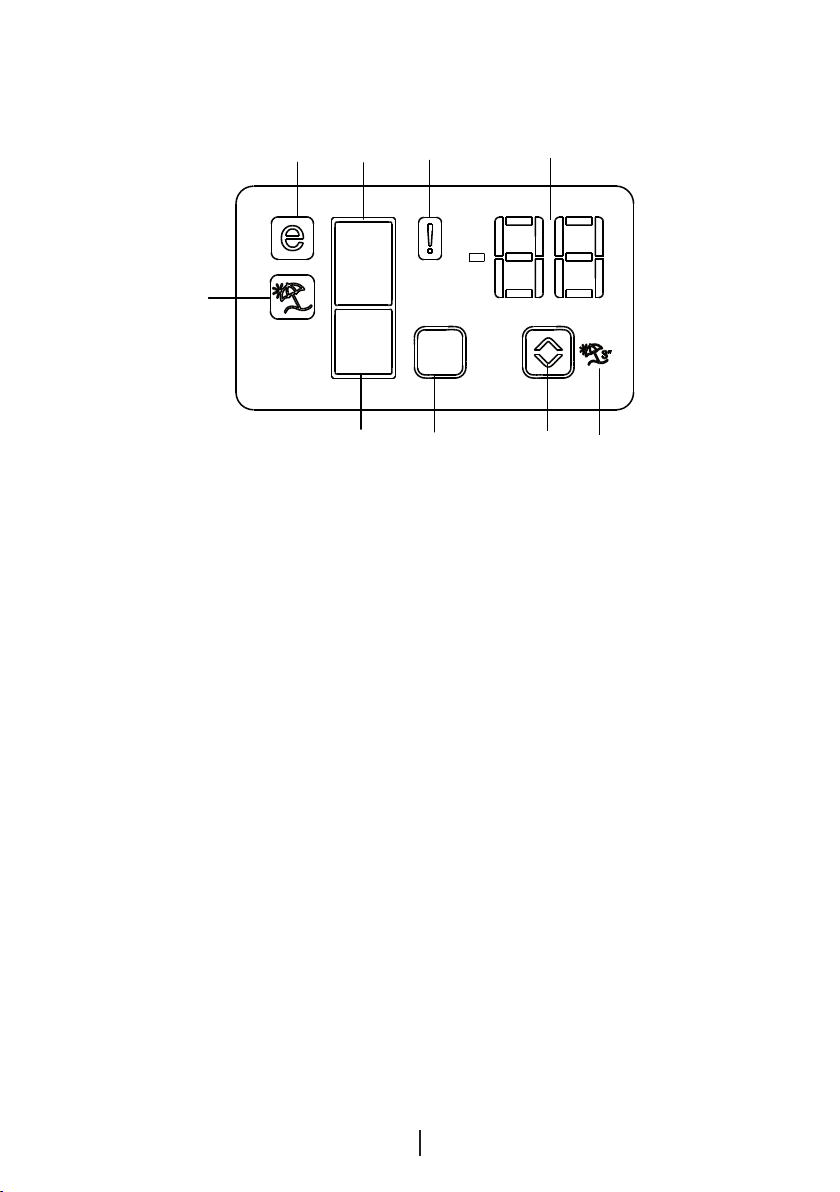

1. Cooler compartment indicator
2. Error status indicator
3. Temperature indicator
4. Vacation function button
5. Temperature adjustment button
6. Compartment selection button
7. Cooler compartment indicator
8. Economy mode indicator
9. Vacation function indicator
*optional
CFigures in this user manual are schematic and may not correspond exactly to you
product. If the subject parts are not included in the product you have purchased, then
it is valid for other models.

EN
16
1. Cooler compartment indicator
The cooler compartment light will turn on
when adjusting the cooler compartment
temperature.
2. Error status indicator
This sensor will activate if the refrigerator is
not cooling adequately or in case of sensor
fault. When this indicator is active, the
freezer compartment temperature indicator
will display "E" and the cooler compartment
temperature indicator will display "1, 2, 3..."
etc. numbers.
The numbers on the indicator serve to
inform the service personnel about the fault.
( )
3. Temperature indicator
Indicates the temperature of the freezer
and cooler compartments.
4.Vacation function button
To activate this function, press and hold
the Vacation button for 3 seconds. When
the Vacation function is active, the cooler
compartment temperature indicator displays
the inscription "- -" and no cooling process
will be active in the cooling compartment.
This function is not suitable to keep
food in the cooler compartment. Other
compartments will remain cooled with
the respective temperature set for each
compartment.
Push the vacation function button again to
cancel this function. ( )
5. Temperature adjustment button
Respective compartment's temperature
varies in -24°C..... -18°C and 8°C...1°C
ranges.( )
6. Compartment selection button
Use the refrigerator compartment selection
button to toggle between the cooler and
freezer compartments.( )
7. Cooler compartment indicator
The freezer compartment light will turn on
when adjusting the cooler compartment
temperature.
8. Economy mode indicator
Indicates the refrigerator is running on
energy-saving mode. This indicator will be
active when the temperature in the freezer
compartment is set to -18°C. ( )
9.Vacation function indicator
Indicates the vacation function is active.(
)

EN
17
CFigures in this user manual are schematic and may not correspond exactly to you
product. If the subject parts are not included in the product you have purchased, then
it is valid for other models.
Indicator panels may vary depending on the model of your product.
Audial and visual functions of the indicator panel will assist in using the product.
45
76
8
9
123
1. Cooler compartment indicator
2. Error status indicator
3. Temperature indicator
4. Vacation function button
5. Temperature adjustment button
6. Compartment selection button
7. Cooler compartment indicator
8. Economy mode indicator
9. Vacation function indicator
*optional

EN
18
1. Cooler compartment indicator
The freezer compartment light will turn on
when adjusting the cooler compartment
temperature.
2. Error status indicator
This sensor will activate if the refrigerator is
not cooling adequately or in case of sensor
fault. When this indicator is active, the
freezer compartment temperature indicator
will display "E" and the cooler compartment
temperature indicator will display "1, 2, 3..."
etc. numbers.
The numbers on the indicator serve to
inform the service personnel about the fault.
( )
3. Temperature indicator
Indicates the temperature of the freezer
and cooler compartments.
4.Vacation function button
To activate this function, press and hold
the Vacation button for 3 seconds. When
the Vacation function is active, the cooler
compartment temperature indicator displays
the inscription "- -" and no cooling process
will be active in the cooling compartment.
This function is not suitable to keep
food in the cooler compartment. Other
compartments will remain cooled with
the respective temperature set for each
compartment.
Push the vacation function button again to
cancel this function. ( )
5. Temperature adjustment button
Respective compartment's temperature
varies in -24°C..... -18°C and 8°C...1°C
ranges.( )
6. Compartment selection button
Use the refrigerator compartment selection
button to toggle between the cooler and
freezer compartments.( )
7. Cooler compartment indicator
The cooler compartment light will turn on
when adjusting the cooler compartment
temperature.
8. Economy mode indicator
Indicates the refrigerator is running on
energy-saving mode. This indicator will be
active when the temperature in the freezer
compartment is set to -18°C. ( )
9.Vacation function indicator
Indicates the vacation function is active.(
)

EN
19
1
3
2
4
5
6
10
9*
8
7
11
12
13
15
14
16
CFigures in this user manual are schematic and may not correspond exactly to you product. If
the subject parts are not included in the product you have purchased, then it is valid for other
models.

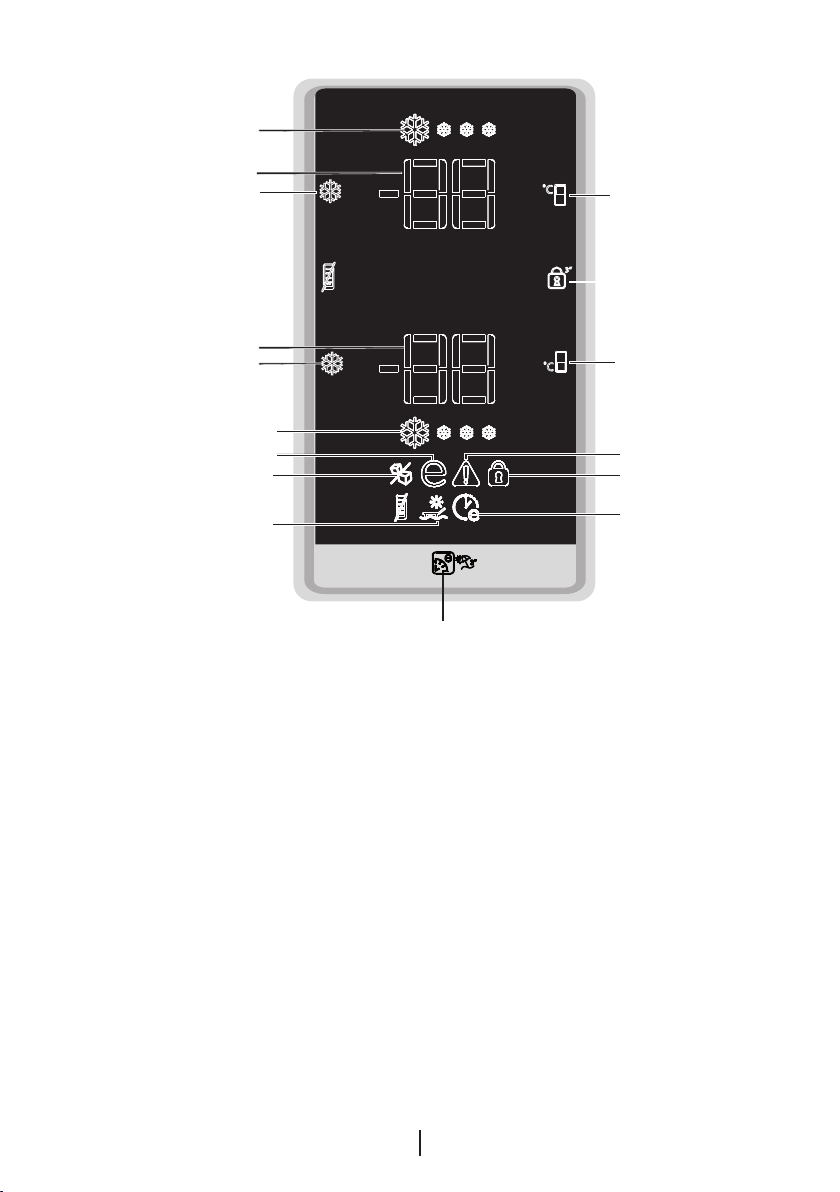

1. Cooler temperature adjustment button
2. Keypad lock button
3. Freezer compartment temperature
adjustment button
4. Error status indicator
5. Keypad lock indicator
6. Eco extra function indicator
7. Eco extra / vacation button
8. Vacation function indicator
9. Icematic closed indicator
(*In some models)
10. Economic use indicator
11. Fast freeze function indicator
12. Fast freeze function button/Icematic turn
on-off button
13. Freezer compartment temperature
indicator
14. Rapid cooling function
15. Cooler compartment temperature
indicator
16. Rapid cooling function indicator
