Dear Customer,
Please read this manual before using the product.
Thank you for choosing this product. We would like you to achieve the optimal efficiency
from this high quality product which has been manufactured with state of the art tech-
nology. To do this, carefully read this manual and any other documentation provided
before using the product and keep it as a reference.
Heed all information and warnings in the user manual. This way, you will protect yourself
and your product against the dangers that may occur.
Keep the user manual. Include this guide with the unit if you hand it over to someone
else.
The following symbols are used in the user guide:
Hazard that may result in death or injury.
NOTICE A hazard that may cause material damage to the product or its
surroundings
Important information or useful tips on operation.
Read the user manual.
A
A
A
C
SUPPLIER’S NAME MODEL IDENTIFIER (*)
INFORMATION
C
.The model information as stored in the product data base
can be reached by entering following website and searching
for your model identifier (*) found on energy label.
https://eprel.ec.europa.eu/

2 /29 EN Refrigerator / User Guide
1 Safety Instructions 3
1.1 Purpose of usage . . . . . . . . . . . . . . . . . 3
1.2 Safety of children, vulnerable persons and
pets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3 Electrical safety. . . . . . . . . . . . . . . . . . . 3
1.4 Handling Safety. . . . . . . . . . . . . . . . . . . 4
1.5 Installation Safety . . . . . . . . . . . . . . . . . 4
1.6 Operational safety . . . . . . . . . . . . .5
1.7 Maintenance and cleaning safety. . . . . . 6
1.8HomeWhiz . . . . . . . . . . . . . . . . . . . . . . . 7
1.9 Lighting . . . . . . . . . . . . . . . . . . . . . . . . 7
2 Environmental instructions 8
2.1 Compliance with the WEEE Directive and
Disposing of the Waste Product: . . . . . . . . 8
2.2 Compliance with RoHS Directive . . . . . . . . . . 8
2.3 Package information. . . . . . . . . . . . . . . . . . . 8
3 Your Refrigerator 9
4 Installation 10
4.1 The right place for installation . . . . . . . . . . . 10
4.2 Attaching the plastic wedges . . . . . . . . . . . 10
4.3 Adjustment of the feet. . . . . . . . . . . . . . . . . 11
4.4 Electrical connection. . . . . . . . . . . . . . . . . . 12
5 Preparation 13
5.1 What to do for energy saving . . . . . . . . . . . 13
5.2 First operation . . . . . . . . . . . . . . . . . . . . . . 13
6 Operating the Product 14
6.1 Turning off the product . . . . . . . . . . . . . . . . 14
6 Operation of the Product 15
6.2 Indicator panel . . . . . . . . . . . . . . . . . . . . . . 15
6.3 Indicator panel . . . . . . . . . . . . . . . . . . . . . . 18
6.4Deodoriser Module . . . . . . . . . . . . . . . . . . . 20
(FreshGuard) . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.5 Humidity controlled crisper (EverFresh+) . . . 21
6.6 Blue Light/HarvestFresh . . . . . . . . . . . . . . . 21
6.7 Using the water fountain . . . . . . . . . . . . . . 22
6.8 Filling the water tank of the water fountain 22
6.9 Cleaning the water tank . . . . . . . . . . . . . . . 22
6.10 Dairy (cold storage) bin . . . . . . . . . . . . . . . 24
6.11 Crisper . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.12 Ionizer . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.13 Odour filter . . . . . . . . . . . . . . . . . . . . . . . 24
6.14 Icematic and ice storage box. . . . . . . . . . . 24
6.15 Freezing fresh food. . . . . . . . . . . . . . . . . . 25
6.16 Recommendations for storing frozen foods 25
6.17 Deep freezer details . . . . . . . . . . . . . . . . . 25
6.18 Placing the food . . . . . . . . . . . . . . . . . . . . 26
6.19 Door open alert . . . . . . . . . . . . . . . . . . . . 26
6.20 Illumination lamp . . . . . . . . . . . . . . . . . . . 26
7 Maintenance and cleaning 27
7.1 Stainless Steel External Surfaces. . . . . . . . . 27
7.2 Cleaning of the Products with Glass Doors. . 27
7 Maintenance and cleaning 28
7.3 Preventing Odours. . . . . . . . . . . . . . . . . . . 28
7.4 Protecting Plastic Surfaces . . . . . . . . . . . . 28
8 Troubleshooting 29

3 / 29 EN
Refrigerator / User Guide
1Safety Instructions
 This section includes the safety
instructions necessary to prevent
the risk of personal injury or material
damage.
 Our company shall not be held
responsible for damages that may
occur if these instructions are not
observed.
Installation and repair operations shall always
be performed by Authorized Service.
Always use genuine spare parts and
accessories.
Original spare parts will be provided for 10
years, following the product purchasing date.
Do not repair or replace any part of the product
unless specified expressly in the user manual.
Do not perform any modifications on the
product.
1.1 Purpose of usage
 This product is not intended for commercial
use and it shall not be used out of its intended
purpose.
This product is intended for operating interiors, such
as households or similar.
For example;
- In the staff kitchens of the stores, offices and
other working environments,
- In farm houses,
- In the units of hotels, motels or other resting
facilities that are used by the customers,
- In hostels, or similar environments,
- In catering services and similar non-retail applica-
tions.
This product shall not be used in open or enclosed
external environments such as vessels, balconies
or terraces. Exposing the product to rain, snow,
sunlight and wind may cause risk of fire.
1.2 Safety of children,
vulnerable persons and pets
 This product may be used by children
aged 8 years and older and persons
with underdeveloped physical,
sensory or mental capabilities or
lack of experience and knowledge
if they have been given supervision
or instruction concerning use of the
appliance in a the product safe way
and the hazards involved.
 Children between 3 and 8 years are
allowed to put and take out food to/
from the cooler product.
 Electrical products are dangerous for
children and pets. Children and pets
must not play with, climb on, or enter
the product.
 Cleaning and user maintenance
should not be performed by children
unless there is someone overseeing
them.
 Keep the packaging materials away
from children. Risk of injury and
suffocation.
 Before disposing of old products that
shall not be used any more:
1. Unplug the power cord from the mains socket.
2. Cut the power cord and remove it from the
appliance together with the plug.
3. Do not remove the racks and drawers from the
product to prevent children from getting inside the
appliance.
4. Remove the doors.
5. Store the product so that it shall not be tipped over.
6. Do not allow children to play with the scrapped
product.
 Do not dispose of the product by throwing it
into fire. Risk of explosion.
 If there is a lock available in the product’s door,
keep the key out of children’s reach.
1.3 Electrical safety
 The product shall not be plugged
into the outlet during installation,

4 /29 EN Refrigerator / User Guide
Safety instructions
maintenance, cleaning, repair, and
transportation operations.
 If the power the cord is damaged,
it shall be replaced by authorized
service only to avoid any risk that
may occur.
 Do not tuck the power cord under the
product or to the rear of the product.
Do not put heavy items on the power
cord. The power cord should not be
bent, crushed, and come into contact
with any heat source.
 Do not use an extension cord, multi-
plug or adaptor to operate your
product.
 Portable multisockets or portable
power supplies may overheat and
cause fire. Thus, do not have a multi-
plug behind or in the vicinity of the
product.
 The plug shall be easily accessible.
If this is not possible, a mechanism
that meets the electrical legislation
and that disconnects all terminals
from the mains (fuse, switch, main
switch, etc.) shall be available on the
electrical installation.
 Do not touch the plug with wet
hands.
 When unplugging the appliance, don’t
hold the power cord, but the plug.
1.4 Handling Safety
 This product is heavy, do not handle it
by yourself.
 Do not hold the product from its door
while handling the product.
 Be careful not to damage the cooling
system and the pipes while handling
the product. Do not operate the
product if the pipes are damaged, and
contact an authorized service.
1.5 Installation Safety
 Contact the Authorized Service
for the product’s installation. To
prepare the product for installation,
see the information in the user
guide and make sure the electric
and water utilities are as required.
If the installation is not suitable, call
a qualified electrician and plumber
to have them make the necessary
arrangements. Otherwise, electric
shock, fire, issues with the product or
injuries may occur.
 Check for any damage on the product
before installing it. Do not have the
product installed if it is damaged.
 Place the product on a level and
hard surface and balance with the
adjustable legs. Otherwise, the
refrigerator may tip over and cause
injuries.
 The product shall be installed in a
dry and ventilated environment.
Do not keep carpets, rugs or similar
floor covers under the product. This
may cause risk of fire as a result of
inadequate ventilation!
 Do not block or cover ventilation
holes. Otherwise, power consumption
may be increased and damage to your
product may occur.
 Do not connect the product to supply
systems such as solar power supplies.
Otherwise, damage to your product
may occur as a result of the abrupt
voltage fluctuations!
 The more refrigerant a refrigerator
contains, the bigger its installation
room shall be. In very small rooms,
a flammable gas-air mixture may
occur in case of a gas leak in the
cooling system. At least 1 m3of
volume is required for each 8 grams

5 / 29 EN
Refrigerator / User Guide
Safety instructions
of refrigerant. The amount of the
refrigerant available in your product
is specified in the Type Label.
 The installation place of the product
shall not be exposed to direct
sunlight and it shall not be in the
vicinity of a heat source such as
stoves, radiators, etc.
If you cannot prevent installation of the product in
the vicinity of a heat source, you shall use a suit-
able insulation plate and the minimum distance to
the heat source shall be as specified below.
- At least 30 cm away from heat sources such
as stoves, heating units and heaters, etc.,
- And at least 5 cm away from electric ovens.
 Your product has the protection
class of I. Plug the product in a
grounded socket that conforms with
the Voltage, Current and Frequency
values specified in the type label. The
socket outlet shall be equipped with a
fuse with a rating of 10 A – 16 A. Our
company shall not be responsible for
the damages that shall be incurred
as a result of operating the product
without ensuring ground and
electrical connections made as per
local or national regulations.
 The product’s power cable must
be unplugged during installation.
Otherwise, risk of electric shock and
injury may occur!
 Do not plug the product to loose, broken, dirty,
greasy sockets or sockets that has come out
their seats or sockets with a risk of water con-
tact.
 Place the power cord and hoses (if available) of
the product so that they shall not cause a risk
of tripping over.
 Penetration of humidity to live parts or to the
power cord may cause short circuit. Thus, do
not use the product in humid environments or
in areas where water may splash (e.g. garage,
laundry room, etc.) If the refrigerator is wet
by water, unplug it and contact an authorized
service.
 Do not connect your refrigerator to power sav-
ing devices. These systems are harmful for the
product.
1.6 Operational safety
 Do not use chemical solvents on the product.
These materials contain an explosion risk.
 In case of a failure of the product, unplug it and
do not operate until it is repaired by the author-
ized service. There is a risk of electric shock!
 Do not place a source of flame (e.g. candles,
cigarettes, etc.) on the product or in the vicinity
of it.
 Do not get on the product. Risk of falling and
injury!
 Do not cause damage to the pipes of the cool-
ing system using sharp and piercing tools. The
refrigerant that sprays out in case of puncturing
the gas pipes, pipe extensions or upper surface
coatings may cause irritation of skin and inju-
ries of the eyes.
 Do not place and operate electric appliances
inside the refrigerators/deep freezer unless it is
advised by the manufacturer.
 Do not jam any parts of your hands or your
body to the moving parts inside the product.
Be careful to prevent jamming of your fingers
between the refrigerator and its door. Be careful
while opening or closing the door if there are
children around.
 Do not put ice cream, ice cubes or frozen food
to your mouth as soon as you take them out of
the freezer. Risk of frostbite!
 Do not touch the inner walls, metal
parts of the freezer or food kept
inside the refrigerator with wet
hands. Risk of frostbite!
 Do not place soda cans or cans
and bottles that contain fluids
that may be frozen to the freezer
compartment. Cans or bottles may
explode. Risk of injury and material
damage!
 Do not use or place materials
sensitive against temperature
such as flammable sprays,
flammable objects, dry ice or other
chemical agents in the vicinity of

6 /29 EN Refrigerator / User Guide
Safety instructions
the refrigerator. Risk of fire and
explosion!
 Do not store explosive materials
such as aerosol cans with flammable
materials inside the product.
 Do not place cans containing fluids
over the product. Splashing of water
on an electrical part may cause the
risk of an electric shock or a fire.
 This product is not intended for
storage and cooling of medicines,
blood plasma, laboratory preparations
or similar materials and products that
are subject to the Medical Products
Directive.
 If the product is used against its
intended purpose, it may cause
damage to or deterioration of the
products kept inside.
 If your refrigerator is equipped with
blue light, do not look at this light
with optical devices. Do not stare
directly at UV LED light for a long
time. Ultraviolet rays may cause eye
strain.
 Do not fill the product with more food
than its capacity. Injuries or damages
may occur if the contents of the
refrigerator falls when the door is
opened. Similar problems may occur
when an object is placed over the
product.
 Ensure that you have removed any
ice or water that may have fallen to
the floor to prevent injuries.
 Change the locations of the racks/
bottle racks on the door of your
refrigerator while the racks are
empty only. Danger of physical injury!
 Do not place objects that may fall/
tipped over on the product. These
objects may fall while opening or
closing the door and cause injuries
and/or material damages.
 Do not hit or exert excessive pressure
on glass surfaces. Broken glass
may cause injuries and/or material
damages.
 The cooling system in your product
contains R600a refrigerant. The
refrigerant type used in the product
is specified in the the type label.
This gas is flammable. Therefore, be
careful not to damage the cooling
system and the pipes while operating
the product. In case of damage to the
pipes;
- do not touch the product or the power cord,
- Keep the product away from potential sources
of fire that may cause the product to catch fire.
- ventilation the area where the product is
placed. Do not use a fan.
- Contact authorized service.
 If the product is damaged and you
observe gas leak, please stay away
from the gas. Gas may cause frostbite
if it contacts your skin.
1.7 Maintenance and
cleaning safety
 Do not pull by the door handle if you
shall move the product for cleaning
purposes. Handle may cause injuries
if it is pulled too hard.
 Do not clean the product by spraying
or pouring water on the product and
inside the product. Risk of electric
shock and fire.
 Do not use sharp or abrasive tools
to clean the product. Do not use
materials such as household cleaning
agents, detergents, gas, gasoline,
alcohol, wax, etc.
 Use cleaning and maintenance
agents that are not harmful for food
only inside the product.
 Do not use steam or steamed
cleaning materials for cleaning the
product and thawing the ice inside it.

7 / 29 EN
Refrigerator / User Guide
Safety instructions
Steam contacts the live areas in your
refrigerator and causes short circuit
or electric shock!
 Take care to keep water away from
the electronic circuits or lighting of
the product.
 Use a clean, dry cloth to wipe the dust
or foreign material on the tips of the
plugs. Do not use a wet or damp piece
of cloth to clean the plug. Otherwise,
risk of fire or electric shock may occur.
1.8HomeWhiz
(May not be applicable for all models)
 Follow the safety warnings even if
you are away from the product while
operating the product via HomeWhiz
app. Also, pay attention to the
warnings in the app.
1.9 Lighting
(May not be applicable for all models)
 Contact an authorized service when
you shall replace the LED / bulb using
for lighting.

8 /29 EN Refrigerator / User Guide
2 Environmental instructions
2.1 Compliance with the WEEE
Directive and Disposing
of the Waste Product:
This product complies with EU WEEE Directive
(2012/19/EU). This product bears a classification
symbol for waste electrical and electronic equip-
ment (WEEE).
This symbol indicates that this product
shall not be disposed with other house-
hold wastes at the end of its service life.
Used device must be returned to offical
collection point for recycling of electrical
and electronic devices. To find these collection sys-
tems please contact to your local authorities or re-
tailer where the product was puchased. Each
household performs important role in recovering
and recycling of old appliance. Appropriate disposal
of used appliance helps prevent potential negative
consequences for the environment and human
health.
2.2 Compliance with RoHS Directive
The product you have purchased complies with EU
RoHS Directive (2011/65/EU). It does not contain
harmful and prohibited materials specified in the
Directive.
2.3 Package information
Packaging materials of the product are
manufactured from recyclable materials
in accordance with our National
Environment Regulations. Do not dis-
pose of the packaging materials together with the
domestic or other wastes. Take them to the pack-
aging material collection points designated by the
local authorities.

9 / 29 EN
Refrigerator / User Guide

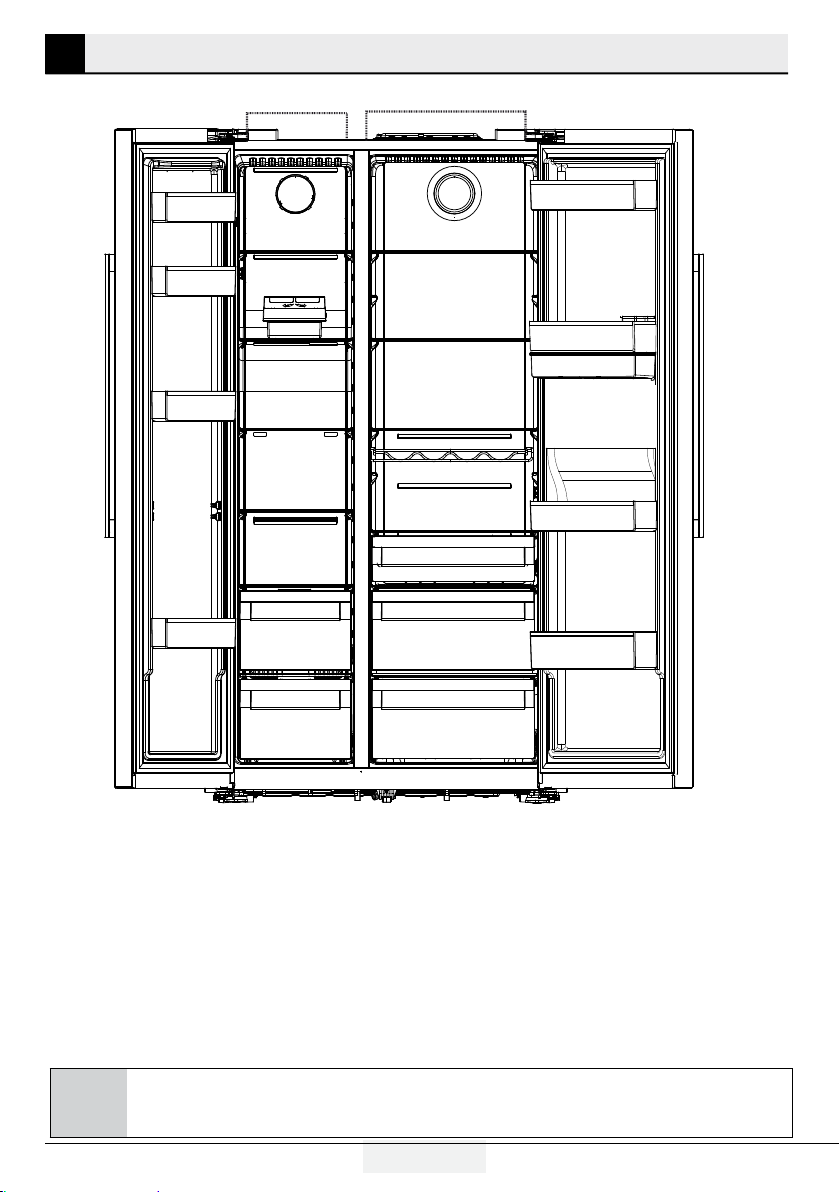

3 Your Refrigerator
C*Optional: Figures in this user guide are schematic and may not be exactly match your product. If your
product does not comprise the relevant parts, the information pertains to other models.
1- Freezer compartment
2- Cooler compartment
3- Cooler compartment door shelves
4- Egg Holder
5. Water dispenser filling tank
6. Water dispenser reservoir
7- Bottle shelf
8- Adjustable stands
9- Crispers
10- The dairy (cold storage) bin
11- Bottle shelf
12- Glass shelves
13- Fan
14- Frozen food storing compartments
15- Freezer compartment glass shelf
16- Icematic
17- Freezer compartment door shelves
2
1
*3
45
6
*7
*3
8
8
13
14
14
17
15
16
9
9
*10
*11
*12
May not be available in all models

10 /29 EN Refrigerator / User Guide
4 Installation
4.1 The right place for installation
ARead the “Safety Instructions” section first!
Your product requires adequate air circulation to
function efficiently. If the product will be placed in an
alcove, remember to leave at least 5 cm clearance
between the product and the ceiling, rear wall and
the side walls.
If the product will be placed in an alcove, remember
to leave at least 5 cm clearance between the
product and the ceiling, rear wall and the side
walls. Check if the rear wall clearance protection
component is present at its location (if provided with
the product). If the component is not available, or
if it is lost or fallen, position the product so that at
least 5 cm clearance shall be left between the rear
surface of the product and the wall of the room.
The clearance at the rear is important for efficient
operation of the product.
AWARNING: Do not use extension or multi
sockets in power connection.
BWARNING: The manufacturer assumes
no responsibility for any damage caused
by the work carried out by unauthorized
persons.
BWARNING: The product's power cable
must be unplugged during installation.
Failure to do so may result in death or
serious injuries!
A
WARNING: : If the door span is too
narrow for the product to pass, remove
the door and turn the product sideways; if
this does not work, contact the authorized
service.

vibration.

the heater, stove and similar sources of heat
and at least 5 cm away from electric ovens.

keep in damp environments.

function efficiently. If the product will be placed
in an alcove, remember to leave at least 5 cm
distance between the product and the ceiling
and the walls.
4.2 Attaching the plastic wedges
Use the plastic wedges in the provided with
the product to provide sufficient space for air
circulation between the product and the wall.
1. To attach the wedges, remove the screws on
the product and use the screws provided with the
wedges.
2. Attach 2 plastic wedges on the ventilation cover as
shown in the figure.

11 / 29 EN
Refrigerator / User Guide
Installation
4.3 Adjustment of the feet
If the product is not in balanced position, adjust the
front adjustable stands by rotating right or left.
In order to adjust the doors vertically,


position of the door

In order to adjust the doors horizontally,
 Loosen the fixing screw at the bottom
 Loosen the fixing bolt on the top
 Screw the adjusting bolt (CW/CCW) on the side
according to the position of the door
 Tighten the fixing bolt on the top for the final
position
 Tighten the fixing screw at the bottom
Fixing nut
Fixing screw
Sabitleme somunu
Sabitleme vidası
fixing nut
adjusting nut
adjusting bolt
fixing bolt
ayar somunu
ayar civatası
sabitleme
civatası
sabitleme somunu

12 /29 EN Refrigerator / User Guide
Installation
4.4 Electrical connection
AWARNING: Do not use extension or
multi sockets in power connection.
BWARNING: Damaged power cable
must be replaced by Authorized
Service.
 Our firm will not assume responsibility for any
damages due to usage without earthing and
power connection in compliance with national
regulations.
 The power cable plug must be easily
accessible after installation.
C
Hot surface warning!
The side walls of your product are
equipped with cooler pipes to enhance
the cooling system. High pressure fluid
may flow through these surfaces, and
cause hot surfaces on the side walls.
This is normal and it does not require
servicing. Be careful when you contact
these areas.

13 / 29 EN
Refrigerator / User Guide
5 Preparation
5.1 What to do for energy saving
mehmet
AConnecting the product to electronic
energy-saving systems is harmful, as it
may damage the product.
 For a freestanding appliance; ‘this refrigerating
appliance is not intended to be used as a built-
in appliance’ ;
 Do not keep the refrigerator doors open for
long periods.
 Do not place hot food or beverages into the
refrigerator.
 Do not overfill the refrigerator; blocking the
internal air flow will reduce cooling capacity.
 Depending on the product's features;
defrosting frozen foods in the cooler
compartment will ensure energy saving and
preserve food quality.
 Food shall be stored using the drawers in the
cooler compartment in order to ensure energy
saving and protect food in better conditions.

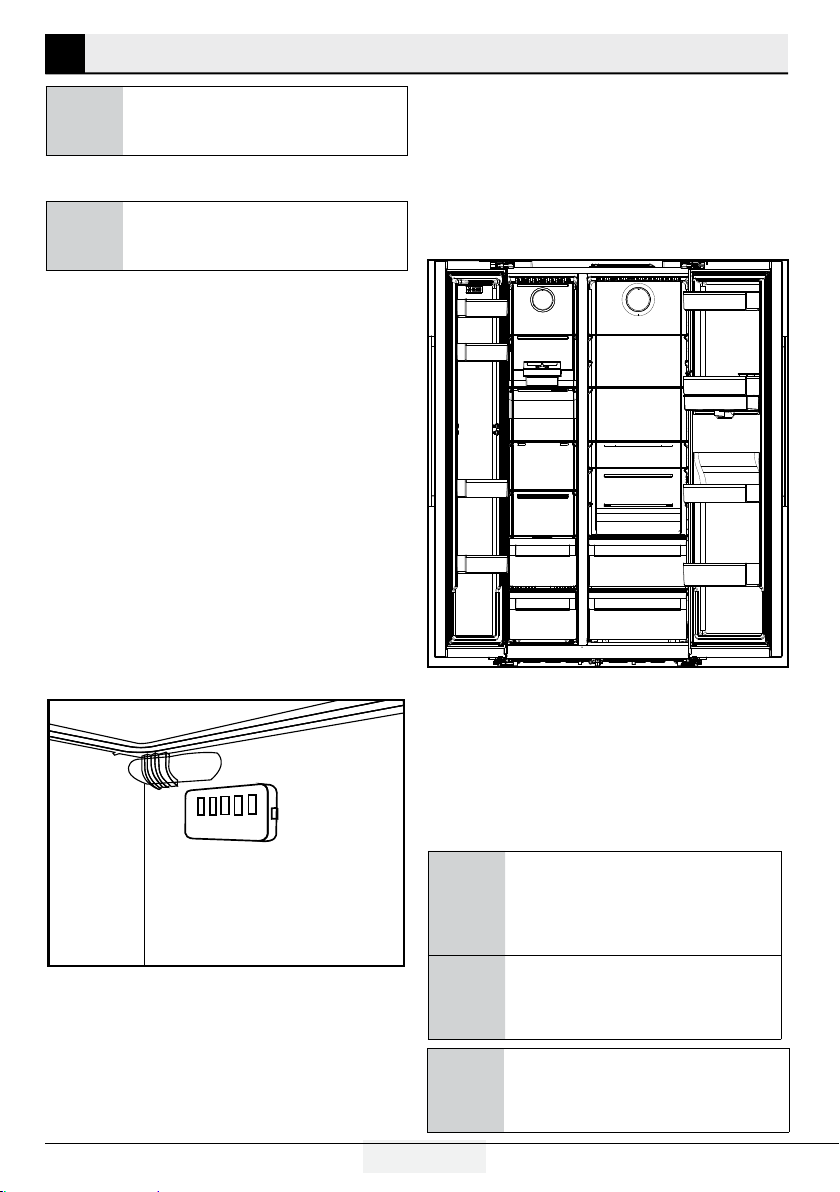

 Make sure the foods are not in contact with
the cooler compartment temperature sensor
described below.
energy while maintaining the freshness of your
foodstuff.
 In case of multiple options are present glass
shelves must be placed so that the air outlets
at the backwall are not blocked, prefably air
outlets are remaining below the glass shelf.
This combination may help impoving air
distribution and energy efficiency.
ARead the “Safety Instructions” section first!
5.2 First operation
Before using your refrigerator, make sure the
necessary preparations are made in line with
the instructions in "Safety and environment
instructions" and "Installation" sections.
 Keep the product running without placing any
food inside for 12 hours and do not open the
door, unless absolutely necessary.
CA sound will be heard when the
compressor is engaged. It is normal to
hear sound even when the compressor is
inactive, due to the compressed liquids
and gasses in the cooling system.
CIt is normal for the front edges of the
refrigerator to be warm. These areas are
designed to warm up in order to prevent
condensation.
CFor some models, indicator panel turns
off automatically 1 minutes after the door
closes. It will be reactivated when the door
is open or any button is pressed.
 Since hot and humid air will not directly
penetrate into your product when the doors are
not opened, your product will optimize itself
in conditions sufficient to protect your food.
In this energy saving function, functions and
components such as compressor, fan, heater,
defrost, lighting, display and so on will operate
according to the needs to consume minimum

14 /29 EN Refrigerator / User Guide
6 Operating the Product
ARead the “Safety Instructions” section first!
 Do not use any mechanical tools or any
other tools than the recommendations of the
manufacturer to speed up the thawing operation.
 Do not use parts of your refrigerator such
as the door or drawers as a support or a step.
This may cause the product to trip over or its
components to be damaged.
 The product shall be used for storing food
only.
 Turn off the water valve if you will be away
from home (e.g. at vacation) and you will not be
using the Ice Maker or the water dispenser for a
long period of time. Otherwise, water leaks may
occur.
6.1 Turning off the product

period;
- unplug it,
- remove the food to prevent odours,
- wait until the ice is thawed,
- clean the inside and wait until it is dried.
- leave the doors open to prevent damage to internal
body plastics.

15 / 29 EN
Refrigerator / User Guide
6 Operation of the Product
6.2 Indicator panel
Indicator panels may vary depending on the model of your product.
Audial and visual functions of the indicator panel will assist in using the refrigerator.
Read the “Safety Instructions” section first!
1. Wireless Key
2. Quick Freezing Key
3. High temperature / error warning
4. Energy Saving (Display Off) Indicator
5. Freezing Compartment Temperature Setting Key
6. Cooling Compartment OFF (Vacation) Function
Key
7. Cooling Compartment Temperature Setting Key
8. Key for Resetting Wireless Connection Settings
9. Odor Removal Module Key
*May not be available in all models
*1
*8
2
345
7
6
*9
C*Optional:Shown functions are optional, there may be differences of shape and location in
functions found on your device’s display panel.

16 /29 EN Refrigerator / User Guide
Using the product
1. Wireless Key
This key is used to make a wireless connection with
your product via HomeWhiz mobile app.
When the key is pressed for a long period (3 seconds),
the wireless connection symbol on the display/screen
flashes slowly (with intervals of 0.5 seconds). The
home network is initialized on the product this way.
After achieving wireless connection with the product,
wireless connection symbol ( ) illuminates
continuously.
When the initial connection is established, you may
activate/deactivate the connection with a short press
on this key. The wireless connection symbol shall flash
quickly (at 0.2 second intervals) until the connection
is established. When the connection is active, the
wireless network symbol shall light up continuously.
If the connection cannot be established for a long
period, check your connection settings and refer to the
“Troubleshooting” section provided in the user manual.
HomeWhiz application shall be used for wireless
connection. Installation steps are described on the
application during installation.
You may access the application by reading the QR
code available on the HomeWhiz label on the product.
Application is offered through App Store for IOS
devices, and through Play Store for Android devices.
Visit https://www.homewhiz.com/ for detailed
information.’
2. Quick Freezing Key
When the quick freeze key is pressed, the LED on the
key is illuminated and the quick freeze function shall
be activated. Freezing compartment temperature is set
to -27 Celcius. Press the key again to cancel function.
The quick freezing function shall be automatically
cancelled after 24 hours. To freeze a large amount of
fresh food, press the quick freeze key before placing
the food in the freezer compartment.
3. High temperature / error warning
This indicator ( ) shall be active when your
refrigerator cannot perform adequate cooling or in
case of any sensor error. “E” shall be displayed on
the Freezing Compartment temperature indicator and
figures such as 1,2,3... shall be displayed on the
cooling compartment temperature indicator. These
figures provide information to the authorized service
on the error that has occurred.
Exclamation mark may be displayed when you load
warm food to the freezing compartment or keep the
door open for a long period of time. This is not a fault,
this warning shall be removed when the food is cooled
down or when any key is pressed.
4. Energy Saving (Display Off) Indicator
Energy saving function is enabled automatically and
the energy saving symbol ( ) is displayed when
the door of the product is not opened or closed for
some period of time. When the energy saving function
is active, all symbols on the screen other than the
energy saving symbol shall be turned off. When the
energy-saving function is active, pressing any key or
opening the door will deactivate the energy-saving
function and the display signals will return to normal.
The energy-saving function is a function activated
ex-factory and cannot be cancelled.
5. Freezing Compartment Temperature Setting
Key
Temperature setting is made for cooler compartment.
Pressing this key will enable the freezer compartment
temperature to be set at -18,-19,-20,-21,-22,-23,-
24 Celcius.
6.Cooling Compartment OFF (Vacation) Function
Key
Press the key for 3 seconds to activate the vacation
function. Vacation mode is activated and the LED
on the key is illuminated. “- -” shall be displayed on
the Cooling Compartment temperature indicator and
the cooling compartment does not actively perform
cooling. You shall not keep your food in the cooling
compartment when this function is activated. The
other compartments continue to cool according to the
set temperatures. Press the key for 3 seconds again
to cancel this function.

17 / 29 EN
Refrigerator / User Guide
Using the product
7. Cooling Compartment Temperature Setting
Key
Allows setting of temperature for cooler compartment.
Pressing this key will enable the cooling compartment
temperature to be set at 8,7,6,5,4,3,2 and 1 Celcius.
8. Key for Resetting Wireless Connection
Settings
To reset the wireless connection settings, press Quick
freezing ( ) and wireless connection ( ) keys
simultaneously for 3 seconds. All user information
recorded previously are removed on a product where
wireless connection settings are reset/restored to
factory defaults.
9.Odor Removal Module Key
Press this key for 3 seconds to enable/disable
odor removal feature. The LED on the key turns on
when odor removal feature is enabled. When the
feature is enabled, odor removal module works
periodically.

18 /29 EN Refrigerator / User Guide
Using the product
1
*2
3
4
5
6
7
*8
*May not be available in all models
6.3 Indicator panel
Indicator panels may vary depending on the model of your product.
Audial and visual functions of the indicator panel will assist in using the refrigerator.
1. High temperature / error warning
2. Wireless Key
3. Freezing Compartment Temperature Setting
Key
4. Cooling Compartment Temperature Setting
Key
5. Cooling Compartment OFF (Vacation) Function Key
6. Key lock
7. Quick Freezing Key
8. Key for Resetting Wireless Connection Settings
C*Optional:Shown functions are optional, there may be differences of shape and location in
functions found on your device’s display panel.

19 / 29 EN
Refrigerator / User Guide
Using the product
1. High temperature / error warning
This indicator ( ) shall be active when your
refrigerator cannot perform adequate cooling or in
case of any sensor error. “E” shall be displayed on
the Freezing Compartment temperature indicator
and figures such as 1,2,3... shall be displayed on the
cooling compartment temperature indicator. These
figures provide information to the authorized service on
the error that has occurred.
Exclamation mark may be displayed when you load
warm food to the freezing compartment or keep the
door open for a long period of time. This is not a fault,
this warning shall be removed when the food is cooled
down or when any key is pressed.
2. Wireless Key
This key is used to make a wireless connection with
your product via HomeWhiz mobile app.
When the key is pressed for a long period (3 seconds),
the wireless connection symbol on the display/screen
flashes slowly (with intervals of 0.5 seconds). The
home network is initialized on the product this way.
After achieving wireless connection with the product,
wireless connection symbol ( ) illuminates
continuously.
When the initial connection is established, you may
activate/deactivate the connection with a short press
on this key. The wireless connection symbol shall flash
quickly (at 0.2 second intervals) until the connection
is established. When the connection is active, the
wireless network symbol shall light up continuously.
If the connection cannot be established for a long
period, check your connection settings and refer to the
“Troubleshooting” section provided in the user manual.
HomeWhiz application shall be used for wireless
connection. Installation steps are described on the
application during installation.
You may access the application by reading the QR
code available on the HomeWhiz label on the product.
Application is offered through App Store for IOS
devices, and through Play Store for Android devices.
Visit https://www.homewhiz.com/ for detailed
information.’
3. Freezing Compartment Temperature Setting
Key
Temperature setting is made for cooler compartment.
Pressing this key will enable the freezer compartment
temperature to be set at
-18,-19,-20,-21,-22,-23,-
24 Celcius.
4. Cooling Compartment Temperature Setting
Key
Allows setting of temperature for cooler compartment.
Pressing this key will enable the cooling compartment
temperature to be set at 8,7,6,5,4,3,2 and 1 Celcius.
5.Cooling Compartment OFF (Vacation) Function
Key
Press the key for 3 seconds to activate the vacation
function. Vacation mode is activated and vacation
icon lights up “- -” shall be displayed on the
Cooling Compartment temperature indicator and
the cooling compartment does not actively perform
cooling. You shall not keep your food in the cooling
compartment when this function is activated. The
other compartments continue to cool according to the
set temperatures. Press the key for 3 seconds again
to cancel this function.Vacation mode is activated and
the holiday icon lights up.
6.Key lock
When the key lock key ( ) is pressed for 3 seconds,
the key lock is activated and key lock icon lights up.
Press the key for 3 seconds again to cancel the key
lock.
You may use the key lock feature when you want to
prevent changes to the temperature setting of the
refrigerator.
7. Quick Freezing Key
When the quick freeze key is pressed, quick freeze
icon lights up and the quick freeze function shall be
activated. Freezing compartment temperature is set to
-27 Celcius. Press the key again to cancel function.
The quick freezing function shall be automatically
cancelled after 24 hours. To freeze a large amount of
fresh food, press the quick freeze key before placing
the food in the freezer compartment.
