Beko GNE 134621 X User manual

GNE134621X
GNE134631X
Refrigerator



Réfrigérateur

Koelkast
Frigorífico
Frigorífico

Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
For this, we recommend you to carefully read the entire manual of your product
before using it and keep it at hand for future references.
This manual
t8JMMIFMQZPVVTFZPVSBQQMJBODFJOBGBTUBOETBGFXBZ
t3FBEUIFNBOVBMCFGPSFJOTUBMMJOHBOEPQFSBUJOHZPVSQSPEVDU
t'PMMPXUIFJOTUSVDUJPOTFTQFDJBMMZUIPTFGPSTBGFUZ
t,FFQUIFNBOVBMJOBOFBTJMZBDDFTTJCMFQMBDFBTZPVNBZOFFEJUMBUFS
t#FTJEFTSFBEBMTPUIFPUIFSEPDVNFOUTQSPWJEFEXJUIZPVSQSPEVDU
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information or useful usage tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

EN
2
1 Your Refrigerator 3
2 Important Safety
Warnings 4
Intended use .....................................4
General safety ..................................4
For products with a water dispenser;.8
Child safety........................................8
Compliance with WEEE Directive and
Disposing of the Waste Product: .......8
Package information..........................9
HC warning .......................................9
Things to be done for energy saving..9
3FDDPNFOEBUJPOTGPSGSFTIGPPE
compartment...................................10
3 Installation 11
Points to be considered when re-
transporting your refrigerator ...........11
#FGPSFPQFSBUJOHZPVSSFGSJHFSBUPS ....11
Electric connection ..........................11
Disposing of the packaging .............12
Disposing of your old refrigerator .....12
Placing and Installation ....................12
Floor balance adjustment ................13
Adjusting the gap between the upper
door ................................................13
Changing the illumination lamp .......14
Installing Water Filter .......................15
Connection of the Water Pipe to the
3FGSJHFSBUPS .....................................15
Connection of Water Hose to the
Jug .................................................16
Connection of the Water Pipe to the
Cold Water Mains Line ....................17
Prior to first use of Water Dispenser.19
CONTENTS
4 Preparation 20
5 Using your refrigerator 21
Indicator Panel.................................21
Door Open Alarm: ..........................24
Dual cooling system: .......................24
Freezing fresh food .......................... 24
3FDPNNFOEBUJPOTGPSQSFTFSWBUJPOPG
frozen food ...................................... 25
Defrosting........................................26
Placing the food ..............................26
Deep-freeze information ..................26
Things to do to have the filter usage
time calculated automatically...........27
4MJEJOH#PEZ4IFMWFT .......................28
Egg tray...........................................28
Crisper ............................................28
Chiller compartment ........................28
Movable Middle Section .................29
Multi Zone Storage Compartment ..29
#MVFMJHIU .........................................29
4MJEJOH#PEZ4IFMWFT8JUI3FBS
Hangers ..........................................30
#VUUFS$IFFTF4FDUJPO .................30
Using the water spring.....................30
Spillage Tray ....................................30
6 Maintenance and
cleaning 31
Protection of plastic surfaces ..........31
7 Troubleshooting 32

EN
3
C Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
1Your Refrigerator
1- Fridge compartment door shelves
2- Fridge compartment glass shelves
3- Diffuser cover
4- Illumination lens
5- Movable middle section
6- Chiller compartment
7- Crisper
8- Icematic
9- Frozen food storage
compartments
17
18 19
2
3
6
7
8
9
5
4
16
13
11
14
1
12
10
15
10- Minibar
 #PUUMFIPMEFS
 #PUUMFTIFMG
13- Food storage compartment shelves
14- Food storage compartments
15- Water Filter
16- Dairy compartment
17- Fridge compartment
18- Freezer compartment
19- Multi Zone

EN
4
2Important Safety Warnings
Please review the
following information.
Failure to observe this
information may cause
injuries or material
damage. Otherwise, all
warranty and reliability
commitments will
become invalid.
The service life of your
product is 10 years.
During this period,
original spare parts will be
available to operate the
product properly.
Intended use
This product is intended
to be used
t indoors and in closed
areas such as homes;
t in closed working
environments such as
stores and offices;
t in closed
accommodation areas
such as farm houses,
hotels, pensions.
t It should not be used
outdoors.
General safety
t When you want to
dispose/scrap the
product, we recommend
you to consult the
authorized service
in order to learn the
required information and
authorized bodies.
t Consult your authorized
service for all your
questions and problems
related to the refrigerator.
Do not intervene or let
someone intervene to
the refrigerator without
notifying the authorised
services.
t For products with a
freezer compartment;
Do not eat cone ice
cream and ice cubes
immediately after you
take them out of the
freezer compartment!
(This may cause frostbite
in your mouth.)
t For products with a
freezer compartment;
Do not put bottled
and canned liquid
beverages in the
freezer compartment.
Otherwise, these may
burst.
t Do not touch frozen food
by hand; they may stick
to your hand.

EN
5
t Unplug your refrigerator
before cleaning or
defrosting.
t Vapor and vaporized
cleaning materials
should never be used in
cleaning and defrosting
processes of your
refrigerator. In such
cases, the vapor may
get in contact with the
electrical parts and
cause short circuit or
electric shock.
t Never use the parts on
your refrigerator such as
the door as a means of
support or step.
t Do not use electrical
devices inside the
refrigerator.
t Do not damage the
parts, where the
refrigerant is circulating,
with drilling or cutting
tools. The refrigerant
that might blow out
when the gas channels
of the evaporator, pipe
extensions or surface
coatings are punctured
causes skin irritations
and eye injuries.
t Do not cover or block
the ventilation holes on
your refrigerator with any
material.
t Electrical devices must
be repaired by only
authorised persons.
3FQBJSTQFSGPSNFECZ
incompetent persons
create a risk for the user.
t In case of any failure or
during a maintenance or
repair work, disconnect
your refrigerator’s mains
supply by either turning
off the relevant fuse
or unplugging your
appliance.
t Do not pull by the cable
when pulling off the plug.
t Place the beverage with
higher proofs tightly
closed and vertically.
t Never store spray
cans containing
flammable and explosive
substances in the
refrigerator.
t Do not use mechanical
devices or other means
to accelerate the
defrosting process,
other than those
recommended by the
manufacturer.

EN
6
t This product is not
intended to be used by
persons with physical,
sensory or mental
disorders or unlearned
or inexperienced people
(including children)
unless they are attended
by a person who will
be responsible for their
safety or who will instruct
them accordingly for use
of the product
t Do not operate a
damaged refrigerator.
Consult with the service
agent if you have any
concerns.
t Electrical safety of your
refrigerator shall be
guaranteed only if the
earth system in your
house complies with
standards.
t Exposing the product
to rain, snow, sun and
wind is dangerous with
respect to electrical
safety.
t Contact authorized
service when there is a
power cable damage to
avoid danger.
t Never plug the
refrigerator into the wall
outlet during installation.
Otherwise, risk of death
or serious injury may
arise.
t This refrigerator is
intended for only storing
food items. It must not
be used for any other
purpose.
t Label of technical
specifications is located
on the left wall inside the
refrigerator.
t Never connect your
refrigerator to electricity-
saving systems; they
may damage the
refrigerator.
t If there is a blue light on
the refrigerator, do not
look at the blue light with
optical tools.
t For manually controlled
refrigerators, wait for at
least 5 minutes to start
the refrigerator after
power failure.
t This operation manual
should be handed in to
the new owner of the
product when it is given
to others.

EN
7
t Avoid causing damage
on power cable when
transporting the
SFGSJHFSBUPS#FOEJOH
cable may cause fire.
Never place heavy
objects on power cable.
t Do not touch the plug
with wet hands when
plugging the product.
t Do not plug the
refrigerator if the wall
outlet is loose.
t Water should not be
sprayed on inner or outer
parts of the product for
safety purposes.
t Do not spray substances
containing inflammable
gases such as propane
gas near the refrigerator
to avoid fire and
explosion risk.
t Never place containers
filled with water on top
of the refrigerator; in
the event of spillages,
this may cause electric
shock or fire.
t Do not overload the
refrigerator with food.
If overloaded, the food
items may fall down and
hurt you and damage
refrigerator when you
open the door.
t Never place objects on
top of the refrigerator;
otherwise, these objects
may fall down when
you open or close the
refrigerator's door.
t As they require a precise
temperature, vaccines,
heat-sensitive medicine
and scientific materials
and etc. should not be
kept in the refrigerator.
t If not to be used for a
long time, refrigerator
should be unplugged.
A possible problem in
power cable may cause
fire.
t The plug's tip should be
cleaned regularly with a
dry cloth; otherwise, it
may cause fire.
t 3FGSJHFSBUPSNBZNPWF
if adjustable legs are not
properly secured on the
floor. Properly securing

EN
8
adjustable legs on the
floor can prevent the
refrigerator to move.
t When carrying the
refrigerator, do not hold
it from door handle.
Otherwise, it may be
snapped.
t When you have to place
your product next to
another refrigerator or
freezer, the distance
between devices
should be at least 8cm.
Otherwise, adjacent side
walls may be humidified.
For products with a
water dispenser;
t In order to operate
the water circuit
of the refrigerator
smoothly, the water
mains pressure must
be between 1-8 bars.
For conditions where
water mains pressure
exceeds 5 bars a
pressure regulator
should be used. If the
water mains pressure
exceeds 8 bars then
the refrigerator’s water
circuit should not be
connected to the water
mains. If you lack the
knowledge of how to
measure the water
mains pressure, please
seek a professional
support.Use drinking
water only.
t Use only potable water.
Child safety
t If the door has a lock, the key should
be kept away from reach of children.
t Children must be supervised to
prevent them from tampering with the
product.
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies
with EU WEEE Directive
(2012/19/EU). This product
bears a classification
symbol for waste electrical
and electronic equipment
(WEEE).
This product has been manufactured
with high quality parts and materials
which can be reused and are suitable
for recycling. Therefore, do not dispose
the product with normal domestic
waste at the end of its service life. Take
it to a collection point for the recycling
of electrical and electronic equipment.
Please consult your local authorities
to learn the nearest collection point.
Help protect the environment and
natural resources by recycling used
products. For children's safety, cut the
power cable and break the locking
mechanism of the door, if any, so
that it will be non-functional before
disposing of the product.

EN
9
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
/BUJPOBM&OWJSPONFOU3FHVMBUJPOT%P
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.
Do not forget...
Any recycled substance is an
indispensable matter for nature and
our national asset wealth.
If you want to contribute to the
re-evaluation of the packaging
materials, you can consult to your
environmentalist organizations or the
municipalities where you are located.
HC warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the
product catch a fire and ventilate the
room in which the unit is placed.
Ignore this warning if your
product's cooling system contains
R134a.
Type of gas used in the product is
stated in the type label which is on the
left wall inside the refrigerator.
Never throw the product in fire for
disposal.
Things to be done for energy
saving
t Do not leave the doors of your
refrigerator open for a long time.
t Do not put hot food or drinks in your
refrigerator.
t Do not overload your refrigerator so
that the air circulation inside of it is not
prevented.
t Do not install your refrigerator
under direct sunlight or near heat
emitting appliances such as ovens,
EJTIXBTIFSTPSSBEJBUPST,FFQZPVS
refrigerator at least 30cm away from
heat emitting sources and at least
5cm from electrical ovens.
t Pay attention to keep your food in
closed containers.
t For products with a freezer
compartment; You can store
maximum amount of food items in
the freezer when you remove the
shelf or drawer of the freezer. Energy
consumption value stated for your
refrigerator has been determined
by removing freezer shelf or drawer
and under maximum load. There
is no harm to use a shelf or drawer
according to the shapes and size of
food to be frozen.
t Thawing frozen food in fridge
compartment will both provide energy
saving and preserve the food quality.

EN
10
Reccomendations for
freshfood compartment
* OPTIONAL

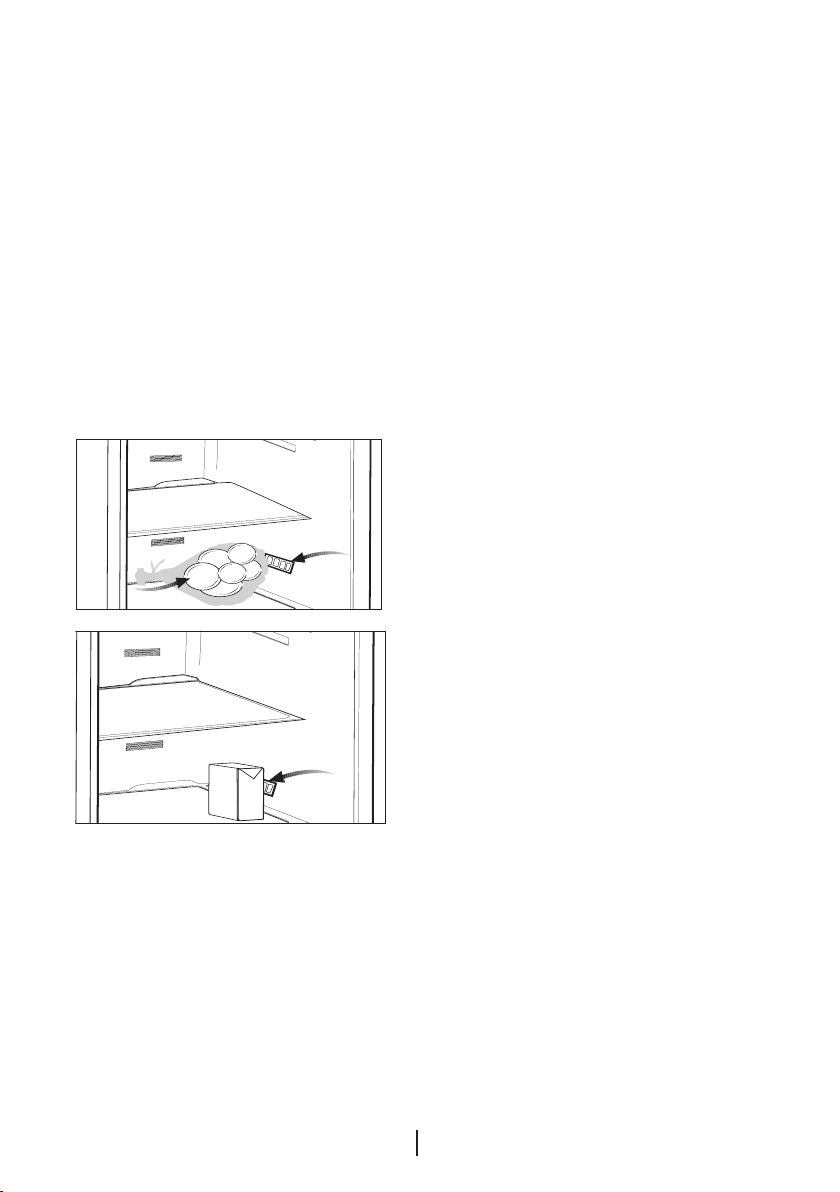

t1MFBTFEPOPUMFUBOZGPPETUVGGUP
come to contact with the temperature
sensor in freshfood compartment.
In order to maintain freshfood
compartment at ideal storage
temperature, the sensor must not be
blocked by fodstuffs.
t%POPUQMBDFIPUGPPETUVGGJOZPVS
appliance.
temperature
sensor
food
MILK
juice
etc.
temperature
sensor
temperature
sensor
food
MILK
juice
etc.
temperature
sensor

EN
11
3Installation
CPlease remember that the
manufacturer shall not be held liable if
the information given in the instruction
manual is not observed.
Points to be considered
when re-transporting your
refrigerator
1. Your refrigerator must be
emptied and cleaned prior to any
transportation.
2. Shelves, accessories, crisper and etc.
in your refrigerator must be fastened
securely by adhesive tape against any
jolt before repackaging.
3. Packaging must be tied with thick
tapes and strong ropes and the
rules of transportation printed on the
package must be followed.
CAlways remember...
Every recycled material is an
indispensable source for the nature
and for our national resources.
If you wish to contribute to recycling
the packaging materials, you can
get further information from the
environmental bodies or local
authorities.
Before operating your
refrigerator
#FGPSFTUBSUJOHUPVTFZPVSSFGSJHFSBUPS
check the following:
1. Is the interior of the refrigerator dry
and can the air circulate freely in the
rear of it?
2. Insert the 2 plastic wedges onto the
rear ventilation cover as illustrated
in the following figure. To do this,
remove the screws on the product
and use the screws given in the same
pouch.
Plastic wedges will provide the
required distance between your
refrigerator and the wall in order to
allow the air circulation.
3. Clean the interior of the refrigerator as
recommended in the “Maintenance
and cleaning” section.
4. Plug the refrigerator into the wall
outlet. When the door is open the
respective interior light will come on.
5. You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
even if the compressor is not running
and this is quite normal.
6. Front edges of the refrigerator may
feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.
Electric connection
Connect your refrigerator to a grounded
socket which is being protected by a
fuse with the appropriate capacity.

EN
12
Important:
BThe connection must be in
compliance with national regulations.
BThe power cable plug must be easily
accessible after installation.
BVoltage and allowable fuse protection
are specified in the “Technical
Specifications” section.
BThe specified voltage must be equal
to your mains voltage.
BExtension cables and multiway plugs
must not be used for connection.
BA damaged power cable must be
replaced by a qualified electrician.
BThe appliance must not be operated
before it is repaired! There is danger
of electric shock!
Disposing of the packaging
AThe packing materials may be
EBOHFSPVTGPSDIJMESFO,FFQUIF
packing materials out of the reach
of children or dispose them of by
classifying them in accordance
with the waste instructions. Do not
dispose them of along with the
normal household waste.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old machine without
giving any harm to the environment.
AYou may consult your authorized
dealer or waste collection center of
your municipality about the disposal
of your refrigerator.
A#FGPSFEJTQPTJOHPGZPVSSFGSJHFSBUPS
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
BCaution: Never plug the refrigerator
into the wall outlet during installation.
Otherwise, risk of death or serious
injury may arise.
AIf the entrance door of the room
where the refrigerator will be installed is
not wide enough for the refrigerator to
pass through, than call the authorised
service to have them remove the
doors of your refrigerator and pass it
sideways through the door.
1. Install your refrigerator to a place
that allows ease of use.
,FFQZPVSSFGSJHFSBUPSBXBZGSPN
heat sources, humid places and direct
sunlight.
3. There must be appropriate air
ventilation around your refrigerator in
order to achieve an efficient operation.
If the refrigerator is to be placed in a
recess in the wall, there must be at
least 5 cm distance with the ceiling
and at least 5 cm with the wall.
If the floor is covered with a carpet,
your product must be elevated 2.5 cm
from the floor.
4. Place your refrigerator on an even
floor surface to prevent jolts.
5. Do not keep your refrigerator in
ambient temperatures under 10°C.

EN
13
Floor balance adjustment
AIf your refrigerator is unbalanced;
BFirst unplug the product. The
product must be unplugged when
making the balance adjustment. There
is the risk of electric shock.
4
12 3

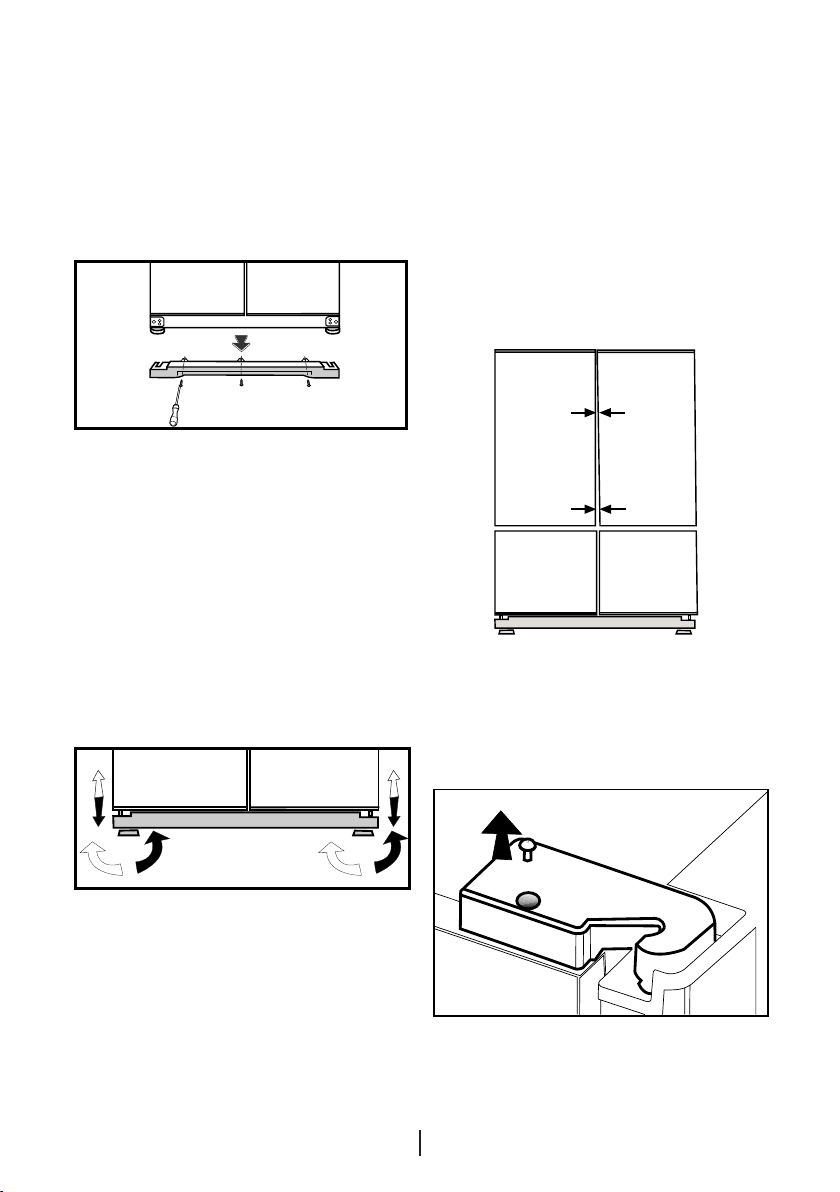

1- Ventilation cover is removed by
unscrewing its screws as illustrated
in the figure before the procedure.
You can balance your refrigerator by
turning the front legs of it as illustrated
in the figure. The corner where the
leg exists is lowered when you turn
in the direction of black arrow and
raised when you turn in the opposite
direction. Taking help from someone to
slightly lift the refrigerator will facilitate
this process.
2. After the balance issue is remedied,
install back the ventilation cover and
fasten the screws.
3FNPWFUIFTDSFXTGBTUFOJOHUIF
lower ventilation cover using a Philips
screwdriver.
Adjusting the gap between
the upper door
CYou can adjust the gap between
the fridge compartment doors as
illustrated in the figures.
Door shelves should be empty when
adjusting the door height.

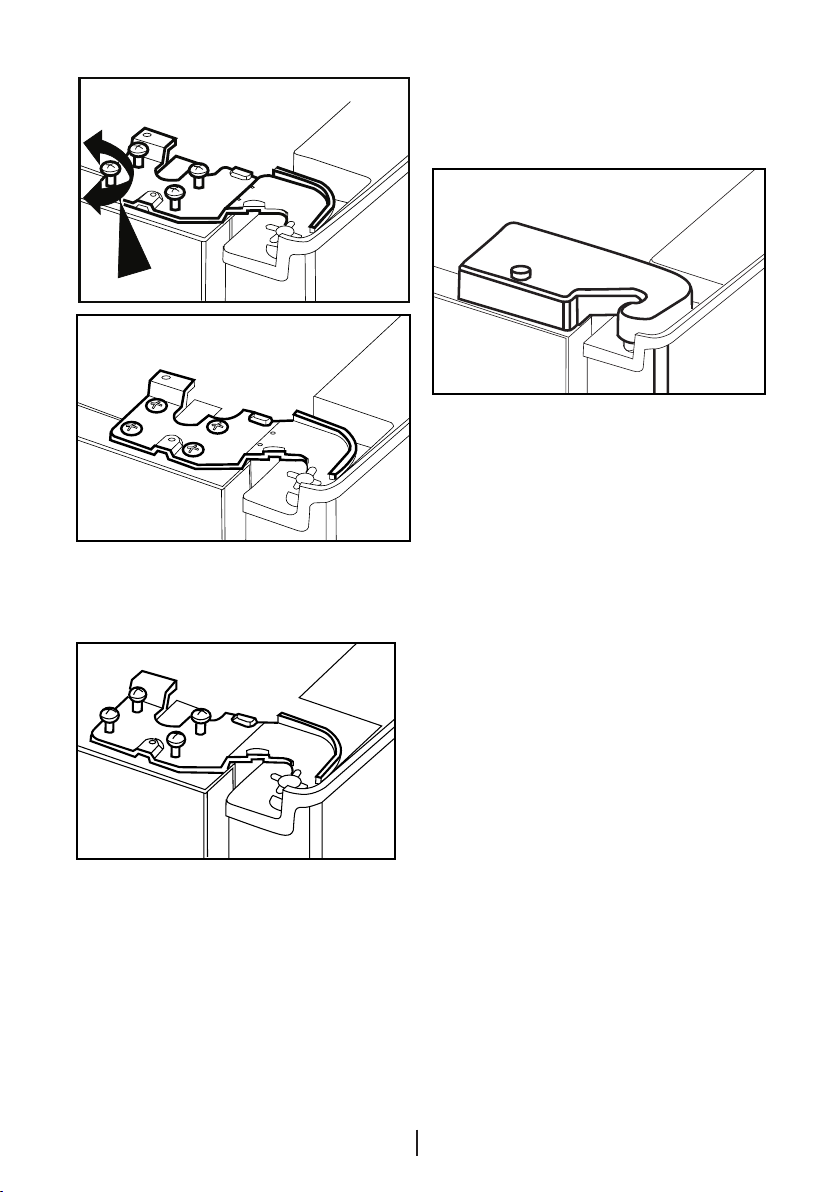

C Using a screwdriver, remove the
screw of upper hinge cover of the door
you want to adjust.

EN
14
C Adjust the door appropriately as
you desire by loosing the screws.
Changing the illumination
lamp
5PDIBOHFUIF#VMC-&%VTFEGPS
illumination of your refrigerator, call
your Authorized Service.
C Fix the door you have adjusted by
tightening the screws without changing
the position of the door.
C 3FQMBDFUIFIJOHFDPWFSBOEGJY
with the screw.

EN
15
Installing Water Filter
(in some models)

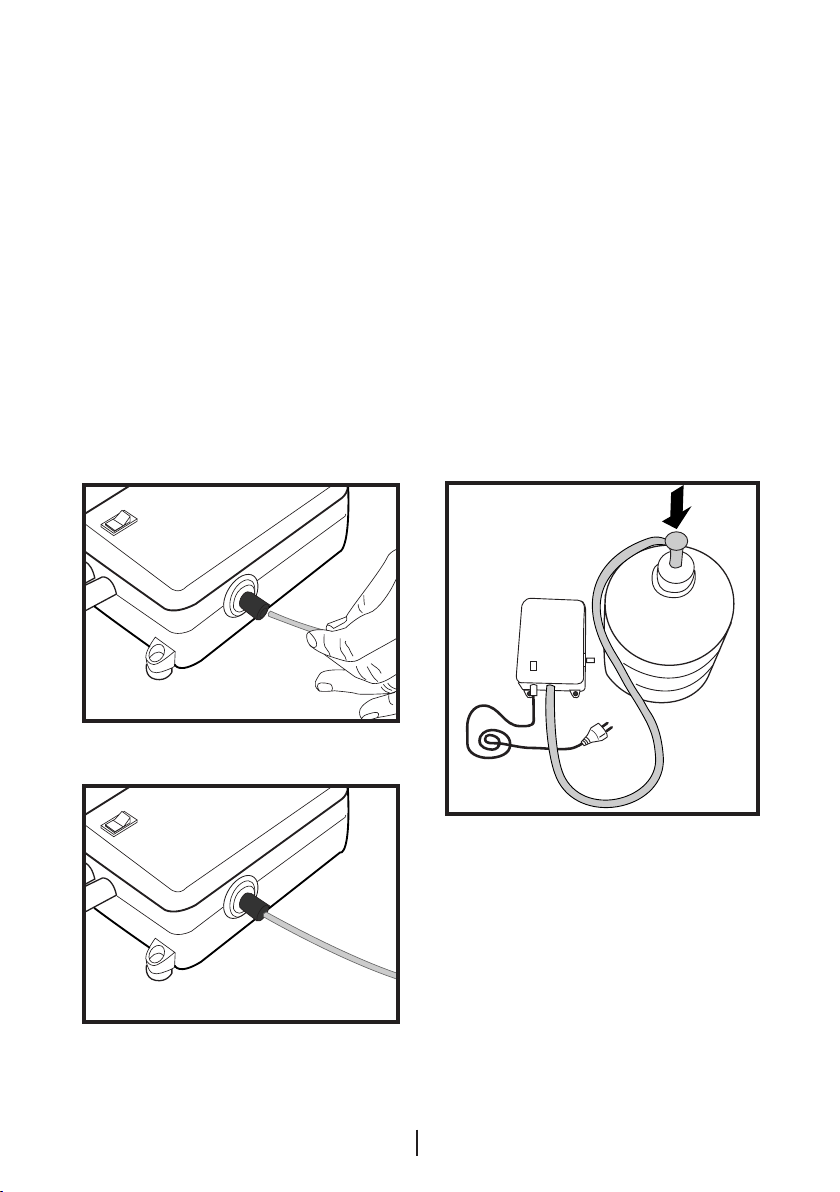

Two different water sources may
be connected to the refrigerator
for water supply: the mains cold
water supply and water in a jug.
Installation Requirements
A pump should be used for jug water
usage.
Check that the parts stated below are
supplied with your appliance.
1. Union for connection of the water
pipe to the rear of the appliance.
(If it does not fit, provide it from the
nearest authorized service.)
2. 2 pieces of pipe clips (In case
required to secure the water pipe)
Note: Since the following parts are
not required in use with a jug, they
may not be found in the product you
purchased.
3. 5-meter long water pipe (1/4 inch in
diameter)
4. Cold mains water valve with mesh
filter (Tap Adapter)
5. Water Filter or externally connectable
filter to be fitted to the bracket inside
the fridge compartment.
Place where the external filter is going
to be fitted should be determined
first. (Applies to the filter being
used outside the refrigerator.) Then,
determine the distance between the
filter and the refrigerator and required
hose lengths from the filter to the
refrigerator water inlet.
Water filter must be hold upright as
shown in the figure. It is important to
properly attach the filter to water inlet
and water outlet points.
After attaching the filter, do not use first
3-4 glasses of water.
Connection of the Water
Pipe to the Refrigerator
1. After installing the union onto the
water pipe, insert the water pipe to
the refrigerator inlet valve by pressing
downwards firmly.
2. Fix union as seen in the opposite
figure, by squeezing by hand on the
refrigerator inlet valve.
(a- Water Pipe, b-Union, c-Valve)
3
1
4
2
*5
c
a
a
b
1
2

EN
16
CNote 1: You should not need to
tighten the union with a tool to achieve
water tight assembly. In case of a leak
use a spanner or a pair of pliers to
tighten the union.
Connection of Water Hose to
the Jug
(in some models)
To connect water to the refrigerator
from a jug, a pump is needed. Follow
the instructions below after connecting
one end of the water pipe coming
out of the pump to the refrigerator as
described on the previous page.
1. Finish the connection by pushing
the other end of the water pipe into
the water pipe inlet of the pump as
shown in the figure.
2. Put and fix the pump hose into the
jug as shown in the figure.
3. After completing the connection, plug
in and run the pump.
To provide an efficient operation of the
pump, wait for 2-3 minutes after
starting the pump.
CYou may refer to the user manual
of the pump while making the water
connection.

EN
17
CThere is no need to use water filter in
case a jug is used.
CPump must be used when jug will be
used.
Connection of the Water
Pipe to the Cold Water Mains
Line
(in some models)
If you want to use your refrigerator by
connecting it to the cold water mains
line,
you will have to connect a standard
1/2" valve connection fitting to the cold
water supply in your house. In case
this valve is not present or in case
you are not sure, consult a qualified
plumber.
1. Separate the union from the tap
adaptor. (Figure A)
2. Install the tap adaptor to 1/2” valve
fitting as shown in the figure. (Figure
#
3. After inserting the water pipe to the
union, install it to the tap adaptor
and insert to the tap as shown in the
figure. (Figure C)
4. Tighten the union manually. In case of
a leak use a spanner or a pair of pliers
to tighten the union.
ACaution: Secure the water pipe
to suitable points by means of the
pipe clips supplied to avoid any
damage or displacement or accidental
disconnection.

EN
18
ACaution: After turning on the water
valve, make sure that there is no
leakage at both connection points of
the water pipe. In case of a leak, turn
off the valve immediately and tighten all
joints again using a spanner or a pair
of pliers.
ACaution: Make sure that standard
1/2" valve fitting fed by cold mains
water supply is available and is turned
off fully.
To fit the water filter follow the
instructions below referring to figures
supplied:
1. Press ice cancel button on the
display.
 3FNPWFUIFGJMUFSDPWFSJOUIFGSJEHF
compartment by pulling it forward.
3. Take out the water filter by-pass
cover by rotating it downwards.
ACaution: Make sure that the “Ice
off” mode is active before taking out
the by-pass cover.
Note: It is normal that a few drops of
water drip after the cover has been
taken out.
 3FNPWFUIFMJEPOUPQPGUIFXBUFS
filter to place it as shown in the figure
and turn upwards to lock it.
5. Press ice cancel button on the
display again to exit from this mode.
Water filter should be replaced every 6
months.

EN
19
If you want to have the filter change
time calculated automatically and
receive a warning at the end of usage
time, please read "Calculating the Filter
Usage Time Automatically" section.
The water filter must be removed as
shown in the figure when it is going to
be replaced or when it will no longer
be used and by-pass cover must be
attached. It must be made sure that
Ice Off mode is active before taking it
out.
ACaution: Water filter cleans some
foreign particles in the water. It does
not purify water from microorganisms.
ACaution: Ice Off button must always
be pressed during replacement of the
water filter or installing the by-pass
cover.
Prior to first use of Water
Dispenser
CWater mains pressure must not be
below 1 bar.
CWater mains pressure must not be
above 8 bars.
CPumps must be used in case the
supply water pressure drops below 1
bar or if a jug is going to be used.
CWater system of the refrigerator
must be connected to the cold water
line. It must not be connected to hot
water line.
CNo water may be obtained in the
initial operation of the refrigerator. This
is caused by the air in the system. To
discharge air from the system, press
Dispenser latch for periods of 1 minute
until water comes from the Dispenser.
Water flow may be irregular in the
beginning. Irregular water flow will be
normalized after the air in the system is
discharged.
CAt the initial startup of the
refrigerator approx.12 hours must pass
before cold water can be obtained.
CWater mains pressure must be
between 1-8 bars for the operation
of Ice/Water Dispenser smoothly. For
this, check that 1 glass of water (100
cc) can be filled in 10 seconds.
CThe first 10 glasses of water should
not be consumed.
CApproximately the first 30 cubes
of ice to be obtained from the Ice
Dispenser must not be used.
CAlways use the water filter when a
jug is not being used.
