Beko GNEV221APB Owner's manual

GNEV221APB
GNEV221APX
GNEV220APS
GNEV220S
GL22APS
GL22APW

Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in a 1st-class
manufacturing facility and checked under the most meticulous quality control
procedures, will provide you with years of good service.
For this, we recommend you to carefully read the entire manual of your product
before using it and keep it at hand for future reference.
This manual
• Will help you use your appliance quickly and safely.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information or useful usage tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

EN
2
1 Your Refrigerator 3
2 Warnings 4
Electrical requirements ......................... 5
Warning! This appliance must be earthed5
Energy saving tips................................ 6
Compliance with WEEE Directive and
Disposing of the Waste Product: ......... 6
Compliance with rohs directive:........... 6
Package information ............................ 6
3 Installation 7
Points to be considered when re-
transporting your refrigerator ................ 7
Before operating your refrigerator ......... 7
Electric connection............................... 8
Disposing of the packaging .................. 8
Disposing of your old refrigerator.......... 8
Placing and Installation......................... 8
Floor balance adjustment ..................... 9
Adjusting the gap between the upper
door .................................................. 11
4 Preparation 12
5 Using your refrigerator 13
Indicator Panel................................... 13
Setting the fridge compartment
temperature ....................................... 14
Setting the freezer compartment
temperature ....................................... 14
Fast Freeze function........................... 14
Quick fridge function.......................... 15
Egg tray............................................. 15
Sliding Body Shelves.......................... 15
Crisper humidity control sliders........... 16
Recommendations for preservation of
frozen food ........................................ 16
Defrosting .......................................... 16
Replacing the Interior Light Bulb......... 17
Using the Icematic ............................. 19
Chiller compartment........................... 19
Water Dispenser ................................ 20
*optional ............................................ 20
Dual cooling system:.......................... 22
Freezing fresh food ............................ 22
Recommendations for preservation of
frozen food ........................................ 23
Defrosting .......................................... 23
Placing the food................................. 24
Deep-freeze information ..................... 24
6 Maintenance and cleaning25
Protection of plastic surfaces ............ 25
7 Troubleshooting 26
8 Guarantee Details 30
9 How To Obtain Service 31

EN
3
21
7
8
*10
16
6
14
*17
*4
14
3
5
19
*18
*9
12
13
*15
*21
*20
*20
23
24
22
11
1Your Refrigerator
1. Freezer compartment
2. Fridge compartment
3. Fridge compartment interior light
4. Butter & Cheese shelf
5. Fan
6. Fridge compartment glass shelves
7. Egg tray
8. Fridge compartment door racks
9. Wine cellar
10. Bottle holder
11. Bottle shelves
12. Crisper compartments
13.Crisper cover
14.Adjustable front legs
15.Blue light
16.Ventilation lid
17. Chiller compartment
18.Freezer compartment drawers
19.Freezer Compartment glass shelves
20.Twist & Serve Ice Cube Trays
21.Freezer compartment interior light
22. Shelter
23. Multi-purpose shelf
24. Water Dispenser
* OPTIONAL
CThis instruction manual covers a number of similar models so some of the features
may not be available on the product you have purchased.
Congratulations on your choice of a BEKO quality Appliance which has been
designed to give you service for many years.

EN
4
2Warnings
• Do not connect your appliance to
the electricity supply until all packing
and transit protectors have been
removed.
• If transported horizontally leave
to stand upright for at least 4
hours before switching on to allow
compressor oil to settle
• If you are discarding an old
refrigerator with a lock or latch fitted
to the door, disable the lock/latch,
ensure that it is left in a safe condition
to prevent the entrapment of young
children.
• This fridge/freezer must only be used
for its intended purpose i.e the storing
and freezing of edible foodstuff.
• Do not dispose of the appliance
on a fire. At BEKO, the care and
protection of our environment is an
ongoing commitment. This appliance
which is among the latest range
introduced is particularly environment
friendly. Your appliance contains non
CFC / HFC natural substances in the
cooling system (Called R600a) and in
the insulation (Called cyclopentane)
which are potentially flammable
if exposed to fire. Therefore, take
care not to damage, the cooling
circuit / pipes of the appliance in
transportation and in use. In case of
damage do not expose the appliance
to fire or potential ignition source and
immediately ventilate the room where
the appliance is situated.
• We suggest you contact your local
authority for disposal information and
facilities available.
• See Installation Instructions on page
8 for information on suitable location.
• To obtain the best possible
performance and trouble free
operation from your appliance it is
very important to carefully read these
instructions.
• On delivery, check to make sure that
the product is not damaged and that
all the parts and accessories are in
perfect condition.
• Ensure that the plug remains readily
accessible. Do not use multiple
adapter or extension cable.
• Failure to observe these instructions
may invalidate your right to free
service during the guarantee period.
• Keep ventilation openings, in the
appliance enclosure or in the built-in
structure, clear of obstruction.
• Do not use mechanical devices
or other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances
inside the food storage
compartments of the appliance,
unless they are of the type
recommended by the manufacturer.
• We suggest you keep these
instructions in a safe place for easy
reference.

EN
5
• This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or
lack of experience and knowledge
if they have been given supervision
or instruction concerning use of
the appliance in a safe way and
understand the hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
• Children should be supervised to
ensure that they do not play with the
appliance.
Electrical requirements
Before you insert the plug into the wall
socket make sure that the voltage and
the frequency shown on the rating
plate inside the appliance corresponds
to your electricity supply.
Rating label is on the left hand side of
fridge inner liner.
We recommend that this appliance be
connected to the mains supply via a
suitable switched and fused socket.
The appliance must be positioned so
that the plug is accessible.
Should the mains lead of the appliance
become damaged or should it need
Replacing at any time, it must be
replaced by a special purpose made
mains lead which can only be obtained
from a BEKO authorised service
agent.
Warning! This appliance
must be earthed
If the fitted moulded plug is not
suitable for your socket, then the plug
should be cut off and an appropriate
plug fitted. Destroy the old plug which
is cut off as a plug with bared cord
could cause a shock hazard if inserted
into a socket elsewhere in the house.
The moulded plug on this appliance
incorporates a 13 A fuse. Should
the fuse need to be replaced an
ASTABEAB approved BS 1362 fuse
of the same rating must be used. Do
not forget to refit the fuse cover. In the
event of losing the fuse cover the plug
must not be used until a replacement
fuse cover has been fitted.
Colour of the replacement fuse cover
must be the same colour as that
visible on the pin face of the plug. Fuse
covers are available from any good
electrical store.
Important! Fitting A Different Plug
As the colours of the wires in the
mains lead of this appliance may
not correspond with the coloured
markings identifying the terminals in
your plug proceed as follows: (See
diagram).
FITTED WITH
BS 1362 13A FUSE ALWAYS
FIT BS 1362 REPLACEMENT
CARTRIDGE FUSE
GREEN &
YELLOW
OR
GREEN
N
BLUE
OR
BLACK
L
BROWN
OR
RED
22mm.
6mm.
6mm.
6mm. 32mm.
12mm.
FUSE
CORD GRIP

EN
6
1. Connect the green-yellow or green
(Earth) wire to the terminal in the plug
marked ‘E’ or with the symbol or
coloured green and yellow or green.
2. Connect the blue (Neutral) wire to
the terminal in the plug marked ‘N’ or
coloured black.
3. Connect the brown (Live) wire to the
terminal in the plug marked ‘L’ or
coloured red.
With alternative plugs a 13 A fuse must
be fitted either in the plug or adaptor
or in the main fuse box. If in doubt
contact a qualified electrician.
Energy saving tips
1. Ensure your appliance is installed in a
well ventilated area.
2. Ensure the time between buying
chilled/frozen food and placing
them in your appliance is kept at
minimum, particularly in summer. We
recommend you use a cool bag or a
special carrier bag to carry perishable
food.
3. Do not leave the door (s) of your
appliance open longer than
necessary and ensure they are closed
properly after each opening.
4. Defrost frozen food in the fridge
compartment, so that frozen food
acts as an ice pack to assist cooling
in the fridge.
5. Energy consumption of this
appliance is measured while freezer
compartment is loaded without
use of top shelf lid and the drawers
except the bottom drawer. It is
advised that freezer compartment is
loaded without use of drawers except
the bottom drawer in order to achieve
maximum loading capacity.
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies with EU WEEE
Directive (2012/19/EU). This
product bears a
classification symbol for
waste electrical and
electronic equipment
(WEEE).This product has
been manufactured with
high quality parts and materials which
can be reused and are suitable for
recycling. Do not dispose of the waste
product with normal domestic and
other wastes at the end of its service
life. Take it to the collection center for
the recycling of electrical and
electronic equipment. Please consult
your local authorities to learn about
these collection centers.
Compliance with rohs
directive:
The product you have purchased
complies with EU RoHS Directive
(2011/65/EU). It does not contain
harmful and prohibited materials
specified in the Directive.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.

EN
7
3Installation
CPlease remember that the
manufacturer shall not be held liable if
the information given in the instruction
manual is not observed.
Points to be considered
when re-transporting your
refrigerator
1. Your refrigerator must be
emptied and cleaned prior to any
transportation.
2. Shelves, accessories, crisper and etc.
in your refrigerator must be fastened
securely by adhesive tape against any
jolt before repackaging.
3. Packaging must be tied with thick
tapes and strong ropes and the
rules of transportation printed on the
package must be followed.
CAlways remember...
Every recycled material is an
indispensable source for the nature
and for our national resources.
If you wish to contribute to recycling
the packaging materials, you can
get further information from the
environmental bodies or local
authorities.
Before operating your
refrigerator
Before starting to use your refrigerator
check the following:
1. Is the interior of the refrigerator dry
and can the air circulate freely in the
rear of it?
2. Clean the interior of the refrigerator as
recommended in the “Maintenance
and cleaning” section.
3. Plug the refrigerator into the wall
outlet. When the door is open the
respective interior light will come on.
4. You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
even if the compressor is not running
and this is quite normal.
5. Front edges of the refrigerator may
feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.
6. Insert the 2 plastic wedges onto the
rear ventilation as illustrated in the
following figure. Unscrew the existing
ones and use the screws given in the
same bag of wedges. Plastic wedges
will provide the required distance
between your refrigerator and the wall
in order to allow the air circulation.

EN
8
Electric connection
Connect your refrigerator to a
grounded socket which is being
protected by a fuse with the
appropriate capacity.
Important:
BThe connection must be in
compliance with national regulations.
BThe power cable plug must be easily
accessible after installation.
BVoltage and allowable fuse protection
are specified in the “Technical
Specifications” section.
BThe specified voltage must be equal
to your mains voltage.
BExtension cables and multiway plugs
must not be used for connection.
BA damaged power cable must be
replaced by a qualified electrician.
BThe appliance must not be operated
before it is repaired! There is danger
of electric shock!
Disposing of the packaging
AThe packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose them of by
classifying them in accordance
with the waste instructions. Do not
dispose them of along with the normal
household waste.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old machine without
giving any harm to the environment.
AYou may consult your authorized
dealer or waste collection center of
your municipality about the disposal
of your refrigerator.
ABefore disposing of your refrigerator,
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
BCaution: Never plug the refrigerator
into the wall outlet during installation.
Otherwise, risk of death or serious
injury may arise.
1. Install your refrigerator to a place
that allows ease of use.
2. Keep your refrigerator away from
heat sources, humid places and direct
sunlight.
3. There must be appropriate air
ventilation around your refrigerator in
order to achieve an efficient operation.
If the refrigerator is to be placed in a
recess in the wall, there must be at
least 5 cm distance with the ceiling
and at least 5 cm with the wall.
If the floor is covered with a carpet,
your product must be elevated 2.5 cm
from the floor.
4. Place your refrigerator on an even
floor surface to prevent jolts.
5. Do not keep your refrigerator in
ambient temperatures under 0°C.

EN
9
(A)
(B)
4
1 2 3
(C)
2
2
Floor balance adjustment
If your refrigerator is unbalanced;
You can balance your refrigerator by
turning the front legs of it as illustrated
in the figure. (See Figure A) The corner
where the leg exists is lowered when
you turn in the direction of black
arrow and raised when you turn in the
opposite direction. Taking help from
someone to slightly lift the refrigerator
will facilitate this process.
Door height adjustment
In case there is a problem with the
alignment of the doors with respect
to each other, they may be re-aligned
vertically in the order given below.
Ensure that door shelves are empty
when adjusting the door height.
1. Remove the lower ventilation cover
by unscrewing its screws as shown in
the figure below. (See Figure B)
2. Loosen the three screws of the
hinges of the lower door, which you
wish to escalate, with the help of a
screwdriver as shown in the figure
below. (Do not remove completely)
(See Figure C)

EN
10

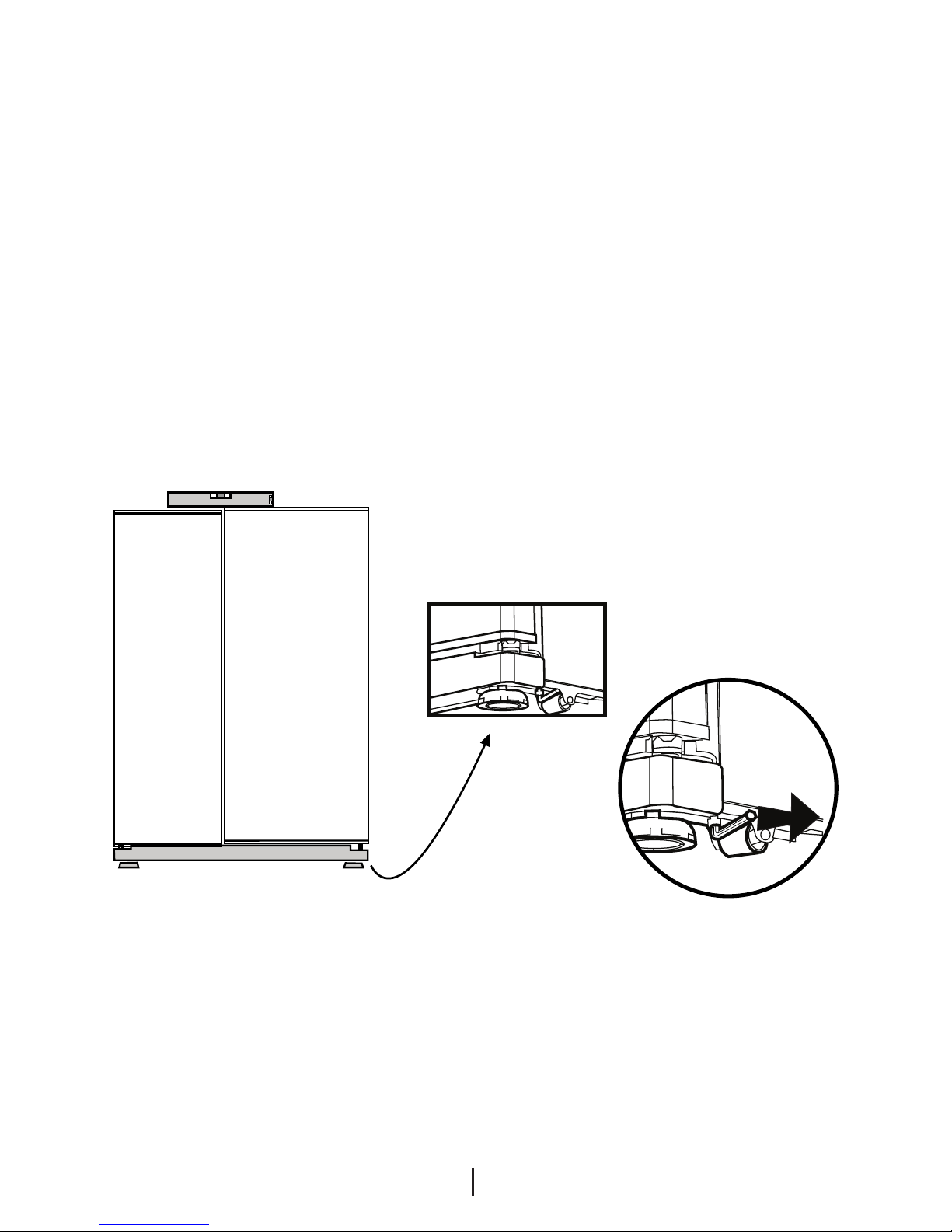

(D)
•Ifthefreezercompartmentdooris
lower than the fridge compartment
door, bring them to the same level by
turning the turning the elevation screw
on the freezer compartment side in
the direction of arrow using a M6 Allen
wrench as illustrated in Figure D.
•Ifthefreezercompartmentdooris
higher than the fridge compartment
door, bring them to the same level
by turning the elevation screw on
the freezer compartment side in the
reverse direction of arrow using a M6
Allen wrench as illustrated in Figure D.
After bringing the doors to the same
level by elevating the front part with
the aid of the elevation screws,ensure
the doors of the refrigerator shall close
properly. If the doors do not close
properly, this might adversely affect the
efficiency of the refrigerator.

EN
11
Adjusting the gap between
the upper door
CYou can adjust the gap between the
fridge compartment doors as illustrated
in the figures.
Door shelves should be empty when
adjusting the door height.
The hinge cover contains wiring.
Power must be disconnected at
the wall socket before removing
cover. Great care must be taken
when replacing the cover.
C Using a screwdriver, remove the
screw of upper hinge cover of the door
you want to adjust.
C Adjust the door appropriately as
you desire by loosing the screws.
C Fix the door you have adjusted by
tightening the screws without changing
the position of the door.
C Replace the hinge cover and fix
with the screw.

EN
12
4Preparation
• Your refrigerator should be installed at
least 30 cm away from heat sources
such as hobs, ovens, central heater
and stoves and at least 5 cm away
from electrical ovens and should not
be located under direct sunlight.
• The ambient temperature of the room
where you install your refrigerator
should at least be 10°C. Operating
your refrigerator under cooler
conditions is not recommended with
regard to its efficiency.
• Please make sure that the interior
of your refrigerator is cleaned
thoroughly.
• If two refrigerators are to be installed
side by side, there should be at least
2 cm distance between them.
• When you operate your refrigerator
for the first time, please observe the
following instructions during the initial
six hours.
• The door should not be opened
frequently.
• It must be operated empty without
any food in it.
• Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
• Original packaging and foam
materials should be kept for future
transportations or moving.

EN
13
5Using your refrigerator
215 41 5
3
12 13 10 9 6
8
147 11
Indicator Panel
1. Freezer compartment temperature
setting indicator
2. Freezer compartment temperature
setting button
3. Fast Freeze indicator
4. Fast Freeze Button
5. Freezer door open indicator
6. Fridge compartment temperature
button
7. High humidity indicator
8. Fridge Compartment Temperature
Setting Indicator
9. Error indicator
10.Fridge compartment temperature
change indicator
11.Quick fridge indicator
12.Quick fridge button
13.Fridge compartment door open
indicator
14.Economy mode
15.Freezer compartment temperature
change indicator
Indicator panel aids in using your refrigerator with its audio and visual functions.
This panel allows you to start and use all functions of your refrigerator without
opening its doors.

EN
14
Setting the fridge
compartment temperature
When you want to change your
refrigerator’s temperature settings,
you need to press the “Fridge
compartment temperature
adjustment button” to make the
fridge compartment temperature
adjustment. The fridge compartment
temperature can be set to cooler
degrees every time you press on the
button (such as 8, 6, 4, 2, 8, …).
Setting the freezer
compartment temperature
When you want to change your
refrigerator’s temperature settings,
you need to press the “Freezer
compartment temperature
adjustment button” to make the
freezer compartment temperature
adjustment. The freezer compartment
temperature can be set to cooler
degrees every time you press on the
button (such as, -18, -20, -22, -24,
-18, …).
Fast Freeze function
You can use this function of your
refrigerator to rapidly freeze the food
you put into the freezer compartment
for the first time or to obtain ice more
quickly.Fast freeze is the healthiest
way of keeping the food for a long
time. Temperature of your refrigerator’s
freezer compartment drops down
to -27°C during fast freeze process.
You must read Part 4 carefully before
applying fast freeze process to your
food.
When you want to use the “Fast
Freeze” function, press the fast freeze
button. Fast freeze indicator lights up
when you press the button. Freezer
Compartment Temperature Adjustment
Indicator turns to -27°C. While fast
freeze function is activated, this
compartment reaches colder degrees
than the adjusted values and all of
the freezer compartment temperature
indicators may light up. Fast Freeze
function lasts for maximum 24 hours.
Your refrigerator will automatically
exit the fast freeze mode once the
fast freeze process is completed, fast
freeze indicator lamp will go off and
the refrigerator will turn back to the
previously adjusted temperatures.
Freezer compartment temperature
indicators will gradually go off until the
adjusted temperature value is attained.
If you have unintentionally switched
your refrigerator to fast freeze mode or
if you want to cancel the process, just
press the “Fast Freeze” button again
to exit the fast freeze mode.
If you want to freeze large amounts
of fresh food, press the fast freeze
button ADD max. 13Kg/24hours
before putting the food into the freezer
compartment.

EN
15
Quick fridge function
This function can be used for food
placed in the fridge compartment and
desired to be cooled down rapidly.
Press quick fridge button to activate
the function. During this process,
the quick fridge indicator will light up
and fridge compartment temperature
adjustment indicator will turn into 1°C.
While quick fridge function is activated,
this compartment reaches colder
degrees than the adjusted values.
Meanwhile, all of the temperature
indicators of the fridge compartment
may light up. Quick fridge process will
take about 2 hours and at the end of
this period, the quick cool indicator
lamp will go off, and the refrigerator will
turn back to the previously adjusted
temperatures.

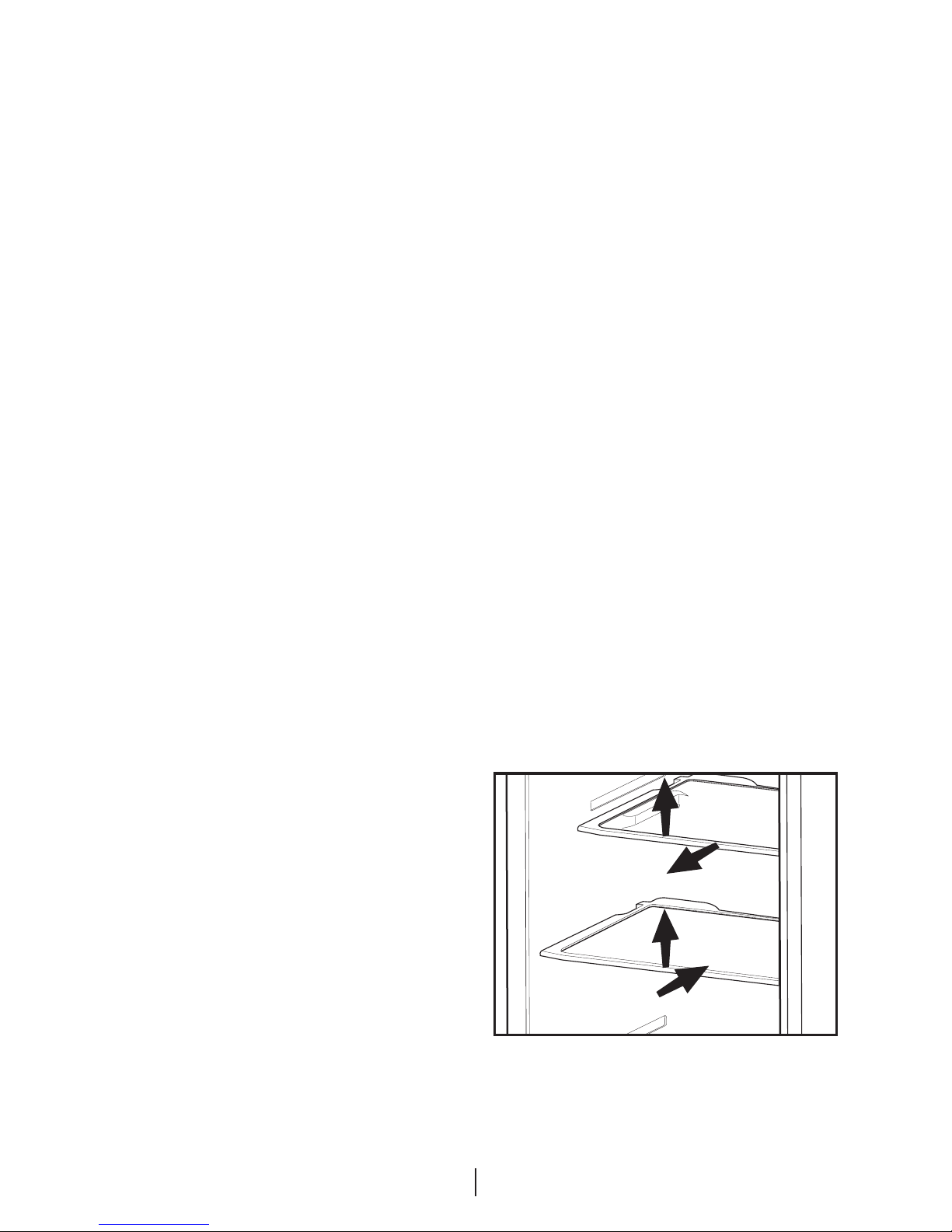

Sliding Body Shelves
Sliding body shelves can be pulled
by slightly lifting up from the front and
moved back and forth. They come to
a stop point when pulled towards front
to allow you reach the foods placed at
the back of the shelf; when it is pulled
after slightly lifted upwards at the
second stop point, the body shelf will
be released.
The shelf should be hold tightly from
the bottom as well in order to prevent
it from tipping over. The body shelf is
placed on the rails at the sides of the
refrigerator body by bringing it to one
lower or one upper level.
The body shelf should be pushed
backwards to seat it completely.
1
2
3
4
Egg tray
You can install the egg holder to the
desired door or body shelf.
Never store the egg holder in the
freezer compartment

EN
16

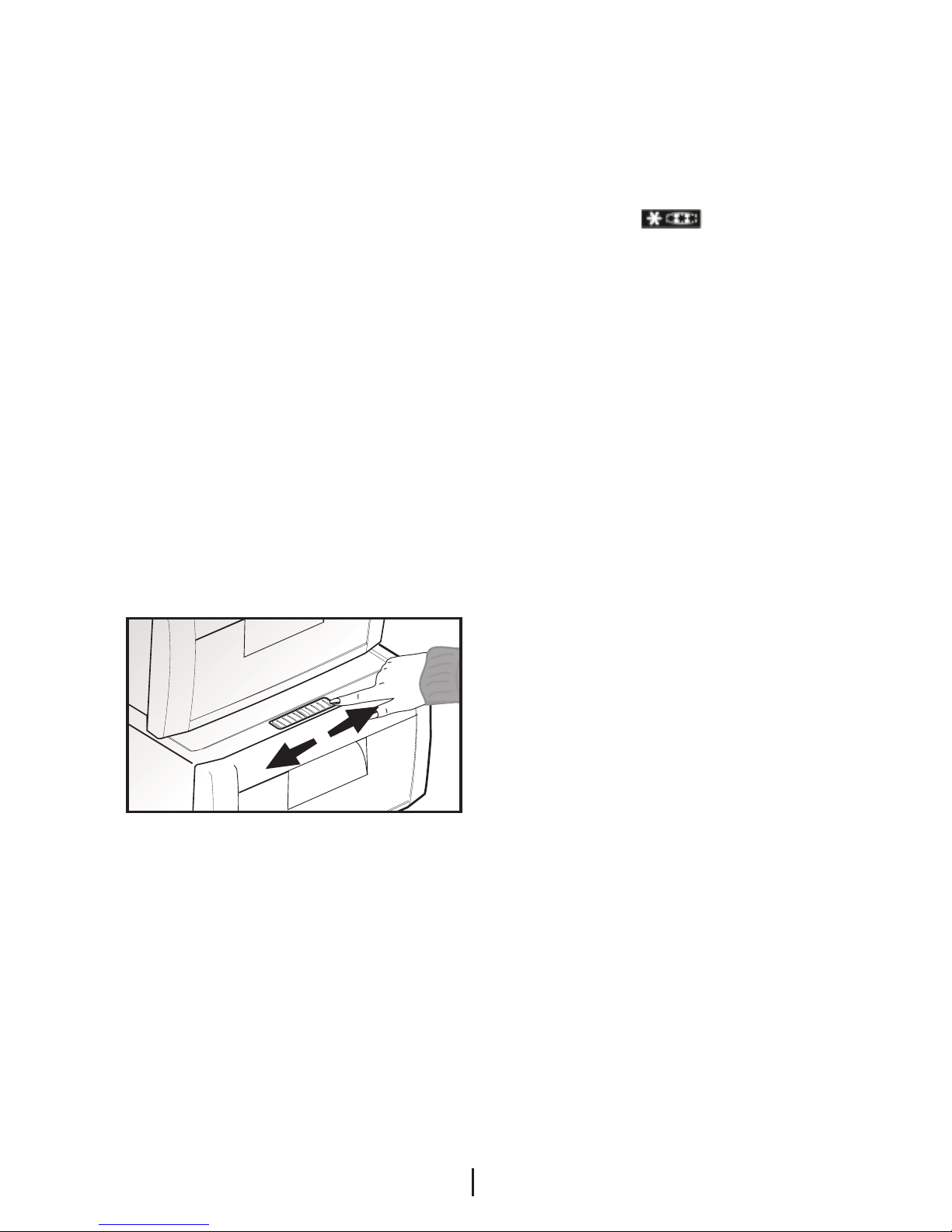

Crisper humidity control
sliders
Crisper of your refrigerator is designed
specially to keep your vegetables
freshly without loosing their humidity.
Cold air circulates basically around
the crisper and the amount of the
cold air passing through the crisper is
controlled by the sliders on the front
side of the crisper cover.
You can adjust the humidity control
sliders to a suitable position according
to the humidity and cooling condition
of your food in the crisper.
If you want your food in the crisper
to cool more, open the holes of the
humidity control sliders and if you
want them to cool less and keep their
humidity for a longer time, close the
holes.
Recommendations for
preservation of frozen food
•Prepackedcommerciallyfrozen
food should be stored in accordance
with the frozen food manufacturer's
instructions for a ( 4 star) frozen
food storage compartment.
•Toensurethatthehighquality
supplied by the frozen food
manufacturer and the food retailer is
maintained, following points should be
noted:
1.Put packets in the freezer as quickly
as possible after purchase.
2.Ensure that contents are labelled
and dated.
3. Make sure that the "Use By", "Best
Before" dates on the packaging have
not expired.
If there is a power failure do not
open the freezer door. Even if the
power failure lasts up to the time
specified on Type Label (inside left of
the refrigerator), frozen food will not
be affected. In case the failure lasts
longer, the food must be checked and
when necessary, must be consumed
immediately or must be frozen after
cooked.
Defrosting
The fridge and freezer compartments
defrost automatically.

EN
17
Replacing the Interior Light
Bulb
Should the light fail to work, proceed
as follows:
1. Switch off at the socket outlet and
pull out the mains plug.
Remove all shelves and drawers for
easy access.

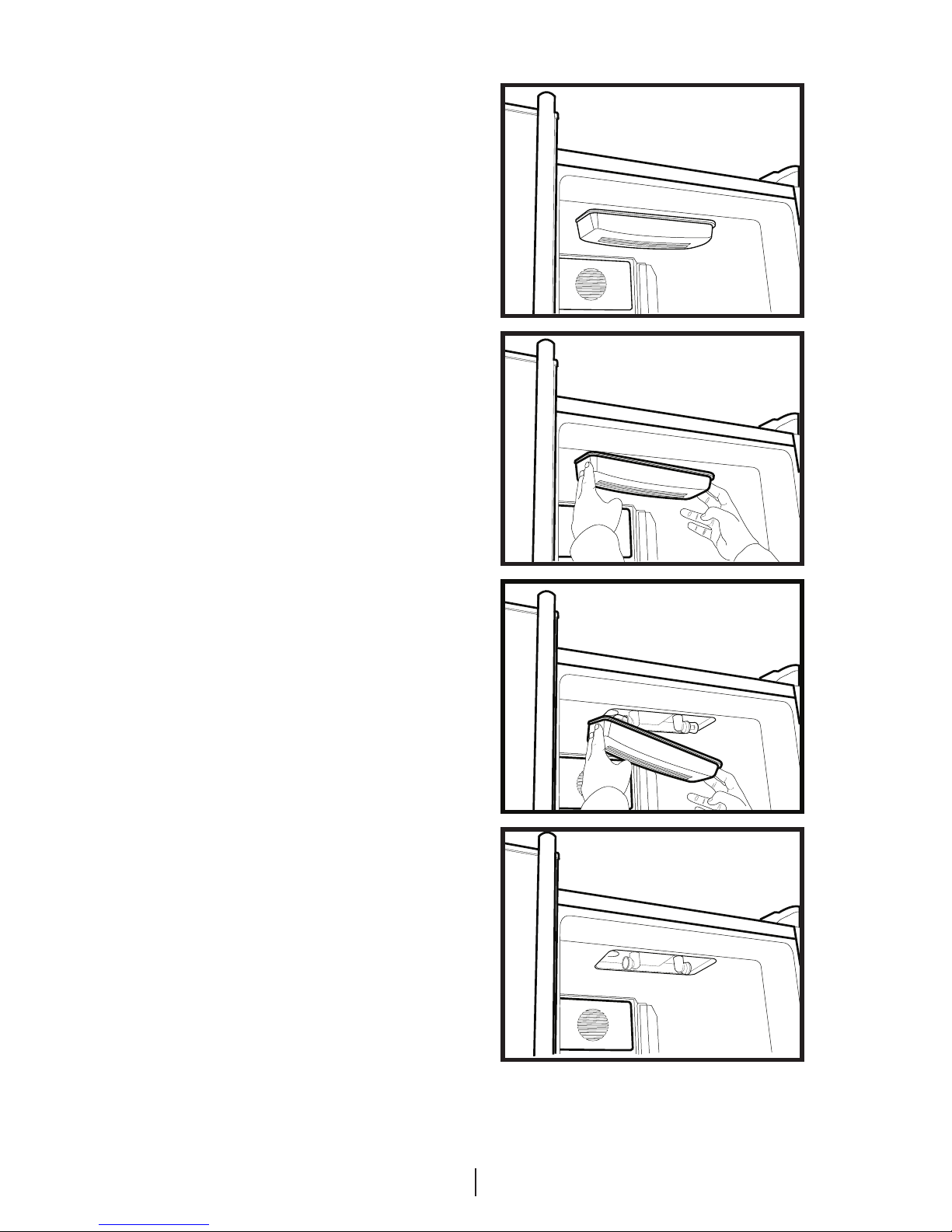

2. Illumination covers in fridge sections
are opened by pressing by hand; first
release one side and then the other by
pressing on the sides as shown in the
figures.
3. First check that the bulb has not
worked loose by ensuring that it
is screwed securely in the holder.
Reinsert the plug and switch on. If the
bulb works, reinstall the light cover by
inserting the rear lug and pushing up
to locate the front two lugs.
4. If the light still fails to work, switch
off at the socket outlet and pull out
the mains plug. Replace the bulb with
a new 15 watt (max) screw cap E14
(SES) bulb.
5. Carefully dispose of the burnt-out
light bulb immediately.
Replacement light bulb can easily be
obtained from a good local electrical or
DIY store.

EN
18
Icematic
* When the Icematic water supply
reservoir (1) is removed from its place
in order to fill it up, it must be replaced
within two minutes after it is filled with
water. The nozzle of the system will
open and the Icematic cells will be
filled with water automatically as soon
as the cartridge is seated in its place.
Your ice will be ready approximately in
two 2 hours.
•DonotremovetheIcematic(2) from
its seating to take ice.
•Turntheknobsonitclockwiseas
illustrated in the figure.
Ice cubes in the cells will fall down in to
the ice bank (3) below.
•Youmaytakeouttheicebankand
serve the ice cubes.
•Ifyouwish,youmaykeeptheice
cubes in the ice bank.
The ice bank is just for
accumulating ice cubes. Do not
put water in it. Otherwise, it will
break.
About water supply reservoir
Remove the water supply reservoir and
fill it up with water. After filled up with
water, the reservoir must be pushed
forward into its seating until a “click”
sound is heard. If there is any ice in
the reservoir, wait until it melts. Water
supply reservoir has a capacity of
approximately 290 ml.
2
3

EN
19

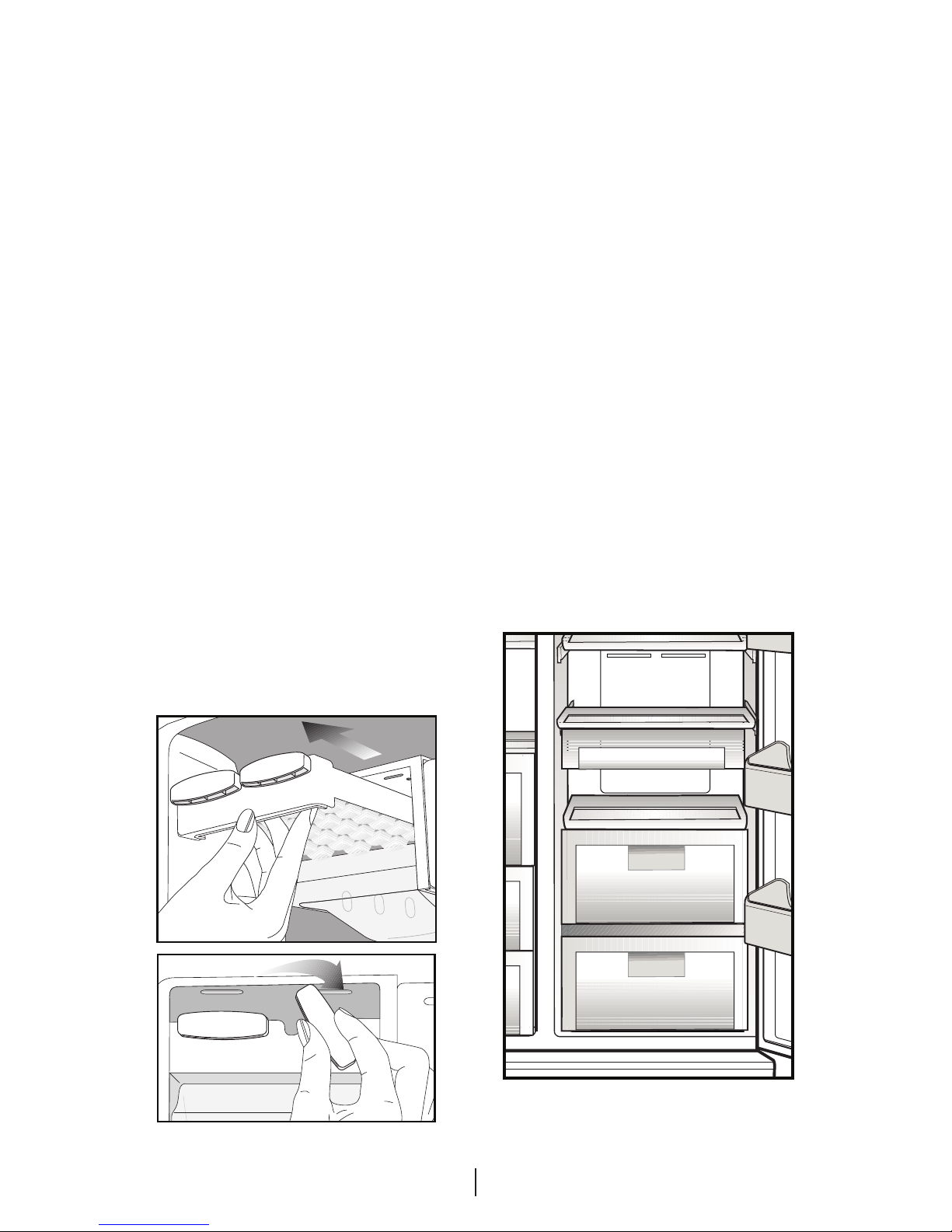

Using the Icematic
• FilltheIcematicwithwaterandplace
it into its seat. Your ice will be ready
approximately in two hours. Do not
remove the Icematic from its seating
to take ice.
• Turntheknobsonitclockwiseby90
degrees. Ice cubes in the cells will fall
down into the ice storage container
below.
• Youmaytakeouttheicestorage
container and serve the ice cubes.
• Ifyouwish,youmaykeeptheice
cubes in the ice storage container.
• Theicestoragecontainerisjustfor
accumulating ice cubes. Do not
freeze water in it. Otherwise, it may
break.
(The illustrated figure is only an
example and does not match exactly
with your product.)
Chiller compartment
If you wish to use the storage
container under the shelf as the Chiller
compartment, the storage container
under the shelf should be placed as
shown in the picture.
Chiller compartments enable the
foods to be frozen become ready
for freezing. You can also use these
compartments to store your food at a
temperature a few degrees below the
fridge compartment.
You can increase the inner volume
of your refrigerator by removing any
of the compartments. To do this, pull
the compartment towards yourself;
the compartment will lean against the
stopper and stop. This compartment
will be released when you lift it about 1
cm and pull it towards yourself.
