Beko GNE134590X User manual

EWWERQWEW
GNE134590X
EN AR
Refrigerator

Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you an
effective service.
For this, we recommend you to carefully read the entire manual of your product
before using it and keep it at hand for future references.
This manual
• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information or useful usage tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

EN
2
1 Your Refrigerator 3
2 Important Safety
Warnings 4
Intended use ..................................... 4
General safety .................................. 4
For products with a .......................... 7
water dispenser; ................................ 7
Child safety........................................ 7
Compliance with WEEE Directive and
Disposing of the Waste Product: ....... 7
Package information.......................... 7
HC warning ....................................... 8
Things to be done for energy saving .. 8
Reccomendations for freshfood
compartment..................................... 8
3 Installation 9
Points to be considered when re-
transporting your refrigerator ............. 9
Before operating your refrigerator ...... 9
Electric connection ............................ 9
Disposing of the packaging ............. 10
Disposing of your old refrigerator .....10
Placing and Installation .................... 10
Floor balance adjustment ................11
Adjusting the gap between the upper
door ................................................ 11
Changing the illumination lamp ....... 12
Installing Water Filter ....................... 13
Connection of the Water Pipe to the
Refrigerator ..................................... 13
Connection of Water Hose to the
Jug ................................................. 14
Connection of the Water Pipe to the
Cold Water Mains Line .................... 15
Prior to first use of Water Dispenser. 17
CONTENTS
4 Preparation 18
5 Using your refrigerator 19
Indicator Panel................................. 19
Door Open Alarm: .......................... 22
Things to do to have the filter usage
time calculated automatically ........... 23
Sliding Body Shelves ....................... 24
Egg tray........................................... 24
Crisper ............................................ 24
Chiller compartment ........................ 24
Movable Middle Section ................. 25
Multi Zone Storage Compartment .. 25
Blue light ......................................... 25
Sliding Body Shelves With Rear
Hangers .......................................... 26
Butter & Cheese Section ................. 26
Using the water spring.....................26
Spillage Tray .................................... 26
Minibar ............................................ 27
Dual cooling system: ....................... 28
Freezing fresh food .......................... 28
Recommendations for preservation of
frozen food ...................................... 29
Placing the food .............................. 29
Deep-freeze information .................. 29
6 Maintenance and
cleaning 30
Protection of plastic surfaces .......... 30
7.
Troubleshooting 31

EN
3
C Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.

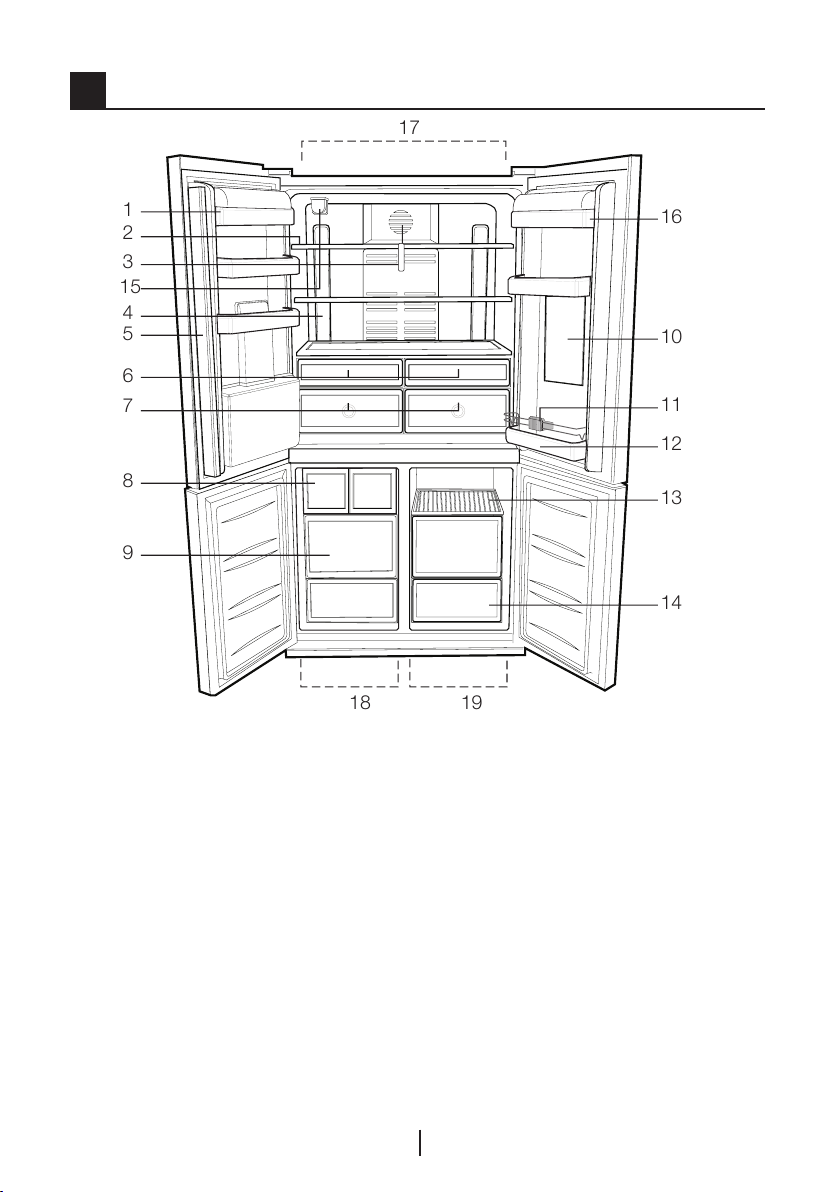

1Your Refrigerator
1- Fridge compartment door shelves
2- Fridge compartment glass shelves
3- Diffuser cover
4- Illumination lens
5- Movable middle section
6- Chiller compartment
7- Crisper
8- Icematic
9- Frozen food storage
compartments
17
18 19
2
3
6
7
8
9
5
4
16
13
11
14
1
12
10
15
10- Minibar
11- Bottle holder
12- Bottle shelf
13- Food storage compartment shelves
14- Food storage compartments
15- Water Filter
16- Dairy compartment
17- Fridge compartment
18- Freezer compartment
19- Multi Zone

EN
4
2Important Safety Warnings
Please review the following
information. Failure to observe
this information may cause
injuries or material damage.
Otherwise, all warranty and
reliability commitments will
become invalid.
Original spare parts will be
provided for 10 years, following
the product purchasing date.
Intended use
This product is intended to be
used
• indoors and in closed areas
such as homes;
• in closed working environments
such as stores and offices;
• in closed accommodation
areas such as farm houses,
hotels, pensions.
• It should not be used outdoors.
General safety
• When you want to dispose/
scrap the product, we
recommend you to consult the
authorized service in order to
learn the required information
and authorized bodies.
• Consult your authorized
service for all your questions
and problems related to the
refrigerator. Do not intervene or
let someone intervene to the
refrigerator without notifying the
authorised services.
• For products with a freezer
compartment; Do not eat
cone ice cream and ice
cubes immediately after you
take them out of the freezer
compartment! (This may cause
frostbite in your mouth.)
• For products with a freezer
compartment; Do not put
bottled and canned liquid
beverages in the freezer
compartment. Otherwise,
these may burst.
• Do not touch frozen food by
hand; they may stick to your
hand.
• Unplug your refrigerator before
cleaning or defrosting.
• Vapor and vaporized cleaning
materials should never be
used in cleaning and defrosting
processes of your refrigerator.
In such cases, the vapor may
get in contact with the electrical
parts and cause short circuit or
electric shock.
• Never use the parts on your
refrigerator such as the door as
a means of support or step.
• Do not use electrical devices
inside the refrigerator.
• Do not damage the parts,
where the refrigerant is
circulating, with drilling or
cutting tools. The refrigerant
that might blow out when the
gas channels of the evaporator,
pipe extensions or surface
coatings are punctured causes
skin irritations and eye injuries.
• Do not cover or block the
ventilation holes on your
refrigerator with any material.
• Electrical devices must be
repaired by only authorised
persons. Repairs performed by
incompetent persons create a
risk for the user.

EN
5
• In case of any failure or during
a maintenance or repair work,
disconnect your refrigerator’s
mains supply by either
turning off the relevant fuse or
unplugging your appliance.
• Do not pull by the cable when
pulling off the plug.
• Ensure highly alcoholic
beverages are stored securely
with the lid fastened and
placed upright.
• Never store spray cans
containing flammable and
explosive substances in the
refrigerator.
• Do not use mechanical devices
or other means to accelerate
the defrosting process, other
than those recommended by
the manufacturer.
• This product is not intended
to be used by persons with
physical, sensory or mental
disorders or unlearned or
inexperienced people (including
children) unless they are
attended by a person who
will be responsible for their
safety or who will instruct them
accordingly for use of the
product
• Do not operate a damaged
refrigerator. Consult with the
service agent if you have any
concerns.
• Electrical safety of your
refrigerator shall be guaranteed
only if the earth system in
your house complies with
standards.
• Exposing the product to
rain, snow, sun and wind is
dangerous with respect to
electrical safety.
• Contact authorized service
when there is a power cable
damage to avoid danger.
• Never plug the refrigerator
into the wall outlet during
installation. Otherwise, risk of
death or serious injury may
arise.
• This refrigerator is intended
for only storing food items. It
must not be used for any other
purpose.
• Label of technical specifications
is located on the left wall inside
the refrigerator.
• Never connect your refrigerator
to electricity-saving systems;
they may damage the
refrigerator.
• If there is a blue light on the
refrigerator, do not look at the
blue light with optical tools.
• For manually controlled
refrigerators, wait for at least 5
minutes to start the refrigerator
after power failure.
• This operation manual should
be handed in to the new owner
of the product when it is given
to others.
• Avoid causing damage on
power cable when transporting
the refrigerator. Bending cable
may cause fire. Never place
heavy objects on power cable.
Do not touch the plug with
wet hands when plugging the
product

EN
6
• Do not plug the refrigerator if
the wall outlet is loose.
• Water should not be sprayed
on inner or outer parts of the
product for safety purposes.
• Do not spray substances
containing inflammable gases
such as propane gas near the
refrigerator to avoid fire and
explosion risk.
• Never place containers filled
with water on top of the
refrigerator; in the event of
spillages, this may cause
electric shock or fire.
• Do not overload the refrigerator
with food. If overloaded, the
food items may fall down
and hurt you and damage
refrigerator when you open the
door.
• Never place objects on top
of the refrigerator; otherwise,
these objects may fall down
when you open or close the
refrigerator’s door.
• As they require a precise
temperature, vaccines,
heat-sensitive medicine and
scientific materials and etc.
should not be kept in the
refrigerator.
• If not to be used for a long
time, refrigerator should be
unplugged. A possible problem
in power cable may cause fire.
• The plug’s tip should be
cleaned regularly with a dry
cloth; otherwise, it may cause
fire.
• Refrigerator may move if
adjustable legs are not properly
secured on the floor. Properly
securing adjustable legs on
the floor can prevent the
refrigerator to move.
• When carrying the refrigerator,
do not hold it from door
handle. Otherwise, it may be
snapped.
• When you have to place
your product next to another
refrigerator or freezer, the
distance between devices
should be at least 8cm.
Otherwise, adjacent side walls
may be humidified.
• The product shall never be
used while the compartment
which is located at the top or
back of your product and in
which electronic boards are
available (electronic board box
cover) (1) is open.
1
1

EN
7
For products with a
water dispenser;
• Pressure for cold water inlet
shall be maximum 90 psi (6.2
bar). If your water pressure
exceeds 80 psi (5.5 bar), use a
pressure limiting valve in your
mains system. If you do not
know how to check your water
pressure, ask for the help of a
professional plumber.
• If there is risk of water
hammer effect in your
installation, always use a
water hammer prevention
equipment in your installation.
Consult Professional
plumbers is you are not
sure that there is no water
hammer effect in your
installation.
• Do not install on the hot
water inlet. Take precautions
against of the risk of
freezing of the hoses. Water
temperature operating
interval shall be 33°F (0.6°C)
minimum and 100°F (38°C)
maximum.
• Use only potable water.
Child safety
• If the door has a lock, the key
should be kept away from
reach of children.
• Children must be supervised to
prevent them from tampering
with the product.
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies
with EU WEEE Directive
(2012/19/EU). This product
bears a classification symbol
for waste electrical and
electronic equipment (WEEE).
This product has been manufactured
with high quality parts and materials
which can be reused and are suitable
for recycling. Therefore, do not dispose
the product with normal domestic waste
at the end of its service life. Take it to
a collection point for the recycling of
electrical and electronic equipment.
Please consult your local authorities to
learn the nearest collection point. Help
protect the environment and natural
resources by recycling used products.
For children’s safety, cut the power
cable and break the locking mechanism
of the door, if any, so that it will be
non-functional before disposing of the
product.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated by
the local authorities.
Do not forget...
Any recycled substance is an
indispensable matter for nature and our
national asset wealth.

EN
8
If you want to contribute to the re-
evaluation of the packaging materials,
you can consult to your environmentalist
organizations or the municipalities where
you are located.
HC warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the product
catch a fire and ventilate the room in
which the unit is placed.
Ignore this warning if your product's
cooling system contains R134a.
Type of gas used in the product is stated
in the type label which is on the left wall
inside the refrigerator.
Never throw the product in fire for
disposal.
Things to be done for energy
saving
• Do not leave the doors of your
refrigerator open for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload your refrigerator so
that the air circulation inside of it is not
prevented.
• Do not install your refrigerator under
direct sunlight or near heat emitting
appliances such as ovens, dishwashers
or radiators. Keep your refrigerator at
least 30cm away from heat emitting
sources and at least 5cm from electrical
ovens.
• Pay attention to keep your food in
closed containers.
• For products with a freezer
compartment; You can store maximum
amount of food items in the freezer
when you remove the shelf or drawer
of the freezer. Energy consumption
value stated for your refrigerator has
been determined by removing freezer
shelf or drawer and under maximum
load. There is no harm to use a shelf or
drawer according to the shapes and
size of food to be frozen.
• Thawing frozen food in fridge
compartment will both provide energy
saving and preserve the food quality.
Reccomendations for
freshfood compartment
* OPTIONAL
• Please do not let any foodstuff to come
to contact with the temperature sensor
in freshfood compartment.In order to
maintain freshfood compartment at ideal
storage temperature, the sensor must
not be blocked by fodstuffs.
• Do not place hot foodstuff in your
appliance.
temperature
sensor
food
MILK
juice
etc.
temperature
sensor
temperature
sensor
food
MILK
juice
etc.
temperature
sensor

EN
9
3Installation
CPlease remember that the manufacturer
shall not be held liable if the information
given in the instruction manual is not
observed.
Points to be considered
when re-transporting your
refrigerator
1. Your refrigerator must be emptied and
cleaned prior to any transportation.
2. Shelves, accessories, crisper and etc.
in your refrigerator must be fastened
securely by adhesive tape against any
jolt before repackaging.
3. Packaging must be tied with thick
tapes and strong ropes and the rules of
transportation printed on the package
must be followed.
CAlways remember...
Every recycled material is an
indispensable source for the nature and
for our national resources.
If you wish to contribute to recycling the
packaging materials, you can get further
information from the environmental
bodies or local authorities.
Before operating your
refrigerator
Before starting to use your refrigerator
check the following:
1. Is the interior of the refrigerator dry and
can the air circulate freely in the rear of
it?
2. Insert the 2 plastic wedges onto the
rear ventilation cover as illustrated in
the following figure. To do this, remove
the screws on the product and use the
screws given in the same pouch.
Plastic wedges will provide the required
distance between your refrigerator
and the wall in order to allow the air
circulation.
3. Clean the interior of the refrigerator as
recommended in the “Maintenance and
cleaning” section.
4. Plug the refrigerator into the wall outlet.
When the door is open the respective
interior light will come on.
5. You will hear a noise as the compressor
starts up. The liquid and gases sealed
within the refrigeration system may
also give rise to noise, even if the
compressor is not running and this is
quite normal.
6. Front edges of the refrigerator may
feel warm. This is normal. These areas
are designed to be warm to avoid
condensation.
Electric connection
Connect your refrigerator to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
BThe connection must be in compliance
with national regulations.
BThe power cable plug must be easily
accessible after installation.

EN
10
BThe specified voltage must be equal to
your mains voltage.
BExtension cables and multiway plugs
must not be used for connection.
BA damaged power cable must be
replaced by a qualified electrician.
BThe appliance must not be operated
before it is repaired! There is danger of
electric shock!
Disposing of the packaging
AThe packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose them of by
classifying them in accordance
with the waste instructions. Do not
dispose them of along with the normal
household waste.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old machine without
giving any harm to the environment.
AYou may consult your authorized dealer
or waste collection center of your
municipality about the disposal of your
refrigerator.
A Before disposing of your refrigerator,
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
BCaution: Never plug the refrigerator
into the wall outlet during installation.
Otherwise, risk of death or serious injury
may arise.
AIf the entrance door of the room
where the refrigerator will be installed is
not wide enough for the refrigerator to
pass through, than call the authorised
service to have them remove the doors
of your refrigerator and pass it sideways
through the door.
1. Install your refrigerator to a place that
allows ease of use.
2. Keep your refrigerator away from
heat sources, humid places and direct
sunlight.
3. There must be appropriate air
ventilation around your refrigerator in
order to achieve an efficient operation.
If the refrigerator is to be placed in a
recess in the wall, there must be at least
5 cm distance with the ceiling and at
least 5 cm with the wall.
If the floor is covered with a carpet, your
product must be elevated 2.5 cm from
the floor.
4. Place your refrigerator on an even
floor surface to prevent jolts.
5. Do not keep your refrigerator in
ambient temperatures under 10°C.
BVoltage and allowable fuse protection
are specified in the “Technical
Specifications” section.

EN
11
Floor balance adjustment
AIf your refrigerator is unbalanced;
BFirst unplug the product. The product
must be unplugged when making the
balance adjustment. There is the risk of
electric shock.
4
1 2 3

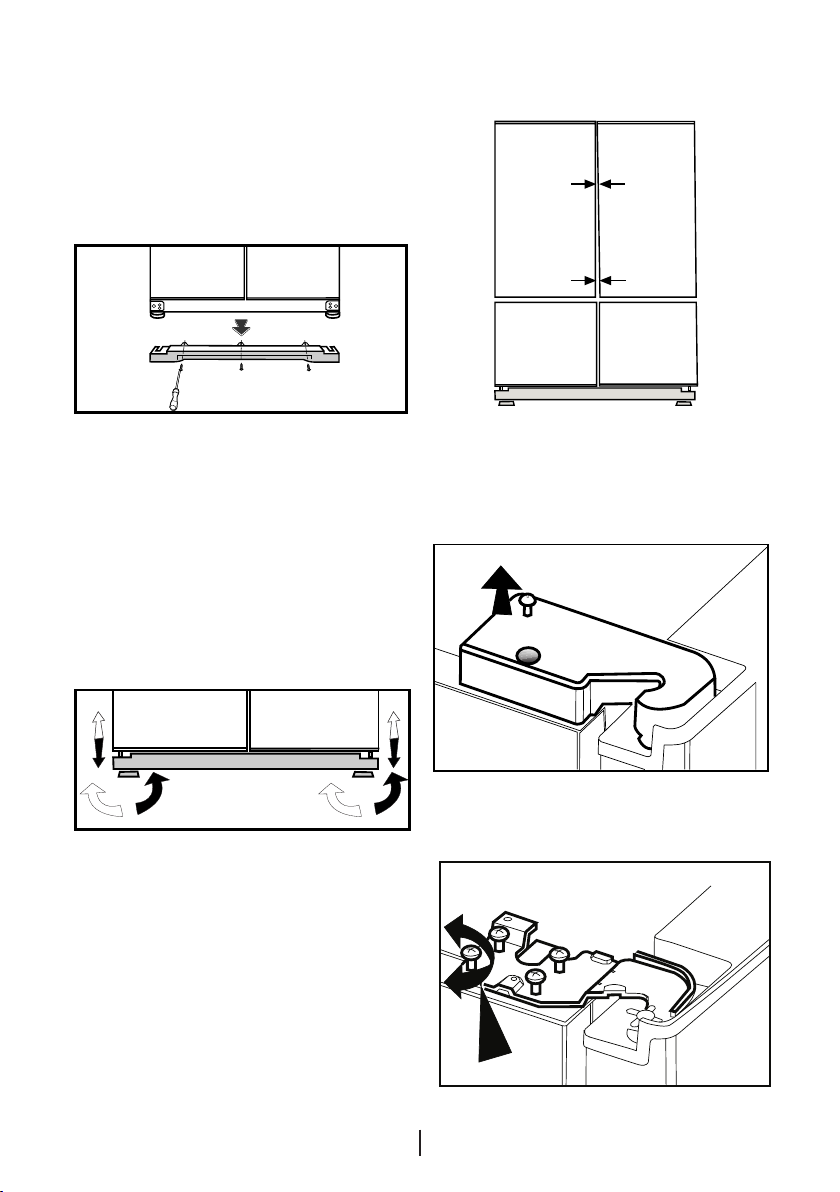

1- Ventilation cover is removed by
unscrewing its screws as illustrated in
the figure before the procedure. You
can balance your refrigerator by turning
the front legs of it as illustrated in the
figure. The corner where the leg exists is
lowered when you turn in the direction of
black arrow and raised when you turn in
the opposite direction. Taking help from
someone to slightly lift the refrigerator will
facilitate this process.
2. After the balance issue is remedied,
install back the ventilation cover and
fasten the screws.
3. Remove the screws fastening the
lower ventilation cover using a Philips
screwdriver.
Adjusting the gap between
the upper door
CYou can adjust the gap between the
fridge compartment doors as illustrated
in the figures.
Door shelves should be empty when
adjusting the door height.
C Using a screwdriver, remove the
screw of upper hinge cover of the door
you want to adjust.

EN
12
C Adjust the door appropriately as you
desire by loosing the screws.
C Fix the door you have adjusted by
tightening the screws without changing
the position of the door.
C Replace the hinge cover and fix with
the screw.
Changing the illumination
lamp
To change the Bulb/LED used for
illumination of your refrigerator, call your
AuthorisedService.
The lamp(s) used in this appliance
is not suitable for household room
illumination. The intended purpose of
this lamp is to assist the user to place
foodstuffs in the refrigerator/freezer in
a safe and comfortable way.The lamps
used in this appliance have to withstand
extreme physical conditions such as
temperatures below -20 °C.
(only chest and upright freezer)

EN
13
Installing Water Filter
(in some models)
Two different water sources may
be connected to the refrigerator for
water supply: the mains cold water
supply and water in a jug.
Installation Requirements
A pump should be used for jug water
usage.

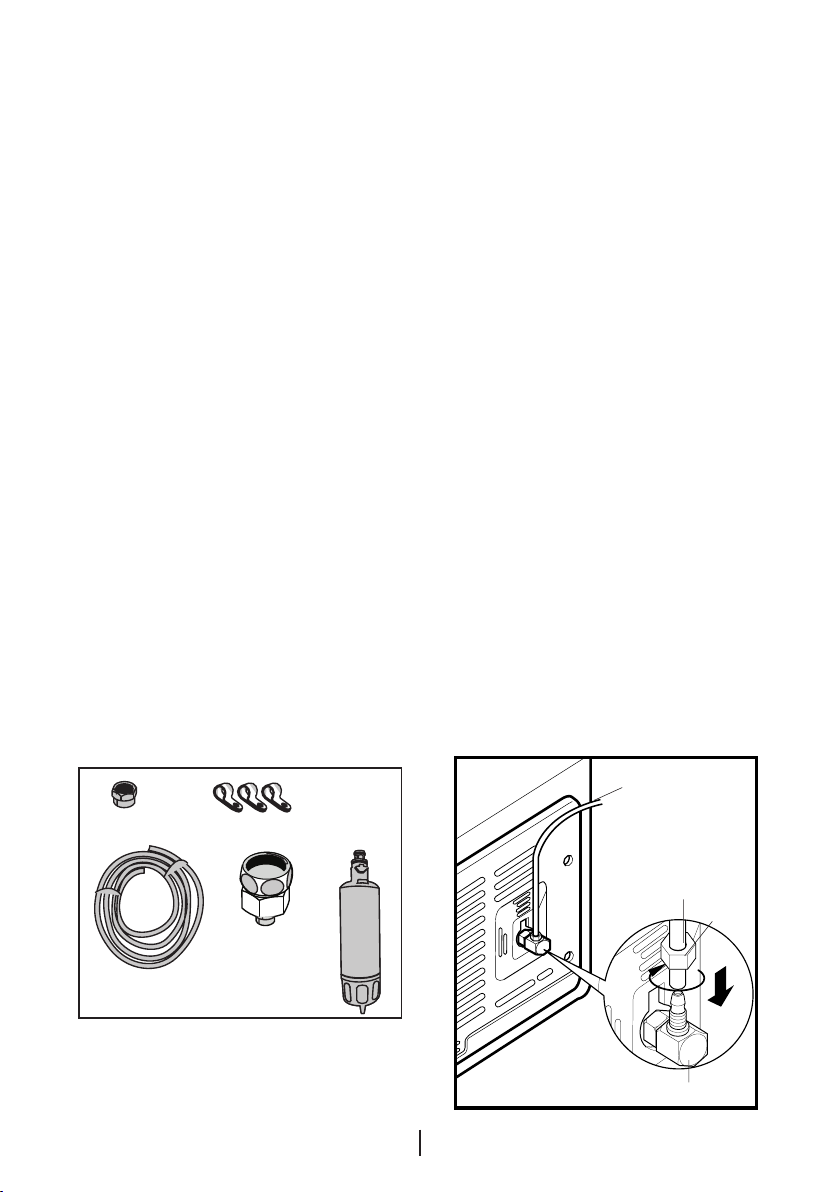

Check that the parts stated below are
supplied with your appliance.
1. Union for connection of the water
pipe to the rear of the appliance. (If it
does not fit, provide it from the nearest
authorized service.)
2. 2 pieces of pipe clips (In case required
to secure the water pipe)
Note: Since the following parts are not
required in use with a jug, they may not
be found in the product you purchased.
3. 5-meter long water pipe (1/4 inch in
diameter)
4. Cold mains water valve with mesh filter
(Tap Adapter)
5. Water Filter or externally connectable
filter to be fitted to the bracket inside
the fridge compartment.
Place where the external filter is going to
be fitted should be determined first.
(Applies to the filter being used outside
the refrigerator.) Then, determine the
distance between the filter and the
refrigerator and required hose lengths
from the filter to the refrigerator water
inlet.
Water filter must be hold upright as shown
in the figure. It is important to properly
attach the filter to water inlet and water
outlet points.
After attaching the filter, do not use first 3-4
glasses of water.
Connection of the Water
Pipe to the Refrigerator
1. After installing the union onto the
water pipe, insert the water pipe to
the refrigerator inlet valve by pressing
downwards firmly.
2. Fix union as seen in the opposite
figure, by squeezing by hand on the
refrigerator inlet valve.
(a- Water Pipe, b-Union, c-Valve)
CNote 1: You should not need to
tighten the union with a tool to achieve
water tight assembly. In case of a leak
use a spanner or a pair of pliers to
tighten the union.
3
1
4
2
*5
c
a
a
b
1
2

EN
14
Connection of Water Hose to
the Jug
(in some models)
To connect water to the refrigerator from
a jug, a pump is needed. Follow the
instructions below after connecting one
end of the water pipe coming out of the
pump to the refrigerator as described on
the previous page.
1. Finish the connection by pushing the
other end of the water pipe into the
water pipe inlet of the pump as shown
in the figure.
2. Put and fix the pump hose into the jug
as shown in the figure.
3. After completing the connection, plug in
and run the pump.
To provide an efficient operation of the
pump, wait for 2-3 minutes after
starting the pump.
CYou may refer to the user manual
of the pump while making the water
connection.
CThere is no need to use water filter in
case a jug is used.
CPump must be used when jug will be
used.

EN
15
Connection of the Water
Pipe to the Cold Water Mains
Line
(in some models)
If you want to use your refrigerator by
connecting it to the cold water mains
line,
you will have to connect a standard 1/2"
valve connection fitting to the cold water
supply in your house. In case this valve is
not present or in case you are not sure,
consult a qualified plumber.

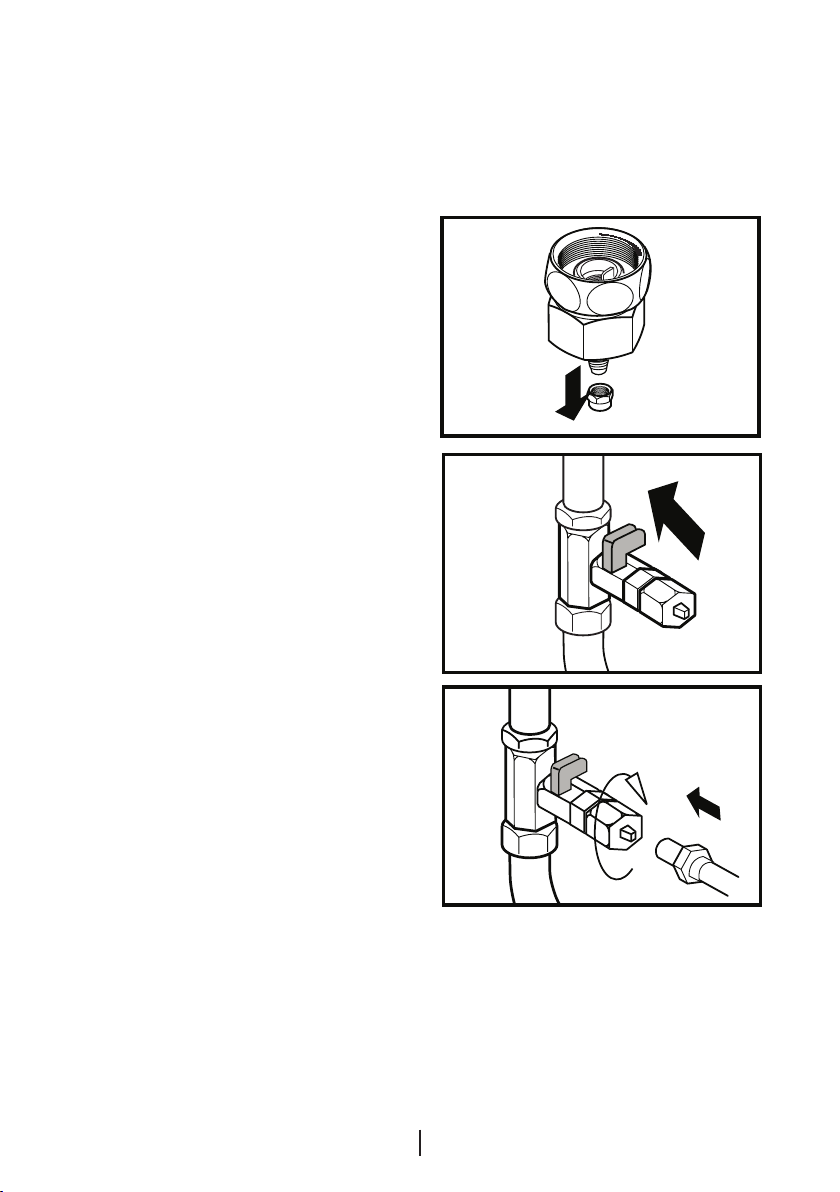

1. Separate the union from the tap
adaptor. (Figure A)
2. Install the tap adaptor to 1/2” valve
fitting as shown in the figure. (Figure B)
3. After inserting the water pipe to the
union, install it to the tap adaptor and
insert to the tap as shown in the figure.
(Figure C)
4. Tighten the union manually. In case of a
leak use a spanner or a pair of pliers to
tighten the union.
ACaution: Secure the water pipe
to suitable points by means of the
pipe clips supplied to avoid any
damage or displacement or accidental
disconnection.
ACaution: After turning on the water
valve, make sure that there is no leakage
at both connection points of the water
pipe. In case of a leak, turn off the valve
immediately and tighten all joints again
using a spanner or a pair of pliers.
ACaution: Make sure that standard
1/2" valve fitting fed by cold mains water
supply is available and is turned off fully.

EN
16

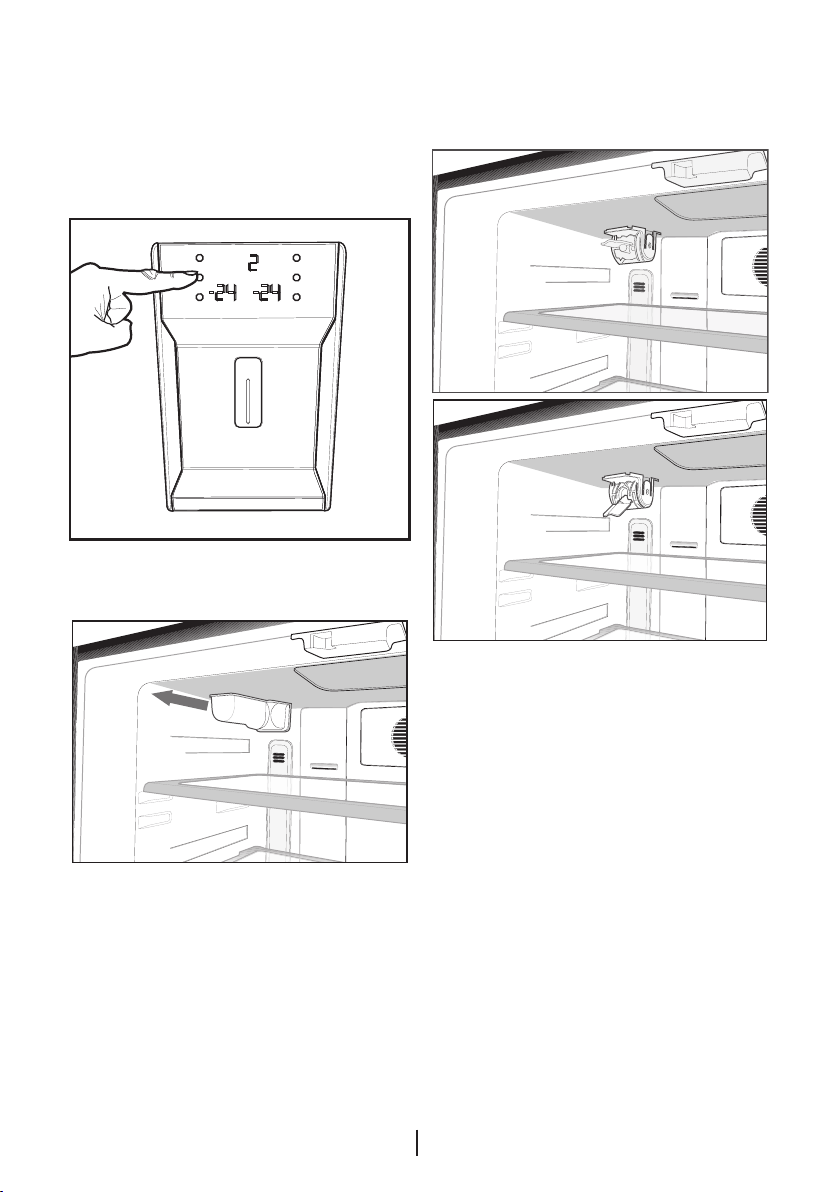

To fit the water filter follow the
instructions below referring to figures
supplied:
1. Press ice cancel button on the display.
2. Remove the filter cover in the fridge
compartment by pulling it forward.
3. Take out the water filter by-pass cover
by rotating it downwards.
ACaution: Make sure that the “Ice off”
mode is active before taking out the by-
pass cover.
Note: It is normal that a few drops of
water drip after the cover has been taken
out.
4. Remove the lid on top of the water filter
to place it as shown in the figure and
turn upwards to lock it.
5. Press ice cancel button on the display
again to exit from this mode.
Water filter should be replaced every 6
months.
If you want to have the filter change time
calculated automatically and receive a
warning at the end of usage time, please
read "Calculating the Filter Usage Time
Automatically" section.

EN
17
The water filter must be removed as
shown in the figure when it is going to
be replaced or when it will no longer
be used and by-pass cover must be
attached. It must be made sure that Ice
Off mode is active before taking it out.
ACaution: Water filter cleans some
foreign particles in the water. It does not
purify water from microorganisms.
ACaution: Ice Off button must always
be pressed during replacement of the
water filter or installing the by-pass
cover.
Prior to first use of Water
Dispenser
CWater mains pressure must not be
below 1 bar.
CWater mains pressure must not be
above 8 bars.
CPumps must be used in case the
supply water pressure drops below 1 bar
or if a jug is going to be used.
CWater system of the refrigerator must
be connected to the cold water line. It
must not be connected to hot water line.
CNo water may be obtained in the
initial operation of the refrigerator. This
is caused by the air in the system. To
discharge air from the system, press
Dispenser latch for periods of 1 minute
until water comes from the Dispenser.
Water flow may be irregular in the
beginning. Irregular water flow will be
normalized after the air in the system is
discharged.
CAt the initial startup of the refrigerator
approx.12 hours must pass before cold
water can be obtained.
CWater mains pressure must be
between 1-8 bars for the operation of
Ice/Water Dispenser smoothly. For this,
check that 1 glass of water (100 cc) can
be filled in 10 seconds.
CThe first 10 glasses of water should
not be consumed.
CApproximately the first 30 cubes
of ice to be obtained from the Ice
Dispenser must not be used.
CAlways use the water filter when a jug
is not being used.

EN
18
4Preparation
CYour refrigerator should be installed at
least 30 cm away from heat sources
such as hobs, ovens, central heater
and stoves and at least 5 cm away
from electrical ovens and should not be
located under direct sunlight.
CThe ambient temperature of the room
where you install your refrigerator
should at least be 10°C. Operating your
refrigerator under cooler conditions
than this is not recommended with
regard to its efficiency.
CPlease make sure that the interior of
your refrigerator is cleaned thoroughly.
CIf two refrigerators are to be installed
side by side, there should be at least 2
cm distance between them.
CWhen you operate your refrigerator
for the first time, please observe the
following instructions during the initial
six hours.
- The door should not be opened
frequently.
- It must be operated empty without
any food in it.
- Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
COriginal packaging and foam
materials should be kept for future
transportations or moving.

EN
19
5Using your refrigerator
Indicator Panel
This touch-control indicator panel allows you to set the temperature without opening
the door of your refrigerator. Just touch the relevant button with your finger to set the
temperature.
1. Eco-Extra / Vacation Button
2. Fast Freeze Button
3. Freezer Compartment Temperature
Setting Button
4. Fridge Compartment Temperature
Setting Button
5. Quick Cool Button
6. Multi Zone Compartment
Temperature Setting Button
7. Vacation Function Indicator
8. Eco-Extra Function Indicator
9. Fast Freeze Function Indicator
10. Freezer Compartment Temperature
Indicator
11. Fridge Compartment Temperature
Indicator
12. Quick Cool Function Indicator
13. Multi Zone Compartment Temperature
Indicator
14. Economy Mode Indicator
15. Error Status Indicator
16. Key Lock Indicator
17. Ice Cancel Button
18. Ice Off indicator
19. Cancel Filter Change Warning Button
20. Filter Change Warning Indicator
1 7 11 12 15 4
5
6
2
3
16
17
18 20 19
10 9 14 138
C Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
